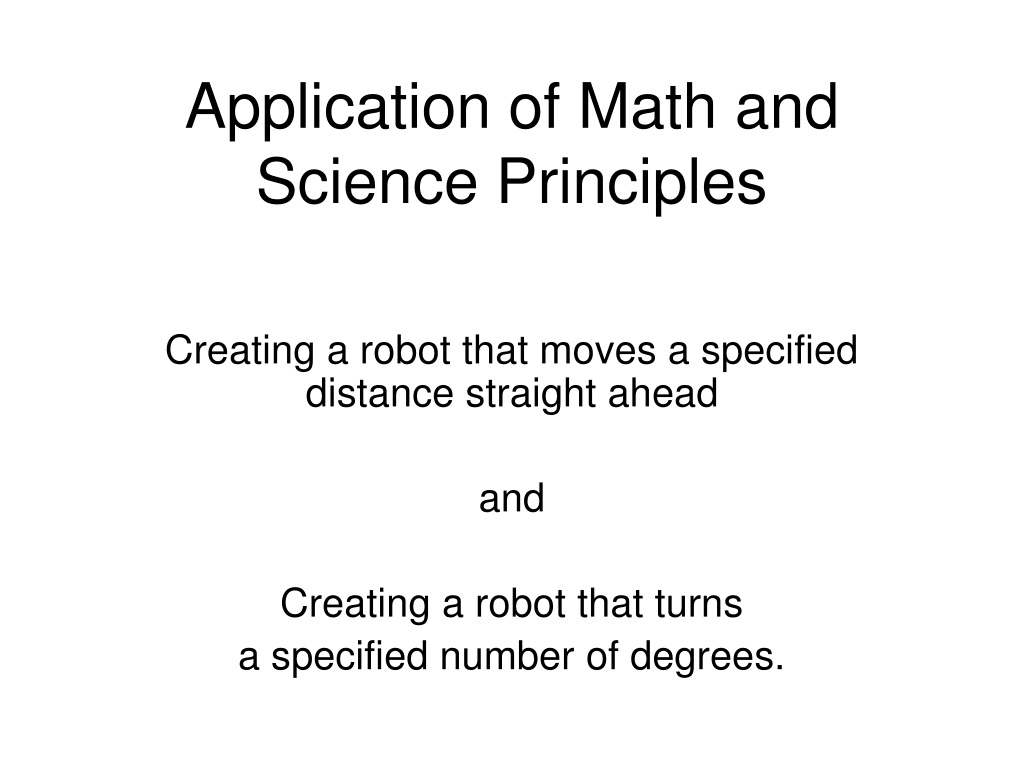

  1. Application of Math and Science Principles Creating a robot that moves a specified distance straight ahead and Creating a robot that turns a specified number of degrees.

  2. NXT Smart Motors

  3. NXT Smart Motors • How do the motors keep track of the distance traveled? • The interactive Servo Motors have built-in Rotation Sensors that measure how much the motor has rotated to the nearest two degrees.

  4. Moving Straight Program Details

  5. Determine the relationship between wheel size, motor rotations and distance traveled. The goal is to find out how to move your robot a certain distance predictably in centimeters. Investigating Wheels and Distance

  6. Hypothesis • For every 360 degrees of wheel rotation the robot travels one circumference of the robot’s tires. • Distance traveled = circumference X rotations

  7. Procedure Step 1 • Measure the diameter of the wheel. • Using the diameter calculate the circumference.[C = π * D] • Calculate the distance your robot will travel for three complete rotation of the wheel. [Distance = C * Rotations] π = 3.14

  8. Procedure Step 2 • Run the robot and measure how far it actually goes with the move straight program you created. • Repeat the run and measure 3 times. Take the average of that measurement and compare it to the calculations you made in Step 1. • How close is the calculated to the actual robot movement?

  9. Turning the robot • Robots can perform two different types of turns: • Point Turns • Point turns rotate both wheels in opposite directions causing the robot to spin in place. • Swing Turns • Swing turns rotate one wheel and stop the other, causing the robot to swing.

  10. Point Turn Program Details Point turns rotate both wheels in opposite directions causing the robot to spin in place.

  11. Swing Turn Program Swing turns rotate one wheel and stop the other, causing the robot to swing

  12. Swing Turn Motor Block 1 Details

  13. Swing Turn Motor Block 2 Details

  14. Creating Measured Turns A 90° turn should be ¼ of the distance the wheel travels around the circle.

  15. Creating Measured Turns Hypothesis: • As the robot makes a swing turn the moving wheel traces out a portion of a circle. The amount the robot turns is proportional to the portion of the circle that the wheel travels. • A 90° turn should be ¼ of the distance the wheel travels around the circle.

  16. Remember you want the robot to turn 90°Not the wheel to turn 90°.

  17. Create a Pen Attachment

  18. Using the Swing Turn Program • Place the robot on a large sheet of paper. Make sure the tracer attachment will leave a mark as the robot moves. • Run the program. When the robot has traced at least one full circle press the grey button on the NXT to stop the program.

  19. Measure the diameter of the traced circle. Calculate the circumference of the traced circle.[C = π * D] Measure the path traced by the robot’s wheel

  20. Calculating for a 90° turn Fill in all Known Variables Simplified {C = π * D} Insert the Number you Calculated Here Circumference of the Traced Circle {C= * D} Distance Traveled by Wheel for a 90° turn

  21. The distance the wheel travels is equal to the number of times the wheel turns, times the circumference of the wheel. Distance Traveled by Wheel for a 90° turn Number you just Calculated for Distance Traveled by Wheel for a 90° turn = 17.6 cm X

  22. Number you just Calculated for Distance Traveled by Wheel for a 90° turn 17.6 cm Fill in the variables using the numbers you calculated previously for your robot and simplify 360 X = Final Calculation determines number of motor degrees to be input into the rotation senor’s dialog box to make the robot spin 90° to the right.

  23. Number you just Calculated for Distance Traveled by Wheel for a 90° turn 17.6 cm Calculations for a 90° turn Simplified formula for Calculation part one Circumference of the Traced Circle {C= * D} Distance Traveled by Wheel for a 90° turn Simplified formula for Calculation part two 360 X =

  24. Using the number of degrees you used to make the robot turn 90 degrees with a swing turn. Calculate how many motor degrees the program would need to spin to turn the robot: • 180 degrees ? • 270 degrees ? • 360 degrees ? • 450 degrees ?

  25. Using the number of degrees you used to make the robot turn 90 degrees with a swing turn. Calculate how many motor degrees the program would need to spin to turn the robot: • 180 degrees = 778 • 270 degrees = 1167 • 360 degrees = 1556 • 450 degrees = 1945
