Adjustable Angle Rotating Base for Cube-Sat Lifting and Releasing Assembly

This innovative assembly features an adjustable angle rotating base, equipped with two DC motors and two couplings. One motor is dedicated to rotating the base, while the second motor adjusts the incline angle. It also includes an electro-mechanical clutch, a line spool, and additional couplings. The system is designed for precise retrieval of cube-sats: the motor operates the retrieval mechanism, and the clutch provides a quick release of the cube-sat, ensuring efficient operation during deployment and retrieval.

wyanet
Télécharger la présentation

Adjustable Angle Rotating Base for Cube-Sat Lifting and Releasing Assembly

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

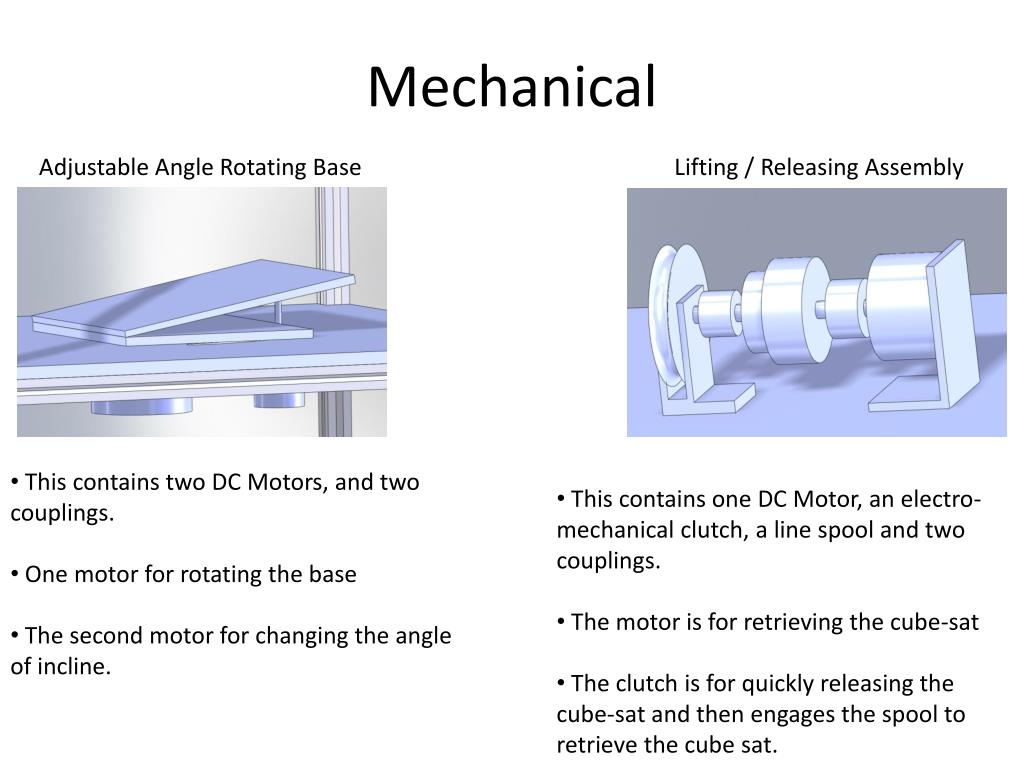

  1. Adjustable Angle Rotating Base Lifting / Releasing Assembly Mechanical • This contains two DC Motors, and two couplings. • One motor for rotating the base • The second motor for changing the angle of incline. • This contains one DC Motor, an electro-mechanical clutch, a line spool and two couplings. • The motor is for retrieving the cube-sat • The clutch is for quickly releasing the cube-sat and then engages the spool to retrieve the cube sat.
