Chapter 10: File-System Interface Chapter 11: File-System Implementation

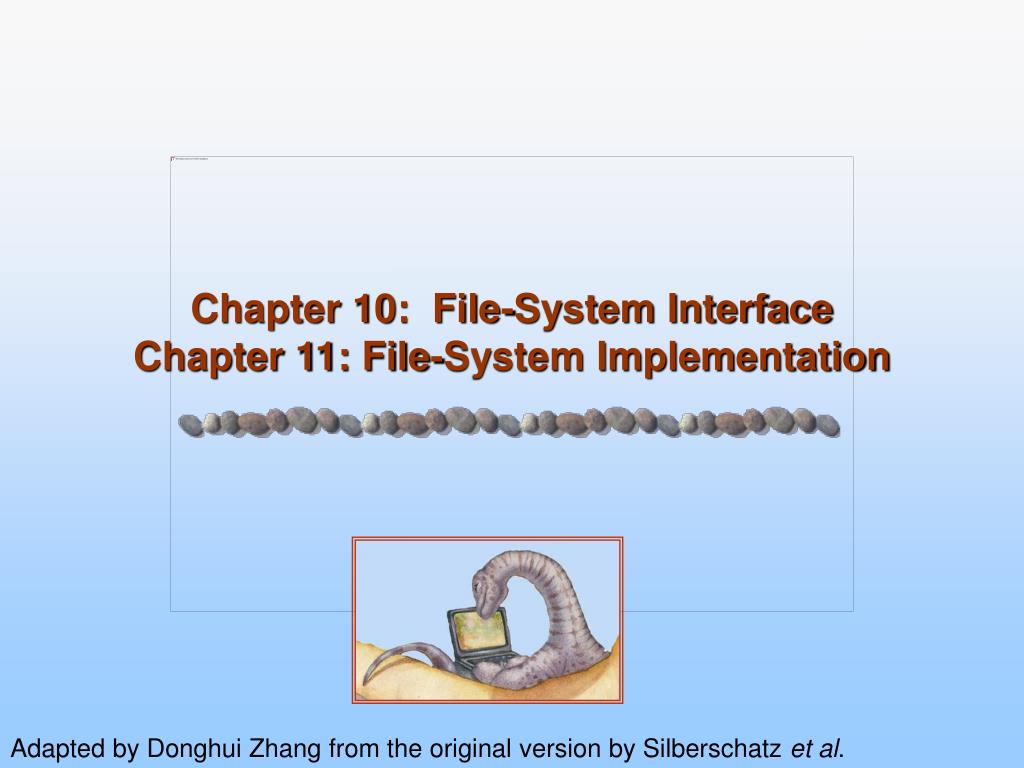

1. Chapter 10: File-System InterfaceChapter 11: File-System Implementation Adapted by Donghui Zhang from the original version by Silberschatz et al.

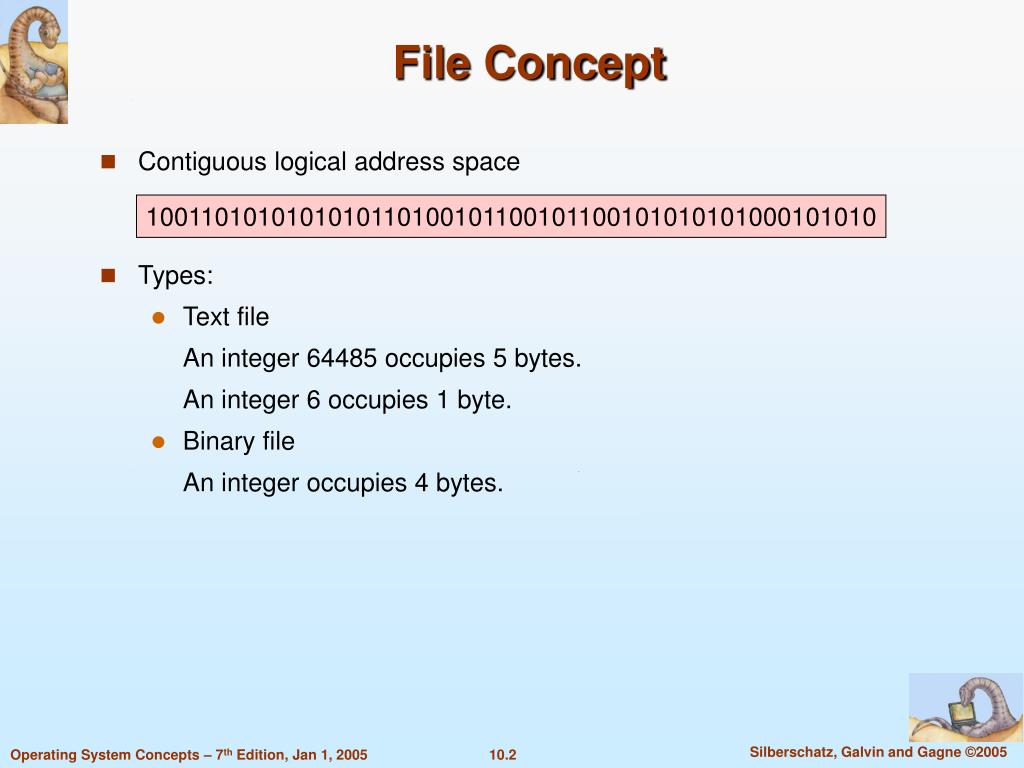

2. File Concept • Contiguous logical address space • Types: • Text file An integer 64485 occupies 5 bytes. An integer 6 occupies 1 byte. • Binary file An integer occupies 4 bytes. 1001101010101010110100101100101100101010101000101010

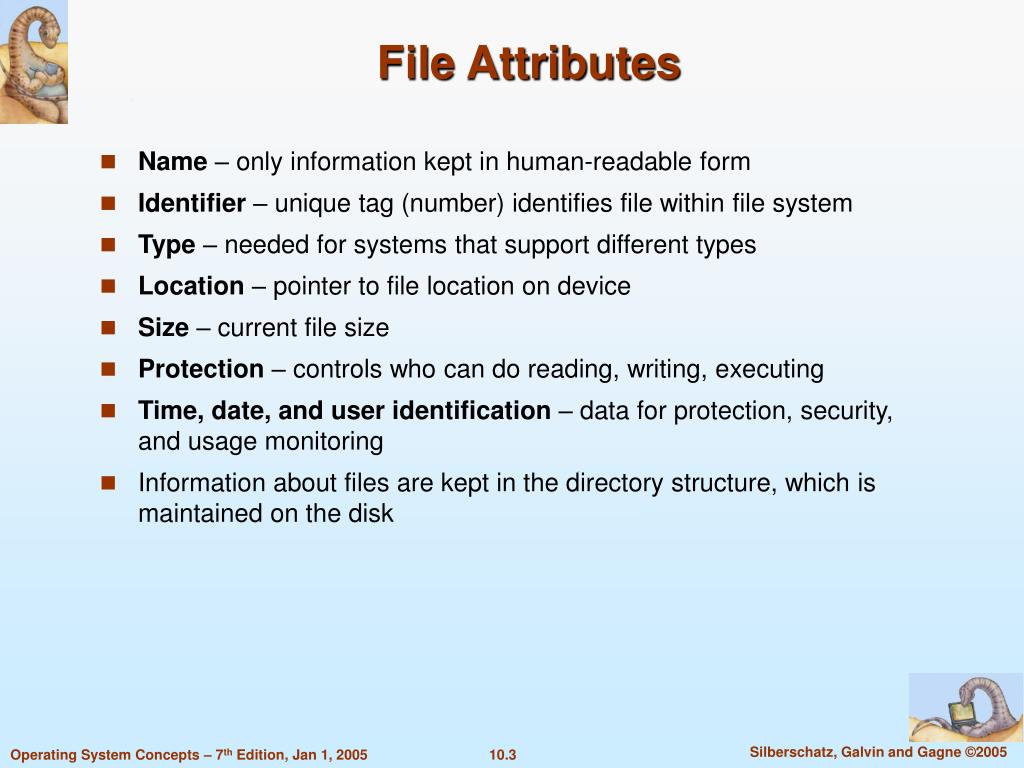

3. File Attributes • Name – only information kept in human-readable form • Identifier – unique tag (number) identifies file within file system • Type – needed for systems that support different types • Location – pointer to file location on device • Size – current file size • Protection – controls who can do reading, writing, executing • Time, date, and user identification – data for protection, security, and usage monitoring • Information about files are kept in the directory structure, which is maintained on the disk

4. File Operations • File is an abstract data type • Create • Write • Read • Reposition within file • Delete • Truncate • Open(Fi) – search the directory structure on disk for entry Fi, and move the content of entry to memory • Close (Fi) – move the content of entry Fi in memory to directory structure on disk

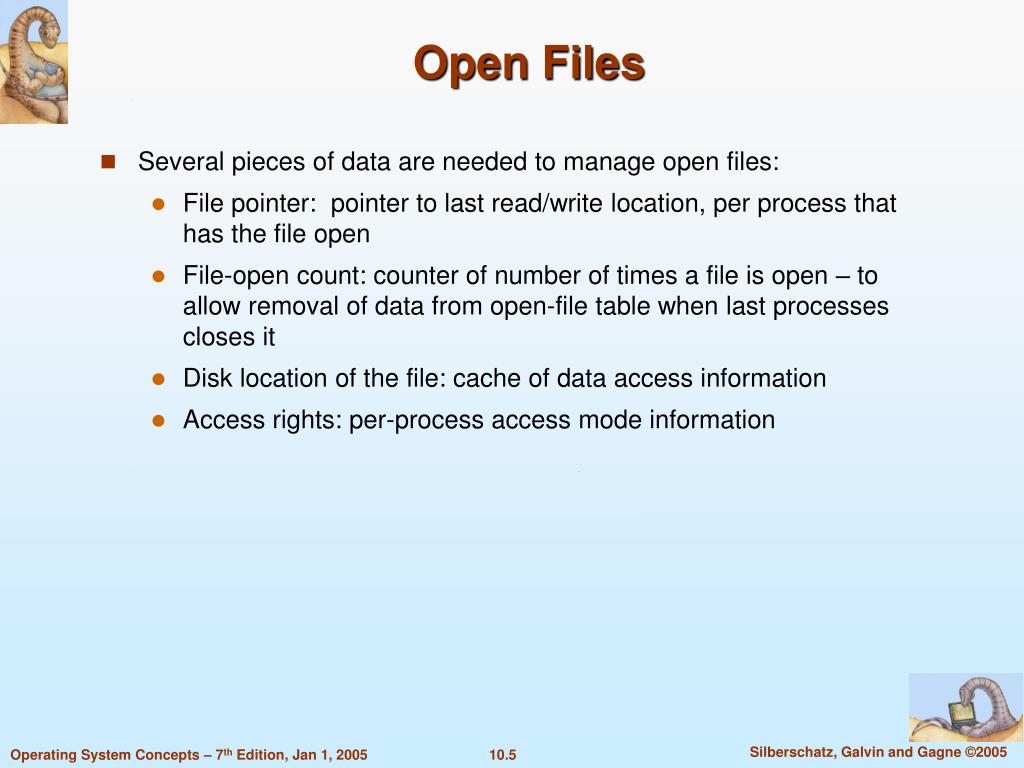

5. Open Files • Several pieces of data are needed to manage open files: • File pointer: pointer to last read/write location, per process that has the file open • File-open count: counter of number of times a file is open – to allow removal of data from open-file table when last processes closes it • Disk location of the file: cache of data access information • Access rights: per-process access mode information

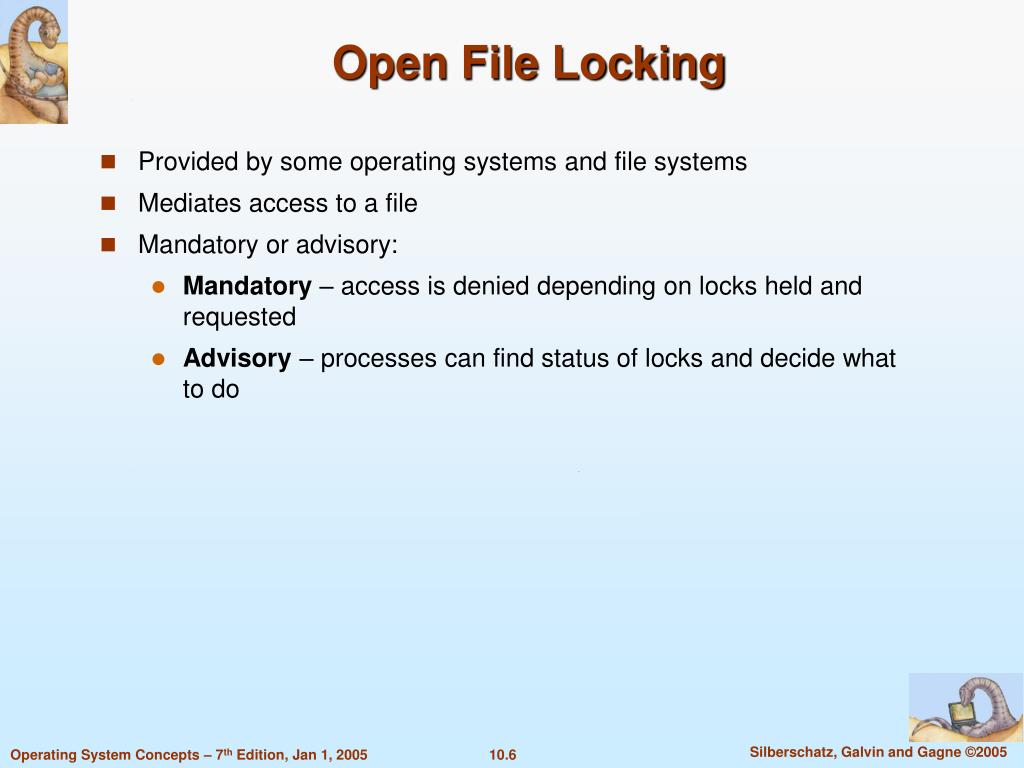

6. Open File Locking • Provided by some operating systems and file systems • Mediates access to a file • Mandatory or advisory: • Mandatory – access is denied depending on locks held and requested • Advisory – processes can find status of locks and decide what to do

7. Sequential-access File

8. Example of Index and Relative Files

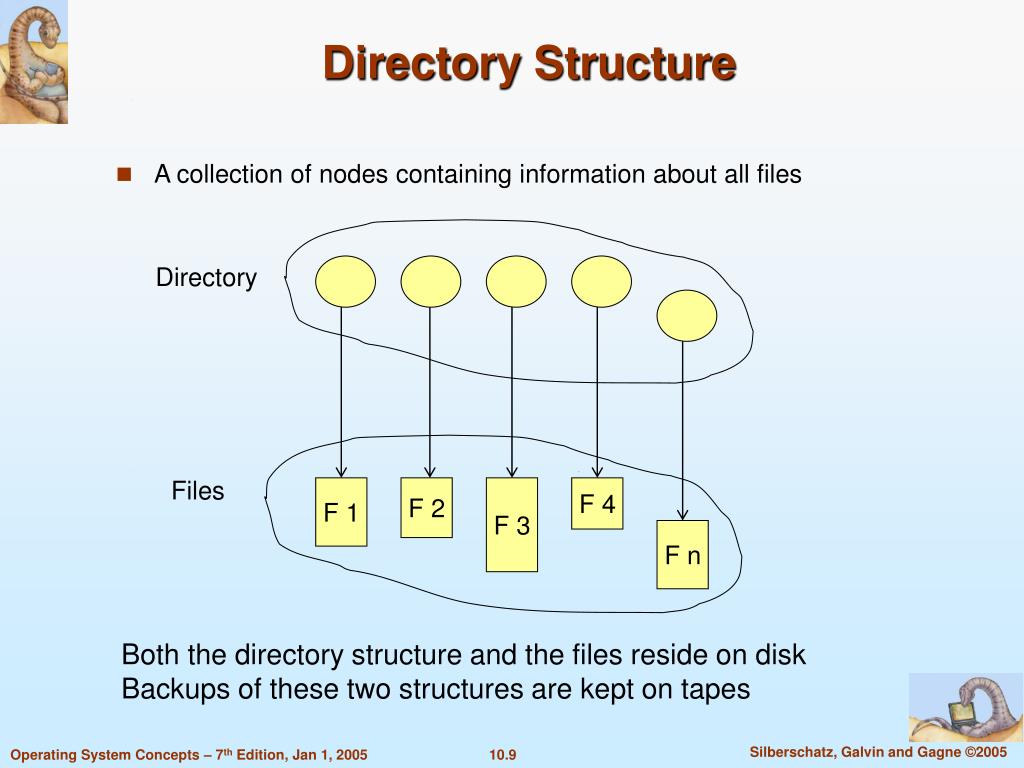

9. Directory Structure • A collection of nodes containing information about all files Directory Files F 1 F 2 F 3 F 4 F n Both the directory structure and the files reside on disk Backups of these two structures are kept on tapes

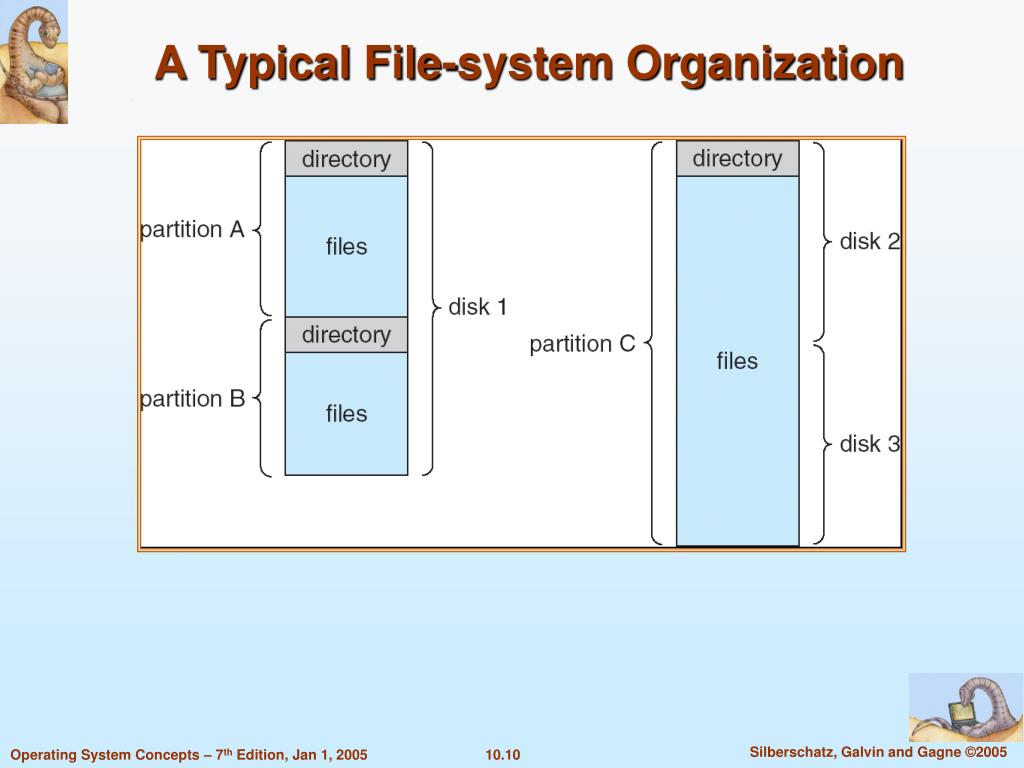

10. A Typical File-system Organization

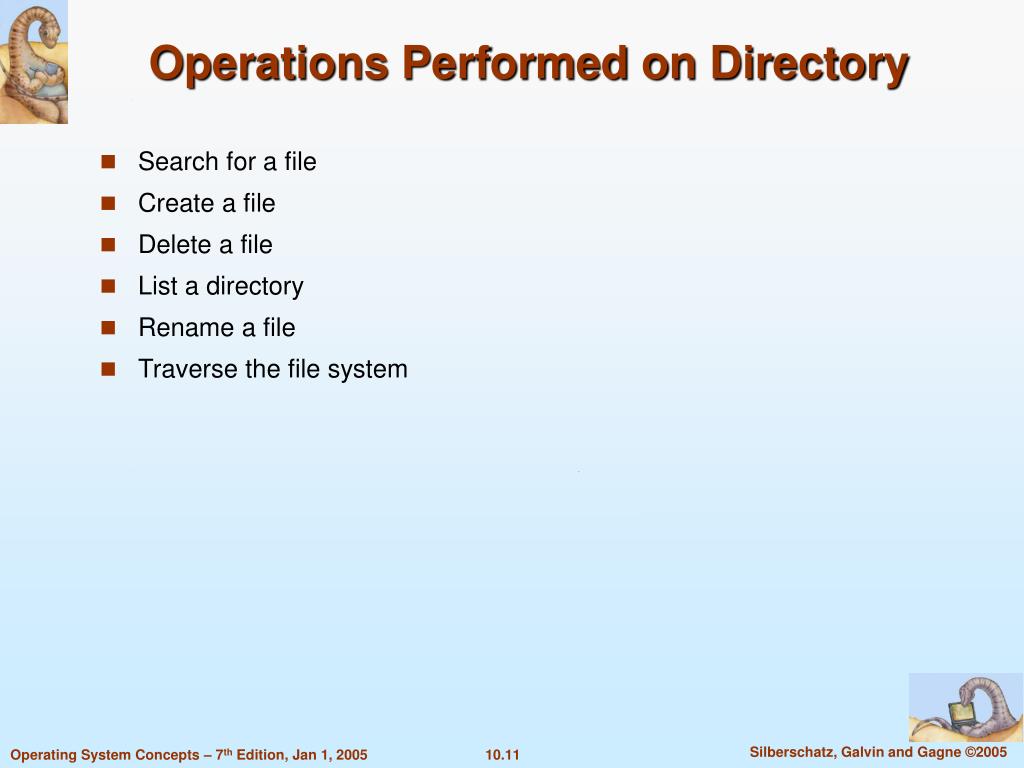

11. Operations Performed on Directory • Search for a file • Create a file • Delete a file • List a directory • Rename a file • Traverse the file system

12. Organize the Directory (Logically) to Obtain • Efficiency – locating a file quickly • Naming – convenient to users • Two users can have same name for different files • The same file can have several different names • Grouping – logical grouping of files by properties, (e.g., all Java programs, all games, …)

13. Tree-Structured Directories

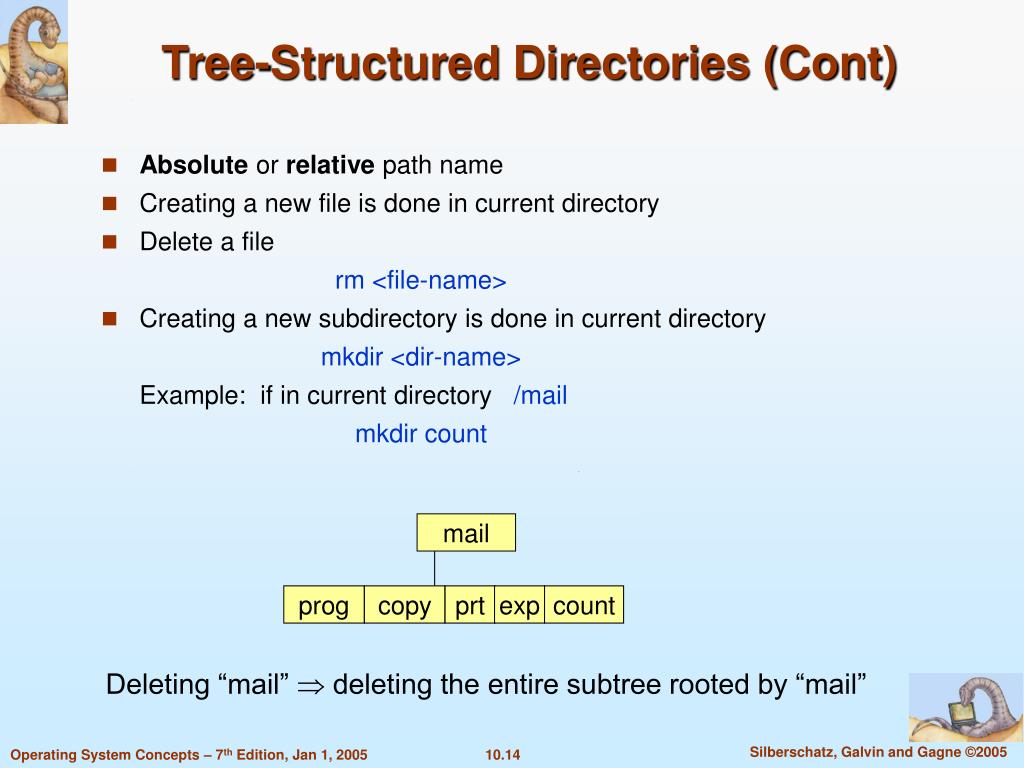

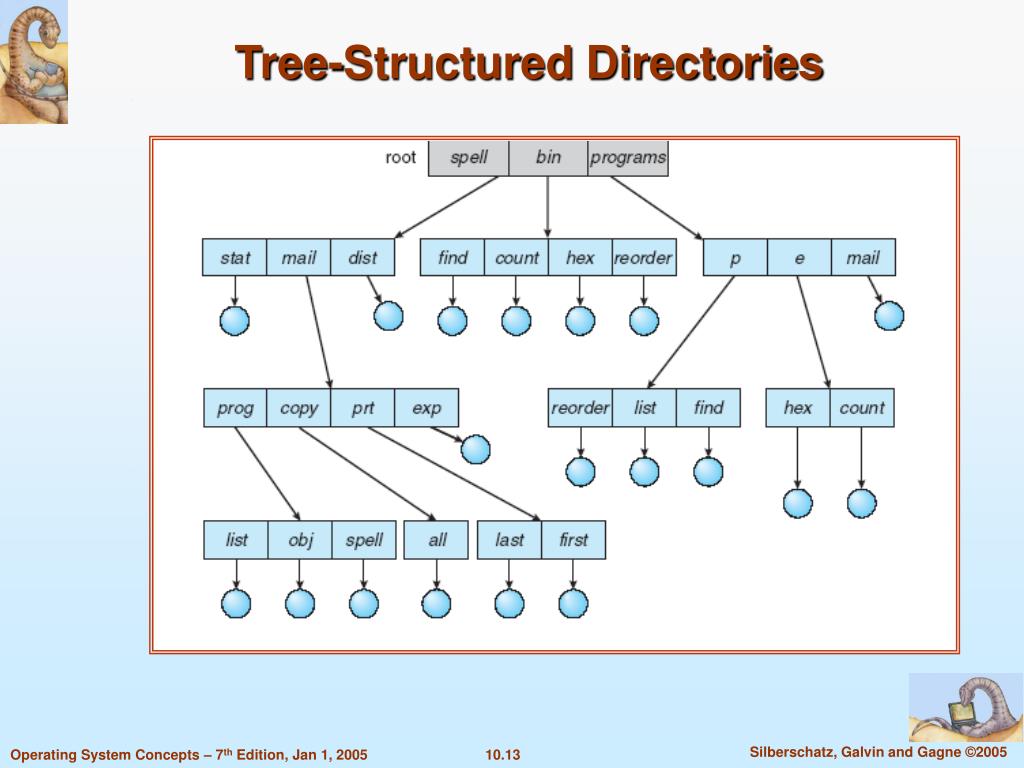

14. Tree-Structured Directories (Cont) • Absolute or relative path name • Creating a new file is done in current directory • Delete a file rm <file-name> • Creating a new subdirectory is done in current directory mkdir <dir-name> Example: if in current directory /mail mkdir count mail prog copy prt exp count Deleting “mail”  deleting the entire subtree rooted by “mail”

15. File Sharing • Sharing of files on multi-user systems is desirable • Sharing may be done through a protection scheme • On distributed systems, files may be shared across a network • Network File System (NFS) is a common distributed file-sharing method

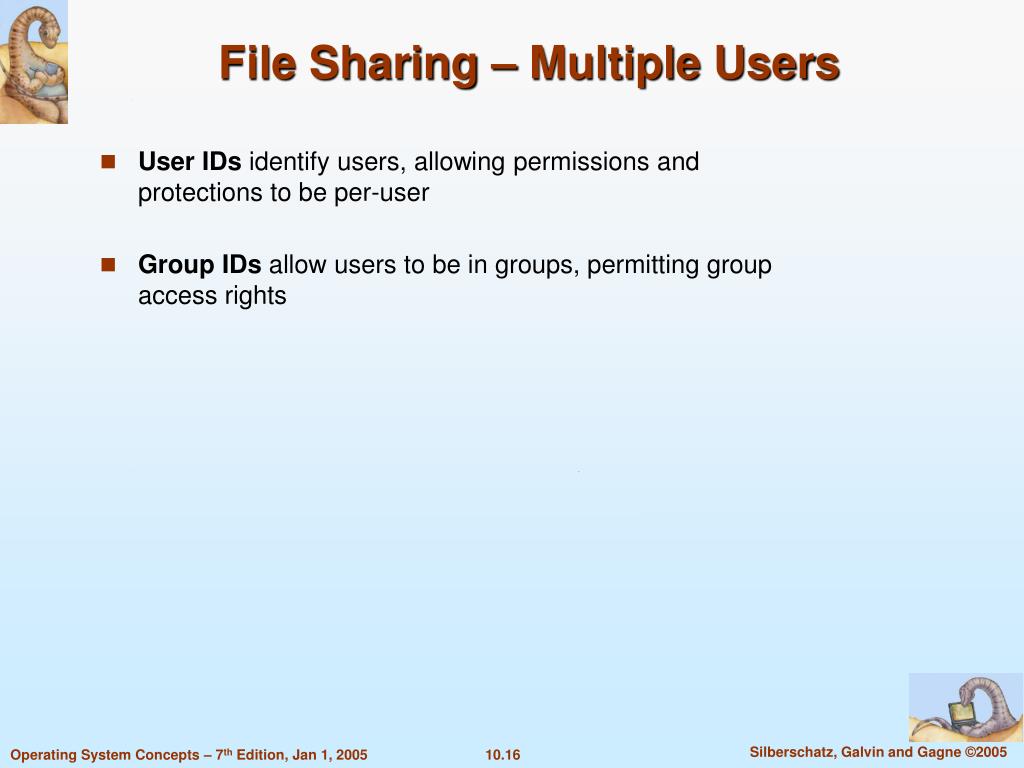

16. File Sharing – Multiple Users • User IDs identify users, allowing permissions and protections to be per-user • Group IDs allow users to be in groups, permitting group access rights

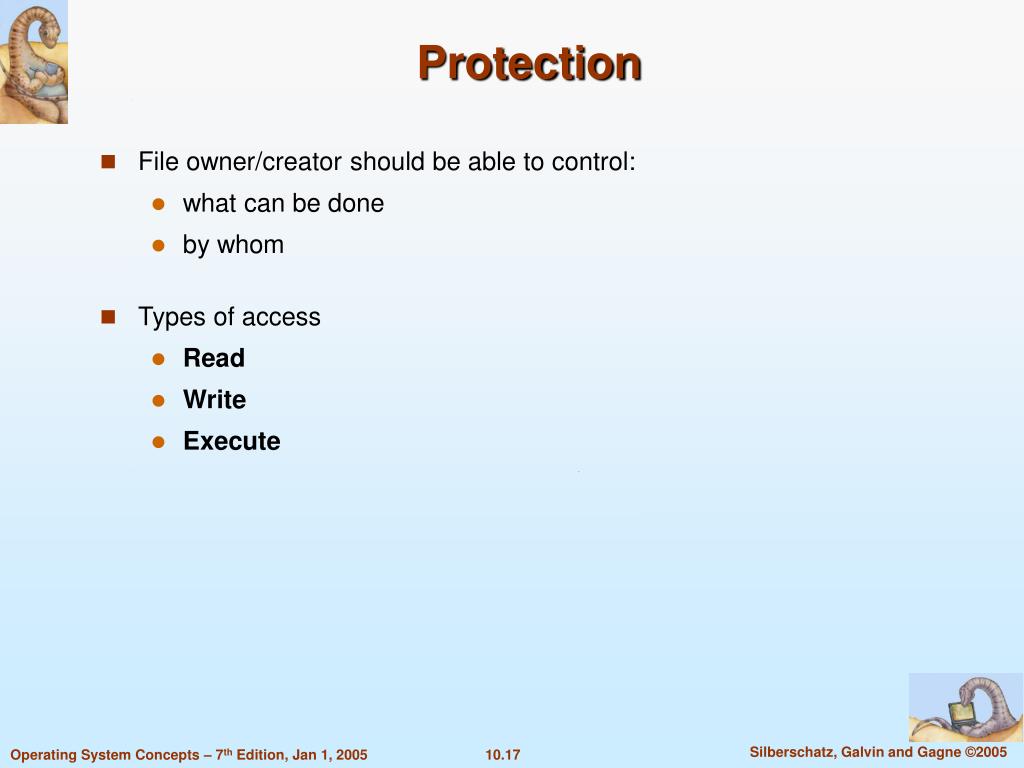

17. Protection • File owner/creator should be able to control: • what can be done • by whom • Types of access • Read • Write • Execute

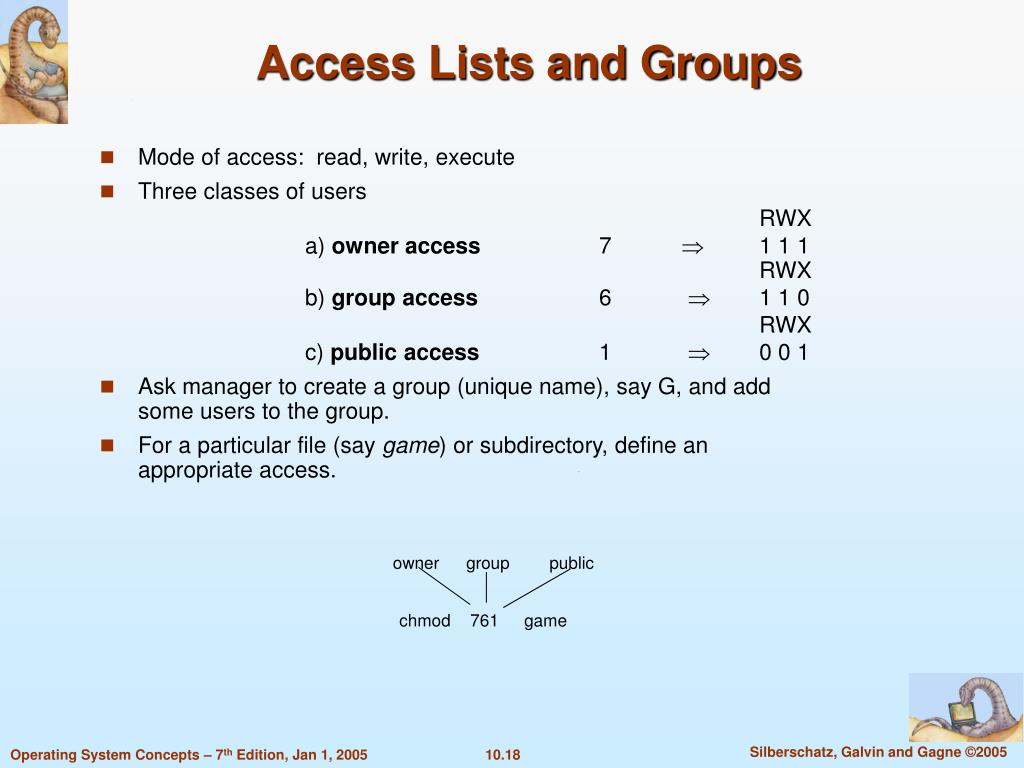

18. Access Lists and Groups • Mode of access: read, write, execute • Three classes of users RWX a) owner access 7  1 1 1 RWX b) group access 6  1 1 0 RWX c) public access 1  0 0 1 • Ask manager to create a group (unique name), say G, and add some users to the group. • For a particular file (say game) or subdirectory, define an appropriate access. owner group public chmod 761 game

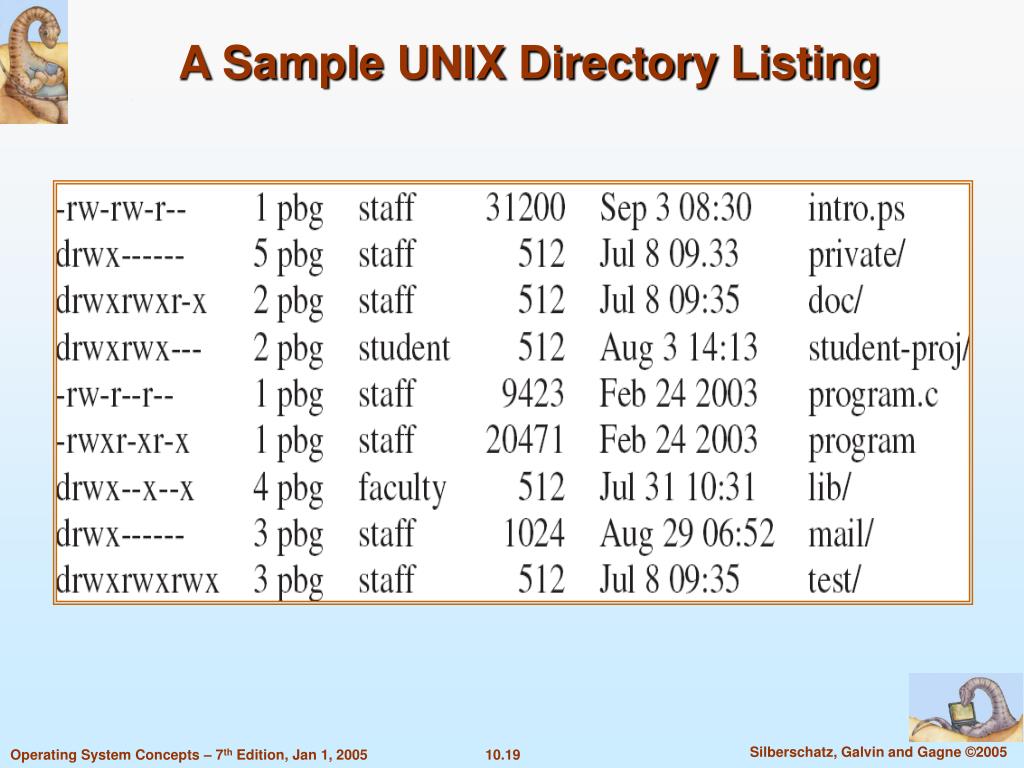

19. A Sample UNIX Directory Listing

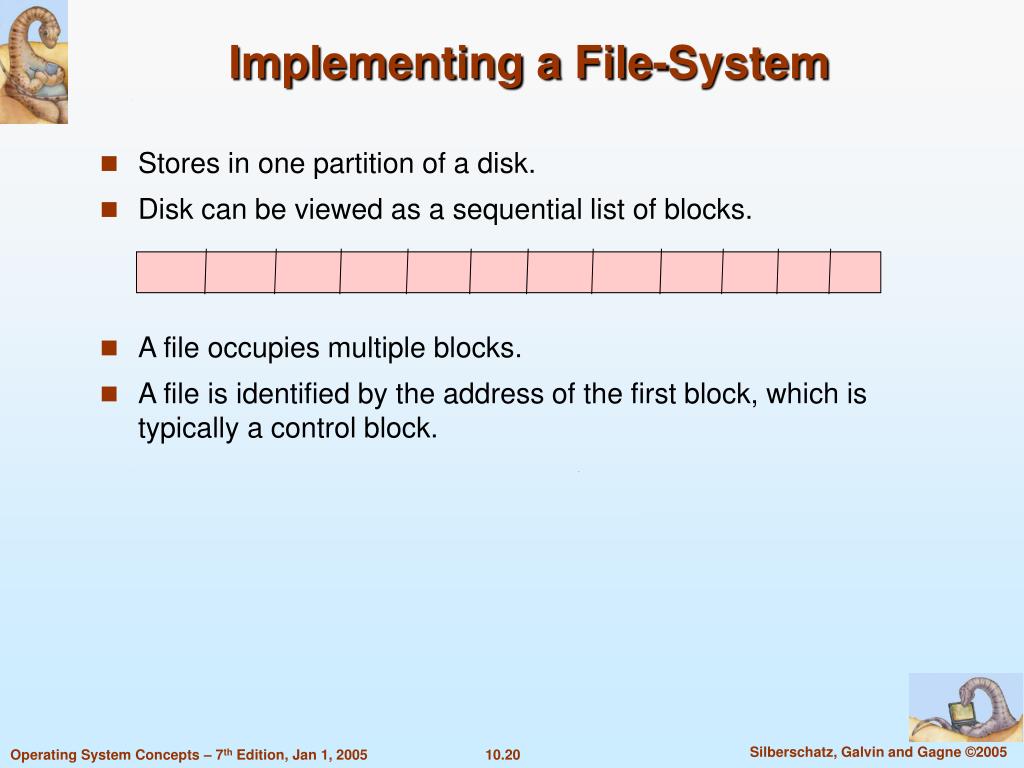

20. Implementing a File-System • Stores in one partition of a disk. • Disk can be viewed as a sequential list of blocks. • A file occupies multiple blocks. • A file is identified by the address of the first block, which is typically a control block.

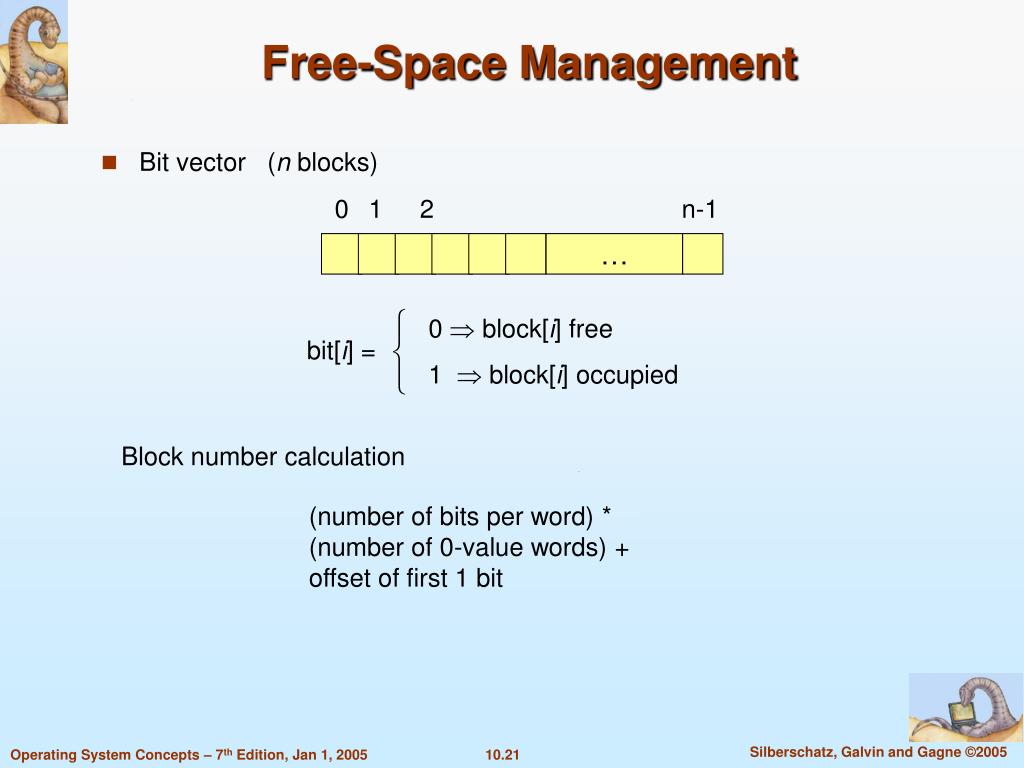

21. Free-Space Management • Bit vector (n blocks) 0 1 2 n-1 … 0  block[i] free 1  block[i] occupied bit[i] =  Block number calculation (number of bits per word) * (number of 0-value words) + offset of first 1 bit

22. Free-Space Management (Cont.) • Bit map requires extra space • Example: block size = 212 bytes disk size = 230 bytes (1 gigabyte) n = 230/212 = 218 bits (or 32K bytes) • Easy to get contiguous files • Linked list (free list) • Cannot get contiguous space easily • No waste of space • Grouping • Counting

23. Free-Space Management (Cont.) • Need to protect: • Pointer to free list • Bit map • Must be kept on disk • Copy in memory and disk may differ • Cannot allow for block[i] to have a situation where bit[i] = 1 in memory and bit[i] = 0 on disk • Solution: • Set bit[i] = 1 in disk • Allocate block[i] • Set bit[i] = 1 in memory

24. File-System Structure • File structure • Logical storage unit • Collection of related information • File system resides on secondary storage (disks) • File system organized into layers • File control block – storage structure consisting of information about a file

25. A Typical File Control Block

26. In-Memory File System Structures

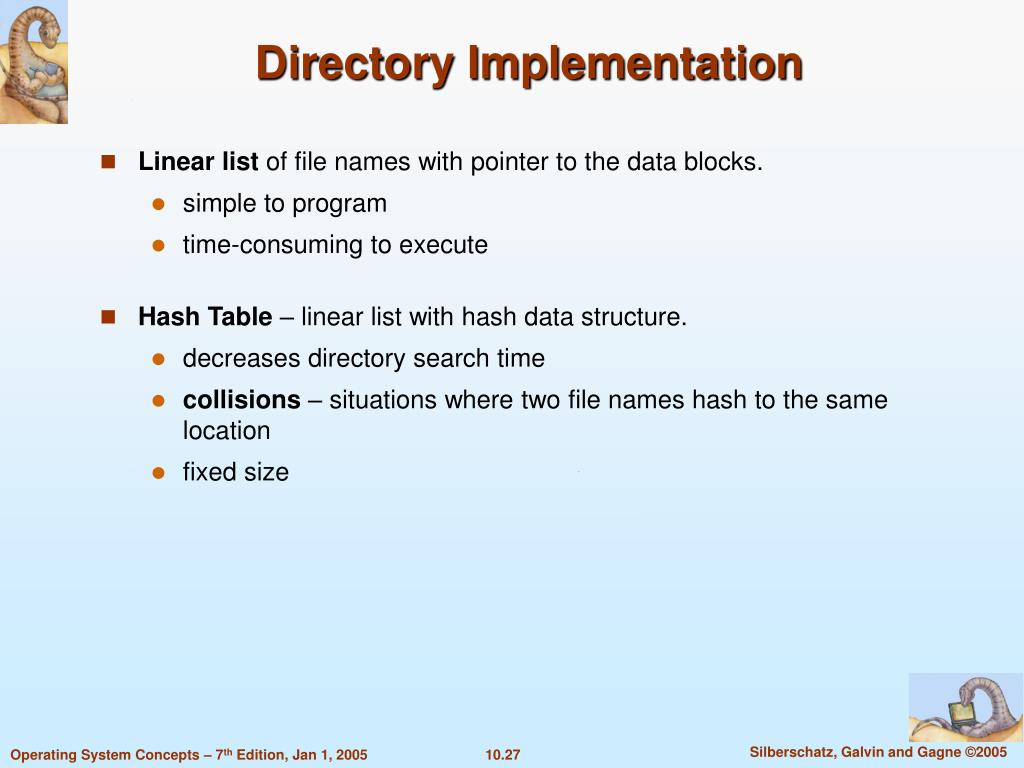

27. Directory Implementation • Linear list of file names with pointer to the data blocks. • simple to program • time-consuming to execute • Hash Table – linear list with hash data structure. • decreases directory search time • collisions – situations where two file names hash to the same location • fixed size

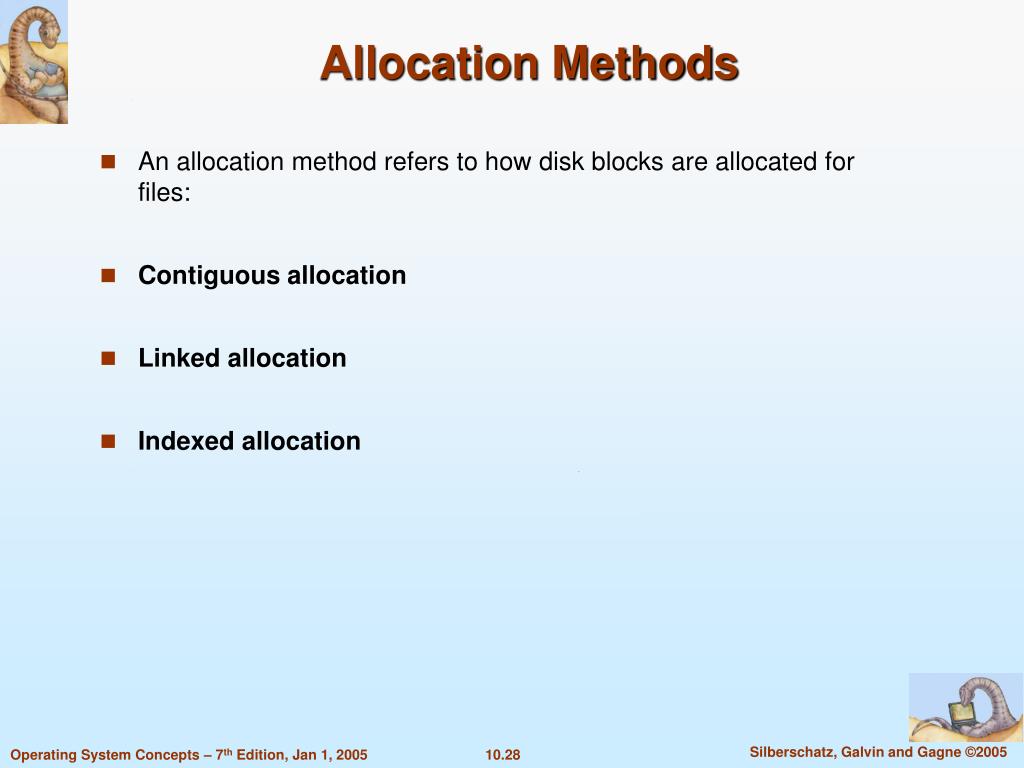

28. Allocation Methods • An allocation method refers to how disk blocks are allocated for files: • Contiguous allocation • Linked allocation • Indexed allocation

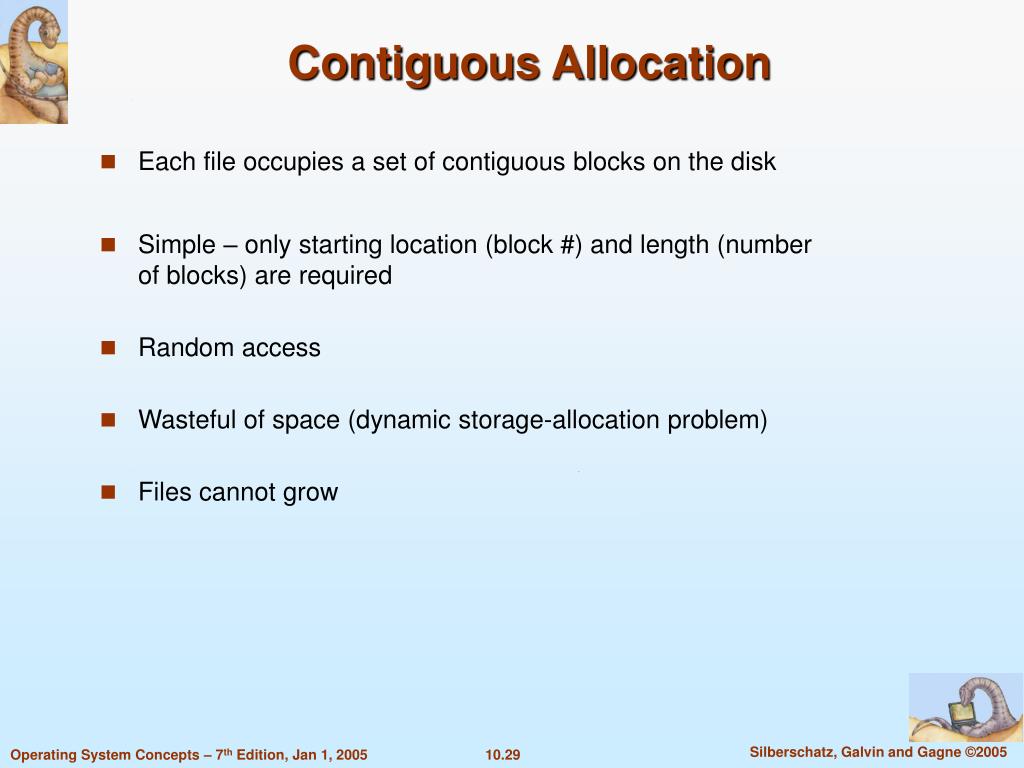

29. Contiguous Allocation • Each file occupies a set of contiguous blocks on the disk • Simple – only starting location (block #) and length (number of blocks) are required • Random access • Wasteful of space (dynamic storage-allocation problem) • Files cannot grow

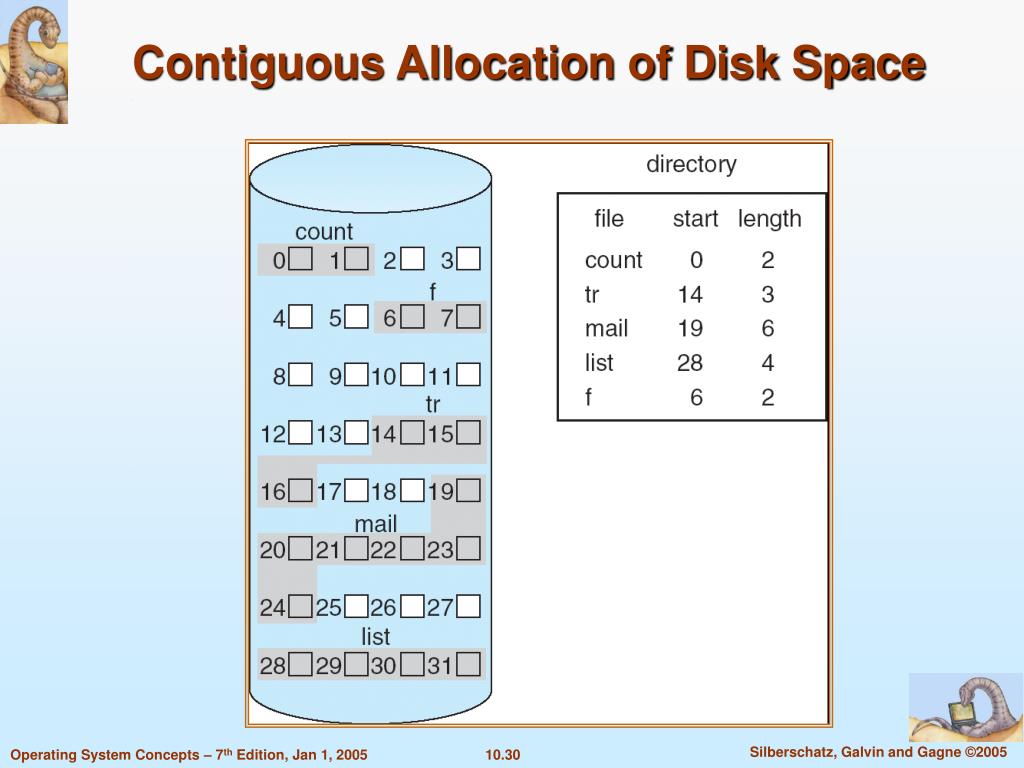

30. Contiguous Allocation of Disk Space

31. Extent-Based Systems • Many newer file systems (I.e. Veritas File System) use a modified contiguous allocation scheme • Extent-based file systems allocate disk blocks in extents • An extent is a contiguous block of disks • Extents are allocated for file allocation • A file consists of one or more extents.

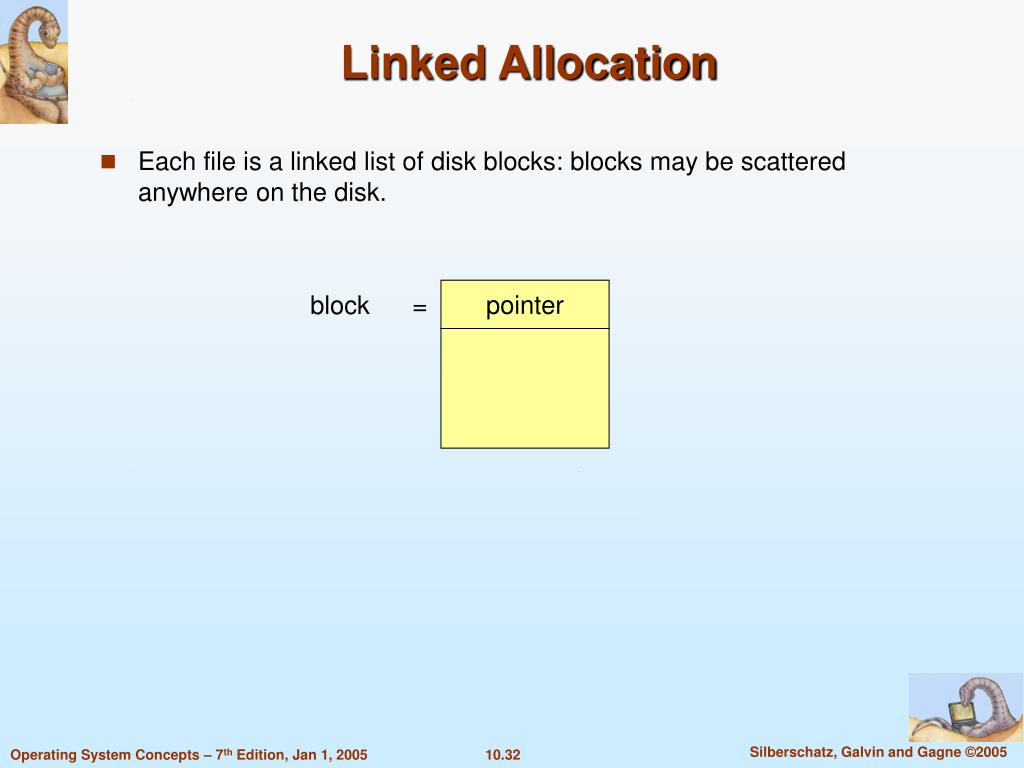

32. pointer block = Linked Allocation • Each file is a linked list of disk blocks: blocks may be scattered anywhere on the disk.

33. Linked Allocation

34. File-Allocation Table

35. Indexed Allocation • Brings all pointers together into the index block. • Logical view. index table

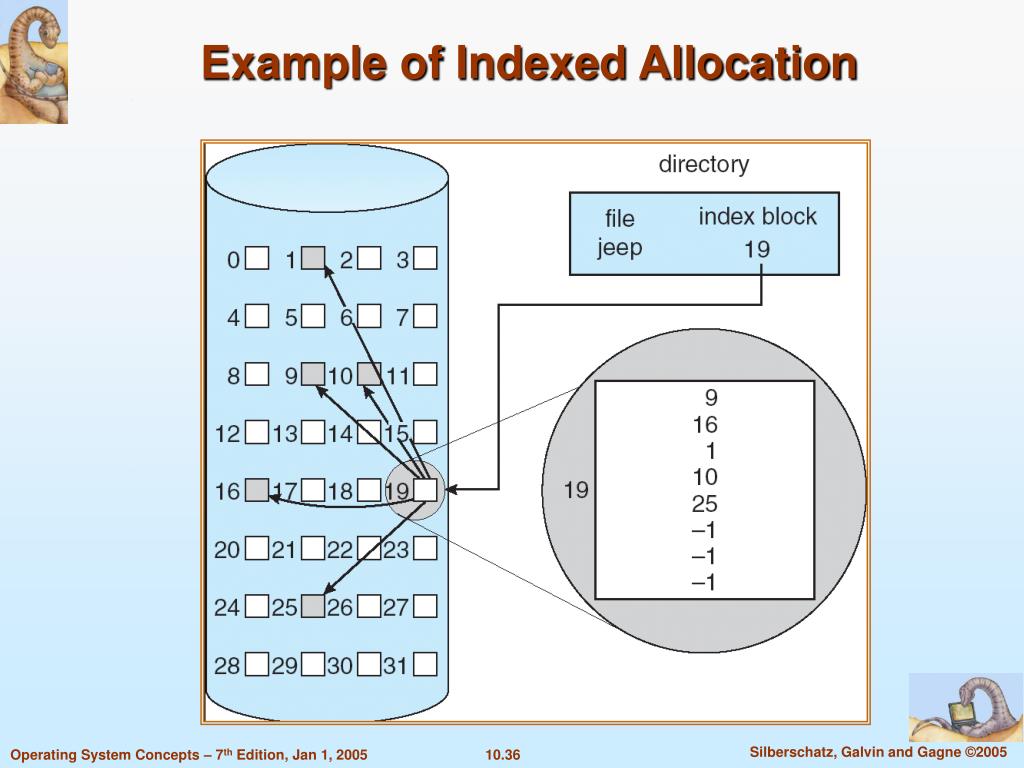

36. Example of Indexed Allocation

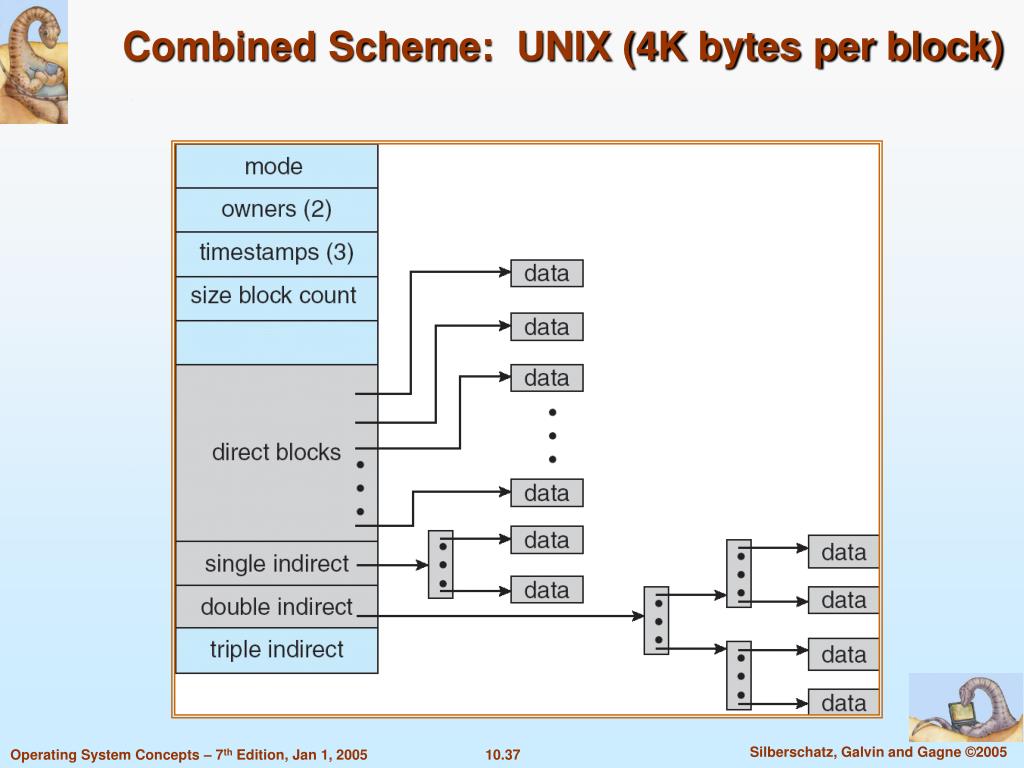

37. Combined Scheme: UNIX (4K bytes per block)
