Sensorimotor functions of the cerebellum

Producing adapted movements. Sensorimotor functions of the cerebellum. EXCI-355 Neural Control of Human Movement. Plan. Cerebellar structures Connectivity Movement implications Pathology. Textbooks. Neuroscience, Purves et al. Principles of Neural Science, Kandel et al.

xaviera-mcguire
Télécharger la présentation

Sensorimotor functions of the cerebellum

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

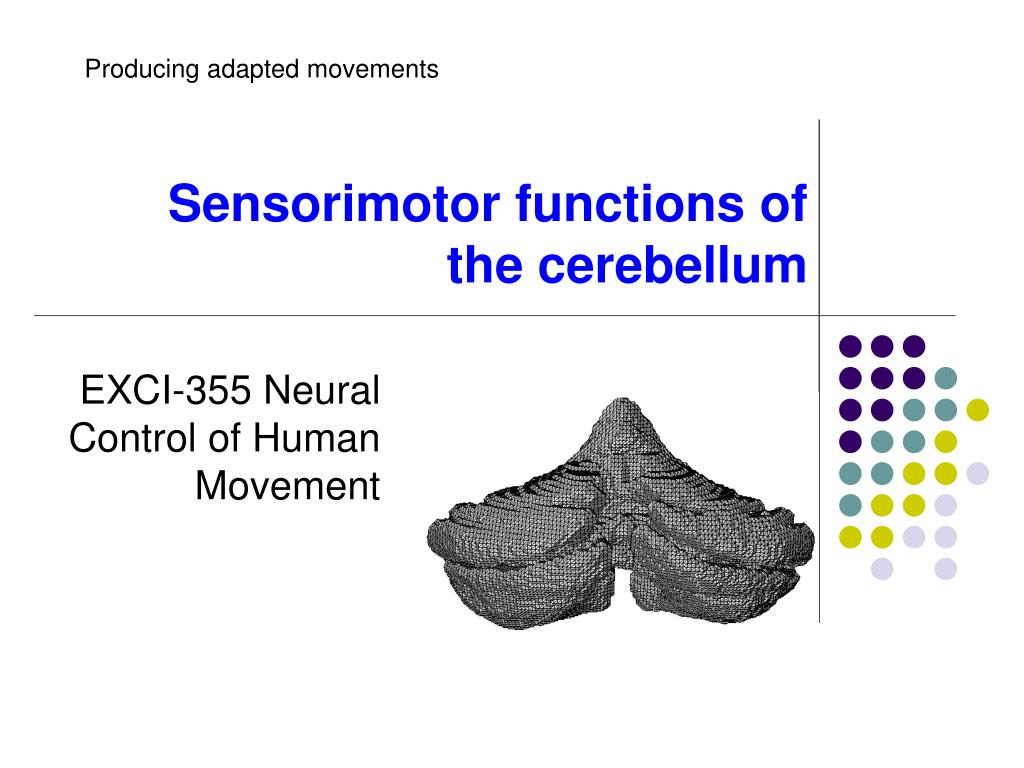

  1. Producing adapted movements Sensorimotor functions of the cerebellum EXCI-355 Neural Control of Human Movement

  2. Plan • Cerebellar structures • Connectivity • Movement implications • Pathology

  3. Textbooks • Neuroscience, Purves et al. • Principles of Neural Science, Kandel et al.

  4. Functions of the cerebellum • Motor correction: adjusting movement on the fly based on sensory and proprioceptive input • Motor learning: Improving performance of motor sequences with repetition • Balance, coordinating muscle systems across the body

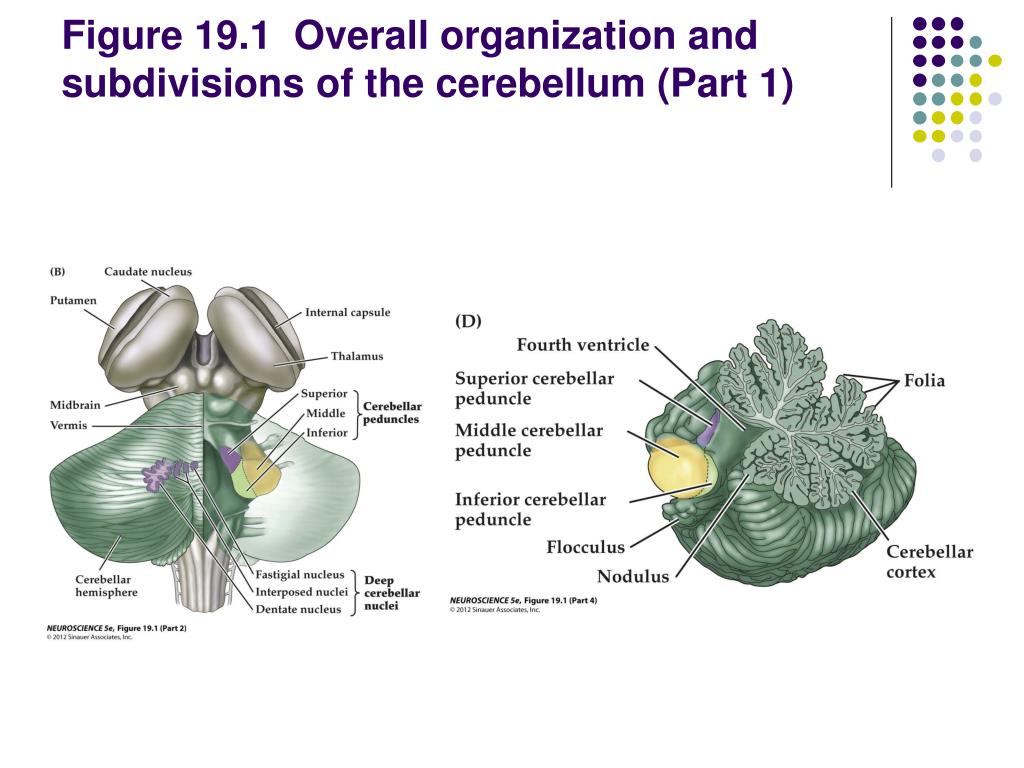

  5. Figure 19.1 Overall organization and subdivisions of the cerebellum (Part 1)

  6. Know your cerebellum!

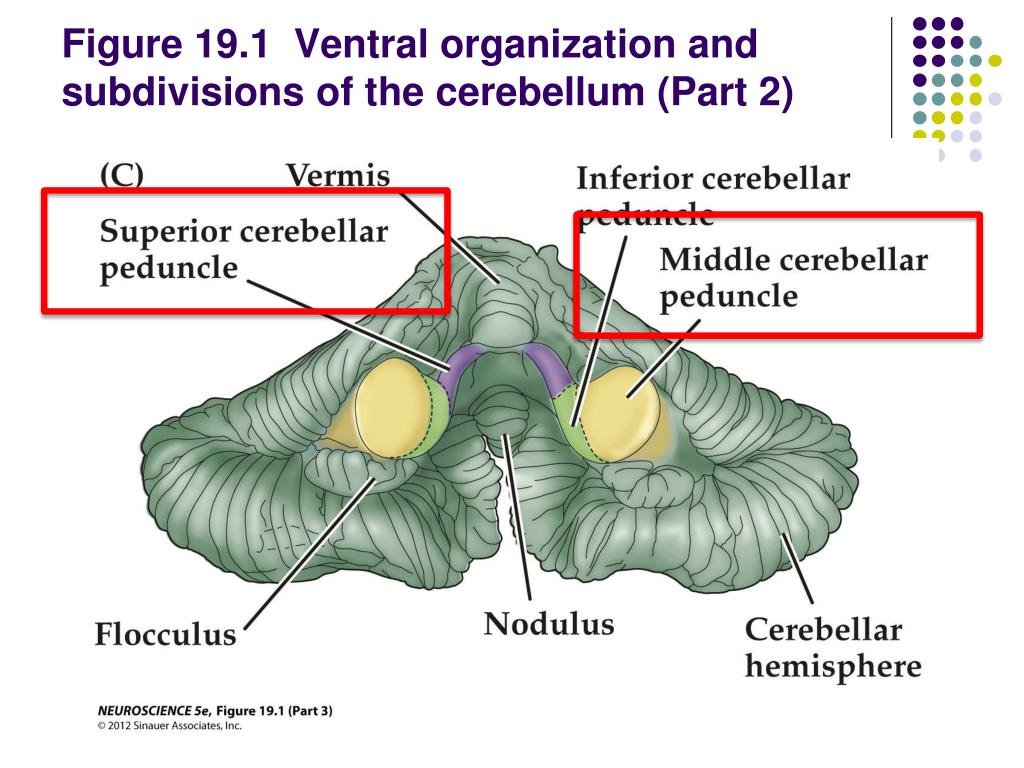

  7. Figure 19.1 Ventral organization and subdivisions of the cerebellum (Part 2)

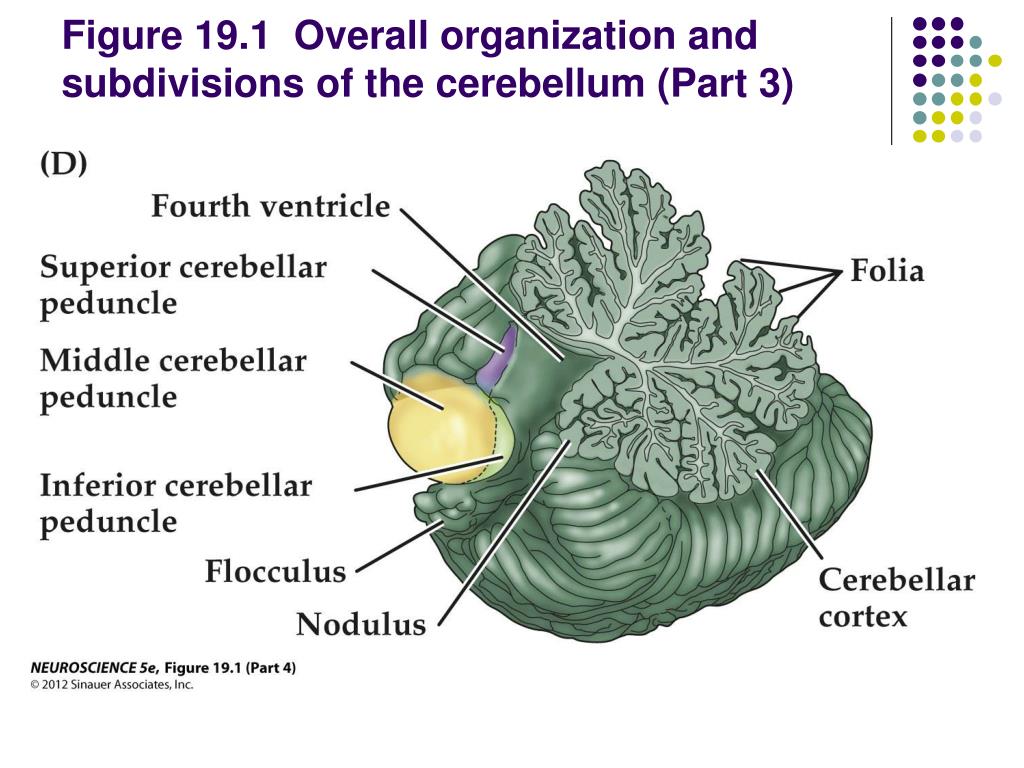

  8. Figure 19.1 Overall organization and subdivisions of the cerebellum (Part 3)

  9. Figure 19.2 Brainstem and diencephalon components related to the cerebellum midbrain Pontine nuclei – cortical input Inferior olive – movement error/correction Cuneate & Clarke – proprioceptive input pons medulla

  10. Figure 19.3 Functional organization of the inputs to the cerebellum (Part 1)

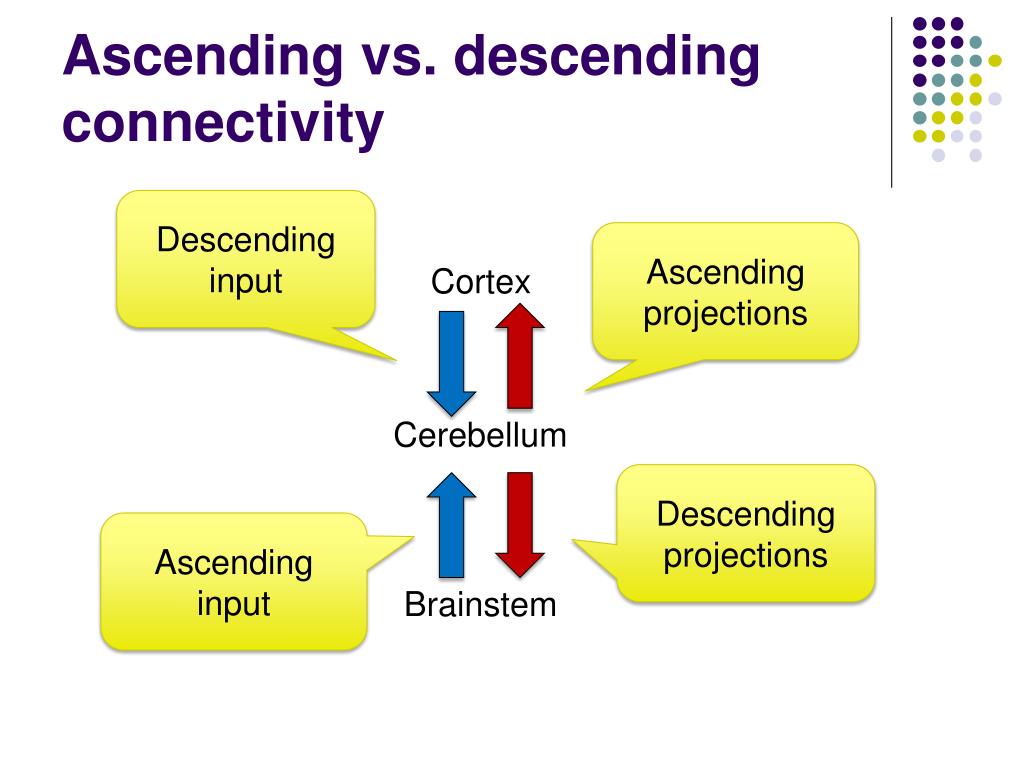

  11. Ascending vs. descending connectivity Descending input Ascending projections Cortex Cerebellum Descending projections Ascending input Brainstem

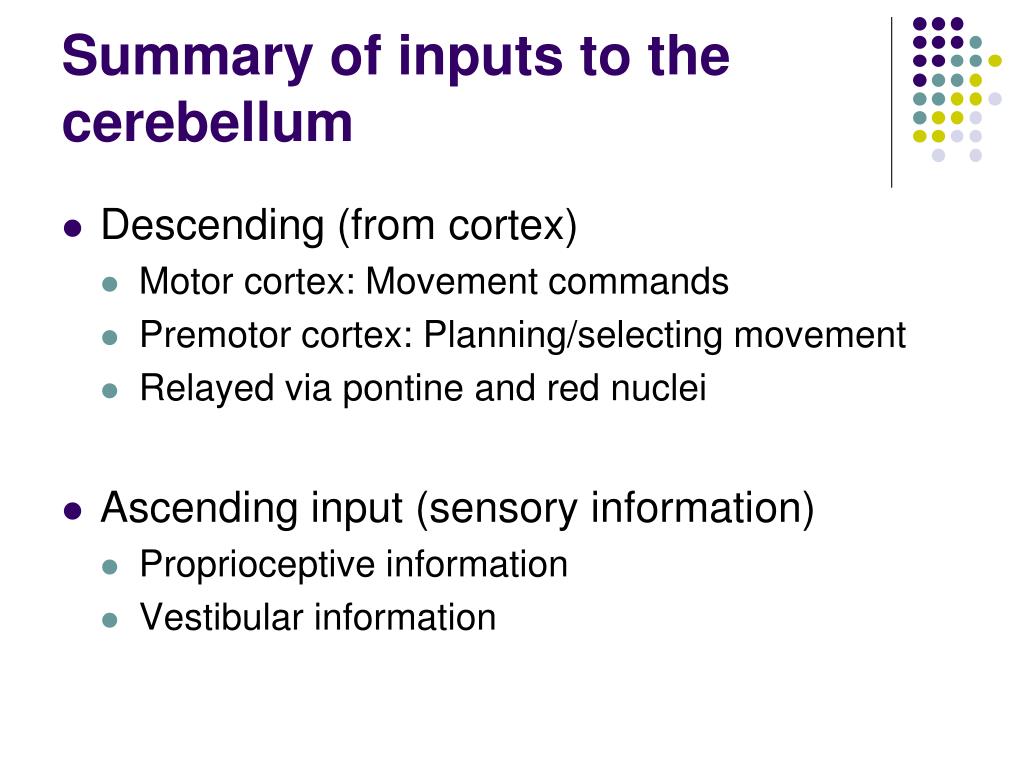

  12. Summary of inputs to the cerebellum • Descending (from cortex) • Motor cortex: Movement commands • Premotor cortex: Planning/selecting movement • Relayed via pontine and red nuclei • Ascending input (sensory information) • Proprioceptive information • Vestibular information

  13. Figure 19.3 Functional organization of the inputs to the cerebellum (Part 2)

  14. Regions of the cerebral cortex that project to the cerebellum P F O T Cortical inputs: premotor and motor areas in the frontal cortex, and sensory areas in the parietal cortex

  15. Figure 19.1 Functional organization of cerebellar hemispheres • Cerebrocerebellum: Motor planning and coordination • Spinocerebellum: Control of ongoing body and limb movements • Vestibulocerebellum: Posture, balance, eye movements

  16. Figure 19.4 Somatotopic maps of the body surface in the cerebellum • Sensory inputs remain topographically mapped • Nearby cerebellar areas control adjacent body parts

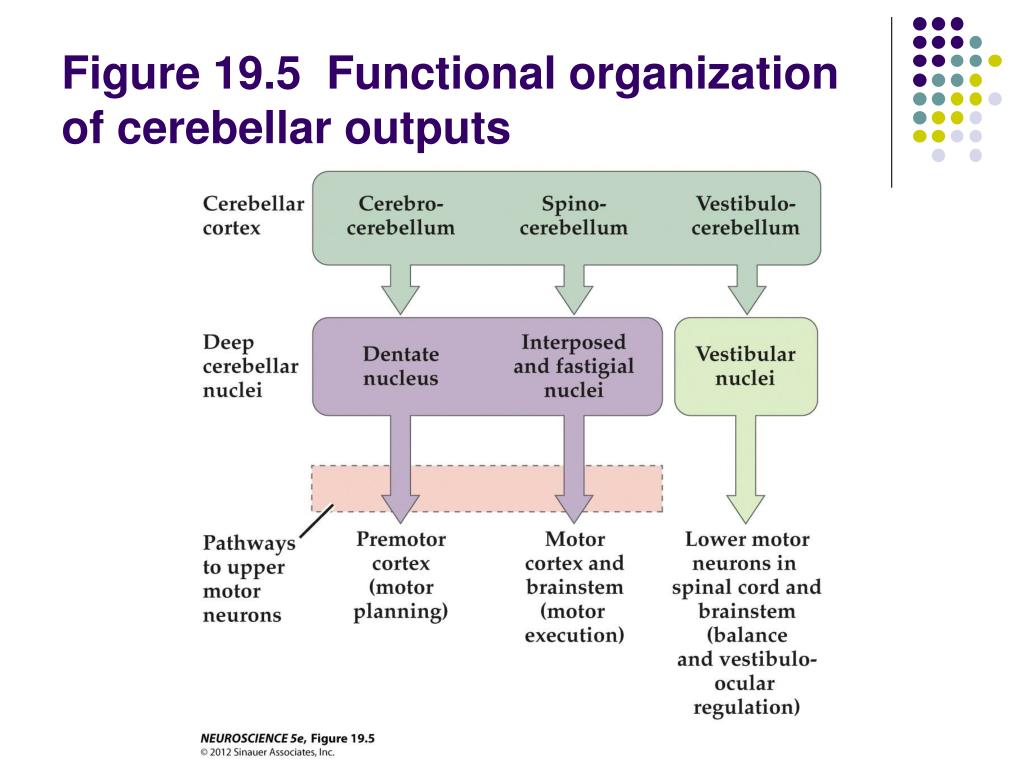

  17. Figure 19.5 Functional organization of cerebellar outputs

  18. Figure 19.6 Functional organization of the major ascending outputs from the cerebellum (Part 1) • Outputs of deep cerebellar nuclei: • Exit the cerebellum through the superior cerebellar peduncle • Project direct to subcortical targets • Through the thalamus to motor cortex

  19. Figure 19.6 Functional organization of the major ascending outputs from the cerebellum (Part 2)

  20. Figure 19.8 Functional organization of the major descending outputs from the cerebellum

  21. Summary of efferent projections from the cerebellum • Ascending: • Back to motor and premotor cortex • Descending: • Superior colliculus: eye movements • Reticular formation: planning/correcting movement • Vestibular nuclei: balance

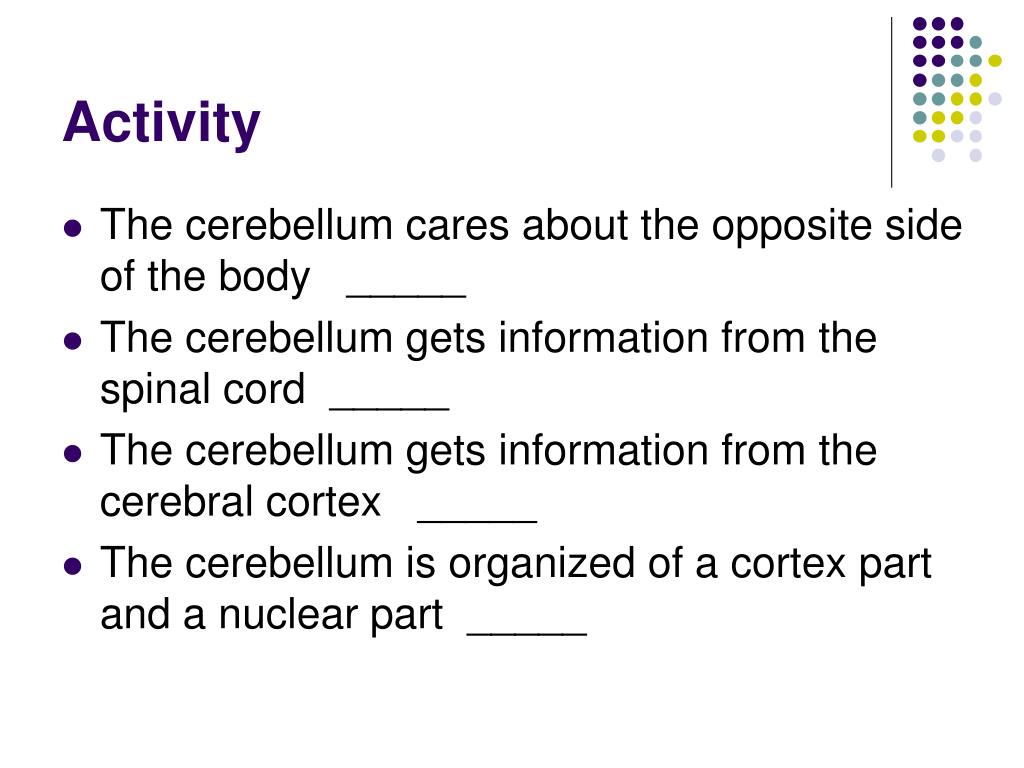

  22. Activity • The cerebellum cares about the opposite side of the body _____ • The cerebellum gets information from the spinal cord _____ • The cerebellum gets information from the cerebral cortex _____ • The cerebellum is organized of a cortex part and a nuclear part _____

  23. Activity • The cerebellum cares about the opposite side of the body __F___ • The cerebellum gets information from the spinal cord __T___ • The cerebellum gets information from the cerebral cortex __T___ • The cerebellum is organized of a cortex part and a nuclear part __T___

  24. Figure 19.14 The pathology of neurological diseases provides insights into the function of the cerebellum What part of cerebellum is damaged?

  25. Figure 19.1 Overall organization and subdivisions of the cerebellum (Part 1)

  26. How might this damage give rise to the deficit seen? • http://www.youtube.com/watch?v=0jYaeRzYF94

  27. Figure 19.4 Somatotopic maps of the body surface in the cerebellum • Sensory inputs remain topographically mapped • Nearby cerebellar areas control adjacent body parts

  28. Which part of cerebellum do you think is affected? • http://www.youtube.com/watch?v=5eBwn22Bnio • Which hemisphere is lesioned?

  29. Conclusions • The cerebellum helps in motor coordination by parallel computations • Is involved in motor planning and execution • Damage to the cerebellum: • Causes ipsilateral deficits • Interferes with smooth, coordinate movement
