  1. Design of Visual Displays for Driving Simulator Research G. John Andersen Department of Psychology University of California, Riverside

  2. Vision Issues in Driving Simulators • Driving tasks require accurate perception of depth and distance in the 3D scene • What sources of information are critical • Integration of sources • Conflict between sources • Visual Display • Display characteristics (Aliasing, Flicker, Update,Refresh, Resolution)

  3. Failure to Consider these issues in Driving Simulators • Poor task performance • Low external validity of results • Poor transfer of training • Increased risk of simulator sickness

  4. Driving tasks and Perception of Depth and Distance

  5. Motion parallax Occlusion Cast Shadows , 96 Size constancy Disparity Depth Contrast Convergence Aerial 1 10 100 Depth (meters) Cutting, 1996

  6. Viewer-centered Information Accommodation Linear Perspective Disparity Motion Parallax Linear Perspective Relative Size Motion Parallax Texture (perspective) Specular Highlights Object-centered Information Surrounding Frame Compression Gradient Structure from Motion Compression Gradient Structure from Motion Texture (non-perspective) Shading Overall scene depth Layout of Objects Properties of Objects Andersen, Braunstein, & Saidpour, 1998

  7. Driving Tasks and Perception • Multiple sources of information available for driving tasks • What information is critical for what tasks • Multiple sources for a specific task • Different tasks require different information sources • Use of multiple sources • Cue interactions • Cue conflicts

  8. Multiple sources for a specific task: Collision Detection • Model based on analysis of visual information available to driver (Andersen & Sauer, 2004) • Use of 5 parameters t (motion parallax; optic flow) dt/dt (motion parallax; optic flow) a da/dt ds (texture gradients, disparity, relative size)

  9. TopView FrontView t=0 t=1 q t=q/Dq t specifies the time to contact during constant velocity collisions

  10. aais the bearing of an object relative to a reference

  11. Vehicle Motion No F/S V/S F/C V/C No F/S Object Motion V/S F/C V/C F = Fixed Speed V = Variable Speed S = Straight Path C = Curved Path

  12. Select Object Derive a, d/dt (angular direction) Is a=0? Or d/dt0?(constant angular direction) Yes No Derive t Is t>0? (expansion)? Derive dv-ds Derive dt/dt Yes Is dt/dt =0? (Constant expansion) Is dv-ds =0? (Constant expansion) Yes Collision Object No No Is dt/dt >=-0.5? Yes Is dv-ds >0? No Non-collision Object

  13. Different tasks and different sources of information • Two tasks with different sources of information • - Collision Detection (constant speeds and linear trajectories): Optical Expansion (TTC) and a • Vehicle Speed: Edge Rate • Question: Does information from one task affect use of information for second task

  14. Experiment • Issue: Does information for one task affect use of information for a different task • Task: collision detection • Independent Variables • Collision or non-collision object • Time to contact (TTC) • Different combinations of vehicle speed and object speed • Dependent variable • Sensitivity (d’)

  15. Simulators depict a 3D world • Perception of 3D scene includes • Texture gradients • Motion parallax • Occlusion • -other information sources

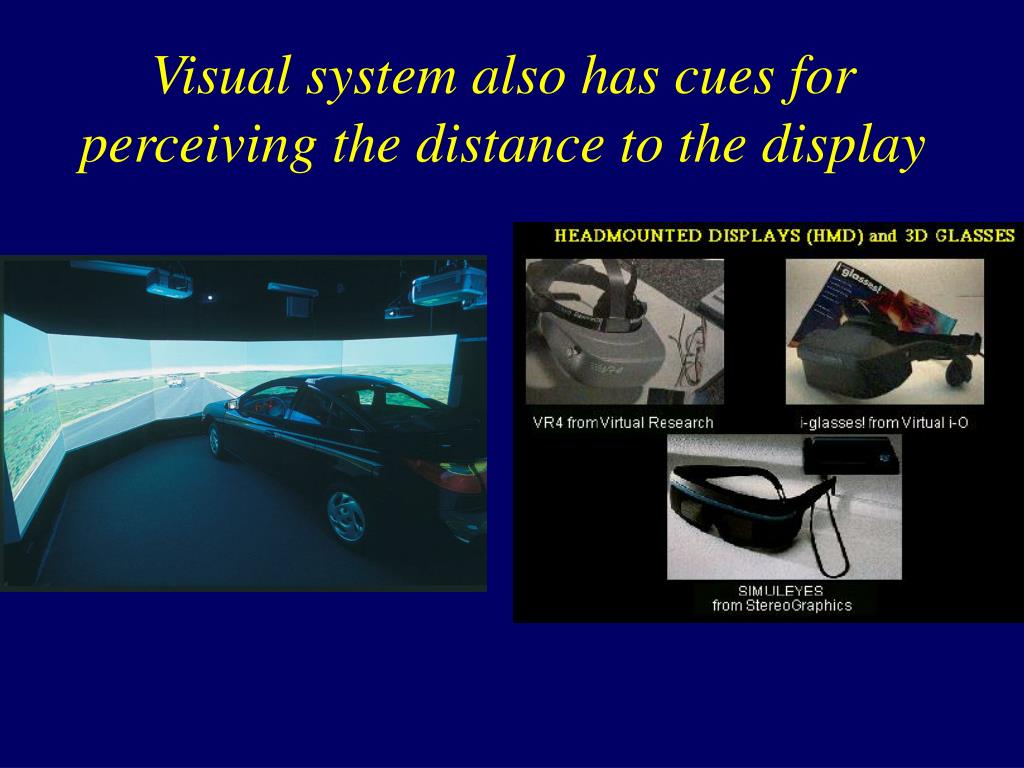

  16. Visual system also has cues for perceiving the distance to the display

  17. 3 Information sources for depth and distance of Display - Binocular Disparity - Eye convergence - Accommodation

  18. Motion parallax Occlusion Cast Shadows , 96 Size constancy Disparity Depth Contrast Convergence Accommodation Aerial 1 10 100 Depth (meters) Cutting, 1996

  19. Visual Cue Conflicts between display cues and 3D scene cues Visual Cue conflict: - Disparity, convergence and accommodation information specify display is flat - Motion parallax, texture gradients, and other cues specify scene is 3D

  20. Human Factors Solutions to these Issues • Determine perceptual information needed for driving tasks of interest • Design displays to optimize performance of tasks • Consider interactions of different information sources • Minimize cue conflicts • Design for optimal performance not for high fidelity • Question need of high fidelity rendered scenes, control dynamics and fixed/variable base simulator
