  1. Requirement Req0002 Implementation of Requirement Req0002 Dani Vainstein & Monika Arora Gautam

  2. TIP • Fr Project staff have made an improvement to the presentations. • Whenever you see QTP code, right click the left bottom part of the presentation and do the follow : 1 2 Click Dani Vainstein & Monika Arora Gautam

  3. Topics covered • Extending functionality on existing modules. • Process design of a test. • Build a new function. • Adding single object to local repository. • Checking single and multiple properties on an object. • Standard and bitmap checkpoints. • Create an initialization action. • Create a generic login procedure. • Call to an existing reusable-actions. • Build a new test. Dani Vainstein & Monika Arora Gautam

  4. Before You Start… • Before starting the presentation, read about the following topics in QTP help. • Window/Dialog Object - Exist Property. • Window/Dialog Object - Activate Method. • Reporter Object. • Environment Object. • SystemUtil.Run Method. • Exit Statement. • Const/Dim Statement. • Select Case Statement. • Desktop.CaptureBitmap Method. • CheckProperty Method. Dani Vainstein & Monika Arora Gautam

  5. Before You Start… • Before starting the presentation, read about the following topics in QTP help. • If…End If Statement. • vbNullString Constant. • Object CheckProperty Method. • WinEdit, WinButton, Static Objects. • Standard Checkpoint. • Bitmap Checkpoint. • Checkpoint Properties. • Call to an Existing Action. Dani Vainstein & Monika Arora Gautam

  6. Req0002 - Overview • User performs following testing on the ‘Login’ dialog. • Before the user starts to enter any data : • Req0002a - Label “Agent Name” is visible. • Req0002b - Textbox “Agent Name” should be empty, enabled and focused. • Req0002c - Label “Password” is visible. • Req0002d - Textbox “Password” is empty and enabled. • Req0002e - Command Button “OK” is enabled. • Req0002f - Command Button “Cancel” is enabled. • Req0002g - Command Button “Help” is enabled. • Req0002h - Logo is displayed. Dani Vainstein & Monika Arora Gautam

  7. Req0002 - Overview Details Label displayed Logo Textbox empty Enabled and focused Label displayed Textbox empty and enabled Command button Enabled. Command button enabled Command button enabled Dani Vainstein & Monika Arora Gautam

  8. Failed Failed Passed Passed Report micFail Report micFail Report micPass Report micPass Req0002a Req0002h Process Design – Req0002 InvokeApp Function Start Invoke App Dialog Login Exists? Yes No Report micFail ExitTest End Dani Vainstein & Monika Arora Gautam

  9. Process Design – Req0002 • First we need a regular invoke application process • Then we need to verify that the “invoke application” process was done successful, before accessing the dialog. • If the process failed, it means the login dialog wasn’t displayed and hence test is failed so there is no point to continue testing. • Then the Req0002 process starts from Req0002a to Req0002h Dani Vainstein & Monika Arora Gautam

  10. Building a Generic Function - Application Invoke Process • To implement the invoke application process we are going to use a function ( Utils Layer ). • Why a function for invoke application? We are assuming that this process is necessary for all the tests. Dani Vainstein & Monika Arora Gautam

  11. Analyzing FR Application scenarios invoke Dani Vainstein & Monika Arora Gautam

  12. Activation Conditions • If “Flight Reservation” (main) main window is already displayed, don’t activate the executable file. We want to avoid multiple application instances. • If the “Login” dialog is already displayed, don’t activate. We want to avoid multiple application instances. • If “Login” dialog is NOT displayed AND the “FlightReservation” window is NOT displayed  activate Flight4x.exe. • Main Flight Reservation window and login are opened. This scenario case can never happened. Dialog “Login” and “Flight Reservation” window can’t be opened at the same time. Dani Vainstein & Monika Arora Gautam

  13. Avoid This!!! Application invoke considerations. • The main thing we want to avoid when running scripts on Flight Reservation, is multiple instances of Flight Reservation application. Therefore we need the InvokeApp Function. Dani Vainstein & Monika Arora Gautam

  14. Application invoke considerations. • InvokeApp function covers the following functionality • The function should check that no other instance/s are already open. • The function should contain generic process assuming that the application instance is probably open and working accordingly. • The function should also check a successful activation of the executable. Dani Vainstein & Monika Arora Gautam

  15. <version> Start Dialog Login Exists? Flight Reservation Exists? No No Invoke App Yes Dialog Login Exists? Yes Report micFail End End End False False True InvokeApp Design Dani Vainstein & Monika Arora Gautam

  16. Automation FR LIB RA BL GL RS DOC DAT SETTING Fr.vbs TESTS RES BATCH ENV Adding Functionality to existing module • Open the function library FR.vbs • Menu : File  Open  Function Library • Hotkeys : Shift + Alt + O Dani Vainstein & Monika Arora Gautam

  17. Creating InvokeApp Function execVersion By value Function Name: InvokeApp Type: Function Scope: Public Description Documentation Dani Vainstein & Monika Arora Gautam

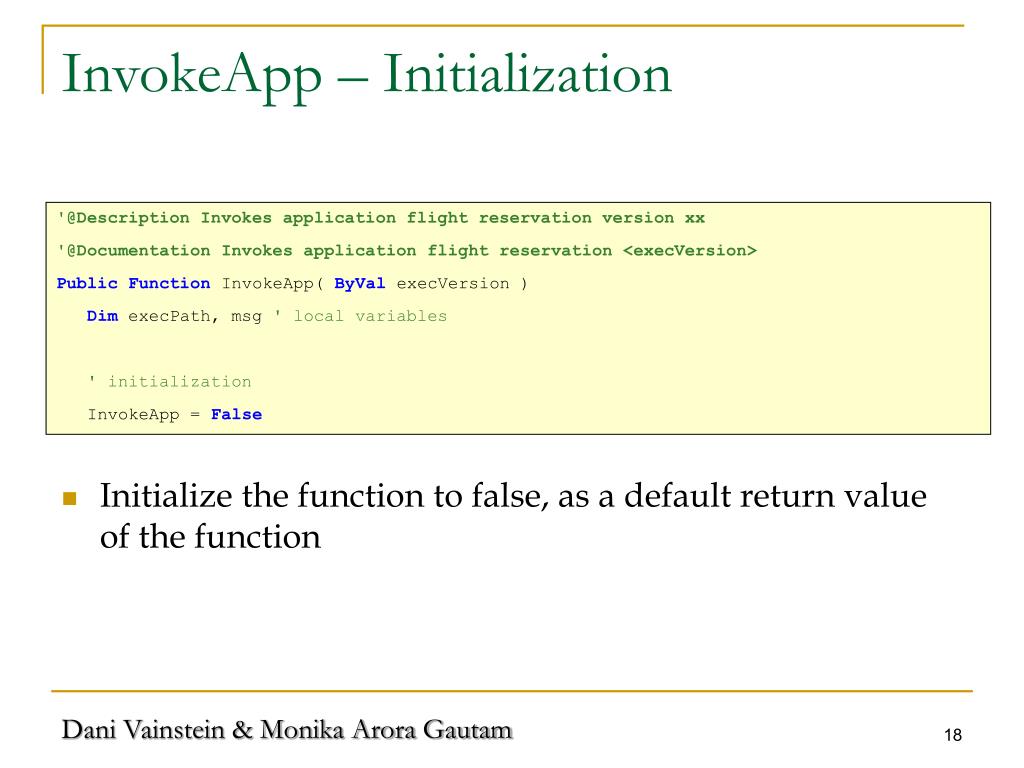

  18. InvokeApp – Initialization '@Description Invokes application flight reservation version xx '@Documentation Invokes application flight reservation <execVersion> Public Function InvokeApp( ByVal execVersion ) Dim execPath, msg ' local variables ' initialization InvokeApp = False • Initialize the function to false, as a default return value of the function Dani Vainstein & Monika Arora Gautam

  19. InvokeApp – Condition 1 ' ** condition 1 - Window displayed don't activate executable If Window( "regexpwndtitle:=Flight Reservation" ).Exist( 0 ) Then Window( "regexpwndtitle:=Flight Reservation" ).Activate micLeftBtn msg = "Flight Reservation is already displayed." Reporter.ReportEvent micDone, "InvokeApp", msg ExitFunction EndIf • Since we are using a generic function we are using Descriptive Programming ( DP ). • If the “Flight Reservation” window exists, the window will be activated and a general message will be sent to the Reporter. Dani Vainstein & Monika Arora Gautam

  20. InvokeApp – Condition 2 ' ** condition 2 - Dialog Login is displayed don't activate executable If Dialog( "text:=Login","nativeclass:=#32770" ).Exist( 0 ) Then Dialog( "text:=Login","nativeclass:=#32770" ).Activate micLeftBtn msg = "Dialog Login is already displayed." Reporter.ReportEvent micDone, "InvokeApp", msg ExitFunction EndIf • If the “Login” dialog exists, the dialog will be activated and a general message will sent to the Reporter. Dani Vainstein & Monika Arora Gautam

  21. InvokeApp – Invoke executable ' ** invoking executable... execPath = Environment( "ProductDir" ) & APP_PATH ' build path... SystemUtil.Run execVersion, vbNullString, execPath, "open" • Before using SystemUtil.Run method, we need to build the path of the executable, as the Run method requires this argument. Dani Vainstein & Monika Arora Gautam

  22. InvokeApp Function If Dialog( "text:=Login","nativeclass:=#32770" ).Exist( 5 ) = FalseThen msg = "Dialog 'Login' is not displayed after 5 seconds." Reporter.ReportEvent micFail, "ApplicationException", msg ExitFunction EndIf InvokeApp = True ' Application was invoked • Immediately after invoking, we’ll check that “Login” exists, with a max wait of 5 seconds, just in case… • If the dialog didn’t show up after 5 seconds, this can be a defect, we fail the test, and exit the function. • If the dialog exists, the function will return True. Dani Vainstein & Monika Arora Gautam

  23. InvokeApp – Final Look • Add the function InvokeApp to File library. • Save the function library • You should have 2 functions. Dani Vainstein & Monika Arora Gautam

  24. Creating new step • Open guiLogin test and add a new step Case“req0002”( remember to write the string in lower case ) Dani Vainstein & Monika Arora Gautam

  25. Implementing Req0002a Dialog( "Login" ).Static( "AgentName" ).CheckProperty "visible", True, 1000 ' ** Req0002a • Req0002a uses the CheckProperty method of static, with argument “visible”, value True • The method will auto-report to Reporter object. Dani Vainstein & Monika Arora Gautam

  26. Implementing Req0002b • Req0002b checks 3 properties on 1 object viz. enabled, focused and text. It is recommended to use checkpoint for this purpose. • However, many QTP developers prefer to use various CheckProperty methods instead of a checkpoint, because of the complexity and portability issue of managing checkpoints. • This problem will be solved on QTP 9.5 • Before starting to record, the Login dialog must be displayed. Make sure that only one instance of Flight Application is opened. Dani Vainstein & Monika Arora Gautam

  27. Record Inserting a Standard Checkpoint • Start Recording : • Menu : Automation  Record. • Hotkey : F3 • From toolbar as shown below: Dani Vainstein & Monika Arora Gautam

  28. Insert Standard Checkpoint • Menu : Insert  Checkpoint  Standard Checkpoint… • Hotkey : F12 • Toolbar as shown below: Dani Vainstein & Monika Arora Gautam

  29. Insert Standard Checkpoint • With the finger-point select the “Agent Name” WinEdit object. Dani Vainstein & Monika Arora Gautam

  30. Insert Standard Checkpoint Name : Req0002b Except property enabled, text and focused, All the other properties must be Unchecked!! enabled = True focused = True text = Timeout = 2 Dani Vainstein & Monika Arora Gautam

  31. Implement Req0002b Dialog( "Login" ).WinEdit("AgentName").Check CheckPoint( "Req0002b" ) ' ** Req0002 • Anytime you can mark the word Checkpoint and see the checkpoint properties. Dani Vainstein & Monika Arora Gautam

  32. Implementing Req0002c Dialog( "Login" ).Static( "Password" ).CheckProperty "visible", True, 1000 ' ** Req0002c • Req0002c uses the CheckProperty method of Static object, with argument “visible”, value True • The method will auto-report to Reporter object. Dani Vainstein & Monika Arora Gautam

  33. Implementing Req0002d Dialog("Login").WinEdit( "Password" ).CheckProperty "enabled", True, 1000 ' ** Req0002d Dialog("Login").WinEdit( "Password" ).CheckProperty "text", vbNullString, 1000' ** Req0002d • Req0002d uses the CheckProperty method of WinEdit, with argument “enabled” value True, and “text” with value vbNullString ( represents an empty string ) • Instead of using checkpoint we can alternatively add 2 CheckProperty methods. Dani Vainstein & Monika Arora Gautam

  34. Dialog( "Login" ).WinButton( "OK" ).CheckProperty "enabled", True, 1000 ' ** Req0002e Dialog( "Login" ).WinButton( "Cancel" ).CheckProperty "enabled", True, 1000 ' ** Req0002f Dialog( "Login" ).WinButton( "Help" ).CheckProperty "enabled", True, 1000 ' ** Req0002g Req0002e, Req0002f, Req0002g • The requirement is only to check if they are enabled. don’t check any property that is not required. • The method will auto-report to Reporter object. Dani Vainstein & Monika Arora Gautam

  35. Implementing Req002h • After req0002h press ENTER to move to next line. • In the end off the following line press enterDialog("Login").WinButton("Help").CheckProperty "enabled", True, 1000 • Make sure the cursor is on a new blank line, and then start recording. • Before you start recording, make sure dialog Login is displayed. and only one instance of the application is opened. Dani Vainstein & Monika Arora Gautam

  36. Inserting a bitmap checkpoint Select Bitmap Checkpoint… Dani Vainstein & Monika Arora Gautam

  37. Inserting a bitmap checkpoint • Select The Logo with the finger point. • Select the Static and Click OK Dani Vainstein & Monika Arora Gautam

  38. Inserting a bitmap checkpoint • Change the name of the checkpoint to “Logo”. • Change the checkpoint timeout to 2 seconds. • Click OK. Dani Vainstein & Monika Arora Gautam

  39. ' ** Checking the logo using bitmap checkpoint req0002h Dialog( "Login" ).Static( "Logo" ).Check CheckPoint( "Logo" ) Inserting a bitmap checkpoint STOP recording • The checkpoint syntax will be inserted automatically at mentioned location. Dani Vainstein & Monika Arora Gautam

  40. Req0002 ( guiLogin ) – Final Look Dani Vainstein & Monika Arora Gautam

  41. Implement Business Action for Req0002 • Open the busLogin test. • Select the busLoginMng action. • Insert a new test-case after case “req0001”. • Use lower-case ( Case “<lower-case>” ) SelectCaseLCase( Parameter.Item( "busCode" ) ) Case "req0001" : Case "req0002" CaseElse msg = "ActionCode parameter not implemented." Reporter.ReportEvent micWarning, "NotImplemetedException", msg ExitAction( micWarning ) EndSelect Dani Vainstein & Monika Arora Gautam

  42. Business Req0002 implementation • According our design [ Process Design – Req0002 ] we need to invoke the application and then call the GUI process Req0002, We’ll call InvokeApp function from the test layer • What’s left now, is to call the “Req0002” GUI process located in guiLogin. Dani Vainstein & Monika Arora Gautam

  43. busLoginMng – Final Look • As mentioned in previous presentation do not just copy this line of code, a call to an existing reusable action is required. • add the input parameter “Req0002”,while calling the existing action guiLogin. Dani Vainstein & Monika Arora Gautam

  44. Automation FR LIB RA BL GL RS DOC DAT SETTING Req0002 TESTS RES BATCH ENV Create Req0002 Test • Open a new blank test and save it under TESTS\Req0002 Dani Vainstein & Monika Arora Gautam

  45. Test Settings • Modify the test settings… Dani Vainstein & Monika Arora Gautam

  46. Associated function libraries • If you don’t see the LIB\FR.vbs file associated you must to permanently associate the function library; For instructions how to permanently associate function libraries, see previous presentation. Dani Vainstein & Monika Arora Gautam

  47. Test Header '*********************************************************************** '@Author : advancedQTP '@Date Created : <ddd MMM dd, yyyy> '@QTP Version : 9.2 '@Description : The test covers the requirement Req0002 '@Input Parameter : None. '@Out Parameter : None. '@Ass. Libraries : FR.vbs '@Addins : ActiveX '@Modifications : <#n By <Name>, Date: <dd-mmm-yyyy>> (Later modification on top) ' <#n-1 By <Name>, Date: <dd-mmm-yyyy> '*********************************************************************** Dani Vainstein & Monika Arora Gautam

  48. Implementing Test Req0002 Option Explicit Dim msg Call Initialization() If Reporter.RunStatus = micFail Then msg = "Initialization Process Failed." Reporter.ReportEvent micFail, Environment( "TestName" ), msg ExitTest( micFail ) EndIf • The Initialization part is exactly the same for all tests. Dani Vainstein & Monika Arora Gautam

  49. Implementing Test Req0002 ' ** invoking application Call InvokeApp( Environment.Value( "EXE_FILE" ) ) If Reporter.RunStatus = micFail Then msg = "Invoke Application Failed." Reporter.ReportEvent micFail, Environment( "TestName" ), msg ExitTest( micFail ) EndIf • A call to function InvokeApp is required to activate the executable file. Dani Vainstein & Monika Arora Gautam

  50. Insert a Call to Existing Action Dani Vainstein & Monika Arora Gautam
