  1. Managing Chaos • Building an Open Source Enterprise Service Bus from Scratch • Jeff Genender

  2. Introduction • Jeff Genender

  3. Are you experienced?

  4. What is an ESB? • Collection of Best Practices for Data Integration

  5. Characteristics Of An ESB • Standards Based • Highly Distributed • Data Transformation • Event Driven Service Oriented Architecture • Workflow • Secure and Reliable • Remote Management • Provides Operational Awareness • Incremental Adoption

  6. Why Use an ESB?

  7. The Problem:

  8. The Problem:

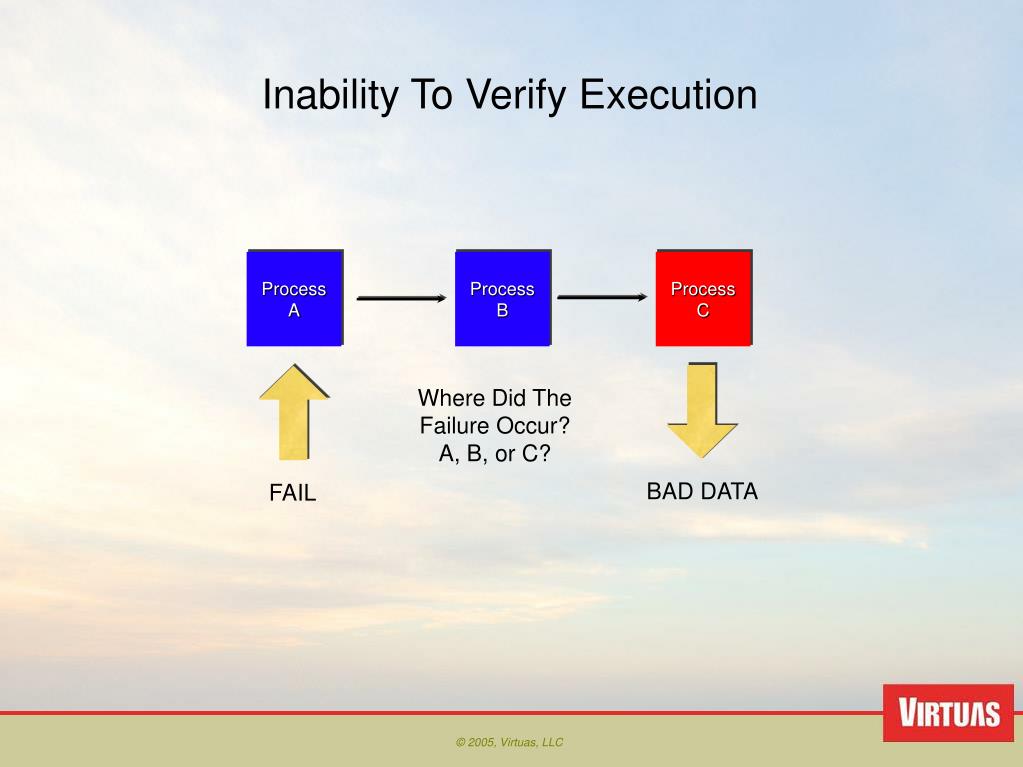

  9. Process B Process C BAD DATA FAIL Inability To Verify Execution Process A Where Did The Failure Occur? A, B, or C?

  10. What Is The Solution? • Centralized Management Of Activities • Powerful Scheduler • Guaranteed Event and Activity Execution • Durable Transactions • Pluggable Enterprise Service Bus Components For Activities • Staging Database For Single Common Data Location • Logging and Notification Of Activities • Proactive Response To Failed Activities • J2EE Architecture Provides For True 24/7 clustering uptime. ESB

  11. Solution:ESB Architecture

  12. Scheduler

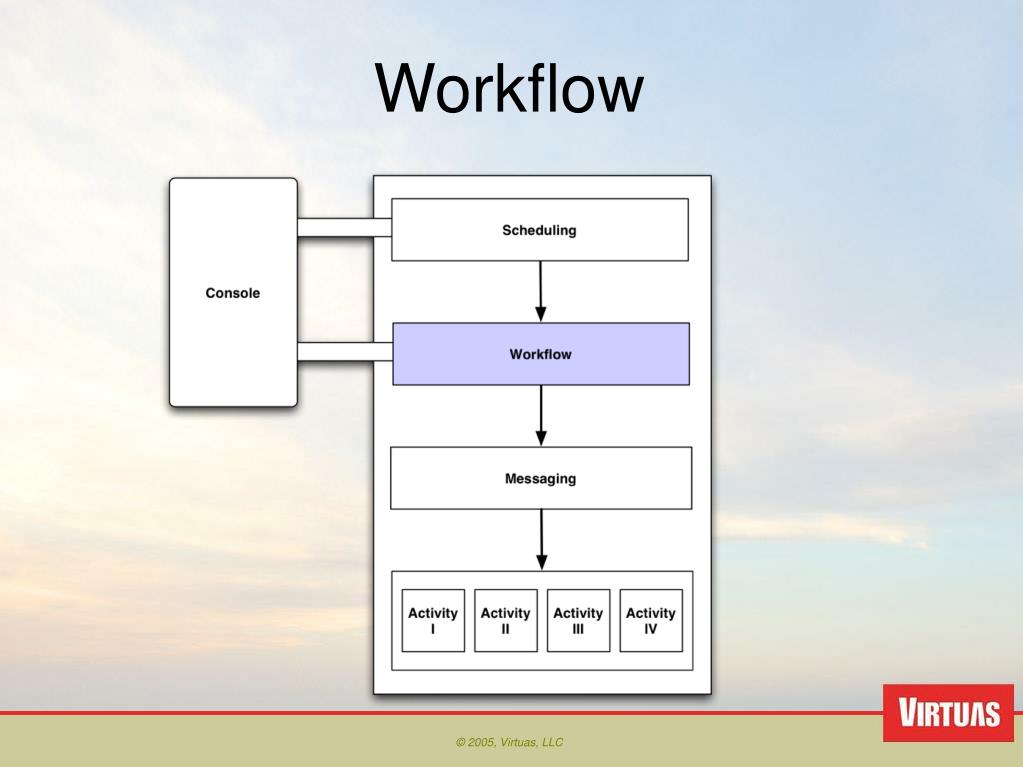

  13. Workflow

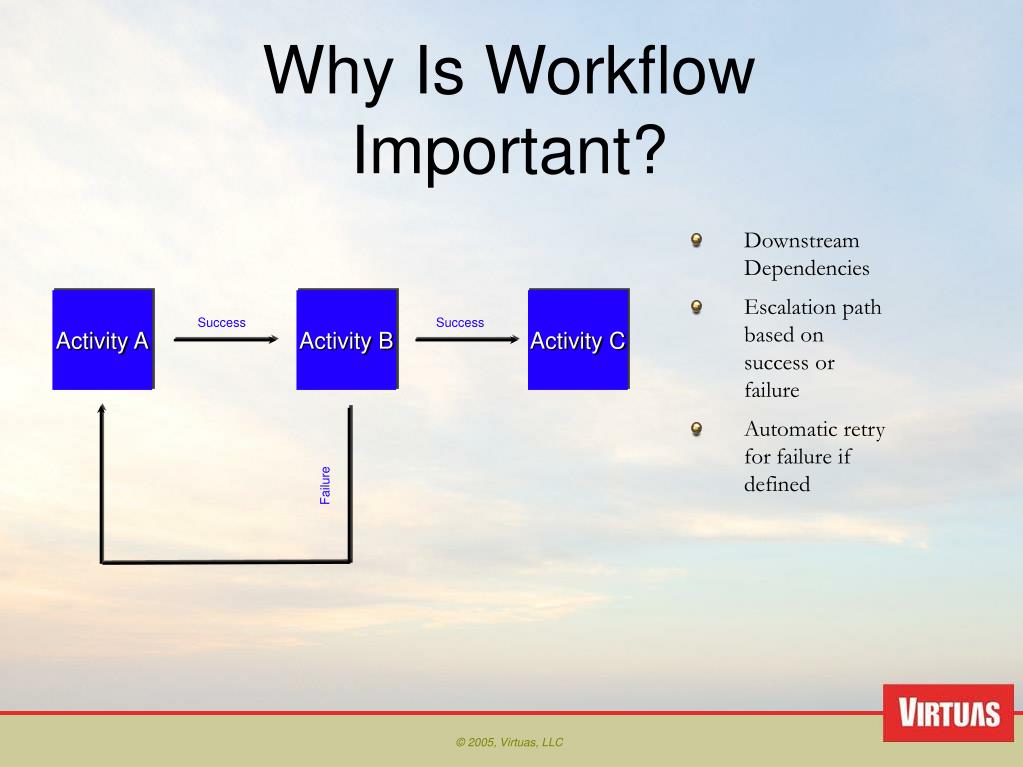

  14. Why Is Workflow Important? • Downstream Dependencies • Escalation path based on success or failure • Automatic retry for failure if defined Activity A Activity B Activity C Success Success Failure

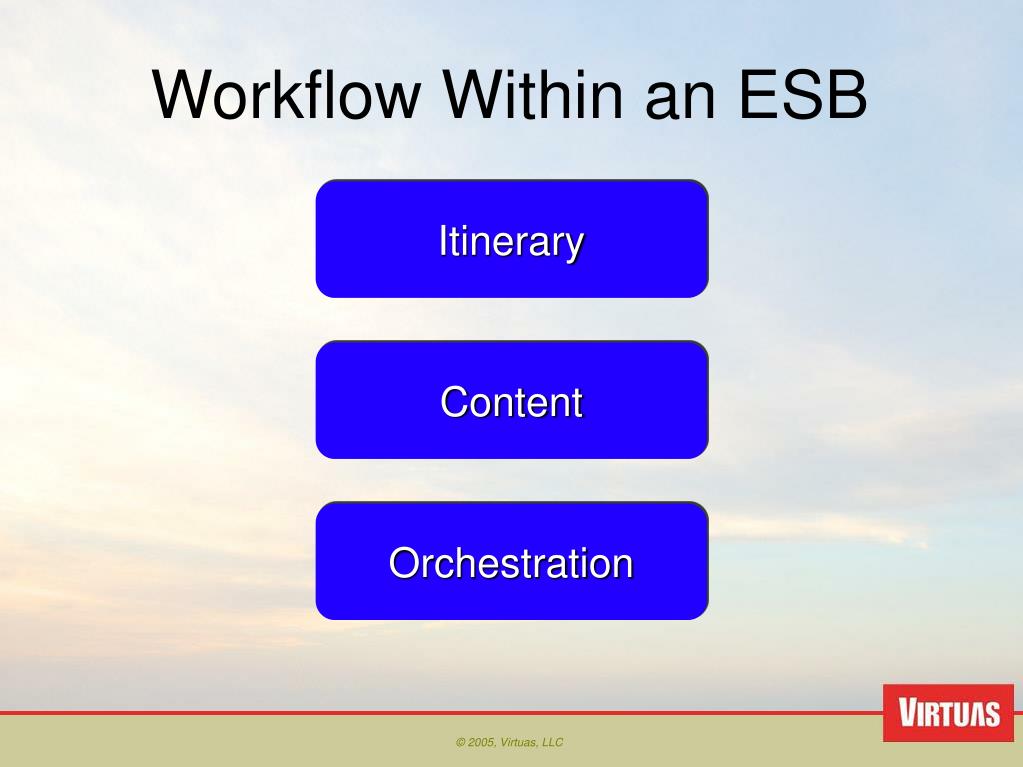

  15. Workflow Within an ESB Itinerary Content Orchestration

  16. Itinerary Based

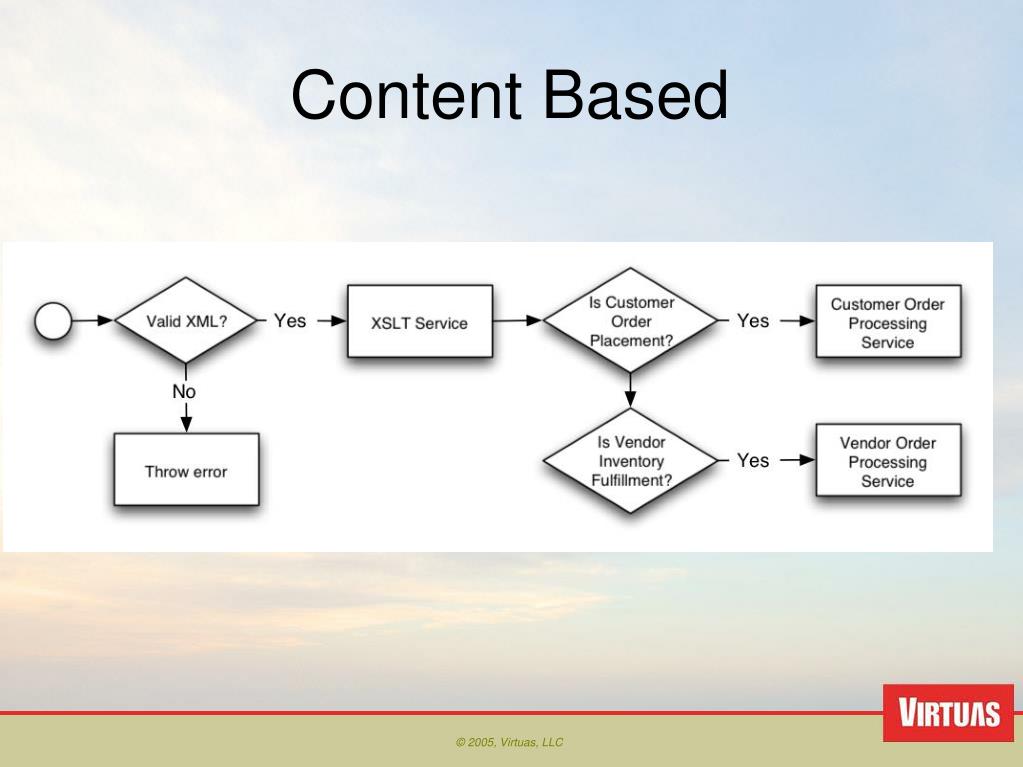

  17. Content Based

  18. Orchestration <process-definition name="Retrieve Weather Data"> <!-- START-STATE --> <start-state name="start"> <transition to="retrieve vendor1 data"> <action> <delegation class="workflow.LogJobStartActionHandler"/> </action> </transition> </start-state> <!-- NODES --> <state name="retrieve vendor1 data"> <action> <delegation class="workflow.LaunchActivityActionHandler">vendor1Activity</delegation> </action> <transition name="success" to="retrieve vendor2 data"/> <transition name="fail" to="end"> <action> <delegation class="workflow.LogJobEndActionHandler">FAILURE</delegation> </action> </transition> </state> ... <!-- SNIP VENDOR 2 DATA --> ... <!-- END-STATE --> <end-state name="end" /> </process-definition>

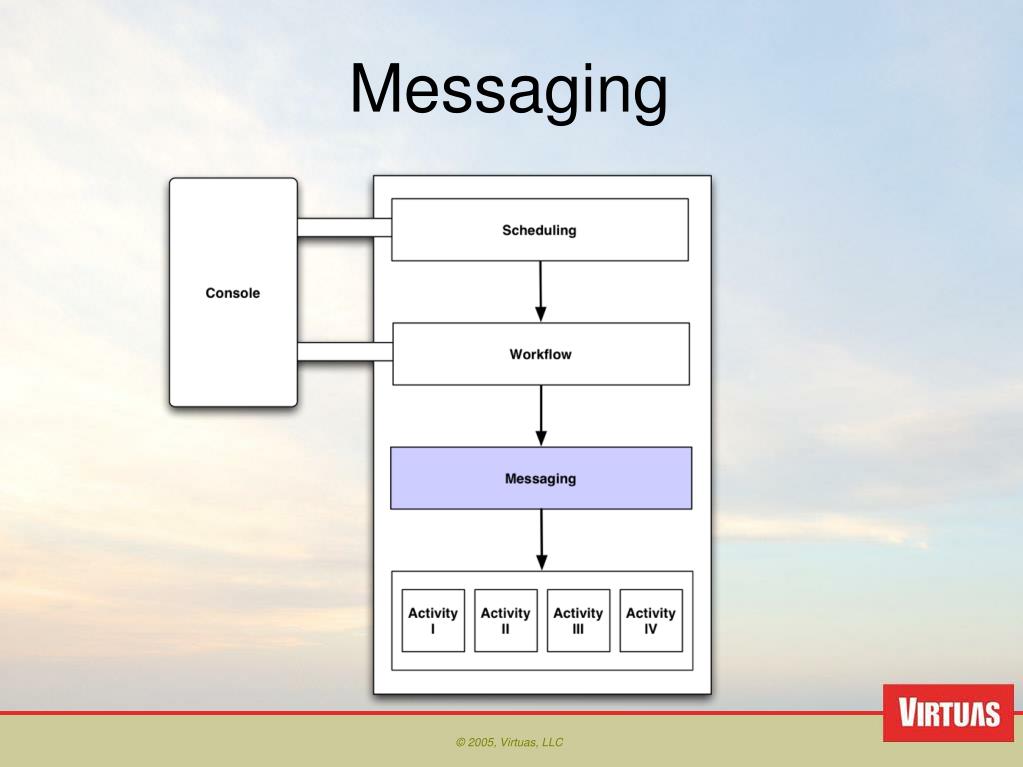

  19. Messaging

  20. ESB: Message Oriented Middleware M.O.M.

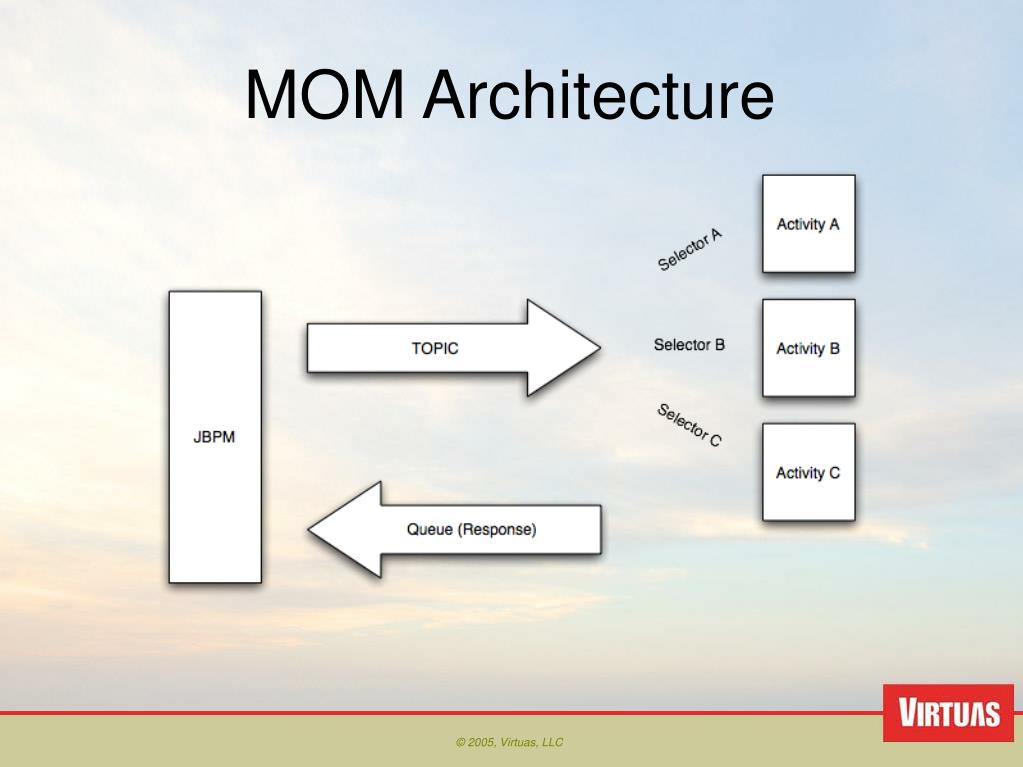

  21. MOM Architecture

  22. Activities/Transformation

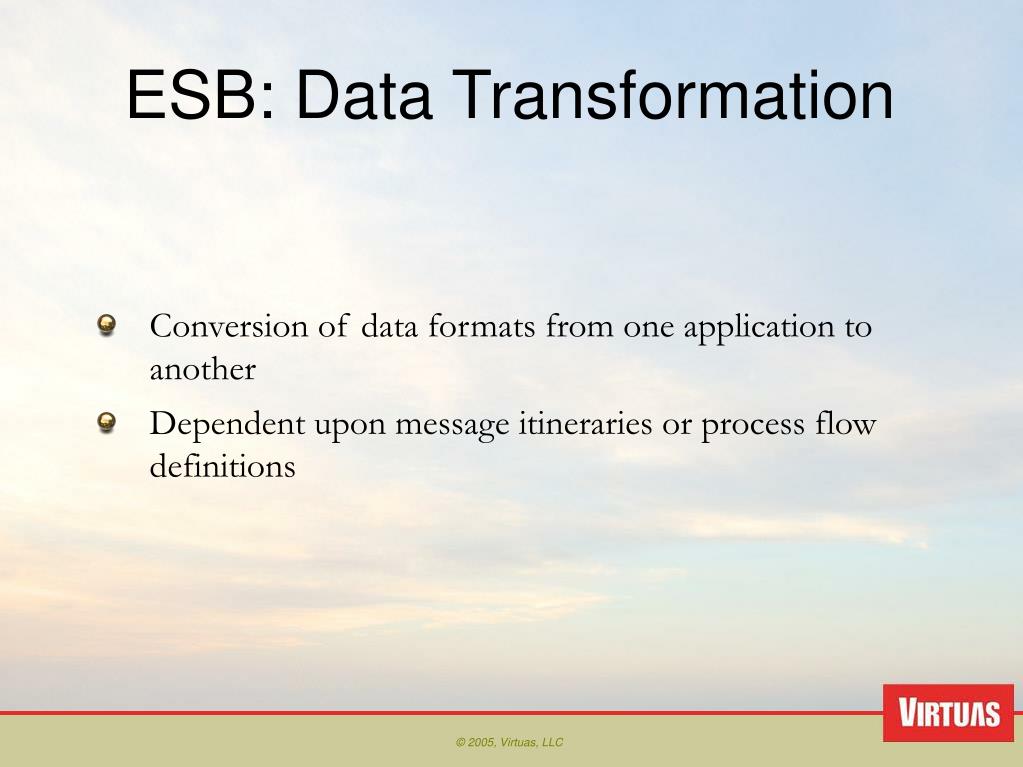

  23. ESB: Data Transformation • Conversion of data formats from one application to another • Dependent upon message itineraries or process flow definitions

  24. Transformer

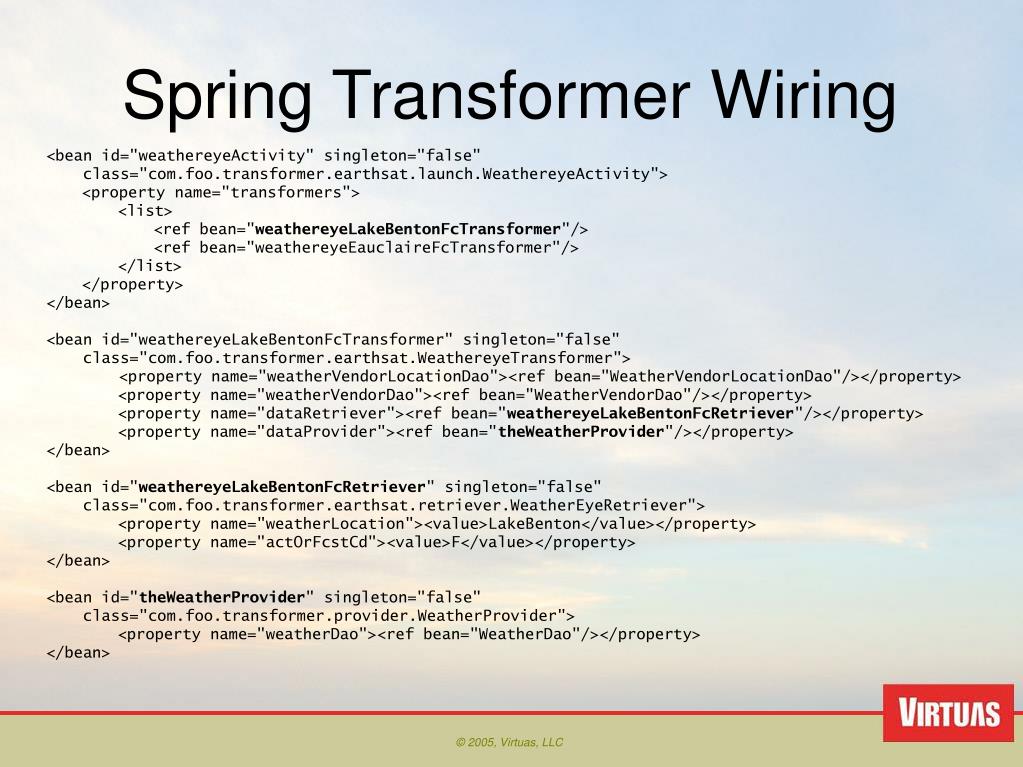

  25. Spring Transformer Wiring <bean id="weathereyeActivity" singleton="false" class="com.foo.transformer.earthsat.launch.WeathereyeActivity"> <property name="transformers"> <list> <ref bean="weathereyeLakeBentonFcTransformer"/> <ref bean="weathereyeEauclaireFcTransformer"/> </list> </property> </bean> <bean id="weathereyeLakeBentonFcTransformer" singleton="false" class="com.foo.transformer.earthsat.WeathereyeTransformer"> <property name="weatherVendorLocationDao"><ref bean="WeatherVendorLocationDao"/></property> <property name="weatherVendorDao"><ref bean="WeatherVendorDao"/></property> <property name="dataRetriever"><ref bean="weathereyeLakeBentonFcRetriever"/></property> <property name="dataProvider"><ref bean="theWeatherProvider"/></property> </bean> <bean id="weathereyeLakeBentonFcRetriever" singleton="false" class="com.foo.transformer.earthsat.retriever.WeatherEyeRetriever"> <property name="weatherLocation"><value>LakeBenton</value></property> <property name="actOrFcstCd"><value>F</value></property> </bean> <bean id="theWeatherProvider" singleton="false" class="com.foo.transformer.provider.WeatherProvider"> <property name="weatherDao"><ref bean="WeatherDao"/></property> </bean>

  26. XDoclet for MDB <SNIP> * @ejb.bean * name="WeathereyeActivity" * type="MDB" * destination-type="javax.jms.Topic" * subscription-durability="Durable" * message-selector="ACTIVITY='weathereyeActivity'" * acknowledge-mode="Auto-acknowledge" * transaction-type="Container" * * ### Note: only use this markup if you want singleton MDB's. ### * @jboss.container-configuration * name="Singleton Message Driven Bean" * * @ejb.transaction * type="Required" * * @jboss.destination-jndi-name * name="topic/ActivityTopic" * * @jboss.subscriber * name="system" * password="manager" * client-id="weathereyeActivityID" * subscription-id="weathereyeActivitySubID" <SNIP>

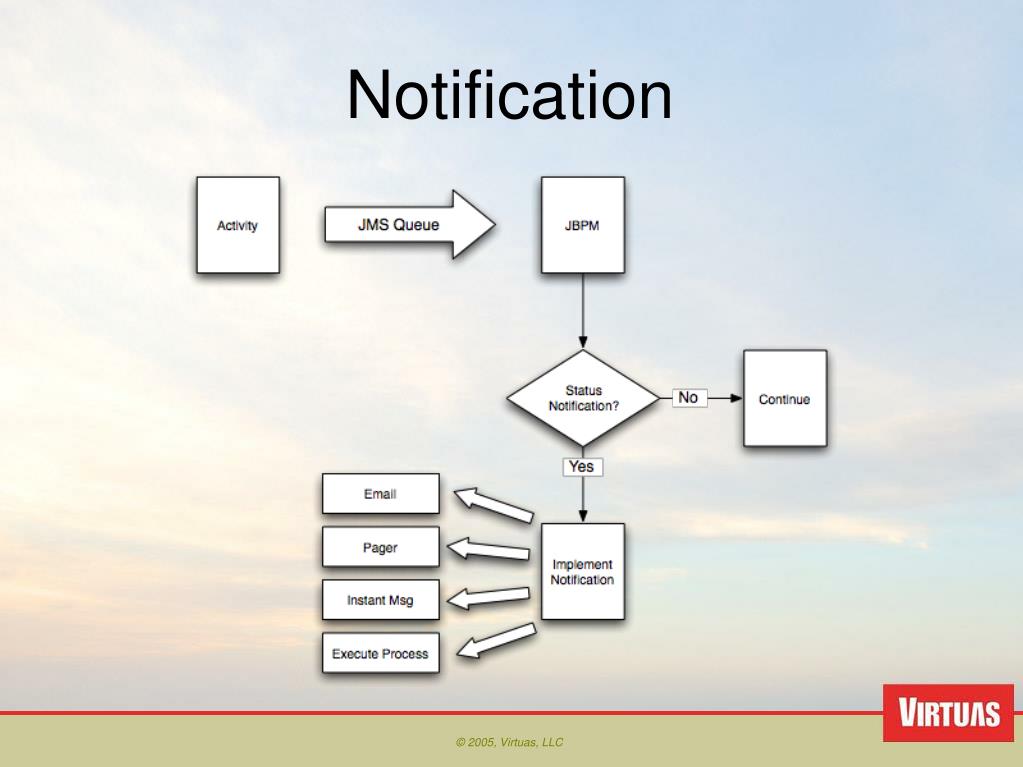

  27. Notification

  28. Common Staging • Central Location for Common Data Types • Single Location for Load Data • Single Location and Format for Weather Data • Data is Accessible From Any Outside System EMS 1 EMS 2 EMS 3 Oracle Weather1 Weather 2

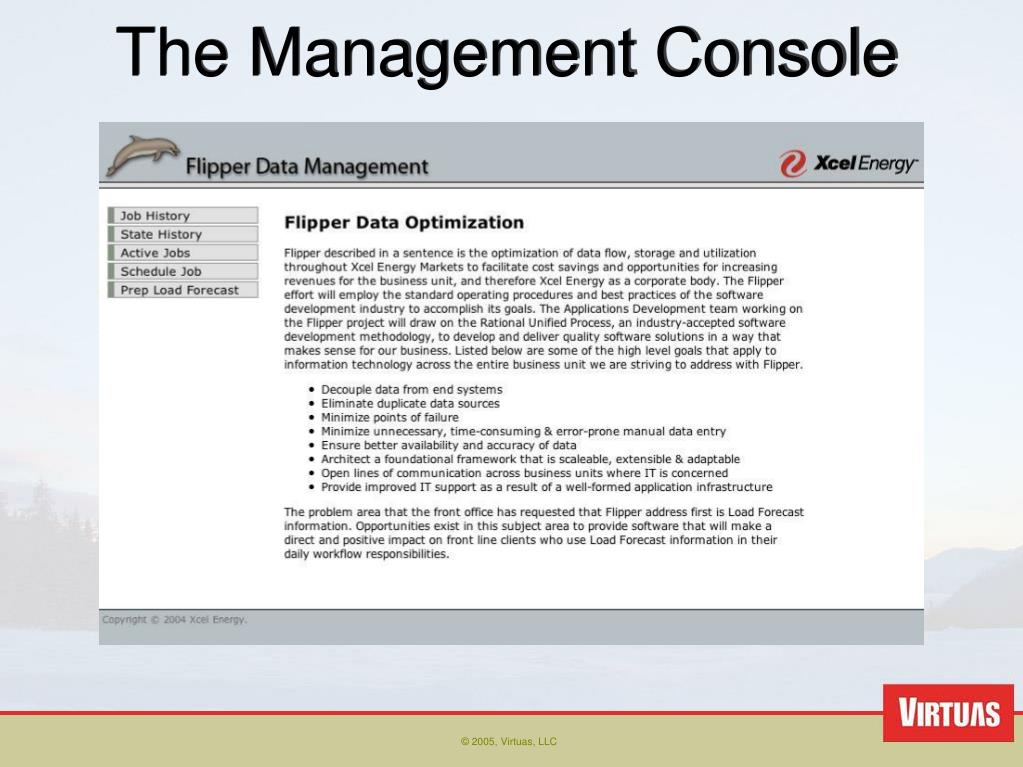

  29. The Management Console

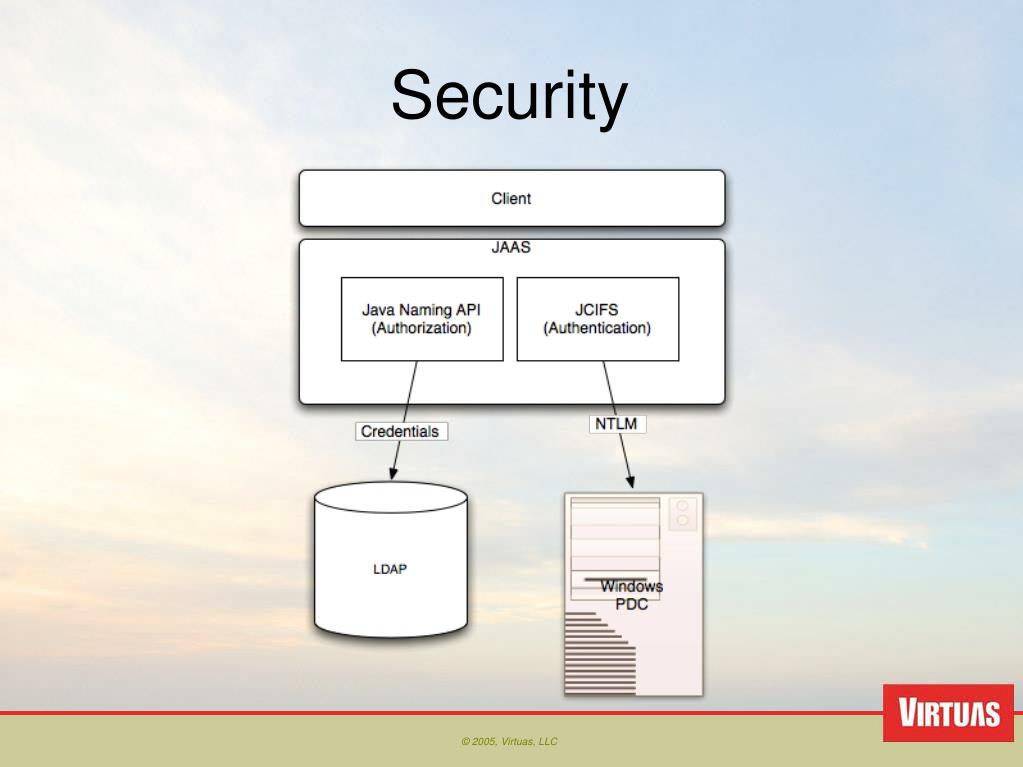

  30. Security

  31. Tools/APIs • What did we use?

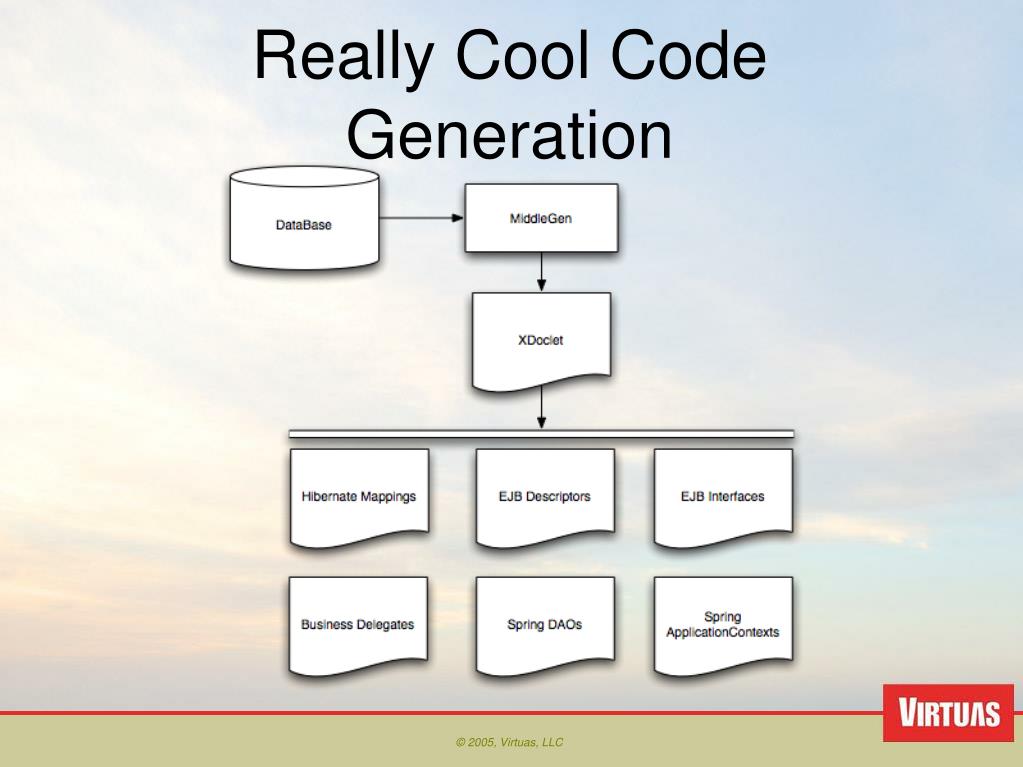

  32. Really Cool Code Generation

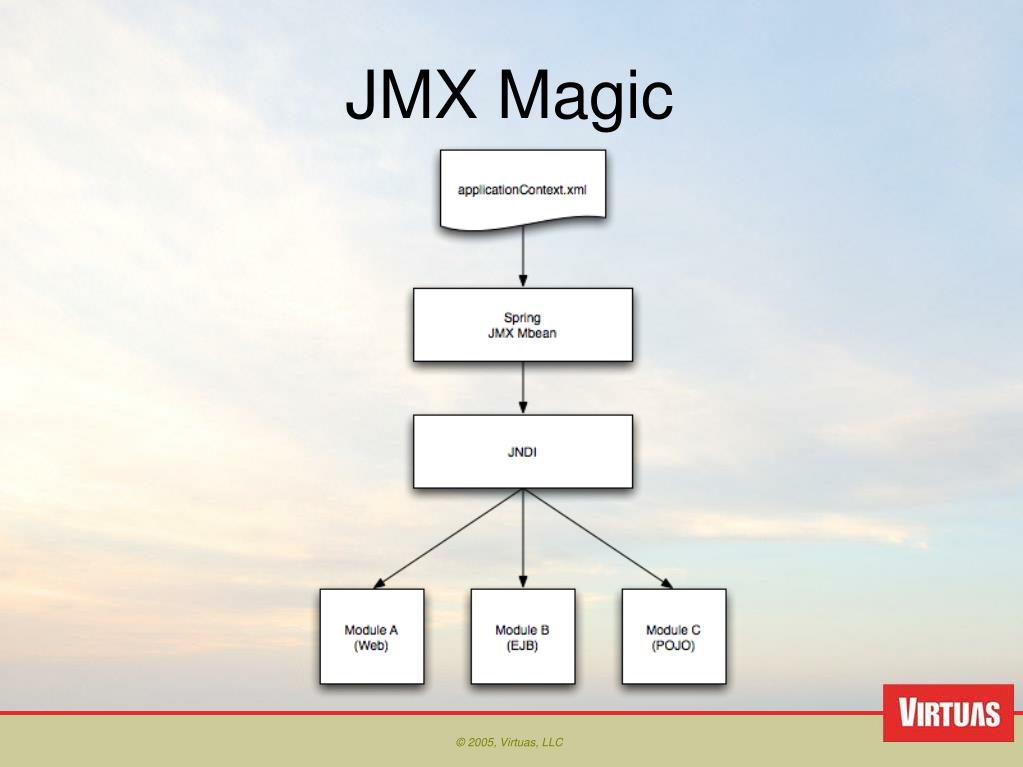

  33. JMX Magic

  34. Development Lessons Learned • Technical • Business

  35. Questions • (and hopefully answers)
