  1. Buffer Fluid Reservoirs and equipment. ASME – ANSI – API 610 – API 682

  2. ASME LIGHT RESERVOIR ANSI 7353

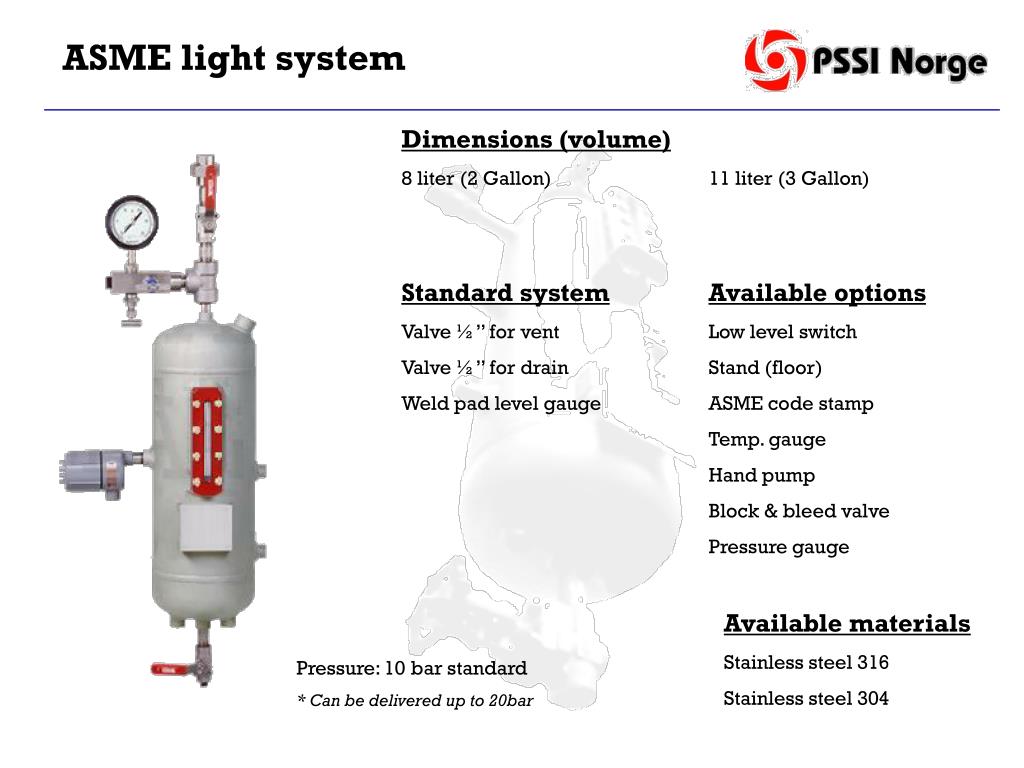

  3. ASME light system Dimensions (volume) 8 liter (2 Gallon) 11 liter (3 Gallon) Standard systemAvailable options Valve ½” for vent Low level switch Valve ½” for drain Stand (floor) Weld pad level gauge ASME code stamp Temp. gauge Hand pump Block & bleed valve Pressure gauge Available materials Stainless steel 316 Stainless steel 304 Pressure: 10 bar standard * Can be delivered up to 20bar

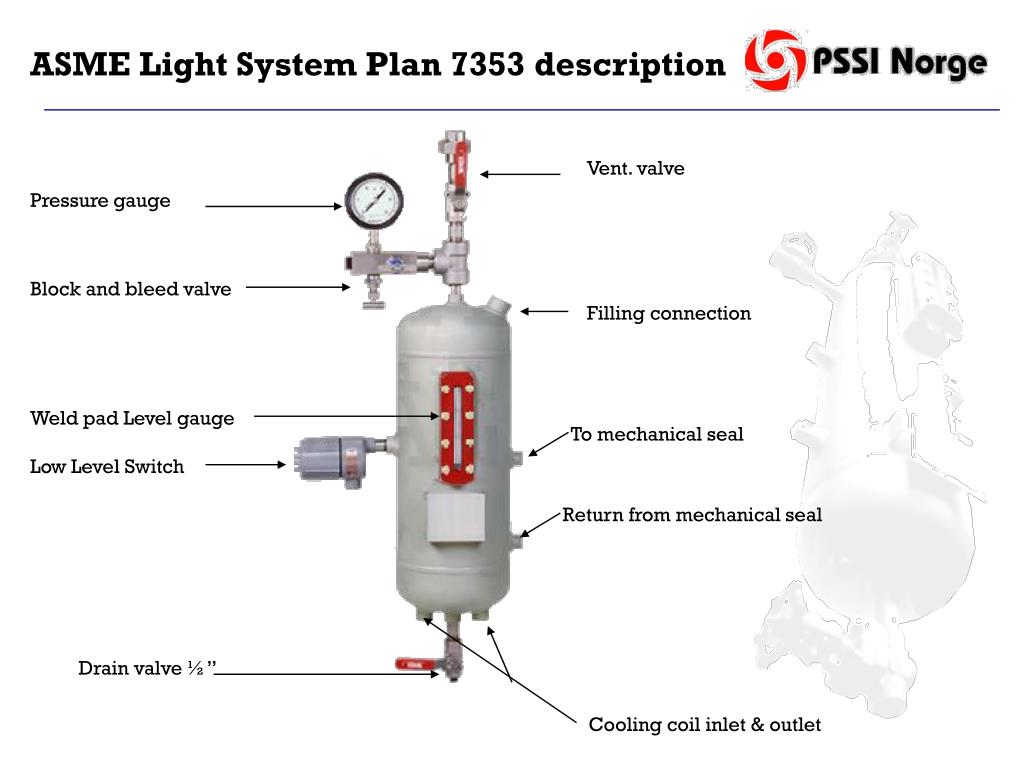

  4. ASME Light System Plan 7353 description Vent. valve Pressure gauge Block and bleed valve Filling connection Weld pad Level gauge To mechanical seal Low Level Switch Return from mechanical seal Drain valve ½” Cooling coil inlet & outlet

  5. ANSI RESERVOIR SYSTEM ANSI PLAN 7352 & 7353

  6. ANSI system – Plan 7352 & 7353 Available dimensions (volume) 8 liter (2 Gallon) 11 liter (3 Gallon) 15 liter (3 Gallon) 20 liter (5 Gallon) Standard systemAvailable options Welded level gauge Cooling coil Carbon steel High level switch Stainless steel 316 Level gauge (welded) Stainless steel 304 Stand (floor) ASME code stamp Low level switch Pressure gauge Hand pump Pressure switch Block & bleed valve Vent and drain valves Users Chemical processing Pharmaceutical ind. Food processing PLANS 7352/7353

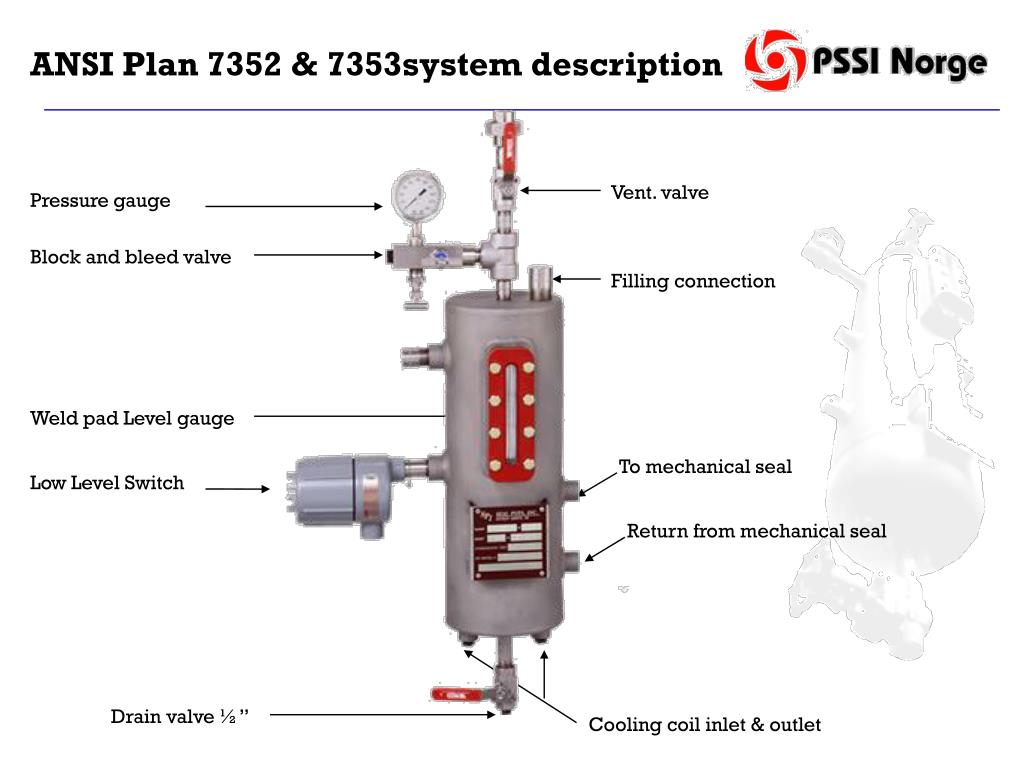

  7. ANSI Plan 7352 & 7353system description Vent. valve Pressure gauge Block and bleed valve Filling connection Weld pad Level gauge To mechanical seal Low Level Switch Return from mechanical seal Drain valve ½” Cooling coil inlet & outlet

  8. API SYSTEM - 7th EDITION API PLAN 52 & 53

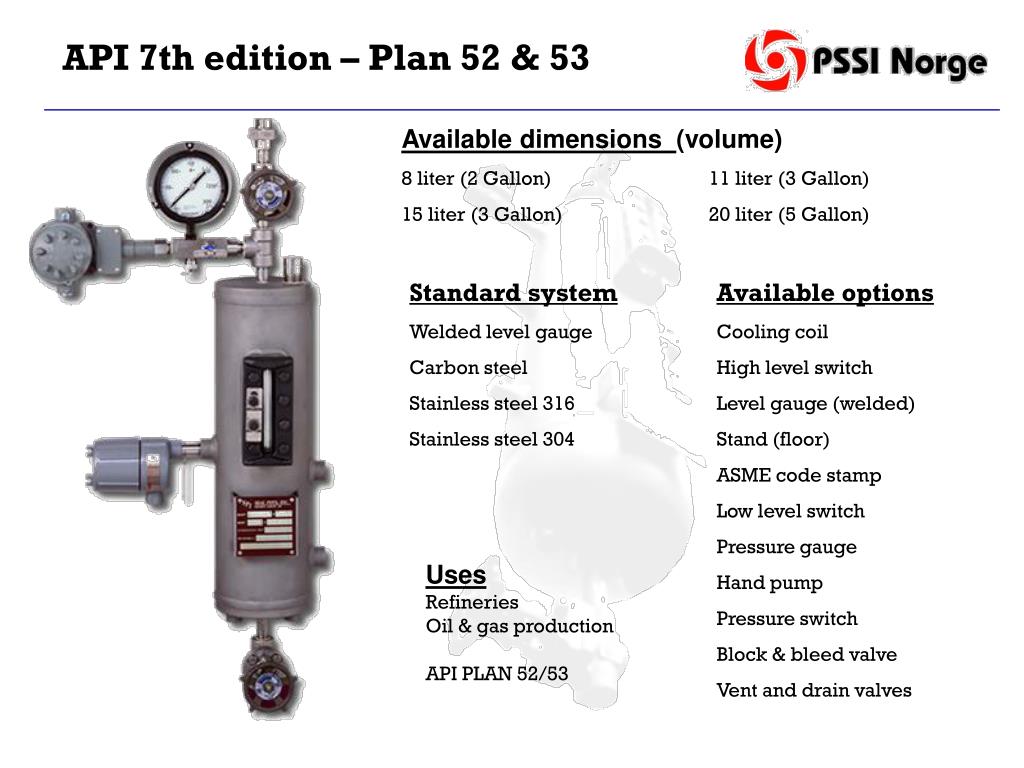

  9. API 7th edition – Plan 52 & 53 Available dimensions (volume) 8 liter (2 Gallon) 11 liter (3 Gallon) 15 liter (3 Gallon) 20 liter (5 Gallon) Standard systemAvailable options Welded level gauge Cooling coil Carbon steel High level switch Stainless steel 316 Level gauge (welded) Stainless steel 304 Stand (floor) ASME code stamp Low level switch Pressure gauge Hand pump Pressure switch Block & bleed valve Vent and drain valves Uses Refineries Oil & gas production API PLAN 52/53

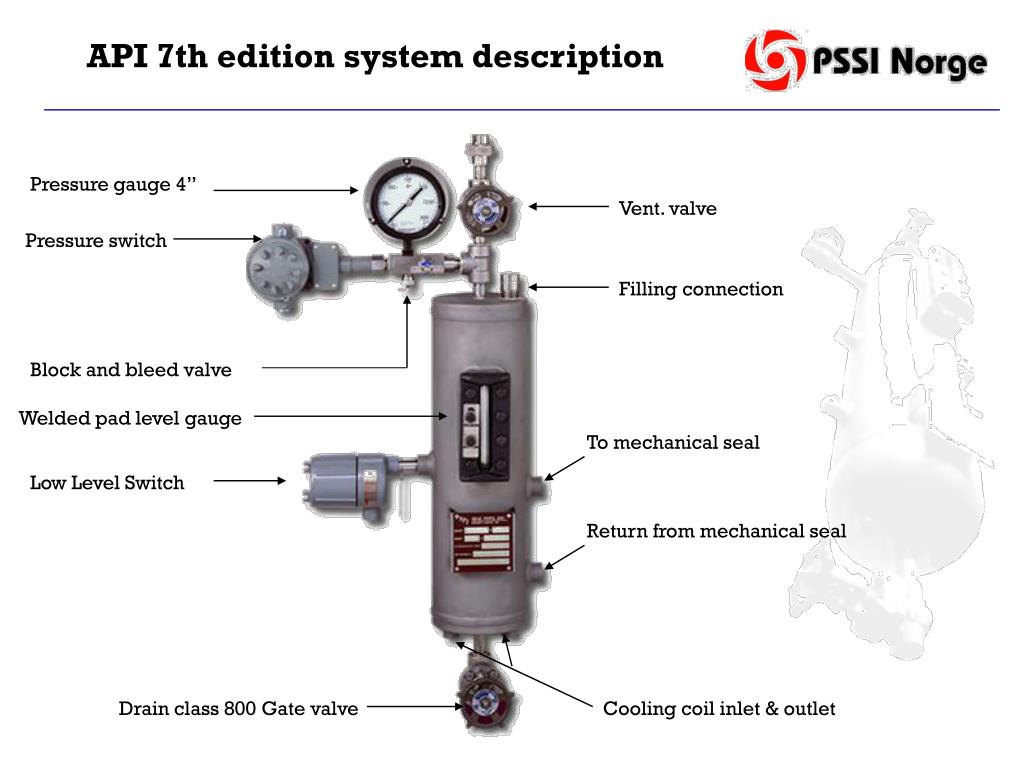

  10. API 7th edition system description Pressure gauge 4” Vent. valve Filling connection Block and bleed valve Welded pad level gauge To mechanical seal Low Level Switch Return from mechanical seal Drain class 800 Gate valve Cooling coil inlet & outlet Pressure switch

  11. API SYSTEM - 8th EDITION API 610/682 - PLAN 52 & 53

  12. API 8th edition system – Plan 52 & 53 Dimensions 8 liter (2 Gallon) 11 liter (3 Gallon) 15 liter (3 Gallon) 20 liter (5 Gallon) * API 682 28 liter (7 Gallon) * API 682 Standard systemAvailable options 20 liter (5 Gallon) High level switch Level gauge (welded) Stand (floor) Cooling coil ASME code stamp Low level switch Pressure regulator Plan 53 Pressure gauge Hand pump Pressure switch Block & bleed valve Filling, vent and drain valves Vent orifice (plan 52 only) Available materials Stainless steel 316 Stainless steel 304 Carbon steel

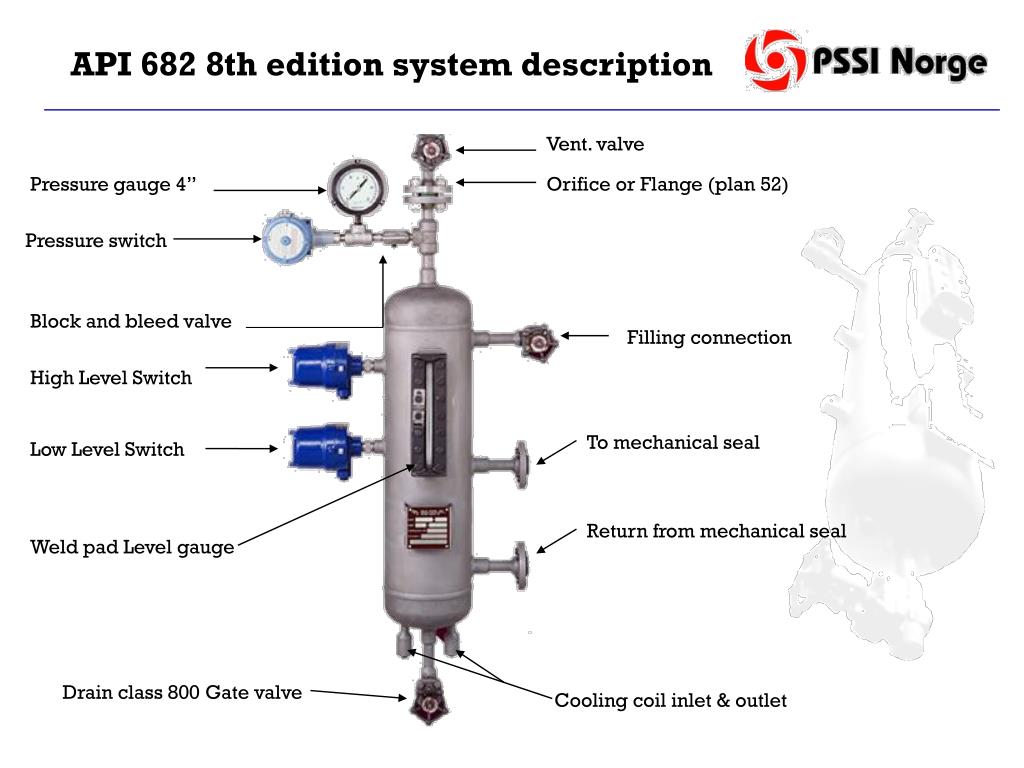

  13. API 682 8th edition system description Vent. valve Pressure gauge 4” Orifice or Flange (plan 52) Block and bleed valve Filling connection High Level Switch Low Level Switch To mechanical seal Return from mechanical seal Weld pad Level gauge Drain class 800 Gate valve Cooling coil inlet & outlet Pressure switch
