Novell NetWare

1. Novell NetWare CS363 11 February, 1999

2. NetWare 3.1x • NetWare Architecture • Directory and File Structure • Security • Account Restrictions • Trustee Assignments • Inheritance • File/Directory Attributes

3. NetWare 3.1x • Bindery Services • Print Services • Protocols • IPX, SPX • NCP • SAP • Utilities

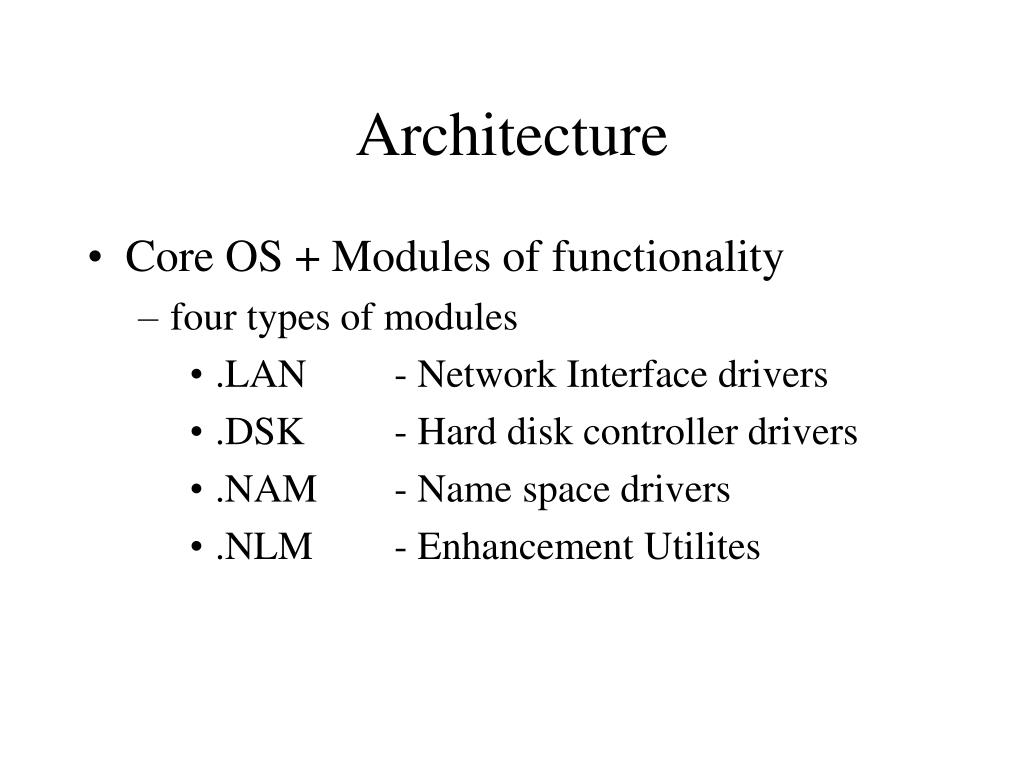

5. Architecture • Core OS + Modules of functionality • four types of modules • .LAN - Network Interface drivers • .DSK - Hard disk controller drivers • .NAM - Name space drivers • .NLM - Enhancement Utilites

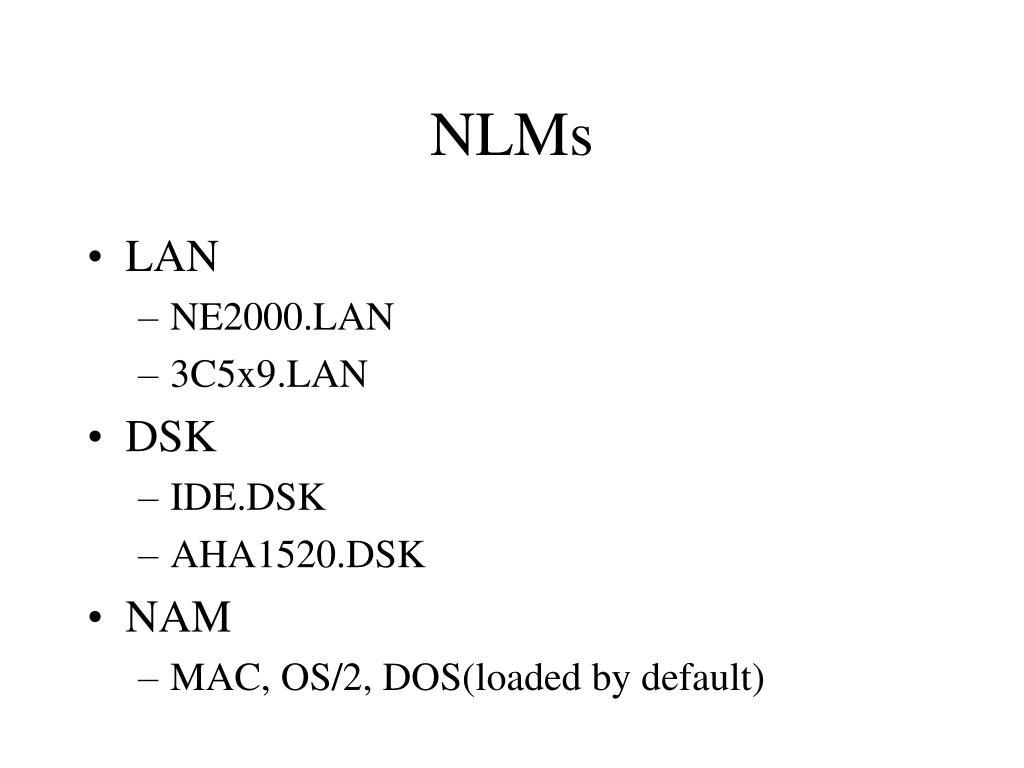

6. NLMs • LAN • NE2000.LAN • 3C5x9.LAN • DSK • IDE.DSK • AHA1520.DSK • NAM • MAC, OS/2, DOS(loaded by default)

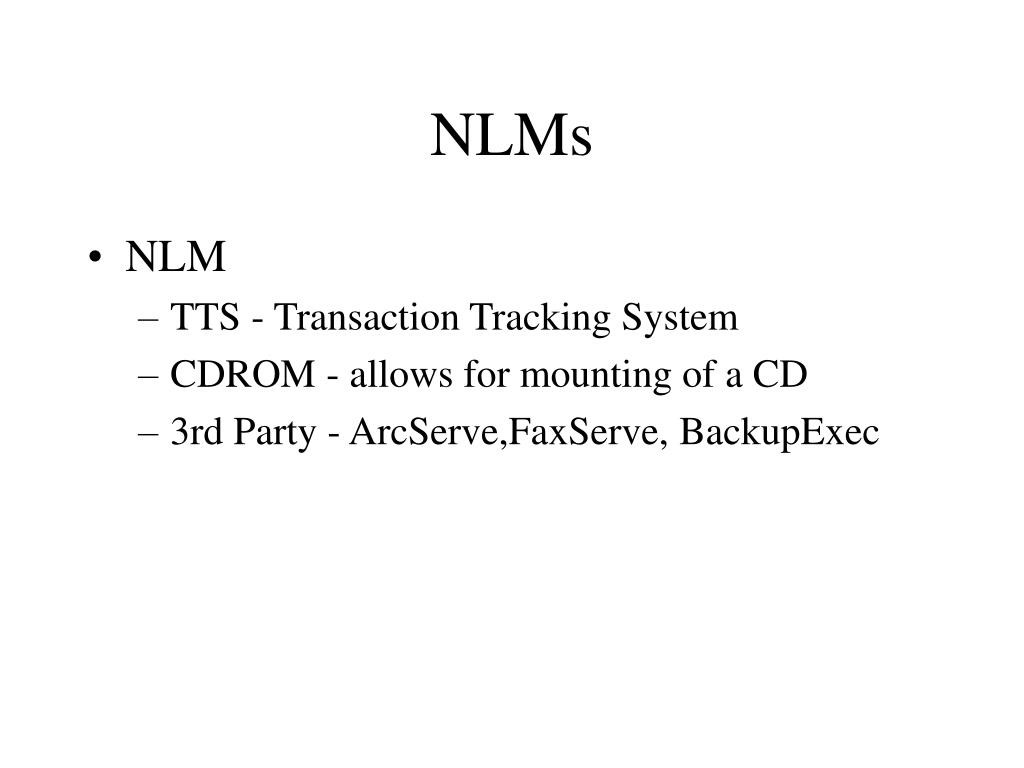

7. NLMs • NLM • TTS - Transaction Tracking System • CDROM - allows for mounting of a CD • 3rd Party - ArcServe,FaxServe, BackupExec

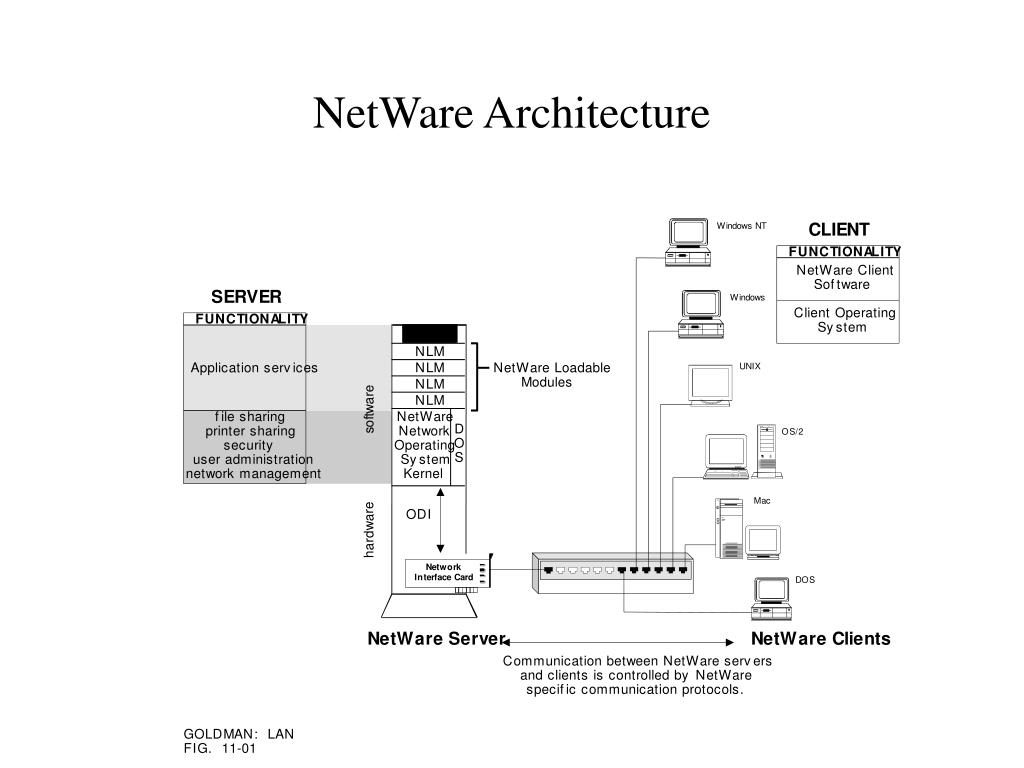

8. NetWare Architecture

9. NetWare Client

12. Client32

13. Directory Structure

18. Search MAP • Search Maps will add themselves to the PATH variable. • It will either OVERWRITE the spot in the PATH (MAP S1:=) • Insert and push right existing (MAP INS S1:=) • Map S16:= will assign next avail search map, til 16, then overwrites

19. MAP Command • ROOT - creates a fake root of the file system (great for applications and security) • MAP ROOT H:=SYS:\USERS\%LOGIN_NAME • H:=sys:\users\BillS • C - changes a Network map to a Search map (or vice versa) • MAP C Z: • Z: is now no longer a search map but is a regular map • NEXT - assigns the next available drive letter

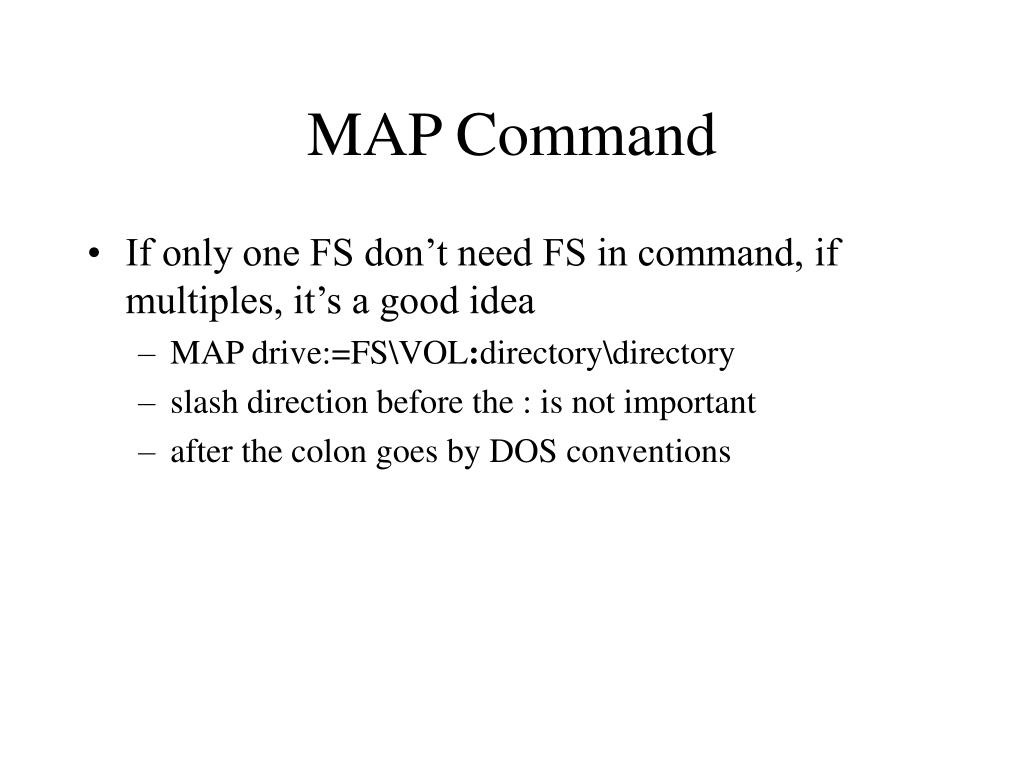

20. MAP Command • If only one FS don’t need FS in command, if multiples, it’s a good idea • MAP drive:=FS\VOL:directory\directory • slash direction before the : is not important • after the colon goes by DOS conventions

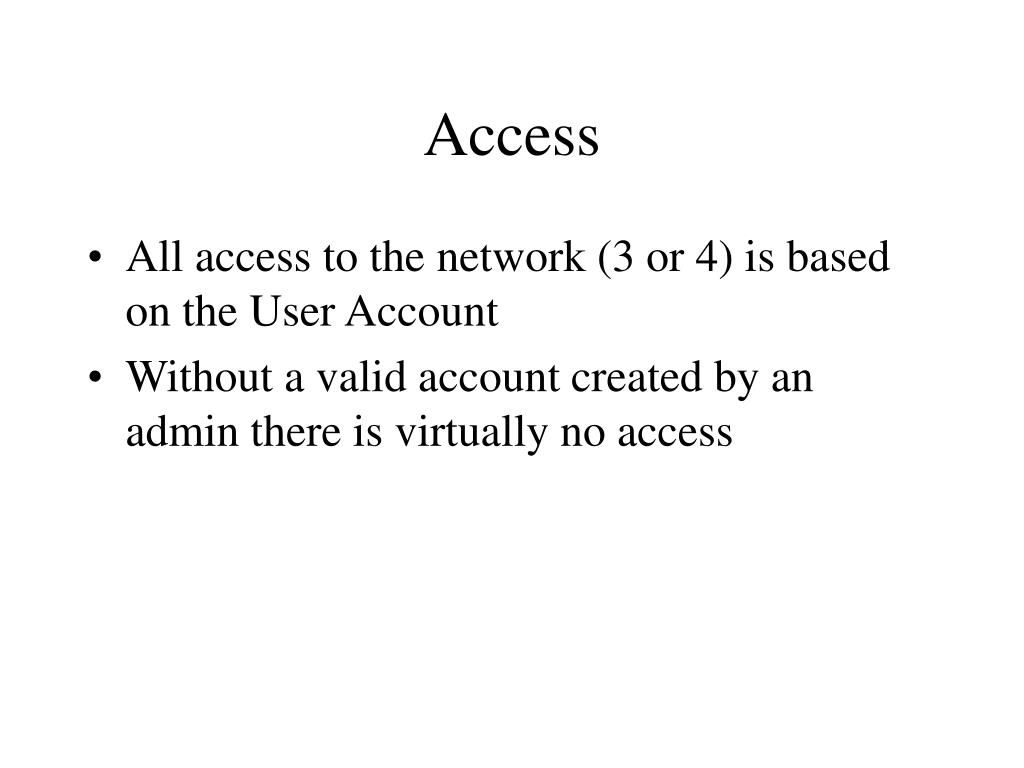

22. Access • All access to the network (3 or 4) is based on the User Account • Without a valid account created by an admin there is virtually no access

23. File System Security • Basis is User Account • Trustee assignments determine Who can do • Rights determine What user can do

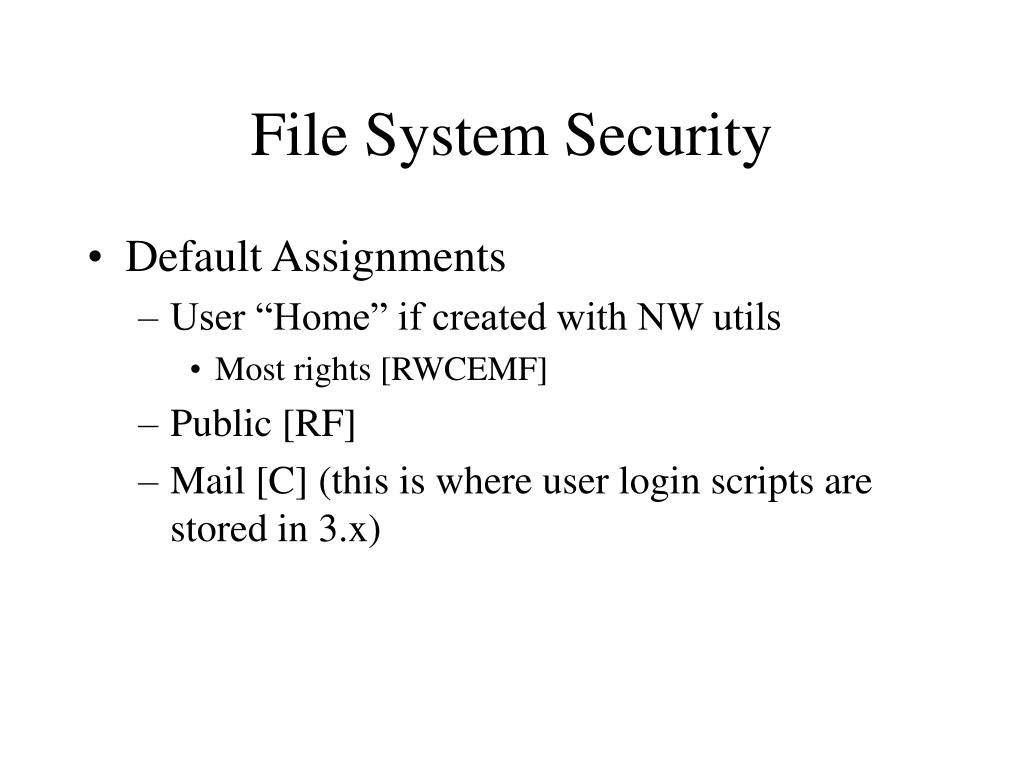

24. File System Security • Default Assignments • User “Home” if created with NW utils • Most rights [RWCEMF] • Public [RF] • Mail [C] (this is where user login scripts are stored in 3.x)

26. W (Write) o R (Read) M (Modify) F (File Scan) A (Access Control) C (Create) E (Erase) S (Superviory) Changes contents used to make a word Open and Execute Changes the Attribs See the F or D in a list Sets Trustees, IRF Makes a new F or D Deletes the F or D All of the Above Rights

28. FS Security • Gain Rights by • Trustee Assignment • Membership in a Group • Inheritance (rights flowing down) • Lose Rights by • New Trustee Assignment • Inheritance Rights Mask(3) or Filter(4)

33. Planning Trustees

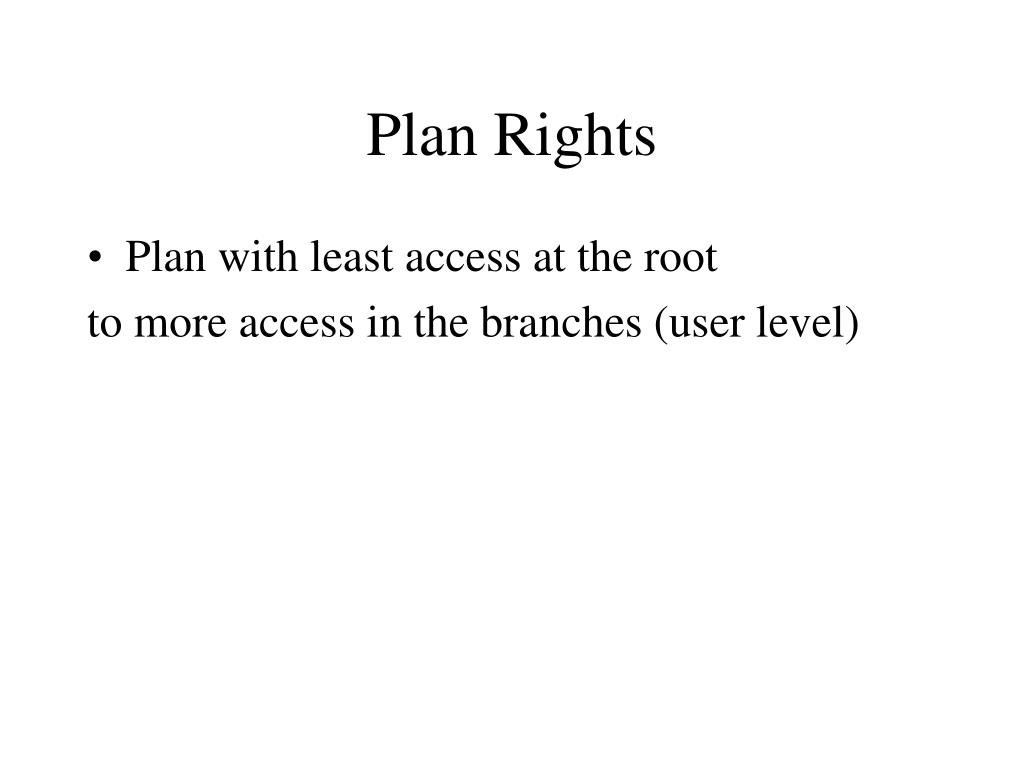

34. Plan Rights • Plan with least access at the root to more access in the branches (user level)

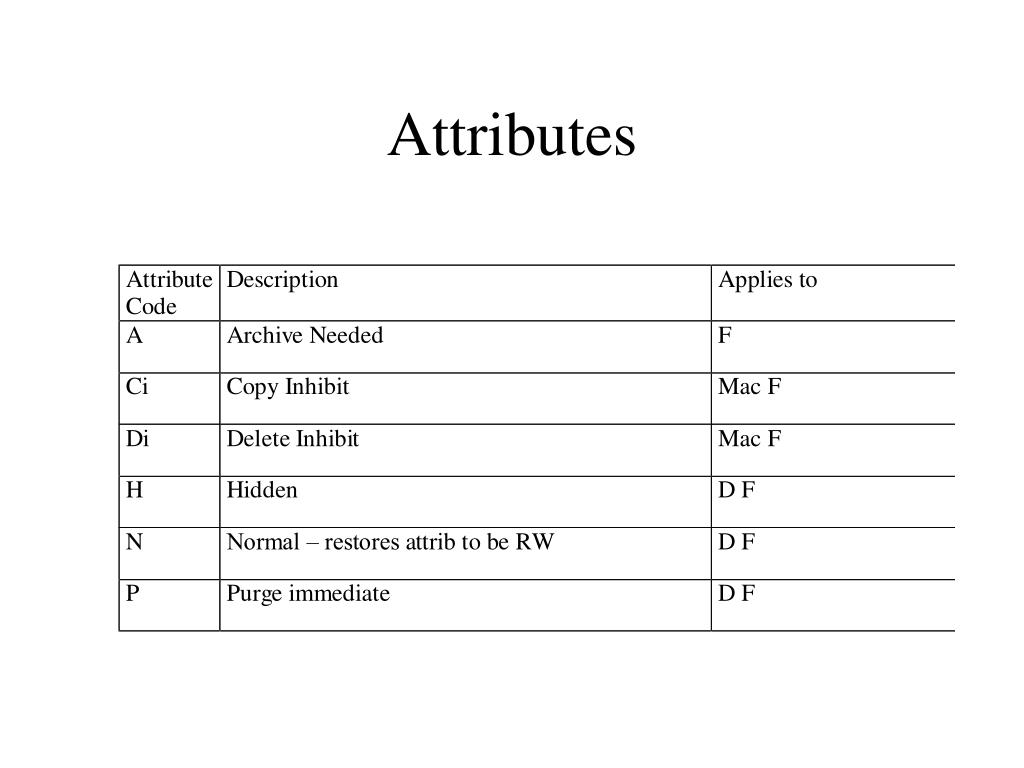

35. Attributes

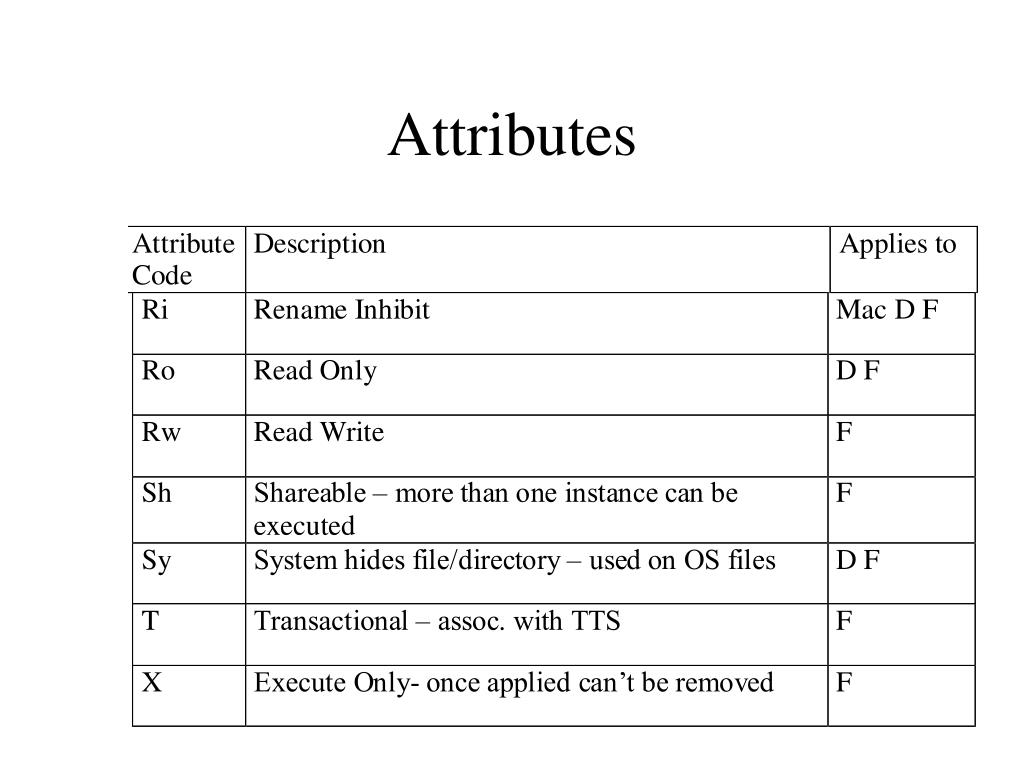

36. Attributes

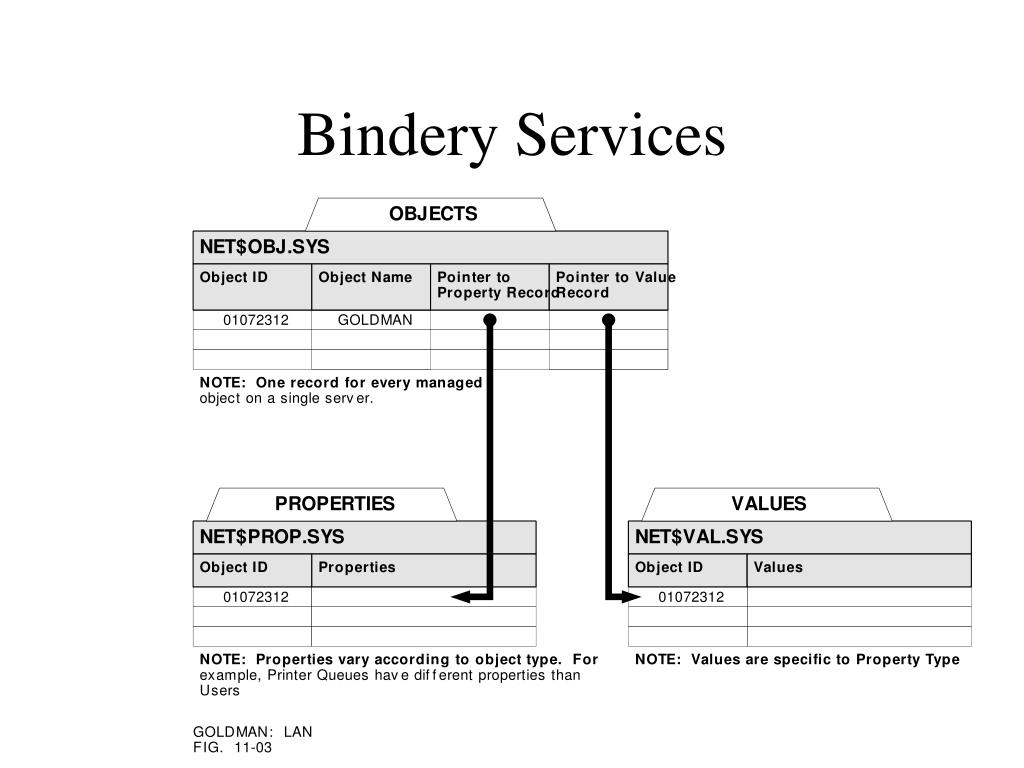

37. Bindery Services

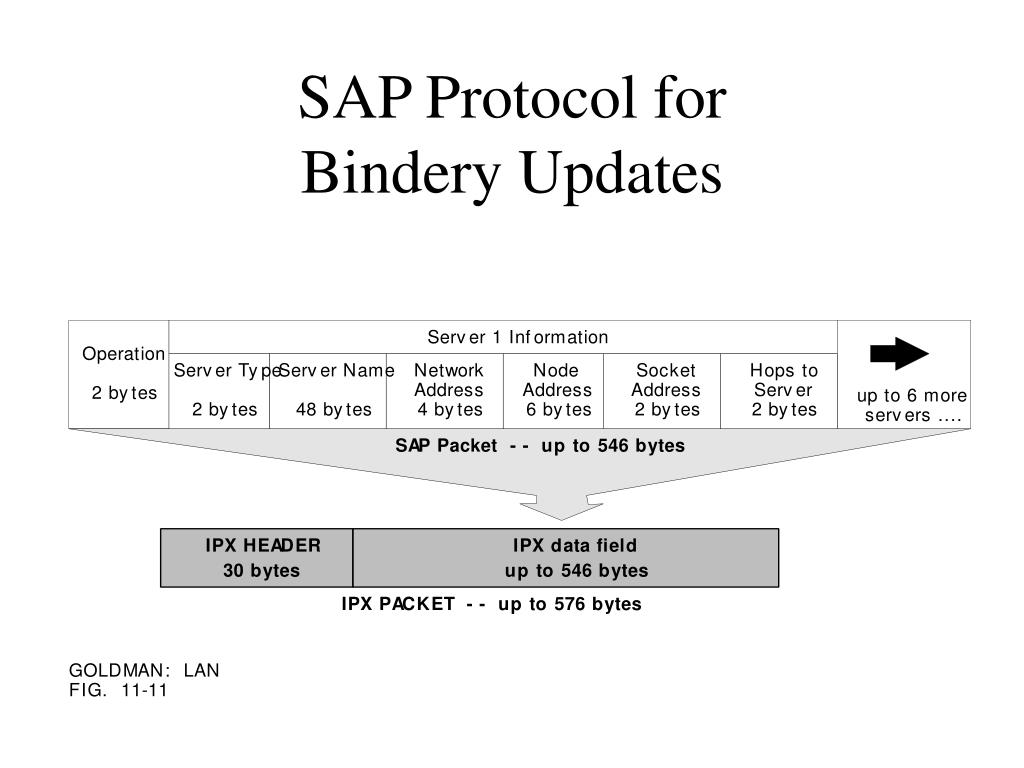

38. SAP Protocol for Bindery Updates

40. Login Scripts • Used to set the environment for Users • 3.x • System Login Script • User Login Script • Default (part of Login.EXE)

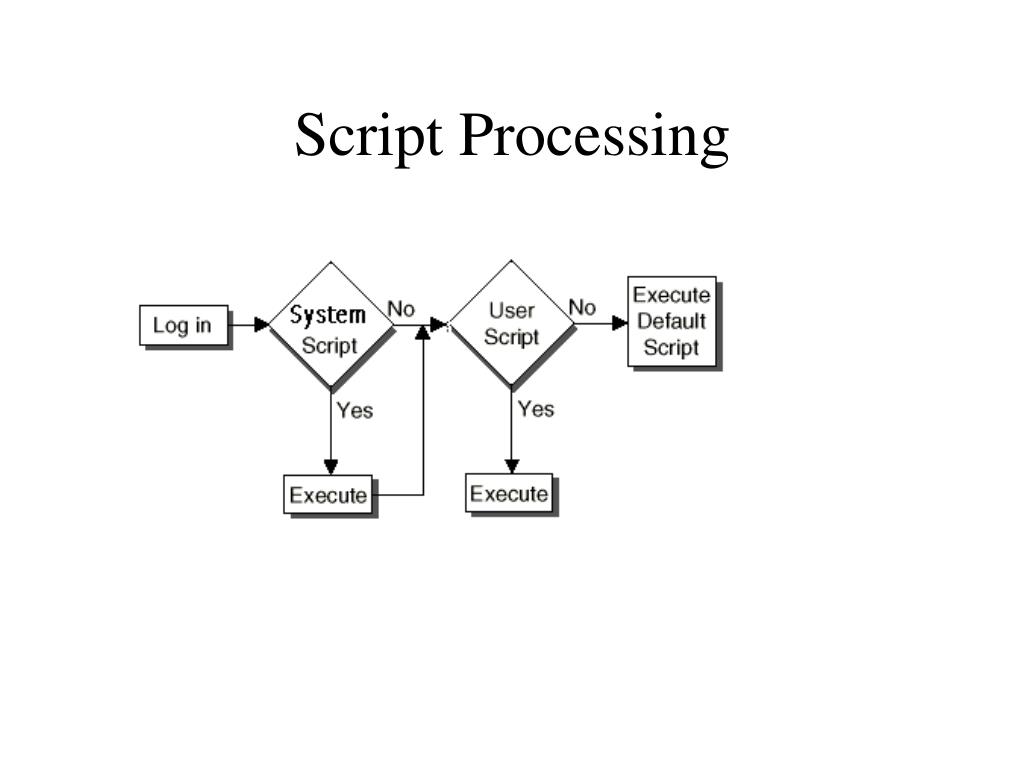

41. Script Processing

44. NetWare Printing Services • Currently everything is based on Queues • Printing Services must be ADDED (they are not part of the core OS) • PServer provides printing services to the network • NPrinter broadcasts the availability of a printer at Server - Rprinter at a WS.

48. Queue Location

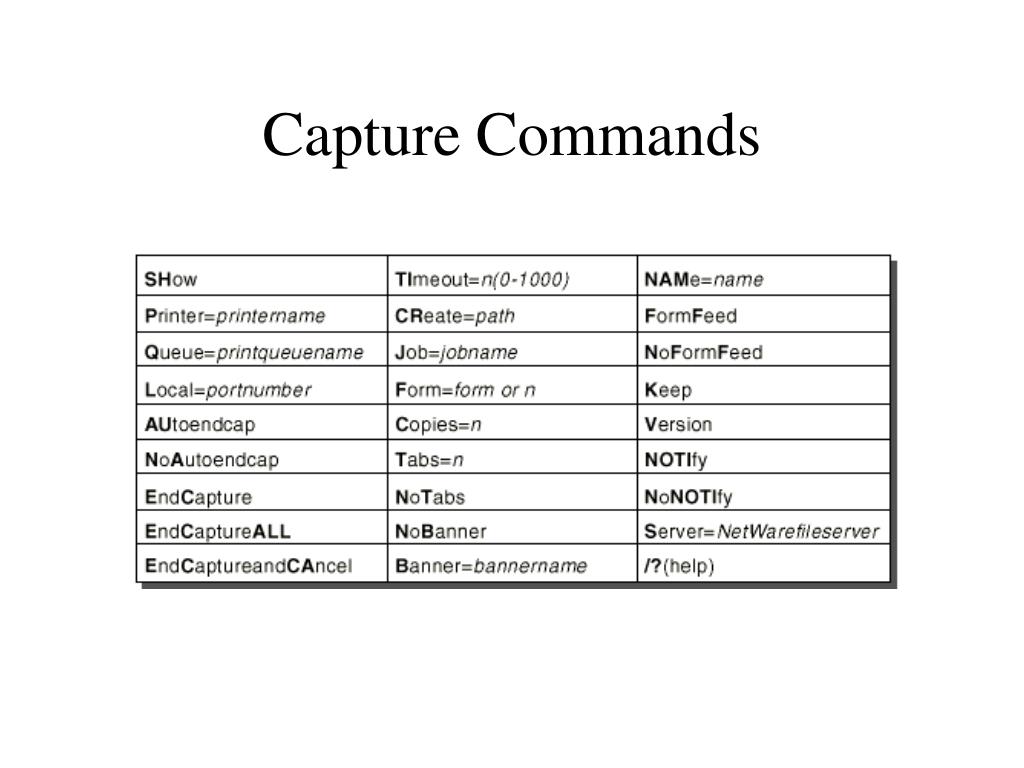

50. Capture Commands
