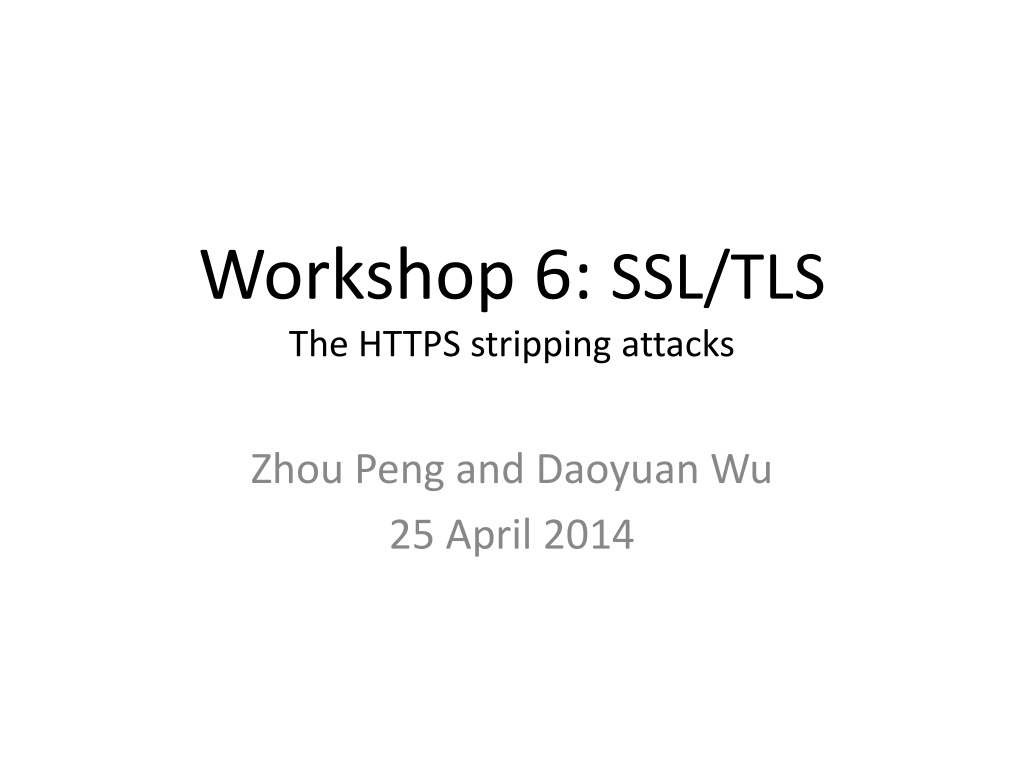

Workshop 6: SSL/TLSThe HTTPS stripping attacks Zhou Peng and Daoyuan Wu 25 April 2014
SSLStrip Background • The HTTPS stripping steps • Transparently hijacking HTTP traffic • Discovering HTTPS links and redirects • Mapping HTTPS links into look-alike HTTP links • References: • http://www.thoughtcrime.org/software/sslstrip/index.html
Objectives • Provide hands-on experience on attacking HTTPS connections using sslstrip • Understand how sslstrip can steal your credentials (e.g., your Facebook username and password)
Overview of This Lab • Preparation Step • Step 1: Boot your system • Step 2: Configure your Firefox browser • Sslstrip Attacking Step • Step 3: Download and run sslstrip • Step 4: Browse HTTPS web sites • Step 5: Analyze how sslstrip intercept your connections • Step 6: Use sslstrip to steal your credentials • Lab Assignment
Step 1 (Boot your system) • Reboot your computer to Mac OS • Find Terminal in Launchpad. • Find Firefox in Launchpad. • Find Python 2.7 environment • It should be by default accessible in Terminal. An example: • $ cd Documents • Documents $ python sslstrip.py -h
Step 2 (Configure your Firefox browser) • Start Firefox via Launchpad • Click Edit > Preferences • Click on Advanced and Select Network Tab • Click Settings… and Select Manual proxy configuration • Configure HTTP Proxy as127.0.0.1and the Port is8080 • Pleasedo not enable “Use this proxy server for all protocols” • Leave other entries (including SSL Proxy, FTP Proxy and SOCKS Host) empty • EraseNo Proxy For entry • Save your settings
Step 3 (Download and run sslstrip) • Click Terminal in Mac • Download sslstrip https://docs.google.com/file/d/0B80v2ixuaO4ObDVVUXBxVDJ1LTA/ Or http://www.thoughtcrime.org/software/sslstrip/sslstrip-0.9.tar.gz • Decompress sslstrip (to Documents directory) Use 7zip to unzip the sslstrip-0.9.ziptar -zxfsslstrip-0.9.tar.gz & cd sslstrip-0.9 • Run sslstrip with help (see what options sslstrip supports) python sslstrip.py -h • Run sslstrip python sslstrip.py -a -w log.txt -l 8080
Step 4 (Browser HTTPS web sites) • Input www.google.com in the address bar of Firefox browser • After www.google.com is loaded, come to your Terminal which runs sslstrip and input command “Ctrl+c” to terminate sslstrip • Open the file “log.txt” and search “Found secure reference” • How many https links have been found by sslstrip?
Step 5 (Analyze how sslstrip intercept your connections) • We use “apis.google.com” as a hint to see how sslstrip intercept your connections • In the file “log”, we can find I.ms="https://apis.google.com"; in the HTML document • Back to your Firefox browser, right click at the blank area and select View page source • Search “apis.google.com” in the page source, you can find I.ms="http://apis.google.com" • Now, Do you know how sslstrip works?
Step 6 (Use sslstrip to steal your credentials) • Run “python sslstrip.py -p -w logpw.txt -l 8080” in your Terminal • Visit http://www.facebook.com/ using Firefox browser • Input “some username” in the username entry and input “some password” in the password entry • Click Sign in • Terminate sslstrip using command “Ctrl+c” and read the file logpw.txt • Search “email” or “pass” in the log file. What do you find [Or simply search your email address]
Questions • Use sslstrip to intercept your traffic when you visit www.polyu.edu.hk and answer the question: How many HTTPS links have been found and what are they? (5 marks) • Given that sslstrip can access all your connections to the Internet. Now, you will login to your Facebook account, how do you prevent sslstrip from stealing your passwords? (5 marks) • Hint: sslstrip can only intercept HTTP connections.
