  1. AlgoritmadanPemrograman 2C Scope VariabeldanMemori Aurelio Rahmadian

  2. Variabel • Variabel digunakan dalam program untuk menyimpan suatu nilai, dan nilai yang ada padanya dapat diubah selama eksekusi program berlangsung.

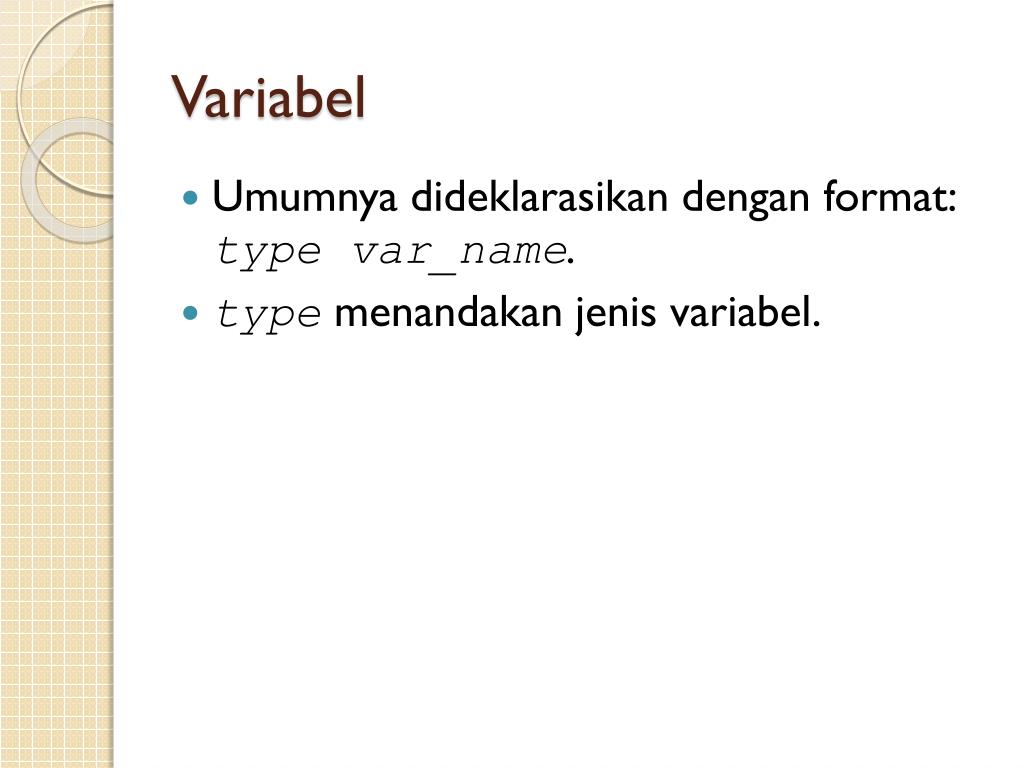

  3. Variabel • Umumnyadideklarasikandengan format:typevar_name. • typemenandakanjenisvariabel.

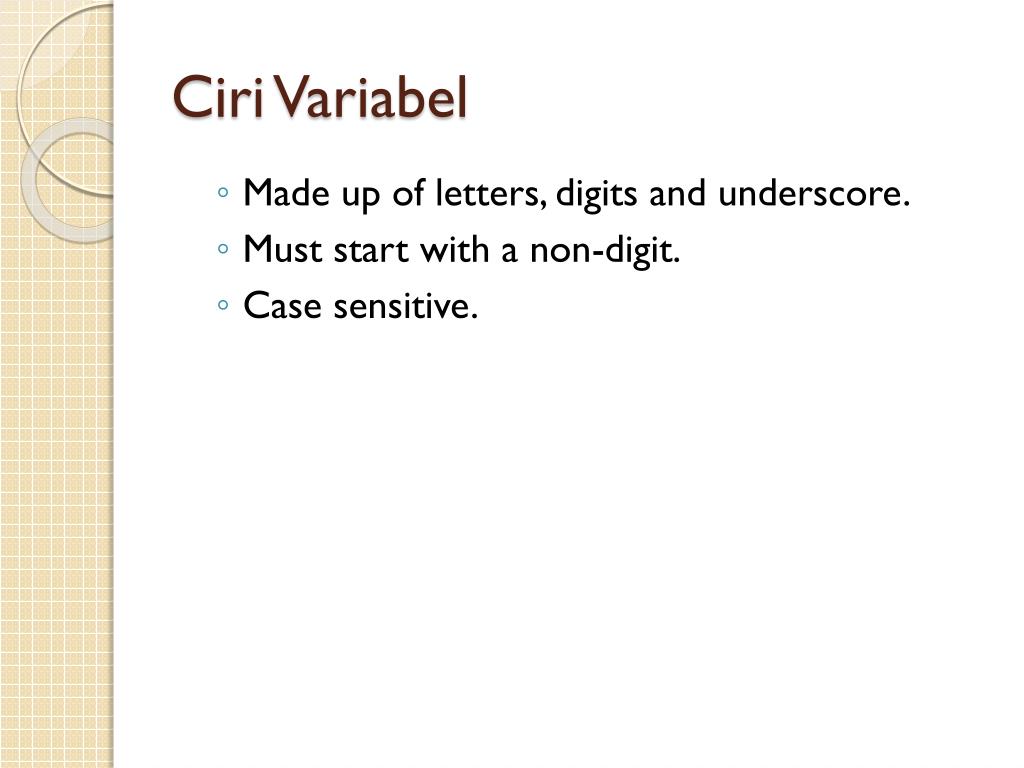

  4. CiriVariabel • Made up of letters, digits and underscore. • Must start with a non-digit. • Case sensitive.

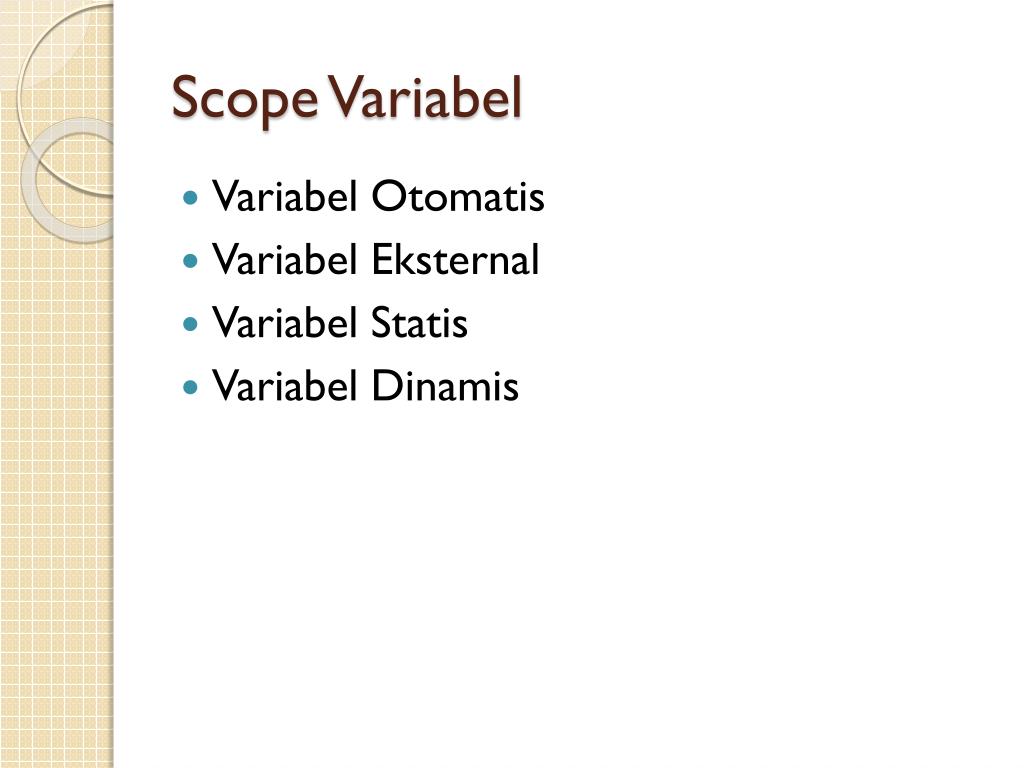

  5. Scope Variabel • VariabelOtomatis • VariabelEksternal • VariabelStatis • VariabelDinamis

  6. VariabelOtomatis • Variabelygdidefinisikandalamsuatufungsiberlakusebagaivariabellokalbagifungsidengansifat: • Variabelhanyaakandiciptakanpadasaatfungsidipanggil. • Saatfungsiberakhir, variabelotomatisakanhilang. • Tidakperluadainisialisasipadavariabel. • Hanyadapatdiaksesdalamfungsisaja.

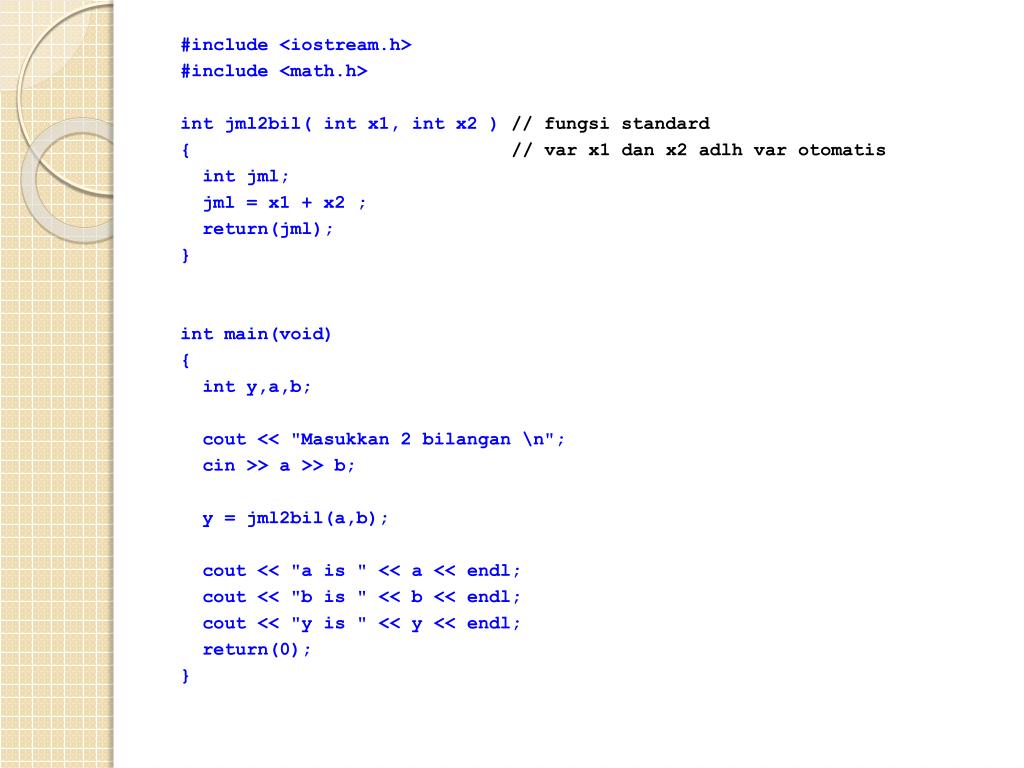

  7. #include <iostream.h> #include <math.h> int jml2bil( int x1, int x2 ) // fungsi standard { // var x1 dan x2 adlhvarotomatis intjml; jml = x1 + x2 ; return(jml); } int main(void) { inty,a,b; cout << "Masukkan 2 bilangan \n"; cin >> a >> b; y = jml2bil(a,b); cout << "a is " << a << endl; cout << "b is " << b << endl; cout << "y is " << y << endl; return(0); }

  8. VariabelEksternal • Adalahsuatuvariabelygdidefinisikandiluarfungsi, ygdikenalsebagaivariabelglobal. • Catatan: • Usahakanmenggunakanseminimmungkinsuatuvariabel global. • Variabel ini mudah sekali berubah oleh pernyataan penugasaan yang letaknya bisa dimana saja. Ini bisa menimbulkan efek samping yang sulit untuk melacaknya, terutama untuk program yang besar. • Variabelglobal mempunyaidurasiselama program dieksekusiatau, memoriygdigunakanuntukvariabelinidipertahankanselama program dieksekusi.

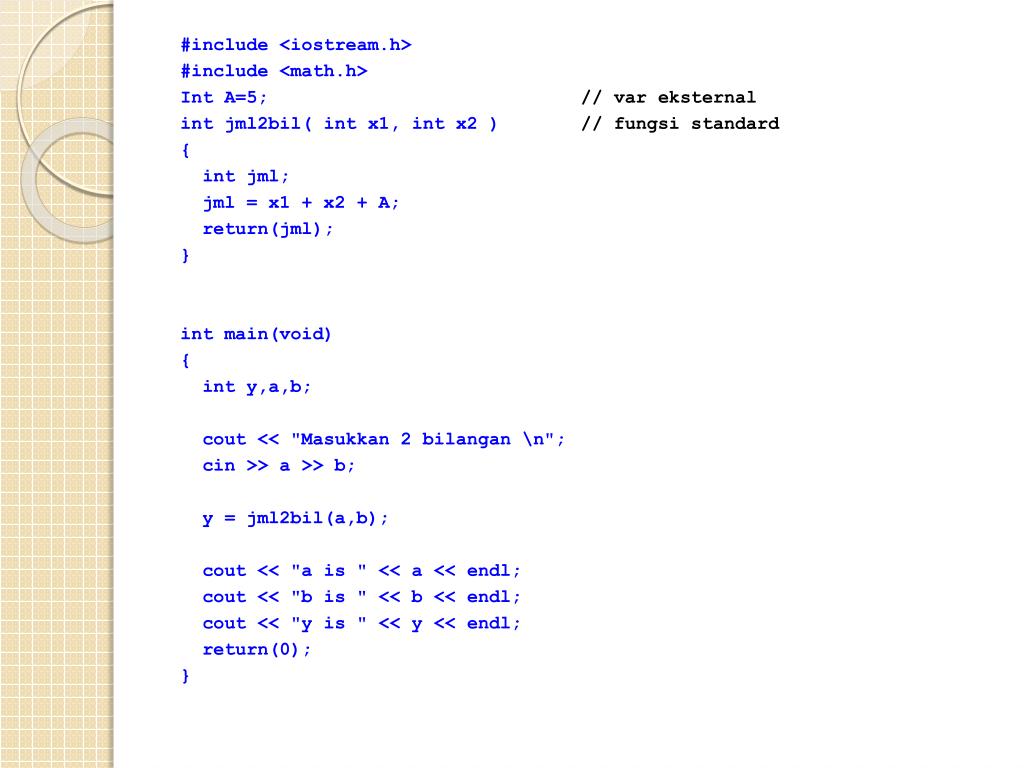

  9. #include <iostream.h> #include <math.h> IntA=5; // vareksternal int jml2bil( int x1, int x2 ) // fungsi standard { intjml; jml = x1 + x2 + A; return(jml); } int main(void) { inty,a,b; cout << "Masukkan 2 bilangan \n"; cin >> a >> b; y = jml2bil(a,b); cout << "a is " << a << endl; cout << "b is " << b << endl; cout << "y is " << y << endl; return(0); }

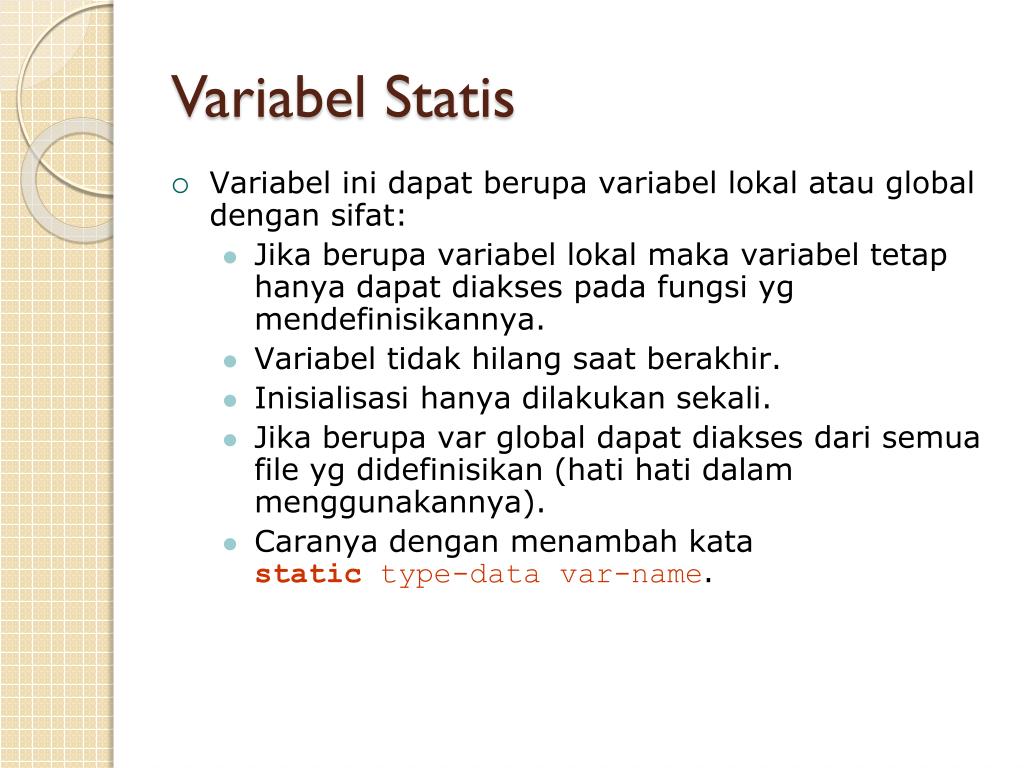

  10. VariabelStatis • Variabelinidapatberupavariabellokalatau global dengansifat: • Jikaberupavariabellokalmakavariabeltetaphanyadapatdiaksespadafungsiygmendefinisikannya. • Variabeltidakhilangsaatberakhir. • Inisialisasihanyadilakukansekali. • Jikaberupavar global dapatdiaksesdarisemua file ygdidefinisikan (hatihatidalammenggunakannya). • Caranyadenganmenambahkatastatic type-data var-name.

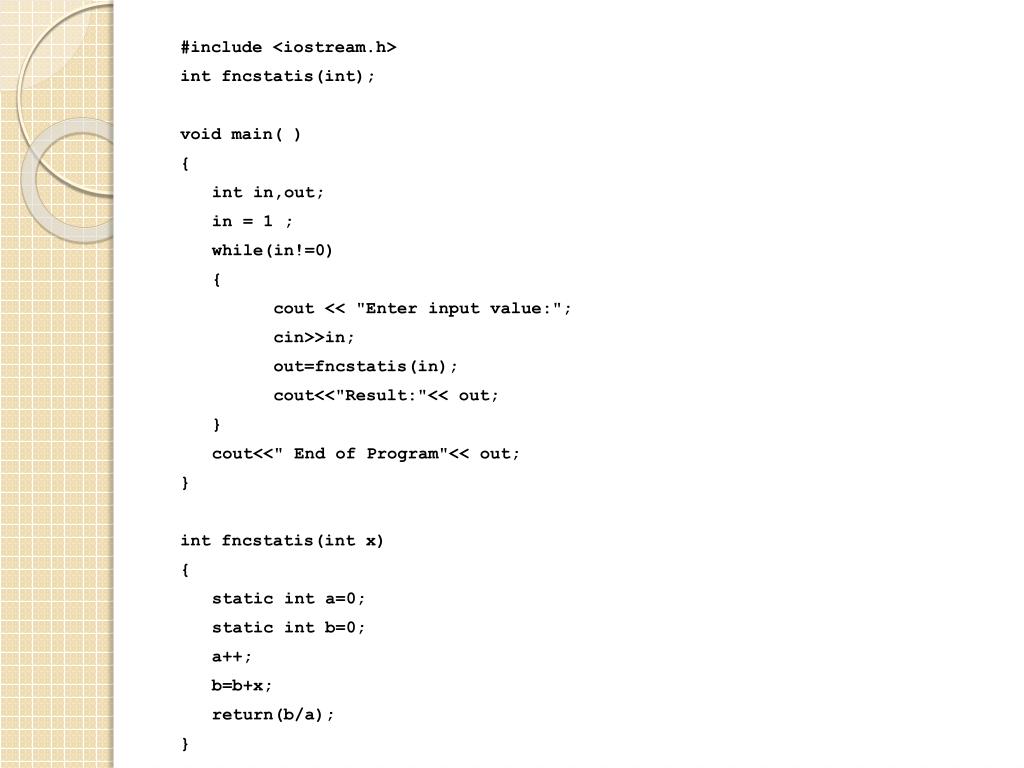

  11. #include <iostream.h> intfncstatis(int); void main( ) { intin,out; in = 1 ; while(in!=0) { cout<< "Enter input value:"; cin>>in; out=fncstatis(in); cout<<"Result:"<< out; } cout<<" End of Program"<< out; } intfncstatis(int x) { static int a=0; static int b=0; a++; b=b+x; return(b/a); }

  12. Memori • Memoridapatmenyimpan program dan data. • Setiap data merupakankumpulandaribeberapa bit. • Umumnyamemoridiaturdalamkumpulan 8 bit. • Setiap byte memiliki address.

  13. MEMORY Address 0 1 2 3 4 5 81345 81346 81347 PenggambaranMemori CPU

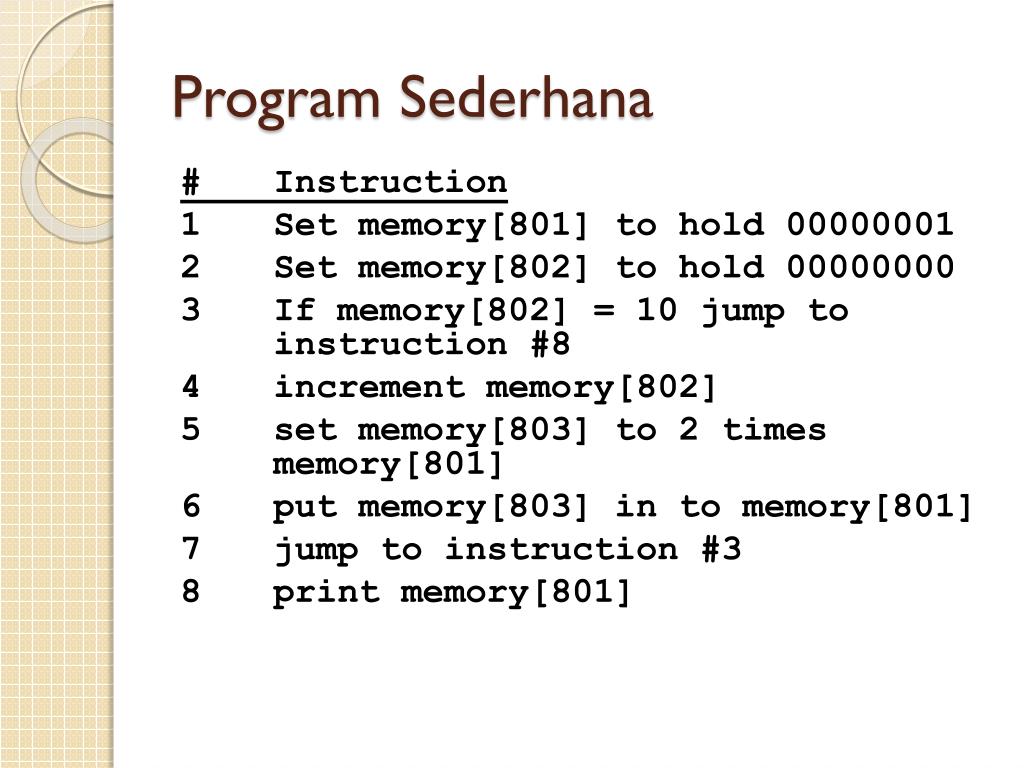

  14. Program Sederhana # Instruction 1 Set memory[801] to hold 00000001 2 Set memory[802] to hold 00000000 3 If memory[802] = 10 jump to instruction #8 4 increment memory[802] 5 set memory[803] to 2 times memory[801] 6 put memory[803] in to memory[801] 7 jump to instruction #3 8 print memory[801]

  15. Penggambaran Program MEMORY Address 0 1 2 3 4 5 801 802 803 Instruction #1 Instruction #2 CPU Instruction #3 Instruction #4 Instruction #5 Instruction #6

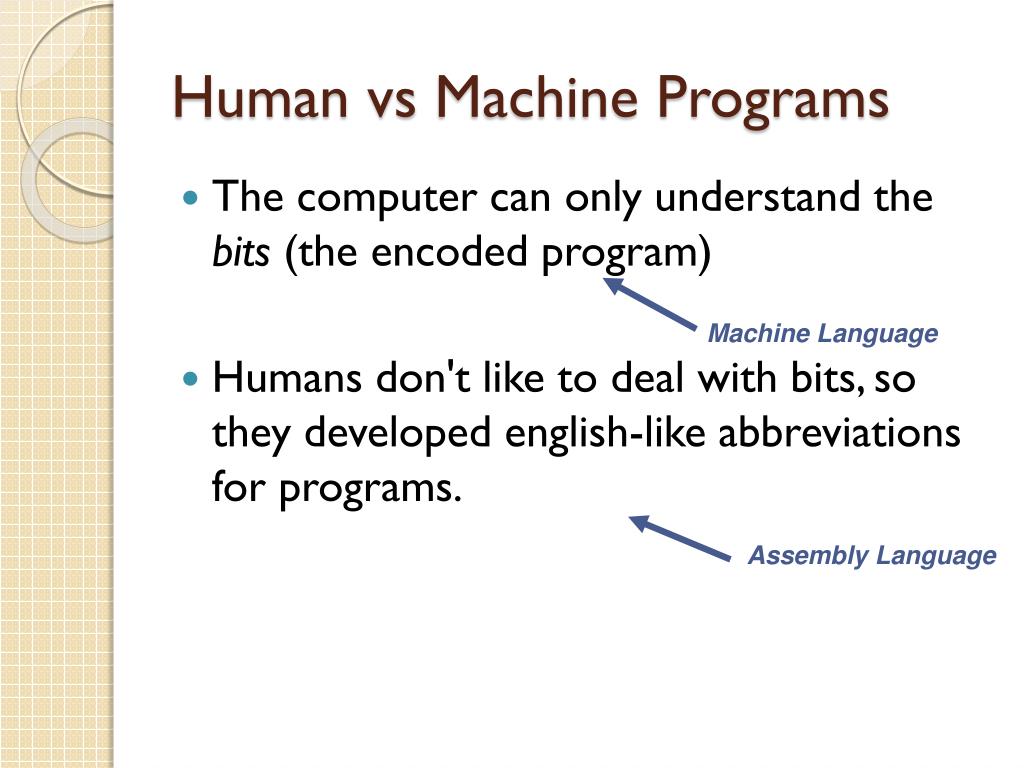

  16. Human vs Machine Programs • The computer can only understand the bits (the encoded program) • Humans don't like to deal with bits, so they developed english-like abbreviations for programs. Machine Language Assembly Language

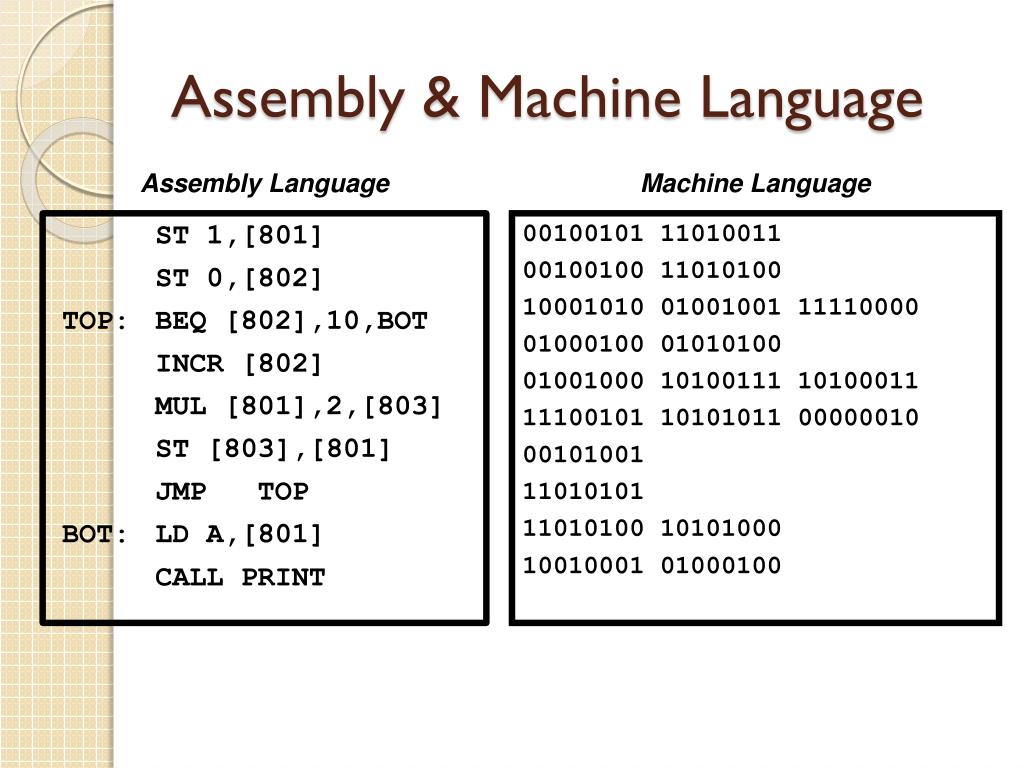

  17. Assembly & Machine Language Assembly Language Machine Language ST 1,[801] ST 0,[802] TOP: BEQ [802],10,BOT INCR [802] MUL [801],2,[803] ST [803],[801] JMP TOP BOT: LD A,[801] CALL PRINT 00100101 11010011 00100100 11010100 10001010 01001001 11110000 01000100 01010100 01001000 10100111 10100011 11100101 10101011 00000010 00101001 11010101 11010100 10101000 10010001 01000100

  18. High Level Language x=1; i=0; while (i!=10){ i++; x=x*2; } printf("%d",x); set memory[801] to hold 00000001 set memory[802] to hold 00000000 if memory[802] = 10 jump to instruction #8 increment memory[802] set memory[803] to 2 times memory[801] put memory[803] in to memory[801] jump to instruction #3 print memory[801] }

  19. Tata LetakMemori • STACK • HEAP • DATA • KODE
