  1. VersaWeigh Customer Training Maintenance July 8, 2008

  2. Maintenance Training • Options Menu • Editing Product Labels

  3. Product Labels Press Menu

  4. Product Labels Select Options

  5. Product Labels Select the “Product Labels” Tab

  6. Product Labels Select the Label you wish to change. Edit the label. When finished, select ”Done”.

  7. Maintenance Training • Options Menu • Editing Product Labels • Editing Date/Time

  8. Editing Date and Time Press Menu

  9. Editing Date and Time Select “Options”

  10. Editing Date and Time Select the “System” Tab Press the “Date / Time” Button

  11. Editing Date and Time Select the function to be changed and make the corrections. When all changes have been made press the “Accept” button.

  12. Maintenance Training • Configurator • Navigating the Configurator

  13. Configurator Press Menu

  14. Configurator Select Options

  15. Configurator Select the “System” Tab Press the “Configurator” Button

  16. Configurator You may go directly to the desired page by selecting “Menu” You may scroll to the next page using the “Next” button or

  17. Configurator

  18. Maintenance Training • Configurator • Navigating the Configurator • Configuring Machine Settings

  19. Configuring Units Select “Machine”

  20. Configuring Units Verify all settings for number of IO Modules (BIO bds), number of Diverters and the units of measure you want the machine to use. You May select and edit any box that is not grayed out. Press the Details button

  21. Configuring Units Press the “Back” button when done verifying the parameters on this page.

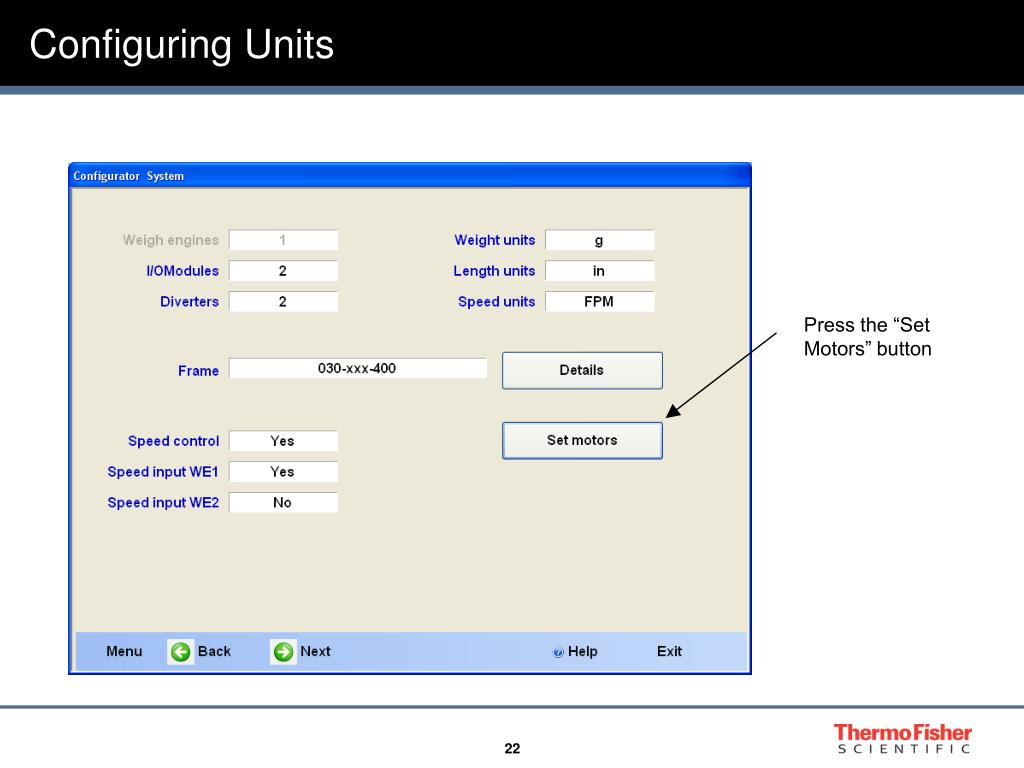

  22. Configuring Units Press the “Set Motors” button

  23. Configuring Units

  24. Maintenance Training • Configurator • Navigating the Configurator • Configuring Machine Settings • Configuring Zone Definitions

  25. Configuring Zone Definitions Select “Zones”

  26. Configuring Zone Definitions For Statistics, The Zones can be labeled as “Accept” or “Reject”. The Diverter Assignments can be changed. The “No Gap Diverter” can be assigned.

  27. Maintenance Training • Configurator • Navigating the Configurator • Configuring Machine Settings • Configuring Zone Definitions • Configuring Diverter Settings

  28. Configuring Diverter Settings Select “Diverters”

  29. Configuring Diverter Settings The Diverter Delay can be changed. And the Duration or “Activate Time” can be changed.

  30. Maintenance Training • Configurator • Navigating the Configurator • Configuring Machine Settings • Configuring Zone Definitions • Configuring Diverter Settings • Configuring Active Options

  31. Configuring Active Options Select “Options”

  32. Configuring Active Options Pressing the “On/Off” Button Enables or Disables the Active Option The option along with its alarms and inputs can be configured by pressing the desired “Active Option” button

  33. Configuring Active Options In this example, the “Diverter Check” Position can be configured by Selecting the “Diverter Check” Box.

  34. Configuring Active Options

  35. Configuring Active Options The Diverter Check Alarm Type may be Selected by pressing the desired alarm type.

  36. Configuring Active Options

  37. Configuring Active Options From this page, many other options can be configured.

  38. Maintenance Training • Configurator • Navigating the Configurator • Configuring Machine Settings • Configuring Zone Definitions • Configuring Diverter Settings • Configuring Active Options • Configuring Alarms

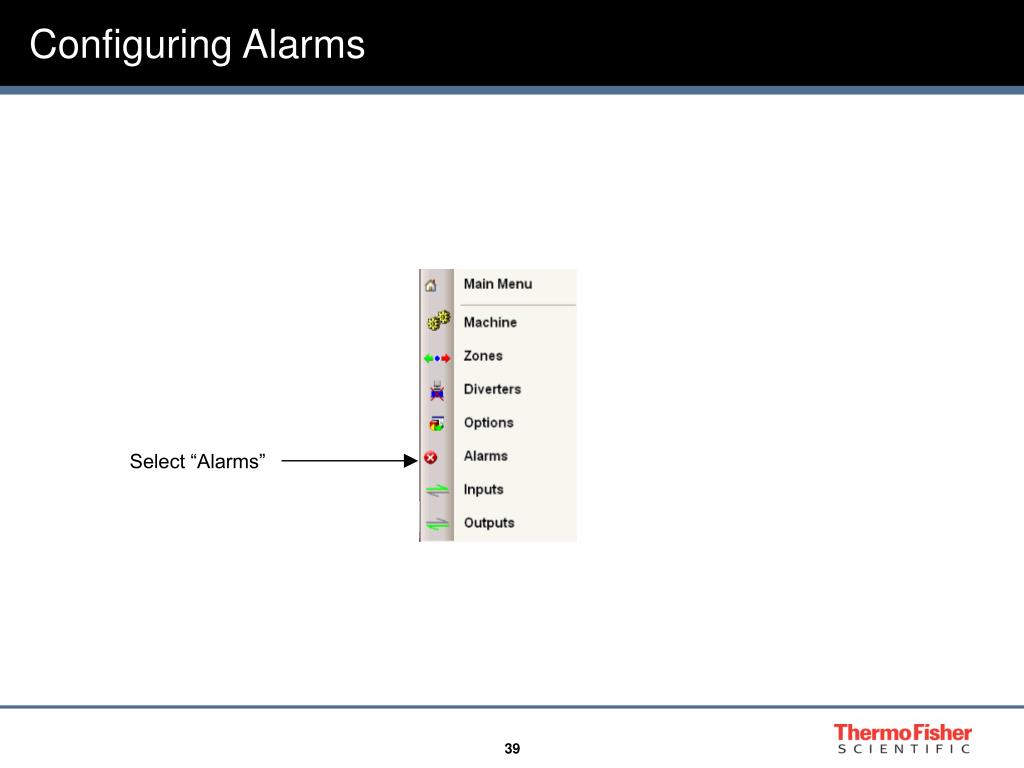

  39. Configuring Alarms Select “Alarms”

  40. Configuring Alarms The Alarms are configured as described in the previous slides.

  41. Maintenance Training • Configurator • Navigating the Configurator • Configuring Machine Settings • Configuring Zone Definitions • Configuring Diverter Settings • Configuring Active Options • Configuring Alarms • Configuring Inputs

  42. Configuring Inputs Select “Inputs”

  43. Configuring Inputs You may select or change the input assignment by selecting the desired assignment.

  44. Configuring Inputs Then Press the “Done” Button. Select the proper assignment for that particular input.

  45. Configuring Inputs The “Input Polarity” (Normally Open / Normally Closed) may also be toggled by pressing its corresponding button.

  46. Maintenance Training • Configurator • Navigating the Configurator • Configuring Machine Settings • Configuring Zone Definitions • Configuring Diverter Settings • Configuring Active Options • Configuring Alarms • Configuring Inputs • Configuring Outputs

  47. Configuring Outputs Select “Outputs”

  48. Configuring Outputs As with configuring Inputs, the output assignment and polarity can be configured here.

  49. Maintenance Training • Product Editing • Detailed Parameter, Speeds, Filter and Zone Settings

  50. Detailed Parameter Settings Press the “Select Product” Tab
