  1. TLS user mapping hint extension Stefan Santesson Microsoft

  2. Purpose • Logging on to a Microsoft domain currently requires a Microsoft UPN (User Principal Name) “user@domain” to be present in the client certificate. • This TLS extension removes this requirement in the context of TLS.

  3. Flow • Client and server agrees that they support this extension. • Client send its UPN in a new handshake message • Server locate the user in AD and extract the users certificate. • Authentication maps client certificate with use certificate extracted from AD.

  4. New extension type • A new extension type (user_mapping(nn)) is added to the Extension used in both the Client Hello and Server Hello. The extension type is specified as follows and has no data associated with it. enum { server_name(0), max_fragment_length(1), client_certificate_url(2),trusted_ca_keys(3), truncated_hmac(4), status_request(5), user_mapping(nn), (65535) } ExtensionType;

  5. Extension to the Handshake Protocol • A new handshake message is created (user_mapping_data(nn) to encapsulate the client’s domain. enum { hello_request(0), client_hello(1), server_hello(2), certificate(11), server_key_exchange (12), certificate_request(13), server_hello_done(14), certificate_verify(15), client_key_exchange(16), finished(20), certificate_url(21), certificate_status(22), user_mapping_data(nn),(255) } HandshakeType;

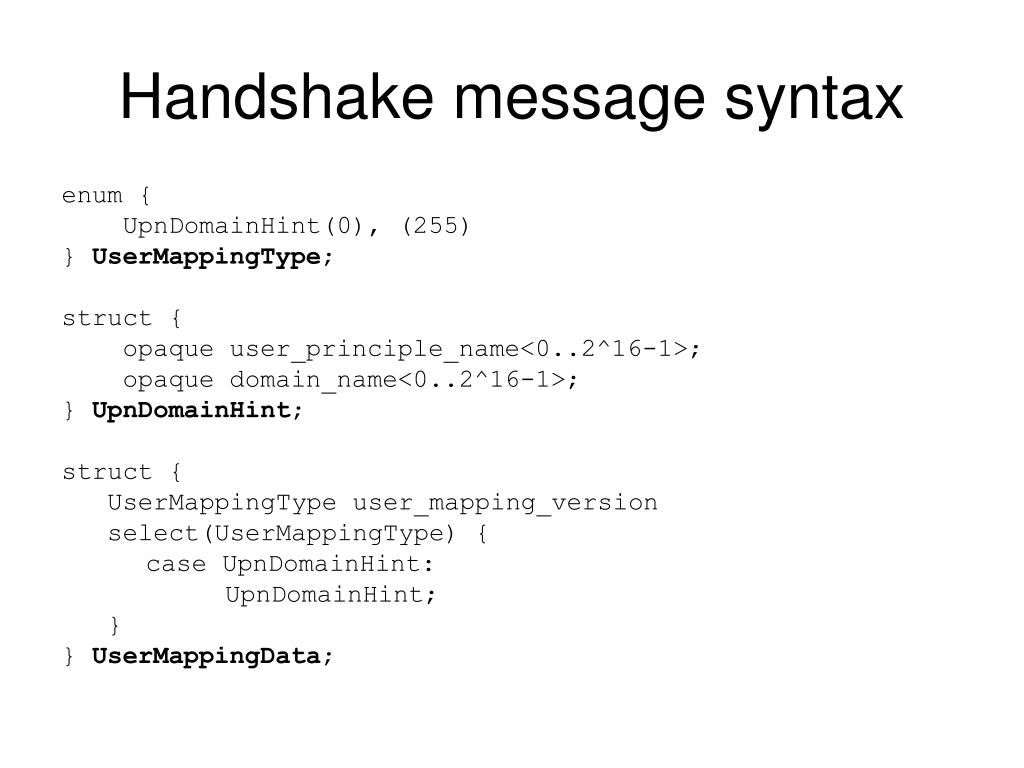

  6. Handshake message syntax enum { UpnDomainHint(0), (255) } UserMappingType; struct { opaque user_principle_name<0..2^16-1>; opaque domain_name<0..2^16-1>; } UpnDomainHint; struct { UserMappingType user_mapping_version select(UserMappingType) { case UpnDomainHint: UpnDomainHint; } } UserMappingData;

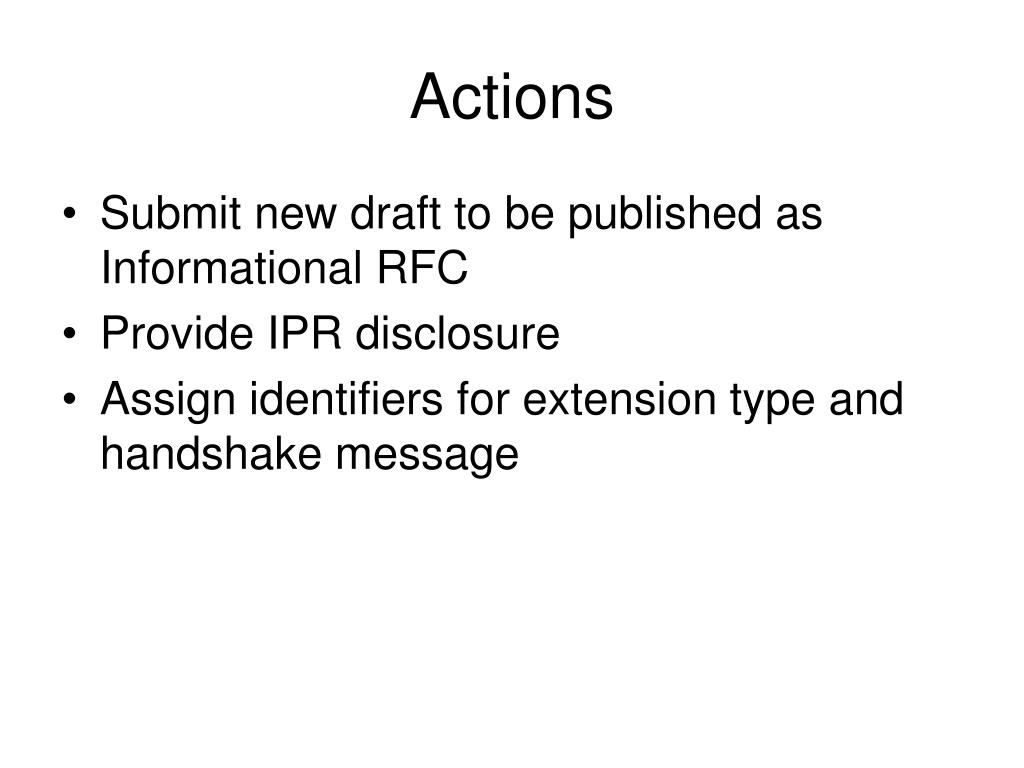

  7. Actions • Submit new draft to be published as Informational RFC • Provide IPR disclosure • Assign identifiers for extension type and handshake message
