  1. Imaging

  2. Modeling and Imaging Picture model Reality modeling Imaging (vizualisation)

  3. Projection • Mapping Φ: Rn→ Rk n>k • In case of 3D computer graphics Φ: R3→ R2 • Projection ray • The set of all pictures with the same image • Projection ray is usually a line • The image is in the intersection of the projection ray and the projection plane.

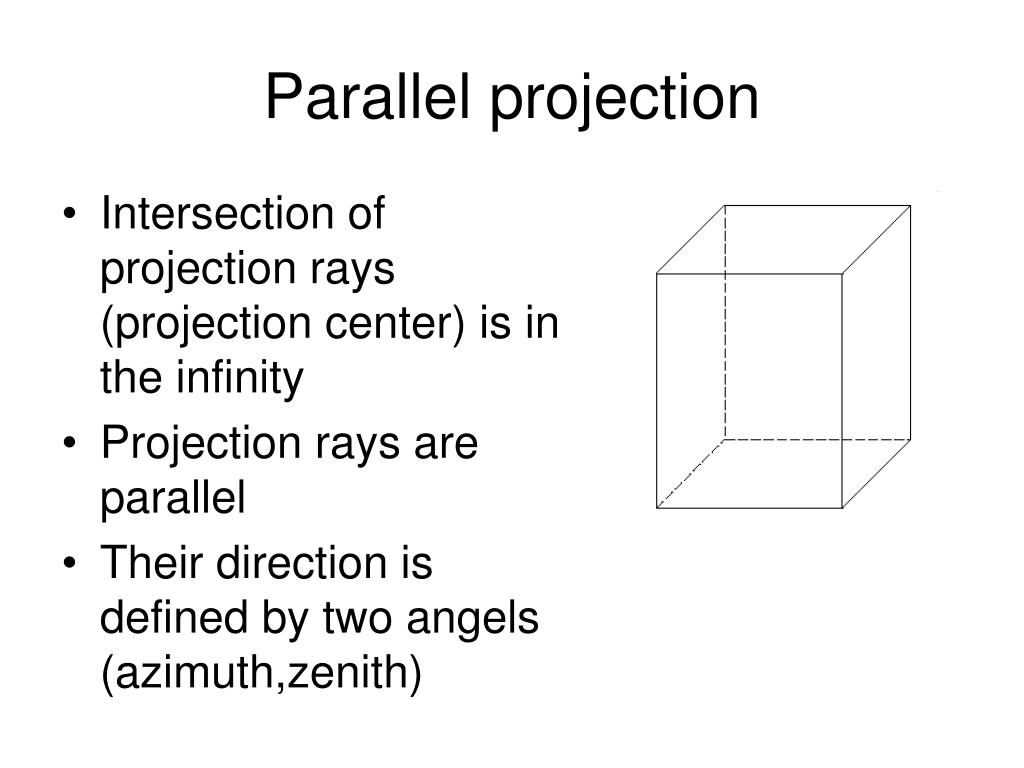

  4. Parallel projection • Intersection of projection rays (projection center) is in the infinity • Projection rays are parallel • Their direction is defined by two angels (azimuth,zenith)

  5. Axonometry • Projection plane intersects coordinate axes dy dx dz

  6. Dimetry Projection triangle is isiscelles

  7. Izometry • Projection triangle is equilateral (dx=dy=dz) Often also azimuth=zenith=45o

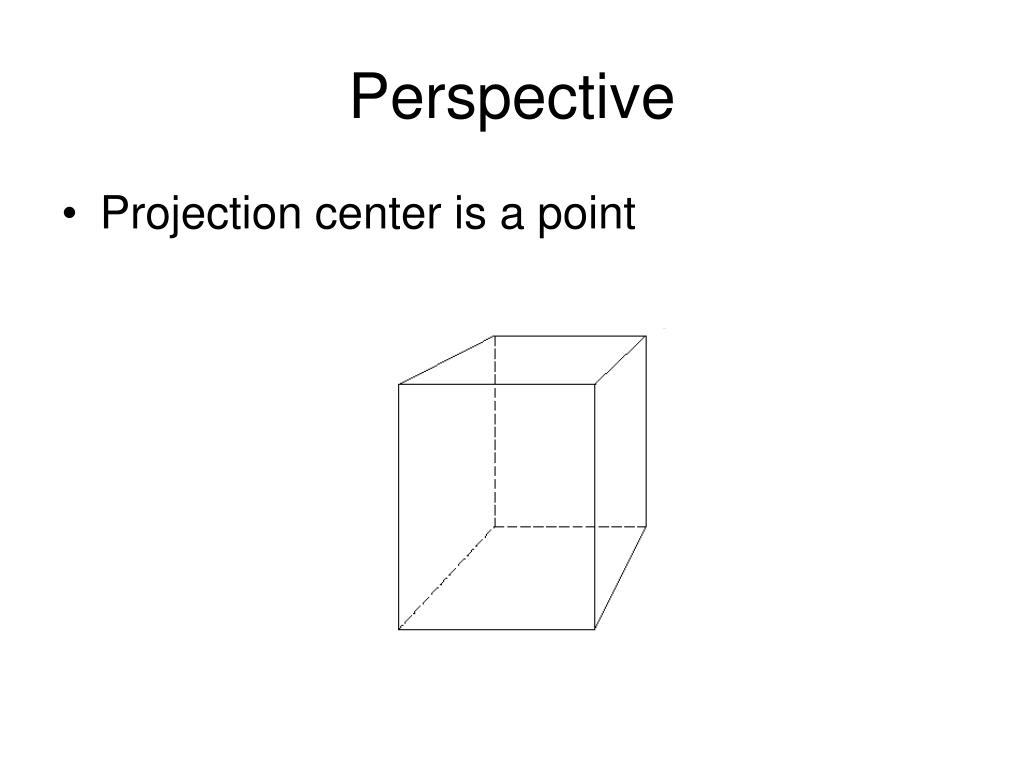

  8. Perspective • Projection center is a point

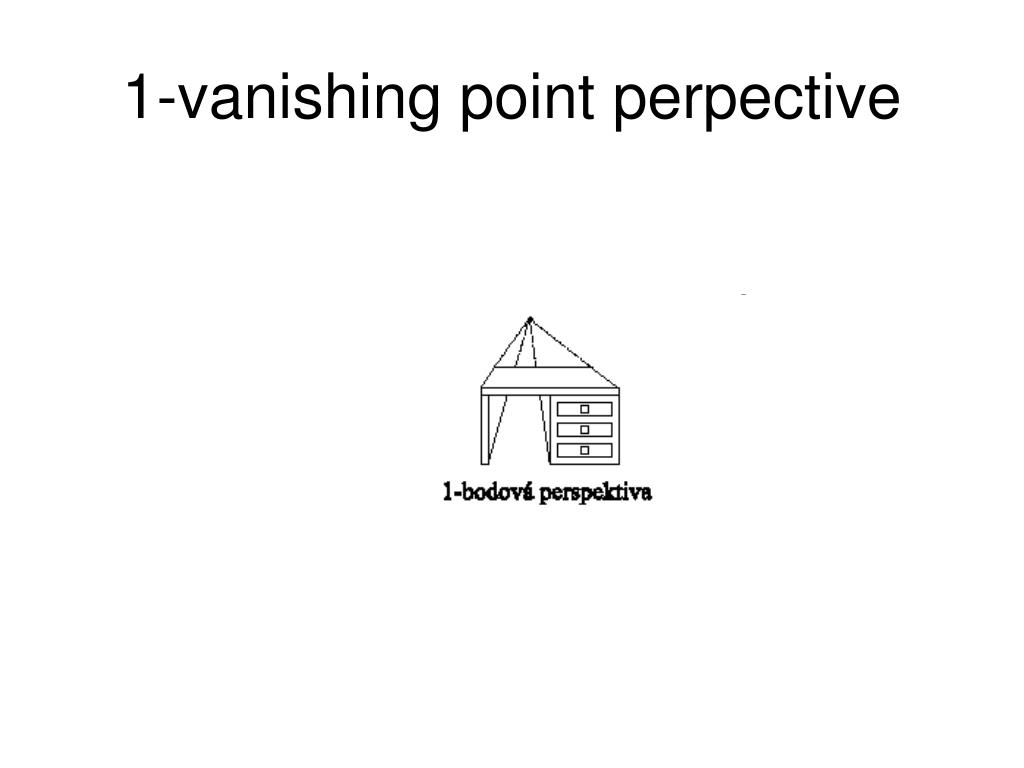

  9. 1-vanishing point perpective

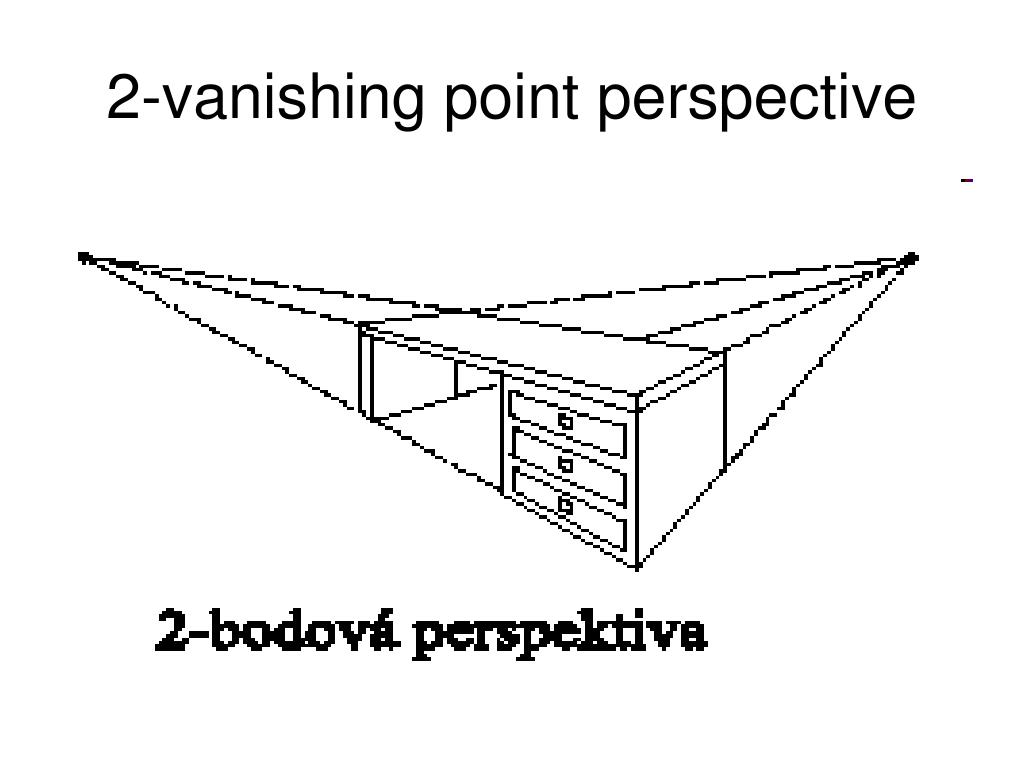

  10. 2-vanishing point perspective

  11. 3-vanishing point perspective

  12. Wireframe „model“

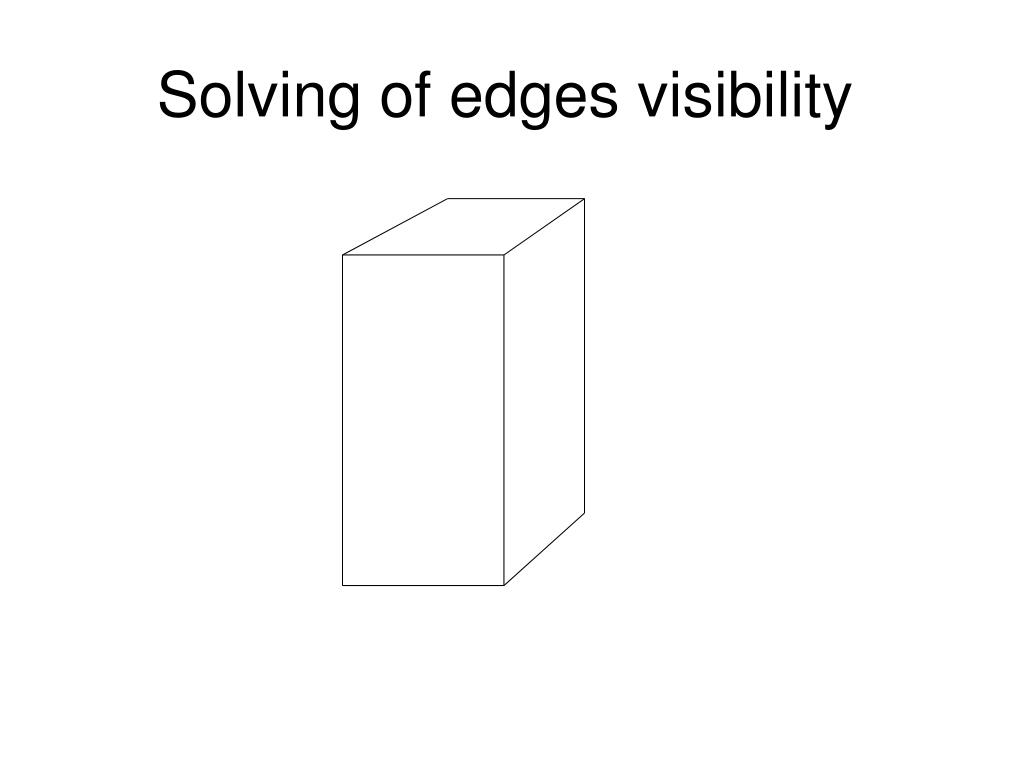

  13. Solving of edges visibility

  14. Solving of edges visibility

  15. Which faces are visible? The normal leads from the observer → the face is not visible The normal leads TO the observer → the face can (but must not) be visible

  16. Painter’s algorithm • Display the potentionaly visible faces from the back to the front

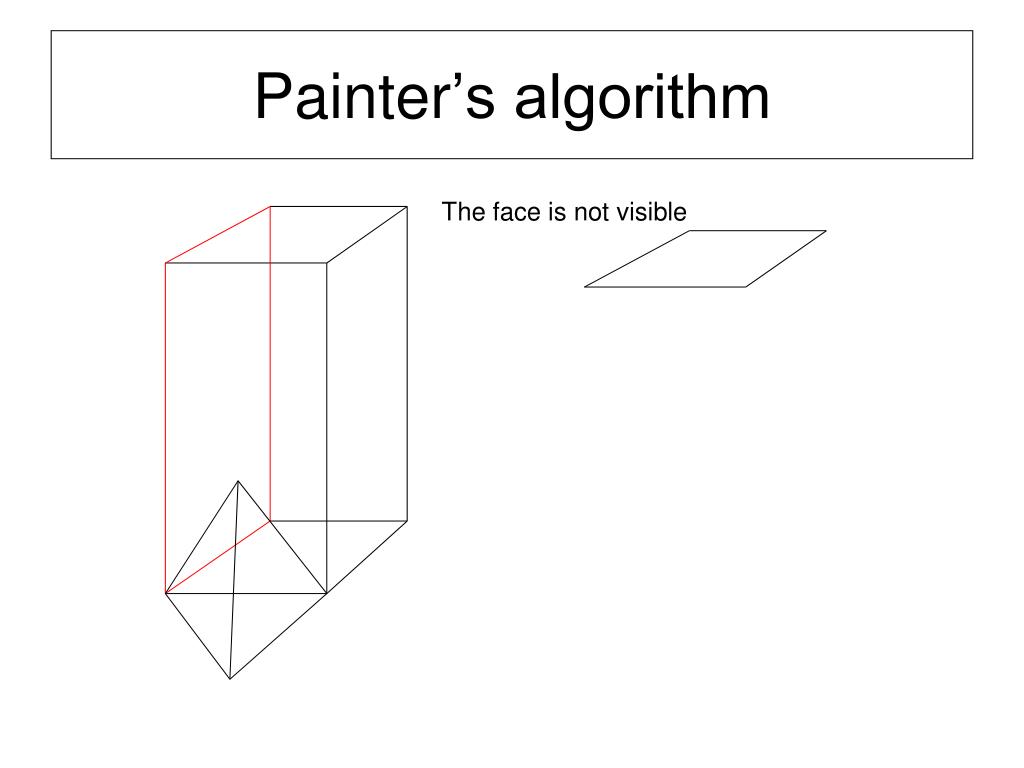

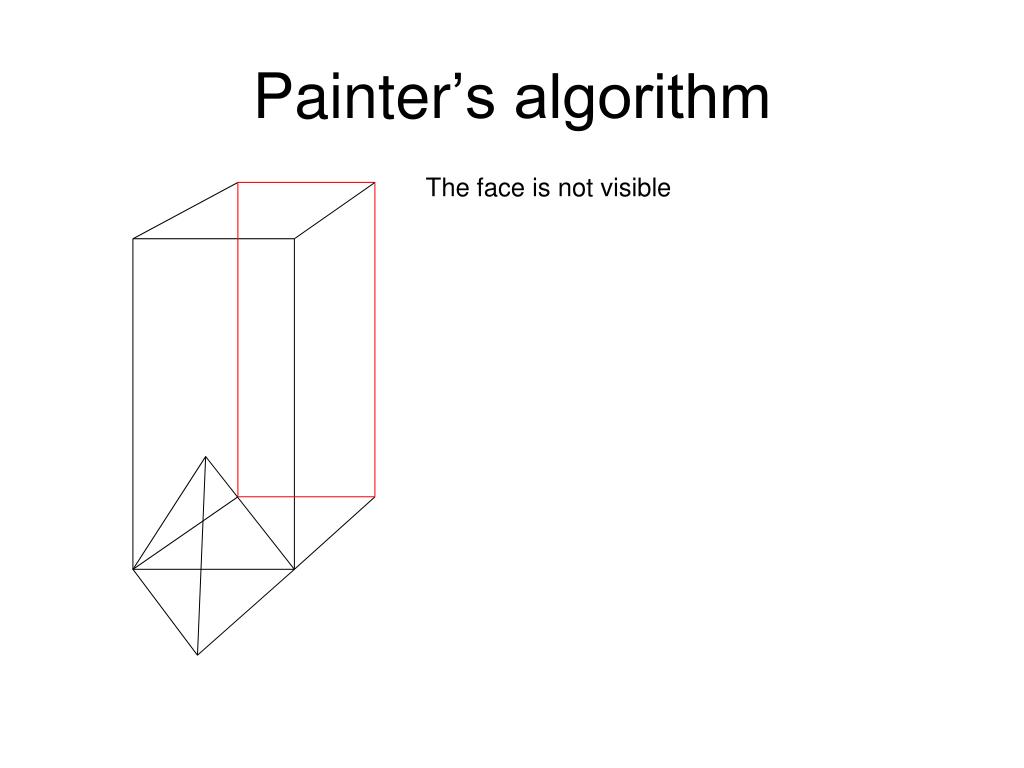

  17. Painter’s algorithm The face is not visible

  18. Painter’s algorithm The face can be visible

  19. Painter’s algorithm The face is not visible

  20. Painter’s algorithm The face can be visible

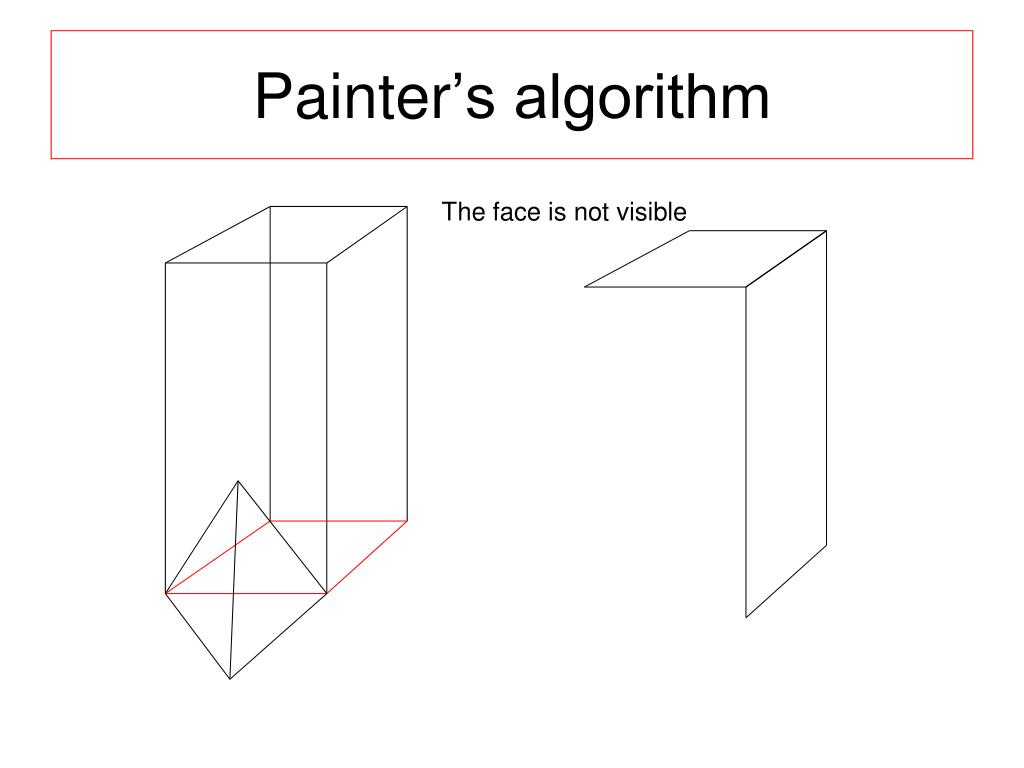

  21. Painter’s algorithm The face is not visible

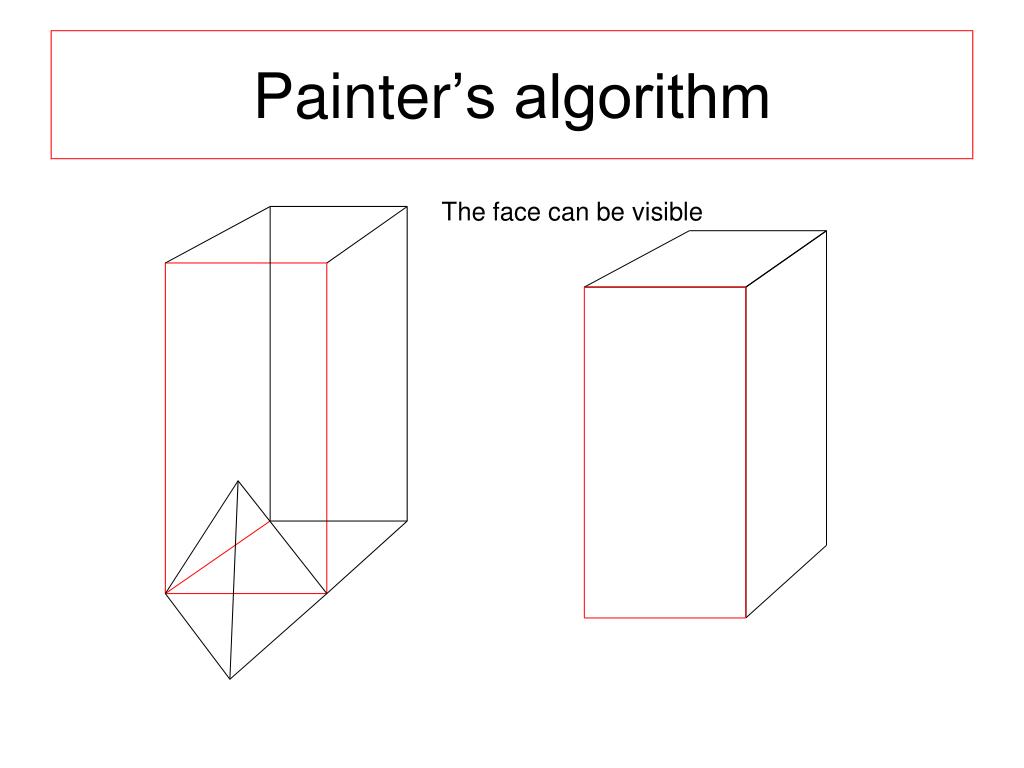

  22. Painter’s algorithm The face can be visible

  23. Painter’s algorithm The face is not visible

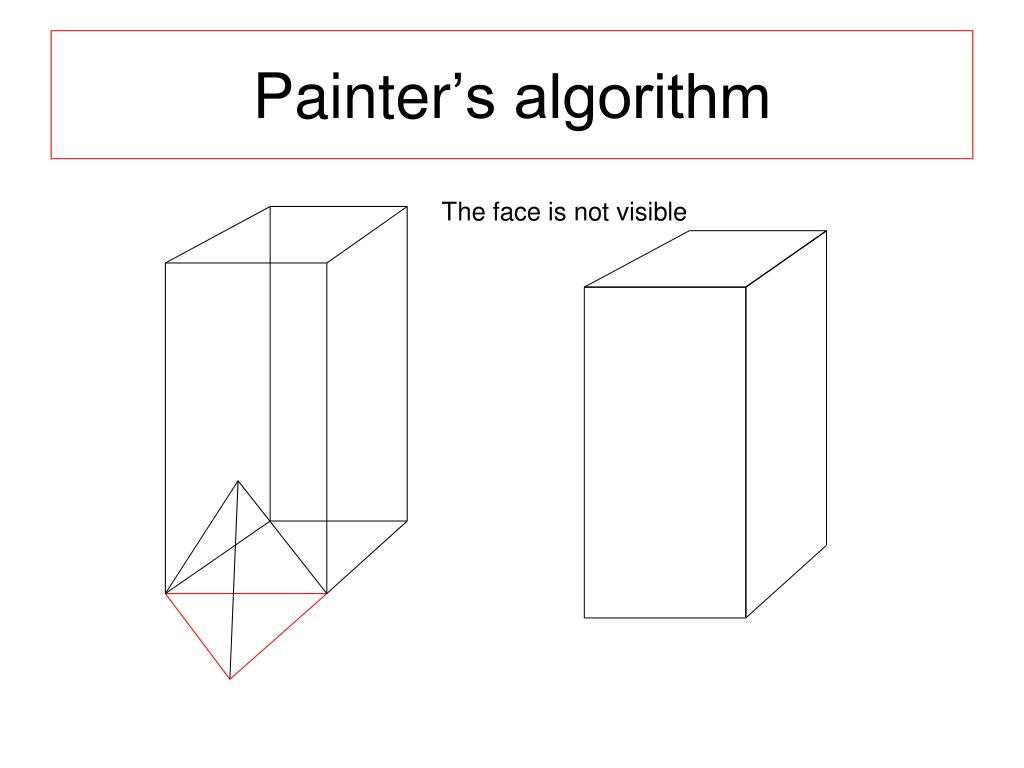

  24. Painter’s algorithm The face is not visible

  25. Painter’s algorithm The face can be visible

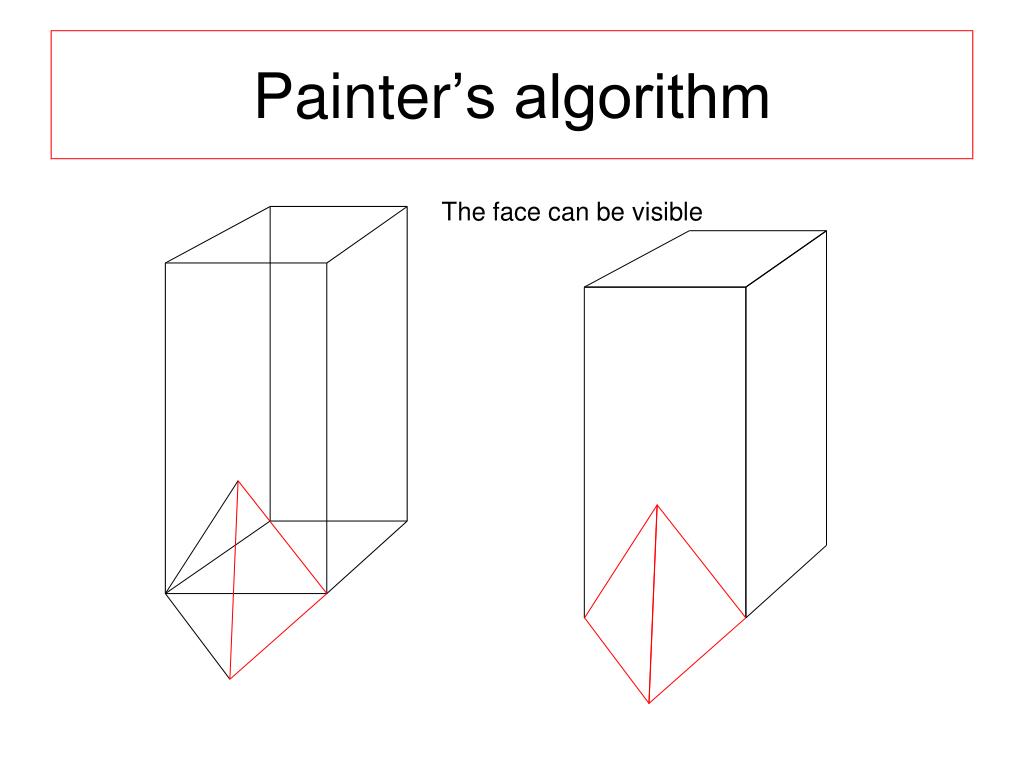

  26. Painter’s algorithm The face can be visible

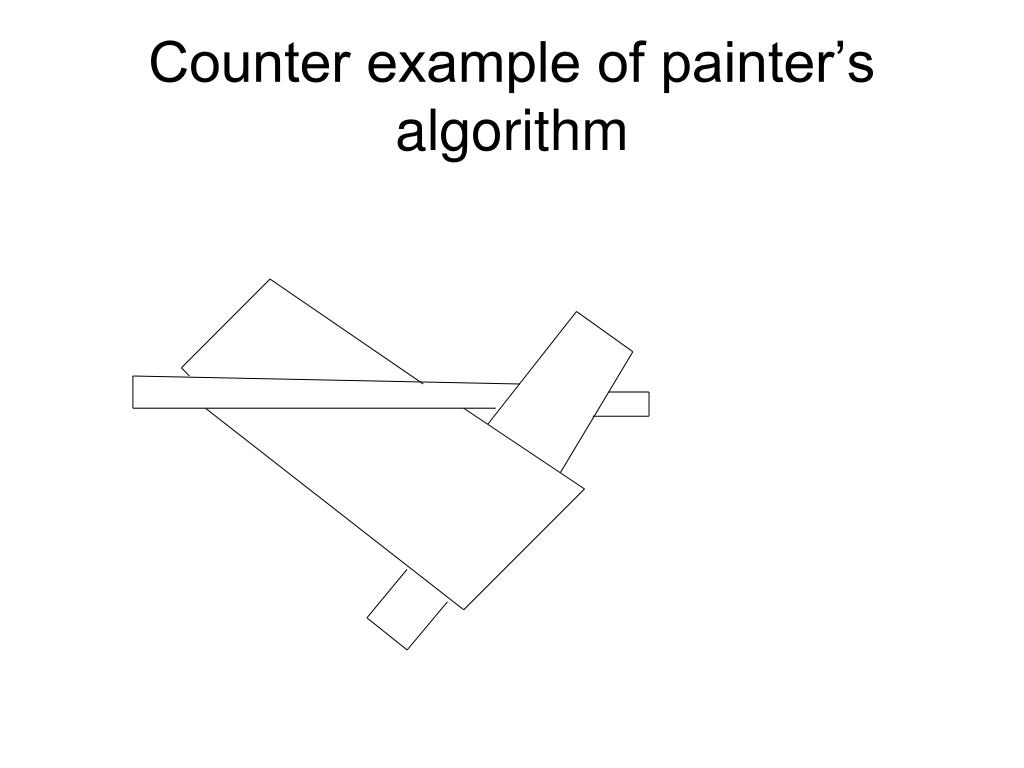

  27. Counter example of painter’s algorithm

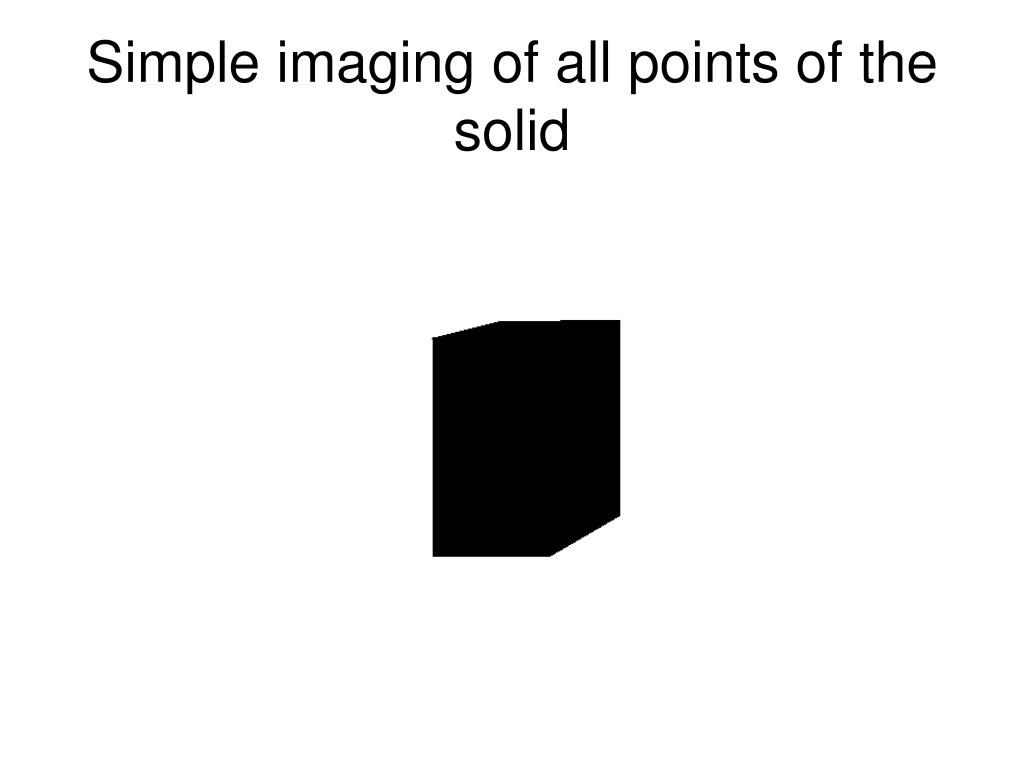

  28. Simple imaging of all points of the solid

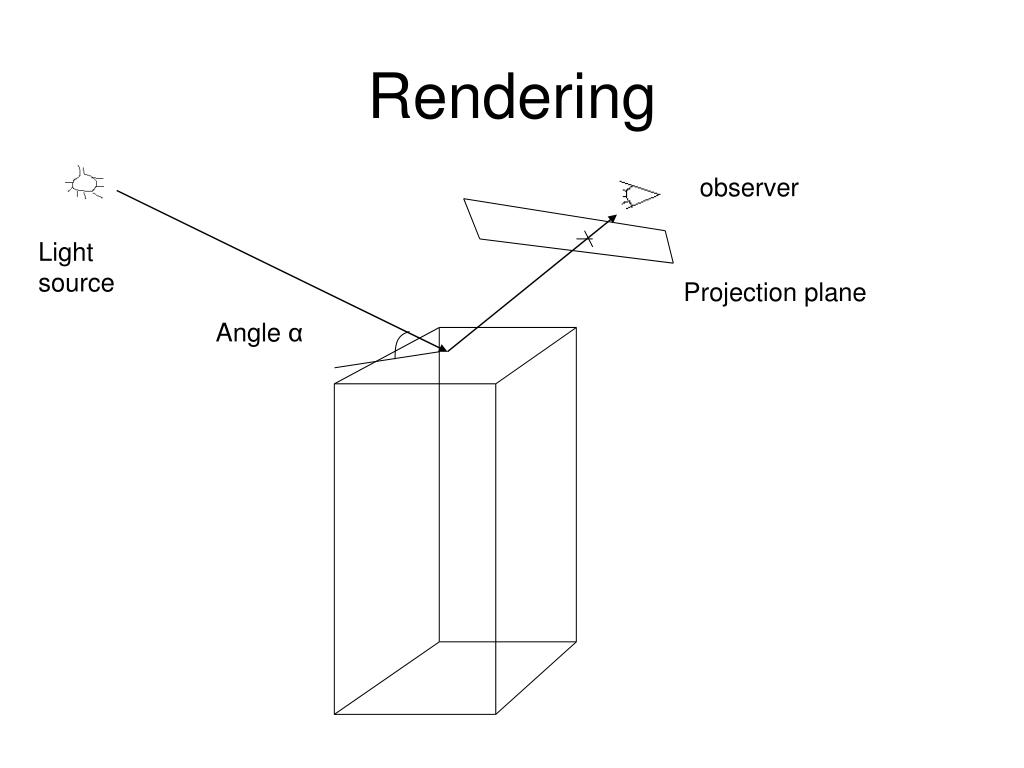

  29. Rendering observer Light source Projection plane Angleα

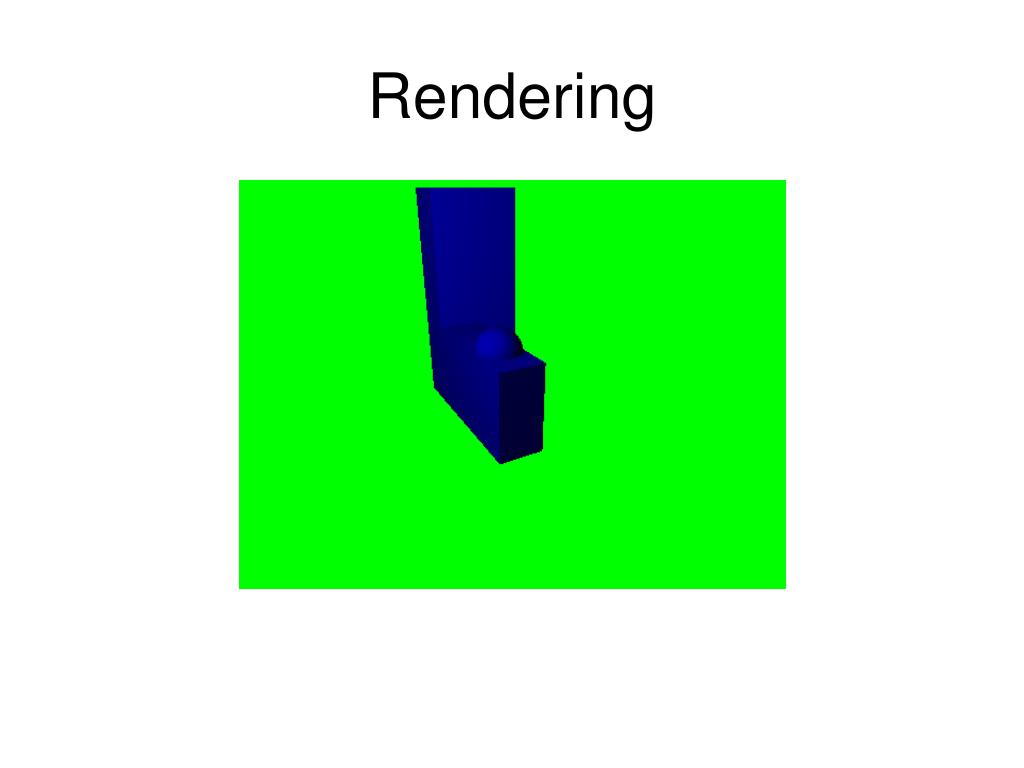

  30. Rendering

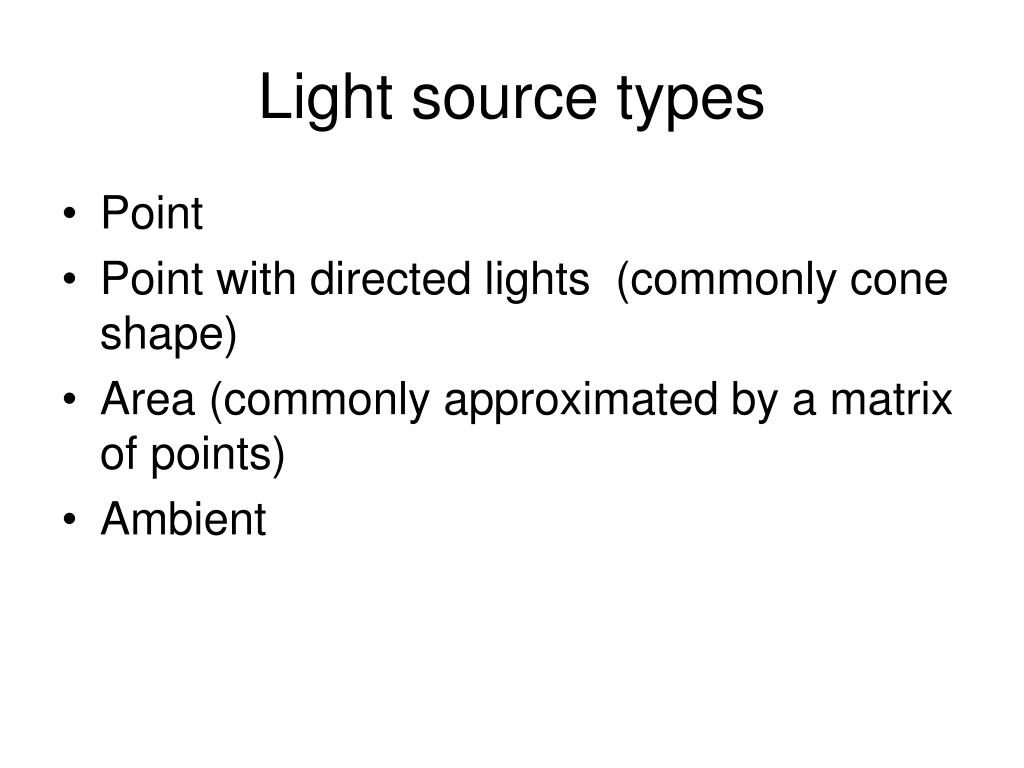

  31. Light source types • Point • Point with directed lights (commonly cone shape) • Area (commonly approximated by a matrix of points) • Ambient

  32. Ray Tracing Mirror reflection Light sources Projection plane Diffuse reflection The ray goes through the solid

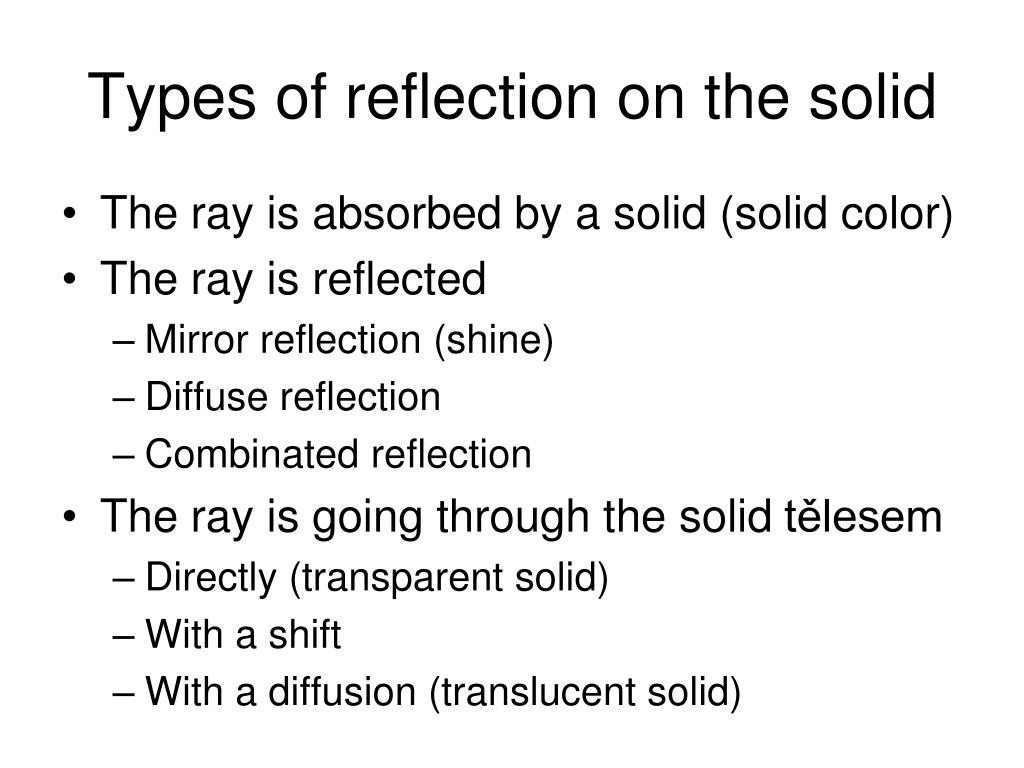

  33. Types of reflection on the solid • The ray is absorbed by a solid (solid color) • The ray is reflected • Mirror reflection (shine) • Diffuse reflection • Combinated reflection • The ray is going through the solid tělesem • Directly (transparent solid) • With a shift • With a diffusion (translucent solid)

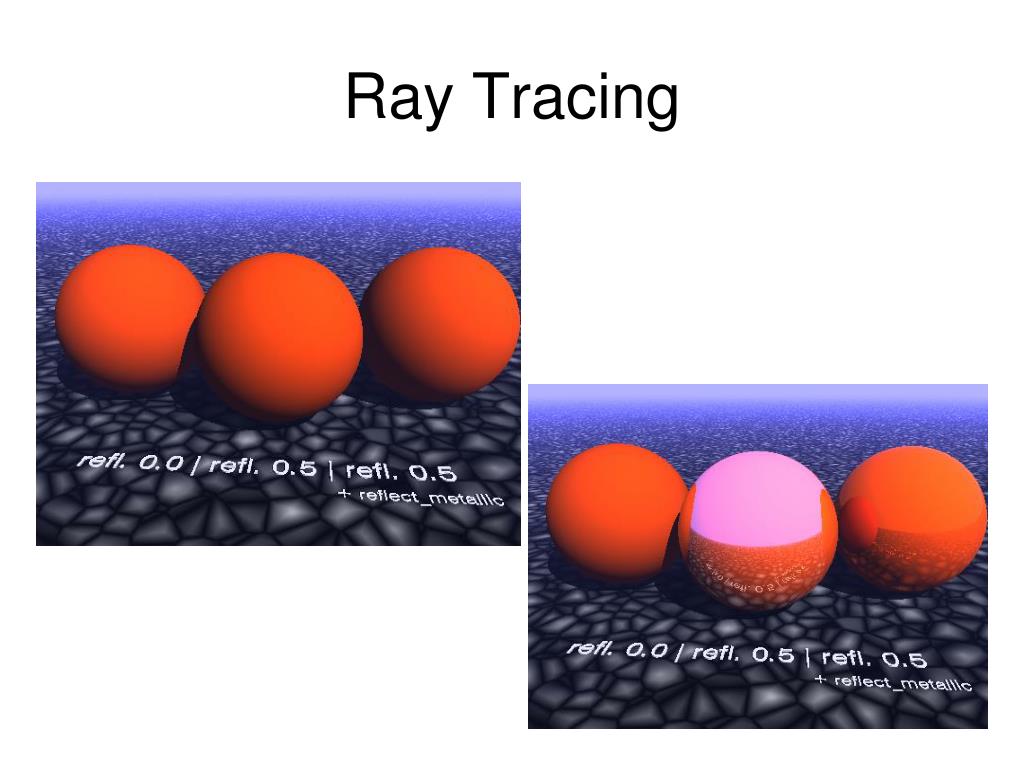

  34. Ray Tracing

  35. Radiosity • Ei = zi + oi * ∑vijej
