Basic Raster Graphics

"Trifles make perfection, but perfection is no trifle" Michael Angelo ++ Topics Scan conversion line segments polygon Filling polygon thick primitives Clipping line segments polygon. Basic Raster Graphics.

yehuda
Télécharger la présentation

Basic Raster Graphics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

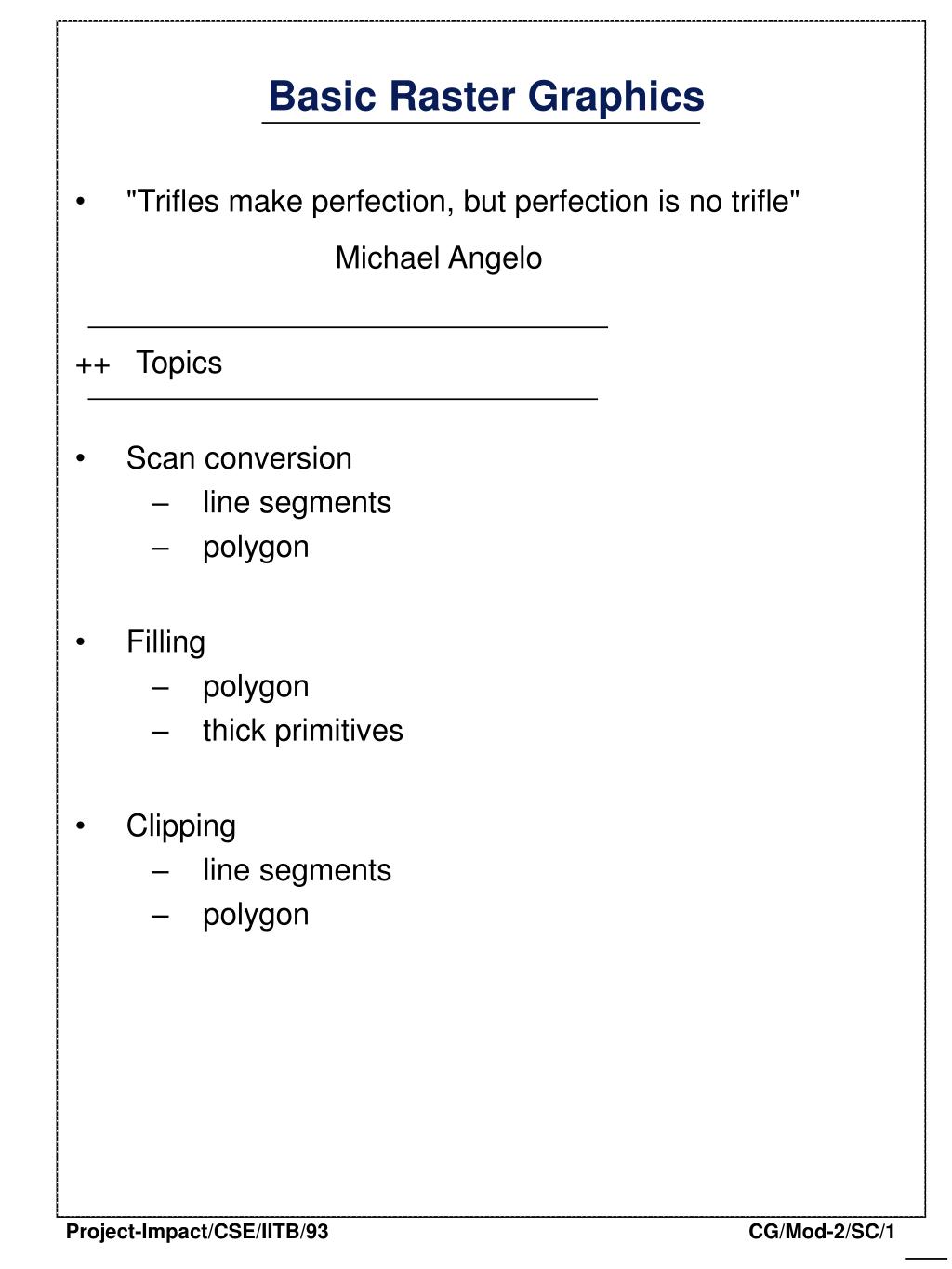

  1. "Trifles make perfection, but perfection is no trifle" Michael Angelo ++ Topics Scan conversion line segments polygon Filling polygon thick primitives Clipping line segments polygon Basic Raster Graphics

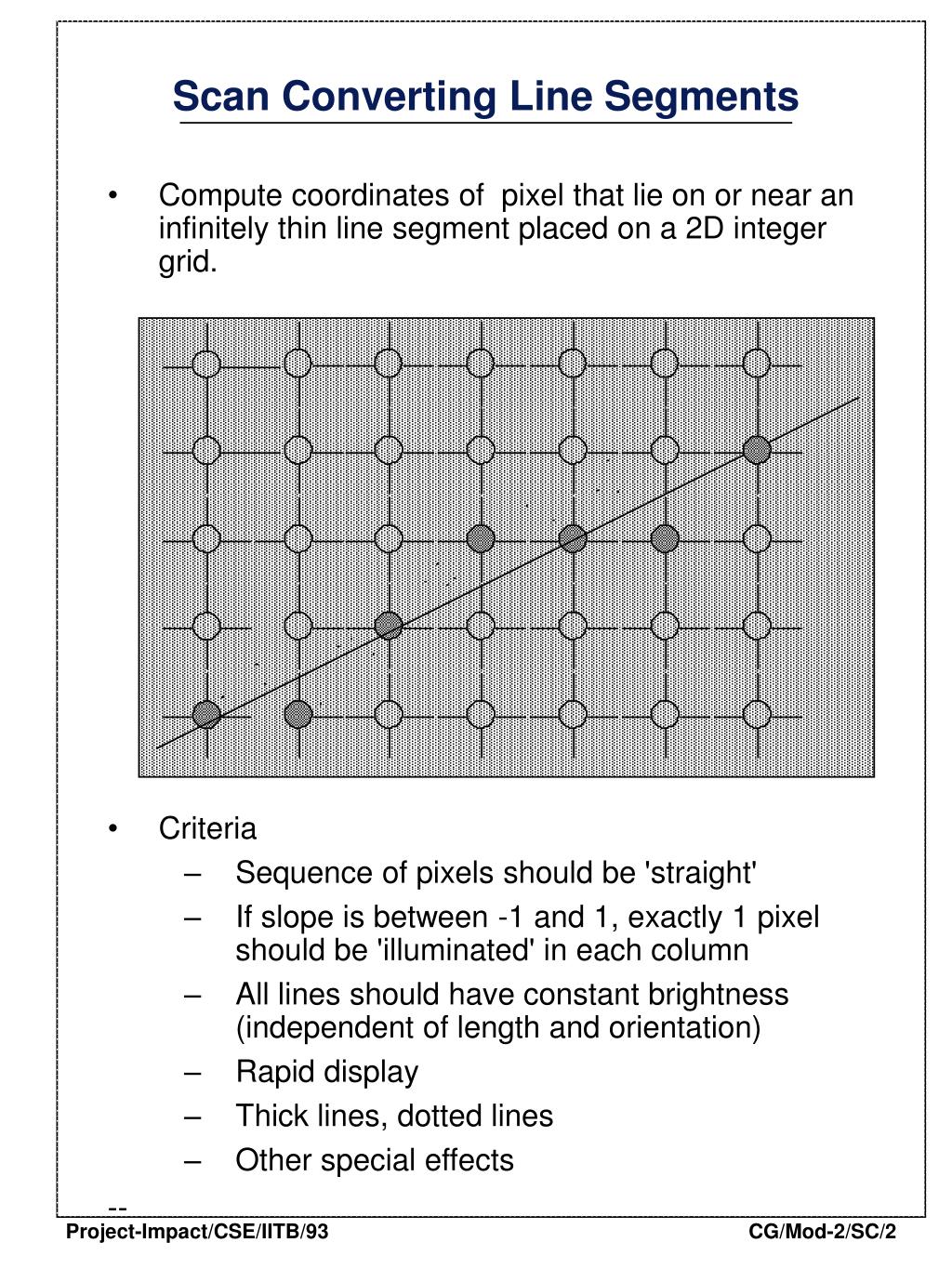

  2. Compute coordinates of pixel that lie on or near an infinitely thin line segment placed on a 2D integer grid. Criteria Sequence of pixels should be 'straight' If slope is between -1 and 1, exactly 1 pixel should be 'illuminated' in each column All lines should have constant brightness (independent of length and orientation) Rapid display Thick lines, dotted lines Other special effects -- Scan Converting Line Segments

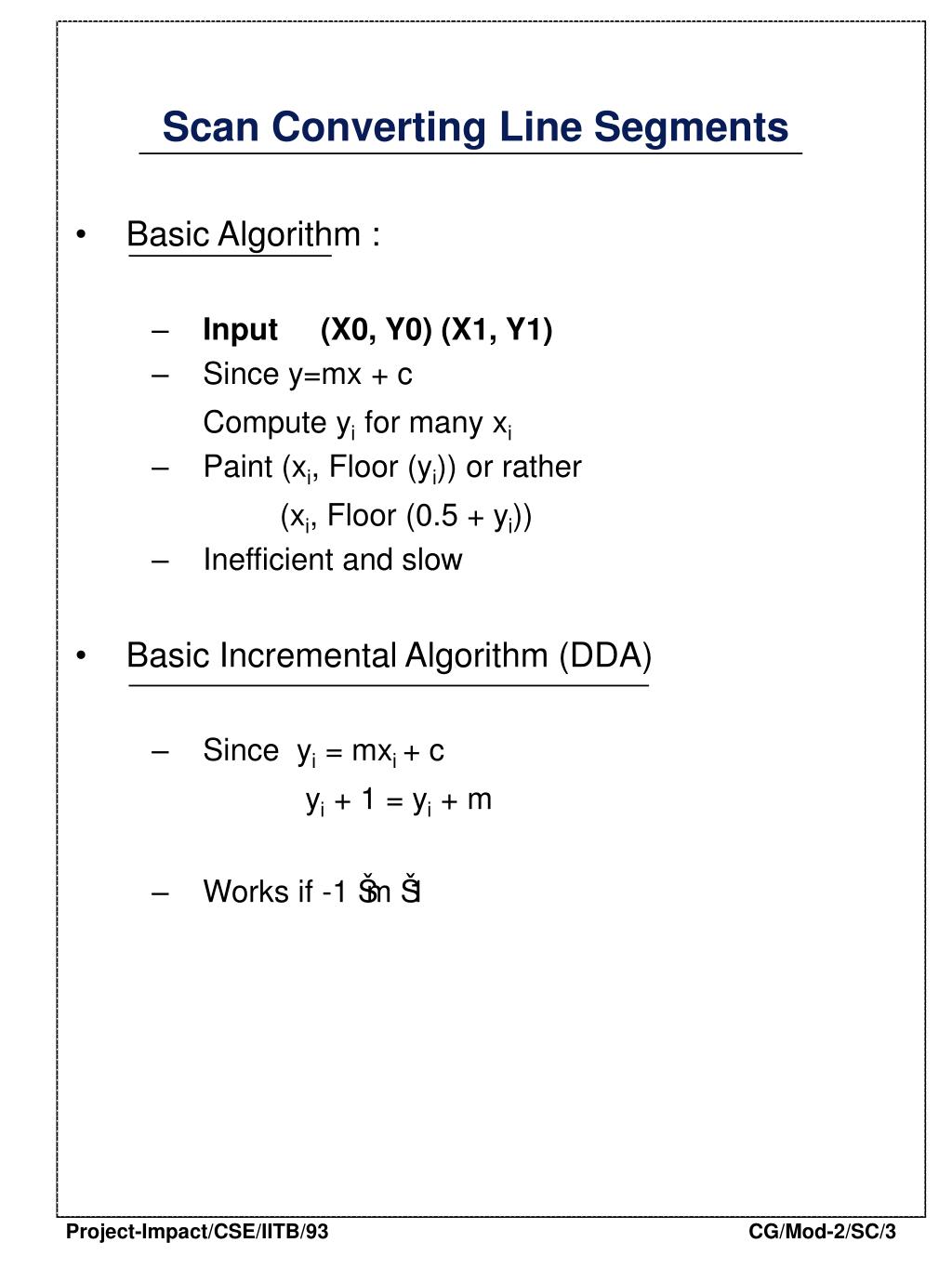

  3. Basic Algorithm : Input (X0, Y0) (X1, Y1) Since y=mx + c Compute yi for many xi Paint (xi, Floor (yi)) or rather (xi, Floor (0.5 + yi)) Inefficient and slow Basic Incremental Algorithm (DDA) Since yi = mxi + c yi + 1 = yi + m Works if -1 Š m Š 1 Scan Converting Line Segments

  4. Basic Incremental Algorithm • Procedure Line(X0, X1, Y0, Y1,Value :integer) • var x:integer; dy, dx, y, m : real: • begin • dy := Y1 - Y0 ; • dx := X1 - X0 ; • m := dy/dx; • y := Y0 ; • for x := X0 to X1 do begin • Write Pixel (x, Round (y), value); • y := y + m ; • end • end

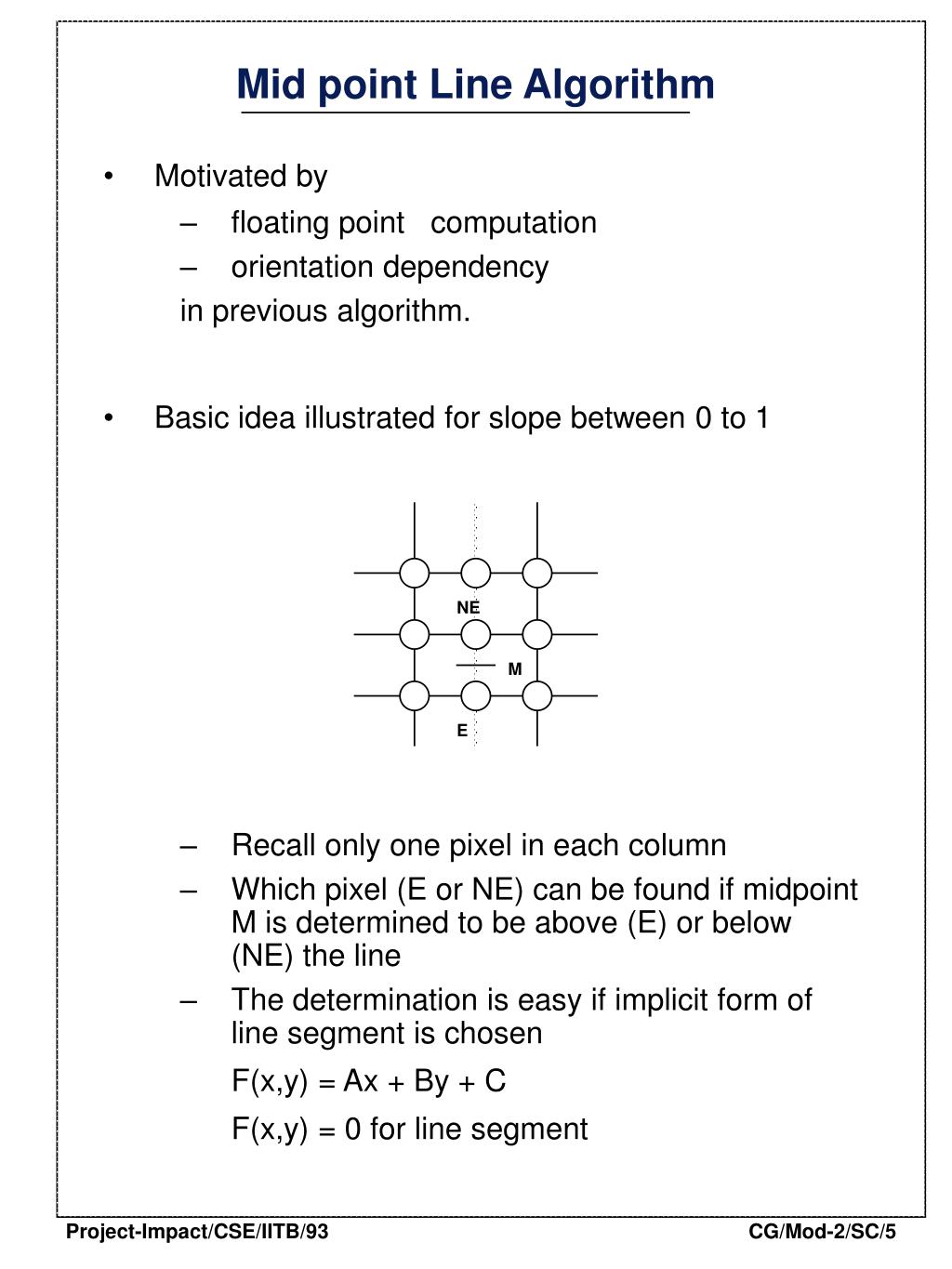

  5. Motivated by floating point computation orientation dependency in previous algorithm. Basic idea illustrated for slope between 0 to 1 Recall only one pixel in each column Which pixel (E or NE) can be found if midpoint M is determined to be above (E) or below (NE) the line The determination is easy if implicit form of line segment is chosen F(x,y) = Ax + By + C F(x,y) = 0 for line segment NE M E Mid point Line Algorithm

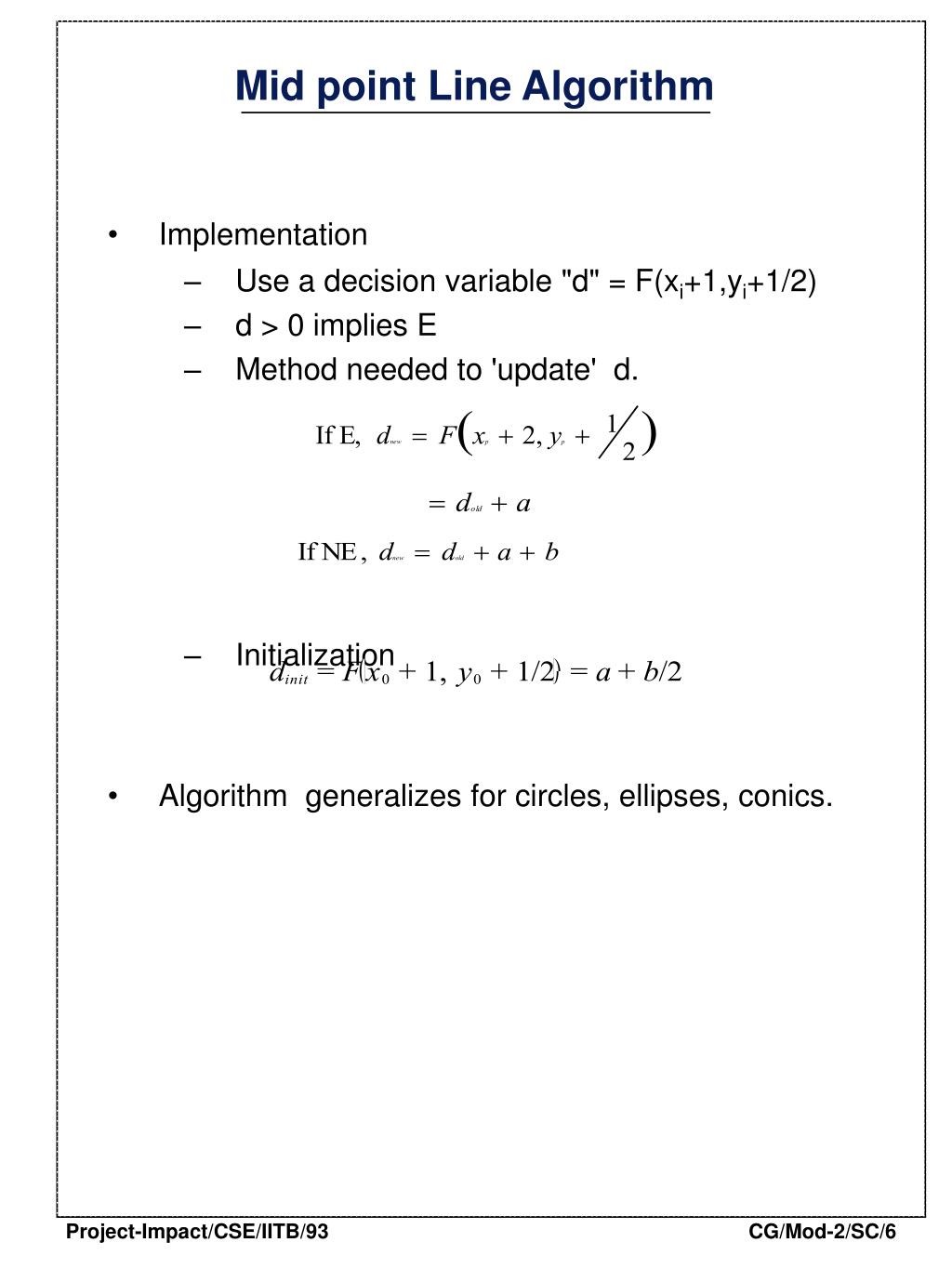

  6. Implementation Use a decision variable "d" = F(xi+1,yi+1/2) d > 0 implies E Method needed to 'update' d. Initialization Algorithm generalizes for circles, ellipses, conics. Mid point Line Algorithm

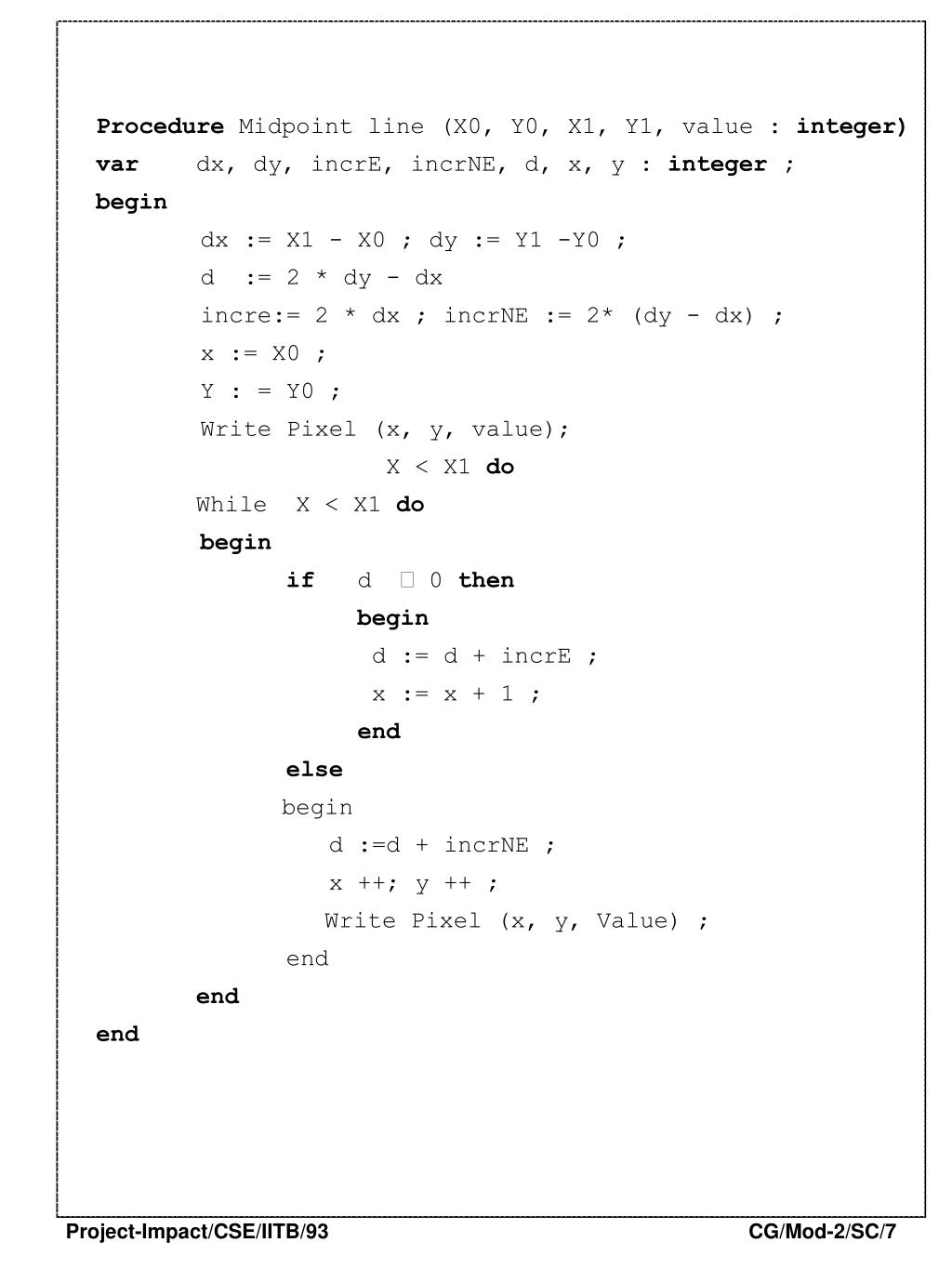

  7. Procedure Midpoint line (X0, Y0, X1, Y1, value : integer) • var dx, dy, incrE, incrNE, d, x, y : integer ; • begin • dx := X1 - X0 ; dy := Y1 -Y0 ; • d := 2 * dy - dx • incre:= 2 * dx ; incrNE := 2* (dy - dx) ; • x := X0 ; • Y : = Y0 ; • Write Pixel (x, y, value); • X < X1 do • While X < X1 do • begin • if d Š 0 then • begin • d := d + incrE ; • x := x + 1 ; • end • else • begin • d :=d + incrNE ; • x ++; y ++ ; • Write Pixel (x, y, Value) ; • end • end • end

  8. Sometimes we want the scan conversion to be biased Pixels only to the 'right' of the line segment should be turned on. Midpoint algorithm is 'too' fair ! Basic Idea : (Illustrated with case when slope >1) Store increment separately as numerator and denominator Example : Suppose xmin = 3 and slope = 7/2 Separately store the sequence 3, 23/7, 25/7,27/7,29/7 Integer Arithmetic Scan Conversion fd

  9. Algorithm : Procedure Left Edge (X0, X1, Y0, Y1, Value : integer); begin var x,y, num, denom, increment : integer; X:= X0; Y:= Y0; num := X1-X0; denom := Y1-Y0; increment := denom ; for Y:= Y0 to Y1 do begin Write Pixel (X,Y, value); increment := increment + numerator; if increment > denom then begin X:= x +1; increment := increment - denom; end {if} end {for loop} end ( proc left edge ) Integer Arithmetic Scan Conversion

  10. Large number of line segments generated, but many of them 'invisible' Simple case: line segments clipped against an axis aligned rectangular window Brute force method Think of line segments as lines Intersect given line segment with line segment of clip window Is this point within the window ? Too many calculations ! Clipping Line Segments

  11. Cohen-Sutherland algorithm computes outcodes To trivially accept a line segment, check the out codes of the two ends. If both the out codes are 0000, then the line segment is accepted. To trivially reject a line segment, logically AND the outcodes of the ends. If the result is greater than 0 , then REJECT. Big advantage: If trivial accepts and rejects can't be done, we can identify which clip window line segment (when extended) does intersect the given line segment. Point of intersection is computed only in this case Clipping Line Segments 1001 1000 1010 0000 0010 0001 0110 0101 0100

  12. Procedure Clip (X0, Y0, X1, Y1, Xmin Xmax, Ymin, Ymax : real • type edge = (Left, Right, Bottom, Top); • outcode = Setof edge; • var accept, done : boolean; • Outcode0, Outcode1, OutcodeOut : outcode; • x, y : real ; • procedure CompOutCode (x, y : real; • var code : outcode ); • begin • code := [ ] • if y > ymax then code := code + {Top}; • else if y < ymin then code := code + {Bottom}; • if x > xmax then code := code + {Right}; • else if x < xmin then code := code + {Left}; • end ; • begin • accept := false ; done := false ; • CompOutCode (X0,Y0, Outcode0); • CompOutCode (X1 Y1, Outcode1) • repeat • if (Outcode0 = [ ]) and (outcode1 = [ ])then • begin • accept := true : done := true ; • end • elseif (outcode0 * outcode1) <> [ ] then • done := true • else

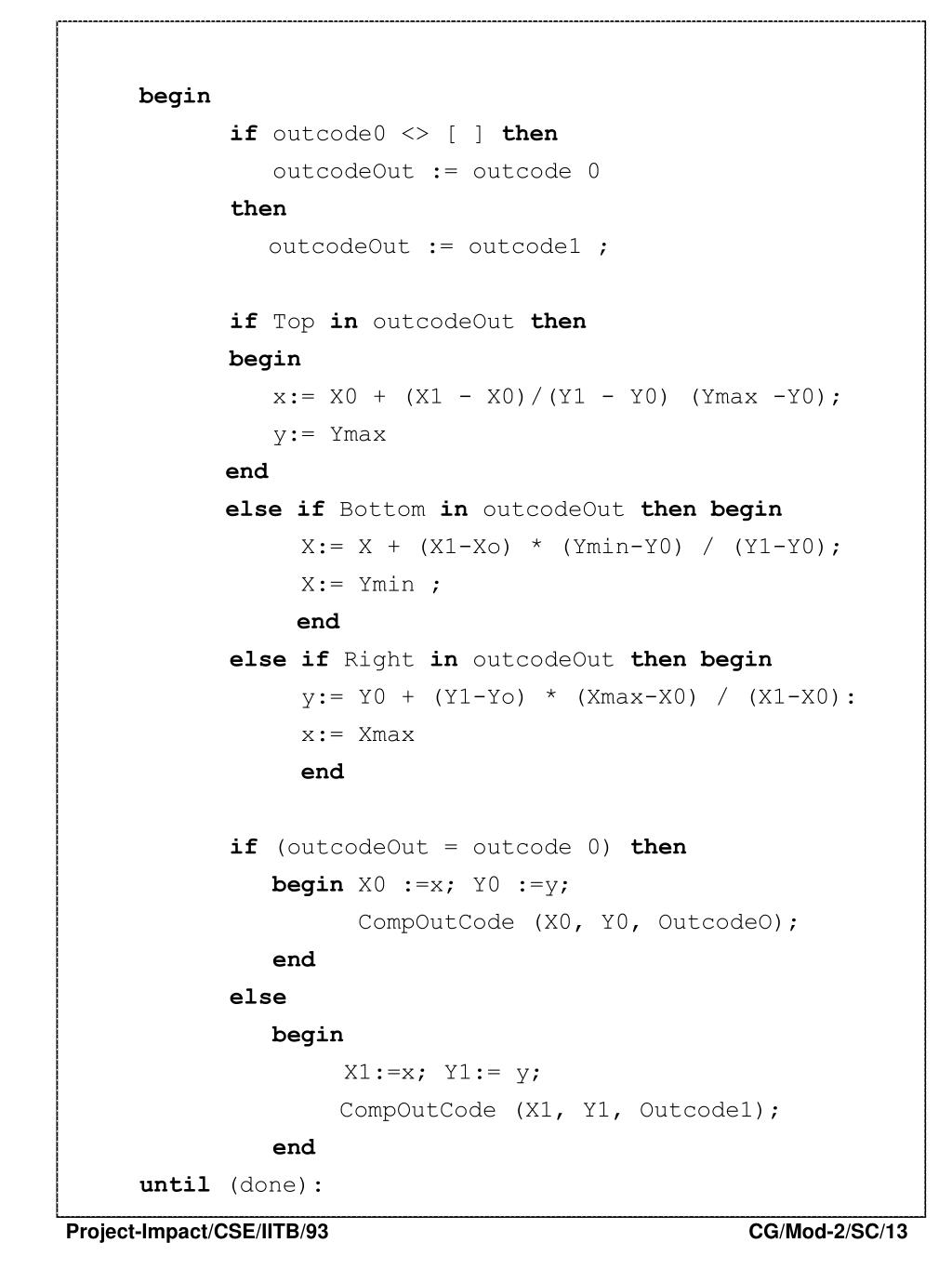

  13. begin • if outcode0 <> [ ] then • outcodeOut := outcode 0 • then • outcodeOut := outcode1 ; • if Top in outcodeOut then • begin • x:= X0 + (X1 - X0)/(Y1 - Y0) (Ymax -Y0); • y:= Ymax • end • elseif Bottom in outcodeOut then begin • X:= X + (X1-Xo) * (Ymin-Y0) / (Y1-Y0); • X:= Ymin ; • end • elseif Right in outcodeOut then begin • y:= Y0 + (Y1-Yo) * (Xmax-X0) / (X1-X0): • x:= Xmax • end • if (outcodeOut = outcode 0) then • begin X0 :=x; Y0 :=y; • CompOutCode (X0, Y0, OutcodeO); • end • else • begin • X1:=x; Y1:= y; • CompOutCode (X1, Y1, Outcode1); • end • until (done):

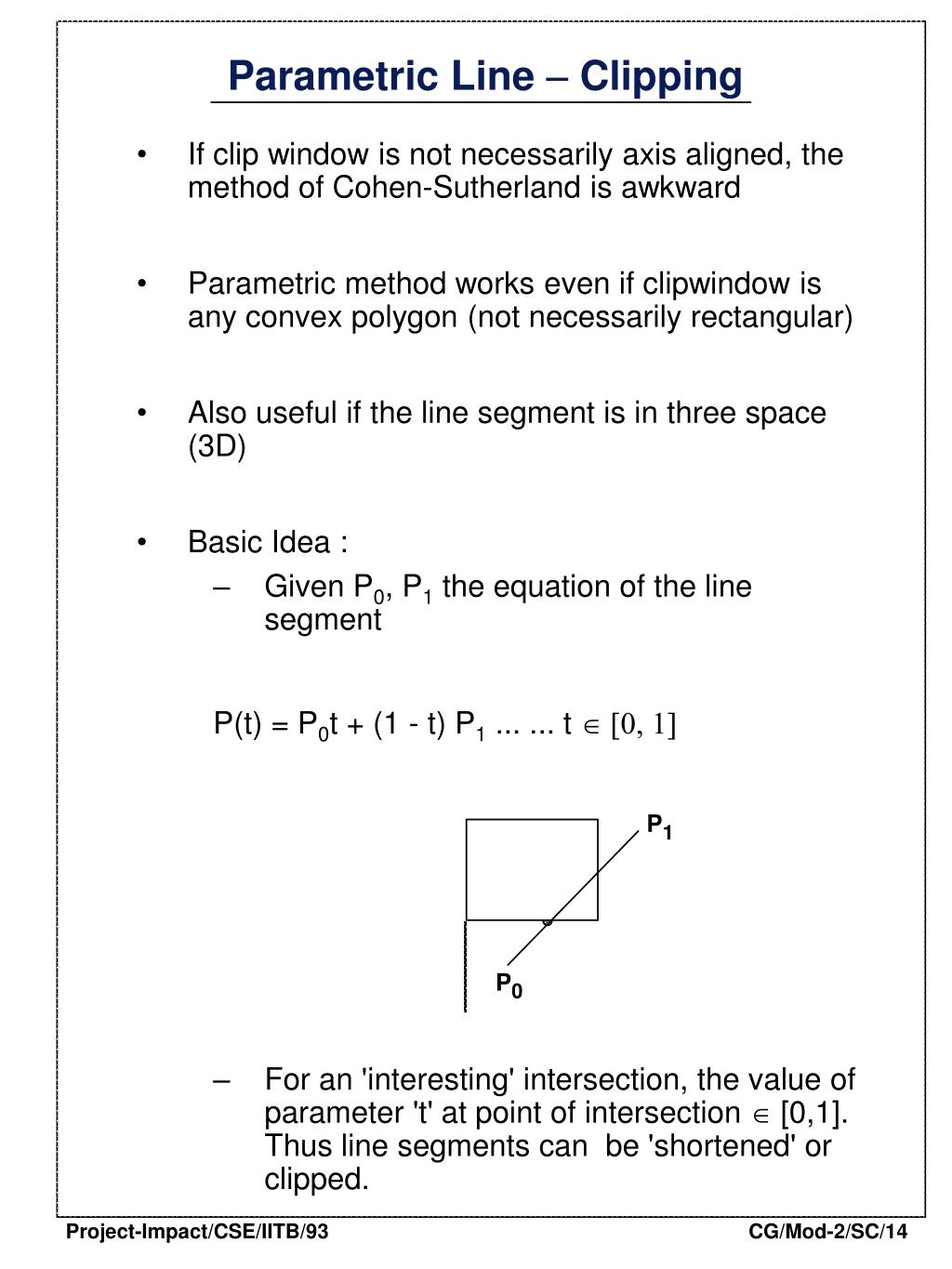

  14. If clip window is not necessarily axis aligned, the method of Cohen-Sutherland is awkward Parametric method works even if clipwindow is any convex polygon (not necessarily rectangular) Also useful if the line segment is in three space (3D) Basic Idea : Given P0, P1 the equation of the line segment P(t) = P0t + (1 - t) P1 ... ... t  For an 'interesting' intersection, the value of parameter 't' at point of intersection  [0,1]. Thus line segments can be 'shortened' or clipped. • P1 • P0 Parametric Line  Clipping

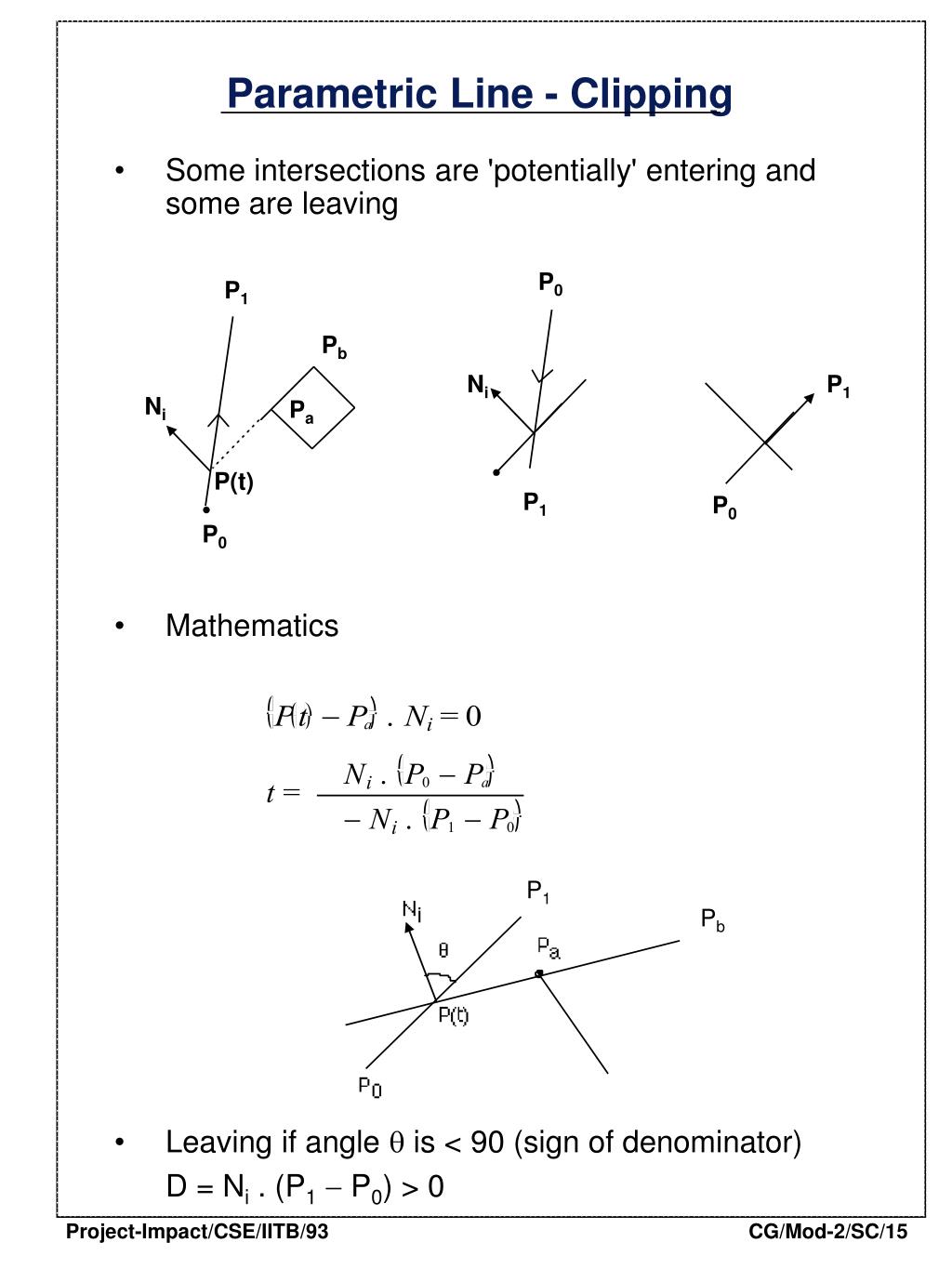

  15. Some intersections are 'potentially' entering and some are leaving Mathematics Leaving if angle  is < 90 (sign of denominator) D = Ni . (P1 P0) > 0 P0 P1 Pb Ni P1 Ni Pa P(t) P1 P0 P0 P1 Pb Parametric Line - Clipping

  16. procedure cyrus_beck (P0,P1, Pa, Pb, Pc,Pd : point; var tE, tL : real; var trivial : boolean); begin calculate Ni and select point "a" for each edge if P1 = Po then trivial:= point_in_polygon (Po, Pa, Pb, Pc,Pd) else begin tE := 0; tL := 1 ; for each edge of polygon do begin if Ni D <> 0 then begin 1. Calculate t 2. Use sign of Ni.D to categorize as entering or leaving 3. if entering then tE := max (tE, t); 4. if leaving then tL :=min (tL, t); end end if tE > tL then trivial := true ; end Example tL=1 P1 t tE=0 P0 N Parametric Line Clipping N

  17. All the edges of polygons can't be treated as line segments and clipped Clip convex and concave polygons against clip windows Window Clipping Polygons Input Window

  18. Basic Sutherland Hodgman Algorithm • const max = 20 ; • type vertex = point; edge = array [1..2] of vertex ; • vertexArray = array [1..Max} of vertex ; • procedure clip (in : vertexArray: var out : vertexarray ; • inlength : integer ; var outlength : • integer ; bdy : edge); • Var s, p, i : vertex; • j : integer ; • begin • outlength := 0; • s := in [inlength] ; • for j := 1 to inlength dobegin • p := in [j] ; • if Inside (p, bdy) then • if Inside (s, bdy) then • Output (P, outlength,out); • else begin • intersect (i, s, p, bdy); • Output (i, outlength, out); • Output (p, outlength out); • end • else • if Inside (s, bdy) then begin • Intersect (i, s, p, bdy) ; • Output (i, outlength, out) • end • s := p ; • end {for} • end

  19. Make code use less memory ; procedure clip • takes a new parameter ; • 1. Clip (in, out, inlength, outlength, bdy, range); • 2. Replace an 'output' statement ( procedure call) • by checks • if range < total then • clip again • else • output. • 3. Requires a new initialization step. • Topological analysis necessary Polygon Clipping (Finer Points)

  20. Shading a polygon with some color or stipple pattern gives it 'character' Shading a rectangle is easy, but watch out for xor mode drawing when two rectangles intersect Convention: a 'boundary' pixel is not considered to be part of the primitive if the halfplane defined by the edge of pixel lies below or to the left of the edge. (Pixel on top and right part of rectangle won't be drawn). Filling Polygons Common point

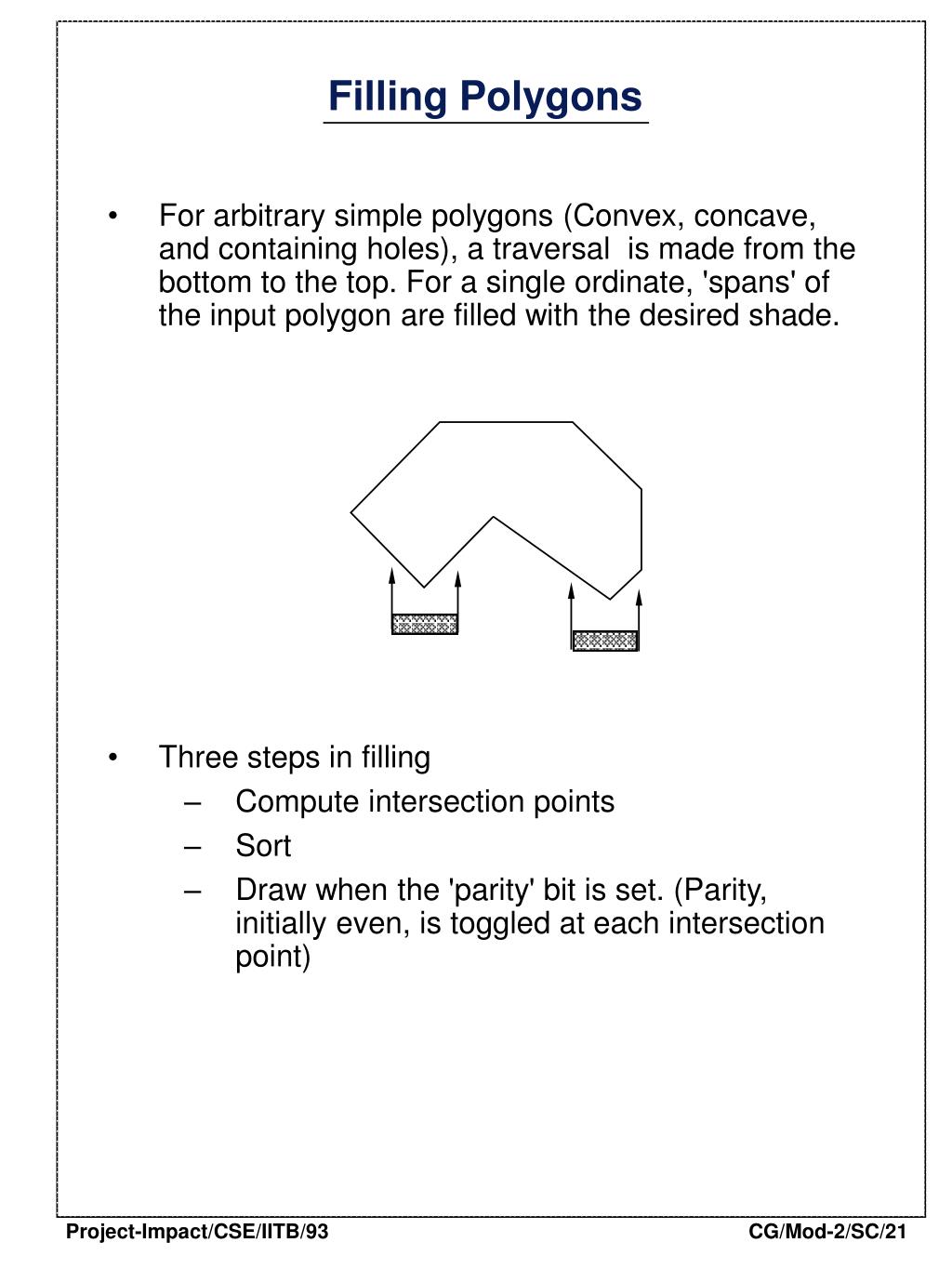

  21. For arbitrary simple polygons (Convex, concave, and containing holes), a traversal is made from the bottom to the top. For a single ordinate, 'spans' of the input polygon are filled with the desired shade. Three steps in filling Compute intersection points Sort Draw when the 'parity' bit is set. (Parity, initially even, is toggled at each intersection point) Filling Polygons

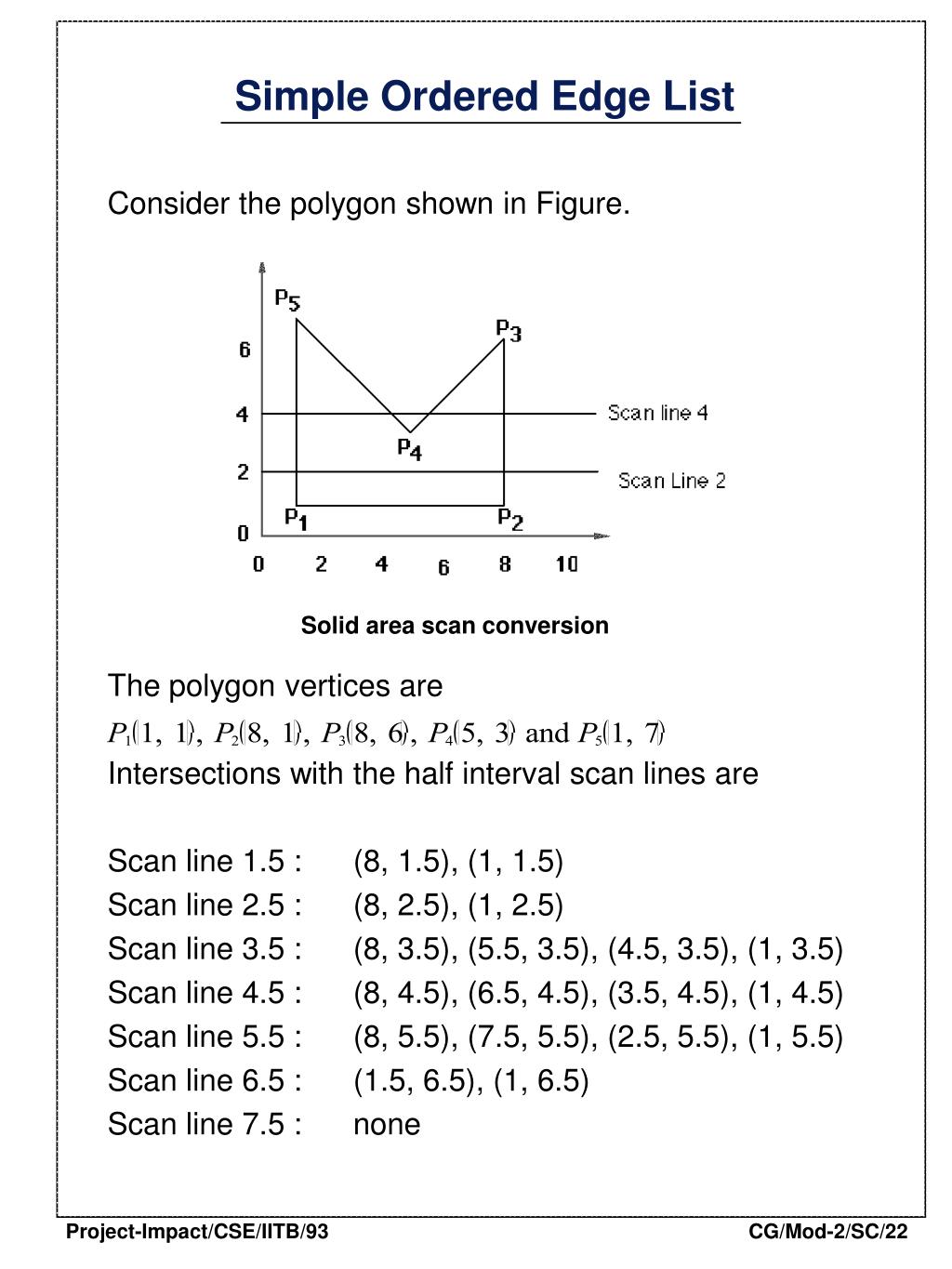

  22. Consider the polygon shown in Figure. The polygon vertices are Intersections with the half interval scan lines are Scan line 1.5 : (8, 1.5), (1, 1.5) Scan line 2.5 : (8, 2.5), (1, 2.5) Scan line 3.5 : (8, 3.5), (5.5, 3.5), (4.5, 3.5), (1, 3.5) Scan line 4.5 : (8, 4.5), (6.5, 4.5), (3.5, 4.5), (1, 4.5) Scan line 5.5 : (8, 5.5), (7.5, 5.5), (2.5, 5.5), (1, 5.5) Scan line 6.5 : (1.5, 6.5), (1, 6.5) Scan line 7.5 : none Simple Ordered Edge List Solid area scan conversion

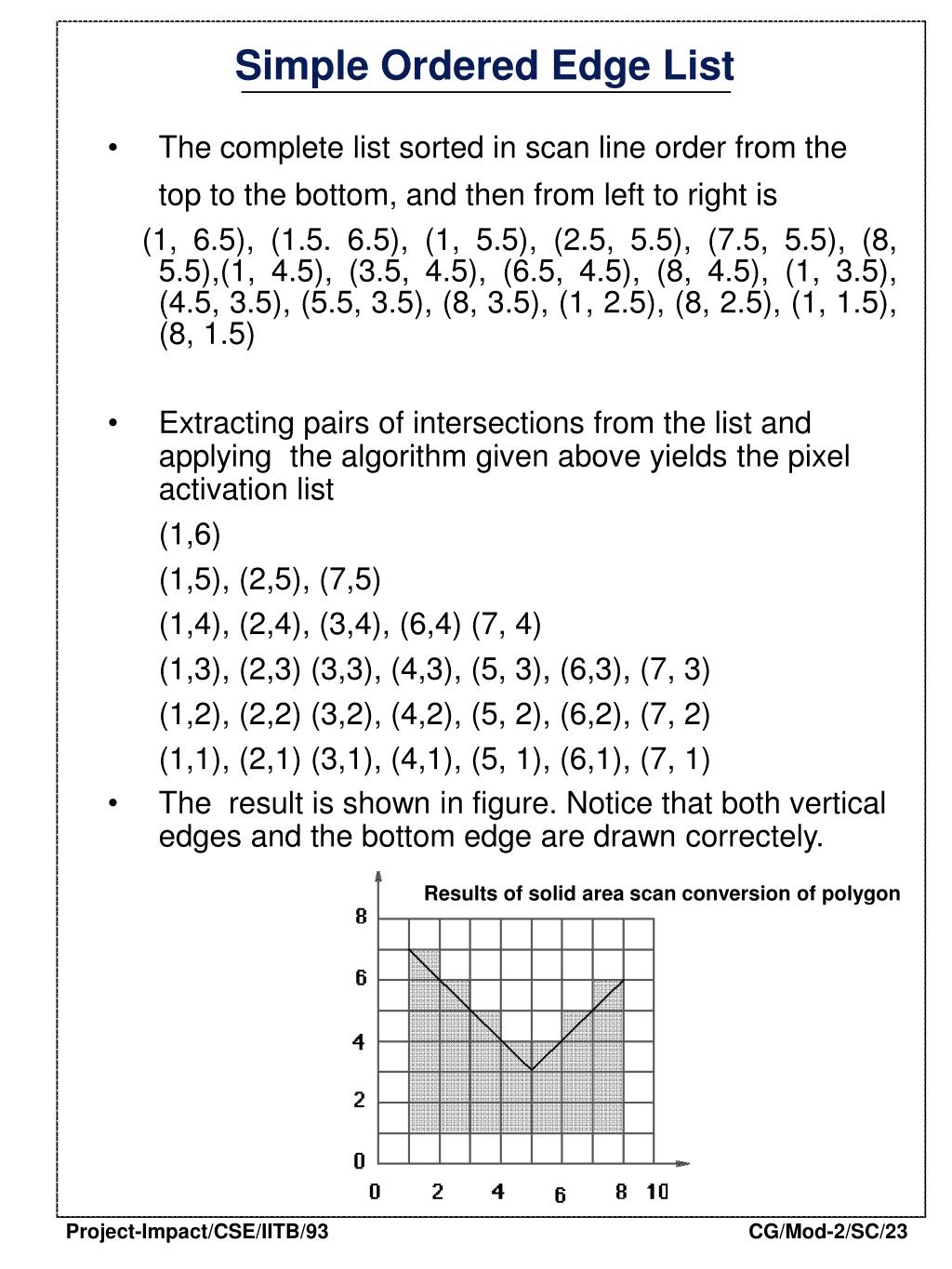

  23. The complete list sorted in scan line order from the top to the bottom, and then from left to right is (1, 6.5), (1.5. 6.5), (1, 5.5), (2.5, 5.5), (7.5, 5.5), (8, 5.5),(1, 4.5), (3.5, 4.5), (6.5, 4.5), (8, 4.5), (1, 3.5), (4.5, 3.5), (5.5, 3.5), (8, 3.5), (1, 2.5), (8, 2.5), (1, 1.5), (8, 1.5) Extracting pairs of intersections from the list and applying the algorithm given above yields the pixel activation list (1,6) (1,5), (2,5), (7,5) (1,4), (2,4), (3,4), (6,4) (7, 4) (1,3), (2,3) (3,3), (4,3), (5, 3), (6,3), (7, 3) (1,2), (2,2) (3,2), (4,2), (5, 2), (6,2), (7, 2) (1,1), (2,1) (3,1), (4,1), (5, 1), (6,1), (7, 1) The result is shown in figure. Notice that both vertical edges and the bottom edge are drawn correctely. Simple Ordered Edge List Results of solid area scan conversion of polygon

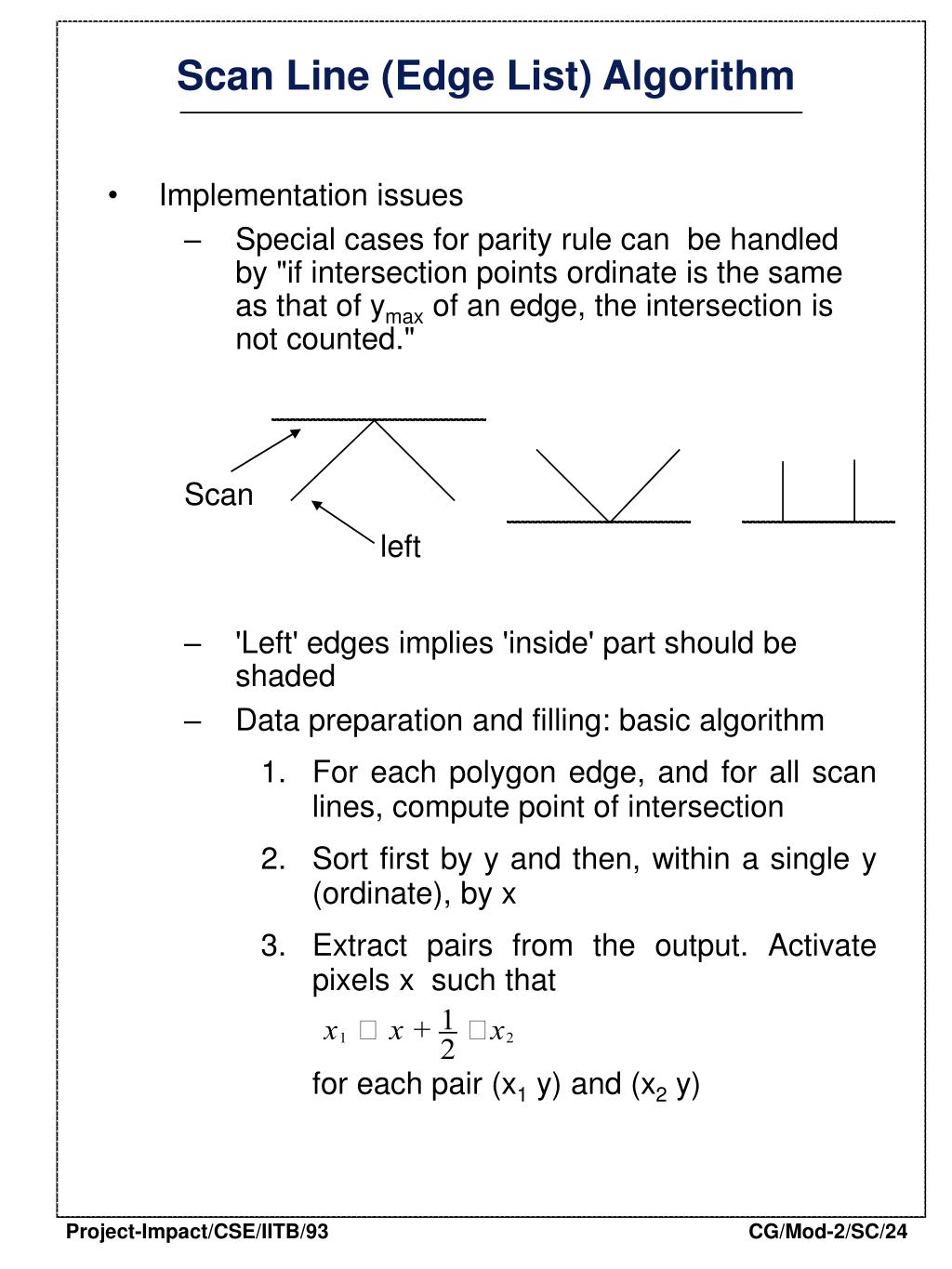

  24. Implementation issues Special cases for parity rule can be handled by "if intersection points ordinate is the same as that of ymax of an edge, the intersection is not counted." Scan left 'Left' edges implies 'inside' part should be shaded Data preparation and filling: basic algorithm 1. For each polygon edge, and for all scan lines, compute point of intersection 2. Sort first by y and then, within a single y (ordinate), by x 3. Extract pairs from the output. Activate pixels x such that for each pair (x1 y) and (x2 y) Scan Line (Edge List) Algorithm

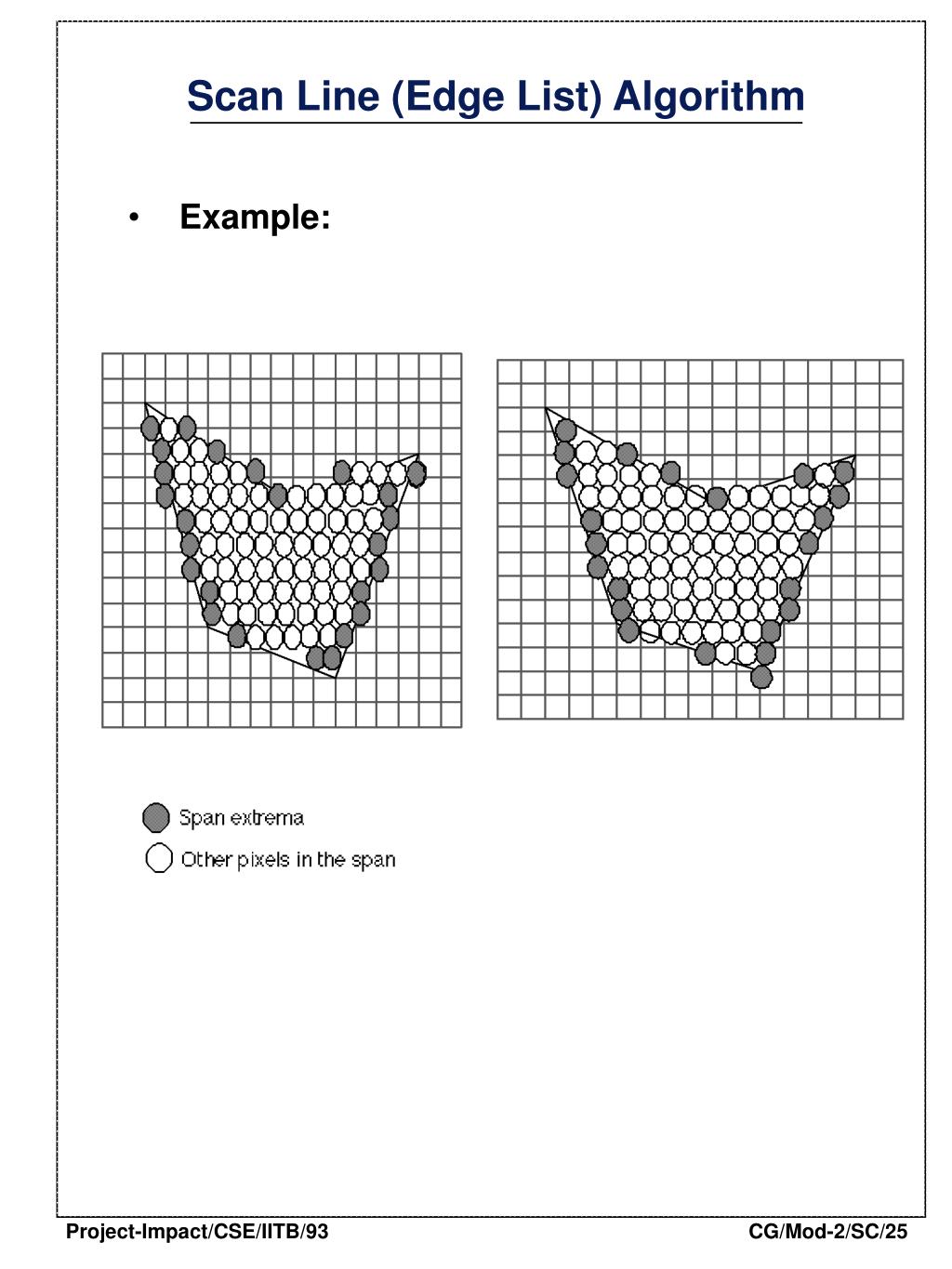

  25. Example: Scan Line (Edge List) Algorithm

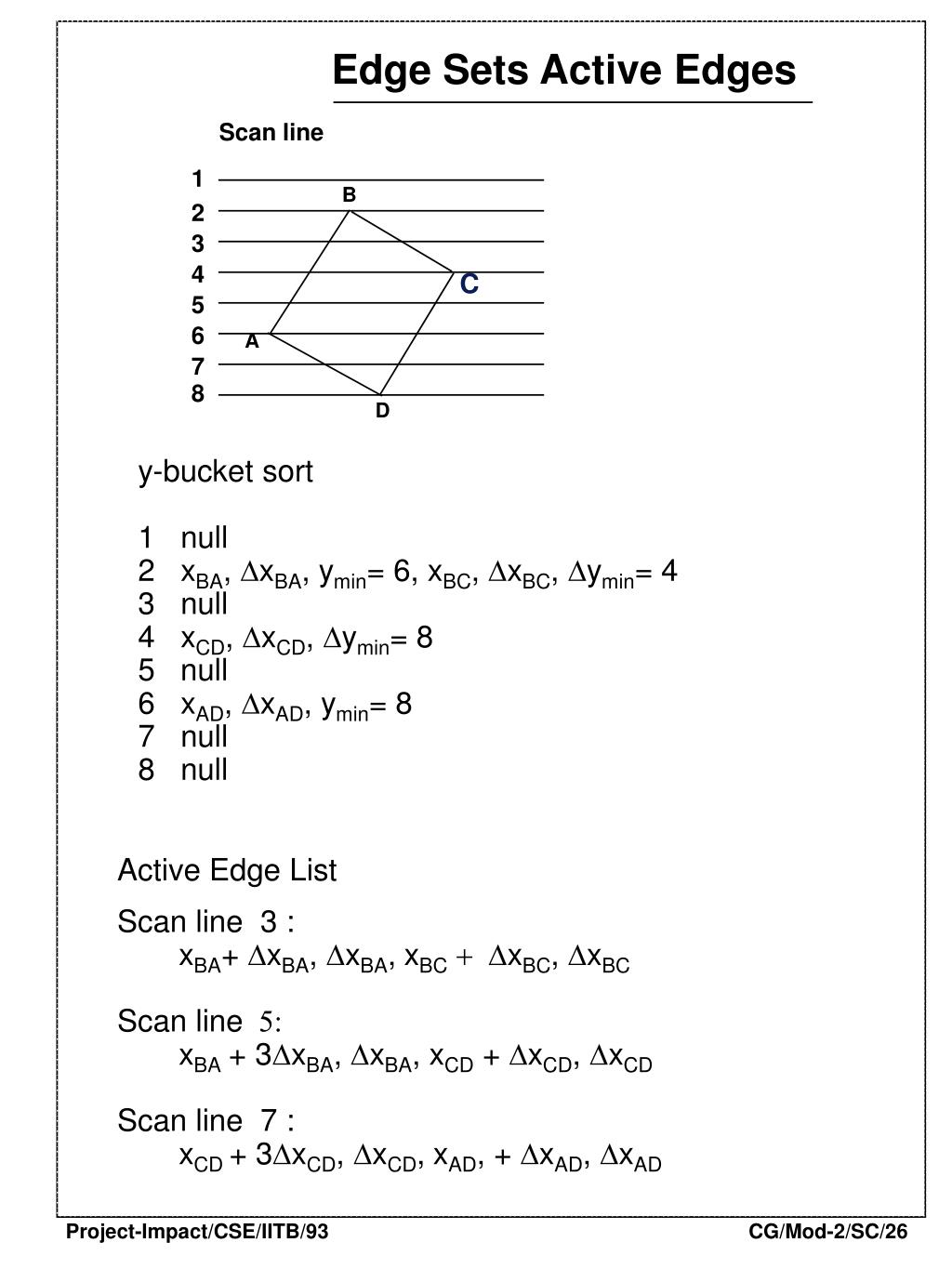

  26. Scan line 1 B 2 3 4 C 5 6 A 7 8 D Edge Sets Active Edges y-bucket sort 1 null 2 xBA, xBA, ymin= 6, xBC, xBC, ymin= 4 3 null 4 xCD, xCD, ymin= 8 5 null 6 xAD, xAD, ymin= 8 7 null 8 null • Active Edge List • Scan line 3 : • xBA+ xBA, xBA,xBCxBC, xBC • Scan line • xBA + 3xBA, xBA, xCD + xCD, xCD • Scan line 7 : • xCD + 3xCD, xCD,xAD, + xAD, xAD

  27. More efficiency can be obtained by using 'scan line coherence' (edges are not likely to change much from scan line to scan line) Sorting, computing intersections, done on the fly Preprocessing: Global edge table (ET) contains all edges sorted by smaller y coordinate. (Bucket sort) Within each edge table bucket, edges kept in order of increasing x-coordinate of lower endpoint Each entry contains Ymax of edge Xmin x coordinate of bottom poit 1/m inverse slope flag left edge or right edge. Scan Line Filling

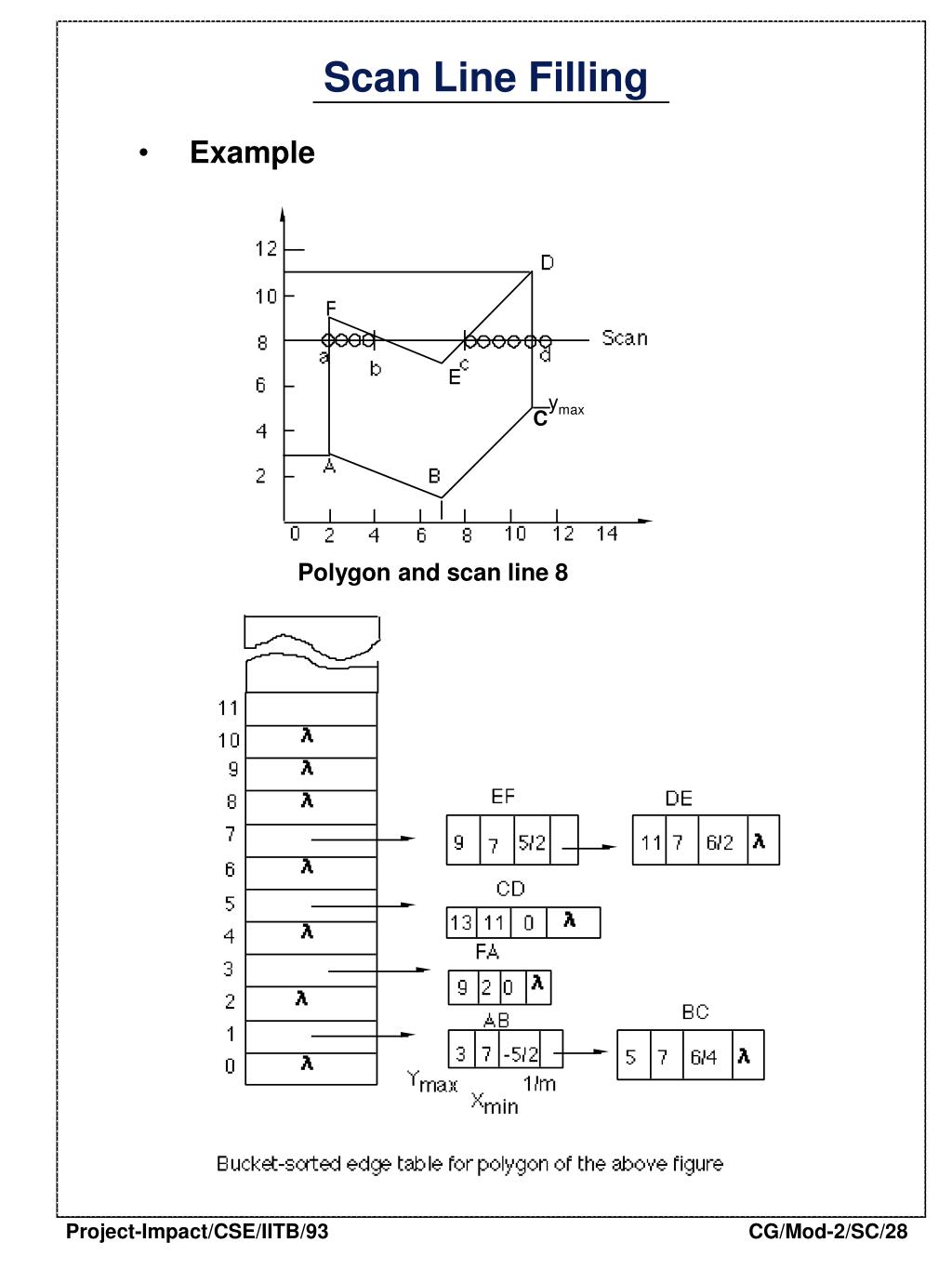

  28. Example ymax C Polygon and scan line 8 Scan Line Filling  

  29. 1. Set y to smallest y coordinate that has an entry in ET 2. Initialize AET := nil 3. Repeat until AET and ET are empty: 3.1 Move entering edges 3.2 Fill in desired edges 3.3 Remove leaving edges 3.4 Update y to next scan line 3.5 Update AET using x := x + 1/m 3.6 Resort the AET Active Edge Scan Line Algorithm

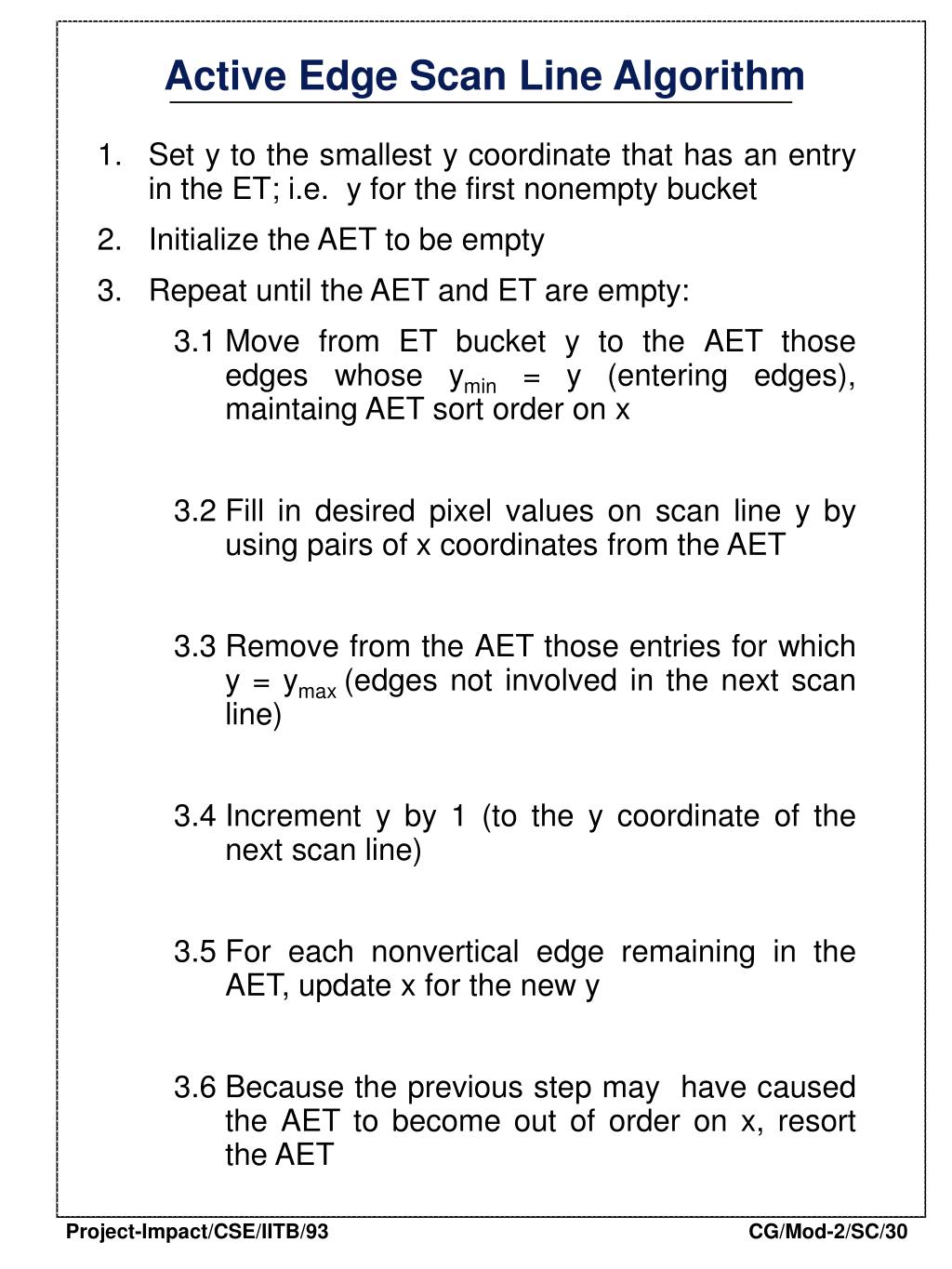

  30. 1. Set y to the smallest y coordinate that has an entry in the ET; i.e. y for the first nonempty bucket 2. Initialize the AET to be empty 3. Repeat until the AET and ET are empty: 3.1 Move from ET bucket y to the AET those edges whose ymin = y (entering edges), maintaing AET sort order on x 3.2 Fill in desired pixel values on scan line y by using pairs of x coordinates from the AET 3.3 Remove from the AET those entries for which y = ymax (edges not involved in the next scan line) 3.4 Increment y by 1 (to the y coordinate of the next scan line) 3.5 For each nonvertical edge remaining in the AET, update x for the new y 3.6 Because the previous step may have caused the AET to become out of order on x, resort the AET Active Edge Scan Line Algorithm

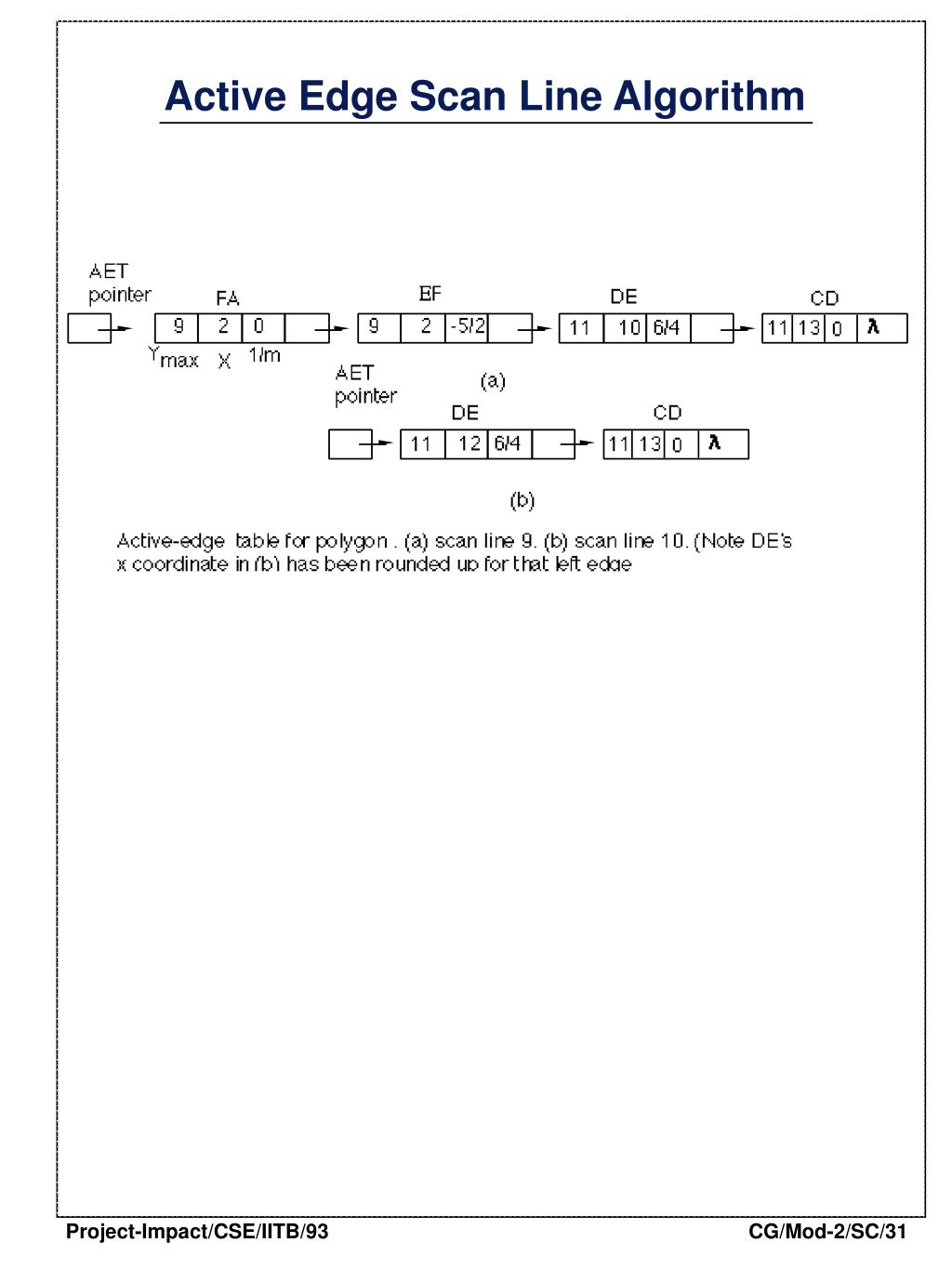

  31. Active Edge Scan Line Algorithm  

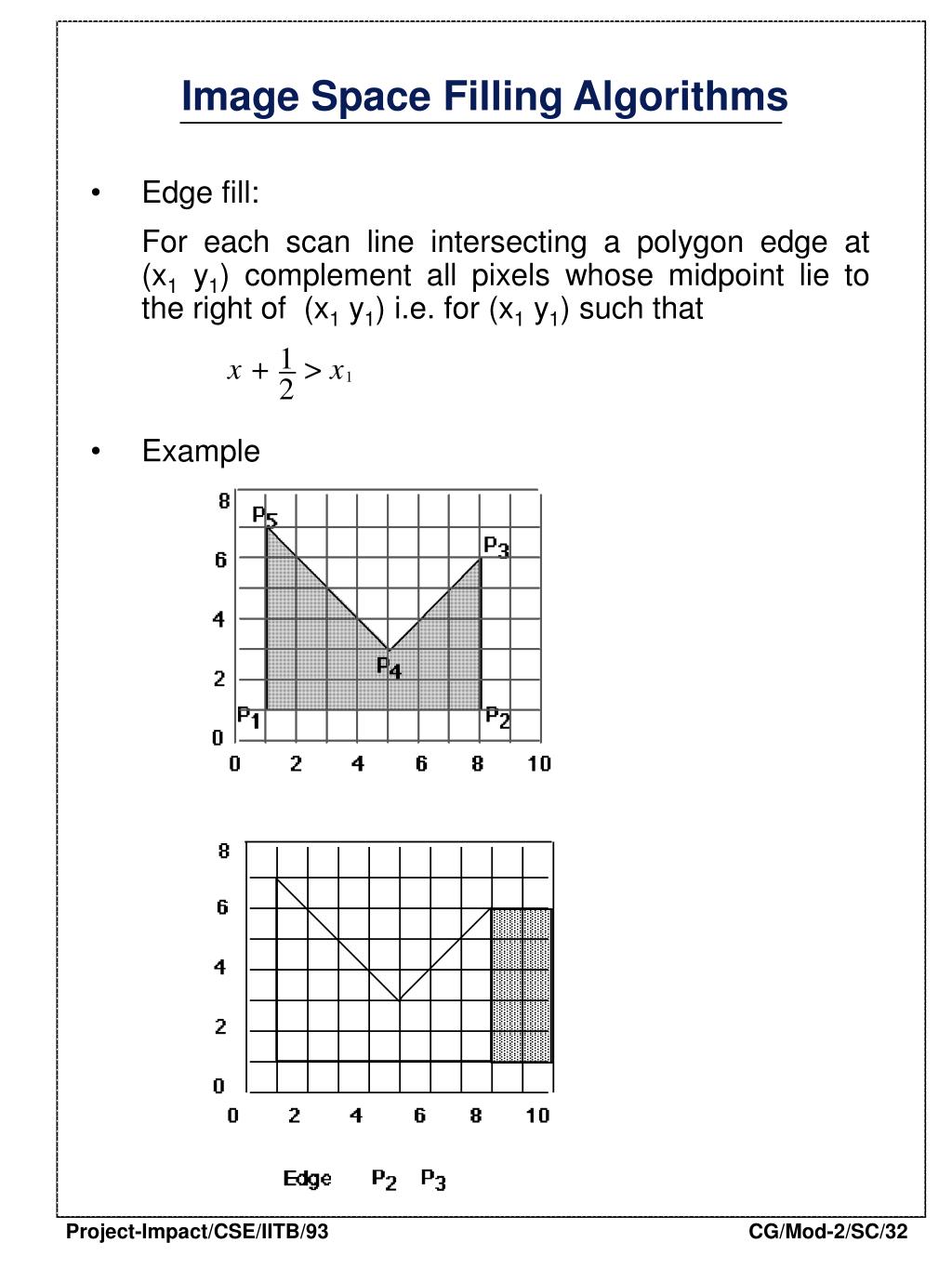

  32. Edge fill: For each scan line intersecting a polygon edge at (x1 y1) complement all pixels whose midpoint lie to the right of (x1 y1) i.e. for (x1 y1) such that Example 1 x 1 2 Image Space Filling Algorithms x + >

  33. Image Space Filling Algorithms Edge Fill Algorithm

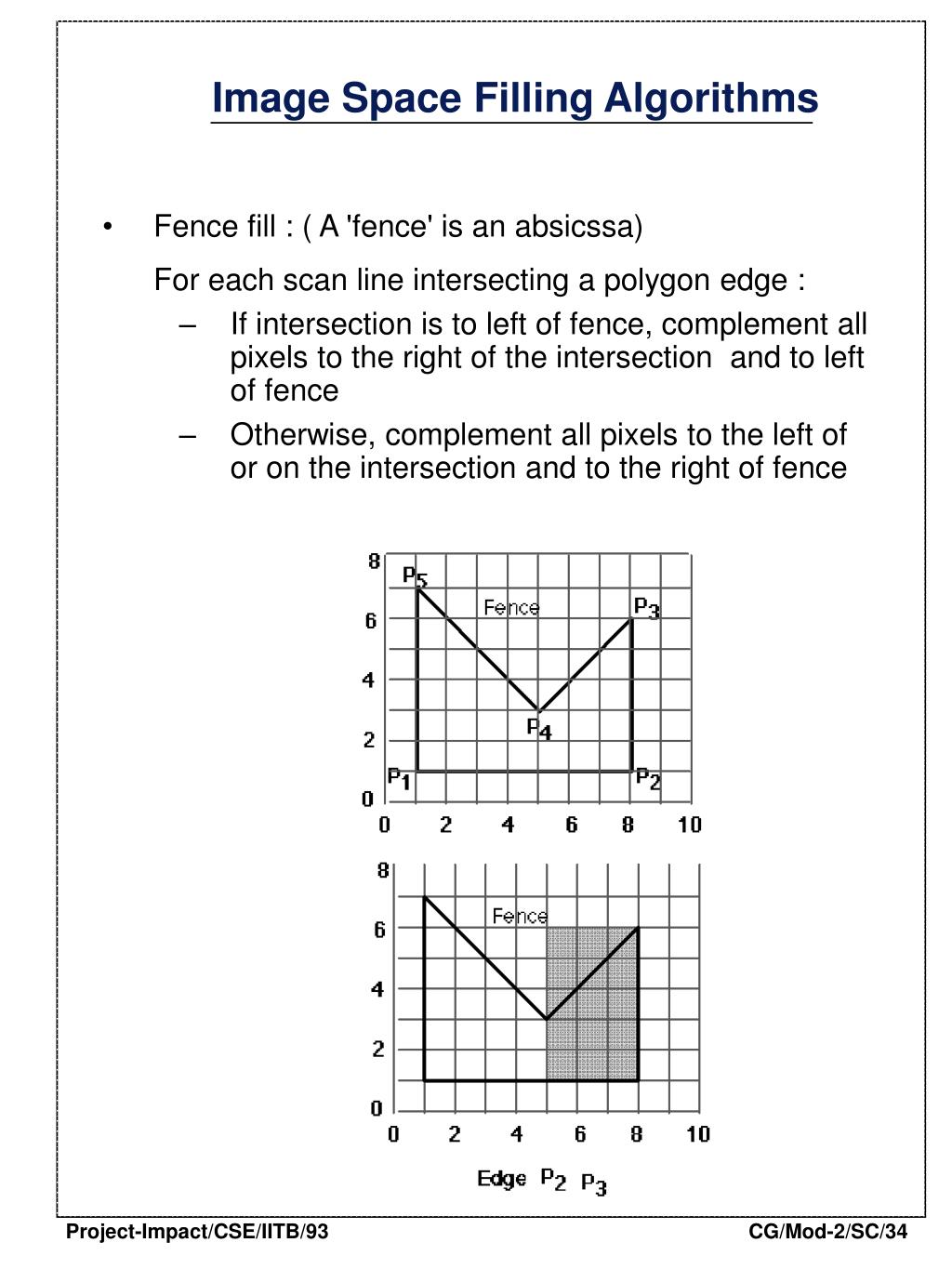

  34. Fence fill : ( A 'fence' is an absicssa) For each scan line intersecting a polygon edge : If intersection is to left of fence, complement all pixels to the right of the intersection and to left of fence Otherwise, complement all pixels to the left of or on the intersection and to the right of fence Image Space Filling Algorithms

  35. Image Space Filling Algorithms Fence Fill Algorithm

  36. Edge flag : Analogous to scan line, but in device space 1. Outline contour 2. Fill it inside Example Edge Flag Algorithm

  37. The edge flag algorithm Contour outline : Using the half scan line convention for each edge of the polygon, set the leftmost pixel whose midpoint lies to the right of the intersection; i.e., for x + 1/2 > xint, to the boundary value. Fill : For each scan line intersecting the polygon begin Inside = FALSE for x = 0 (left) to x = Xmax (right) if the pixel at x is set to the boundary value then negate Inside If Inside = TRUE then set the pixel at x to the polygon value else reset the pixel at x to the background value end if end if next x end { for } Edge Flag Algorithm

  38. Other algorithms Seed fill : 1. Push seed pixel to stack 2. While not empty stack do begin pop(s) set pixel value recursively seed fill (nbrs, pixel) Example Image Space Filling Algorithms

  39. Image Space Filling Algorithms

  40. Scan line seed fill algorithm A seed pixel on a span is popped from a stack containing the seed pixel The span containing the seed pixel is filled to the right and left of seed pixel along a scan line until a boundary is found. The algorithm remembers the extreme left and the extreme right pixel in the span as xleft and xright. In the range of xleft Š x Š xright the scan lines immediately above & immediately below the current scan line are examined to see if they completely contain either boundary pixels or previously filled points. If these scan lines do not contain either boundary or previously filled pixels, then in the range Xleft Š x Š Xright the extreme right pixel in 0each span is marked as a seed pixel and pushed onto the stack. A Scan Line Seed Fill Algorithm

  41. A Scan Line Seed Fill Algorithm

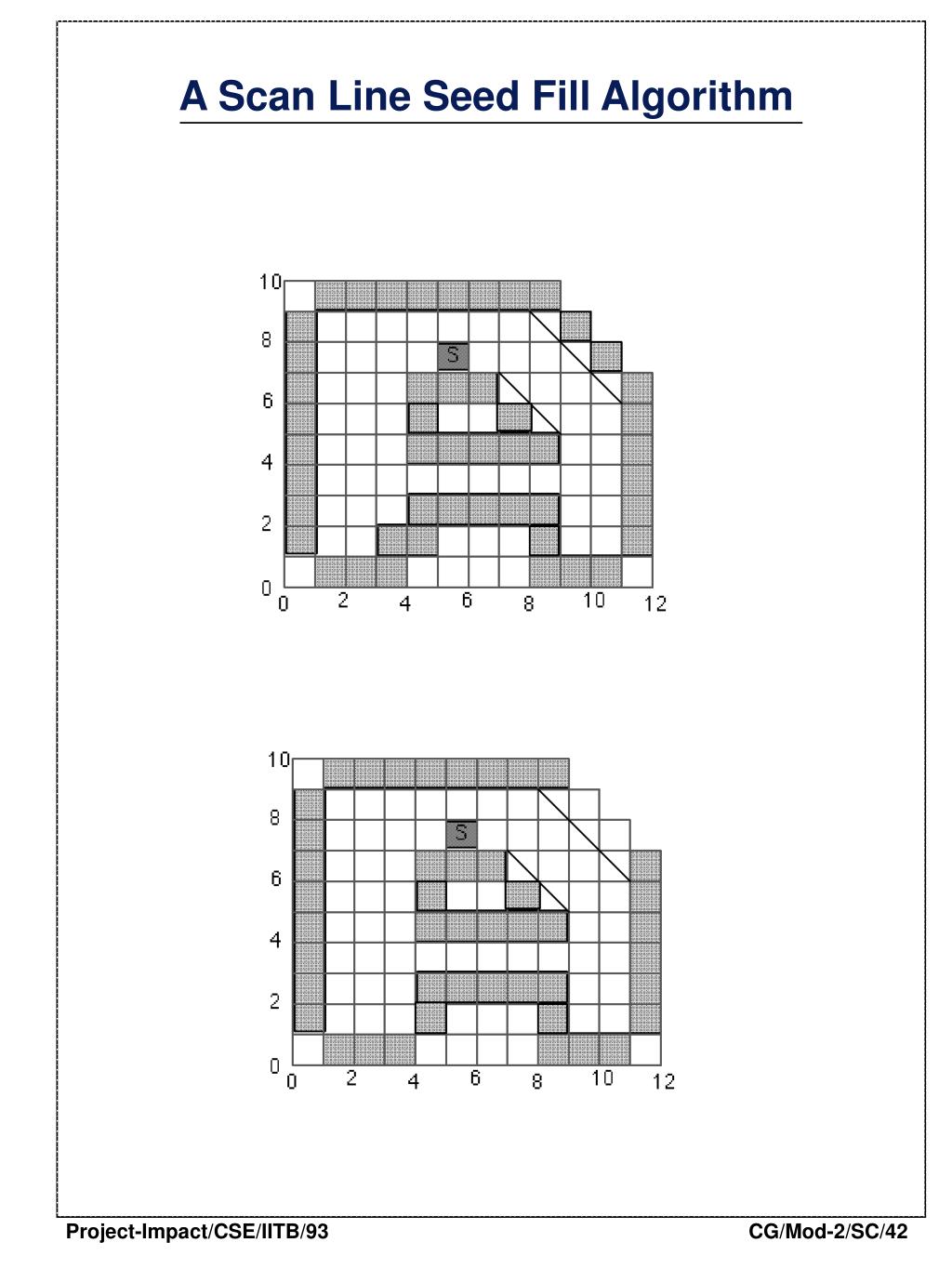

  42. A Scan Line Seed Fill Algorithm

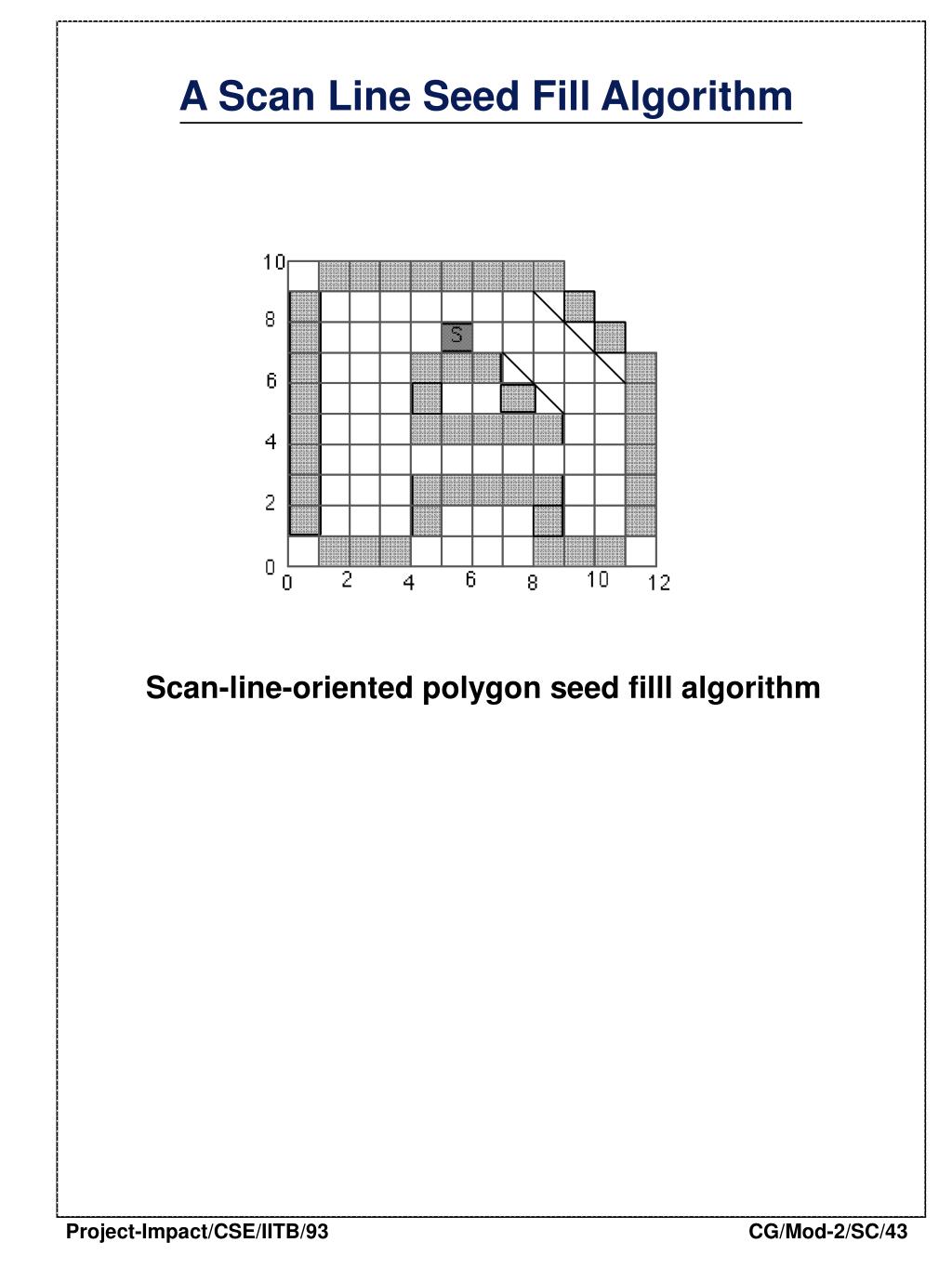

  43. A Scan Line Seed Fill Algorithm Scan-line-oriented polygon seed filll algorithm
