  1. Microprocessor PCB Design by: Tuan Hung Huynh April 3, 2006

  2. Outline • Background • Design Process • Application • Results

  3. Purpose • Designing computer circuits and software for the Microprocessor class. • PCB layout software • Documentation

  4. Background

  5. Past Designs • People to mention • Wi Sugiri (projects) • Dan Sossaman (board) • Neil Clukode • Matt Olson • Tuan Huynh • Chris Carpenter

  6. Microcontroller • Microcontroller or Microprocessor? • Microcontroller – basic • Microprocessor - complex • Atmel and Intel 8051 core architecture • AT89S8252 (8052) • AT89S8253 (8053)

  7. Design Process

  8. Structure • Developing the schematic layout • Updating and improvements • Ordering of components • Developing software • Transforming into a workable circuit • Testing and demonstration • Optional manufacture of the PCB

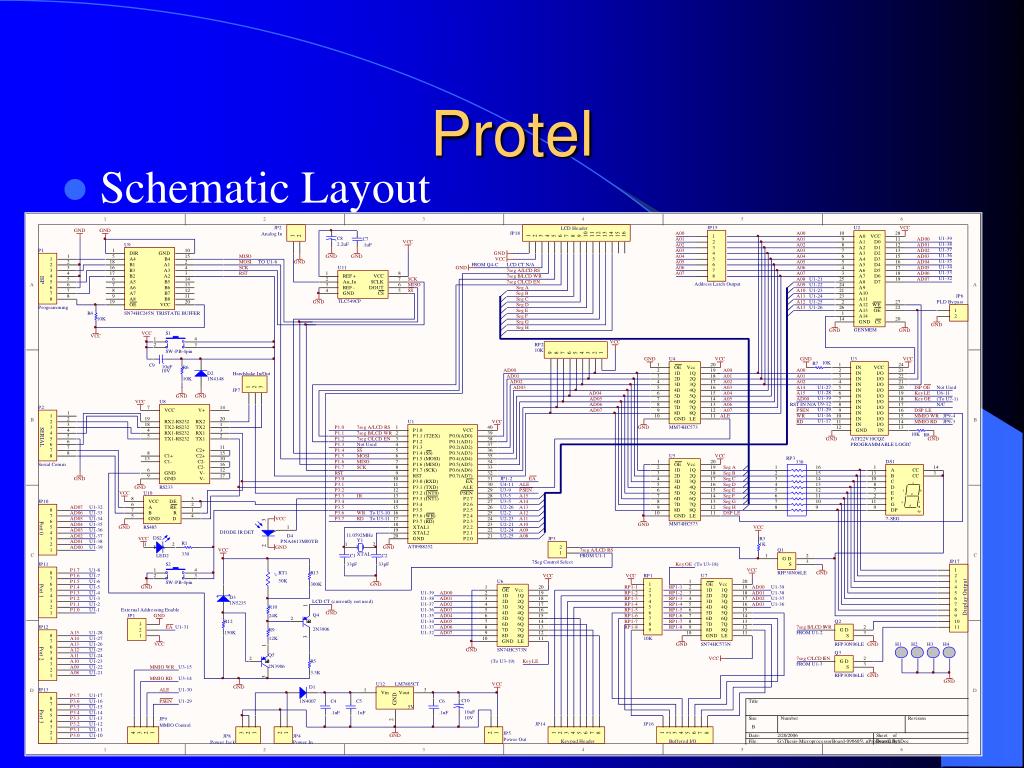

  9. Protel • Schematic Layout

  10. Protel • Schematic and PCB Libraries • Custom components • Link of files PCB library Schematic library

  11. Protel • PCB Layout • Physical representation

  12. Protel • Design Rule Check (DRC) • Short Circuits • Broken Nets • Height and Width Constraints • Hole Size • Clearance Constraints

  13. Protel • Assembly Files • Gerber Files • NC Drill Files

  14. Assembly Files • Top Silkscreen

  15. Assembly Files • Top and Bottom Copper

  16. Assembly Files • Top Soldermask and Bottom Soldermask

  17. Assembly Files • Drill File

  18. Creation of the PCB • Board Manufacture • Advanced Circuits • www.4PCB.com • www.FreeDFM.com • Component Vendors • Digikey • All Electronics

  19. Application

  20. Microprocessor Projects • Microprocessor Design class: • Digital Metronome • T-Bird Taillights • Digital Clock • Serial Communication • Memory Mapped Input/Output • 7-Segment Displays • Keypad Input • LCD Display

  21. SEC MIN Microprocessor Projects • Digital Metronome • T-Bird Taillights • Digital Clock • Port 3

  22. Microprocessor Projects • Serial Communications • Hyper-terminal • RS232 buffer chip • Serial cable

  23. Microprocessor Projects • Serial Communications Cable • DB9 to RJ45

  24. Microprocessor Projects • Memory Mapped Input/Output • Data latch

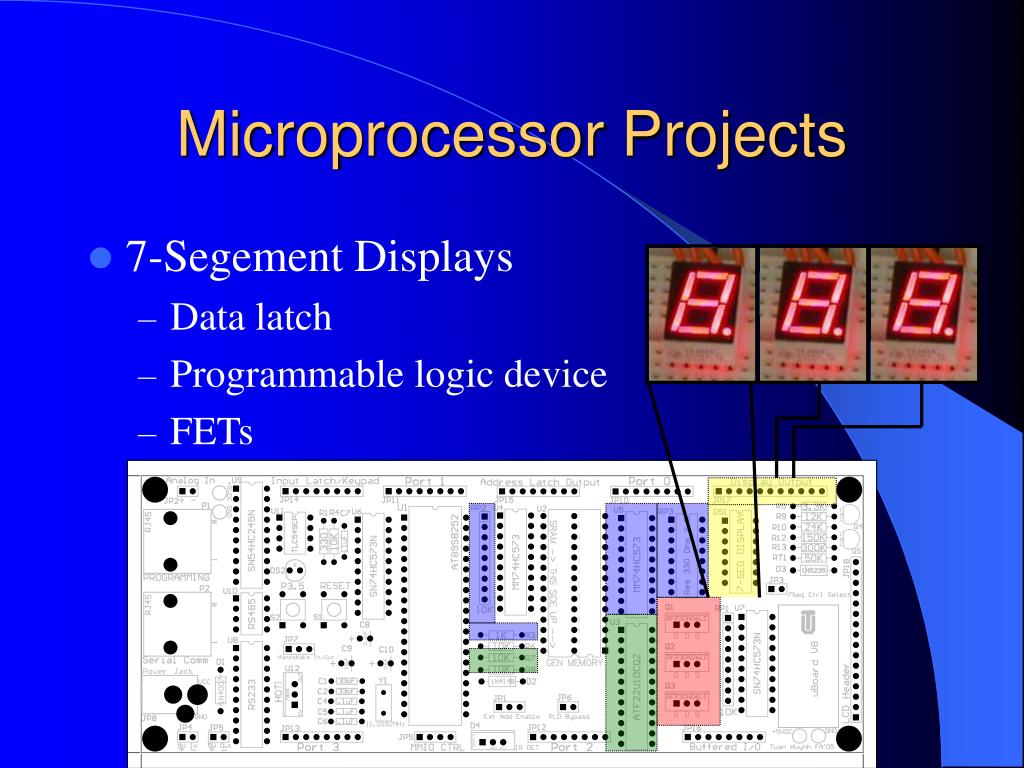

  25. Microprocessor Projects • 7-Segement Displays • Data latch • Programmable logic device • FETs

  26. Microprocessor Projects • Keypad • Data latch • PLD

  27. Microprocessor Projects • Liquid Crystal Display • Data latch • PLD

  28. Problems Encountered • Issues with new microcontrollers • Chip burners • Capacitance • Internal Fuse Bits • In-System-Programming Circuit

  29. Pin 20 Pin 8 RJ45 Jack Programmable Logic Device Pin 8 Pin 19 In-System-Programming • Modification of the board is possible • Buffer chip • Programmable logic device • Re-wire

  30. In-System-Programming • ISP Cable • DB25 to RJ45

  31. Results

  32. Completion • Board applied in the classroom • Update from previous designs • Capable of future updates

  33. Future Design • Reduction of Components • Dual Microcontrollers • USB • Surface Mount Components

  34. Questions
