I-CB/ Modbus

I-CB/ Modbus. 1/ Fields of application. Fields of application. Modbus RTU. Fields of application. Advantages. Connection. RS232 RS485. CAN1 IG/IS-NT Peripheral CAN bus. Connection. Jumper Terminating resistor. Jumper Terminating resistor. Jumper Selection RS232/ RS485.

yovela
Télécharger la présentation

I-CB/ Modbus

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Customer satisfaction is our mission. We continuously develop the best people to succeed in our mission. I-CB/Modbus 1/ Fieldsofapplication

  2. Fieldsofapplication Modbus RTU Customer satisfaction is our mission. We continuously develop the best people to succeed in our mission.

  3. Fieldsofapplication Customer satisfaction is our mission. We continuously develop the best people to succeed in our mission.

  4. Advantages Customer satisfaction is our mission. We continuously develop the best people to succeed in our mission.

  5. Connection RS232 RS485 CAN1 IG/IS-NT Peripheral CAN bus Customer satisfaction is our mission. We continuously develop the best people to succeed in our mission.

  6. Connection Jumper Terminating resistor Jumper Terminating resistor Jumper Selection RS232/ RS485 Customer satisfaction is our mission. We continuously develop the best people to succeed in our mission.

  7. LED indications Customer satisfaction is our mission. We continuously develop the best people to succeed in our mission.

  8. Configuration • ICBEdit Customer satisfaction is our mission. We continuously develop the best people to succeed in our mission.

  9. Configuration Customer satisfaction is our mission. We continuously develop the best people to succeed in our mission.

  10. Configuration Customer satisfaction is our mission. We continuously develop the best people to succeed in our mission.

  11. Advancedconfiguration Customer satisfaction is our mission. We continuously develop the best people to succeed in our mission.

  12. Advancedconfiguration I-CB sets communication drop out alarm after it doesn’t receive answer within this timeout Enables optimization, i.e. reading of neighbouring registers in one request Request delay – after this time next request is issued after receiving previous answer Maximum number of registers that can be read by one request Baud rate Select baud rate for your device (9600 / 19200 / 38400 bps) Maximal length of data that can be read by one request in bytes Not to be changed by user Not to be changed by user Set number of stop bits Set parity (None, Odd, Even) Customer satisfaction is our mission. We continuously develop the best people to succeed in our mission.

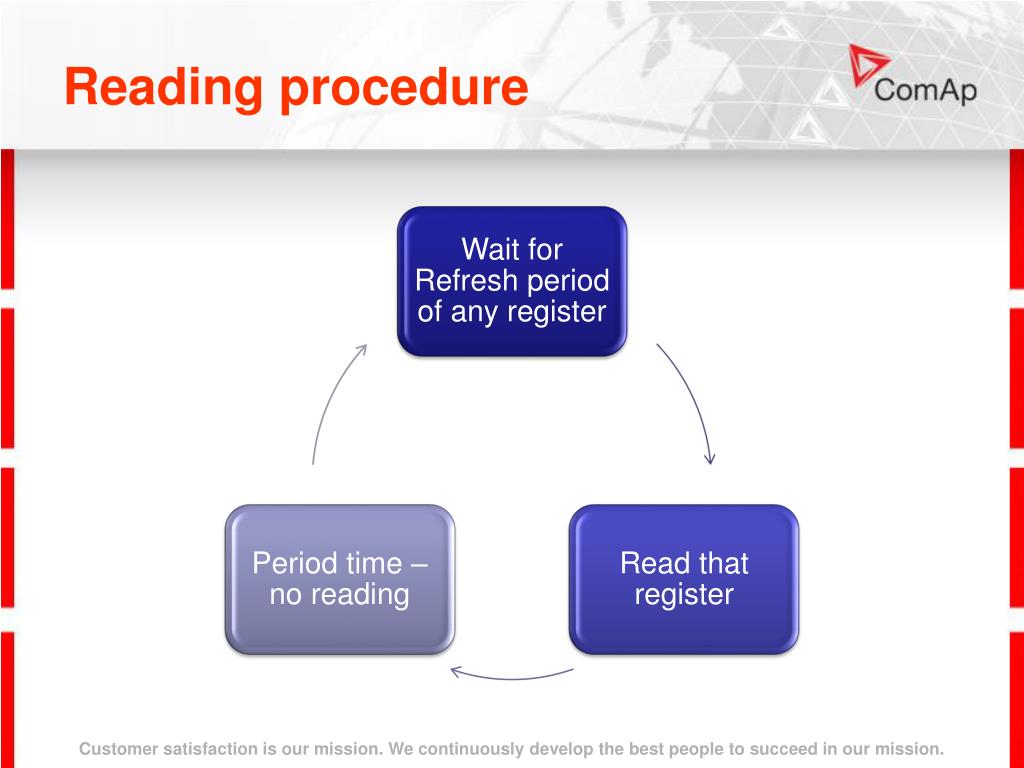

  13. Readingprocedure Customer satisfaction is our mission. We continuously develop the best people to succeed in our mission.

  14. Analog inputs Factormultipliesthereadnumber RegisterNameisshown in ICBEdit DeviceAddr. isaddressofModbusdevice Modbusregisteraddress (e.g. 4xxxx for holding registers) Offset is added to the value read from Modbus device after it was multiplied by factor Length of value in registers (i.e. 2 for a 4-byte value) Value type – signed/unsigned and byte length Period of request sent from I-CB to Modbus device Customer satisfaction is our mission. We continuously develop the best people to succeed in our mission.

  15. Binary inputs Length of value in registers (1 forbinaryinputs) Maskselects bit(s) Valueisthencompared to selectedbits and iftheymatchthebinary input to thecontrollerisactivated Errormaskselectserror bit(s) ErrorValuesayswhichvaluesmeansthatthebinarysignalis not valid Customer satisfaction is our mission. We continuously develop the best people to succeed in our mission.

  16. Binary inputs • Example • Registerreadfromthedevice: • 0000 0010 0110 1100 • Mask = $0040 (0000 0000 0000 0100) • Value = $0040 (0000 0000 0000 0100) • 0000 0010 0110 1100 read register AND • 0000 0000 0000 0100 Mask • 0000 0000 0000 0100 compared read register with Mask • 1 compared previous line with Value Customer satisfaction is our mission. We continuously develop the best people to succeed in our mission.

  17. Commands • Possible to write registers • Analog outputs • Binary outputs • Refresh of binary outputs – every 1 second Customer satisfaction is our mission. We continuously develop the best people to succeed in our mission.

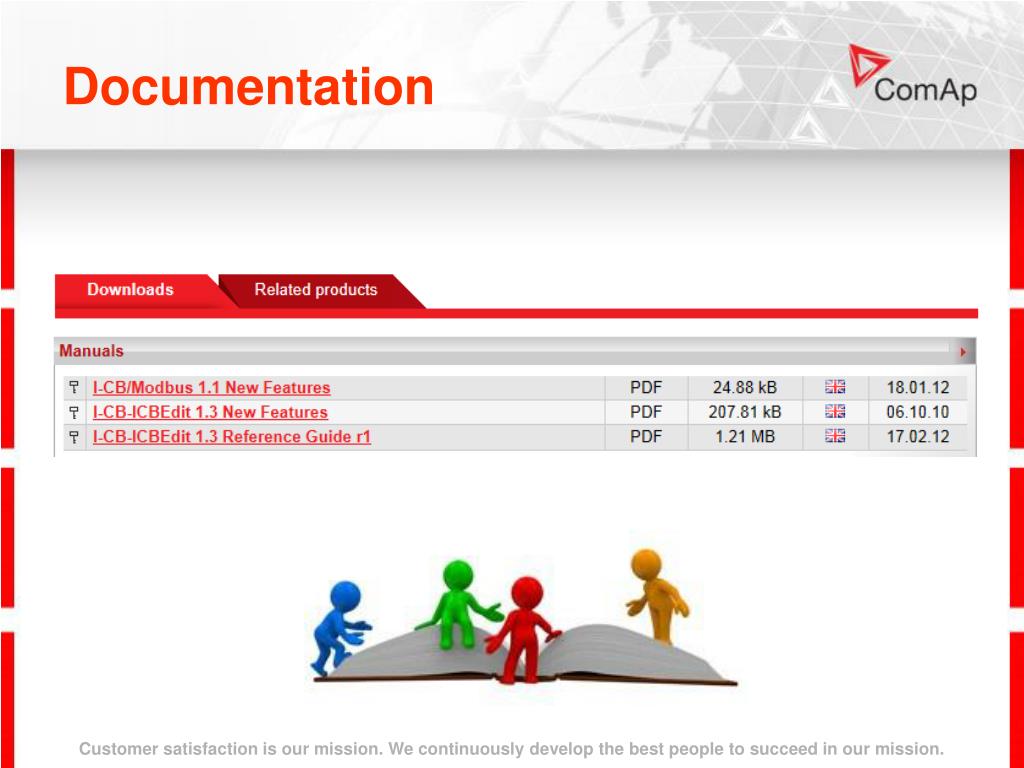

  18. Documentation Customer satisfaction is our mission. We continuously develop the best people to succeed in our mission.

  19. How to getit • Ordercode „I-CB/MODBUS“ Customer satisfaction is our mission. We continuously develop the best people to succeed in our mission.
