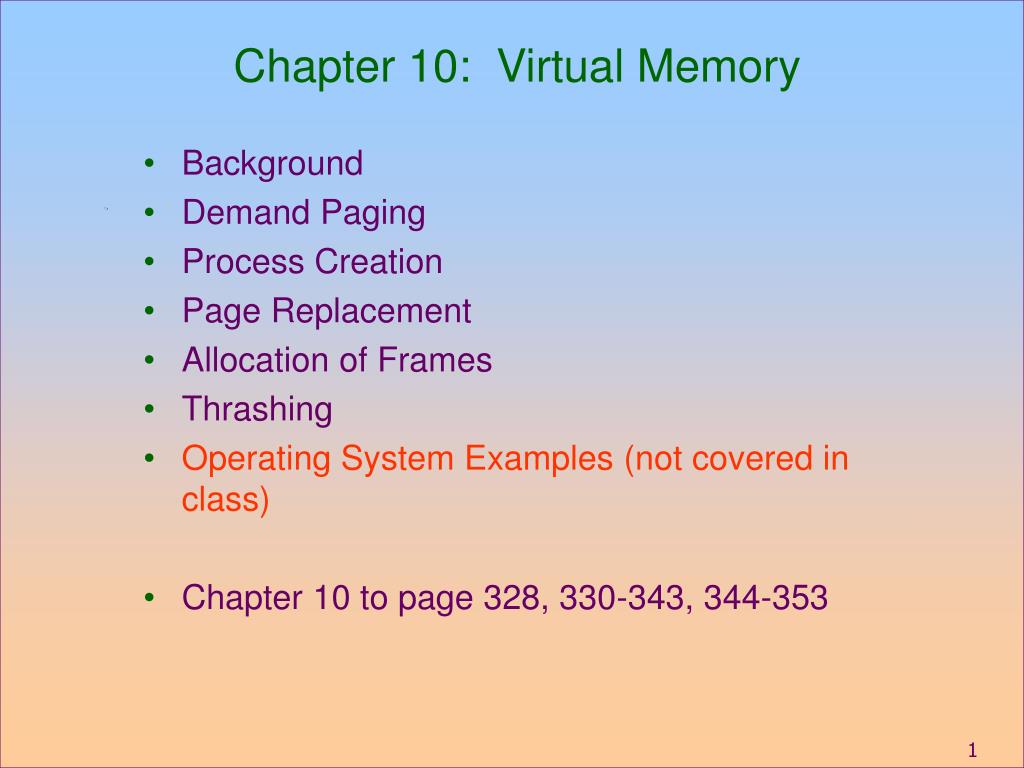

  1. Chapter 10: Virtual Memory • Background • Demand Paging • Process Creation • Page Replacement • Allocation of Frames • Thrashing • Operating System Examples (not covered in class) • Chapter 10 to page 328, 330-343, 344-353

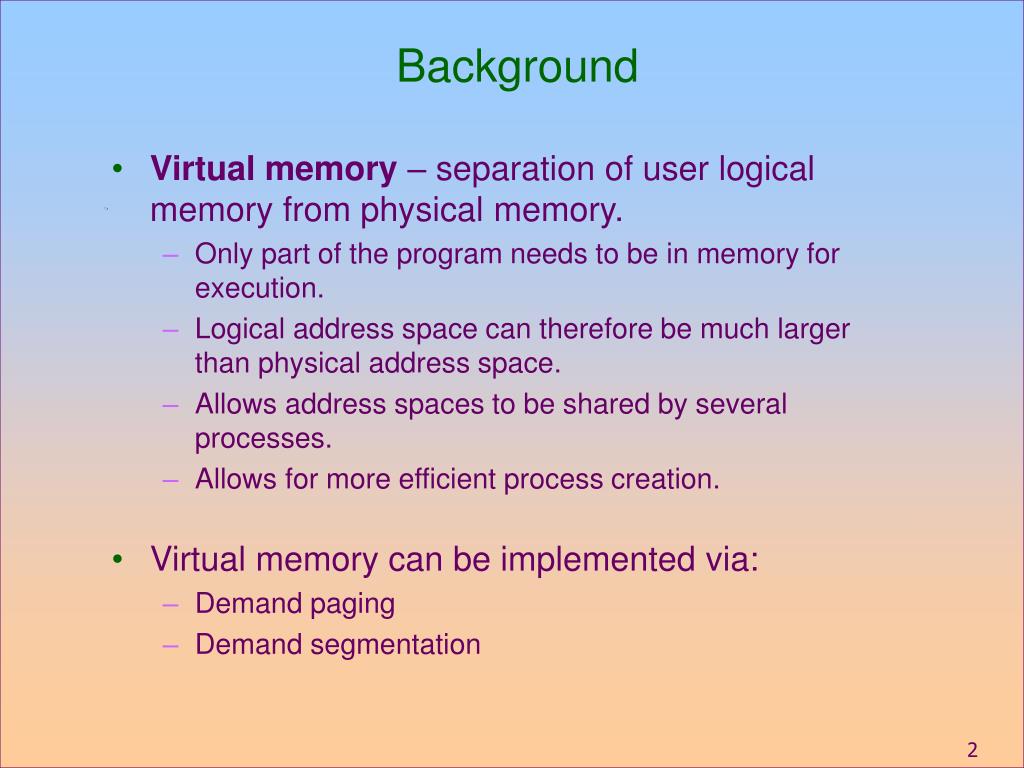

  2. Background • Virtual memory – separation of user logical memory from physical memory. • Only part of the program needs to be in memory for execution. • Logical address space can therefore be much larger than physical address space. • Allows address spaces to be shared by several processes. • Allows for more efficient process creation. • Virtual memory can be implemented via: • Demand paging • Demand segmentation

  3. Virtual Memory That is Larger Than Physical Memory

  4. Demand Paging • Bring a page into memory only when it is needed. • Less I/O needed • Less memory needed • Faster response • More users • Page is needed implies that “a reference to this page is generated by the CPU” • invalid reference  abort • not-in-memory  a trap to the OS called a “page fault” occurs which will result in bringing the page to memory

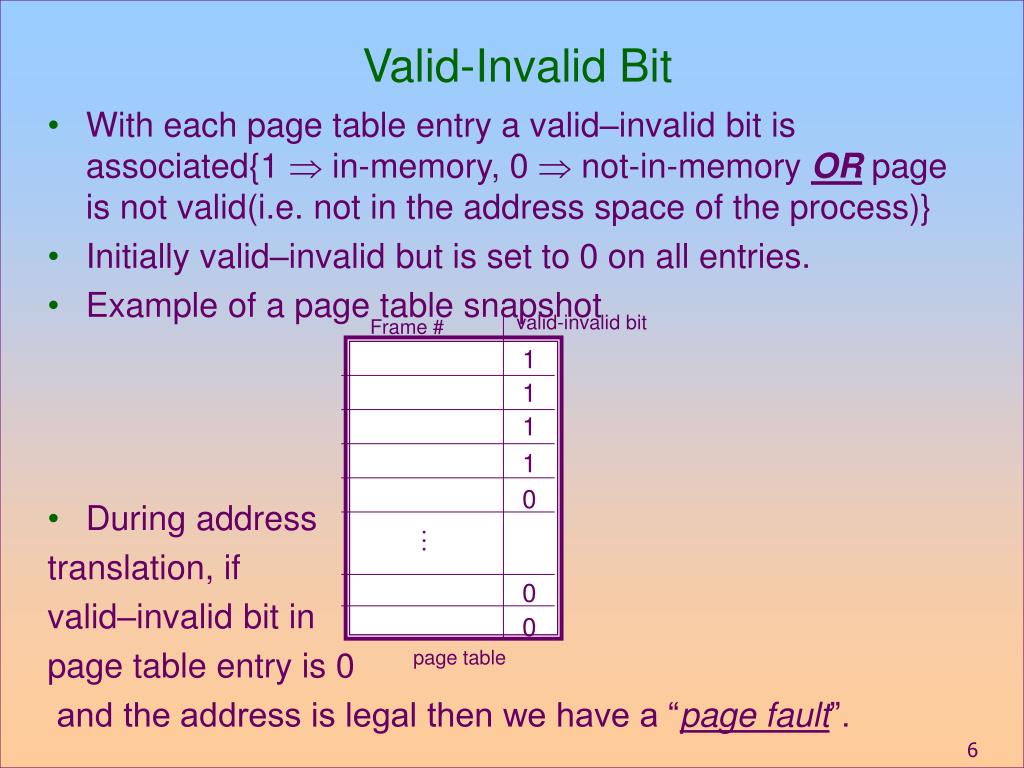

  5. Valid-Invalid Bit • With each page table entry a valid–invalid bit is associated{1  in-memory, 0 not-in-memory OR page is not valid(i.e. not in the address space of the process)} • Initially valid–invalid but is set to 0 on all entries. • Example of a page table snapshot • During address translation, if valid–invalid bit in page table entry is 0 and the address is legal then we have a “page fault”. valid-invalid bit Frame # 1 1 1 1 0  0 0 page table

  6. Page Table When Some Pages Are Not in Main Memory

  7. Page Fault • If there is ever a reference to a page, first reference will trap to OS  page fault ; stop executing the instruction that generated the page fault • OS looks at another table to decide: • Invalid reference  abort. • Just not in memory. • Get empty frame. • Swap page into frame. • Reset table’s entry validation bit = 1. • Restart instruction

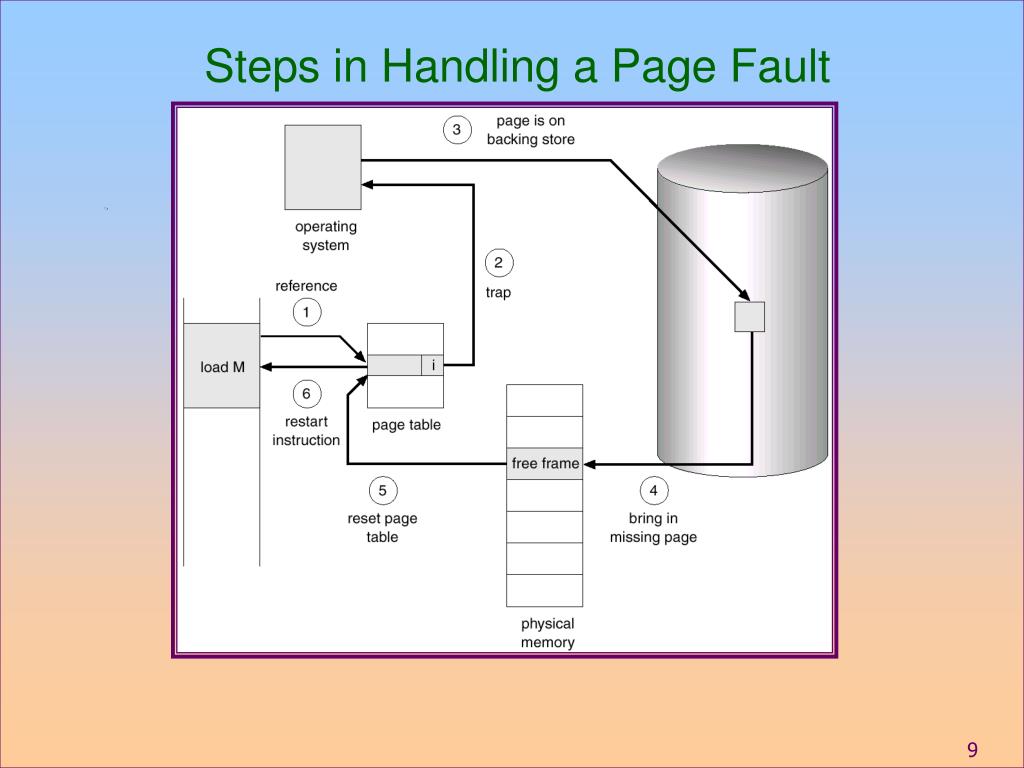

  8. Steps in Handling a Page Fault

  9. What happens if there is no free frame? • Page replacement – find some page residing in memory, but not really in use, swap it out. • Choose a page replacement algorithm • performance – want an algorithm which will result in minimum number of page faults. • Same page may be brought into memory several times.

  10. Performance of Demand Paging • Page Fault Rate, p :0  p  1.0 • percentage of memory references that generate page faults, • if p = 0 no page faults • if p = 1, every reference is a fault • Effective Access Time, EAT = (1 – p) x memory access + p (page fault overhead + [swap page out ] + swap page in + restart overhead)

  11. Demand Paging Example • Memory access time = 1 microsecond • 50% of the time the page that is being replaced has been modified and therefore needs to be swapped out. • Swap Page Time= 10 msec =10,000 microsec EAT = (1 – p) x 1 + p (.5 x 10000 + .5 x 20000) ≈ 1 + 15000P (in microsecond) • EAT is directly proportional to p

  12. Page Replacement • Page-fault service routine handles page replacement • In the page table, use modify (dirty) bit to reduce overhead of page transfers – only modified pages are written to disk. • By allowing page replacement, large virtual memory can be implemented even with a smaller physical memory.

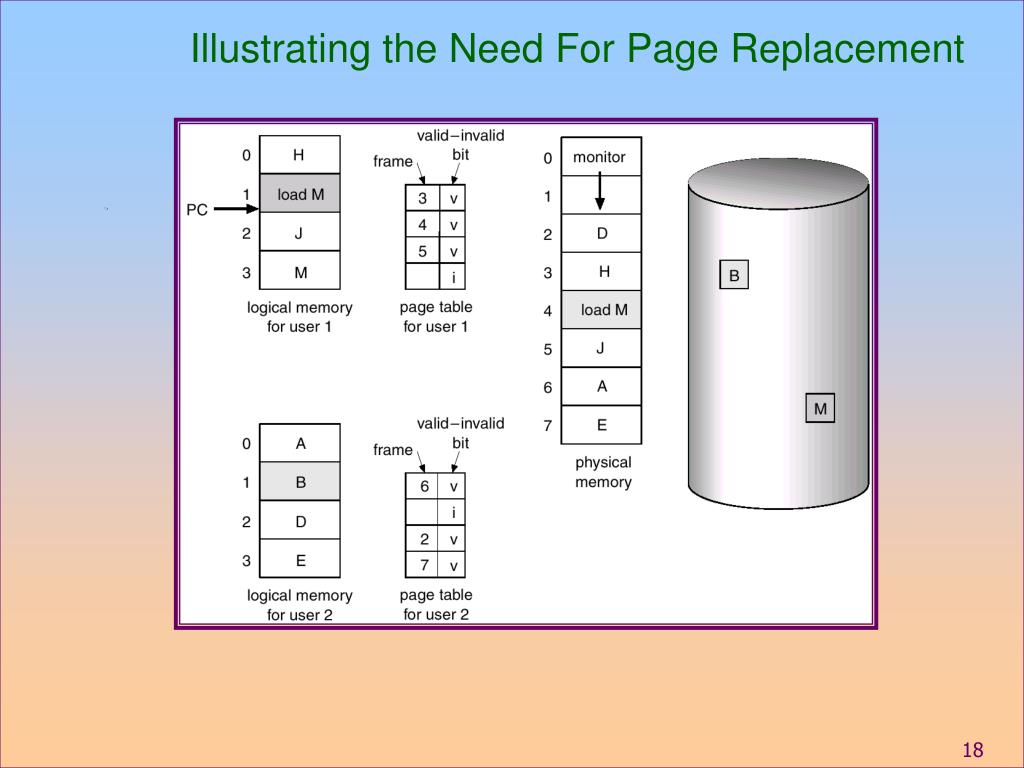

  13. Illustrating the Need For Page Replacement

  14. Handling a Page Fault • Find the location of the desired page on disk. • Find a free frame • Read the desired page into the free frame. Update the process page table and system frame table. • Restart the process.

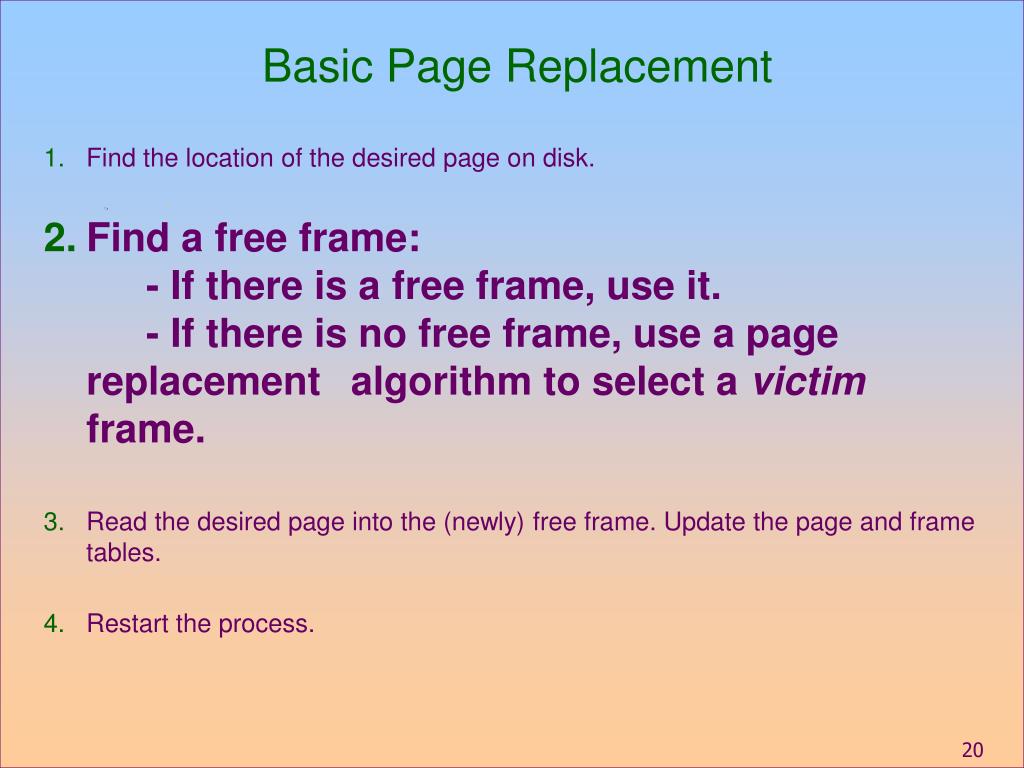

  15. Basic Page Replacement • Find the location of the desired page on disk. • Find a free frame: - If there is a free frame, use it. - If there is no free frame, use a page replacement algorithm to select a victim frame. • Read the desired page into the (newly) free frame. Update the page and frame tables. • Restart the process.

  16. Page Replacement

  17. Page Replacement Algorithms • Want lowest page-fault rate. • Evaluate algorithm by running it on a particular string of memory references (reference string) and computing the number of page faults on that string. • In all our examples, the reference string is 1, 2, 3, 4, 1, 2, 5, 1, 2, 3, 4, 5.

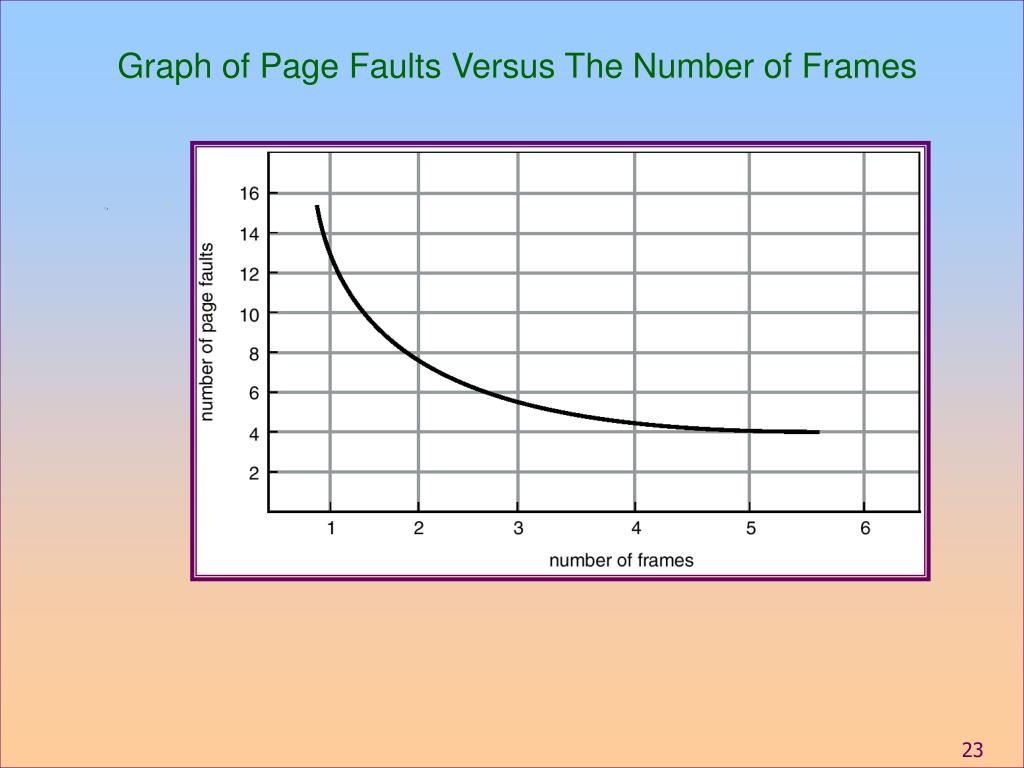

  18. Graph of Page Faults Versus The Number of Frames

  19. First-In-First-Out (FIFO) Algorithm • Reference string: 1, 2, 3, 4, 1, 2, 5, 1, 2, 3, 4, 5 • 3 frames (3 pages can be in memory at a time per process) • 4 frames • FIFO Replacement – Belady’s Anomaly • more frames  less page faults 1 1 4 5 2 2 1 3 9 page faults 3 3 2 4 1 1 5 4 2 2 1 10 page faults 5 3 3 2 4 4 3

  20. FIFO Page Replacement

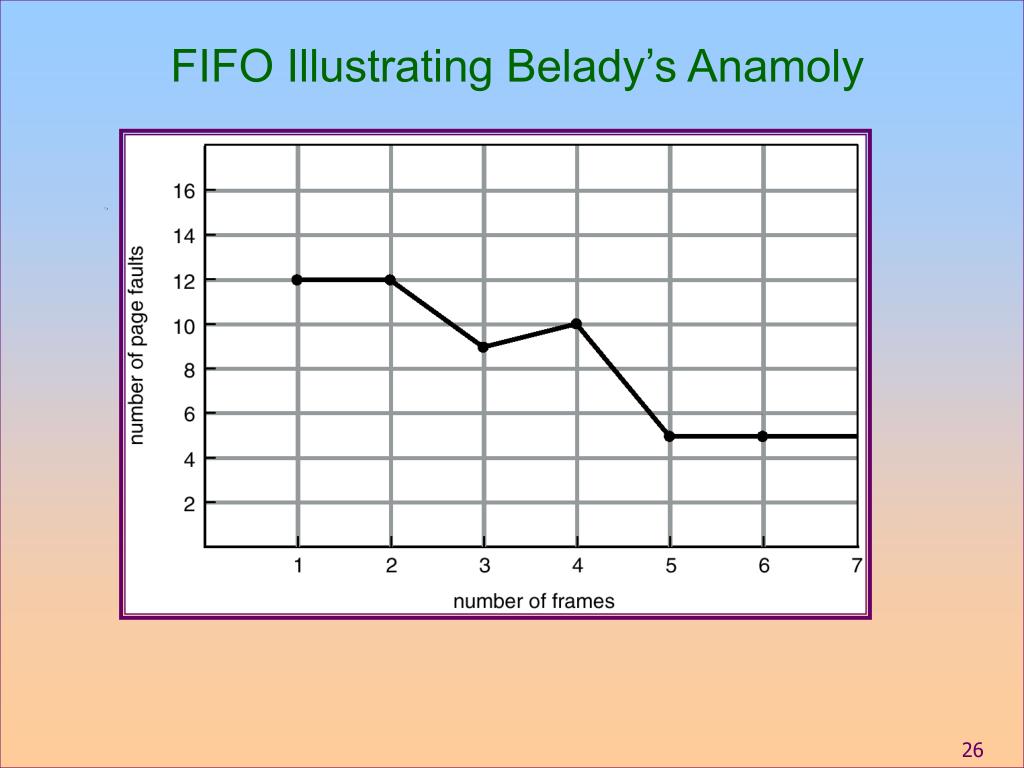

  21. FIFO Illustrating Belady’s Anamoly

  22. Optimal Algorithm • Replace page that will not be used for longest period of time. • 4 frames example 1, 2, 3, 4, 1, 2, 5, 1, 2, 3, 4, 5How do you know this? • Used for measuring how well your algorithm performs. 1 4 2 6 page faults 3 4 5

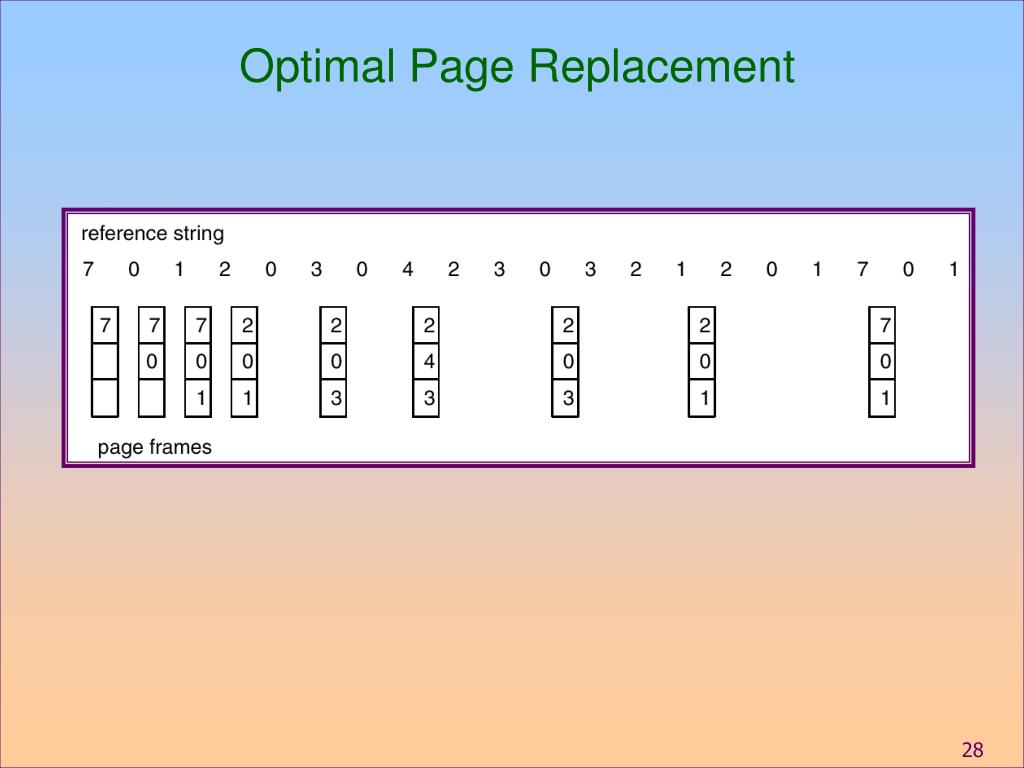

  23. Optimal Page Replacement

  24. Least Recently Used (LRU) Algorithm • Reference string: 1, 2, 3, 4, 1, 2, 5, 1, 2, 3, 4, 5Counter implementation • Every page entry has a counter; every time page is referenced through this entry, copy the clock into the counter. • When a page needs to be replaced, look at the counters to determine which page has not been referenced for the longest time 1 5 2 3 5 4 4 3

  25. LRU Page Replacement

  26. LRU Algorithm (Cont.) • Stack implementation – keep a stack of page numbers in a doubly linked list with head and tail pointers: • move referenced page to the top of the stack • requires 6 pointers to be changed • Tail pointer points to the bottom of the stack, which is the LRU page • Top of the stack is always the most recently used page • No search for replacement

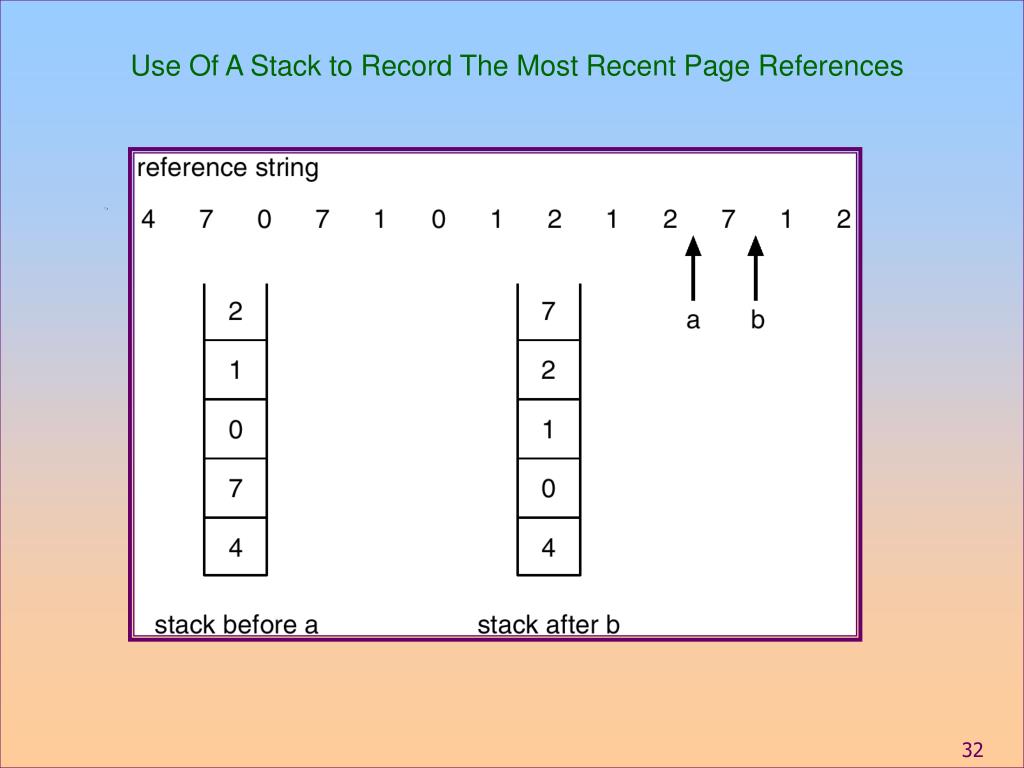

  27. Use Of A Stack to Record The Most Recent Page References

  28. Stack Page Replacement Algorithms • Optimal, LRU and all other algorithms in the class called “Stack Algorithms” do not suffer from Belady’s anomaly. • A stack algorithm is an algorithm for which it can be shown that the set of pages in memory for n frames is always a subset of the set of pages that would be in memory with n + 1 frames.

  29. LRU Approximation Algorithms • Reference bit • With each page associate a bit, initially = 0 • When page is referenced the bit set to 1. • Replace a page with a 0 reference bit (if one exists). We do not know the order, however. • Second chance replacement • Use FIFO with a reference bit. • If page to be replaced has a 1 reference bit, give it another chance. • Clear its reference bit & set arrival time to current time. • Replace next FIFO page. • Page given another chance will not be replaced until all other pages are replaced. • Page referenced often (i.e. reference bit kept set), will never be replaced • This is also called “Clock replacement”.
