  1. CS598-YYZ : Reliable and Robust SoftwareTopics Overview Yuanyuan (YY) Zhou

  2. Good News! • Many (around 10) students dropped the class • My initial limit was set to be 20! • My scaring strategy actually works! • Implication: • The class can be more focused • I can spend more time with each group CS598YYZ-Fall 2005

  3. Admin. Things • Some schedule change • Project proposal • Guest lectures • Drop/move some paper presentations • Reminders: • 9/1, select 2 papers for presentations • 9/6, cell topic selection • Each cell topic has assigned a TA to help • Survey • Project • Poll • Auditing • Ambition for class projects • Topic Matrix: • Security row is blocked (no survey, no project), but will read/present/discuss papers • Recovery is renamed to “Recovery or Tolerance or Avoidance” • No column survey! • Each cell has signed a TA for weekly meeting • Survey • Project • I will participate bi-weekly CS598YYZ-Fall 2005

  4. Outline • Goal of this class • Help you understanding more about this class • Help you in paper selection and topic selection • Introduction of Software Reliability • Software development process • Software Defects, detection and recovery • Software mis-configuration, detection and diagnoses • Security attacks, detection and recovery CS598YYZ-Fall 2005

  5. Importance of Robustness and Reliability • Correctness-critical applications • Air-craft control, hospital monitor systems • On-line transaction processing • Internet services • e.g., Google, Yahoo!, Amazon, Ebay, etc. • Expectation of 24 x 7 availability, but service outages still happen! • Sorry....We apologize for the inconvenience, but the system is currently unavailable. Please try your request in an hour. If you require assistance please call Customer Service at 1-866-325-3457. CS598YYZ-Fall 2005

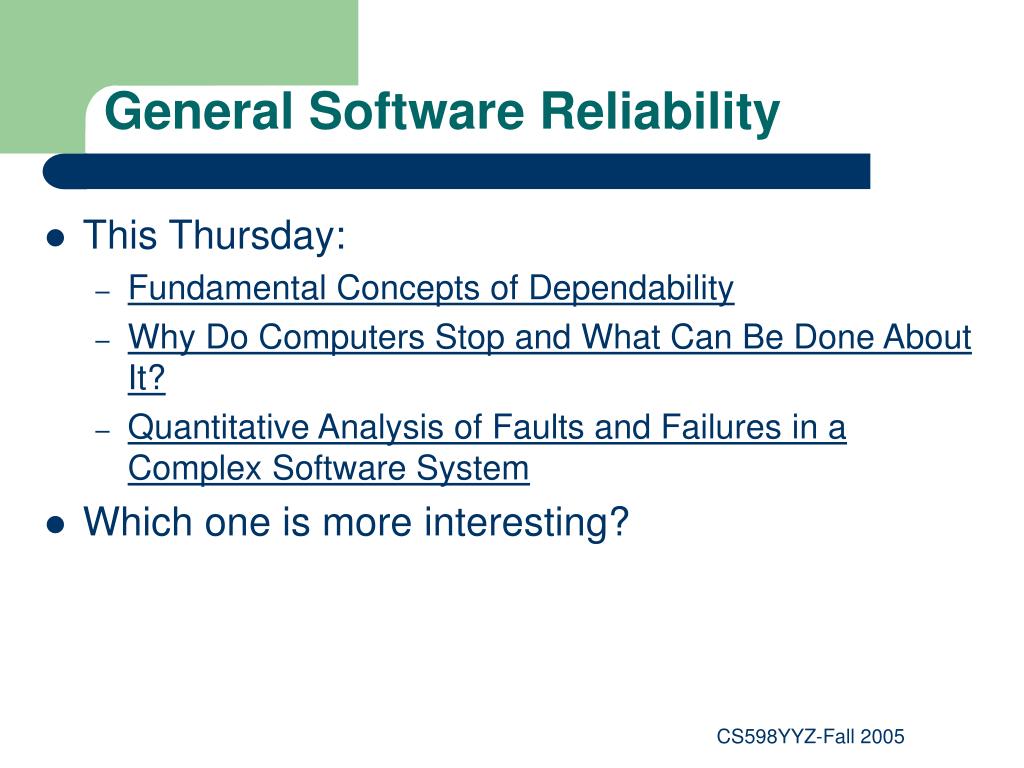

  6. General Software Reliability • This Thursday: • Fundamental Concepts of Dependability • Why Do Computers Stop and What Can Be Done About It? • Quantitative Analysis of Faults and Failures in a Complex Software System • Which one is more interesting? CS598YYZ-Fall 2005

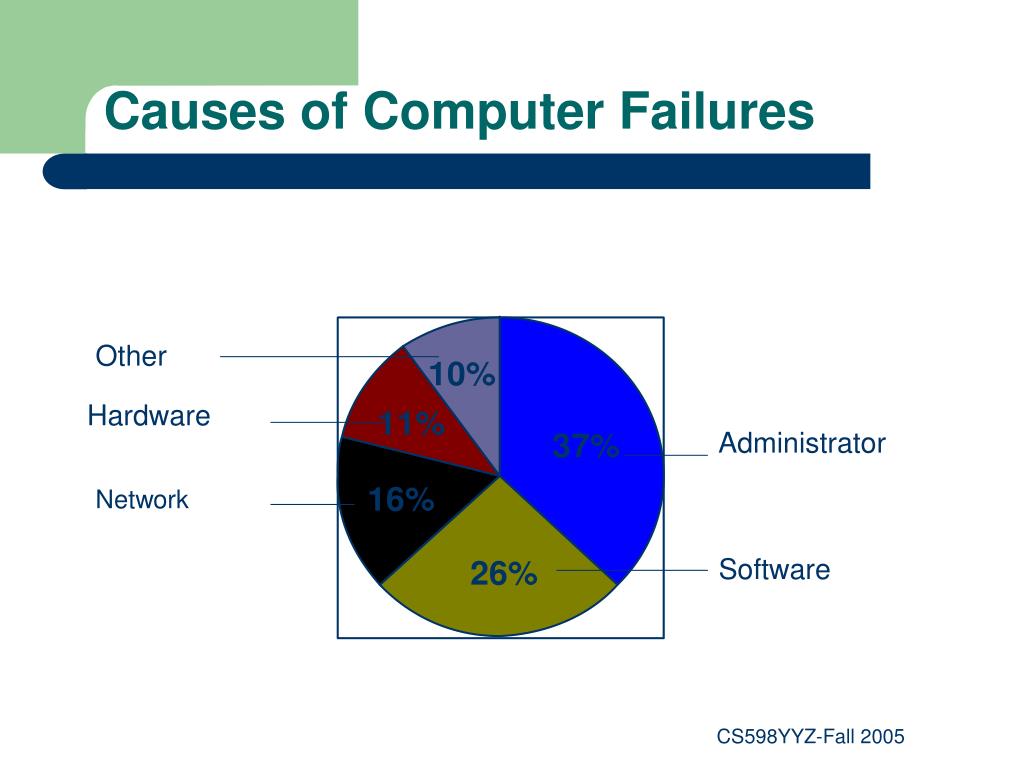

  7. Causes of Computer Failures Other Hardware Administrator Network Software CS598YYZ-Fall 2005

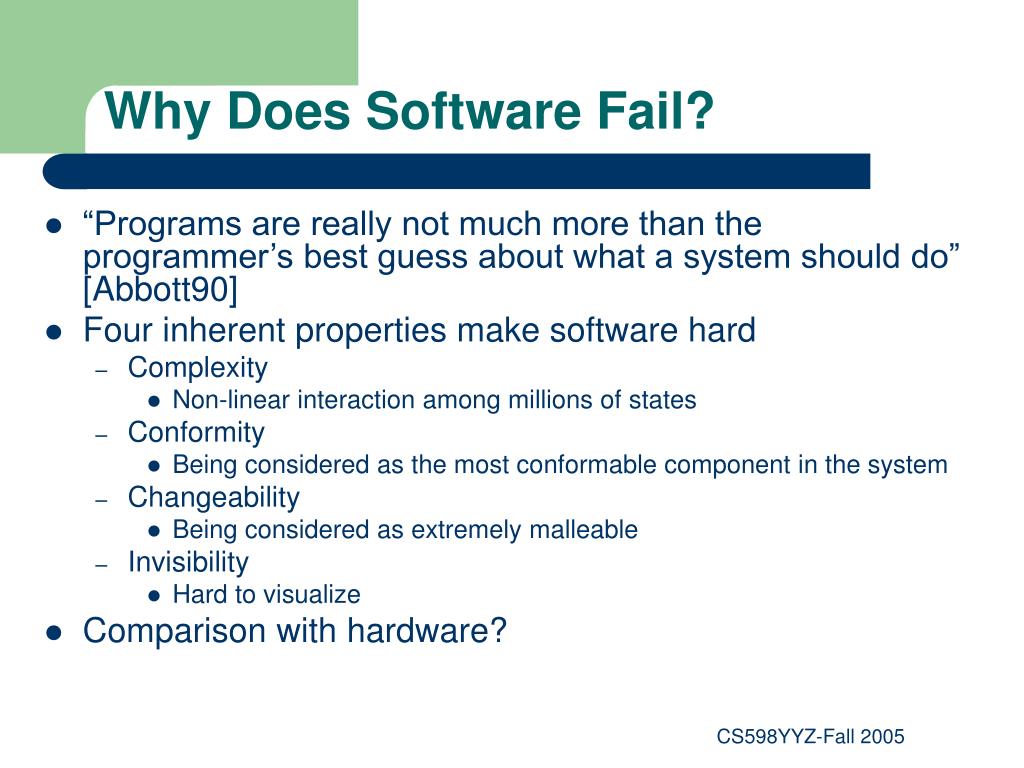

  8. Why Does Software Fail? • “Programs are really not much more than the programmer’s best guess about what a system should do” [Abbott90] • Four inherent properties make software hard • Complexity • Non-linear interaction among millions of states • Conformity • Being considered as the most conformable component in the system • Changeability • Being considered as extremely malleable • Invisibility • Hard to visualize • Comparison with hardware? CS598YYZ-Fall 2005

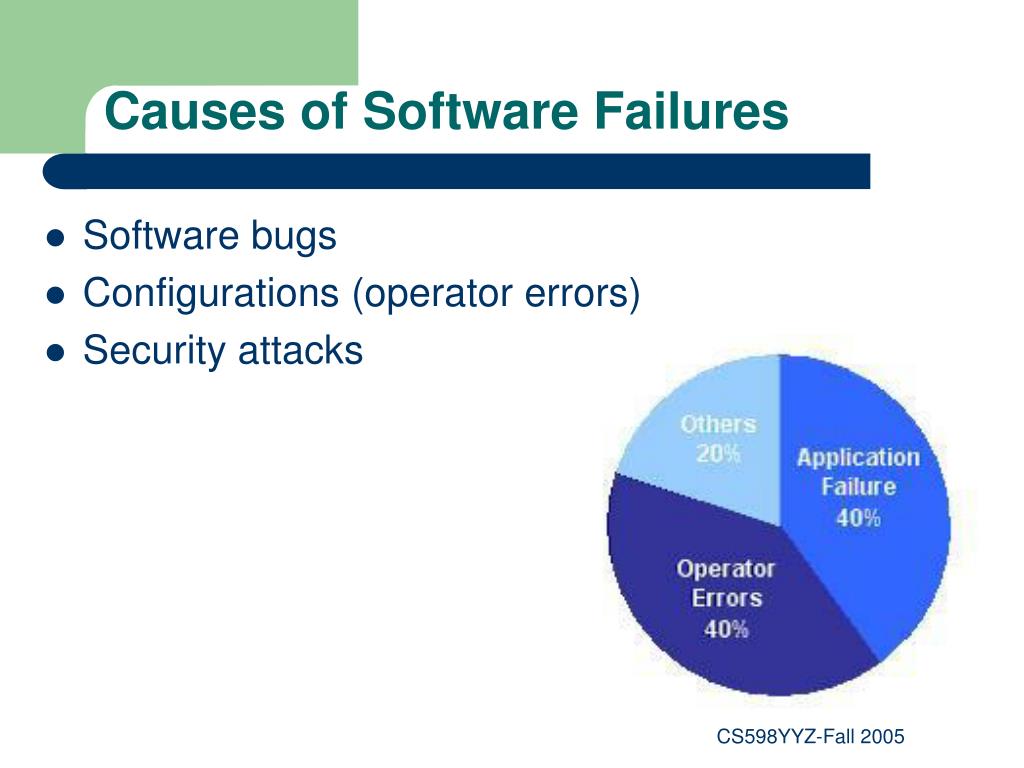

  9. Causes of Software Failures • Software bugs • Configurations (operator errors) • Security attacks CS598YYZ-Fall 2005

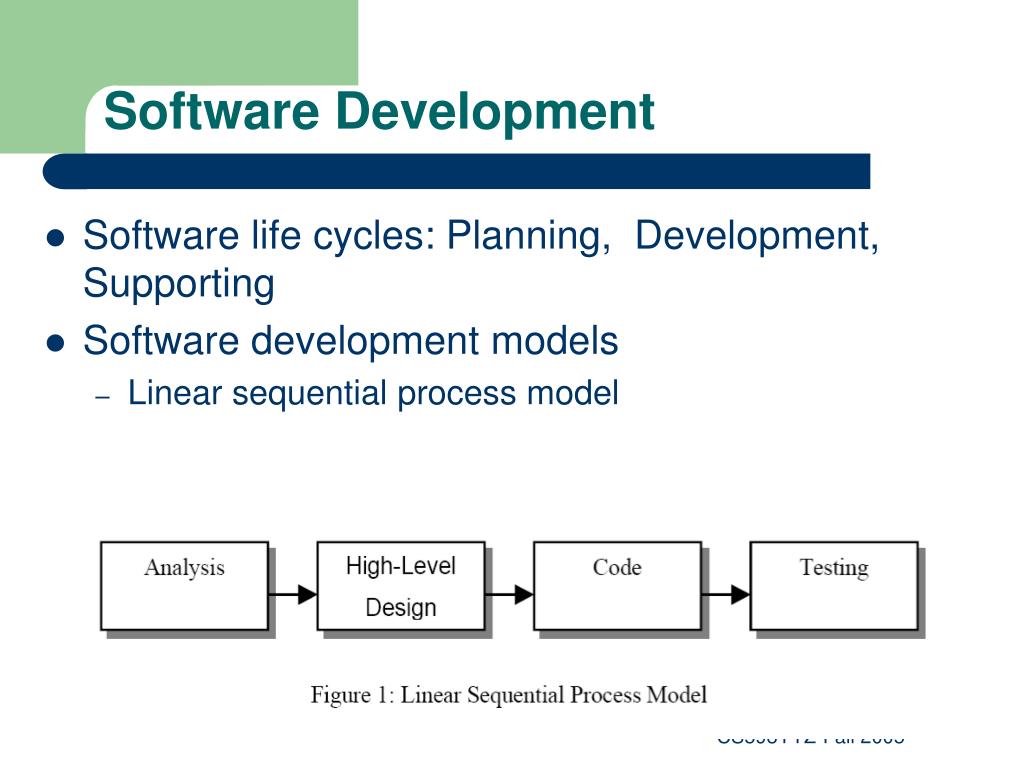

  10. Software Development • Software life cycles: Planning, Development, Supporting • Software development models • Linear sequential process model CS598YYZ-Fall 2005

  11. Prototyping process model • Question: When is this model useful? CS598YYZ-Fall 2005

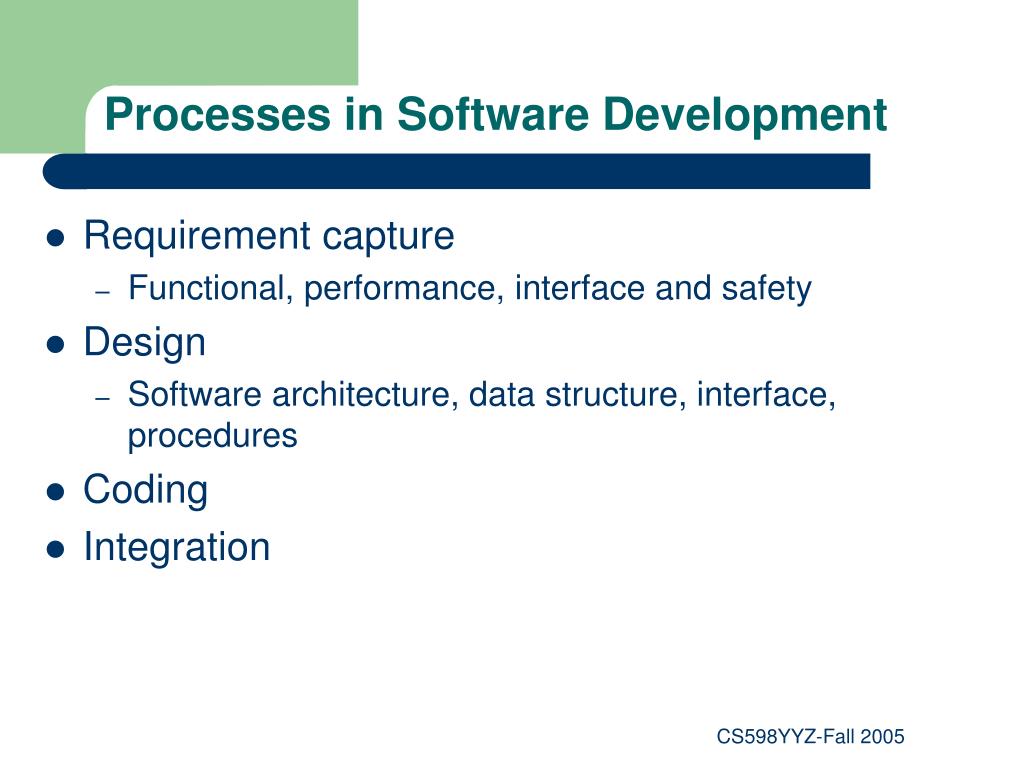

  12. Processes in Software Development • Requirement capture • Functional, performance, interface and safety • Design • Software architecture, data structure, interface, procedures • Coding • Integration CS598YYZ-Fall 2005

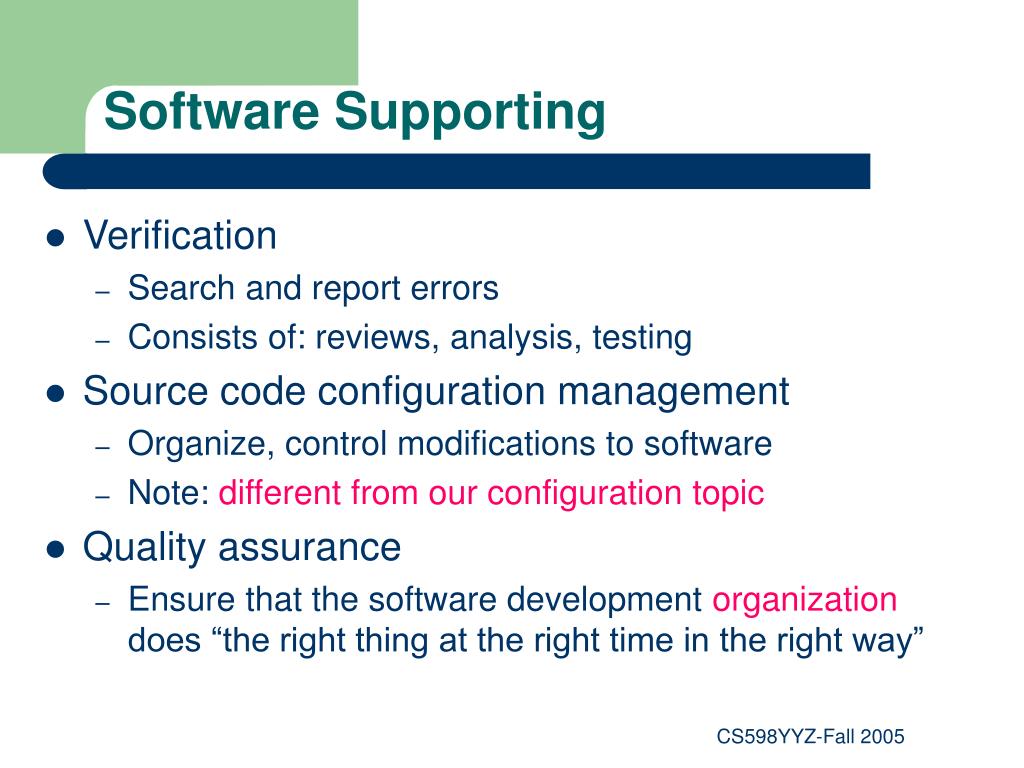

  13. Software Supporting • Verification • Search and report errors • Consists of: reviews, analysis, testing • Source code configuration management • Organize, control modifications to software • Note: different from our configuration topic • Quality assurance • Ensure that the software development organization does “the right thing at the right time in the right way” CS598YYZ-Fall 2005

  14. But yet still… • ‘The vast majority of the software today is handcrafted by artisans using craft-based techniques that cannot produce consistent results…” • “As a result, software failure is a common occurrence, often with substantial societal and economic consequences.” CS598YYZ-Fall 2005

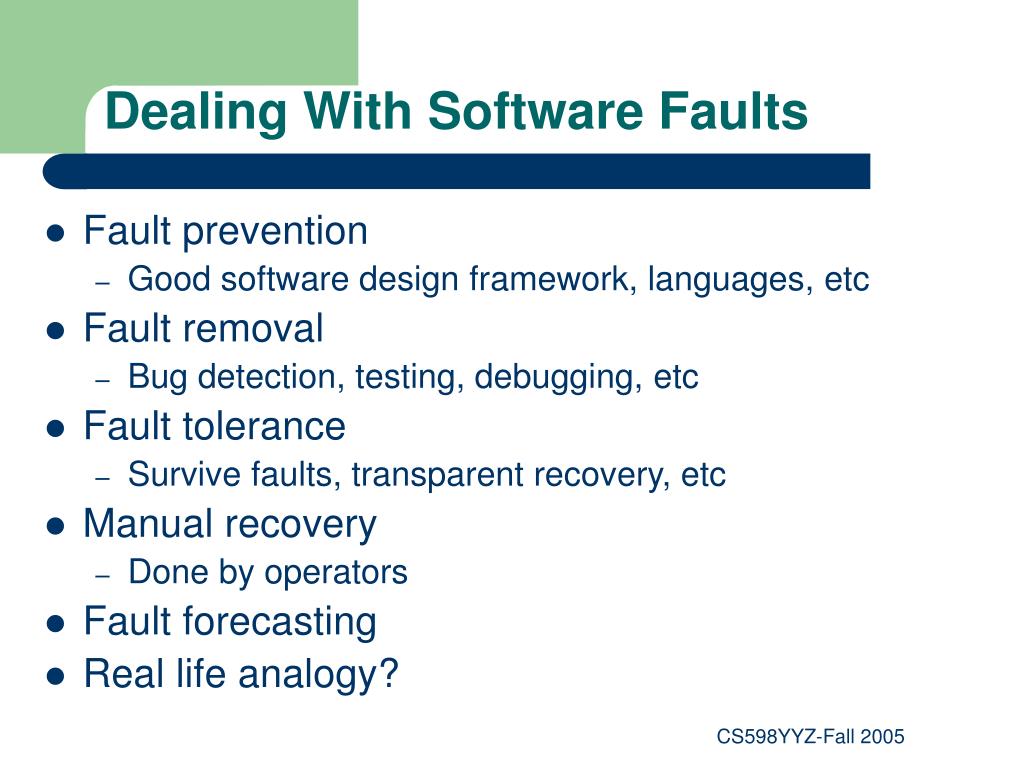

  15. Dealing With Software Faults • Fault prevention • Good software design framework, languages, etc • Fault removal • Bug detection, testing, debugging, etc • Fault tolerance • Survive faults, transparent recovery, etc • Manual recovery • Done by operators • Fault forecasting • Real life analogy? CS598YYZ-Fall 2005

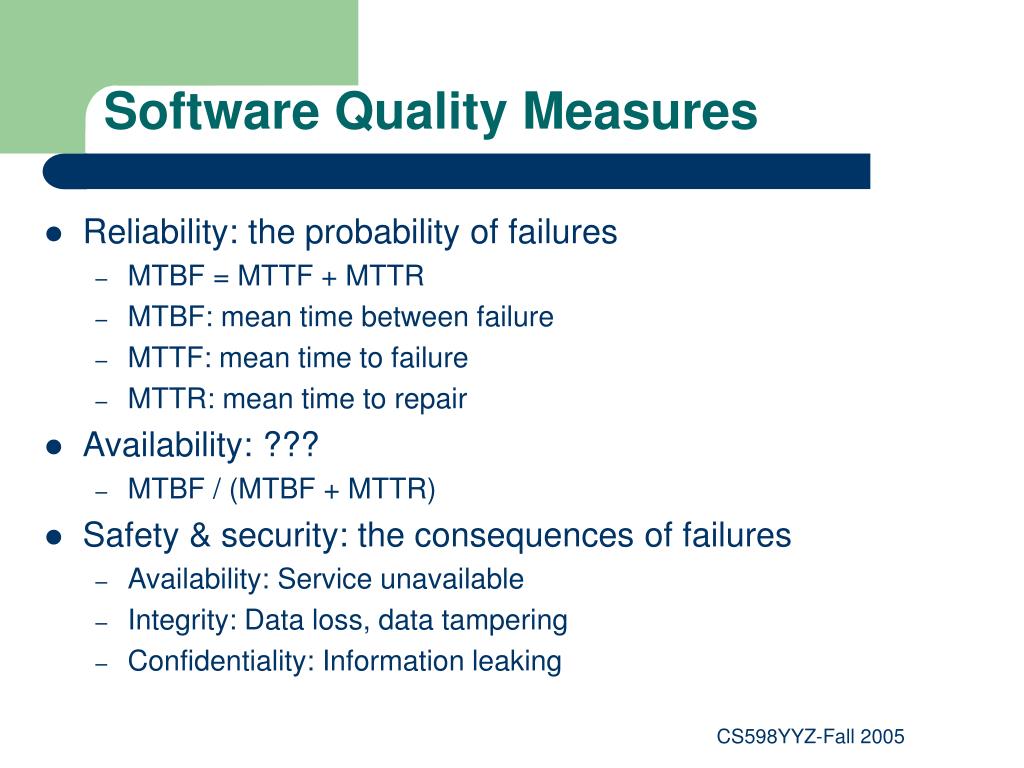

  16. Software Quality Measures • Reliability: the probability of failures • MTBF = MTTF + MTTR • MTBF: mean time between failure • MTTF: mean time to failure • MTTR: mean time to repair • Availability: ??? • MTBF / (MTBF + MTTR) • Safety & security: the consequences of failures • Availability: Service unavailable • Integrity: Data loss, data tampering • Confidentiality: Information leaking CS598YYZ-Fall 2005

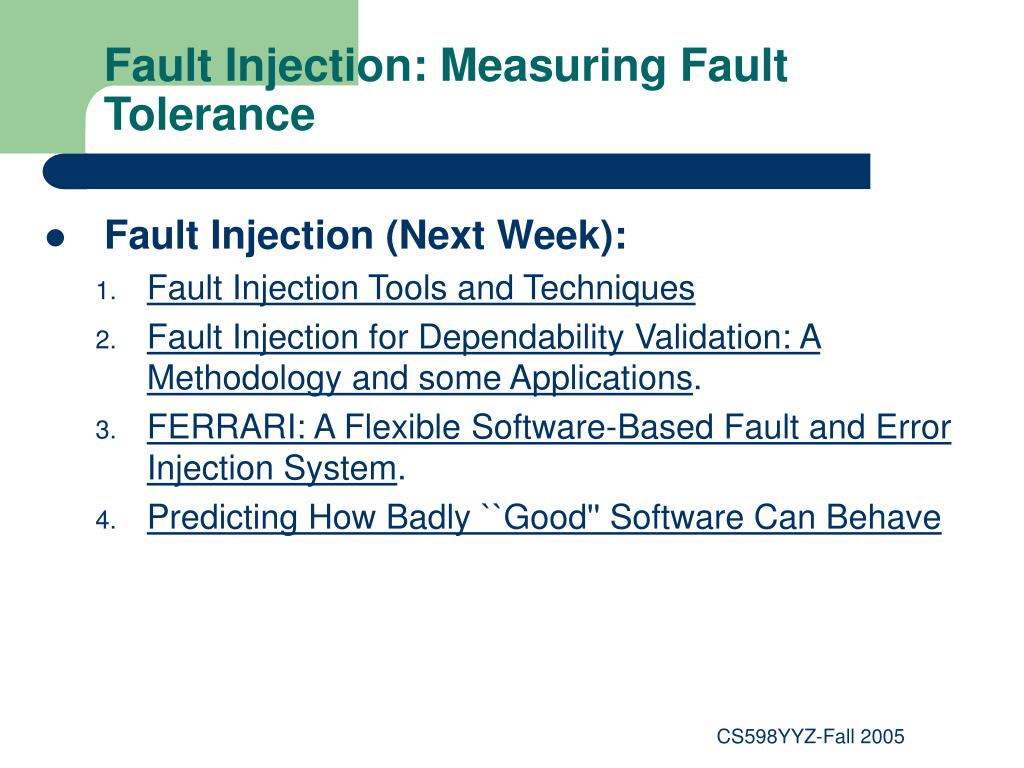

  17. Fault Injection: Measuring Fault Tolerance • Fault Injection (Next Week): • Fault Injection Tools and Techniques • Fault Injection for Dependability Validation: A Methodology and some Applications. • FERRARI: A Flexible Software-Based Fault and Error Injection System. • Predicting How Badly ``Good'' Software Can Behave CS598YYZ-Fall 2005

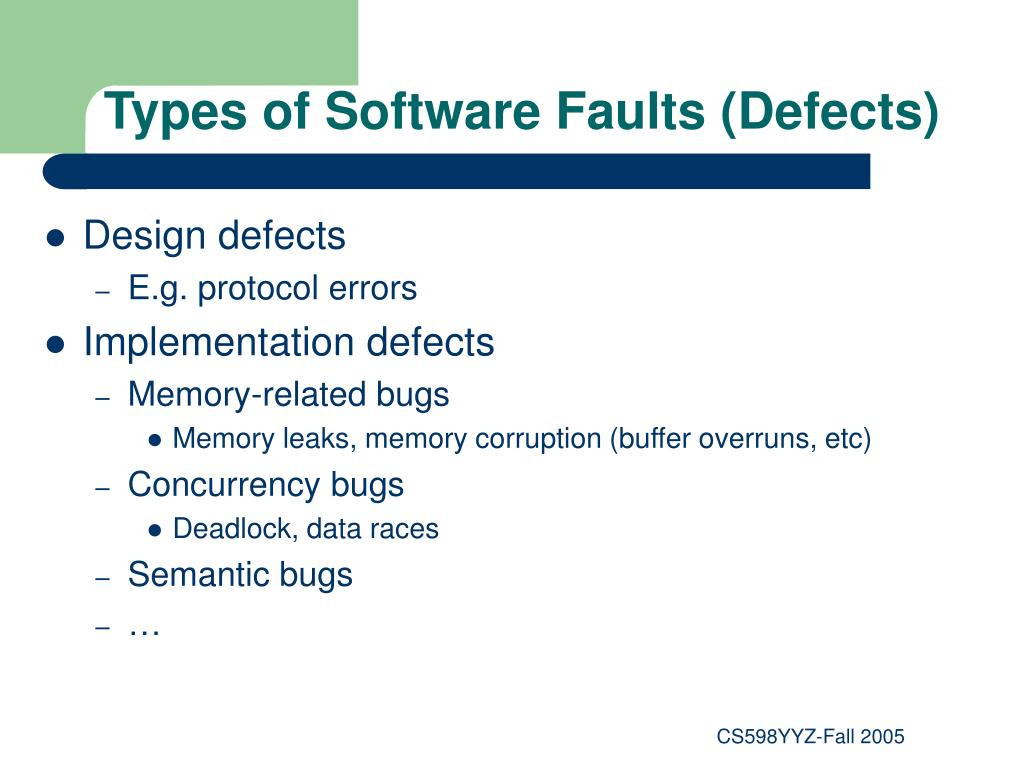

  18. Types of Software Faults (Defects) • Design defects • E.g. protocol errors • Implementation defects • Memory-related bugs • Memory leaks, memory corruption (buffer overruns, etc) • Concurrency bugs • Deadlock, data races • Semantic bugs • … CS598YYZ-Fall 2005

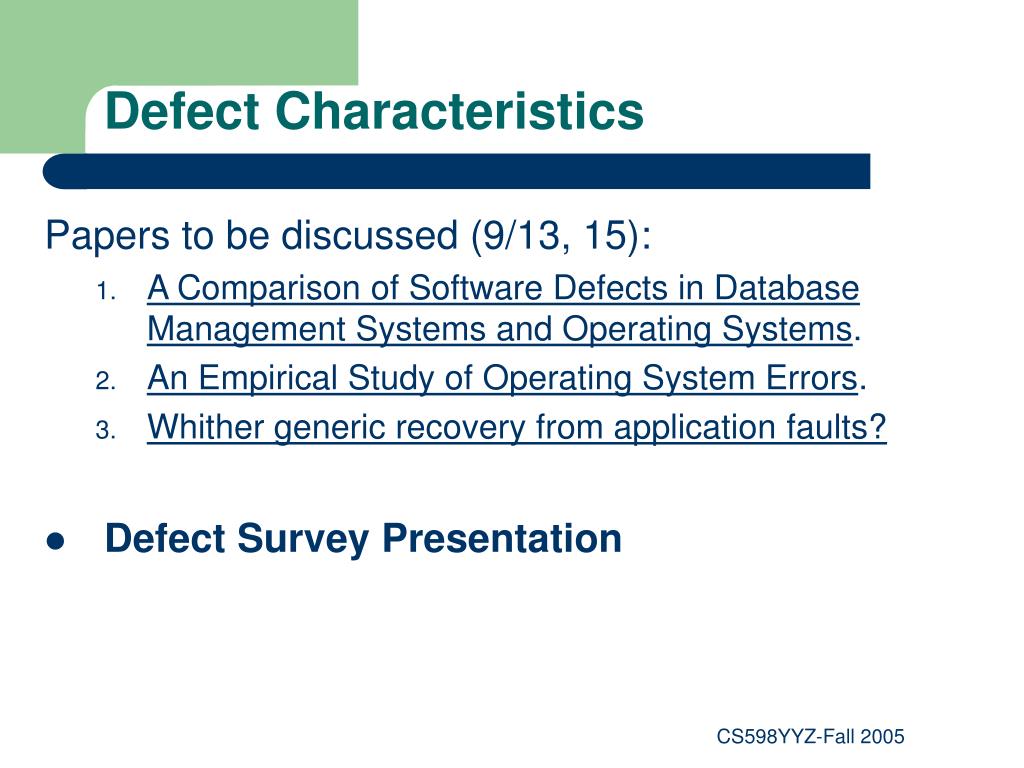

  19. Defect Characteristics Papers to be discussed (9/13, 15): • A Comparison of Software Defects in Database Management Systems and Operating Systems. • An Empirical Study of Operating System Errors. • Whither generic recovery from application faults? • Defect Survey Presentation CS598YYZ-Fall 2005

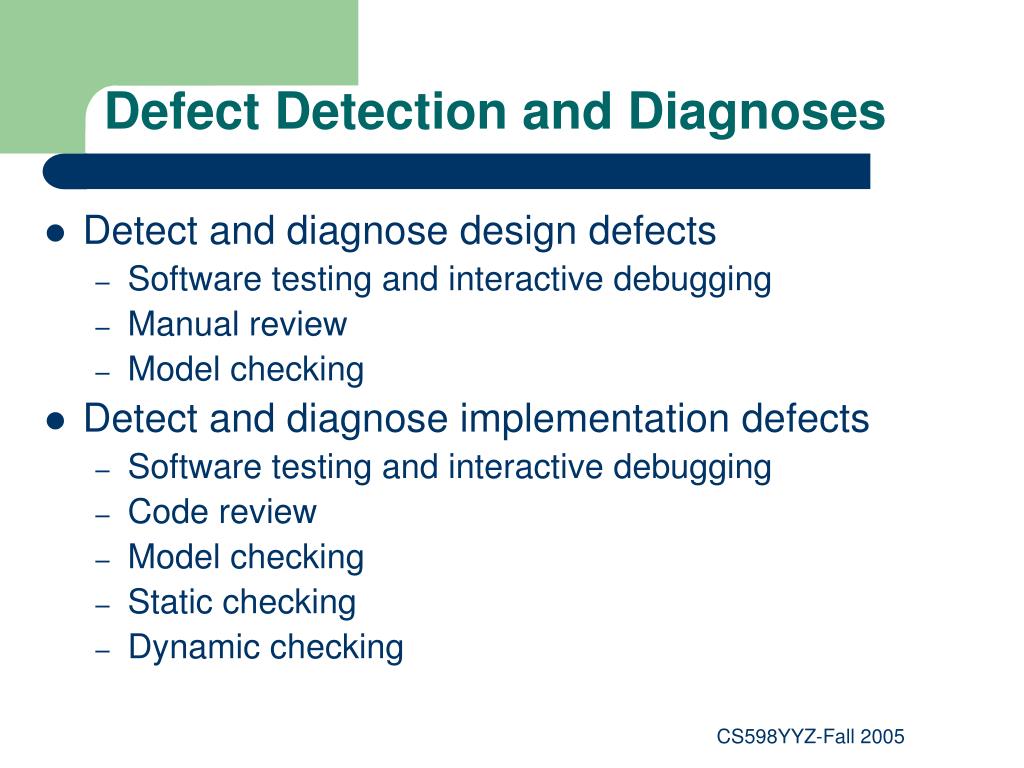

  20. Defect Detection and Diagnoses • Detect and diagnose design defects • Software testing and interactive debugging • Manual review • Model checking • Detect and diagnose implementation defects • Software testing and interactive debugging • Code review • Model checking • Static checking • Dynamic checking CS598YYZ-Fall 2005

  21. Solution 1: Interactive Debugging • Examples: gdb, Microsoft Visual Studio • Pros: • Program-specific • Still the dominant method for debugging • Cons: • Time and people-consuming • Some bugs are hard to reproduce • Require experience • Assistance • Flight data recorder • Deterministic replay CS598YYZ-Fall 2005

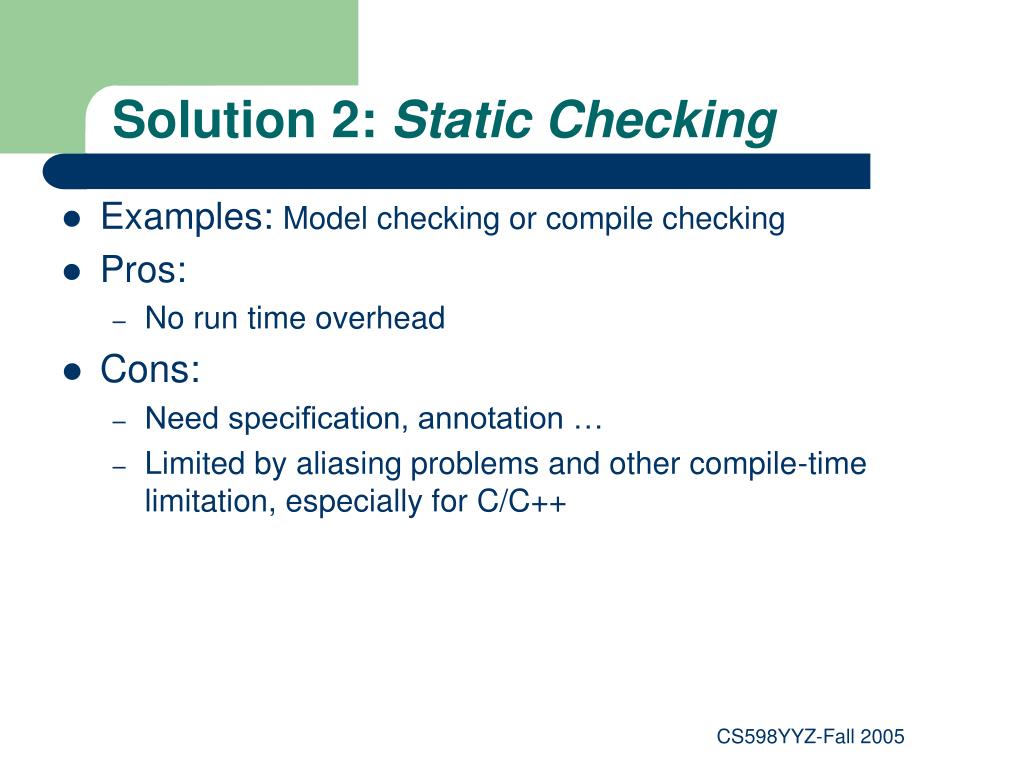

  22. Solution 2: Static Checking • Examples: Model checking or compile checking • Pros: • No run time overhead • Cons: • Need specification, annotation … • Limited by aliasing problems and other compile-time limitation, especially for C/C++ CS598YYZ-Fall 2005

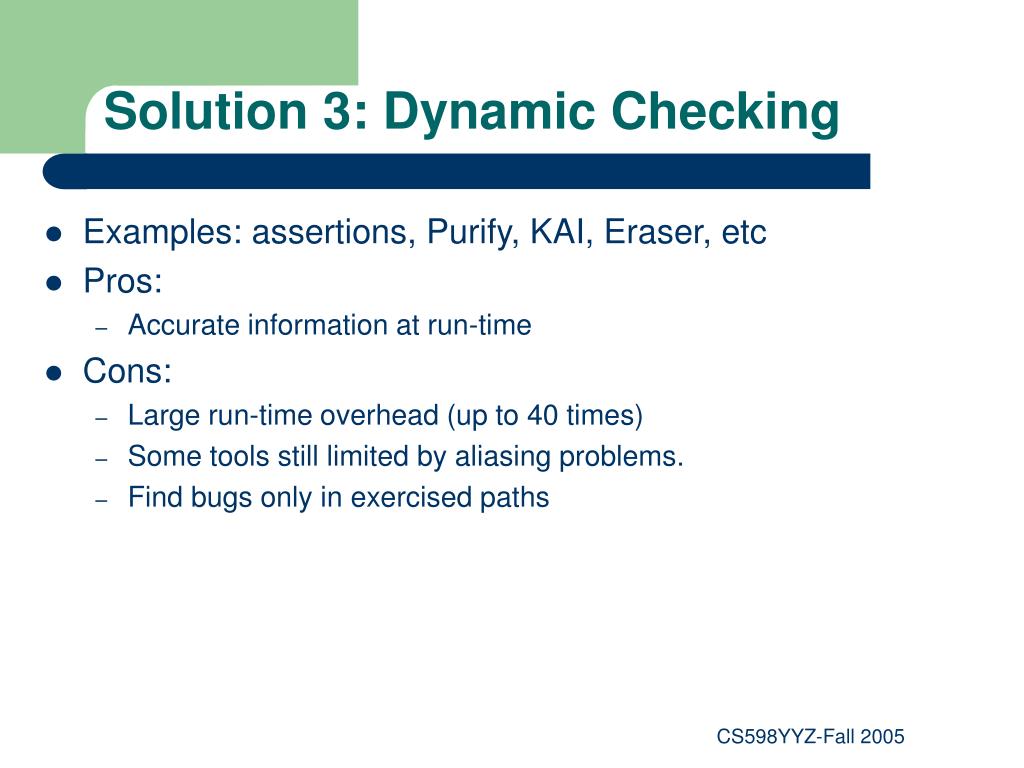

  23. Solution 3: Dynamic Checking • Examples: assertions, Purify, KAI, Eraser, etc • Pros: • Accurate information at run-time • Cons: • Large run-time overhead (up to 40 times) • Some tools still limited by aliasing problems. • Find bugs only in exercised paths CS598YYZ-Fall 2005

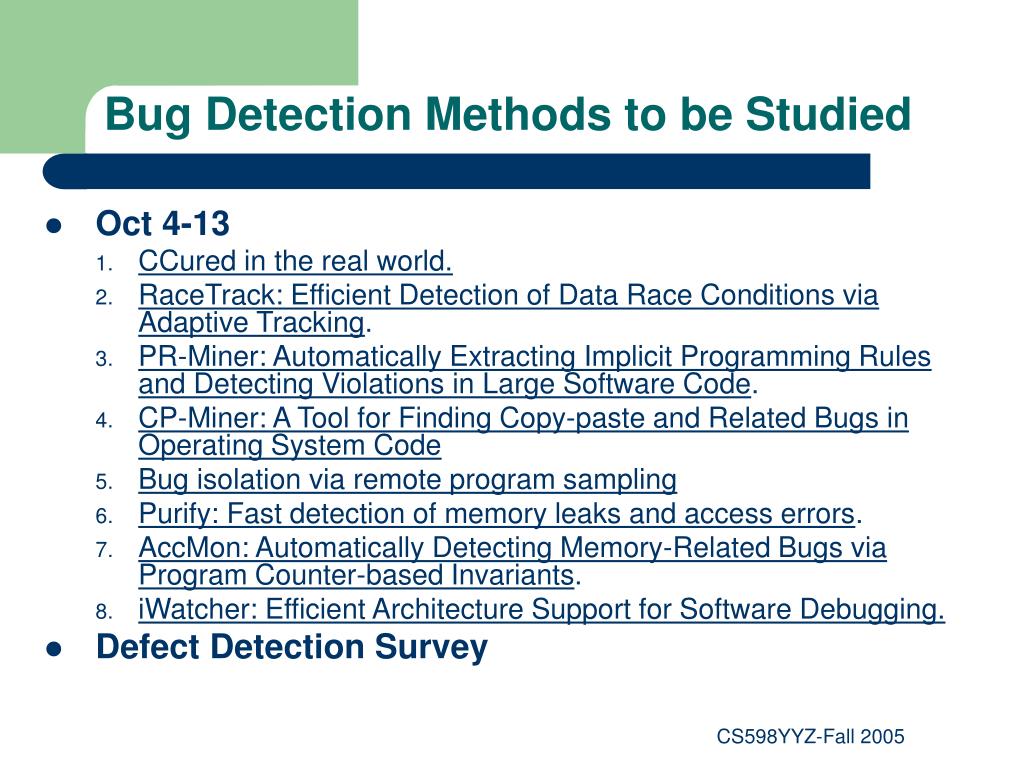

  24. Bug Detection Methods to be Studied • Oct 4-13 • CCured in the real world. • RaceTrack: Efficient Detection of Data Race Conditions via Adaptive Tracking. • PR-Miner: Automatically Extracting Implicit Programming Rules and Detecting Violations in Large Software Code. • CP-Miner: A Tool for Finding Copy-paste and Related Bugs in Operating System Code • Bug isolation via remote program sampling • Purify: Fast detection of memory leaks and access errors. • AccMon: Automatically Detecting Memory-Related Bugs via Program Counter-based Invariants. • iWatcher: Efficient Architecture Support for Software Debugging. • Defect Detection Survey CS598YYZ-Fall 2005

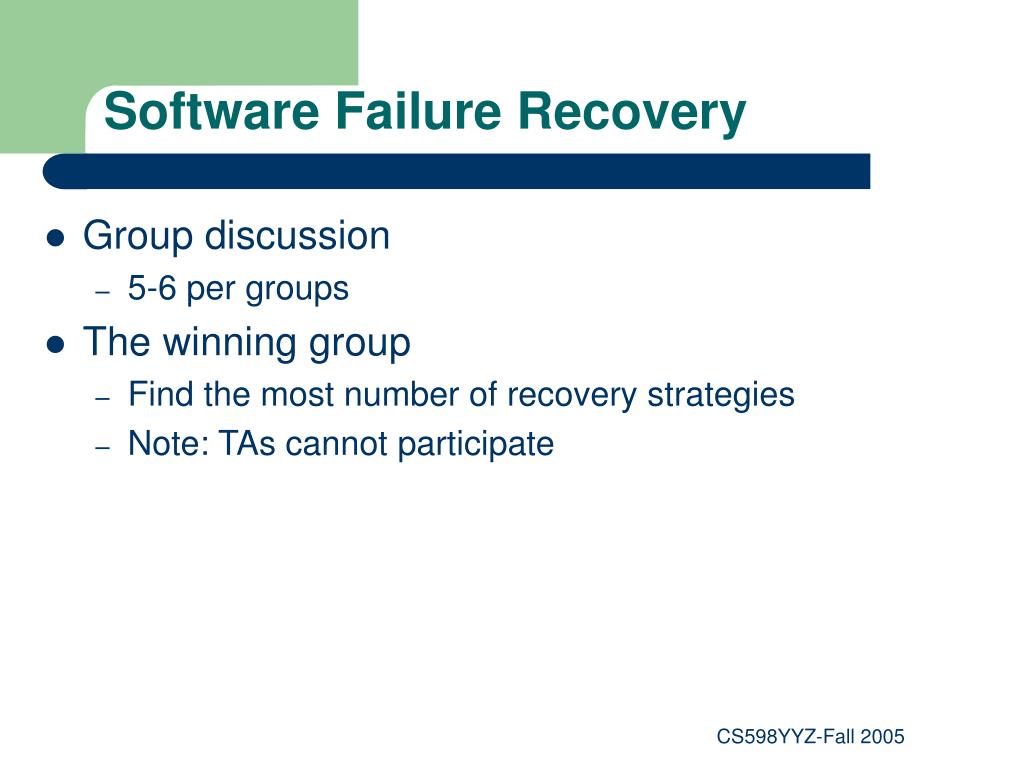

  25. Software Failure Recovery • Group discussion • 5-6 per groups • The winning group • Find the most number of recovery strategies • Note: TAs cannot participate CS598YYZ-Fall 2005

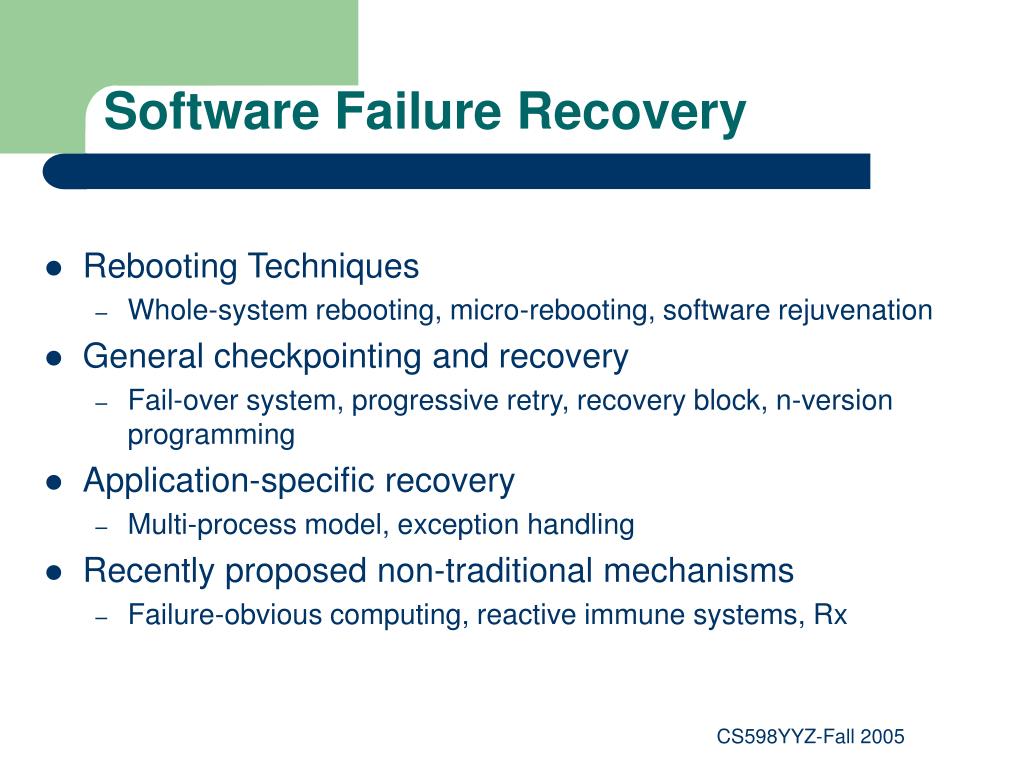

  26. Software Failure Recovery • Rebooting Techniques • Whole-system rebooting, micro-rebooting, software rejuvenation • General checkpointing and recovery • Fail-over system, progressive retry, recovery block, n-version programming • Application-specific recovery • Multi-process model, exception handling • Recently proposed non-traditional mechanisms • Failure-obvious computing, reactive immune systems, Rx CS598YYZ-Fall 2005

  27. Recovery Techniques to be Studies • Nov 1-10 • Microreboot�A Technique for Cheap Recovery. • Rx: Treating bugs as allergies---a safe method to survive software failure • Selective Recovery • Software rejuvenation: Analysis, module and applications. • Unmodified Device Driver Reuse and Improved System Dependability via Virtual Machines • BASE: Using abstraction to improve fault tolerance. • Enhancing server availability and security through failure-oblivious computing. • Recovering device drivers. • Building a reactive immune system for software services. • Failure Recovery Survey CS598YYZ-Fall 2005

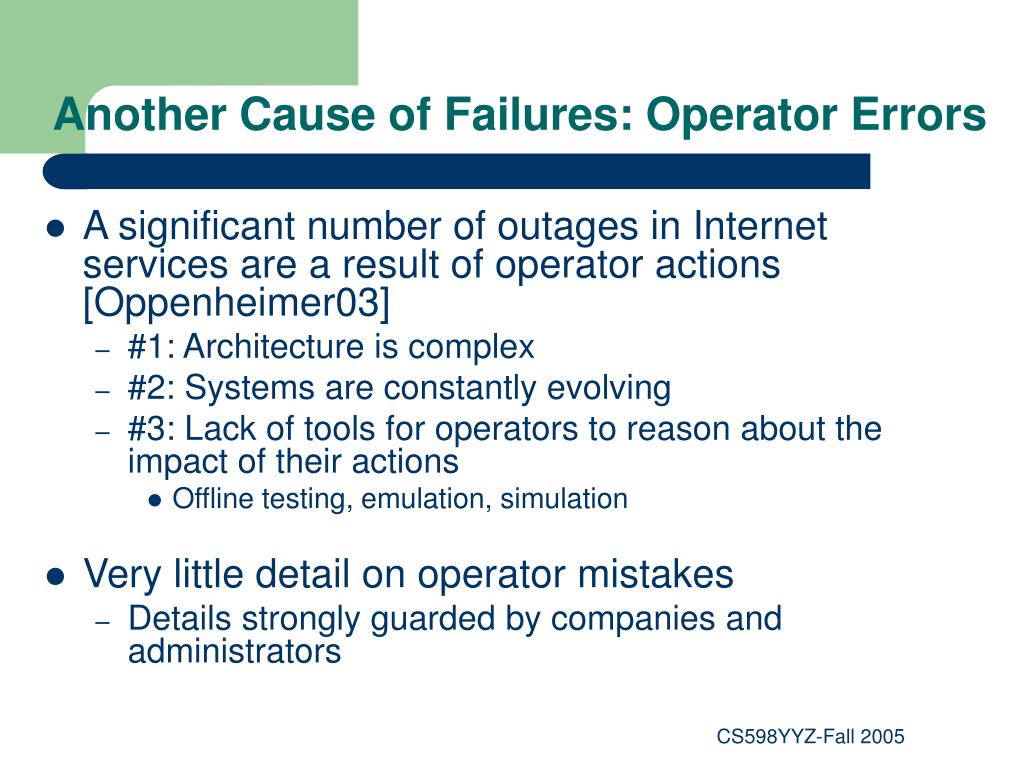

  28. Another Cause of Failures: Operator Errors • A significant number of outages in Internet services are a result of operator actions [Oppenheimer03] • #1: Architecture is complex • #2: Systems are constantly evolving • #3: Lack of tools for operators to reason about the impact of their actions • Offline testing, emulation, simulation • Very little detail on operator mistakes • Details strongly guarded by companies and administrators CS598YYZ-Fall 2005

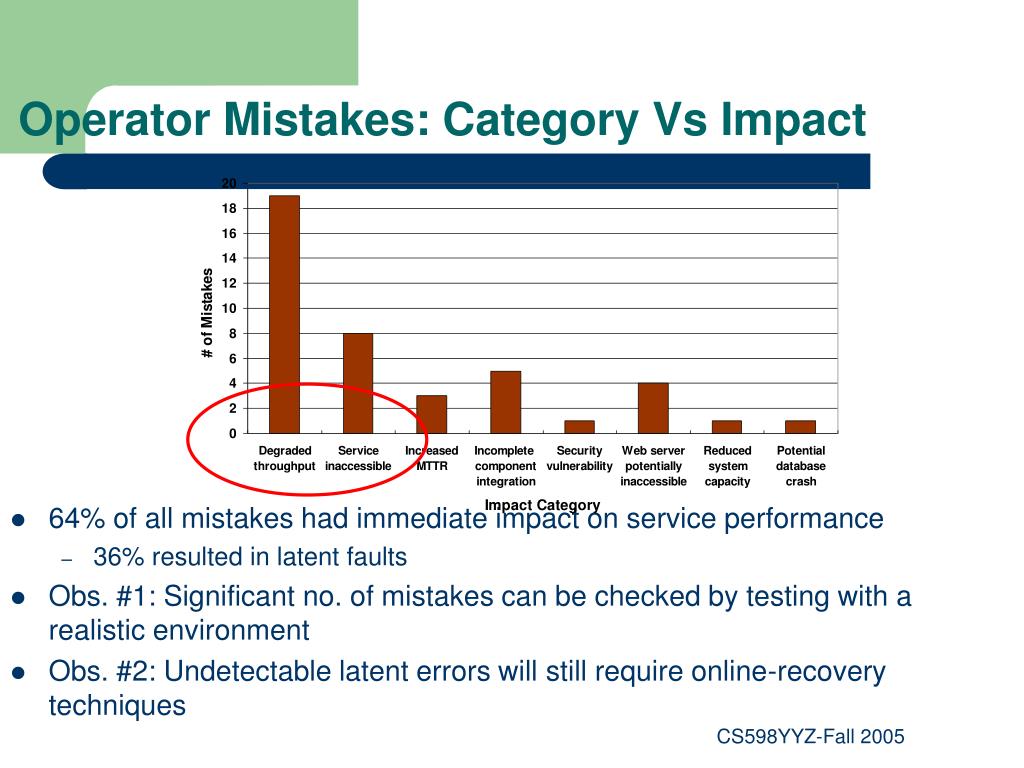

  29. Operator Mistakes: Category Vs Impact • 64% of all mistakes had immediate impact on service performance • 36% resulted in latent faults • Obs. #1: Significant no. of mistakes can be checked by testing with a realistic environment • Obs. #2: Undetectable latent errors will still require online-recovery techniques CS598YYZ-Fall 2005

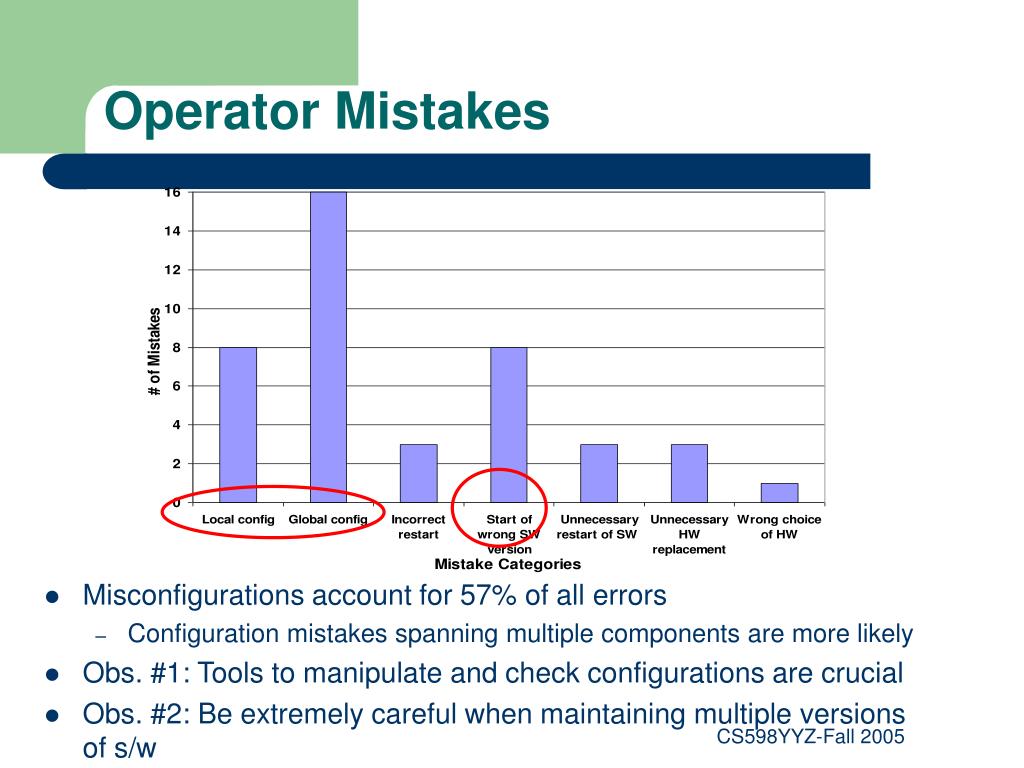

  30. Operator Mistakes • Misconfigurations account for 57% of all errors • Configuration mistakes spanning multiple components are more likely • Obs. #1: Tools to manipulate and check configurations are crucial • Obs. #2: Be extremely careful when maintaining multiple versions of s/w CS598YYZ-Fall 2005

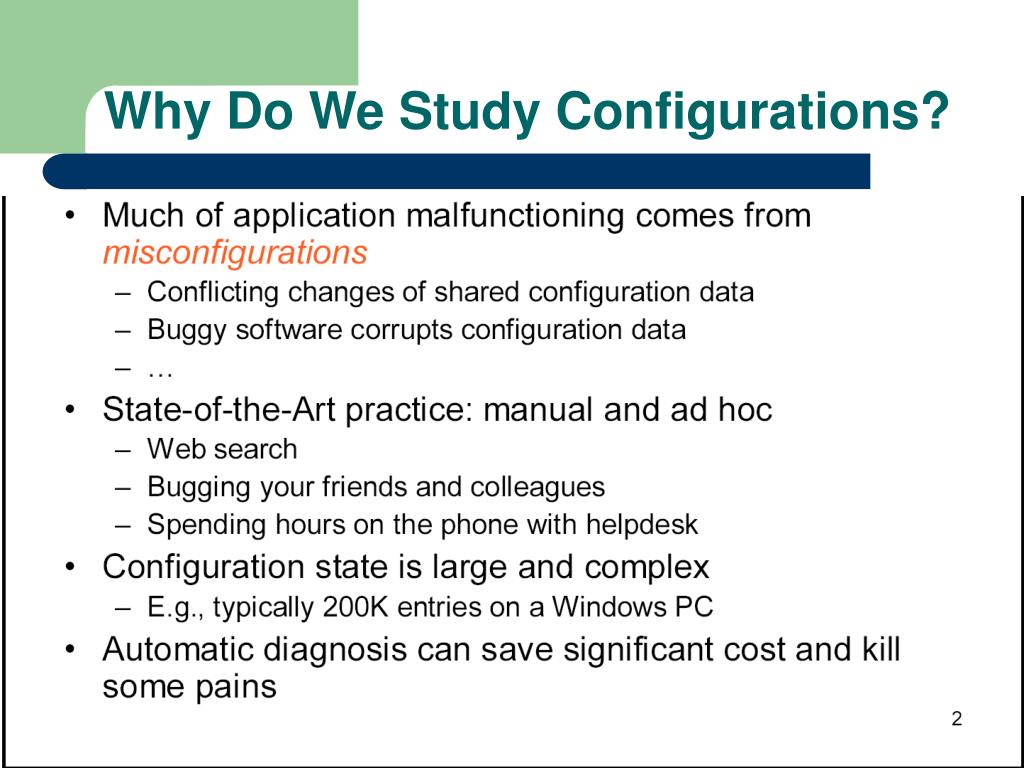

  31. Why Do We Study Configurations? CS598YYZ-Fall 2005

  32. Example: Windows Registry CS598YYZ-Fall 2005

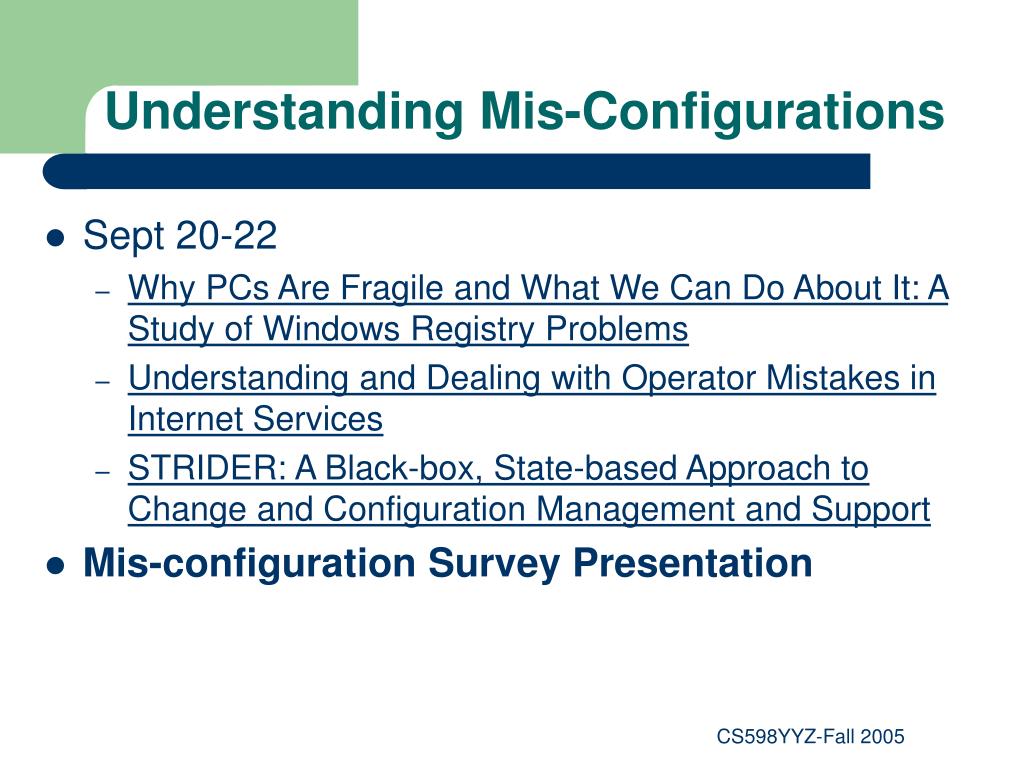

  33. Understanding Mis-Configurations • Sept 20-22 • Why PCs Are Fragile and What We Can Do About It: A Study of Windows Registry Problems • Understanding and Dealing with Operator Mistakes in Internet Services • STRIDER: A Black-box, State-based Approach to Change and Configuration Management and Support • Mis-configuration Survey Presentation CS598YYZ-Fall 2005

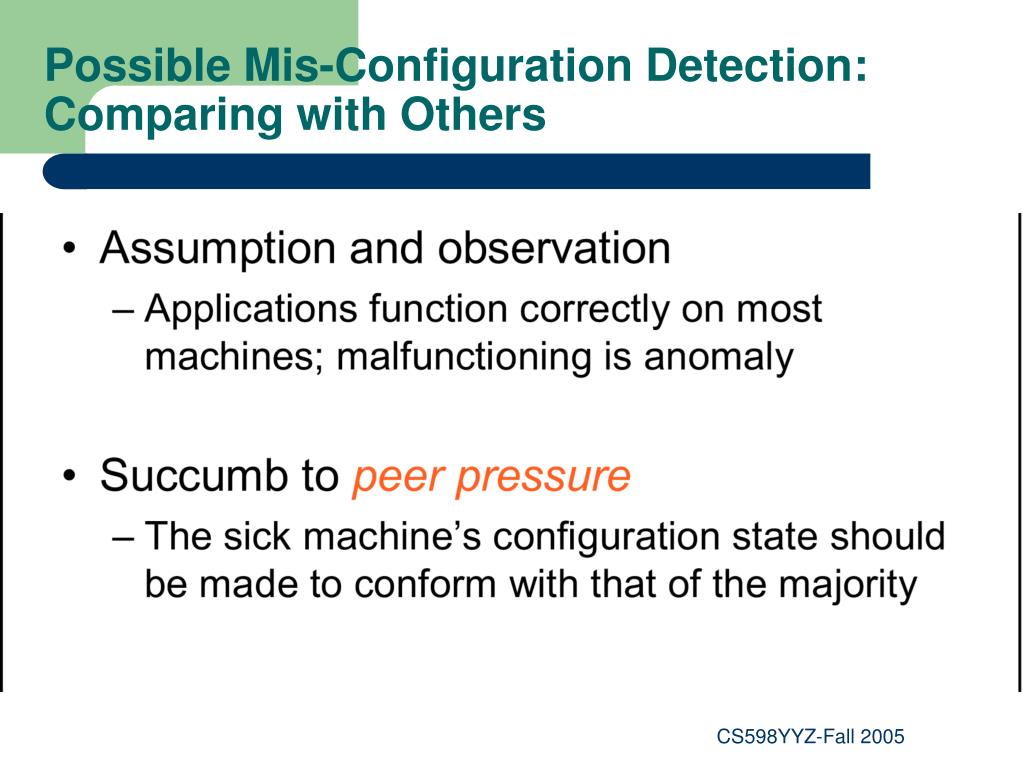

  34. Possible Mis-Configuration Detection: Comparing with Others CS598YYZ-Fall 2005

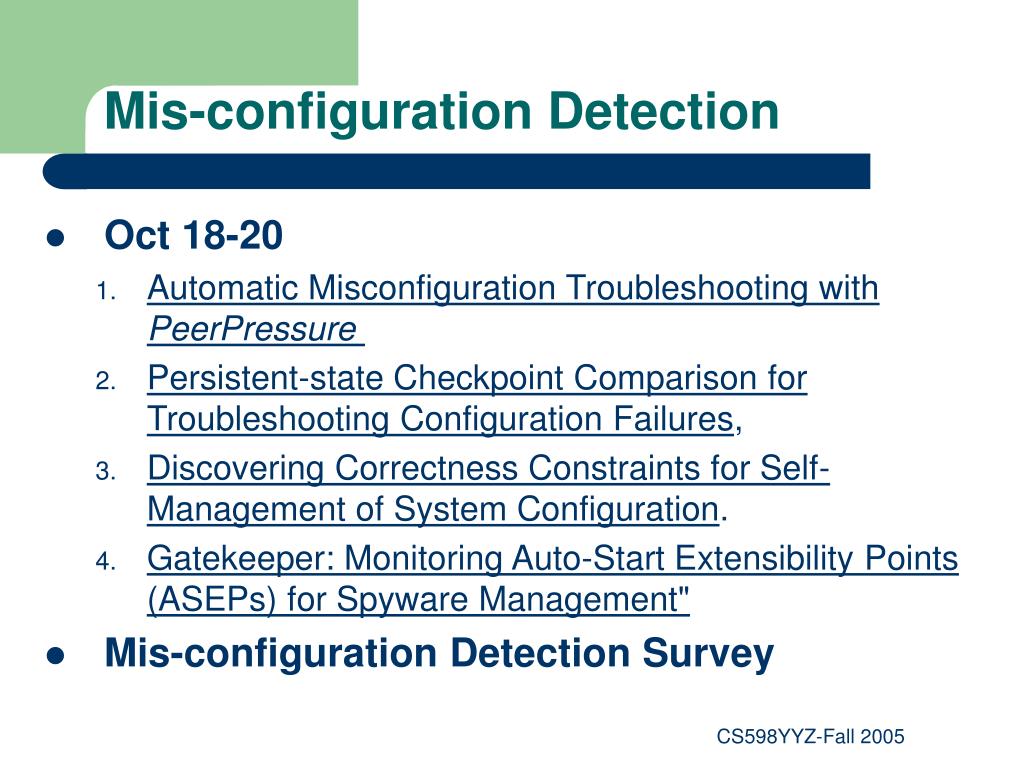

  35. Mis-configuration Detection • Oct 18-20 • Automatic Misconfiguration Troubleshooting with PeerPressure • Persistent-state Checkpoint Comparison for Troubleshooting Configuration Failures, • Discovering Correctness Constraints for Self-Management of System Configuration. • Gatekeeper: Monitoring Auto-Start Extensibility Points (ASEPs) for Spyware Management" • Mis-configuration Detection Survey CS598YYZ-Fall 2005

  36. Compare Application State Database Compare Compare Tolerating Mis-Configurations Client Requests Online slice Validation slice Web Server Web Server Tier 1 Web ServerProxy Application Server Application Server Application Server Tier 2 DatabaseProxy Tier 3 Shunt CS598YYZ-Fall 2005

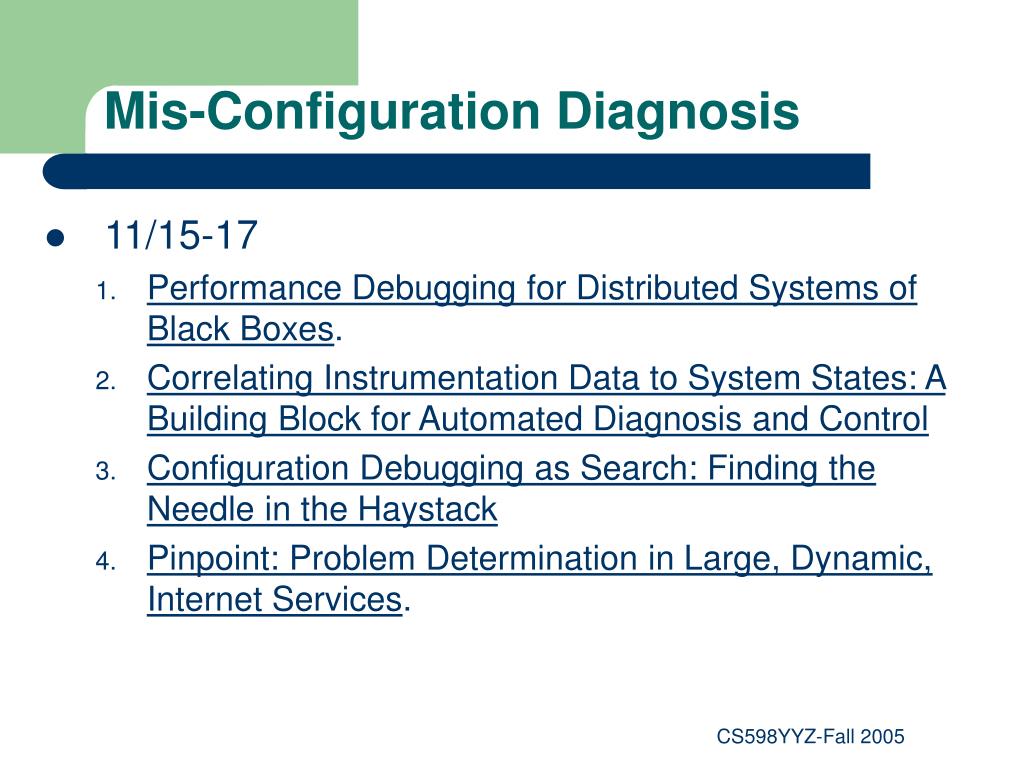

  37. Mis-Configuration Diagnosis • 11/15-17 • Performance Debugging for Distributed Systems of Black Boxes. • Correlating Instrumentation Data to System States: A Building Block for Automated Diagnosis and Control • Configuration Debugging as Search: Finding the Needle in the Haystack • Pinpoint: Problem Determination in Large, Dynamic, Internet Services. CS598YYZ-Fall 2005

  38. Security Attacks • More than 55% of security attacks are caused by software defects • Types of attacks • Hijack system • Leaking information • Denial of service • Data tampering • Stealing identity • Internet worm • … CS598YYZ-Fall 2005

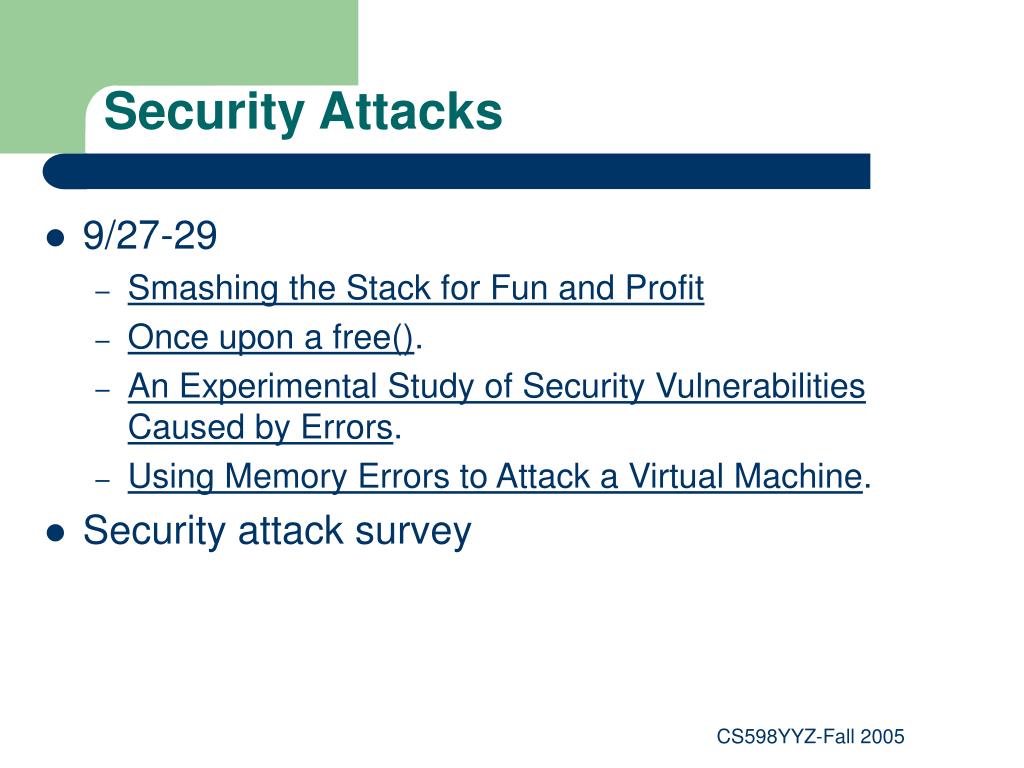

  39. Security Attacks • 9/27-29 • Smashing the Stack for Fun and Profit • Once upon a free(). • An Experimental Study of Security Vulnerabilities Caused by Errors. • Using Memory Errors to Attack a Virtual Machine. • Security attack survey CS598YYZ-Fall 2005

  40. Group Discussion • How can you detect security attacks? • How can you avoid attacks? CS598YYZ-Fall 2005

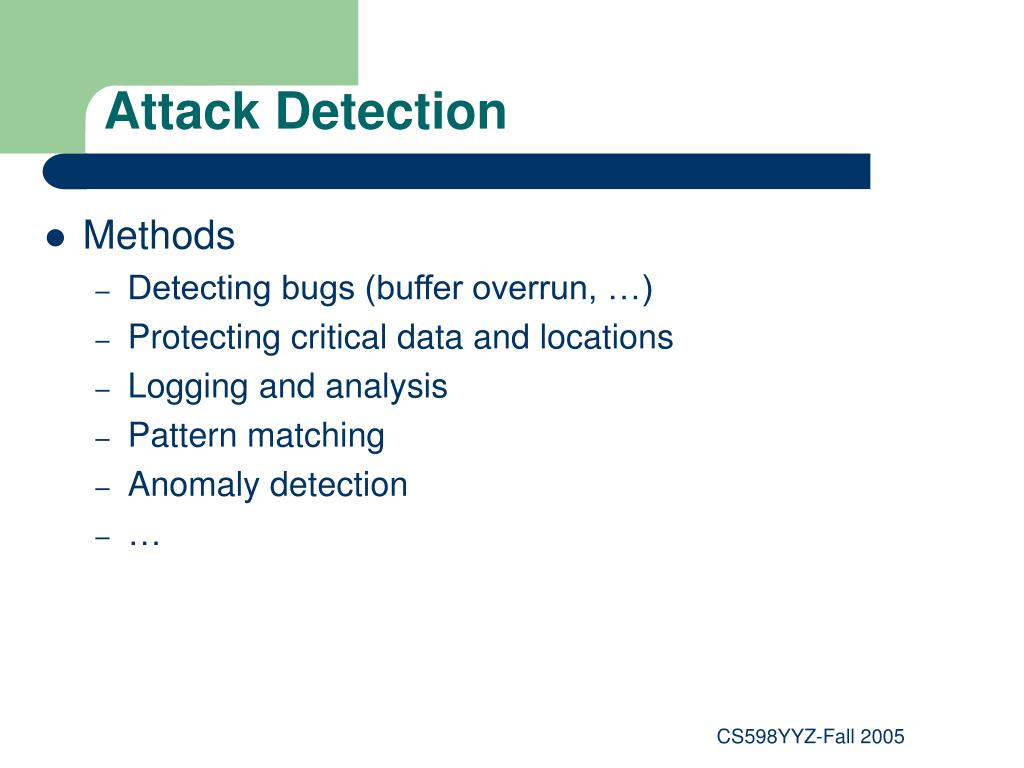

  41. Attack Detection • Methods • Detecting bugs (buffer overrun, …) • Protecting critical data and locations • Logging and analysis • Pattern matching • Anomaly detection • … CS598YYZ-Fall 2005

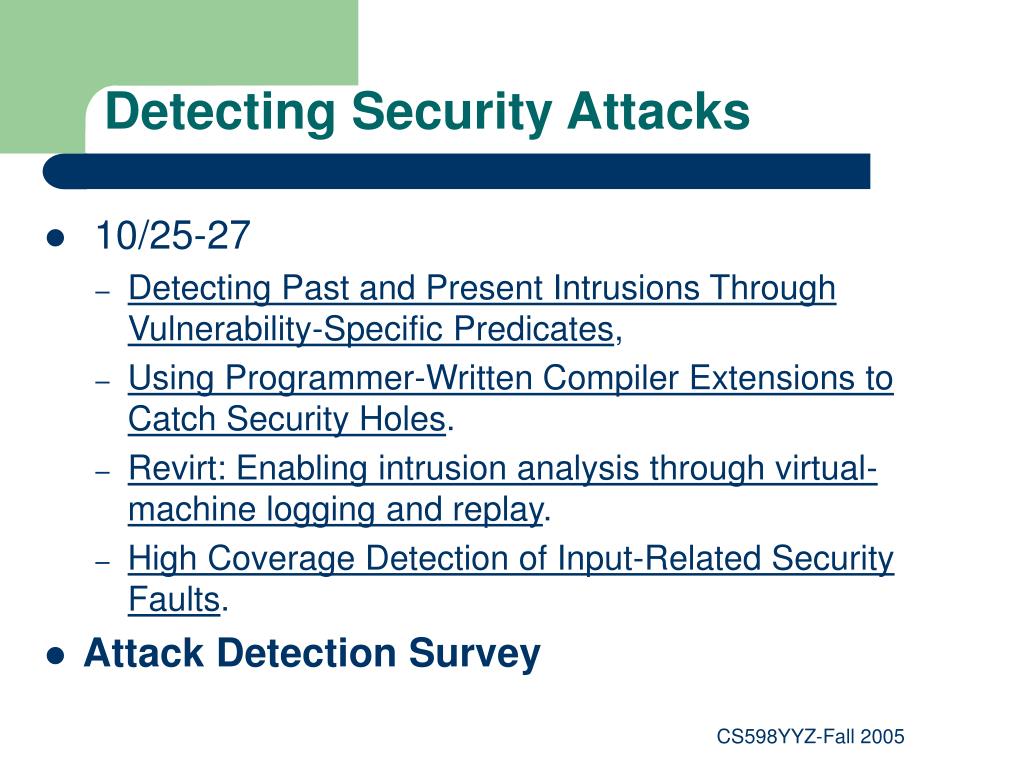

  42. Detecting Security Attacks • 10/25-27 • Detecting Past and Present Intrusions Through Vulnerability-Specific Predicates, • Using Programmer-Written Compiler Extensions to Catch Security Holes. • Revirt: Enabling intrusion analysis through virtual-machine logging and replay. • High Coverage Detection of Input-Related Security Faults. • Attack Detection Survey CS598YYZ-Fall 2005

  43. Avoiding Security Attacks • 11/29 • Randomized instruction set emulation to disrupt binary code injection attacks. • Countering Code-Injection Attacks with Instruction-Set Randomization. • Automated Web Patrol with Strider Honey Monkeys: Finding Web Sites That Exploit Browser Vulnerabilities CS598YYZ-Fall 2005
