  1. VSFX design 王捷 2014.4.25

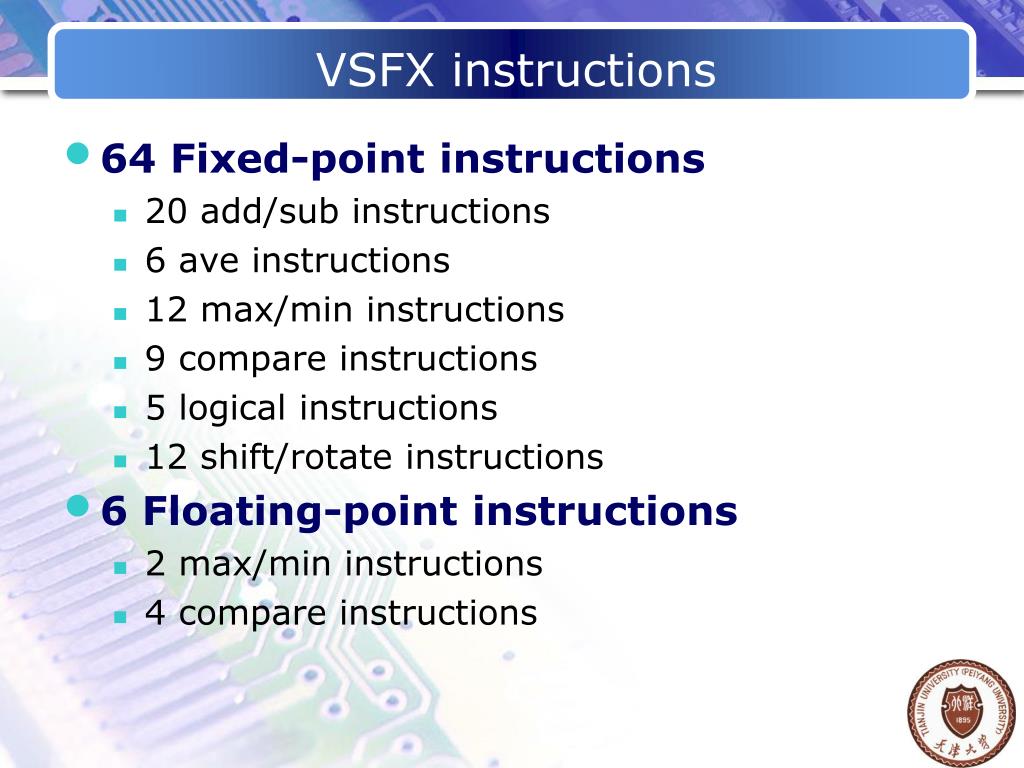

  2. VSFX instructions • 64 Fixed-point instructions • 20 add/sub instructions • 6 ave instructions • 12 max/min instructions • 9 compare instructions • 5 logical instructions • 12 shift/rotate instructions • 6 Floating-point instructions • 2 max/min instructions • 4 compare instructions

  3. VSFX instructions • 26 add/sub/ave instructions • 27 compare/max/min instructions • 5 logical instructions • 12 shift/rotate instructions

  4. 5 logical instructions • bit-wise operations

  5. 12 shift/rotate instructions • barrel shift • logical shift left << • logical shift right >> • Shift Algebraic（Synthesizable） • signed operand >>>

  6. 27 compare/max/min instructions • 128bit vector comparation • compare equal to unsigned byte • 16 * 8bit comparator • compare equal to unsigned halfword • 8 * 16bit comparator • compare equal to unsigned word • 4 * 32bit comparator • compare equal to unsigned byte/halfword/word

  7. Compare • 16 * 8bit comparator • 8 * 16bit comparator • 4 * 32bit comparator

  8. Use 36-bit Adder

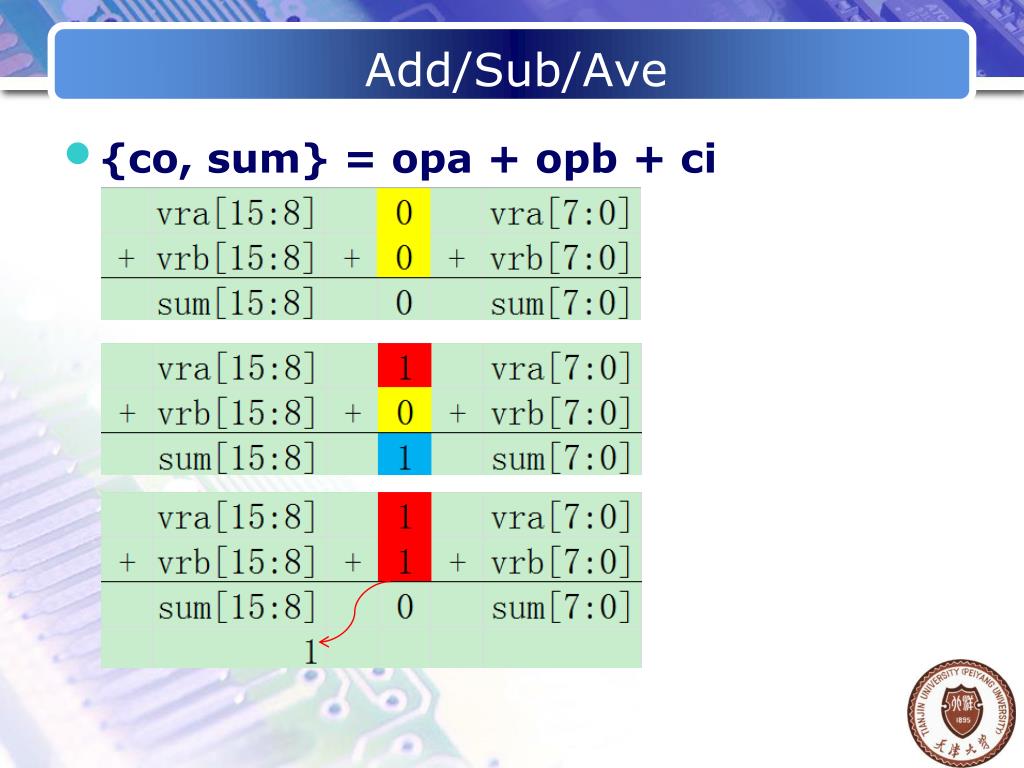

  9. Add/Sub/Ave • {co, sum} = opa + opb + ci

  10. Add/Sub/Ave

  11. Add/Sub/Ave

  12. Thank you
