Intro to Construction. Identify & define typical wall parts. Objectives. Identify careers associated with construction. Determine amount of materials needed. Determine cost of materials needed. Correctly layout plates for a wall to plan. Safely cut part to size.

zarek
Télécharger la présentation

Intro to Construction

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

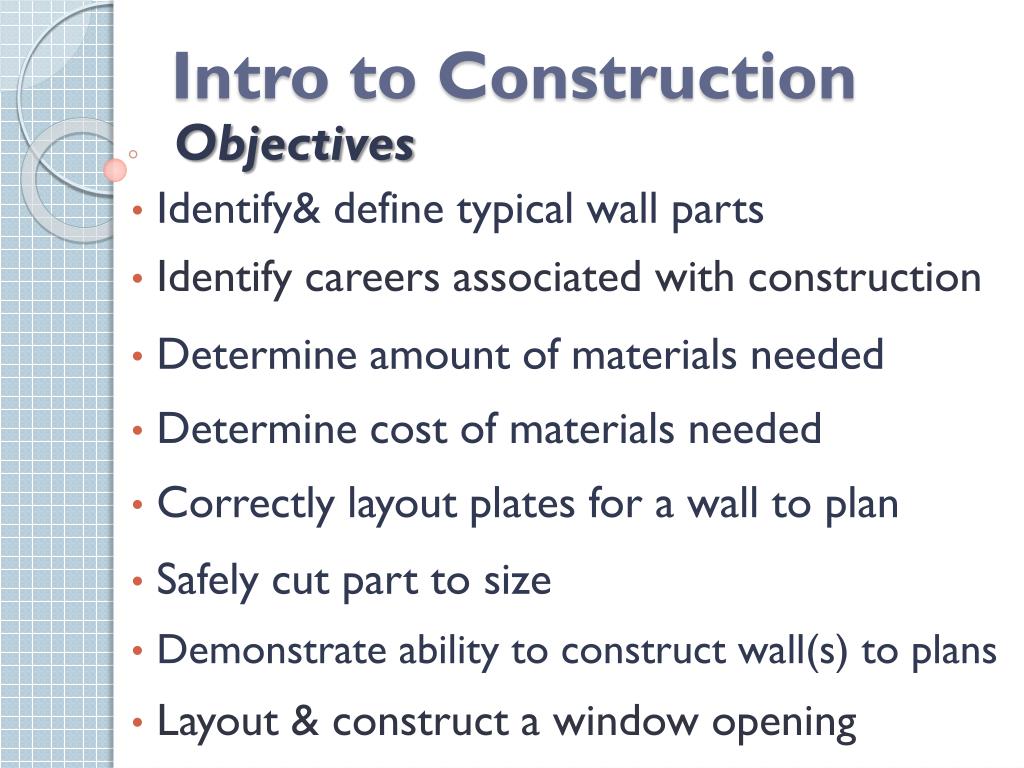

  1. Intro to Construction • Identify& define typical wall parts Objectives • Identify careers associated with construction • Determine amount of materials needed • Determine cost of materials needed • Correctly layout plates for a wall to plan • Safely cut part to size • Demonstrate ability to construct wall(s) to plans • Layout & construct a window opening

  2. Double Top plate Cripple Stud Header Trimmer stud Stud Sill Bottom plate Cripple Stud

  3. Wall Parts terms A. Stud- a vertical framing member 16” or 24” oc B. Trimmer Stud- supports header over door or window does not extend all the way from bottom to top plate A. Cripple Stud-

  4. Wall Parts terms D. Bottom plate- Horizontal framing member used to tie together studs (sole plate) E. Double top Plate- Ties together studs, distributes structural load & adds strength to structure

  5. Wall Parts terms F. Header- supports structural loads above an opening G. Sill- At bottom of window opening used to support window

  6. Estimating Construction Material If studs 24” OC (24’ / 2’) + 1 = ___ 13 (24’ / 2’) + 1 = ___ 13 (16’ / 2’) + 1 = ___ 9 9 (16’ / 2’) + 1 = ___ (16’ / 2’) + 1 = ___ 9 + (+short int. )= ___ 6 59 Simple floor Plan 16’X 24’ Rough # of studs needed ______ of these ______ are trimmer studs # of 16’ plates needed ______ # sheets of plywood for sides _____ 59 20 20 # of opening x 2= ___ 18 3 per wall @ size = ___ 18 20 Each sheet 4’x8’= ___ 20

  7. Intro to Construction General Contractor $/job: in charge of rest Careers Masons $20/hr: concrete/ block/ brick Framers $18/hr: studs/ plates/ rafters Roofer : $17/hr vents/ shingles Finished Carpenters $25/hr: trim/ molding Electricians $25/hr: wiring Plumbers $25/hr: water/ gas/ waste lines
