HD-SDI 720p Box Camera C720B - High Performance with Advanced Features

zayit avatar
2 diapositives · 188 Views · Oct 21, 2014

The HD-SDI C720B Box Camera offers superior 720p resolution (1280x720) with a 1/3” CMOS progressive image sensor. It features compatibility with standard HD-SDI (SMPTE 292M) and resolution (SMPTE 296M). Designed for low-light environments, it has impressive sensitivity (0.001 Lux BW, 0.5 Lux Color @ 50IRE, F1.4, 3100K) and noise reduction (DNR) capabilities. It supports digital wide dynamic range (DWDR) and IR cut filter removal for optimal imaging. With an easy-to-use OSD menu, privacy zones, and options for DC/video iris and C/CS mounts, this camera meets various surveillance needs.

HD-SDI 720p Box Camera C720B - High Performance with Advanced Features - slide 1
01 / 2HD-SDI 720p Box Camera C720B - High Performance with Advanced Features
1 / 17

Télécharger la présentation

HD-SDI 720p Box Camera C720B - High Performance with Advanced Features
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

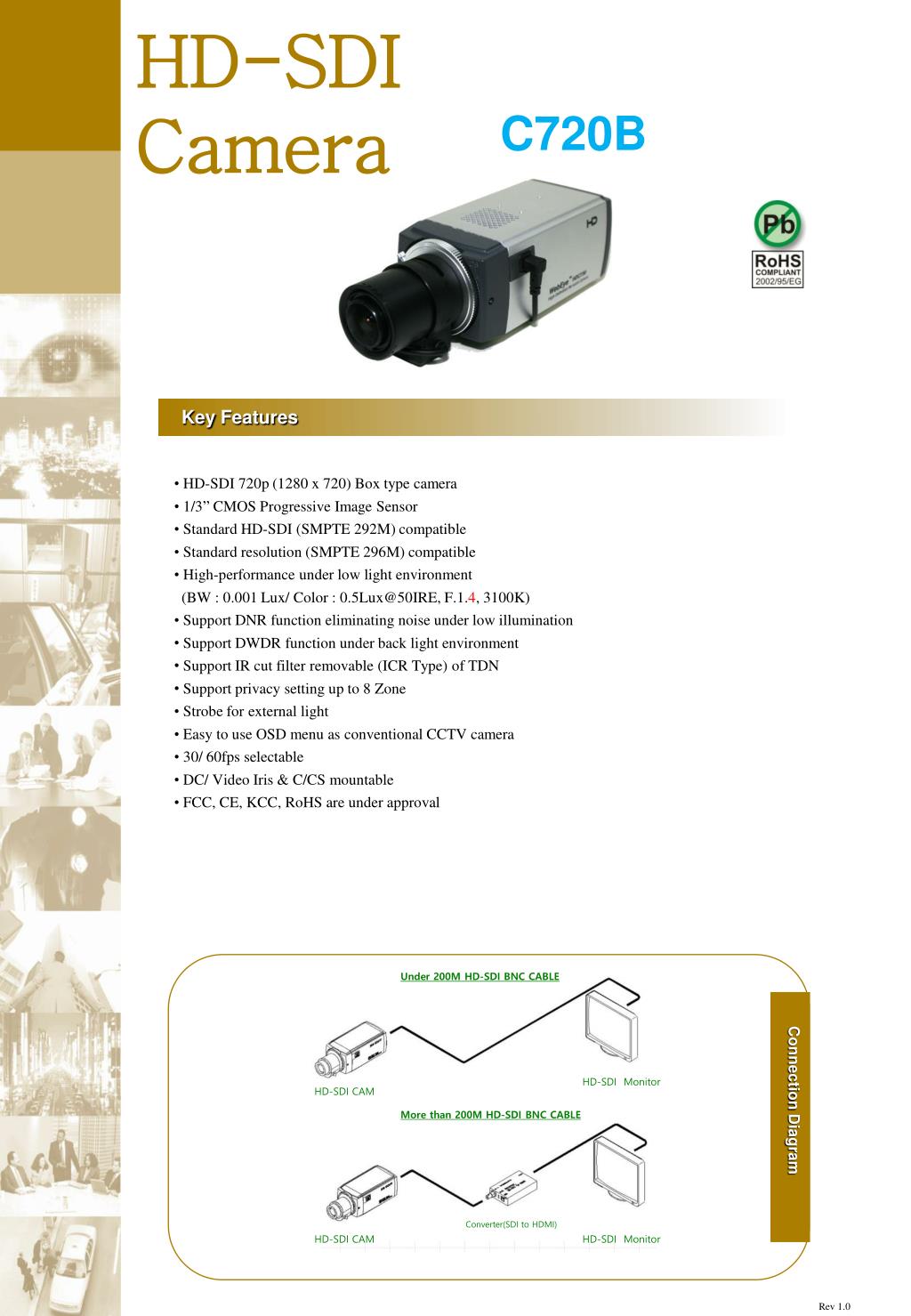

  1. HD-SDI Camera C720B Key Features • • HD-SDI 720p (1280 x 720) Box type camera • • 1/3” CMOS Progressive Image Sensor • • Standard HD-SDI (SMPTE 292M) compatible • • Standard resolution (SMPTE 296M) compatible • • High-performance under low light environment • (BW : 0.001 Lux/ Color : 0.5Lux@50IRE, F.1.4, 3100K) • • Support DNR function eliminating noise under low illumination • Support DWDR function under back light environment • Support IR cut filter removable (ICR Type) of TDN • Support privacy setting up to 8 Zone • • Strobe for external light • • Easy to use OSD menu as conventional CCTV camera • • 30/ 60fps selectable • • DC/ Video Iris & C/CS mountable • • FCC, CE, KCC, RoHS are under approval Under 200M HD-SDI BNC CABLE HD-SDI Monitor HD-SDI CAM Connection Diagram More than 200M HD-SDI BNC CABLE Converter(SDI to HDMI) HD-SDI CAM HD-SDI Monitor Rev 1.0

  2. Specification (C720B) HD-SDI Camera /C720B Front & Rear Panel (6) Power LED (7) OSD Menu Button (8) DC Power Input (9) DC/Video Iris Switch (10) Frame Switch (11) HD-SDI Output (1) Lens ( Option ) (2) “+” shaped screw for fixing adjustment ring (3) Flange back adjustment ring (4) Bracket for fixing camera (5) RS-232 Terminal
