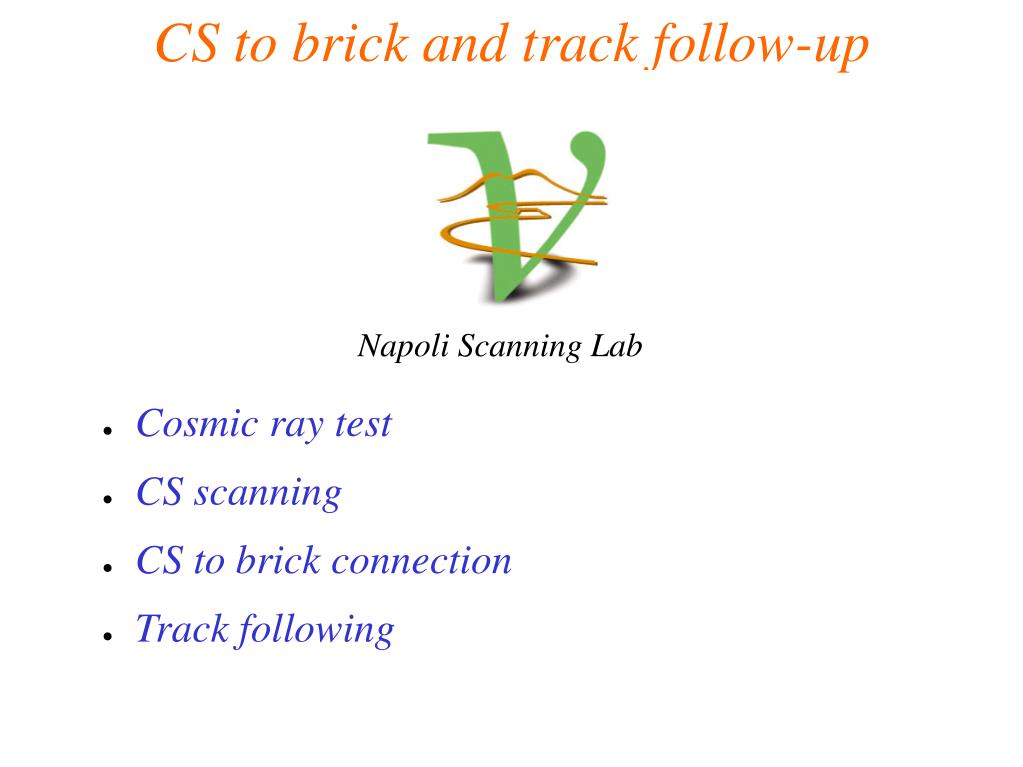

  1. CS to brick and track follow-up • Cosmic ray test • CS scanning • CS to brick connection • Track following Napoli Scanning Lab

  2. Cosmic ray test performed in November Cosmic rays • Brick with CS brought out of the gallery • Kept for about 4 minutes at the surface • Integrating about 100 tracks on the whole surface • Going back to the underground lab • Attach a second CS doublet and expose to cosmic rays in the pit for 24 hours CS doublet

  3. Scanning of the cosmic-ray test bricks • CS doublets (European part) were scanned at Gran Sasso • After the first area scanning performed at Gran Sasso, one CSD was sent to Naples • Enlarged the statistics (all the surface) • CSD scanning and results • CS to brick connection • Brick scan-back

  4. Scanning station for 6 bricks Napoli laboratory: brick #973 CS1 and CS2 scanning: • minimum number of grains = 7 • “expansion” filter • fixed cutoffs • 15 layers CS1 and CS2 scanning: • minimum number of grains = 7 • “expansion” filter • cut-offs tuned on the CS2 • 16 layers Up/down linking: • minimum number of grains = 7 • Delta X,Y = 30 µm • Delta TX,TY = 40*(1+4*) mrad Candidates in the CS sheets: • Delta X,Y = 120 µm • Delta TX,TY = 50 mrad CS1/CS2 tracking • Delta X,Y = 40 µm • Delta TX,TY = 25 mrad • N = NCS1 + NCS2 = 40 grains • quality cut: SIGMA < N * 0.13 - 1.3

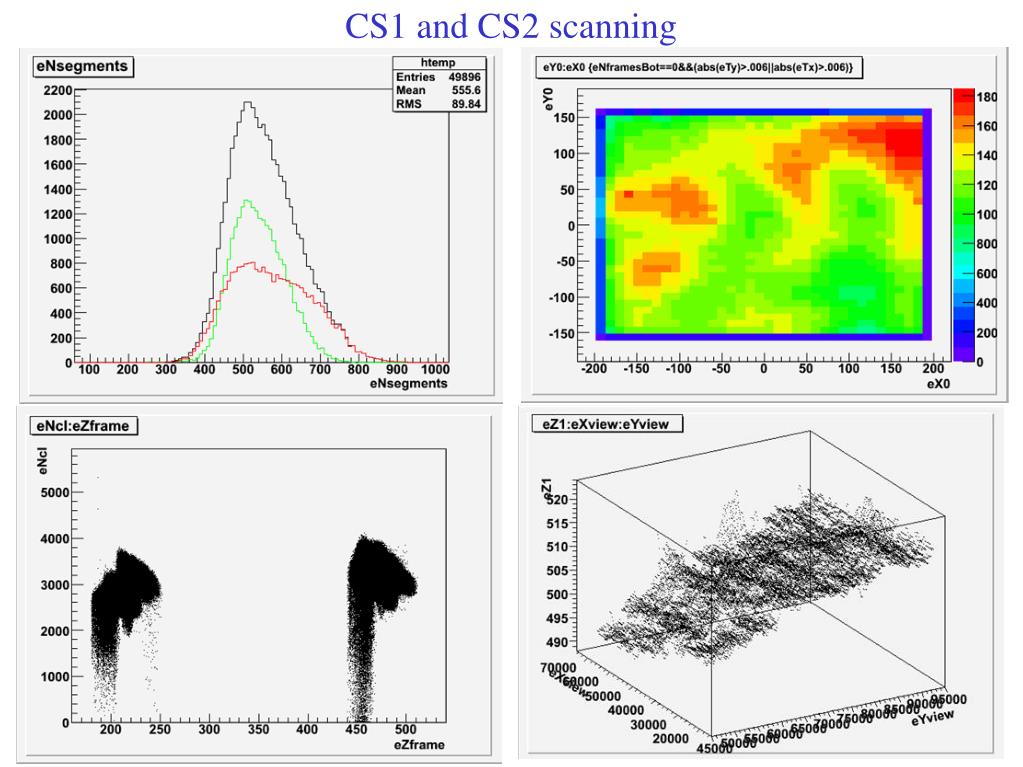

  5. CS1 and CS2 scanning

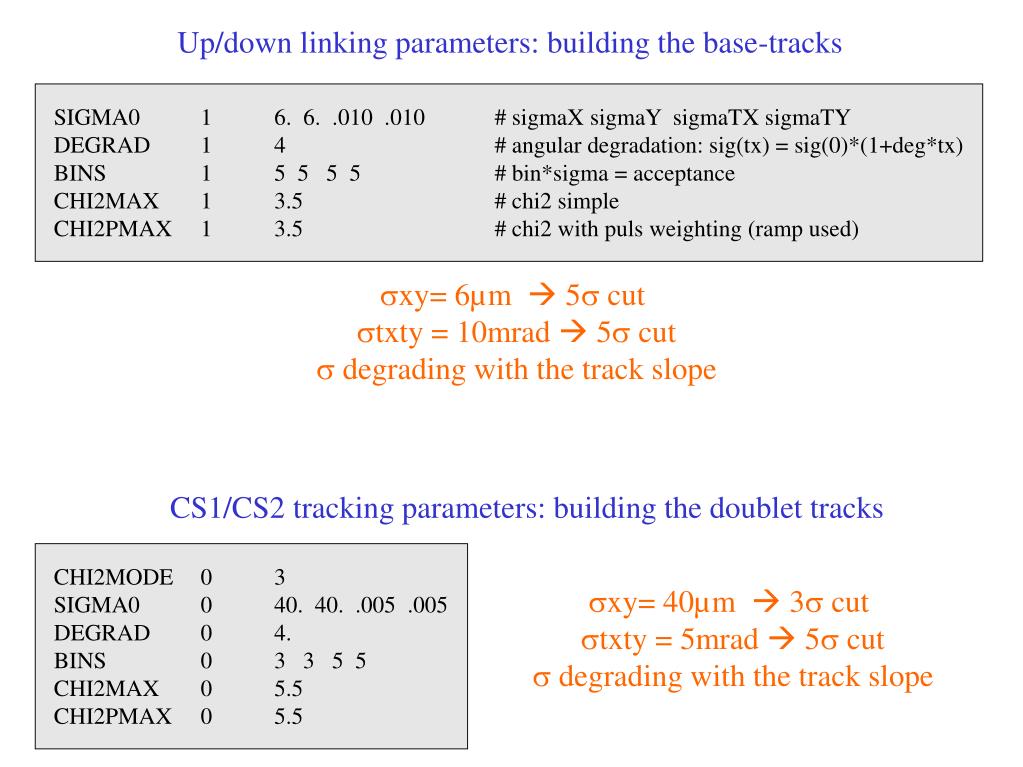

  6. Up/down linking parameters: building the base-tracks SIGMA0 1 6. 6. .010 .010 # sigmaX sigmaY sigmaTX sigmaTY DEGRAD 1 4 # angular degradation: sig(tx) = sig(0)*(1+deg*tx) BINS 1 5 5 5 5 # bin*sigma = acceptance CHI2MAX 1 3.5 # chi2 simple CHI2PMAX 1 3.5 # chi2 with puls weighting (ramp used) • xy= 6µm  5 cut • txty = 10mrad  5 cut • degrading with the track slope CS1/CS2 tracking parameters: building the doublet tracks CHI2MODE 0 3 SIGMA0 0 40. 40. .005 .005 DEGRAD 0 4. BINS 0 3 3 5 5 CHI2MAX 0 5.5 CHI2PMAX 0 5.5 • xy= 40µm  3 cut • txty = 5mrad  5 cut • degrading with the track slope

  7. CS1-to-CS2 alignment with data scanned at Gran Sasso Candidates for 6 european bricks 109 (102 with grains>=40) events in 16*6 = 96 cm2 x = 6µm 6x5=30µm 3.4x5=17µm tx = 5mrad 5x5=25mrad 5x5=25mrad 40 grains

  8. CS1-to-CS2 alignment for brick 3000973 Candidates: 93 (79 with grains>=42) events in 96 cm2 (8.6x11.1cm2) x = 15µm y = 4µm ty = 4mrad tx = 4mrad 42 grains

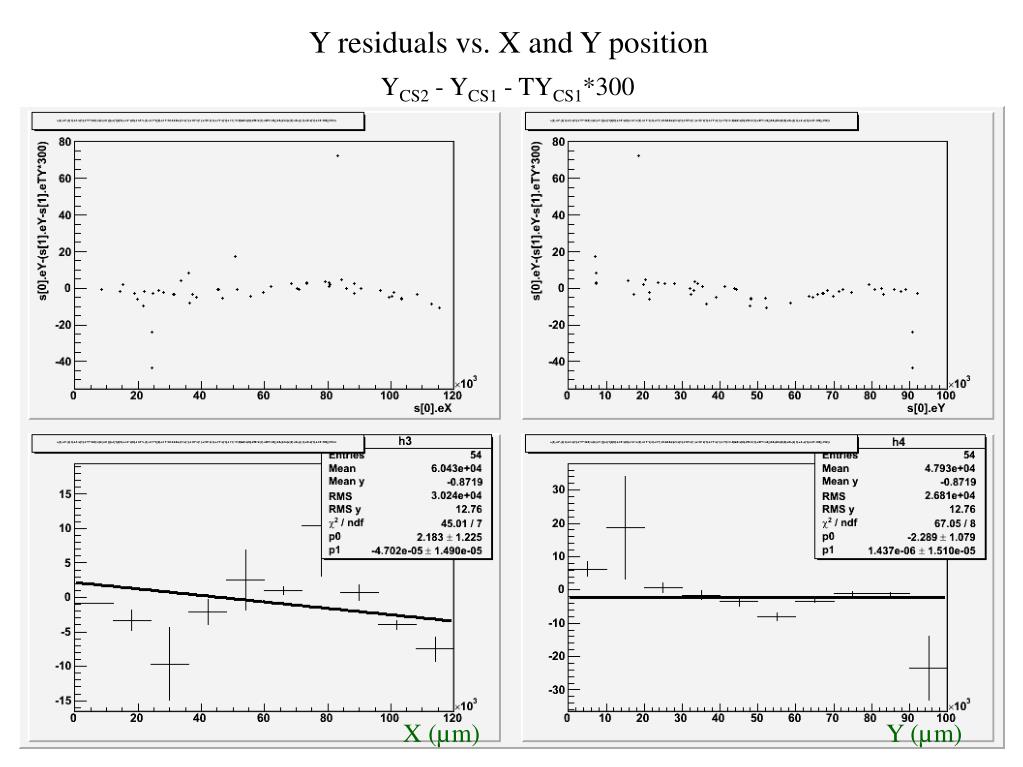

  9. Y residuals vs. X and Y position YCS2 - YCS1 - TYCS1*300 X (µm) Y (µm)

  10. X residuals vs. X and Y position XCS2 - XCS1 - TXCS1*300 12 cm 10 cm Y (µm) X (µm)

  11. X residuals vs. X and Y position (2D view) mark #4 mark #3 mark #2 mark #1 30 µm offset

  12. Summary of CS to CS connection • After a cut on the number of grains (42 out of 64) 74 tracks remained  predicted onto the brick after the extrapolation of 4700 µm Position distribution Angle distribution

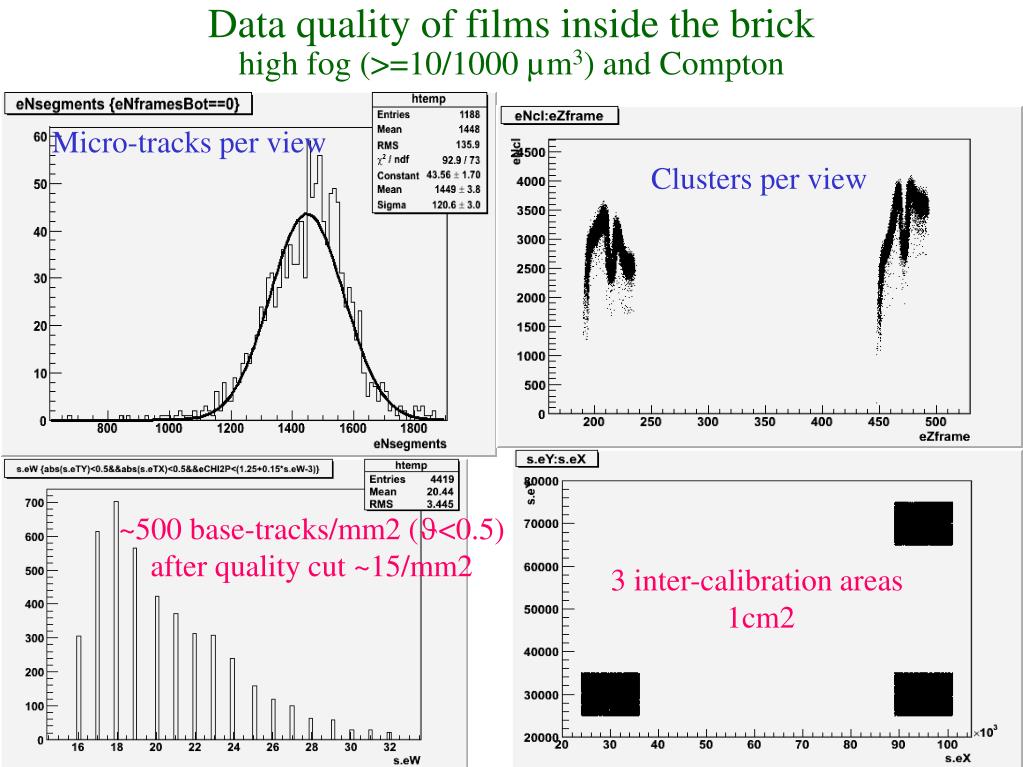

  13. Data quality of films inside the brickhigh fog (>=10/1000 µm3) and Compton Micro-tracks per view Clusters per view ~500 base-tracks/mm2 (<0.5) after quality cut ~15/mm2 3 inter-calibration areas 1cm2

  14. Measured gap between CS and brick 4450 µm measured value (4700 µm nominal) 270 µm correction 220 µm correction

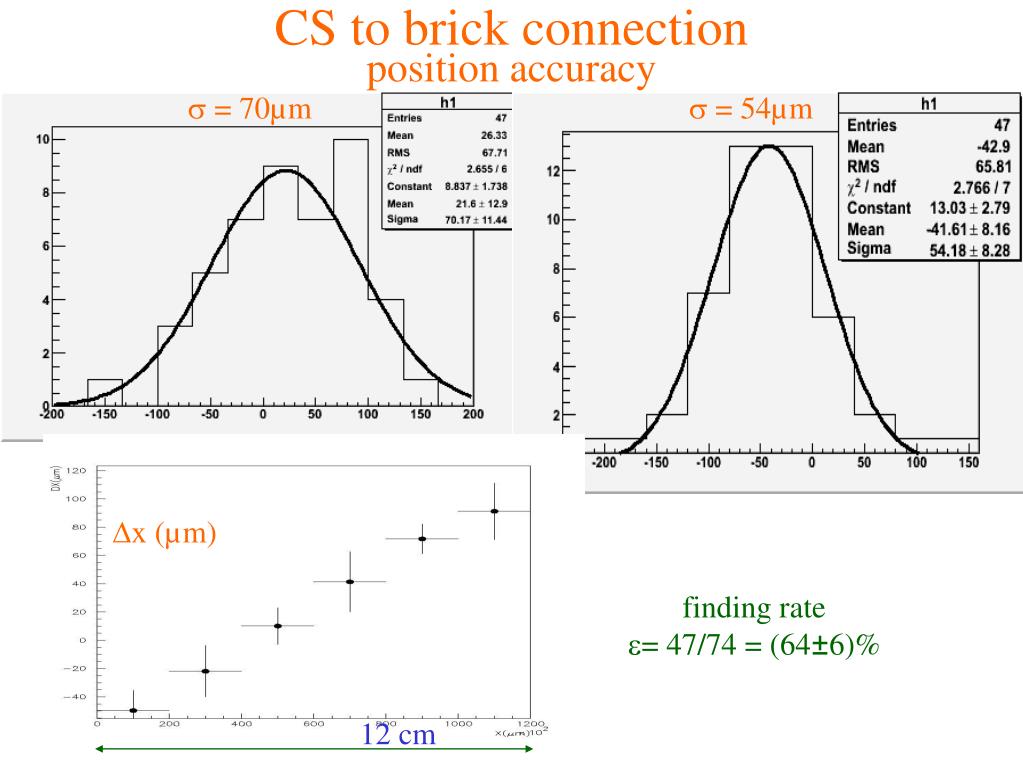

  15. CS to brick connectionposition accuracy  = 70µm  = 54µm x (µm) finding rate = 47/74 = (64±6)% 12 cm

  16. CS to brick connectionangular accuracy  = 9mrad  = 12mrad

  17. CS to brick connectionposition and angular distribution of candidates validated by manual check 9 cm 12 cm

  18. Connection of plate 1 to 2position accuracyall candidates validated by manual check = 41/47 = (87±5)% x = 16µm y = 12µm

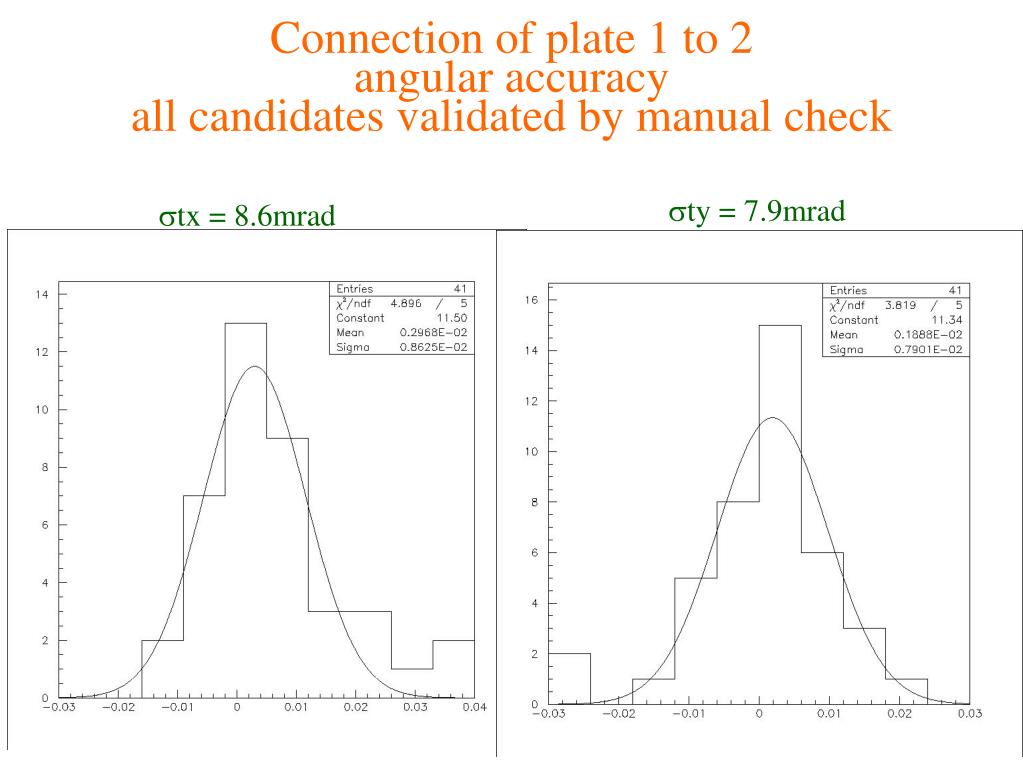

  19. Connection of plate 1 to 2angular accuracyall candidates validated by manual check ty = 7.9mrad tx = 8.6mrad

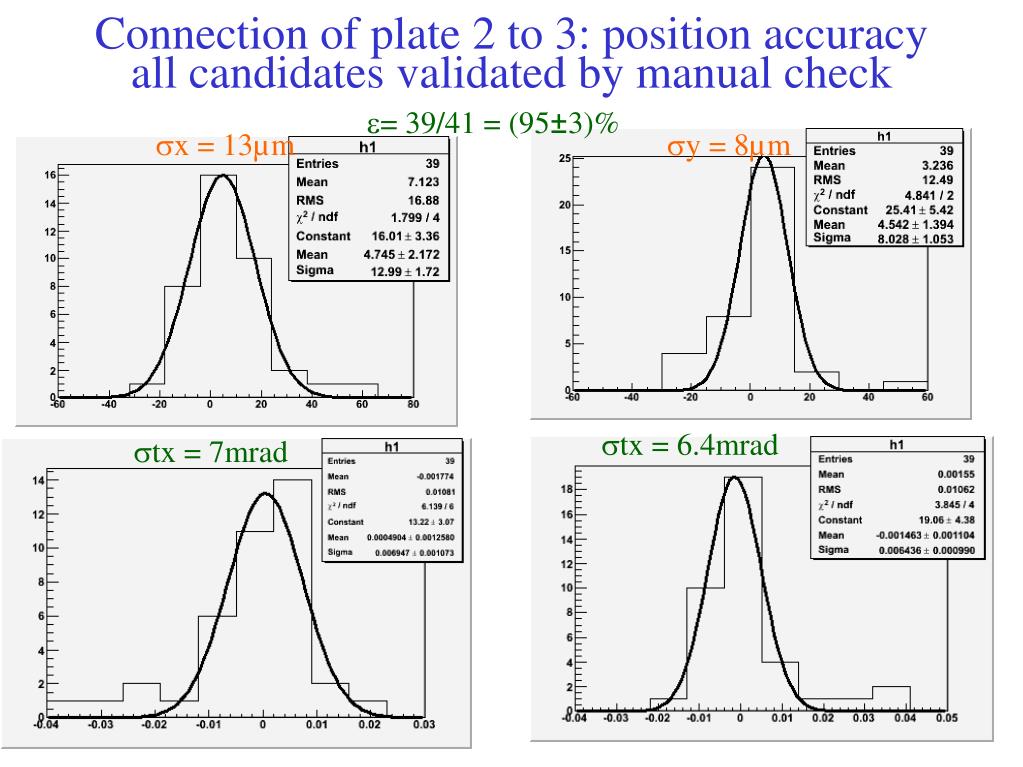

  20. Connection of plate 2 to 3: position accuracyall candidates validated by manual check = 39/41 = (95±3)% x = 13µm y = 8µm tx = 6.4mrad tx = 7mrad

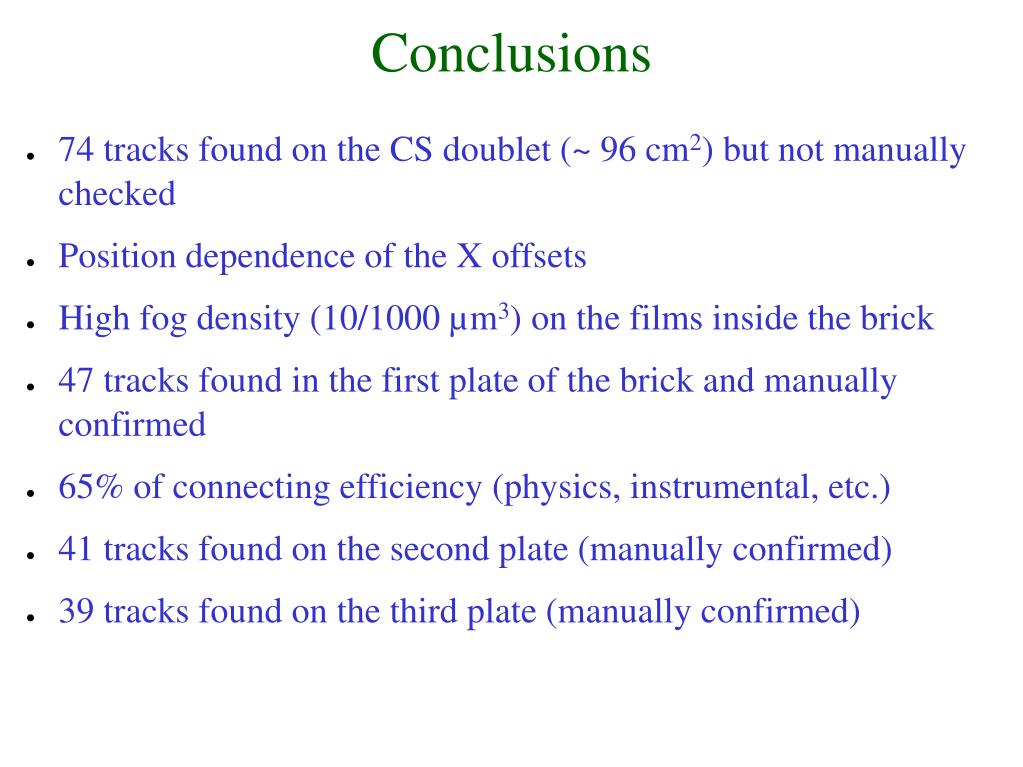

  21. Conclusions • 74 tracks found on the CS doublet (~ 96 cm2) but not manually checked • Position dependence of the X offsets • High fog density (10/1000 µm3) on the films inside the brick • 47 tracks found in the first plate of the brick and manually confirmed • 65% of connecting efficiency (physics, instrumental, etc.) • 41 tracks found on the second plate (manually confirmed) • 39 tracks found on the third plate (manually confirmed)
