  1. Automatic Volumetric Breast Density Assessment in the eXtensible Imaging Platform Rachel Embree and Christina Sillery David Channin, MD, Advisor In Cooperation with Alex Shnayder, Pat Mongkolwat, Ray Wu

  2. Overview • Introduction • Material and Methods • Results • Discussion • Conclusion

  3. Introduction

  4. What is Breast Density? • The breast is composed of fibroglandular tissue embedded in a background of fatty tissue. The amount of fibroglandular tissue and fat varies among women. • Breast cancer arises in this fibroglandular tissue. • Mammography is projection radiography of the breast. • In mammograms, dense fibroglandular tissue attenuates more radiation than does fat. • Breast density refers to the appearance of this fibroglandular tissue in a mammogram [5]

  5. Breast Density • Positively correlated with breast cancer • Four to six times greater risk of breast cancer for women with greater than 60% dense tissue [1] • Breast density as a risk factor accounts for as many as 30% of breast cancer cases [1] • Can be changed by hormonal, dietary and other interventions

  6. Assessment of Breast Density in Mammograms • Subjective Visual Assessment by Radiologists (Mandatory) • Score the breast on a 4-point scale in the Breast Imaging-Reporting and Data System (BIRADS), based on patterns developed by Wolfe [5] • Manual Image Processing Techniques (for research) • Planimetry • Interactive Thresholding

  7. Previous Approaches • Interactive Thresholding

  8. Goal • Create a breast density assessment program that is… • Automated • Volumetric • Accurate • In the eXtensible Imaging Platform (XIP)

  9. Material and Methods

  10. What is XIP? • eXtensible Imaging Platform • Funded by NIH, NCI Cancer Bioinformatics Grid (caBIG) Program • A program to share data, informatics tools, technologies and infrastructure between the funded Comprehensive Cancer Centers across the nation • Open Source, Open Standards, Open Architecture • Platform for development of medical image processing and analysis applications for research and clinical purposes. • Will support the DICOM Application Hosting standard to facilitate transportability of XIP applications

  11. XIPBuilder • Visual Programming Environment for developing imaging applications; based on OpenInventor. • Contains modules (lots!) that can be assembled to perform sophisticated tasks. • Includes • vTK – The Visualization Toolkit (NIH) • iTK – The Insight Toolkit for Registration and Segmentation (NIH) • Extensible by creating new plug-n-play modules

  12. Mammography

  13. Algorithmic Foundations • Highnam et al 1997 • Standard Mammogram Form (SMF) • Volumetric approach • Mammograms on X-ray film • Van Engeland et al 2006 • Improved upon SMF • Full Field Digital Mammography (FFDM) • Utilized DICOM headers

  14. The Model [2]

  15. Volumetric • Based on Van Engeland’s algorithm [4] • Tissue composition is computed at each pixel and represents a rectangular cylinder of tissue • Area of the pixel is computed from detector characteristics and the geometry of acquisition. • Height of the rectangular cylinder is computed from the compression thickness.

  16. RADBuilder Process

  17. RADBuilder Process

  18. SoXIPLoadDICOM • Loads … • DICOM Image Pixel Data • Necessary DICOM Header Information

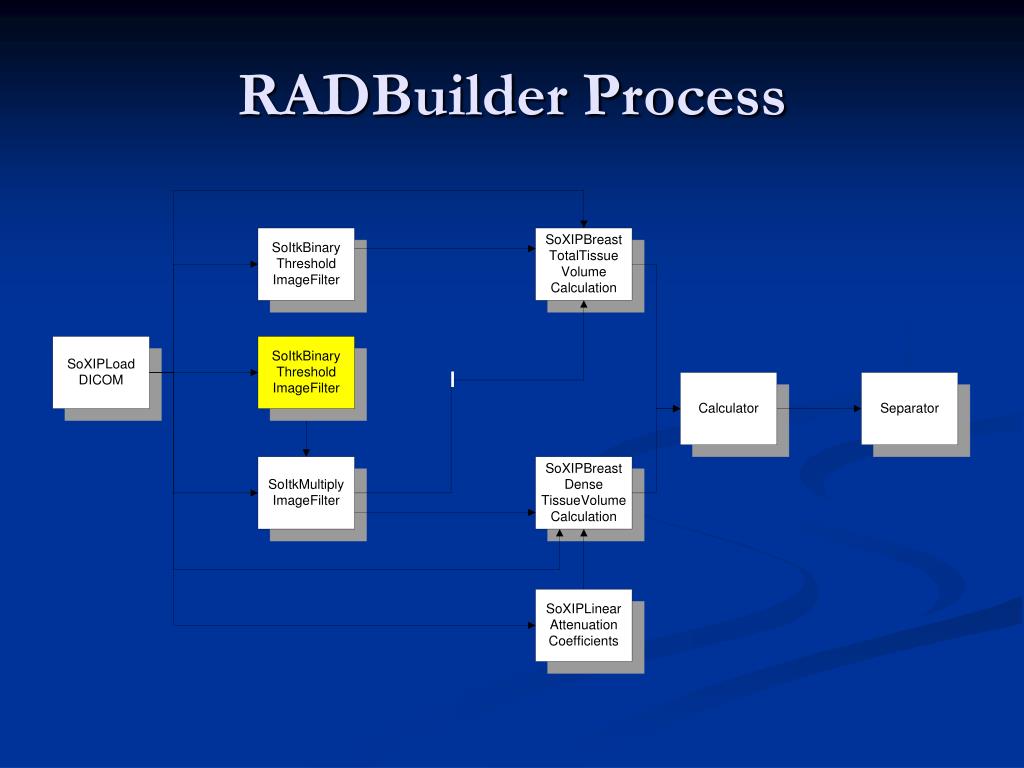

  19. RADBuilder Process

  20. Input Output SoItkBinaryThresholdImageFilter • Each pixel compared to threshold value • Output image of 0 and 1 values

  21. RADBuilder Process

  22. Input 2 Input 1 Output SoItkMultiplyImageFilter • Pixel-wise multiplication of two images • Lays background mask on top of original image

  23. RADBuilder Process

  24. SoXIPLinearAttenuationCoefficients • Determines difference between effective attenuation of dense tissue and fat • This Attenuation Difference Coefficient is chosen from a table [4] • Based on DICOM header information • Anode target material • Filter material • kVp • Breast Thickness

  25. RADBuilder Process

  26. SoXIPBreastDenseTissueVolumeCalculation • hd(r) : height of dense tissue at pixel r • µd, eff - µf, eff : Attenuation Difference Coefficient • g(r) : current pixel value • gf : fatty tissue reference value [4]

  27. SoXIPBreastDenseTissueVolumeCalculation • hd(r) : height of dense tissue at pixel r • µd, eff - µf, eff : Attenuation Difference Coefficient • g(r) : current pixel value • gf : fatty tissue reference value [4]

  28. SoXIPBreastDenseTissueVolumeCalculation • hd(r) : height of dense tissue at pixel r • µd, eff - µf, eff : Attenuation Difference Coefficient • g(r) : current pixel value • gf : fatty tissue reference value [4]

  29. SoXIPBreastDenseTissueVolumeCalculation • hd(r) : height of dense tissue at pixel r • µd, eff - µf, eff : Attenuation Difference Coefficient • g(r) : current pixel value • gf : fatty tissue reference value [4]

  30. SoXIPBreastDenseTissueVolumeCalculation • hd(r) : height of dense tissue at pixel r • µd, eff - µf, eff : Attenuation Difference Coefficient • g(r) : current pixel value • gf : fatty tissue reference value [4]

  31. Where does fatty tissue reference value, gf , come from? • Maximum pixel value (minimum attentuation) in the interior of the breast (this should represent a pure fat pixel). • Calculate a histogram of the image. • Select the pixel value at 80% (empirical determination) of the maximum pixel values (avoids skin edges; low attenuation due to incomplete thickness).

  32. RADBuilder Process

  33. Input Output SoItkBinaryThresholdImageFilter • Adjust parameters to detect breast edge instead of entire region

  34. RADBuilder Process

  35. SoXIPBreastTotalTissueVolumeCalculation • h(r) : total height of tissue at pixel r • H : compressed breast thickness • d(r) : Euclidean distance to the edge between breast tissue and background [4]

  36. SoXIPBreastTotalTissueVolumeCalculation • h(r) : total height of tissue at pixel r • H : compressed breast thickness • d(r) : Euclidean distance to the edge between breast tissue and background [4]

  37. SoXIPBreastTotalTissueVolumeCalculation • h(r) : total height of tissue at pixel r • H : compressed breast thickness • d(r) : Euclidean distance to the edge between breast tissue and background [4]

  38. SoXIPBreastTotalTissueVolumeCalculation • h(r) : total height of tissue at pixel r • H : compressed breast thickness • d(r) : Euclidean distance to the edge between breast tissue and background [4]

  39. SoXIPBreastTotalTissueVolumeCalculation • If Euclidean distance is less than half of breast compression … • use first formula in calculation of total tissue volume [4]

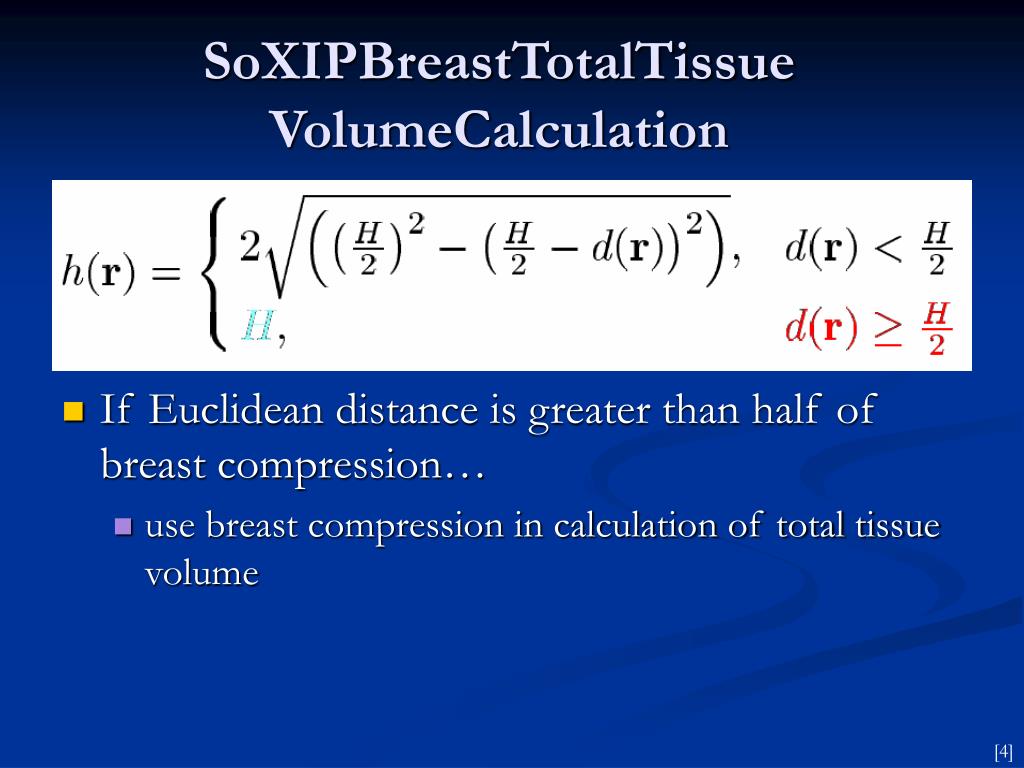

  40. SoXIPBreastTotalTissueVolumeCalculation • If Euclidean distance is greater than half of breast compression… • use breast compression in calculation of total tissue volume [4]

  41. RADBuilder Process

  42. x 100 = Percent Density Calculator • Module in XIPBuilder Dense Tissue Volume Total Tissue Volume

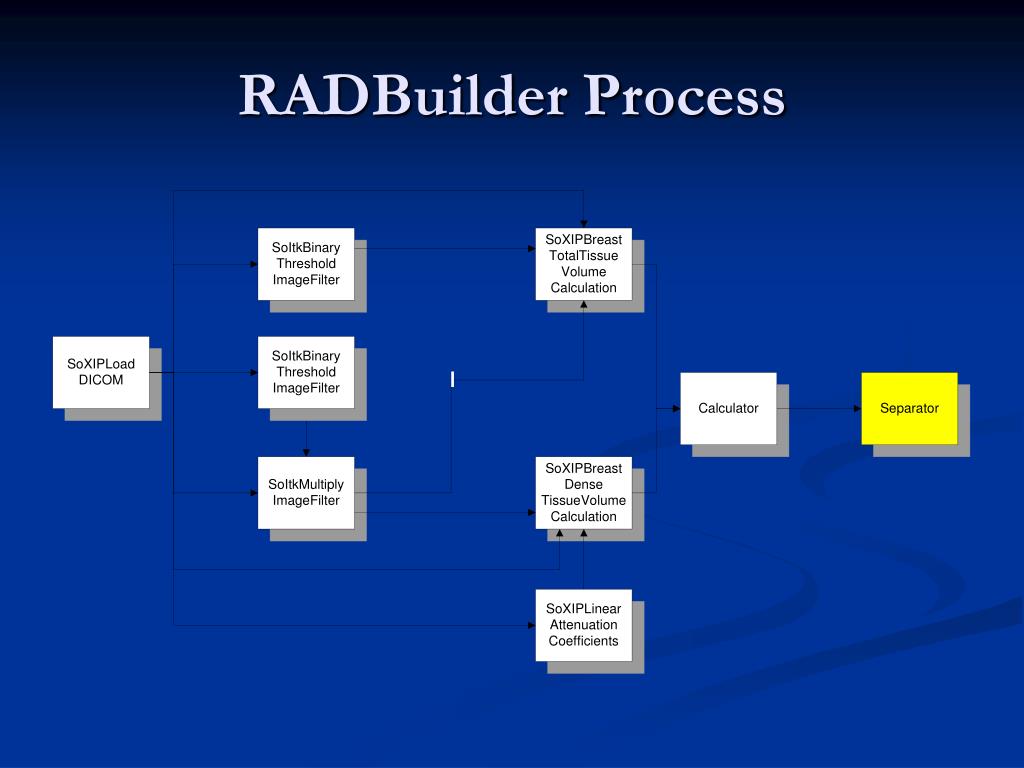

  43. RADBuilder Process

  44. Separator • Module in RADBuilder • Displays output • In this case, text

  45. Methods II • 20 CC full-field digital mammograms • Prior manual breast density assessment using ImageJ • Determine breast density using Cumulus™, a popular interactive thresholding program • Determine breast density with the automated XIP solution

  46. Methods III • Compare the three measurements of breast density to determine Kendall’s Coefficient of Concordance • Use that coefficient to determine a χ2 that allows testing of the null hypothesis: There is no agreement in the assessment of breast density by the three methods

  47. Results • The overall Kendall’s Coefficient comparing the three systems was 0.502 • For 20 cases and three systems, the χ2 is 57.276 which allows the rejection of the null hypothesis (χ2 of 30.14, 19 degrees of freedom, α =0.05).

  48. Conclusion • It was possible to develop, in XIP, an automatic software application to measure volumetric breast density in mammograms. • The automatic measurement agreed well with two, independent, manual thresholding based techniques in common, current use.

  49. Future Work • MLO view capability • Anisotropic Filter • Improve fatty reference value identification • Validate this and other techniques against ground truth (MRI)
