The Thermite Process

zeus-kelley avatar
zeus-kelley
11 diapositives · 291 Views · Nov 19, 2014

The Thermite Process. A very violent reaction that liberates vast quantities of heat results in the formation of molten iron. Purpose. To observe the extremely violent reaction that leads to the formation of iron from its oxide (ore)

#the thermite process #the thermite process ppt #powerpoint #presentation
The Thermite Process - slide 1
01 / 11The Thermite Process
1 / 17

Télécharger la présentation

The Thermite Process
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

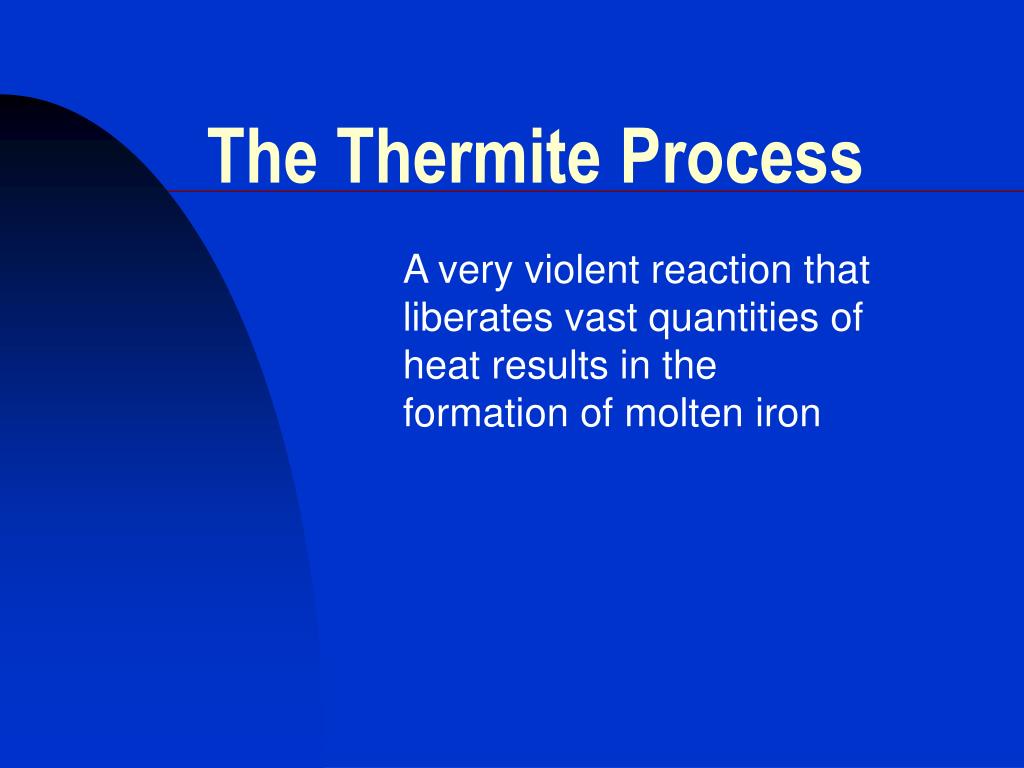

  1. The Thermite Process A very violent reaction that liberates vast quantities of heat results in the formation of molten iron

  2. Purpose • To observe the extremely violent reaction that leads to the formation of iron from its oxide (ore) • A regulus is the metallic mass that forms beneath the slag at the bottom of a crucible

  3. Demonstration • Reaction is very energetic and exothermically so • Possibility of explosion if water is present in the thermite mixture • Temperatures exceed 4500°F

  4. Concepts • Single replacement reactions • Exothermic reactions • Redox reactions

  5. Single Replacement Reactions • General type of inorganic reaction • 2Al(s)+Fe2O3(s) Al2O3(s)+2Fe(l) • Oxide anions are transferred during reaction from iron(III)oxide to aluminum Oxidation number of Fe is 3+ in starting material and zero in product Oxidation number of Al is 0 in starting material and 3+ in product Oxidation number of oxygen is taken as 2-

  6. Exothermic Reactions • Heat flows out of system • Surroundings heat up • Amount of energy liberated equals -730 kJ/mol where kJ stands for “kilojoules” a unit of energy, and “mol” stands for the quantity of matter known as a “mole”

  7. Redox Reactions • “Transfer of electrons” reaction • Redox means “reduction-oxidation” • Al(s) gave its electrons to Fe2O3(s) • Al(s) was oxidized • Fe2O3(s) was reduced

  8. Conclusions • Single replacement reaction defined by the transfer of oxide anion from Fe2O3 to Al2O3 in this demonstration • Reaction demonstrates concept of heat flow • Al(s) gave up electrons so is the reducing agent • Fe2O3(s) gained electrons so it the oxidizing agent

  9. Comments • Applications in welding and military incendiary weapons • Discovered by Hans Goldschmidt in 1895 • Extremely dangerous reaction that should not be performed by students

  10. Quiz 1. Who invented the Thermite Process? 2. What is being oxidized in this reaction? 3. What are two applications of this process? 4. What is being reduced in this reaction? 5. Give a definition of an exothermic process.

  11. Answers 1. Hans Goldschmidt 2. Aluminum metal is being oxidized to aluminum oxide 3. Welding and military incendiary weapons are a few applications 4. Iron oxide is being reduced to iron metal 5. Heat flows out of a system and the surrounding heat up
