Writing and Naming Chemical Compounds

Writing and Naming Chemical Compounds. Ionic Compounds. Review:. Common Oxidation Numbers (Charges). Cation- Positive ion that has LOST electrons (Metals) Anion- Negative Ion that has GAINED electrons (Nonmetals). Polyatomic Ions you MUST know:. Nitrate NO 3 - Carbonate CO 3 -2

zev
Télécharger la présentation

Writing and Naming Chemical Compounds

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Writing and Naming Chemical Compounds

  2. Ionic Compounds

  3. Review: Common Oxidation Numbers (Charges) Cation- Positive ion that has LOST electrons (Metals) Anion- Negative Ion that has GAINED electrons (Nonmetals)

  4. Polyatomic Ions you MUST know: Nitrate NO3- Carbonate CO3-2 Sulfate SO4-2 Phosphate PO4-3 Hydroxide OH- Acetate C2H3O2- (CH3COO-) Ammonium NH4+ • Remember polyatomic ions STAY TOGETHER!!!!

  5. Bonding Review: • Ionic compounds are formed when a metal transfers electrons to a nonmetal • Cation (metal) + Anion (nonmetal) = Ionic bond • Cation (metal) + Polyatomic Ion = Ionic bond • Polyatomic ion + Anion (nonmetal) = Ionic bond • Polyatomic Ion + Polyatomic Ion = Ionic bond

  6. Writing Formulas for Ionic Compounds • Rules: • The symbol tells the element and the subscript (little number to the right of the symbol) tells how many of each element is in the formula • The cation (metal ion) or positively charged polyatomic ion is always written first and the anion (nonmetal ion) or negatively charged polyatomic ion is always written second

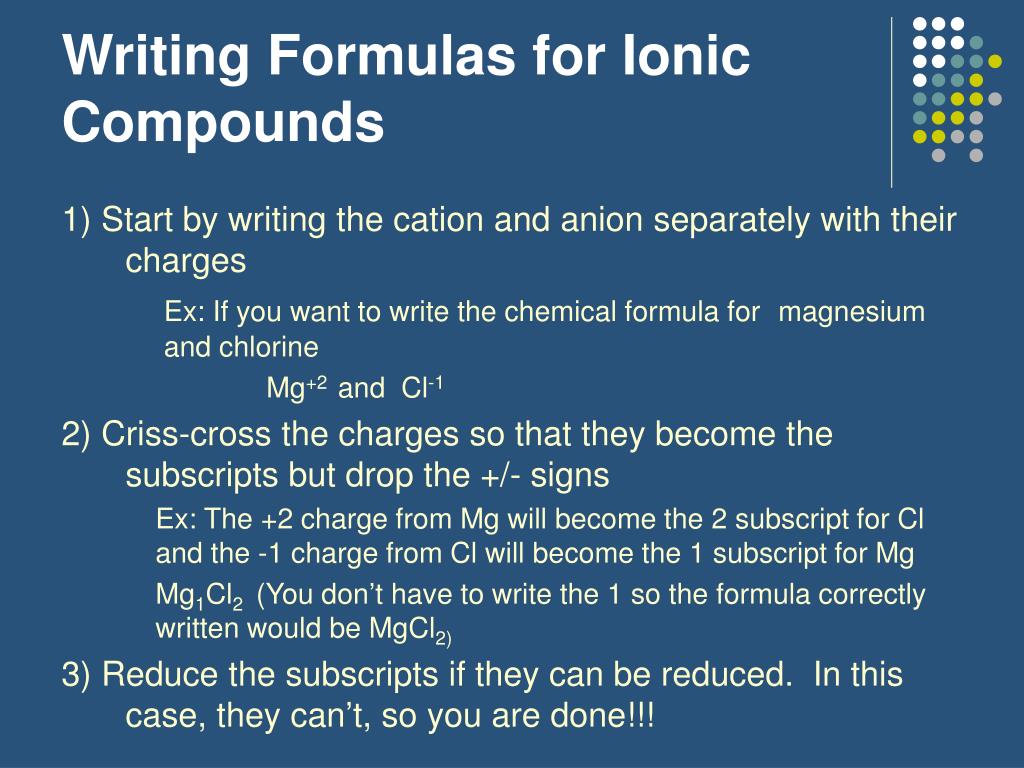

  7. Writing Formulas for Ionic Compounds 1) Start by writing the cation and anion separately with their charges Ex: If you want to write the chemical formula for magnesium and chlorine Mg+2 and Cl-1 2) Criss-cross the charges so that they become the subscripts but drop the +/- signs Ex: The +2 charge from Mg will become the 2 subscript for Cl and the -1 charge from Cl will become the 1 subscript for Mg Mg1Cl2 (You don’t have to write the 1 so the formula correctly written would be MgCl2) 3) Reduce the subscripts if they can be reduced. In this case, they can’t, so you are done!!!

  8. Now You Try! • 1) lithium and fluorine • 2) calcium and sulfur • 3) cesium and oxygen • 4) aluminum and oxygen • 5) sodium and sulfur • 6) aluminum and chlorine • 7) potassium and oxygen

  9. Check Your Answers: • 1) LiF • 2) CaS • 3) Cs2O • 4) Al2O3 • 5) Na2S • 6) AlCl3 • 7) K2O

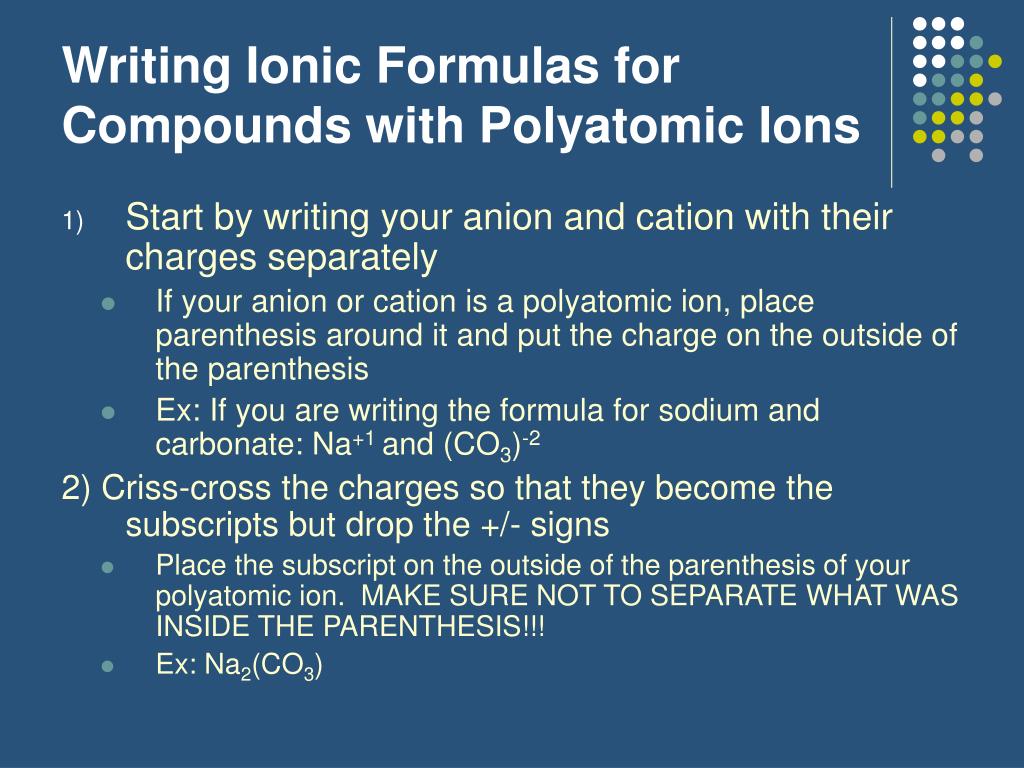

  10. Writing Ionic Formulas for Compounds with Polyatomic Ions • Start by writing your anion and cation with their charges separately • If your anion or cation is a polyatomic ion, place parenthesis around it and put the charge on the outside of the parenthesis • Ex: If you are writing the formula for sodium and carbonate: Na+1 and (CO3)-2 2) Criss-cross the charges so that they become the subscripts but drop the +/- signs • Place the subscript on the outside of the parenthesis of your polyatomic ion. MAKE SURE NOT TO SEPARATE WHAT WAS INSIDE THE PARENTHESIS!!! • Ex: Na2(CO3)

  11. Now You Try! • 1) aluminum and nitrate • 2) magnesium and phosphate • 3) ammonium and chlorine • 4) calcium and acetate • 5) sodium and hydroxide

  12. Check Your Answers: • Al(NO3)3 • Mg3(PO4)2 • (NH4)Cl • Ca(C2H3O2)2 • Na(OH)

  13. Oxidation Number Exceptions • Since the oxidation numbers of transition metals cannot be predicted by looking at the group numbers, you will need to memorize the oxidation numbers for these exceptions • Ag+1 • Zn+2 • Cd+2 • Hg2+2 mercury (I) • Hg+2 mercury (II) These Roman Numerals will make since in about 3 slides

  14. Naming Binary Ionic Compounds • Binary means there are only two elements in the compound • Rules for Naming: • 1) Name the metal • 2) Shorten the name of the non-metal and add the suffix “– ide” • Ex: KCl would be named potassium chloride

  15. Now You Try! • Name the following compounds: • 1) MgBr2 • 2) NaF • 3) Al2O3 • 4) CdO • 5) ZnS • 6) Na2O • 7) K3N

  16. Check Your Answers: • 1) magnesium bromide • 2) sodium fluoride • 3) aluminum oxide • 4) cadmium oxide • 5) zinc sulfide • 6) sodium oxide • 7) potassium nitride

  17. Naming Ionic Compounds with Transition metals • Since the oxidation numbers of transition metals cannot be predicted by looking at the group numbers, a roman numeral must be used to name the oxidation state of the transition metal in a compound • Transition metals can have more than one oxidation number (charge) • The only exception to this rule is when naming the transition metals you were told to memorize (silver, zinc, cadmium, mercury still needs a roman numeral) • To find the roman numeral, you must WORK BACKWARDS and uncriss-cross your charges! • Ex: FeCl2 uncriss-crossed is Fe+2 and Cl-, so the Roman numeral when naming iron is (II) therefore the name of the compound is iron (II) chloride

  18. Now You Try! • 1) SnO • 2) CuS • 3) Hg2I2 • 4) CuI • 5) PbO2

  19. Check Your Answers: • 1) tin (II) oxide • 2) copper (II) sulfide • 3) mercury (I) iodide • 4) copper (I) iodide • 5) lead (IV) oxide

  20. So how do you write the formula for a compound with a transition metal? • Same process as naming ionic compounds only the Roman numeral is the oxidation number, so use it as the charge! • Iron (III) oxide • EX: Fe+3 and O-2 is written Fe2O3

  21. Now You Try! • Write the formula for the following compounds: • 1) Tin (IV) chloride • 2) Lead (IV) oxide • 3) Tin (II) sulfide • 4) Mercury (II) bromide • 5) Mercury (I) fluoride • 6) Copper (II) nitride • 7) Iron (II) iodide

  22. Check Your Answers: • 1) SnCl4 • 2) PbO2 • 3) SnS • 4) HgBr2 • 5) Hg2F • 6) Cu3N2 • 7) FeI2

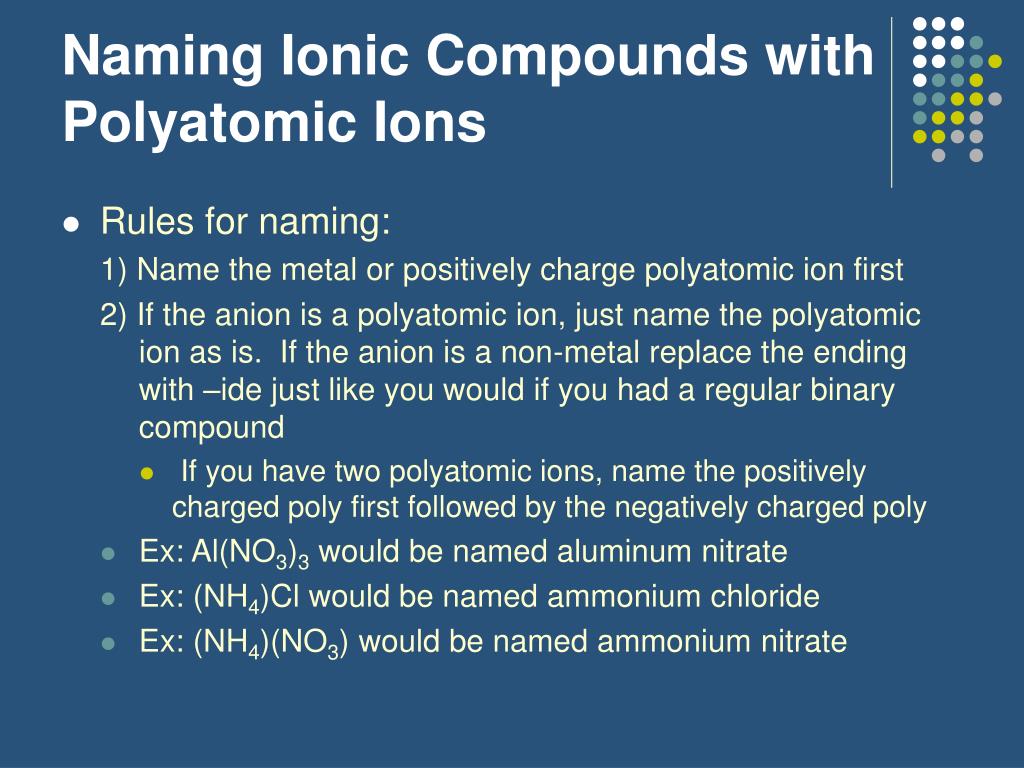

  23. Naming Ionic Compounds with Polyatomic Ions • Rules for naming: 1) Name the metal or positively charge polyatomic ion first 2) If the anion is a polyatomic ion, just name the polyatomic ion as is. If the anion is a non-metal replace the ending with –ide just like you would if you had a regular binary compound • If you have two polyatomic ions, name the positively charged poly first followed by the negatively charged poly • Ex: Al(NO3)3 would be named aluminum nitrate • Ex: (NH4)Cl would be named ammonium chloride • Ex: (NH4)(NO3) would be named ammonium nitrate

  24. Molecular Compounds

  25. Review: • Molecular compounds are formed when two nonmetals form a covalent bond • These compounds are called molecules • Covalent bonds are the result of atoms sharing electrons • Nonmetal + nonmetal = molecule

  26. Naming Molecular Compunds • We use Greek Prefixes to indicate the number of atoms of each element that are present • 1- mono (not used if for the first element) • 2- di • 3- tri • 4- tetra • 5- penta • 6- hexa • 7- hepta • 8- octa • 9- nona • 10- deca

  27. Naming Molecular Compounds • Rules for naming: • 1) Name the first element using the appropriate prefix that indicates how many atoms are present • If there is only 1 element present you do not name it using mono • 2) Name the second element using the appropriate prefix and change the ending to –ide • EX: CO would be named carbon monoxide • EX: Cl2O7 would be named dichlorine heptoxide

  28. Now You Try! • 1) CO2 • 2) N2O3 • 3) Cl2O • 4) SO3 • 5) P4O10

  29. Check Your Answers: • 1) carbon dioxide • 2) dinitrogen trioxide • 3) dichlorine monoxide • 4) sulfur trioxide • 5) tetraphosphorus decoxide

  30. Naming Acids • Compounds which have hydrogen written as the cation and have the physical state (aq) written next to them are acids • If any other physical state is noted, (g) (s) or (l), the compound is named like a regular binary compound • These compounds are named hydro (nonmetal)ic acid • EX: HCl (aq) is named hydrochloric acid • If a hydrogen is written in front of a polyatomic ion the compound is named (poly)ic acid • EX: H(NO3) (aq) is named nitric acid

  31. Now You Try! • 1) HF (aq) • 2) H2S (aq) • 3) H3P (aq) • 4) H2(SO4) (aq) • 5) H3(PO4) (aq) • 6) HBr (l)

  32. Check Your Answers: • 1) Hydrofluoric acid • 2) Hydrosulfuric acid • 3) Hydrophosphoric acid • 4) Sulfuric acid • 5) Phosphoric acid • 6) Hydrogen bromide

  33. Diatomic Elements • There are 7 elements that can’t exist as single atoms in nature so they must be written as two atoms when they are not combined into compounds • They are just called by their elemental names • You must MEMORIZE these: • Hydrogen, H2 • Oxygen, O2 • Nitrogen, N2 • Fluorine, F2 • Chlorine, Cl2 • Bromine, Br2 • Iodine, I2 You can remember these: H. BrONClIF
