Graphical Models of Articulation Using GMTK

1. Graphical Models of Articulation Using GMTK Karen Livescu Massachusetts Institute of Technology CLSP Workshop 2001 August 16, 2001

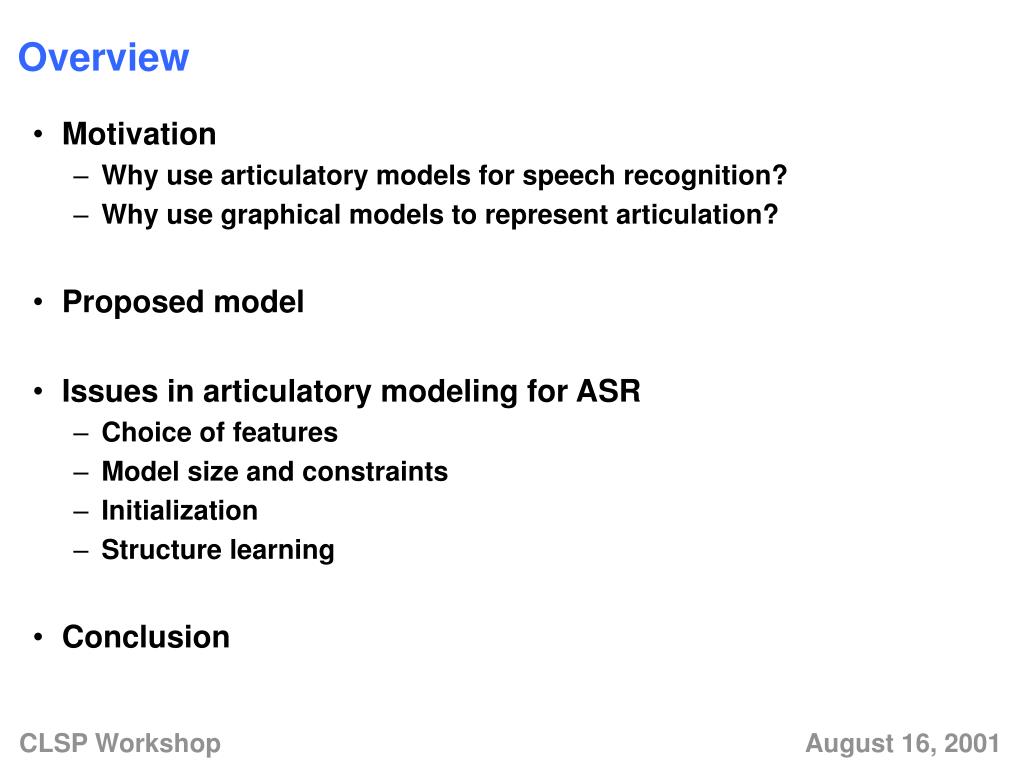

2. Overview • Motivation • Why use articulatory models for speech recognition? • Why use graphical models to represent articulation? • Proposed model • Issues in articulatory modeling for ASR • Choice of features • Model size and constraints • Initialization • Structure learning • Conclusion

3. Lips Velum Glottis Tongue Why articulatory modeling? • Definition: • Articulatory features specify the state of the articulators (directly or implicitly) at a given point in time • Features can be binary/multivalued, discrete/continuous, partial/complete • Motivation: • Speech may be better described by asynchronous motion of articulators than by phones with rigid start and end times • Articulatory features concisely represent coarticulatory effects such as nasalization and inserted stop closures (“warmth”  “warmpth”) • Articulatory features can help recover information; e.g., a vowel is more likely to be nasalized if following nasal is deleted • Pronunciation modeling: phones are more likely to be modified by articulatory change rather than replaced with other phones

4. Phone-based view: Brain: Give me a []! Lips, tongue, velum, glottis: Right on it, sir! Lips, tongue, velum, glottis: Right on it, sir! Lips, tongue, velum, glottis: Right on it, sir! Lips, tongue, velum, glottis: Right on it, sir! Brain: Give me a []! Lips: Huh? Velum, glottis: Right on it, sir ! Velum, glottis: Right on it, sir ! Tongue: Umm…yeah, OK. Example: “warmth”  “warmpth” • Articulatory view:

5. Why graphical models to represent articulation? • Graphical models allow us to • quickly and easily specify structures with large number of variables • represent knowledge about the variables in a concise and transparent way • easily reason and communicate information about conditional independence relations in the model • perform structure learning explicitly on the variables of interest • Articulatory models use a large number of variables in each time frame, therefore taking advantage of the above properties

6. frame i frame i+1 phone phone . . . . . . a1 a2 a1 a2 aN aN obs obs Articulatory graphical model for speech recognition • Initial version implemented at CLSP Workshop 2001

7. GMTK implementation of articulatory structure variable : phone { type: discrete hidden cardinality NUM_PHONES; switchingparents: nil; conditionalparents: word(0), wordPosition(0) using MTCPT("wordWordPos2Phone"); } variable : voicing { type: discrete hidden cardinality 2; switchingparents: nil; conditionalparents: phone(0), voicing(-1) using MDCPT(“voicingMDCPT”); } variable : velum { type: discrete hidden cardinality 2; switchingparents: nil; conditionalparents: phone(0), velum(-1) using MDCPT("velumMDCPT"); }

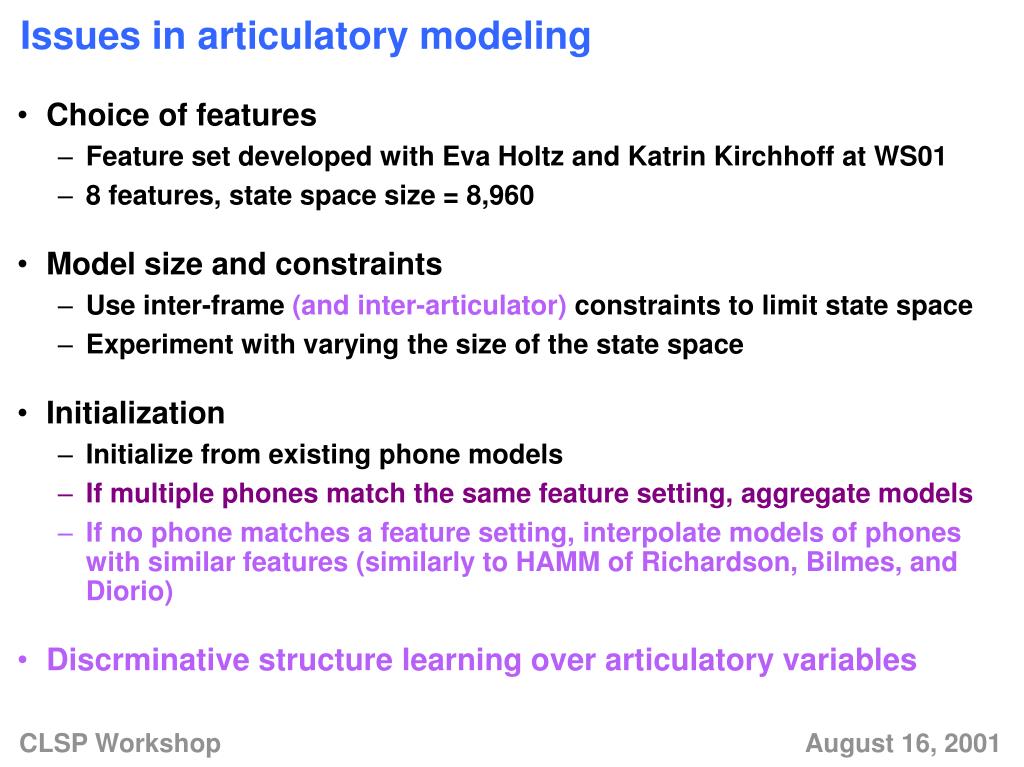

8. Issues in articulatory modeling • Choice of features • Feature set developed with Eva Holtz and Katrin Kirchhoff at WS01 • 8 features, state space size = 8,960 • Model size and constraints • Use inter-frame (and inter-articulator) constraints to limit state space • Experiment with varying the size of the state space • Initialization • Initialize from existing phone models • If multiple phones match the same feature setting, aggregate models • If no phone matches a feature setting, interpolate models of phones with similar features (similarly to HAMM of Richardson, Bilmes, and Diorio) • Discrminative structure learning over articulatory variables

9. Conclusion • Speech may be better modeled by articulatory features than by phones • Graphical models in general, and GMTK in particular, allow for easy experimentation with articulatory models • Plan for future work: • Experiments with pre-specified articulatory structure • Structure learning on articulatory variables
