  1. HMI Data Analysis SoftwarePlan for Phase-D

  2. JSOC - HMI Pipeline Processing Data Product HMI Data Internal rotation Ω(r,Θ) (0<r<R) Spherical Harmonic Time series To l=1000 Heliographic Doppler velocity maps Filtergrams Mode frequencies And splitting Internal sound speed, cs(r,Θ) (0<r<R) Full-disk velocity, v(r,Θ,Φ), And sound speed, cs(r,Θ,Φ), Maps (0-30Mm) Local wave frequency shifts Ring diagrams Doppler Velocity Level-0 Carrington synoptic v and cs maps (0-30Mm) Time-distance Cross-covariance function Tracked Tiles Of Dopplergrams Wave travel times High-resolution v and cs maps (0-30Mm) Egression and Ingression maps Wave phase shift maps Deep-focus v and cs maps (0-200Mm) Far-side activity index Stokes I,V Line-of-sight Magnetograms Level-1 Line-of-Sight Magnetic Field Maps Stokes I,Q,U,V Full-disk 10-min Averaged maps Vector Magnetograms Fast algorithm Vector Magnetic Field Maps Vector Magnetograms Inversion algorithm Coronal magnetic Field Extrapolations Tracked Tiles Tracked full-disk 1-hour averaged Continuum maps Coronal and Solar wind models Continuum Brightness Solar limb parameters Brightness Images Brightness feature maps HMI Data Analysis Pipeline

  3. Code: Doppler velocity, Lev1 J.Schou S.Tomczyk Status: needs improvements Code: artificial data N. Mansour A. Wray R. Stein Status: in development Helioseismology Internal rotation Ω(r,Θ) (0<r<R) Spherical Harmonic Time series To l=1000 Heliographic Doppler velocity maps Mode frequencies And splitting Internal sound speed, cs(r,Θ) (0<r<R) Full-disk velocity, v(r,Θ,Φ), And sound speed, cs(r,Θ,Φ), Maps (0-30Mm) Local wave frequency shifts Filtergrams Ring diagrams Doppler Velocity Carrington synoptic v and cs maps (0-30Mm) Time-distance Cross-covariance function Tracked Tiles Of Dopplergrams Wave travel times High-resolution v and cs maps (0-30Mm) Egression and Ingression maps Wave phase shift maps Deep-focus v and cs maps (0-200Mm) Far-side activity index Back to overview

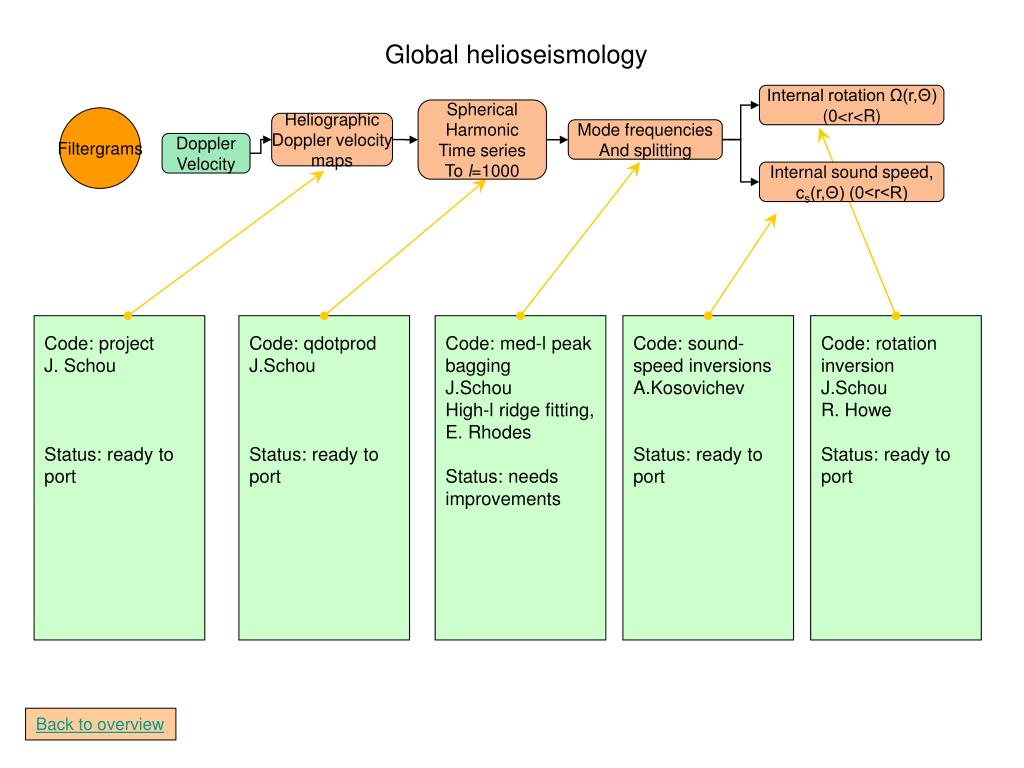

  4. Internal rotation Ω(r,Θ) (0<r<R) Spherical Harmonic Time series To l=1000 Heliographic Doppler velocity maps Mode frequencies And splitting Internal sound speed, cs(r,Θ) (0<r<R) Code: project J. Schou Status: ready to port Code: qdotprod J.Schou Status: ready to port Code: med-l peakbagging J.Schou High-l ridge fitting, E. Rhodes Status: needs improvements Code: sound-speed inversions A.Kosovichev Status: ready to port Code: rotation inversion J.Schou R. Howe Status: ready to port Global helioseismology Filtergrams Doppler Velocity Back to overview

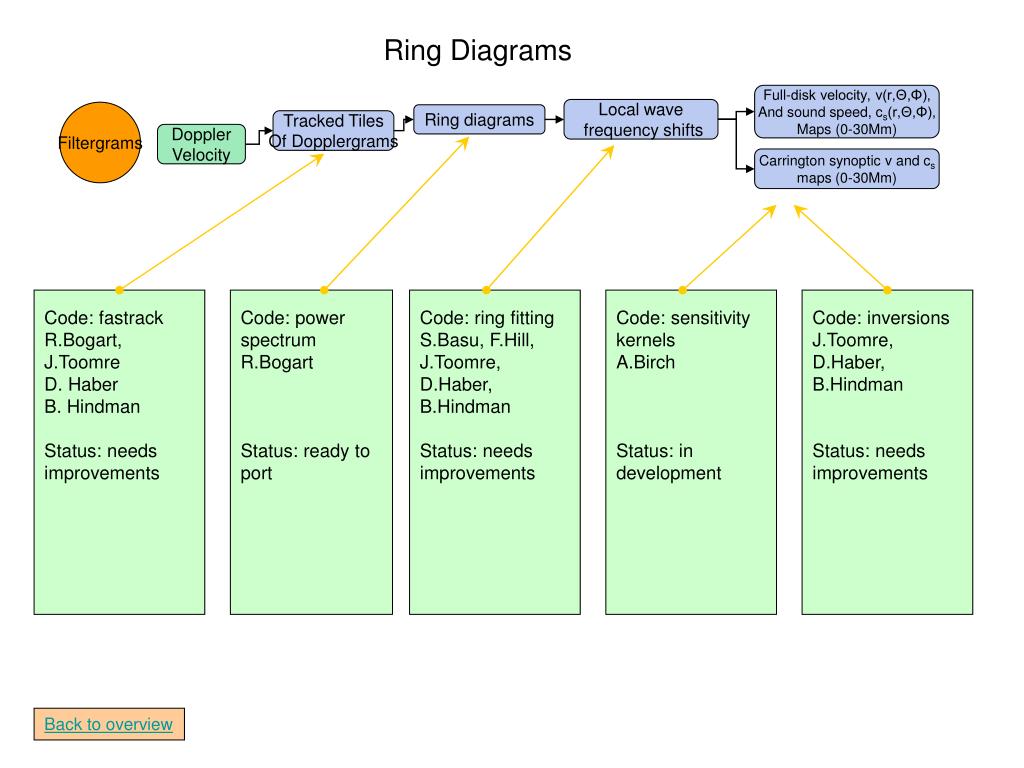

  5. Full-disk velocity, v(r,Θ,Φ), And sound speed, cs(r,Θ,Φ), Maps (0-30Mm) Local wave frequency shifts Filtergrams Ring diagrams Tracked Tiles Of Dopplergrams Doppler Velocity Carrington synoptic v and cs maps (0-30Mm) Code: fastrack R.Bogart, J.Toomre D. Haber B. Hindman Status: needs improvements Code: power spectrum R.Bogart Status: ready to port Code: sensitivity kernels A.Birch Status: in development Code: inversions J.Toomre, D.Haber, B.Hindman Status: needs improvements Code: ring fitting S.Basu, F.Hill, J.Toomre, D.Haber, B.Hindman Status: needs improvements Ring Diagrams Back to overview

  6. Code: inversions A.Kosovichev J.Zhao, A.Birch S.Couvidat J.Toomre B.Hindman Status: needs improvements Code: sensitivity kernels A.Kosovichev J.Zhao A.Birch Status: needs improvements Code: travel time fitting T.Duvall J.Zhao S.Couvidat Status: needs improvements Code: cross-covariance T.Duvall J.Zhao Status: needs improvements Code: deep-focus maps T.Duvall A.Kosovichev J.Zhao Status: needs substantial development Code: fastrack R.Bogart, T.Duvall J.Zhao Status: needs improvements (remapping issues) Time-Distance Helioseismology Full-disk velocity, v(r,Θ,Φ), And sound speed, cs(r,Θ,Φ), Maps (0-30Mm) Filtergrams Carrington synoptic v and cs maps (0-30Mm) Time-distance Cross-covariance function Doppler Velocity Tracked Tiles Of Dopplergrams Wave travel times High-resolution v and cs maps (0-30Mm) Deep-focus v and cs maps (0-200Mm) Back to overview

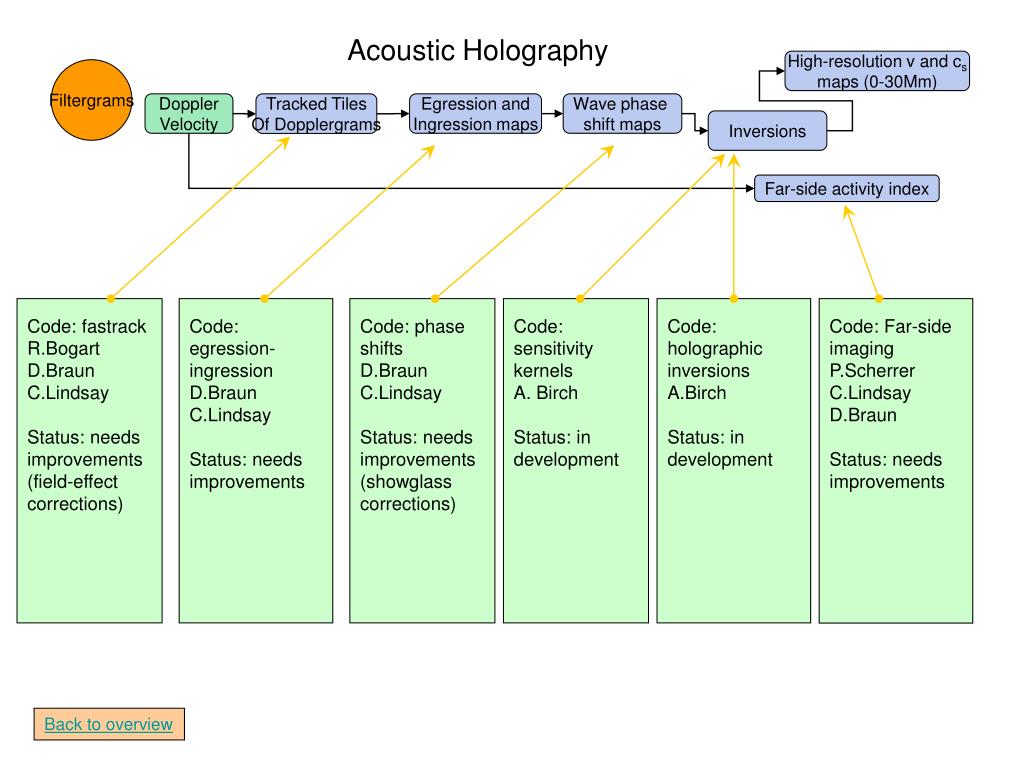

  7. Code: fastrack R.Bogart D.Braun C.Lindsay Status: needs improvements (field-effect corrections) Code: egression-ingression D.Braun C.Lindsay Status: needs improvements Code: phase shifts D.Braun C.Lindsay Status: needs improvements (showglass corrections) Code: sensitivity kernels A. Birch Status: in development Code: holographic inversions A.Birch Status: in development Code: Far-side imaging P.Scherrer C.Lindsay D.Braun Status: needs improvements Acoustic Holography High-resolution v and cs maps (0-30Mm) Filtergrams Doppler Velocity Tracked Tiles Of Dopplergrams Egression and Ingression maps Wave phase shift maps Inversions Far-side activity index Back to overview

  8. Code: Stokes I,V, Lev0.5 V & LOS field J. Schou S. Tomzcyk Status: in development Code: Stokes I,Q,U,V J. Schou S. Tomzcyk Status: in development Filtergrams Stokes I,V Line-of-sight Magnetograms Line-of-Sight Magnetic Field Maps Stokes I,Q,U,V Full-disk 10-min Averaged maps Vector Magnetograms Fast algorithm Vector Magnetograms Inversion algorithm Coronal magnetic Field Extrapolations Tracked Tiles Coronal and Solar wind models Magnetic Fields Vector Magnetic Field Maps Back to overview

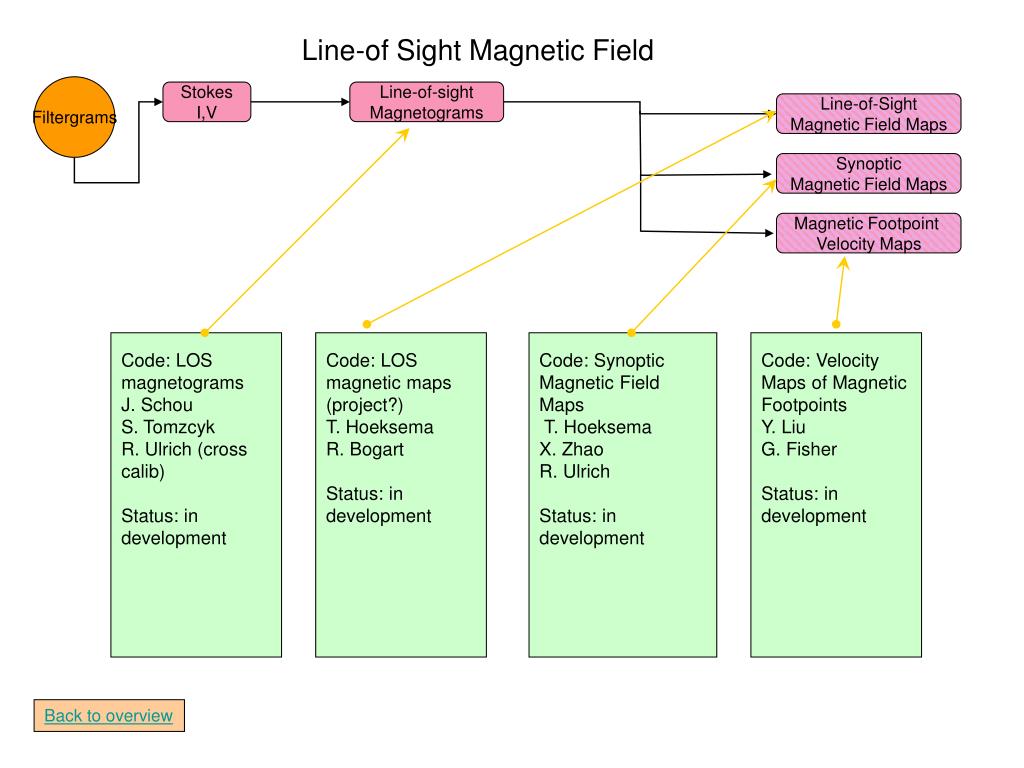

  9. Code: LOS magnetograms J. Schou S. Tomzcyk R. Ulrich (cross calib) Status: in development Code: LOS magnetic maps (project?) T. Hoeksema R. Bogart Status: in development Code: Synoptic Magnetic Field Maps T. Hoeksema X. Zhao R. Ulrich Status: in development Code: Velocity Maps of Magnetic Footpoints Y. Liu G. Fisher Status: in development Line-of Sight Magnetic Field Filtergrams Stokes I,V Line-of-sight Magnetograms Line-of-Sight Magnetic Field Maps Synoptic Magnetic Field Maps Magnetic Footpoint Velocity Maps Back to overview

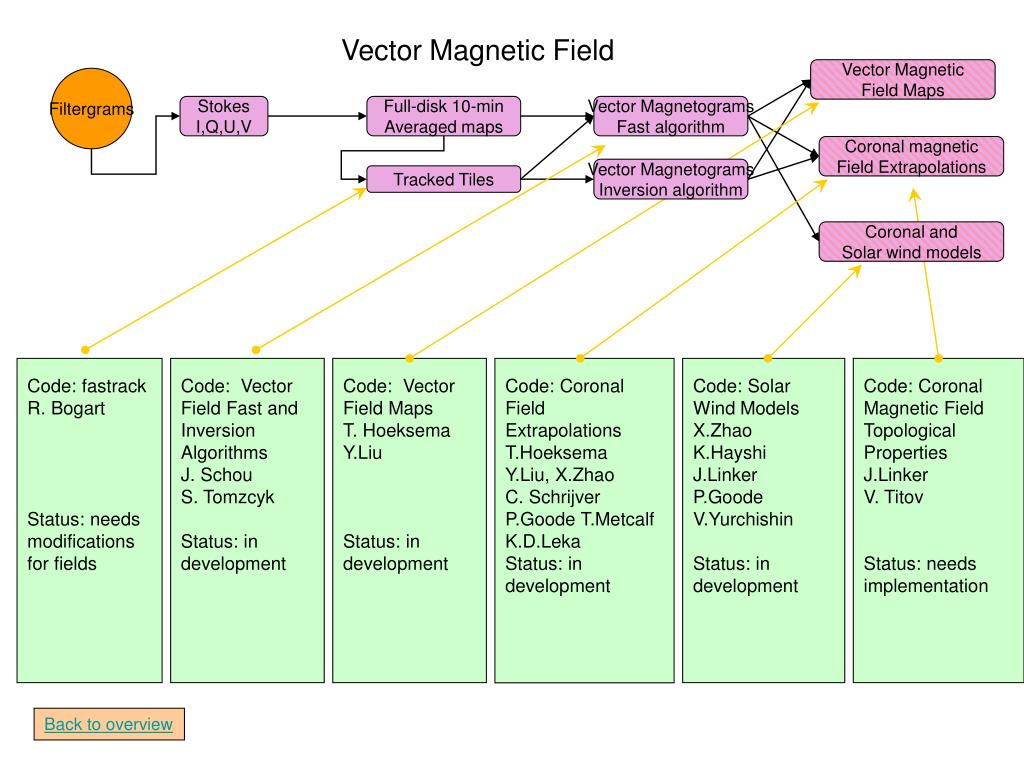

  10. Code: fastrack R. Bogart Status: needs modifications for fields Code: Solar Wind Models X.Zhao K.Hayshi J.Linker P.Goode V.Yurchishin Status: in development Code: Coronal Magnetic Field Topological Properties J.Linker V. Titov Status: needs implementation Code: Coronal Field Extrapolations T.Hoeksema Y.Liu, X.Zhao C. Schrijver P.Goode T.Metcalf K.D.Leka Status: in development Code: Vector Field Maps T. Hoeksema Y.Liu Status: in development Code: Vector Field Fast and Inversion Algorithms J. Schou S. Tomzcyk Status: in development Vector Magnetic Field Vector Magnetic Field Maps Filtergrams Stokes I,Q,U,V Full-disk 10-min Averaged maps Vector Magnetograms Fast algorithm Coronal magnetic Field Extrapolations Vector Magnetograms Inversion algorithm Tracked Tiles Coronal and Solar wind models Back to overview

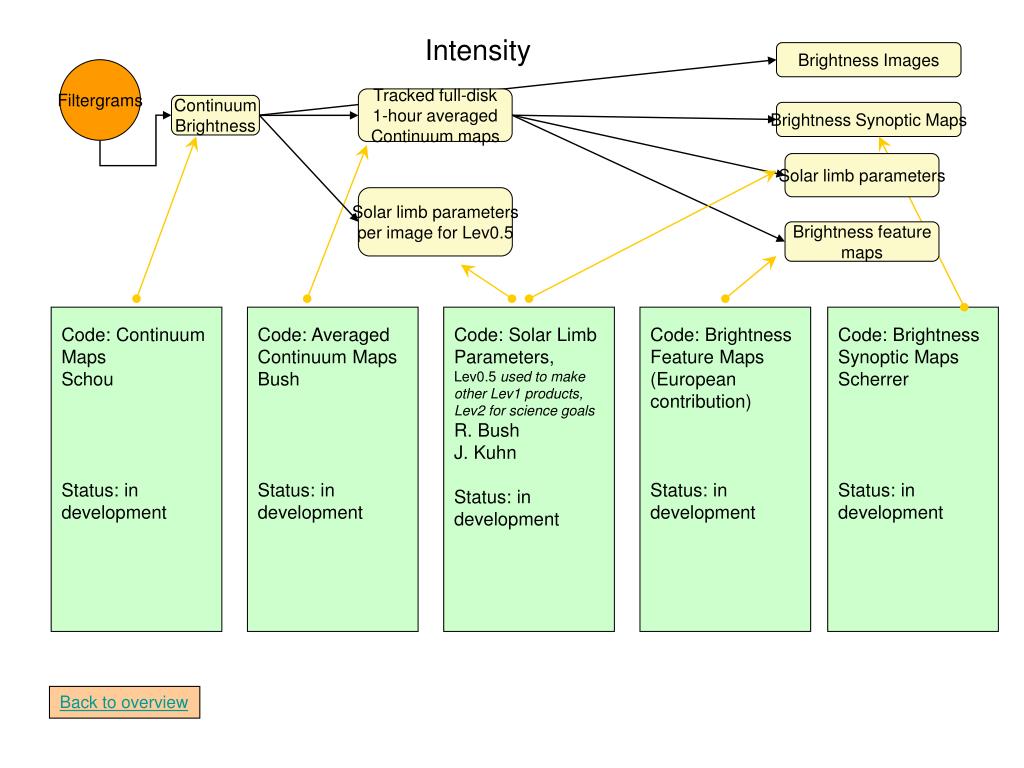

  11. Code: Continuum Maps Schou Status: in development Code: Solar Limb Parameters, Lev0.5 used to make other Lev1 products, Lev2 for science goals R. Bush J. Kuhn Status: in development Code: Brightness Feature Maps (European contribution) Status: in development Code: Averaged Continuum Maps Bush Status: in development Code: Brightness Synoptic Maps Scherrer Status: in development Intensity Brightness Images Filtergrams Tracked full-disk 1-hour averaged Continuum maps Continuum Brightness Brightness Synoptic Maps Solar limb parameters Solar limb parameters per image for Lev0.5 Brightness feature maps Back to overview
