Experiment 9 Evaporator Analysis & Coefficient of Performance

Experiment 9 Evaporator Analysis & Coefficient of Performance. I deal Refrigeration C ycle. 1-2 Isentropic compression in a compressor 2-3 Constant-pressure heat rejection in a condenser 3-4 Throttling in an expansion device 4-1 Constant-pressure heat absorption in an evaporator.

zorion
Télécharger la présentation

Experiment 9 Evaporator Analysis & Coefficient of Performance

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

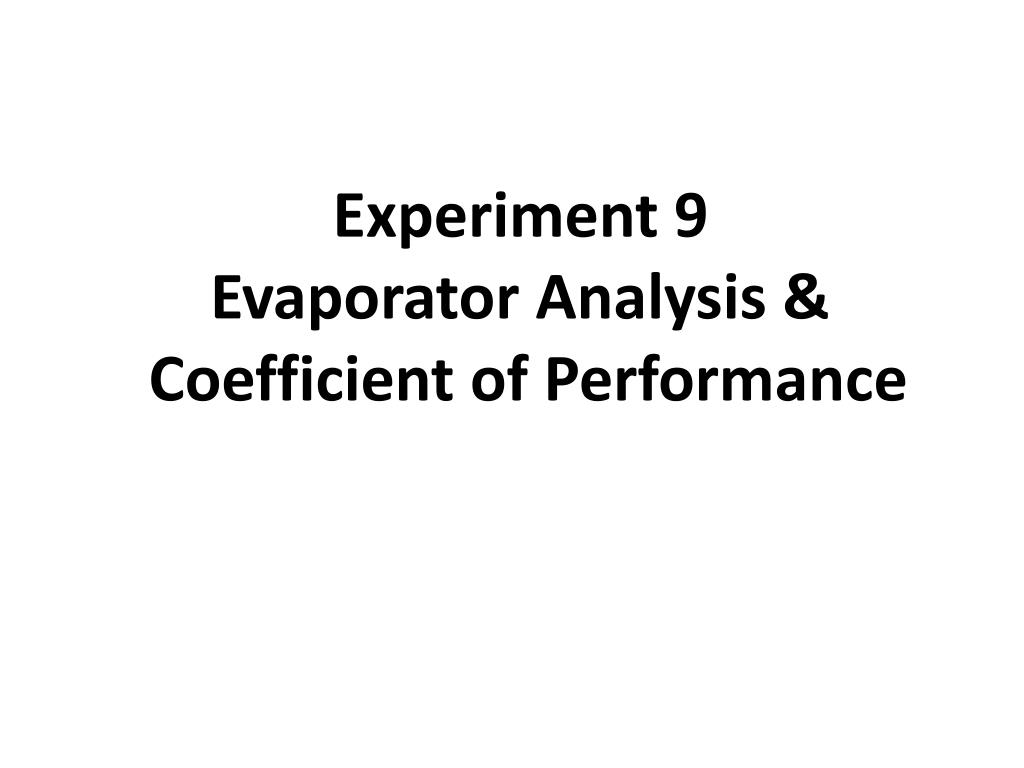

  1. Experiment 9Evaporator Analysis & Coefficient of Performance

  2. Ideal Refrigeration Cycle • 1-2 Isentropic compression in a compressor • 2-3 Constant-pressure heat rejection in a condenser • 3-4 Throttling in an expansion device • 4-1 Constant-pressure heat absorption in an evaporator

  3. Set-Up Procedure Turn on Fans Expansion valve up to 45 mm in the rotameter scale Wait 4 min Record difference of pressure Record temperature Shut-Down 1. Close receiver outlet V6 2. Wait 4 min and close receiver inlet V5 4. Evaporator 1. Compressor 2. Condenser 3. Expansion valve

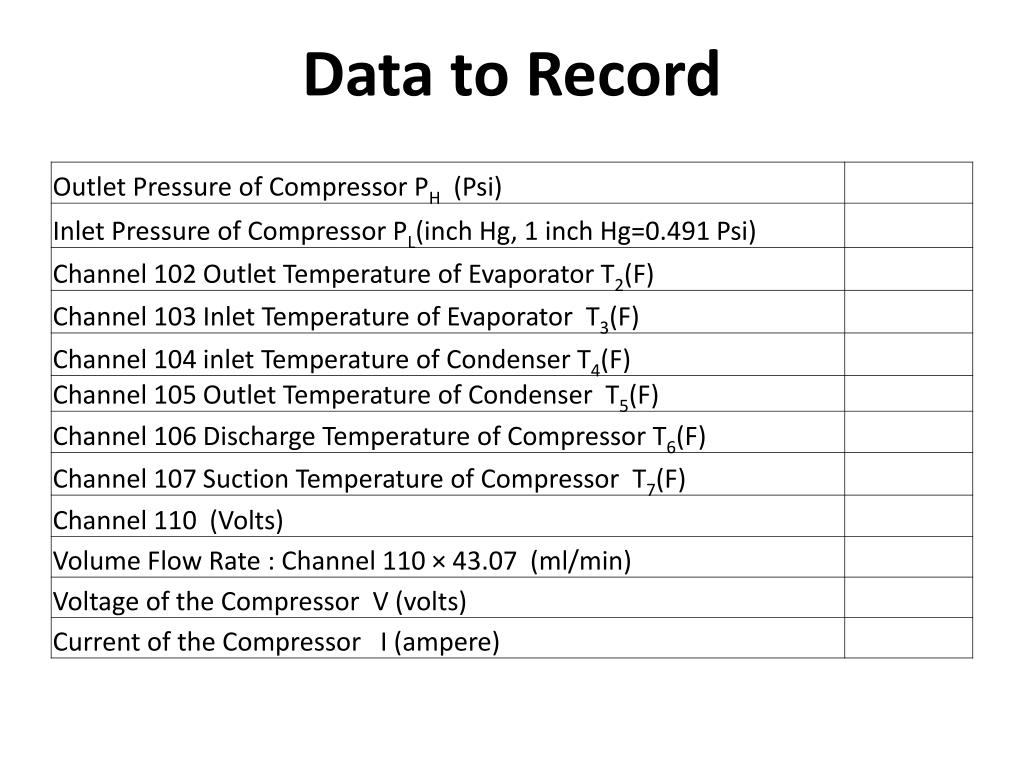

  4. Data to Record

  5. Data Analysis 1. Follow the lab manual to do the data analysis. 2. Property tables of the refrigerant (HCFC-123) are available on Dr. Alvarado’s website: http://etidweb.tamu.edu/classes/entc370/
