Persistent Tactical Seeability Through Integrated Sensor Guidance

1. Persistent Tactical Seeability Through Integrated Sensor Guidance Tim McLain Randy Beard Bryan Morse

2. BYU Team Introduction • Randy Beard • Professor, Electrical and Computer Engineering • autonomous systems, unmanned aircraft systems, multiple vehicle coordination and control • Bryan Morse • Associate Professor, Computer Science • Computer vision, image reconstruction and registration, applications in WiSAR • Tim McLain • Professor and Dept. Chair, Mechanical Engineering • UAS autonomy and control, vision-based guidance, cooperative control of UA teams, WiSAR Mosaic Team Proprietary

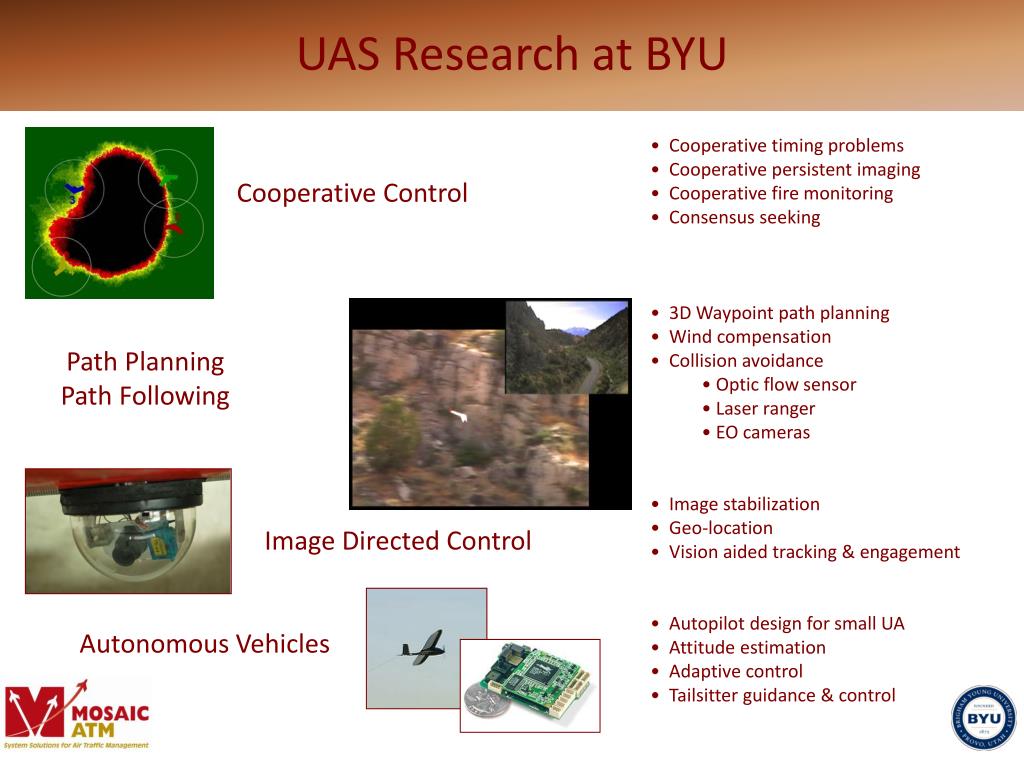

3. UAS Research at BYU • Cooperative timing problems • Cooperative persistent imaging • Cooperative fire monitoring • Consensus seeking • 3D Waypoint path planning • Wind compensation • Collision avoidance • Optic flow sensor • Laser ranger • EO cameras • Image stabilization • Geo-location • Vision aided tracking & engagement • Autopilot design for small UA • Attitude estimation • Adaptive control • Tailsitter guidance & control Cooperative Control Path PlanningPath Following Image Directed Control Autonomous Vehicles

4. Related Work • UAS-assisted wilderness search and rescue (WiSAR) • Funded for six years by NSF • Morse, Goodrich, McLain • Key take-away: “Just because you flew over it and imaged it, doesn’t mean you saw it.” • Seeability metric conceived Mosaic Team Proprietary

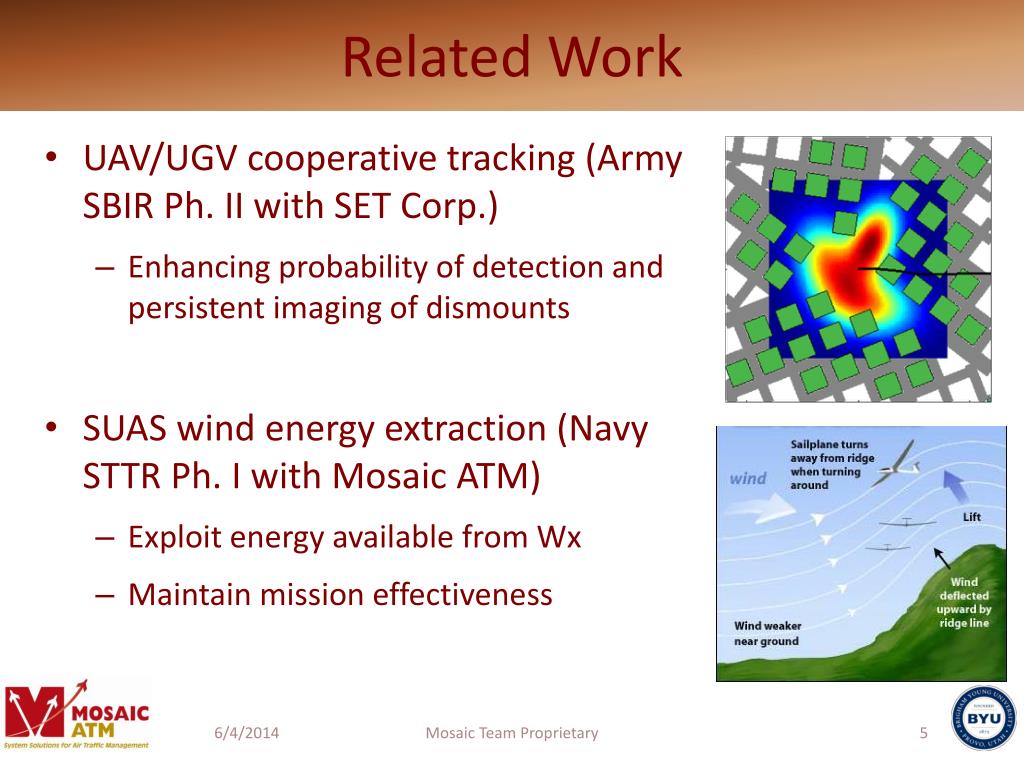

5. Related Work • UAV/UGV cooperative tracking (Army SBIR Ph. II with SET Corp.) • Enhancing probability of detection and persistent imaging of dismounts • SUAS wind energy extraction (Navy STTR Ph. I with Mosaic ATM) • Exploit energy available from Wx • Maintain mission effectiveness Mosaic Team Proprietary

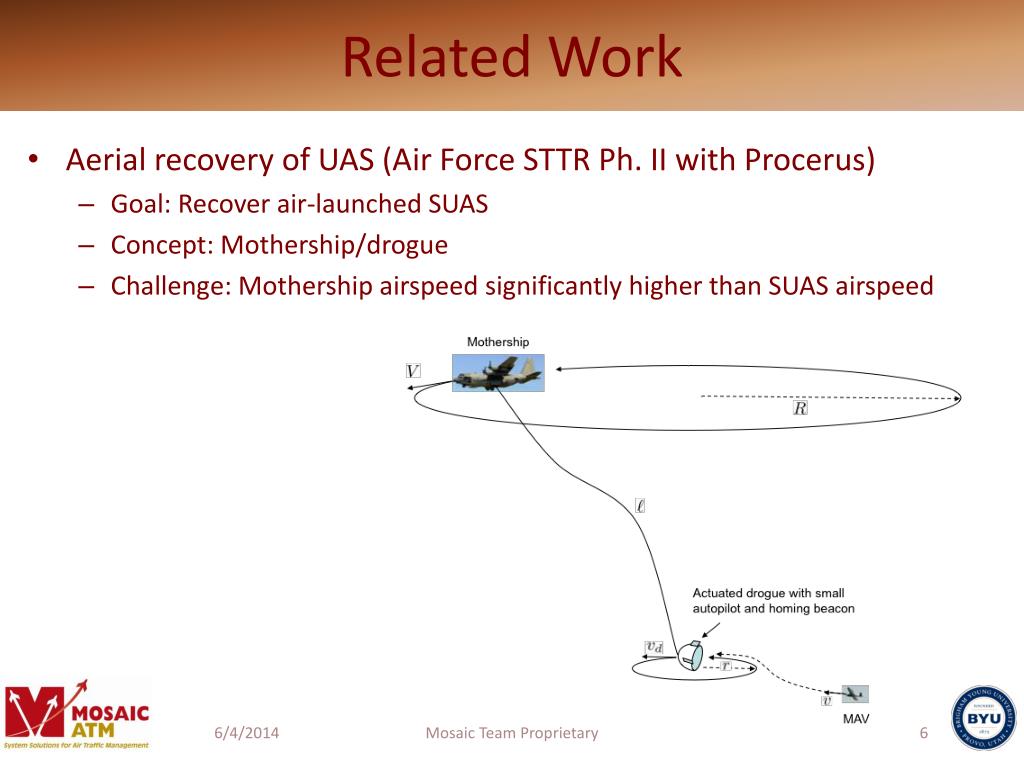

6. Related Work • Aerial recovery of UAS (Air Force STTR Ph. II with Procerus) • Goal: Recover air-launched SUAS • Concept: Mothership/drogue • Challenge: Mothership airspeed significantly higher than SUAS airspeed Mosaic Team Proprietary

7. Mosaic Team Proprietary

8. Three Product Families KestrelTM Flight Systems OnPointTM Vision Systems PerceptorTM Imaging Systems • Kestrel Autopilot v3.0 • Kestrel Autopilot v3.0 • Adaptive Control • Kestrel CockpitTM • Kestrel SIMTM – For RealFlight • OnPoint OnBoardTM • Vision Suite v3.0 • OnPoint Targeting v2.0 • OnPoint VPUTM • OnPoint GUI • Perceptor 88x • Perceptor DG • Perceptor DG2

9. Kestrel Autopilot v3.0 • Fixed-wing / Heli / tri-rotor / quad-rotor • 500mhz DSP, 32Mb flash, 32Mb RAM • 11 servos supported onboard • Integrated 3-axis magnetometer • High quality pitot-static systems • Factory calibrated, temp. compensated IMU • 17 state EKF navigation solution • High accuracy gimbal pointing / geo-location Kestrel Autopilot v3.0 2.25” x 1.4” x .5” 21 grams

10. Kestrel Cockpit v3.0 • Improved user interface • 3D streaming maps/terrain • 3D waypoints • Intuitive map elements • VTOL controls/features • Multi-agent support • Fixed wing and VTOL • Kestrel 2x and 3x autopilots • Intuitive multi-function display & health monitor • Agent & flight path rendered • Full-context 3D environment • Tight integration with OnPoint Targeting

11. OnPoint Targeting v2.0 • Target tracking and geolocation • Video stabilization • Click ‘n Fly operation • New highly configurable GUI w/dockable windows • TIVO-like video pause/playback/record • Snap shots appear in Virtual Cockpit GCS as clickable icons • Improved Kalman filter target position/velocity estimation • Position uncertainty estimates shown on video overlay

12. OnPoint OnBoard – Vision Suite v3.0 OnPoint VPUTM 1.9” x 1.35” 11 grams (.4oz) • Target tracking and geolocation • Video stabilization • Click ‘n Fly operation • OnPoint VPUTM (Vision Processing Unit) • Perceptor DG (ePTZ) imager (gyros, 5mp) • OMAP DSP processor (2Gb flash, 1Gb DDR) • SD card slot, USB2, video in/out, SPI/GPIO/ethernet, serial • Computer vision and inertial measurement for solid video ePTZ - 5mp Imager 1.3" x 0.9” Hardware 7/24/09

13. Perceptor 88x • 2 axis gyro stabilized, slip ring, continuous 360° pan rotation, 90° tilt • Pointing resolution: 0.05⁰ • Stabilization: 0.05⁰ error w/ 15⁰ 2Hz disturbance • Small & lightweight: 3.5 in diameter turret, <0.85 lbs (400g) • EO (10x zoom) or IR • Factory calibrated IMU sensor suite • High bandwidth camera positioning for small platforms • 17 state GPS/INS solution + targeting & motion control provides for standalone operation • Graceful targeting degradation during GPS loss/denied environment • RS232, TTL serial, and CAN interfaces • Compliance with popular protocols for easy integration • Available soon in retractable version • OnPoint GUI: video record, playback, gimbal pointing • Control Modes Include: rate, angle, and latitude longitude elevation Continuous 360° Stabilized Gimbal 3.5” turret Sony FCB-IX, EO 10x optical zoom 4x digital zoom * Shown without IMU (KAP3) or cover.

14. Procerus Perceptor 88x Mosaic Team Proprietary

15. Mosaic Team Proprietary

16. Simulation Architecture

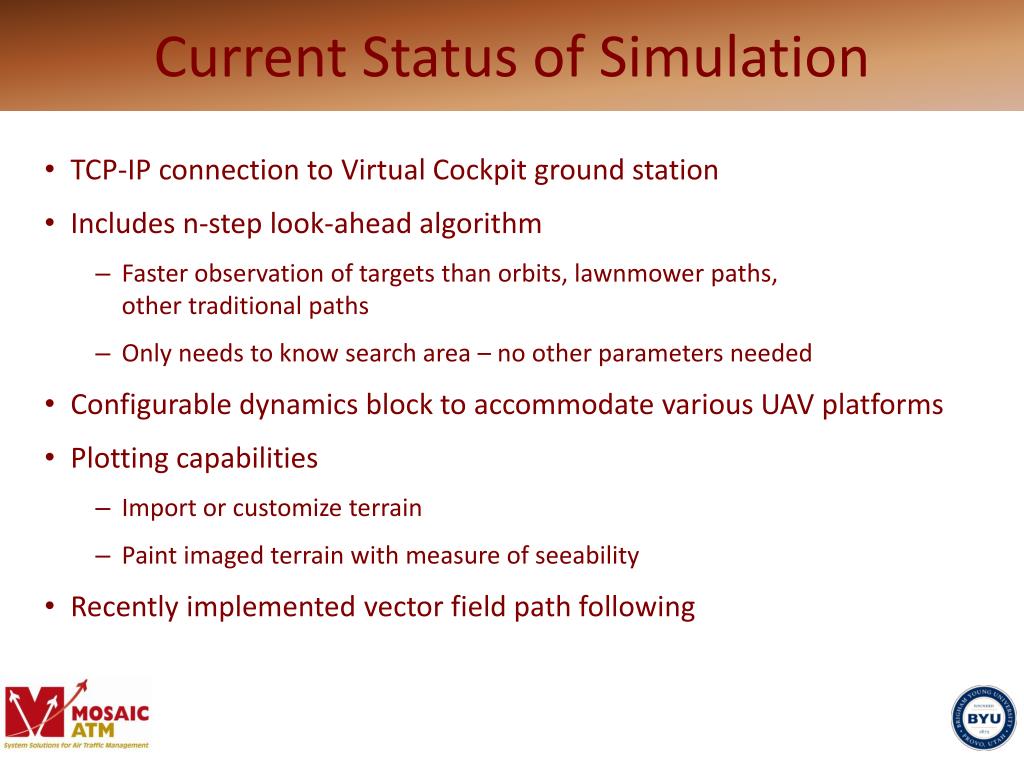

17. Current Status of Simulation • TCP-IP connection to Virtual Cockpit ground station • Includes n-step look-ahead algorithm • Faster observation of targets than orbits, lawnmower paths, other traditional paths • Only needs to know search area – no other parameters needed • Configurable dynamics block to accommodate various UAV platforms • Plotting capabilities • Import or customize terrain • Paint imaged terrain with measure of seeability • Recently implemented vector field path following

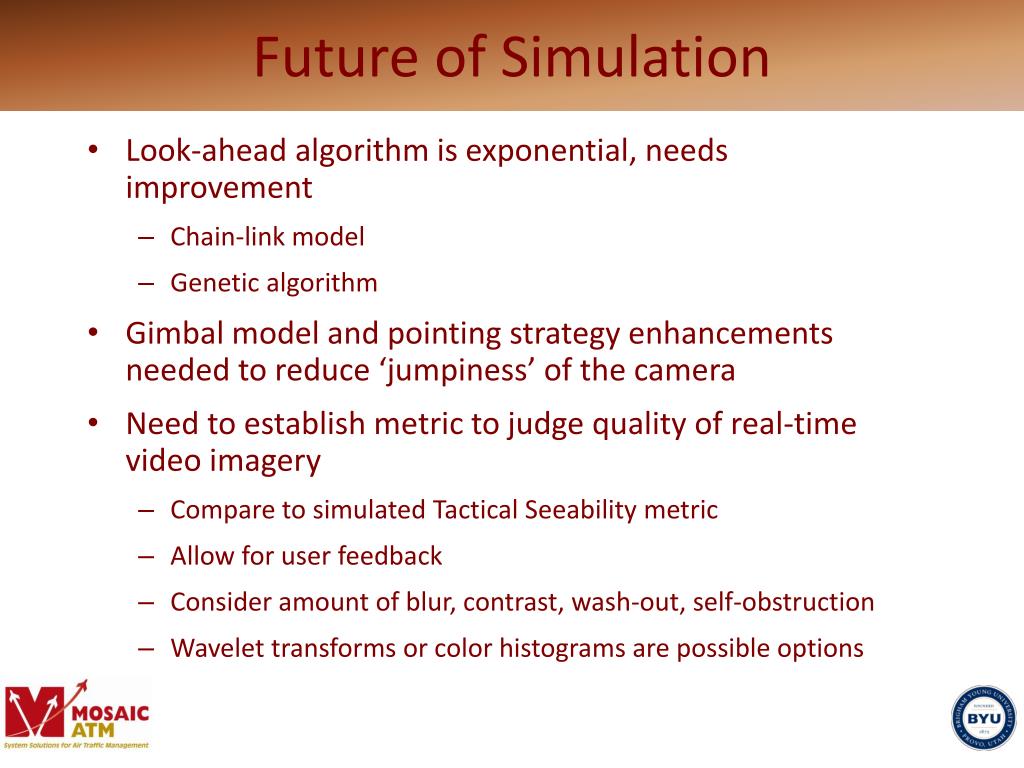

18. Future of Simulation • Look-ahead algorithm is exponential, needs improvement • Chain-link model • Genetic algorithm • Gimbal model and pointing strategy enhancements needed to reduce ‘jumpiness’ of the camera • Need to establish metric to judge quality of real-time video imagery • Compare to simulated Tactical Seeability metric • Allow for user feedback • Consider amount of blur, contrast, wash-out, self-obstruction • Wavelet transforms or color histograms are possible options
