  1. Asynchronous Multiplier – hw4 EE 577b – Fall 2001 Prof. Peter Beerel Marcos Ferretti

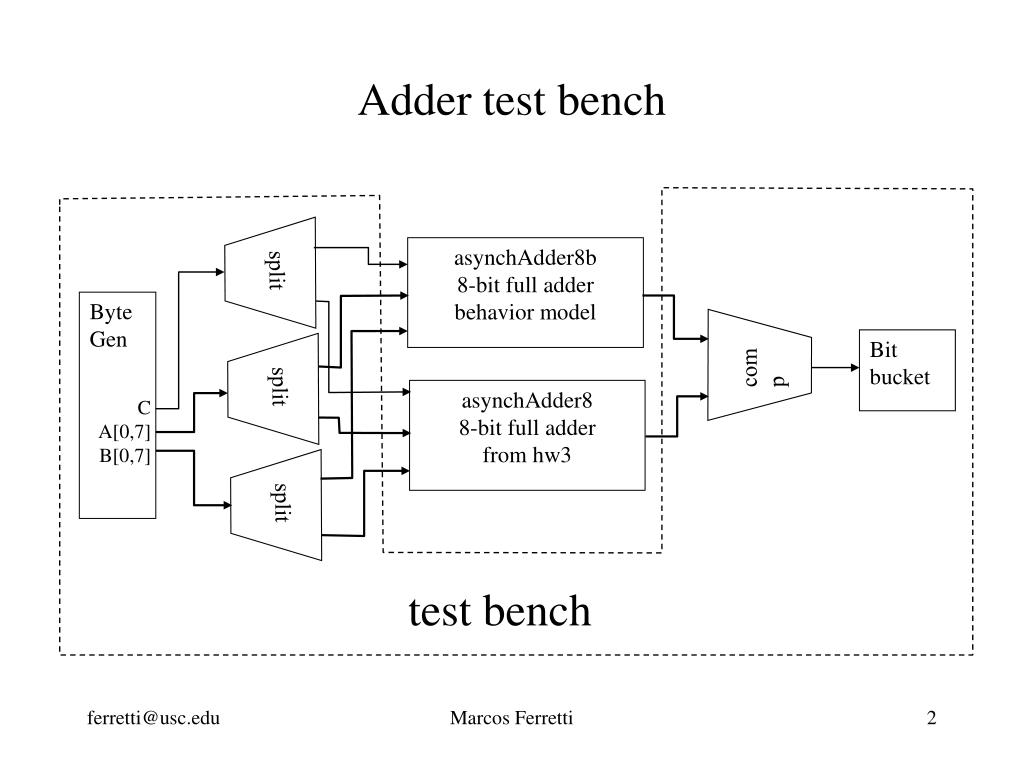

  2. split asynchAdder8b 8-bit full adder behavior model ByteGen comp Bit bucket split asynchAdder8 8-bit full adder from hw3 C A[0,7] B[0,7] split test bench Adder test bench Marcos Ferretti

  3. 4x4 bit array multiplier from J. M. Rabaey, Digital Integrated Circuits, Prentice Hall, NJ 1996 Marcos Ferretti

  4. 4x4 carry-save multiplier from J. M. Rabaey, Digital Integrated Circuits, Prentice Hall, NJ 1996 Marcos Ferretti

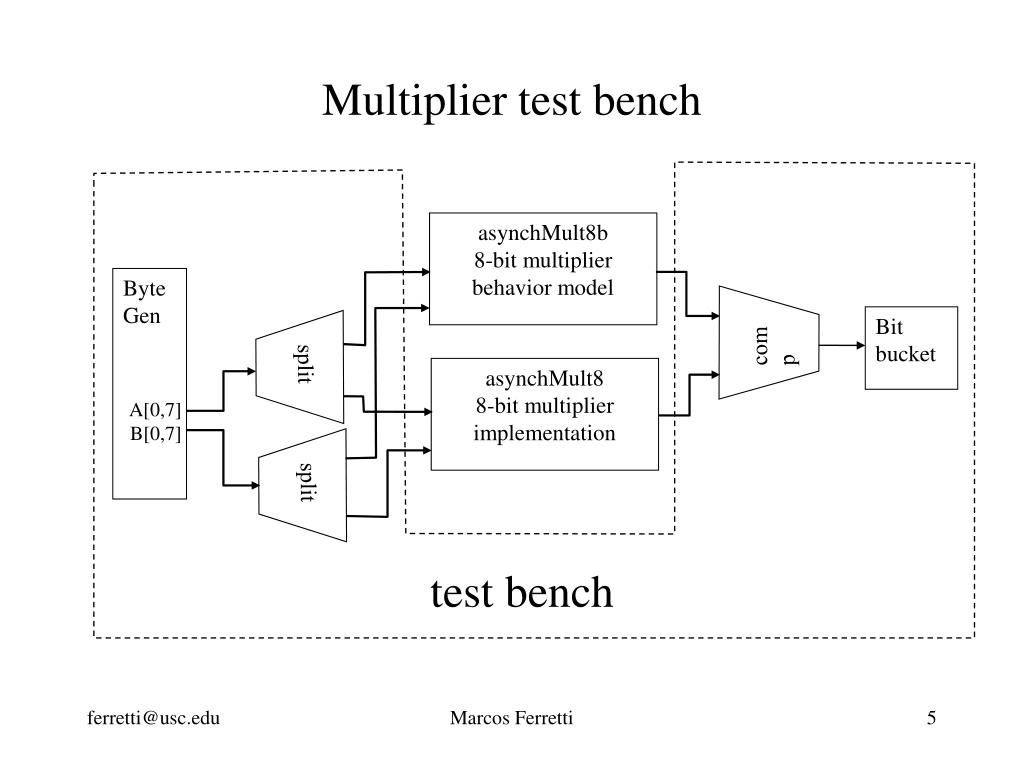

  5. asynchMult8b 8-bit multiplier behavior model ByteGen comp Bit bucket split asynchMult8 8-bit multiplier implementation A[0,7] B[0,7] split test bench Multiplier test bench Marcos Ferretti
