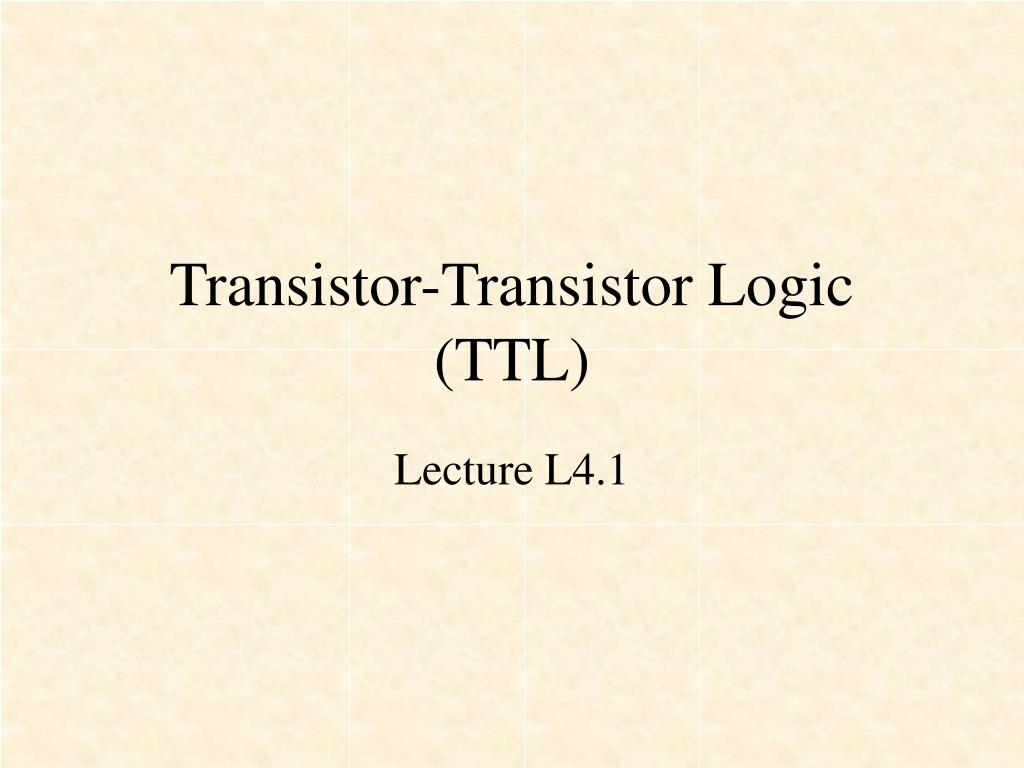

  1. Transistor-Transistor Logic(TTL) Lecture L4.1

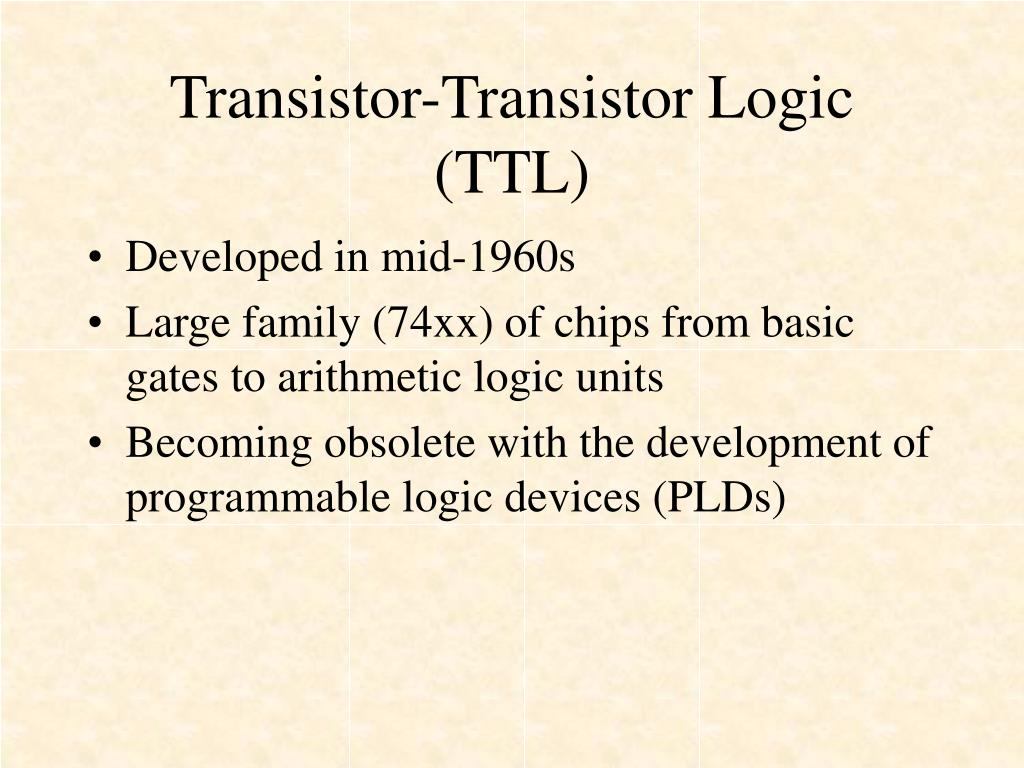

  2. Transistor-Transistor Logic(TTL) • Developed in mid-1960s • Large family (74xx) of chips from basic gates to arithmetic logic units • Becoming obsolete with the development of programmable logic devices (PLDs)

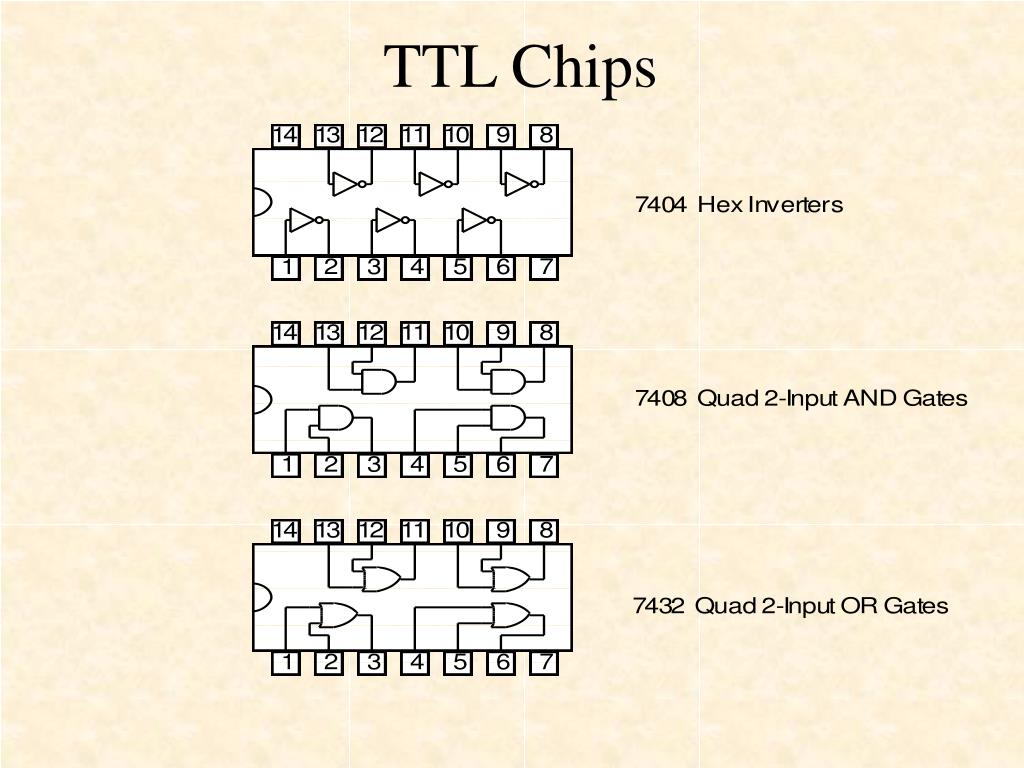

  3. TTL Chips

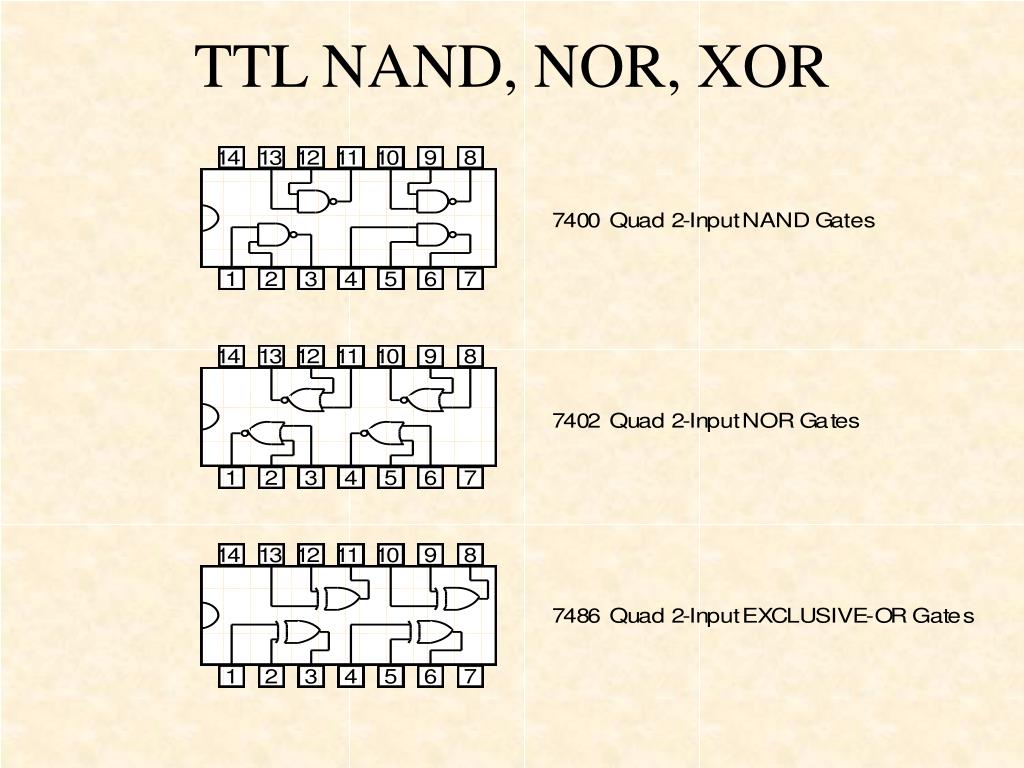

  4. TTL NAND, NOR, XOR

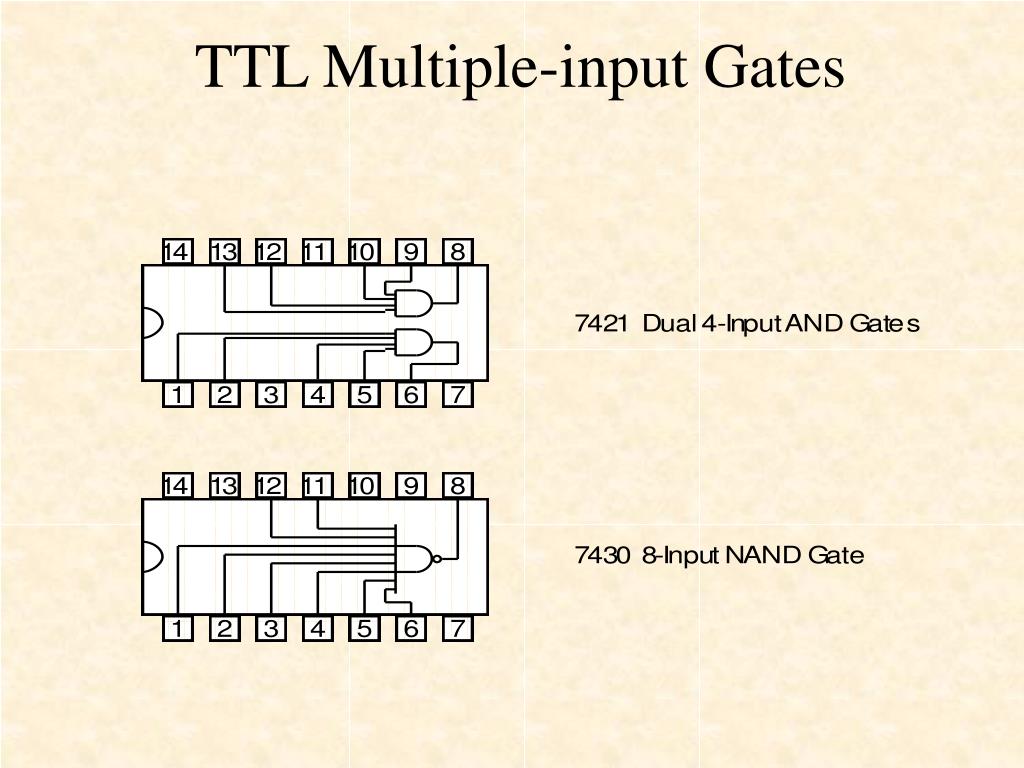

  5. TTL Multiple-input Gates

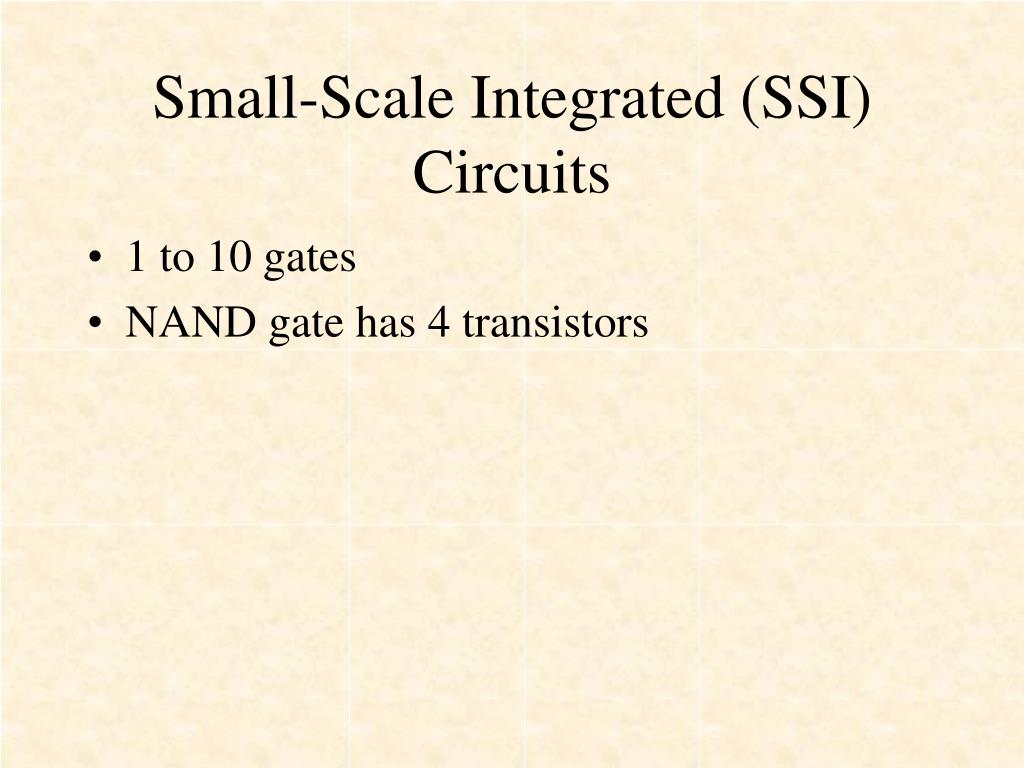

  6. Small-Scale Integrated (SSI) Circuits • 1 to 10 gates • NAND gate has 4 transistors

  7. Medium-Scale Integrated (MSI) Circuits • 10-100 gates • Adders • Comparators • Multiplexers • Decoders

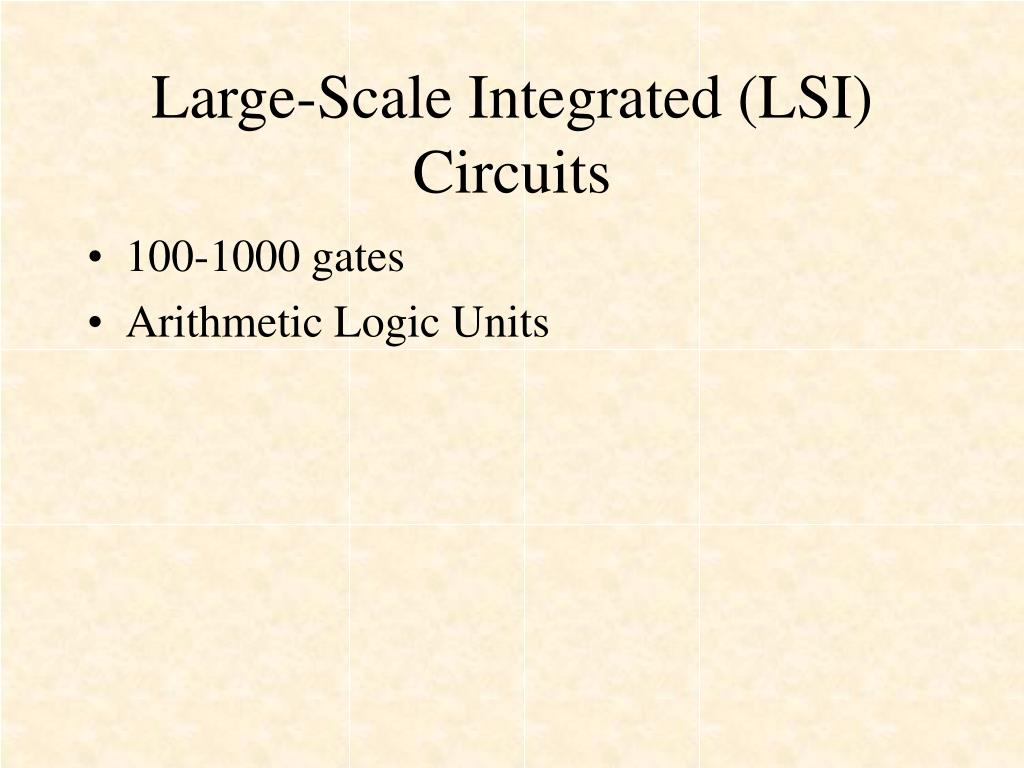

  8. Large-Scale Integrated (LSI) Circuits • 100-1000 gates • Arithmetic Logic Units

  9. Very-Large-Scale Integrated (VLSI) Circuits • >1000 gates • Microprocessors • Programmable Logic Devices (PLDs) • Complex Programmable Logic Devices (CPLDs) • Field Programmable Gate Arrays (FPGAs)
