  1. ENGG 1203 Tutorial • Combinational Logic (I) • 1 Feb • Learning Objectives • Recall Boolean Algebra (SoP/PoS, DeMorgan's Theorem, grouping, redundant) • Simplify logic expressions • News • Lab, TA office hour • Tutorial: http://www.eee.hku.hk/~culei/ENGG1203.html • Ack.: HKU ELEC1008, Wikimedia Commons

  2. Quick quiz • What is the only set of input conditions that will produce a LOW output for any OR gate? • Any one of the input is LOW • Any one of the input is HIGH • All inputs are LOW • All inputs are HIGH

  3. Quick quiz • What logic level should be applied to the second input of a two-input AND gate if the logic signal at the first input is to be inhibited (prevented) from reaching the output? • A LOW input will keep the output LOW • A LOW input will keep the output HIGH • A HIGH input will keep the output LOW • A HIGH input will keep the output HIGH

  4. Quick quiz • What is the only input combination that will produce a HIGH at the output of a five-input AND gate? • Any one of the input is LOW • Any one of the input is HIGH • All inputs are LOW • All inputs are HIGH

  5. Quick quiz • What is the output expression of the following logic-circuit diagram?

  6. Boolean Algebra • Boolean Algebra • More questions in Appendix

  7. De Morgan’s Theorem • De Morgan's theorem • Bubble pushing via De Morgan's theorem • AND NOT  NOT OR • NOT OR  AND NOT • OR NOT  NOT AND • NOT AND  OR NOT

  8. Solution 2 • Use DeMorgan's Theorem for simplification

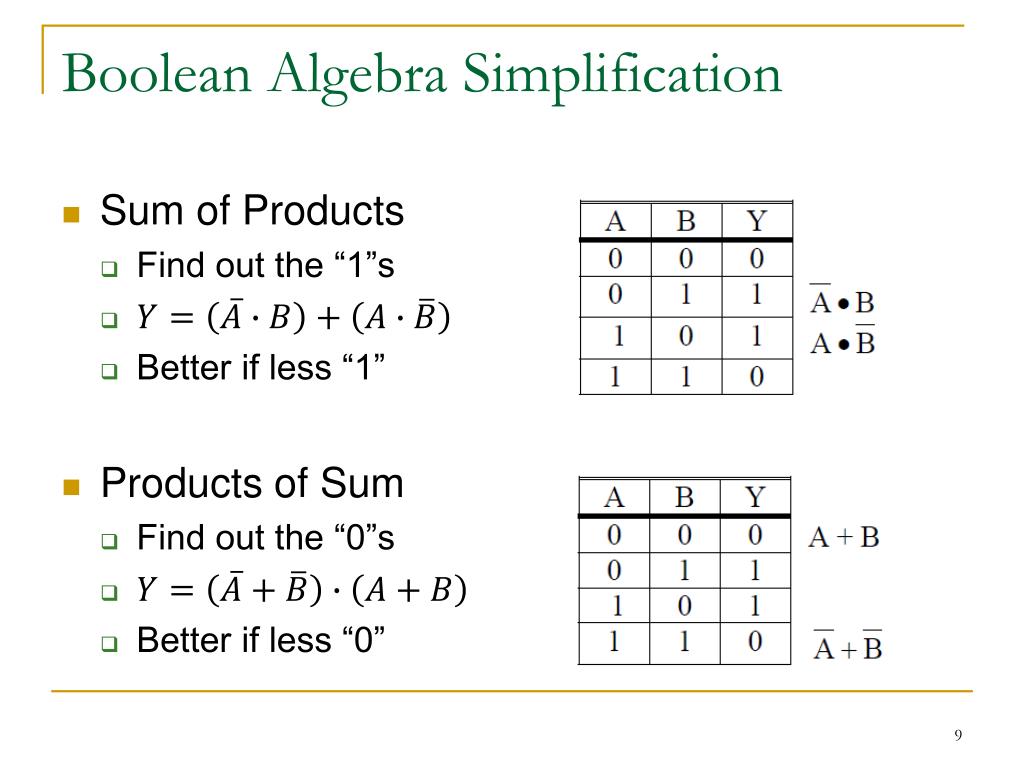

  9. Boolean Algebra Simplification • Sum of Products • Find out the “1”s • Better if less “1” • Products of Sum • Find out the “0”s • Better if less “0”

  10. Boolean Algebra Using SOP and POS • Find an expression for F and

  11. Solution • Sum of Products for F • Product of Sums for F

  12. Solution • Sum of Products for • Product of Sums for

  13. Representing logic operations • Each function can be represented equivalently in 3 ways: • Truth table – Try every combinations of every input variables • Boolean logic expression – SOP/POS + Simplify the expression • Schematics – Construct from Boolean expressions

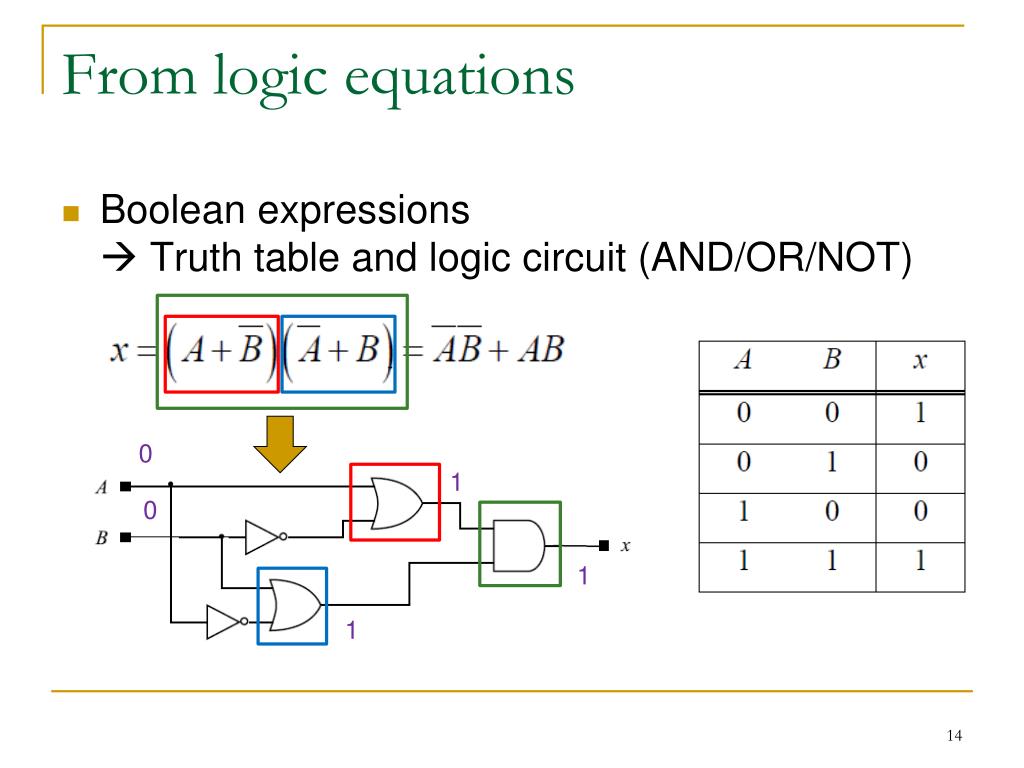

  14. From logic equations • Boolean expressions Truth table and logic circuit (AND/OR/NOT) 0 1 0 1 1

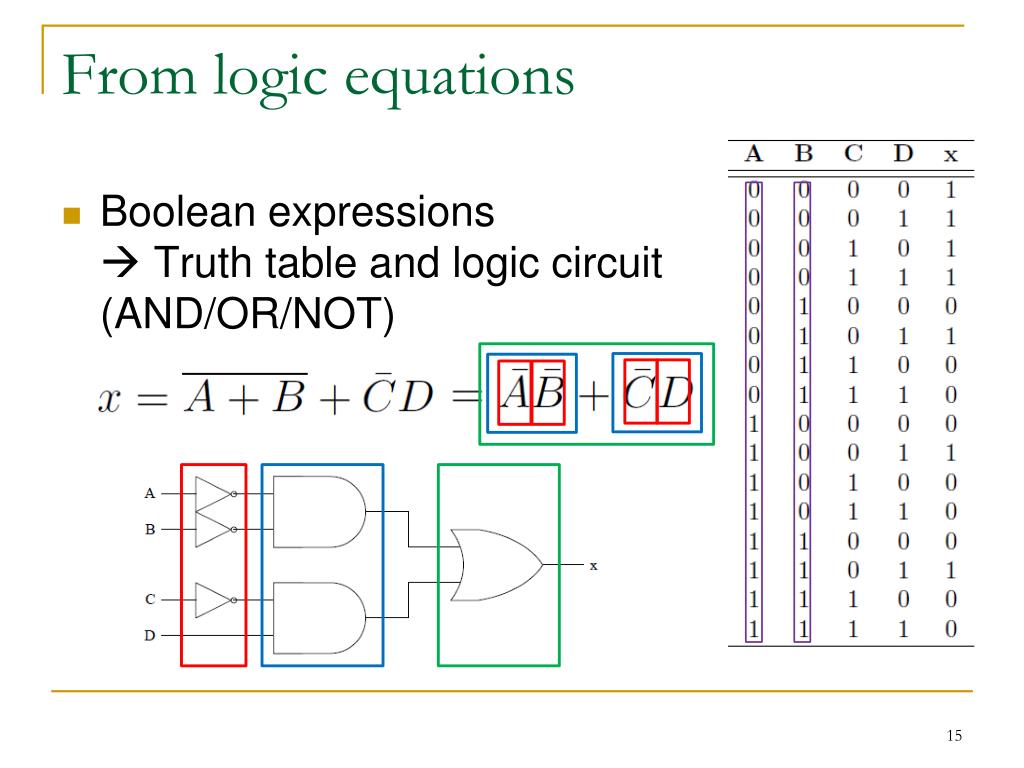

  15. From logic equations • Boolean expressionsTruth table and logic circuit (AND/OR/NOT)

  16. From truth tables • Derive the Boolean expression of the output x in terms of the input • Construct the logic circuit using AND gates, OR gates, and INVERTERs.

  17. Solution Extra redundant Terms 1. Construct A/B/C2. Construct not A/B/C3. Construct AND gates4. Construct OR gate 4 1 2 3

  18. From truth tables • Truth table  Boolean expressions and logic circuit

  19. From schematics • Truth table first? • SOP/POS first?

  20. From schematics XOR

  21. Circuit representation of logic equations • Show how can be implemented with one two-input NOR and one two-input NAND gate. • (How to convert ?) • We need to apply De Morgan’s Theorem

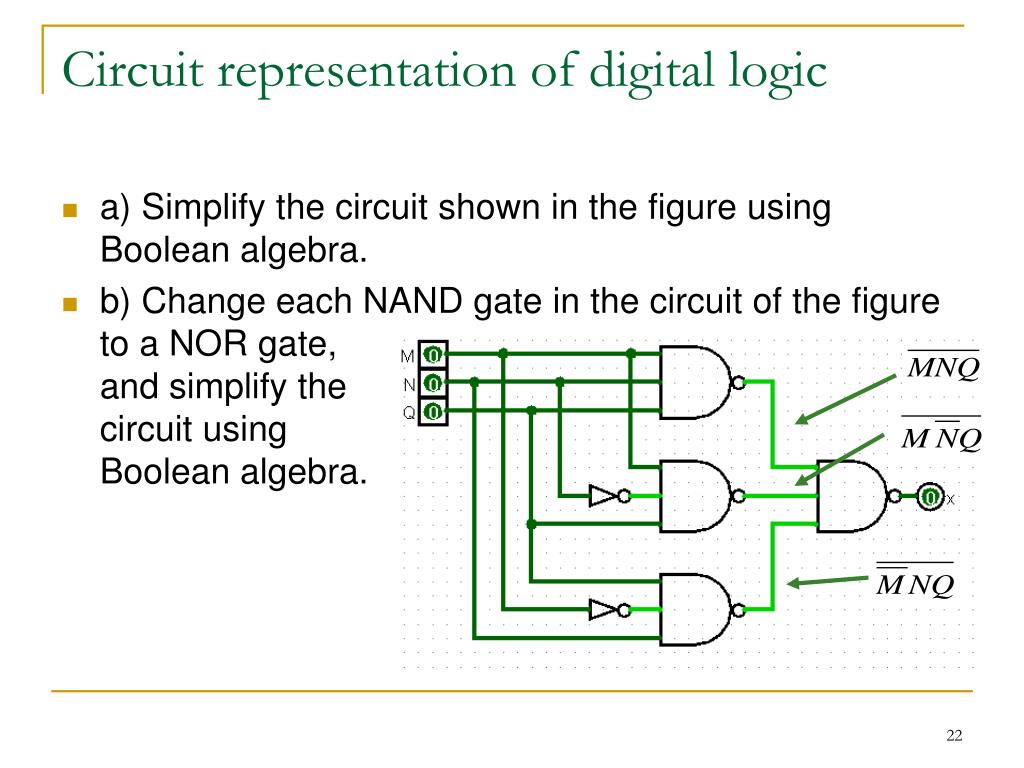

  22. Circuit representation of digital logic • a) Simplify the circuit shown in the figure using Boolean algebra. • b) Change each NAND gate in the circuit of the figure to a NOR gate,and simplify thecircuit usingBoolean algebra.

  23. Solution (a) Procedure: 1) Obtain the Boolean expression from the circuit2) Check if we need NAND/NOR gate3) Simplify the expression by Boolean algebra • Less gate (power and resource) • Shorter “longest path”

  24. Solution (b) • First, we convert the circuit

  25. Solution (b) • Then, we simplify the Boolean expression (DeMorgan's Theorem) (Expand) (Simplify) (Group, Group)

  26. Solution (b) (Group, Group) (Simplify) (Expand) (Simplify) (Simplify)

  27. Conversion of three representations • Describe the function using Boolean expressions • Draw the truth table and describe the function using sum of product

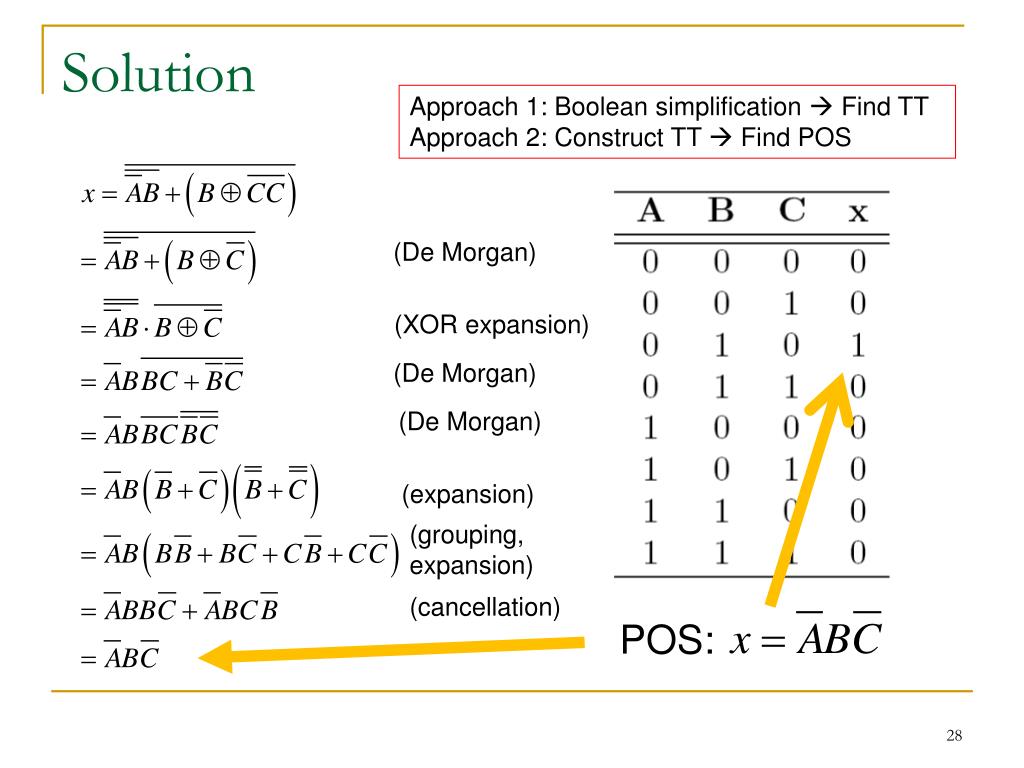

  28. Solution Approach 1: Boolean simplification  Find TTApproach 2: Construct TT  Find POS (De Morgan) (XOR expansion) (De Morgan) (De Morgan) (expansion) (grouping,expansion) (cancellation) POS:

  29. Karnaugh map • Draw the table  Fill in 0s and 1s  Grouping • Group one/two/four/eight/sixteen ‘1’(s) only • Use the least number of groups to group all numbers • To group as many numbers as possible in every group

  30. Karnaugh map • F(x) = + +

  31. Examples of Karnaugh maps

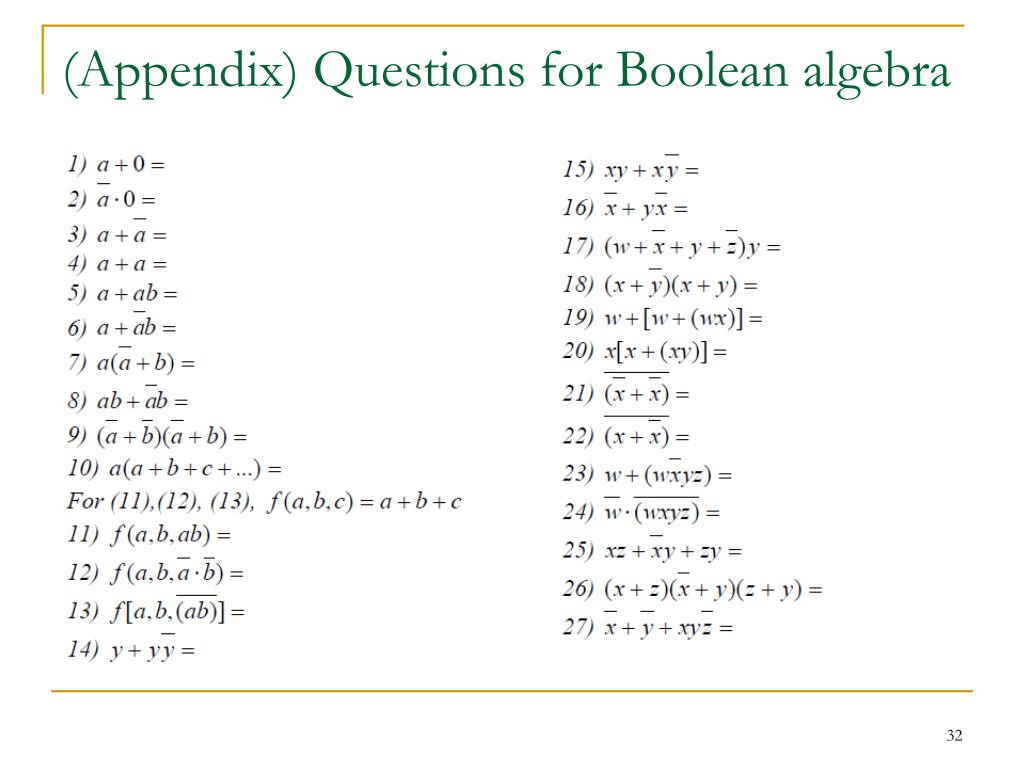

  32. (Appendix) Questions for Boolean algebra

  33. Solutions

  34. (Appendix) Determining output level from a diagram

  35. (Appendix) From logic equations • Draw the circuit diagram to implement the expression • Draw the circuit diagram that implements the expression using gates having no more than three inputs.

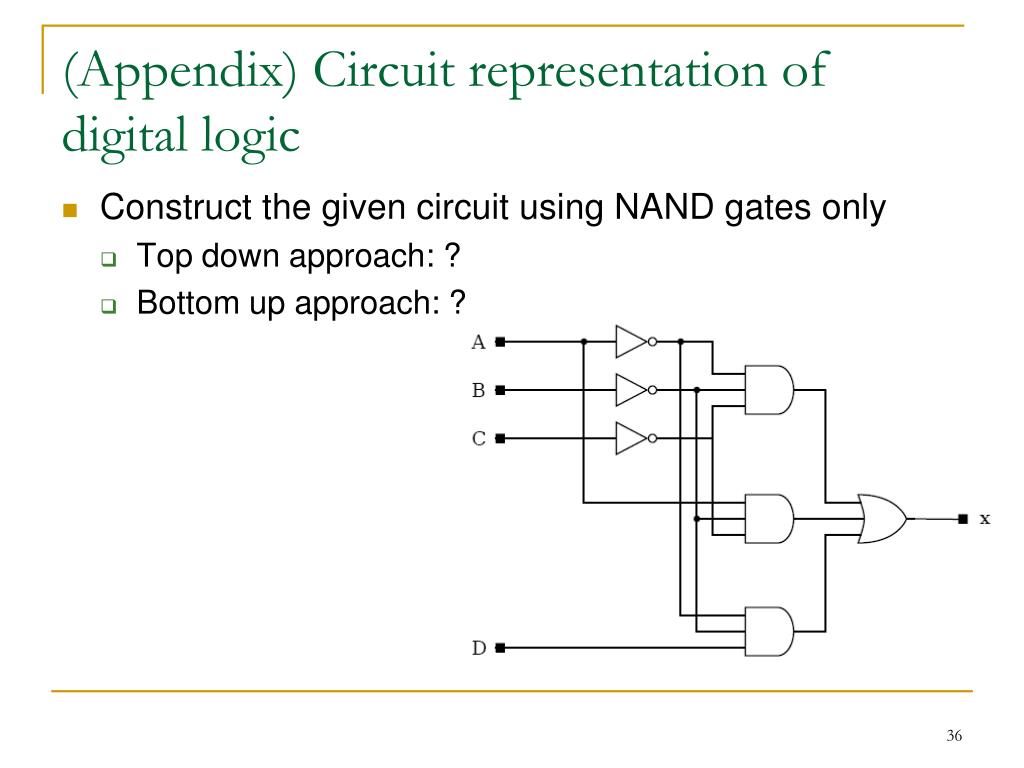

  36. (Appendix) Circuit representation of digital logic • Construct the given circuit using NAND gates only • Top down approach: ? • Bottom up approach: ?

  37. Solution (a) • Top down: Expanding the Boolean expression • By DeMorgan’s Theorems,

  38. Solution (b) • Bottom-up: Construct NOT gate, AND gate and OR gate from NAND gate iii) i) ii)

  39. Solution (b) • Top-down and Bottom-up: Same number of gate, same configuration, different approach (cancelled)
