Design and Technology Marking and Measuring Tools
Steel Rule • It is used for measuring, marking and testing flatness. • It is usually graduated in both inches and millimeters. • Zero end design is used for setting gauges and measuring internal size • The common size we use in the workshop is 300mm long. Longer steel rule such as 600mm and 1000mm are also available for large workpieces.
Engineer’s Square • Try square is for woodwork while Engineer’s square is for metalwork. • They are for marking and testing right angles. • They are also used to test squareness and check the internal and external angles of a workpiece.
Scriber • It is used for marking lines on a metallic, or plastic surfaces. • It is always used with a try square or steel rule for marking straight lines. • Chalk or pigment can be added on the surface before marking in order to show th lines more clearly.
Design and Technology Cutting Tools
Engineer’ Vice • It is commonly used in metalwork for filing or sawing. • It is also called Mechanic’s Vice.

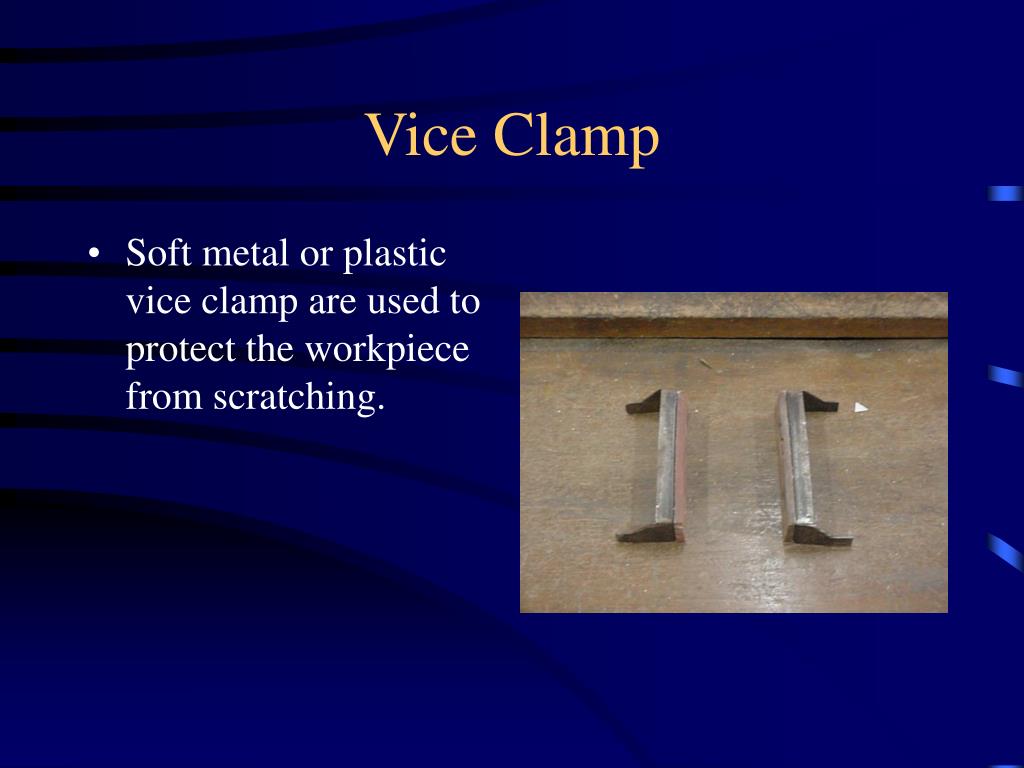

Vice Clamp • Soft metal or plastic vice clamp are used to protect the workpiece from scratching.
Hacksaw • It is used for making straight cuts in metal and plastic materials.
Hacksaw • The blade with the teeth pointing forward is held tightly by a wing nut. • The blade can also be rotated to suit different sawing works.
Hacksaw • Hold the work in the vice and keep the cut line vertical and close to the jaws to prevent vibration. • In cutting long workpieces, the saw blade should be turned 90º to the frame.

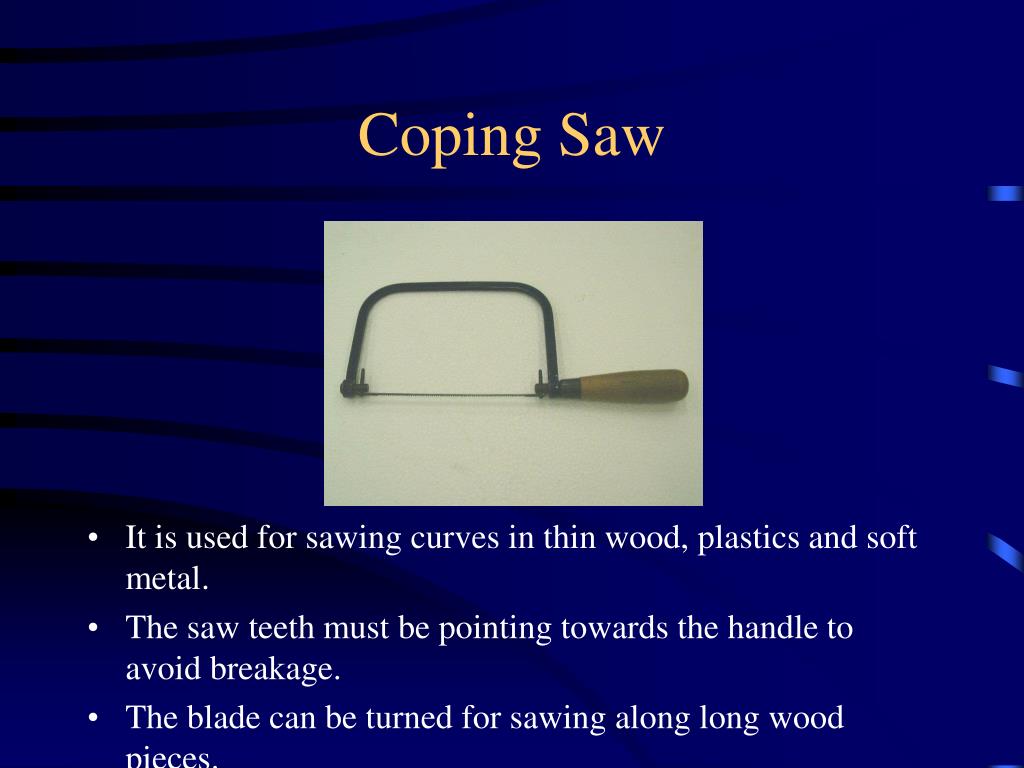

Coping Saw • It is used for sawing curves in thin wood, plastics and soft metal. • The saw teeth must be pointing towards the handle to avoid breakage. • The blade can be turned for sawing along long wood pieces.
Safety Notes • Check whether the blade is secured firmly. • Do not touch the cut edge as it is very hot and the sharp burr may hurt your fingers.
Files • Files are used for shaping and smoothing metal and hard plastics.
Files • Files with various teeth cuts, lengths, cross-sections and coarseness of teeth can be chosen for different works.
Files • 1. Crossfiling • It is mainly for rough cutting which does not leave a smooth surface.
Files • 2. Drawfiling • It is to remove crossfiling marks to obtain a smooth surface.
Files • Supporting the work • Clamp the work with the vice with part of it above the jaws.
Files • Holding the File • heavy general light
Files • Filing • Use the full length of the file. • Press the file evenly to cut across the whole surface. • Test the flatness and squareness of the workpiece frequently.
Files • Other situations • Before filing convex or concave curves, cut the workpiece to the approximate shape.
Wire Brush • Cleaning the File • Remove the tiny metal chips in the file by brushing across the file with a file card.
