Load-Pull Measurements

Load-Pull Measurements. 2-dB G T gain drop contours (52 points measured). Varying (“pulling”) load impedance Z L seen by an active device under test Measuring performance metrics of DUT at each Z L point: Transducer Gain (as shown) Power-added Efficiency 1-dB Gain Compression Point

Anita
Télécharger la présentation

Load-Pull Measurements

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Load-Pull Measurements 2-dB GT gain drop contours (52 points measured) • Varying (“pulling”) load impedance ZLseen by an active device under test • Measuring performance metrics of DUT at each ZL point: • Transducer Gain (as shown) • Power-added Efficiency • 1-dB Gain Compression Point • Noise Figure • … • Not needed for linear devices • Performance with any ZL determined by measuring small-signal S-parameters • Important for characterizing devices operating in large-signal (nonlinear) mode • Operating point (and thereby performance) may change for different loads Optimal ZL Nonlinear mode

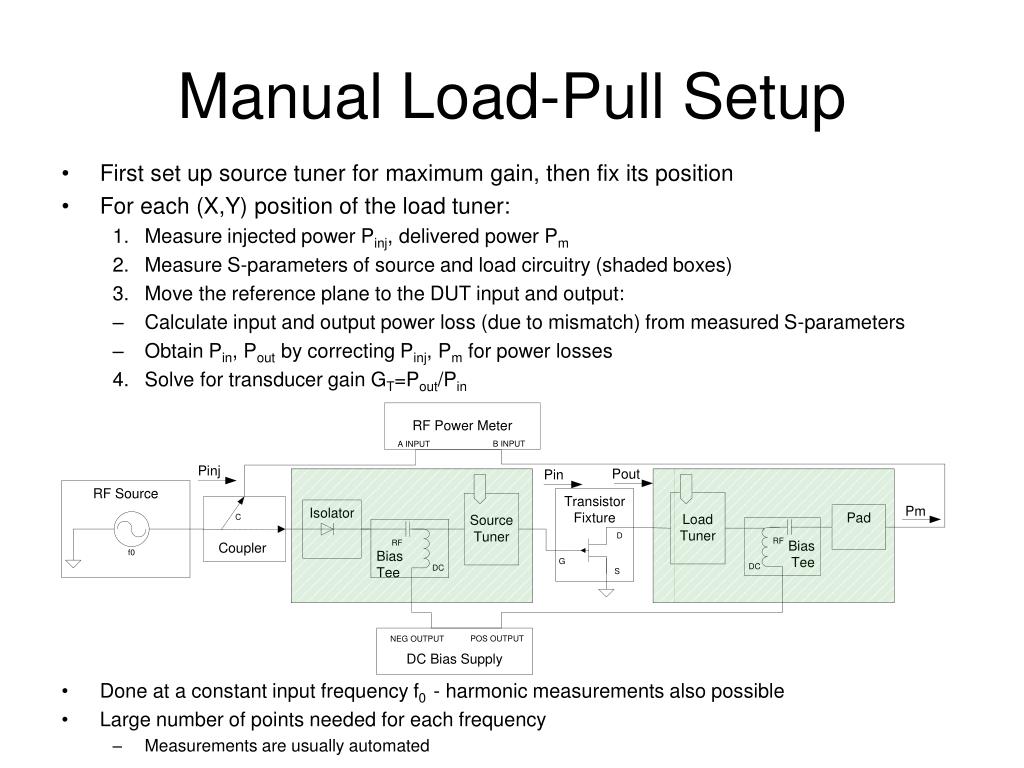

  2. Manual Load-Pull Setup • First set up source tuner for maximum gain, then fix its position • For each (X,Y) position of the load tuner: • Measure injected power Pinj, delivered power Pm • Measure S-parameters of source and load circuitry (shaded boxes) • Move the reference plane to the DUT input and output: • Calculate input and output power loss (due to mismatch) from measured S-parameters • Obtain Pin, Pout by correcting Pinj, Pm for power losses • Solve for transducer gain GT=Pout/Pin • Done at a constant input frequency f0 - harmonic measurements also possible • Large number of points needed for each frequency • Measurements are usually automated
