  1. 1. LCD Monitors 2. Plasma Display + TV3. LCD TV

  2. LCD Monitors • Active matrix TFT color LCD • Horizontal scan 31.5 to 60 kHz, Vertical refresh 60 to 75 Hz • RGB analog Input Signal • Auto-Adjustment • I/O Connectors • DC power jack, • Audio jack • D-sub 15 pins • Product Line - 14”, 15”, 17”, 19”

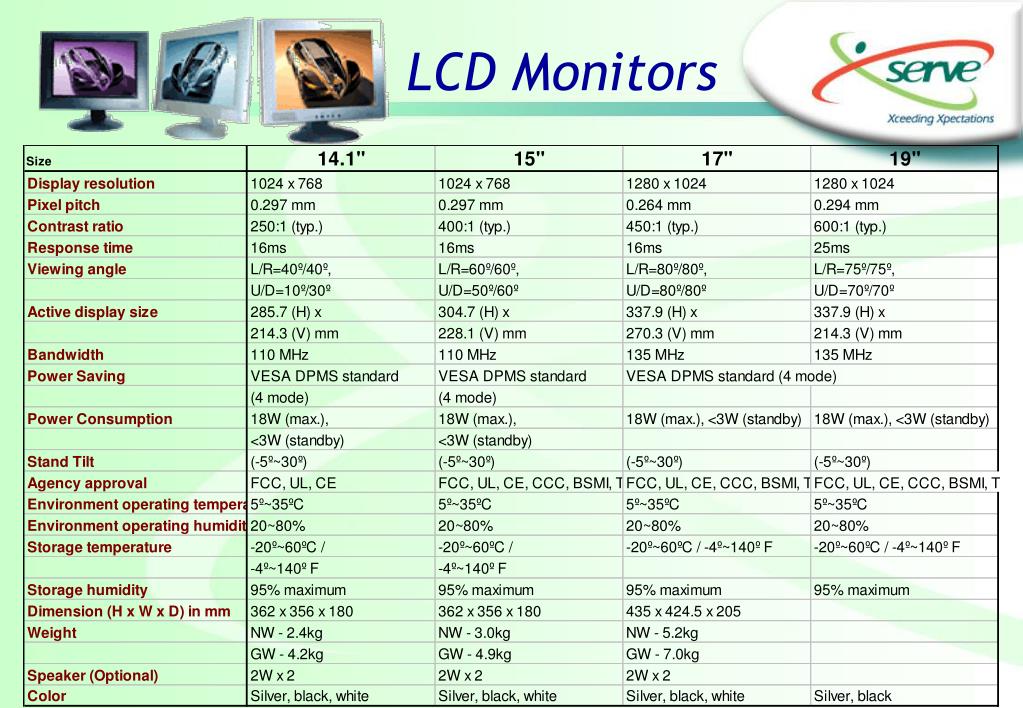

  3. LCD Monitors

  4. Display Panel (Samsung V2 A grade) Screen Size 42" Wide Plasma Display Aspect Ratio 16:9 Resolution 852 x 480 Viewing Angle Degrees (Horizontal/ Vertical) Brightness 640 cd/m2 Contrast Ratio 1000:1 Color Saturation 16M Backlight Life 20,000 hours (normal mode) I/O Ports Composite Video Input 2, S-Video Input(4 pin DIN) 2, Component(Y,Pb,Pr) in Input 1, Stereo(R/L) audio Input 3, D-sub(15 pin) connector in 1, DVI-D connector in 1, Stereo(R/L) audio out 1 Key Features: HDTV Compatible: 480i, 480p, 720p, 1080i Dual Channel Operation (Picture-in Picture (PIP)) Film-mode detection (2:2/3:2) Motion adaptive de-interlacing/interlacing Automatic format conversion (4:3 to 16:9) 3D Comb filter 3D Video Noise Reduction Progressive scan Slim, space-saving design (depth: only 86 mm/ 3:4 inch) Fan-less Design for quiet operation Universal remote controller Regulatory approvals UL 1492, FCC Class B ,TUV ,CB, CE, BSMI Product Line 42”, 46” Plasma Display

  5. Display Panel Screen Size 408mm x 306mm (20.1" Diagonal) Native Resolution 640 x 480 Aspect Ratio 4:3 Pixel Pitch 0.6375mm (H) x 0.6375mm (W) Luminance 500 cd/m2 Contrast Ratio 500:1 Viewing Angle 160 x 140 Degrees (Horizontal/ Vertical) Response Time 16 ms (typ) Video Input Composite Video Input RCA x 1 S-Video Input 1 Component Video Input RCA x 3 (YpbPr x 1) Scart Video Input x 1 (for PAL) D Connector x 1 (for NTSC-J, D2) DVI-I with HDCP x 1 (Optional) VGA (D-SUB x 15 pin) x 1 (Optional) Audio Input Composite Audio Input RCA x 2 S-Video Audio Input RCA x 2 Component Audio Input RCA x 2 D Connector Audio Input RCA x 2 (for NTSC-J, D2) PC Audio In 3.5mm earphone jack x1 (Optional) Audio Output Earphone Jack x 1 Sub-Woofer RCA x 1 Other Features NTSC/ NTSC-J/ PAL/ SECAM Weight Net Weight 10.8 kg (27.43 lbs) Gross Weight 11.8 kg (29.97 lbs) Power Consumption --- 60 w Regulation --- CUL/UL, CB, BSMI, FCC Class B, CE, VCCI Accessories --- Power Cord, PC Cable, AV Cable, AC/DC Adaptor, R/C, Battery AAA x 2, User Manual, Warranty Card Product Line 20 inch, 27 inch and 30 inch LCD TV
