  1. Protein structureVisualizationMolecular Story

  2. Review “Central Dogma”: Sequence  Structure  function Sequence based analysis Structure based analysis Gene Sequence Protein Structure Protein Function (Genomics) (Structural Genomics) (Functional Genomics) Primary Structure Protein - Protein Secondary Structure Protein-DNA/RNA Tertiary Structure Protein-Lipids Quaternary Structure Protein-Small Molecules Determine Structure Drug Development Sequence similarity Conserved domain Predict structure Predict function

  3. Bio-information data collection methods and major databases Genome sequencing  Genbank (www.ncbi.nih.gov) Genechip  gene expression database X-ray crystallography, NMR  protein structure database ( www.pdb.org) 2D gel, mass spectrometry  proteomics database Literature db  PubMed (www.pubmed.org) Inherent genetic disease db  OMIM (www.ncbi.nih.gov)

  4. Structure based analysis  Molecular profile and story Protein structure: Primary Secondary Tertiary -Folding quaternary Protein structure determination: X-ray crystallography NMR spectroscopy Protein structure prediction: Secondary structure prediction Homology modeling Protein structure analysis: The structure character of the individual protein The structural basis of the protein function Protein family (based on conserved domain, motifs to predict their functions) Write the molecular profile and story

  5. Protein Molecular Structure a) Protein is a polymer of amino acids. 20 Amino Acids ( Functional Groups) Peptide Bond Formation

  6. c) The Secondary Structure and Tertiary Structure of Protein Elements of Secondary Structure: Helix Loop Turn β-Strand Helix β-Strand in β-Sheet Turn Loop Turn

  7. Secondary Structure & Ramachandran Plot

  8. Ramachandran Plot of CDC42-RhoGDI Complex [PDB Code 1DOA]

  9. Many alpha helices are Amphipathic 100 degree per residue

  10. Molscript Representations of Typical Protein Architectures. β 7 Propellor (2bbkH) α 4-Layer Sandwich (2dnjA) β Barrel (2por) Sandwich (2hlaB)

  11. Molscript Representations of Typical Protein Architectures. α β Barrel (4timA) α Helix Bundle (2ccy) α Horseshoe (1bnh) 2 Solenoid (1tsp)

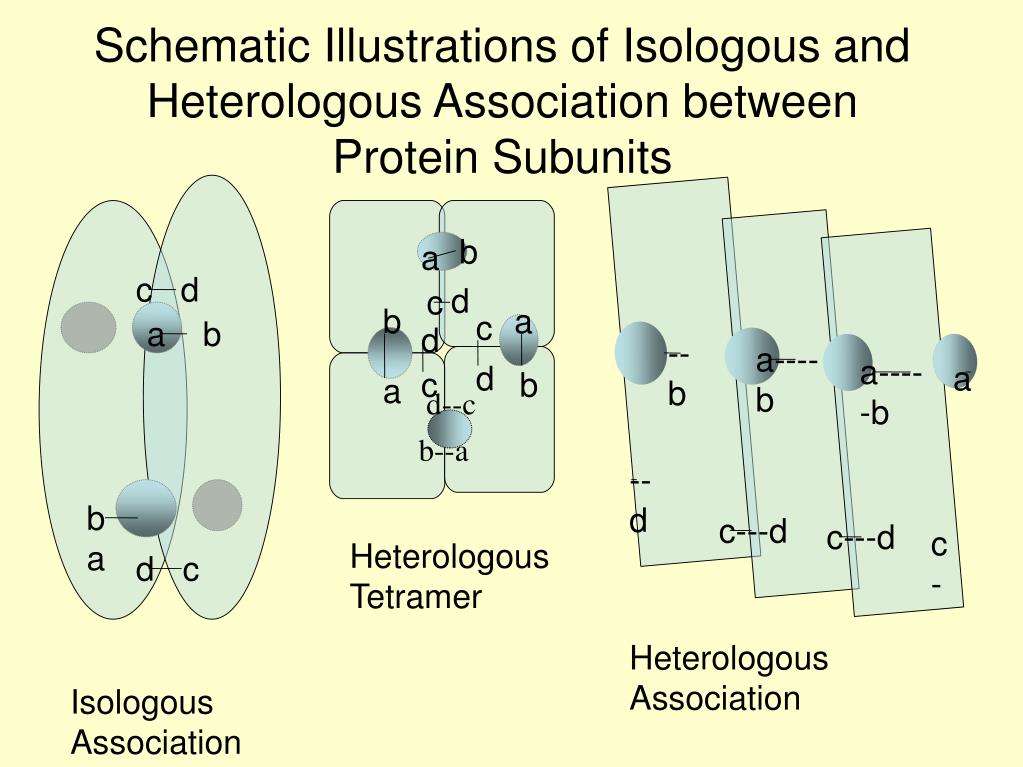

  12. Schematic Illustrations of Isologous and Heterologous Association between Protein Subunits b a c d d c b a c a b d --b a----b a-----b d a c b a d--c b--a --d b a c---d c---d c- Heterologous Tetramer d c Heterologous Association Isologous Association
