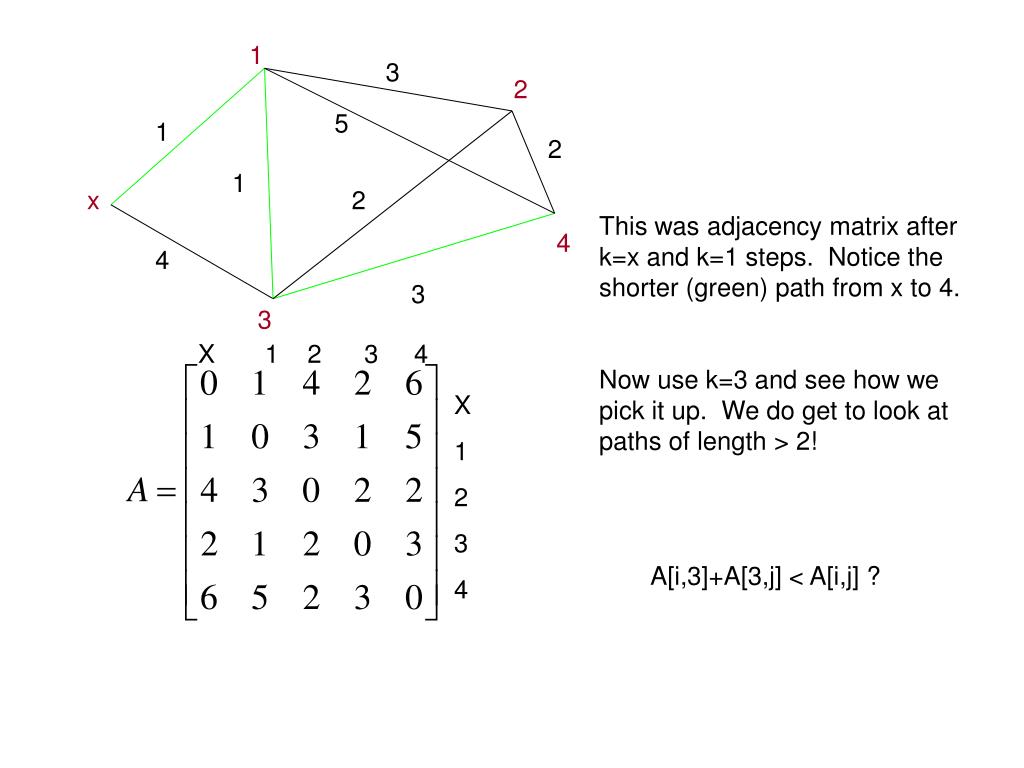

1. 3. 2. 5. 1. 2. 1. x. 2. This was adjacency matrix after k=x and k=1 steps. Notice the shorter (green) path from x to 4. Now use k=3 and see how we pick it up. We do get to look at paths of length > 2!. 4. 4. 3. 3. X 1 2 3 4. X 1 2 3 4.

Télécharger la présentation
## This was adjacency matrix after k=x and k=1 steps. Notice the shorter (green) path from x to 4.

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

**1**3 2 5 1 2 1 x 2 This was adjacency matrix after k=x and k=1 steps. Notice the shorter (green) path from x to 4. Now use k=3 and see how we pick it up. We do get to look at paths of length > 2! 4 4 3 3 X 1 2 3 4 X 1 2 3 4 A[i,3]+A[3,j] < A[i,j] ?**7.2 Logic circuits**• Boolean Expressions • Logic Networks • Truth Functions • Can every truth table be written as a Boolean expression? As a computer circuit?**Switches**Control (off=false) + - Control (on=true) + -**A Or B**A + - B**A and B**A B + -**Not A**A - +**And, Or and Not**And ( . ) Or ( + ) Not (‘)**Boolean Expressions**• A Boolean Expression in n variables x1,x2, .. Xn, is any string of finite symbols formed by the following rules • 1. x1,x2, .. Xn are Boolean expressions • 2. If P and Q are Boolean Expressions, then so are (P+Q), PQ , and P’.**Boolean Expressions**(x + y) x + y’(xy+z) is a Boolean expression.**Truth Functions**• A truth function is a truth table for Boolean expressions**Find a network for xy’+z**X Y Z Exercise: Find a network for (xy’+z)’**Find a Boolean expression**x y ? z**We can do the following**Truth function Boolean expression Boolean expression logic network Can we find a Boolean expression for any truth function? Yes!**Canonical Form**• For the truth function shown, find a Boolean expression: True for: xyz’ xy’z x’yz x’yz’ x’y’z**So the truth function is given by:**xyz’+xy’z+x’yz+x’yz’+x’y’z This is the Canonical form for the truth function (a standard form into which we can place any two Boolean expressions for comparison.)**Simplify, using Boolean algebra:**xyz’+xy’z+x’yz+x’yz’+x’y’z = xyz’+xy’z+x’yz+x’yz’+x’y’z+x’yz’ =y’z(x+x’)+x’y(z+z’)+yz’(x+x’) =y’z+x’y+yz’ Notice the groupings of two the same/ one different.**Half Adder**• Design a circuit to add binary numbers**Half Adder-as two functions**xy’+x’y=(x+y)(xy)’ xy**The half-adder**(x+y)(xy)’ x sum y x y carry xy**To add two binary numbers**Full adder Cprevious s Half adder x c s cnext Half Adder y c**General add: xyz+abc**x Digit 1 Half adder a Digit 2 Full adder y b Digit 3 Full adder z c Digit 4
