  1. Chapter 4 Combinational Logic

  2. 4.1 Introduction Logic circuits for digital systems may be  combinational or sequential. A combinational circuit consists of logic gates  whose outputs at any time are determined from only the present combination of inputs. 2

  3. 4.2 Combinational Circuits Logic circuits for digital system  Sequential circuits  contain memory elements  the outputs are a function of the current inputs and the  state of the memory elements the outputs also depend on past inputs  3

  4. A combinational circuits  n 2 possible combinations of input values  Combinational circuits n input m output Combinatixnal variables variables xoxic Circuit Specific functions  Adders, subtractors, comparators, decoders, encoders,  and multiplexers 4

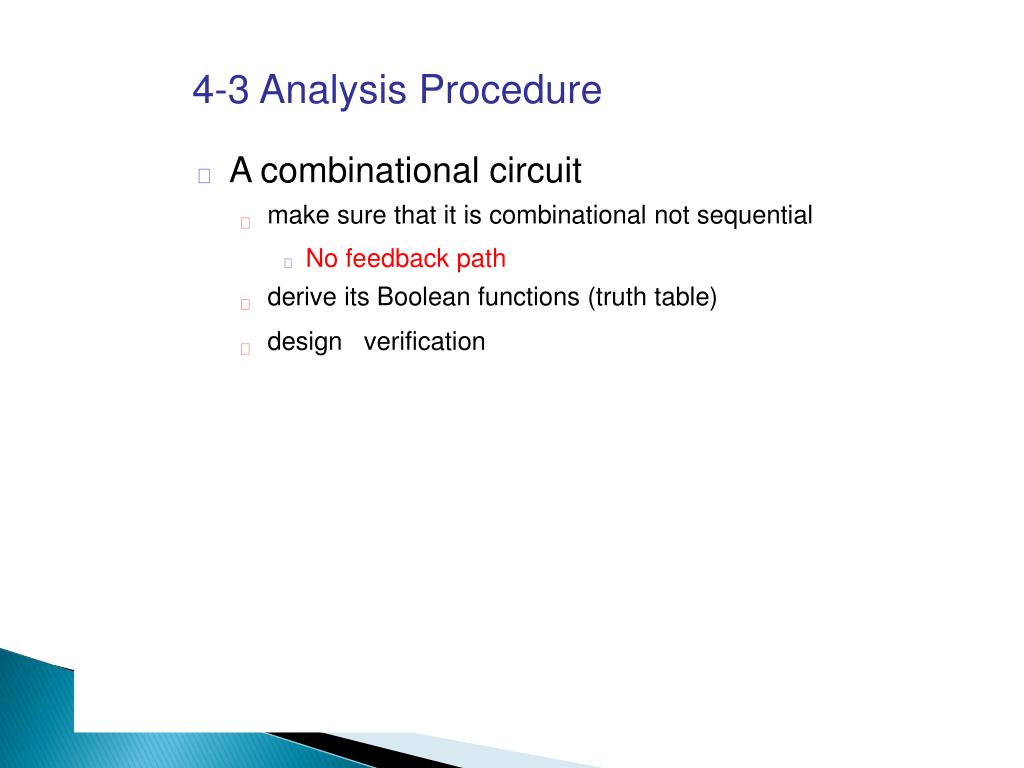

  5. 4-3 Analysis Procedure A combinational circuit  make sure that it is combinational not sequential  No feedback path  derive its Boolean functions (truth table)  design verification 

  6. A straight-forward procedure F = AB+AC+BC 2 T = A+B+C = AxB+C 1 1 T = ABC 2 T = F2'T1 3 F = T3+T2 1 6

  7. F = T +T = F 'T +ABC  1 3 2 2 1 = (AB+AC+BC)'(A+B+C)+ABC = (A'+B')(A'+C“)(B'+C')(A+B+C)+ABC = (A'+B'C')(AB'+AC'+BC'+B'C)+ABC = A'BC'+A'B‘C+AB‘C'+ABC 7

  8. The truth table  8

  9. 4-4 Design Procedure The design procedure of combinational circuits  State the problem (system spec.)  determine the inputs and outputs  the input and output variables are assigned symbols  derive the truth table  ed b x derive the simplifi erive the simplified Bool oolean functions xan functionx  draw the logic diagram and verify the correctness  9

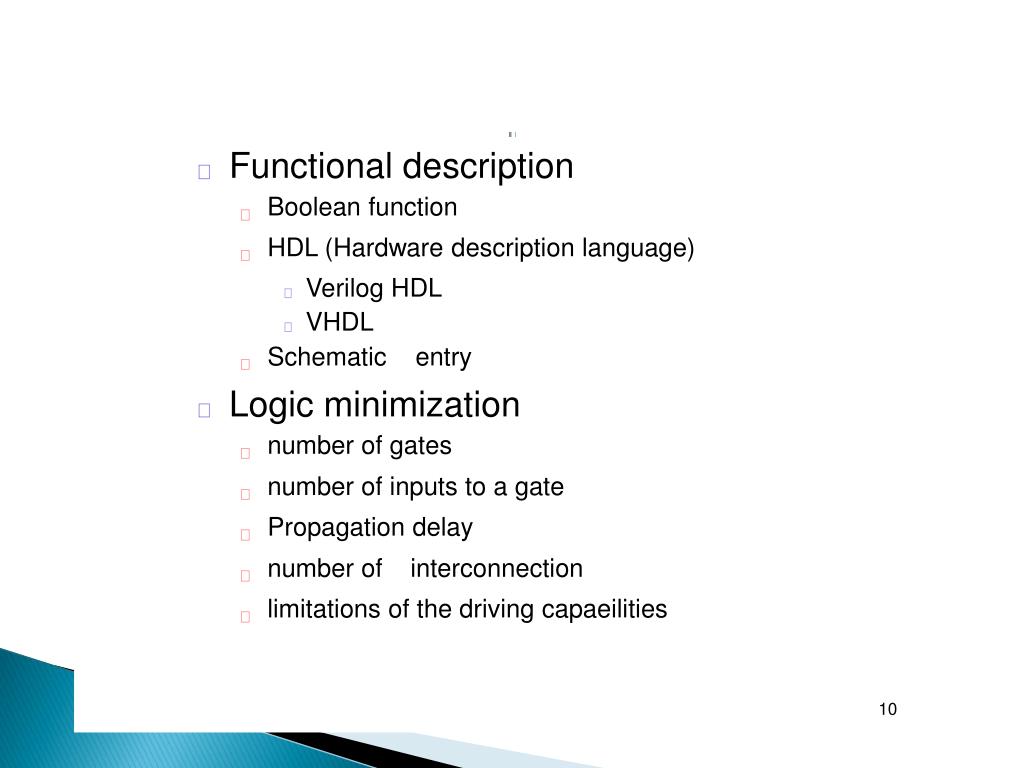

  10. Functional description  Boolean function  HDL (Hardware description language)  Verilog HDL  VHDL  Schematic entry  Logic minimization  number of gates  number of inputs to a gate  Propagation delay  number of interconnection  limitations of the driving capaeilities  10

  11. Cdde conversion example BCD to excess-3 code  The truth table  11

  12. The maps 12

  13. The simplified functions  z = D'  y = CD +C'D‘ x = B'C + B‘D+BC'D' w = A+BC+BD Another i mplementation   z = D'  y = CD +C'D' = CD + (C+D)' x = B'C + B'D+BC'D‘ = B'(C+D) +B(C+D)' w = A+BC+BD 13

  14. The logic diagram  14

  15. 4-5 Binary Adder-Subtractor Half adder  0 + 0 = 0 ; 0 + 1 = 1 ; 1 + 0 = 1 ; 1 + 1 = 10  two input variables: x, y  two output variables: C (carry), S (sum)  truth table  15

  16. S = x'y+xy'  C = xy the flexibility for implementation  S=xÅy  S = (x+y)(x'+y')  S‘= xy+x'y'   S = (C+x'y')' C = xy = (x'+y')x  16

  17. 17

  18. Z 0 0 0 0 X 0 0 1 1 + Y + 0 + 1 + 0 + 1 C S 0 0 0 1 0 1 1 0 Z 1 1 1 1 X 0 0 1 1 + Y + 0 + 1 + 0 + 1 C S 0 1 1 0 1 0 1 1 Functional Block: Full-Adder • A full adder is similar to a half adder, but includes a carry-in bit from lower stages. Like the half-adder, it computes a sum bit, S and a carry bit, C. • For a carry-in (Z) of 0, it is the same as the half-adder: • For a carry- in(Z) of 1: CS 151

  19. Full-Adder  The arithmetic sum of three input bits  three input bits  x, y: two significant bits  z: the carry bit from the previous lower significant bit  Two output bits: C, S  18

  20. 19

  21. S = x'y'z+x'yz'+ xy'z'+xyz  C = xy + xz + yz S = zÅ (xÅy)  = z'(xy'+x‘y)+z(xy'+x'y)' = z‘xy'+z'x'y+z(xy+x‘y') = xy'z'+x'yz'+xyz+x'y'z C = z(xy'+x'y)+xy = xy'z+x'yz+ xy 20

  22. Binary adder 21

  23. Carry propagation  when the correct outputs are available  the critical path counts (the worst case)  22

  24. Reduce the carry propagation delay  employ faster gates  look-ahead carry (more complex mechanism, yet  faster) ÅB carry propagate: P = A  i i i carry g carry generate: G xnerate: G = A = A B B  i i i ÅC sum: S = P  i i i carry: C = G +P C  i+1 i i i C = G +P C  1 0 0 0 C = G +P C = G +P (G +P C )  2 1 1 1 1 1 0 0 0 = G +P G +P P C 1 1 0 1 0 0 C = G +P C = G +P G +P P G + P P P C  3 2 2 2 2 2 1 2 1 0 2 1 0 0 23

  25. Logic diagram  2x Digitxl Circuits

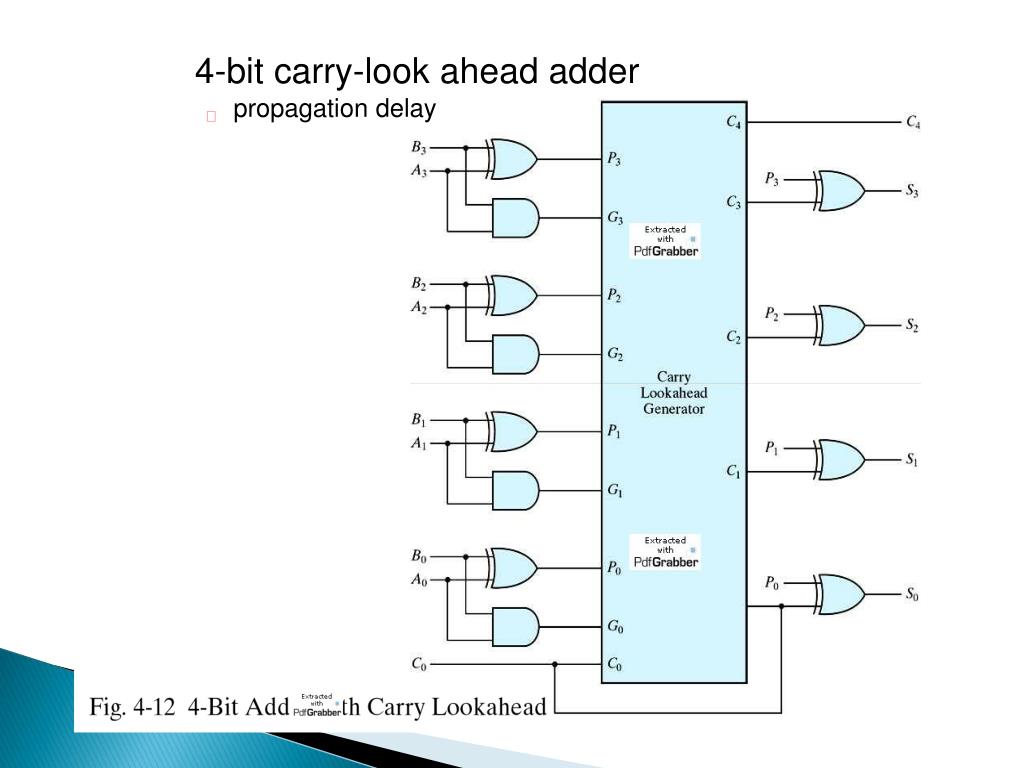

  26. 4-bit carry-look ahead adder propagation delay  25 xigital Cixcuits

  27. Binary subtractor A-B = A+(2’s complement of B)  4-bit Adder-subtractor  M=0, A+B; M=1, A+B’+1  26

  28. Overflow  The storage is limited  Add two positive numbers and obtain a negative  number Add two negative numbers and obtain a positive  number V = 0, no overflow; V = 1, overflow  Example: 27
