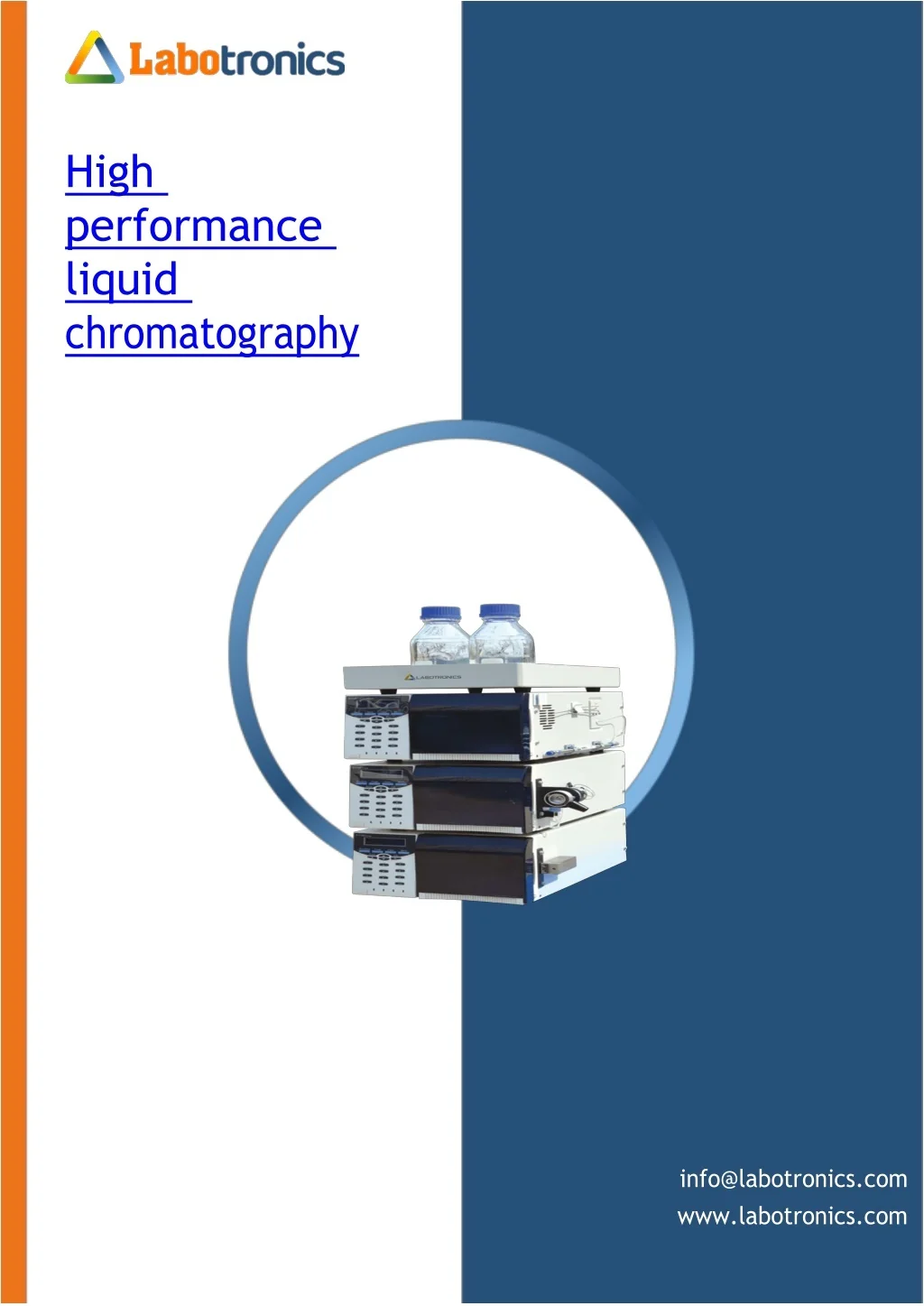

1. High performance liquid chromatography info@labotronics.com www.labotronics.com

2. Overview High performance liquid chromatography is a unit with a flow range 0.001 mL / min to 10.000 mL / min. It has a UV detector of wavelength range 190 nm to 700 nm and a deuterium light source which has high stability and high-intensity. Specifications : Isocratic Pump (1 set) Double plunger reciprocating pump 0.001 mL / min̴ 10.000 mL / min Flow range Setting step size 0.001 mL / min Flow accuracy ≤ ± 0.3 % ( 1.00 ml / min, H2O , R.T. , 8.5 MPa ) Flow stability RSD ≤ 0.1 % ( 1.00 ml / min, H2 O , R.T , 8.5 MPa ) Pump specifications Maximum pressure 42 Mpa ≤ ± 3.0 % Display pressure error Pressure fluctuation ≤ 1.0 % 80 W Power dissipation

3. Wavelength repeatability Wavelength accuracy ± 0.1 nm ≤ ± 1.0 nm Spectrum band width 8 nm 0.0 secs to 4.9 secs Response time Linearity range1.8 AU ( 5 % ) Baseline noise ≤ ± 1 × 10 - 5 AU Wavelength range 190 nm ~ 700 nm Baseline drift ≤ 2.0 × 10-4 AU / h Detector specifications 4.0 × 10-9 g / mL ( Naphthalene in Methanol Solution ) Optical Path - 10 mm Minimum detectable concentration Detector cell Volume - 10 μl Deuterium Lamp Light source Power dissipation Power supply 100 W AC 110 V / 220 V ± 10 %, 50 Hz / 60 Hz Features : VFD screen for process control Deuterium light Gradient mixer for effective centrifugation gradients

4. Optical path detector cell of volume 10µL One set double plunger reciprocating pump Applications : Used to split a mixture of compounds in the fields of analytical chemistry, biochemistry and industrial. Standard Accessories : Accessory NoAccessory 1) Sample injector 2) 3) HPLC column ( 5 µm, ID 6 × 200 mm ) Work station 4) 5) Value mounting frame Isocratic system kit Labotronics Ltd. Union House, 111 New Union Street, Coventry CV1 2NT, UK info@labotronics.com | www.labotronics.com
