1. Series of innovative stretch blow molding machines APF-Max New concept and innovative design – high output and flexibility SIMPLICITY & UNIQUENESS • RELIABILITY & SERVICE • EUROPEAN QUALITY & INNOVATIONS • SIMPLICITY & UNIQUENESS SIMPLICITY & UNIQUENESS • RELIABILITY & SERVICE • EUROPEAN QUALITY & INNOVATIONS • SIMPLICITY & UNIQUENESS

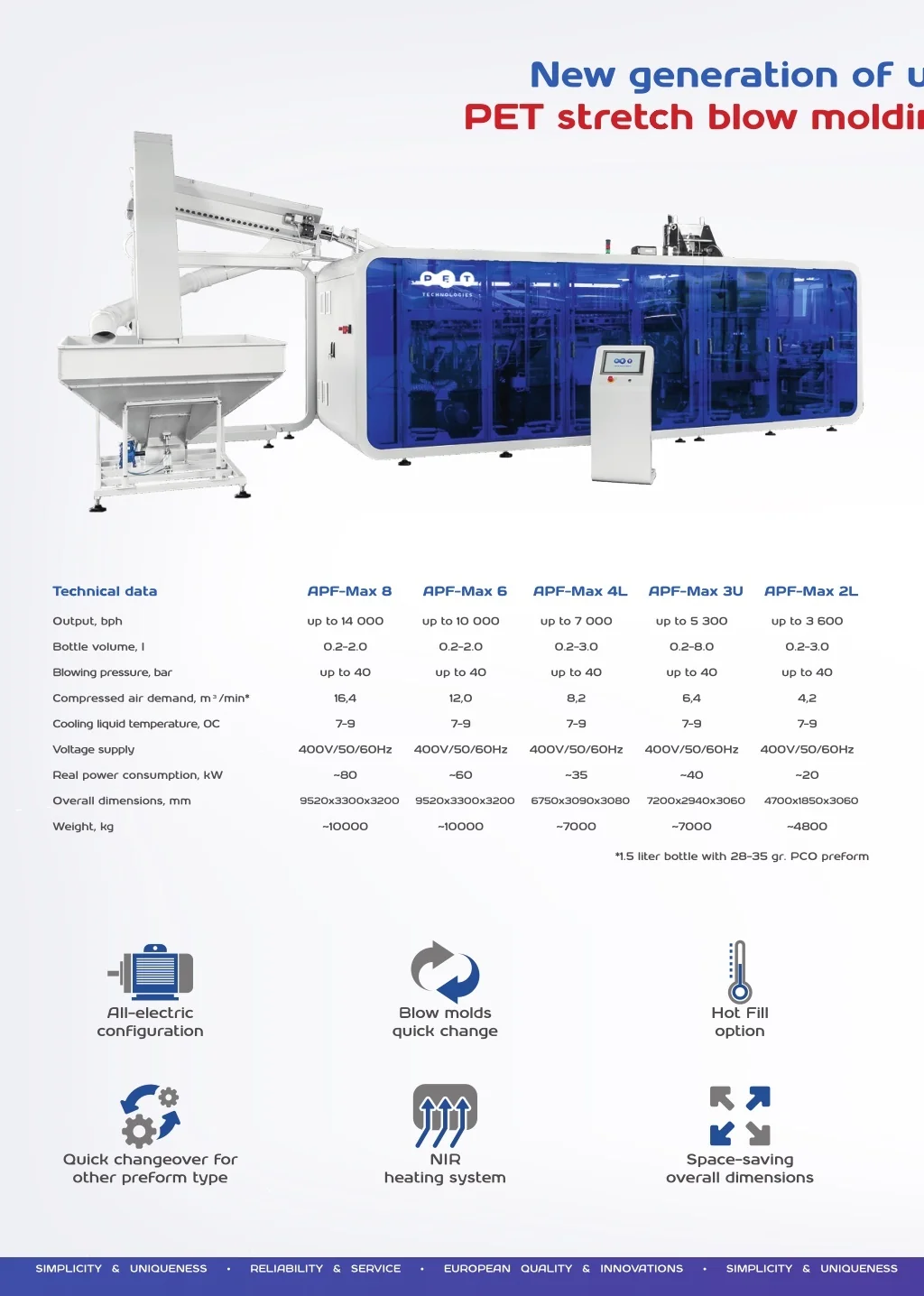

2. New generation of universal automatic PET stretch blow molding machines APF-Max Technical data APF-Max 8 APF-Max 6 APF-Max 4L APF-Max 3U APF-Max 2L Output, bph up to 14 000 up to 10 000 up to 7 000 up to 5 300 up to 3 600 Bottle volume, l 0.2-2.0 0.2-2.0 0.2-3.0 0.2-8.0 0.2-3.0 Blowing pressure, bar up to 40 up to 40 up to 40 up to 40 up to 40 Compressed air demand, m³/min* 16,4 12,0 8,2 6,4 4,2 Cooling liquid temperature, 0C 7-9 7-9 7-9 7-9 7-9 Voltage supply 400V/50/60Hz 400V/50/60Hz 400V/50/60Hz 400V/50/60Hz 400V/50/60Hz Real power consumption, kW ~80 ~60 ~35 ~40 ~20 Overall dimensions, mm 9520x3300x3200 9520x3300x3200 6750x3090x3080 7200x2940x3060 4700x1850x3060 Weight, kg ~10000 ~10000 ~7000 ~7000 ~4800 *1.5 liter bottle with 28-35 gr. PCO preform All-electric configuration Blow molds quick change Hot Fill option Quick changeover for other preform type NIR Space-saving overall dimensions heating system SIMPLICITY & UNIQUENESS • RELIABILITY & SERVICE • EUROPEAN QUALITY & INNOVATIONS • SIMPLICITY & UNIQUENESS

3. New generation of universal automatic PET stretch blow molding machines APF-Max APF-Max series with output between 3000 and 14000 bph with basic bottles volume 0.2–3.0l and some versions up to 8l. All the equipment range has quick changeover for another preform type with 18 mm - 48 mm neck diameters. Quick change and flexibility: • 2-, 3-, 4-, 6-, 8-cavities configurations • Option to increase the output by installation of additional blow mold cavities • APF-Max U modification – flexible change of cavities number for 0.2-2.0l, 4-6 and 8l • Modular blow mold system with separated mold cavities • Individual block of valves for each mold cavity with air recovery system NIR heating and low total installed power: • Near infrared (NIR) heating system consumes less energy, its waves are more intensive • More efficient system than convectional IR • Heating modules with only 7 lamps • Quick-change mandrels in the heater for another preform neck All-electric configuration: • 6 servo drives: mold closing unit, stretching unit, heater rotation, preform transfer to the blowing unit and bottle outfeed system • Pressure control in the blow mold • Preblow controlled via PLC • Automatic temperature regulation User-friendly concept and innovative design: • Streamline form and alternative coloring that meet corporate style • PLC that stands alone from the machine makes it easier to operate • All the communications are connected from the top of the machine • Electric cabinet backside APF-Max blow molder compact overall dimensions due to the NIR heating system make it easy to transport both by land and by sea to 5 continents. PET Technologies service centers and representatives in Europe, Asia, North and South America support with the maintenance and start-up. SIMPLICITY & UNIQUENESS • RELIABILITY & SERVICE • EUROPEAN QUALITY & INNOVATIONS • SIMPLICITY & UNIQUENESS SIMPLICITY & UNIQUENESS • RELIABILITY & SERVICE • EUROPEAN QUALITY & INNOVATIONS • SIMPLICITY & UNIQUENESS

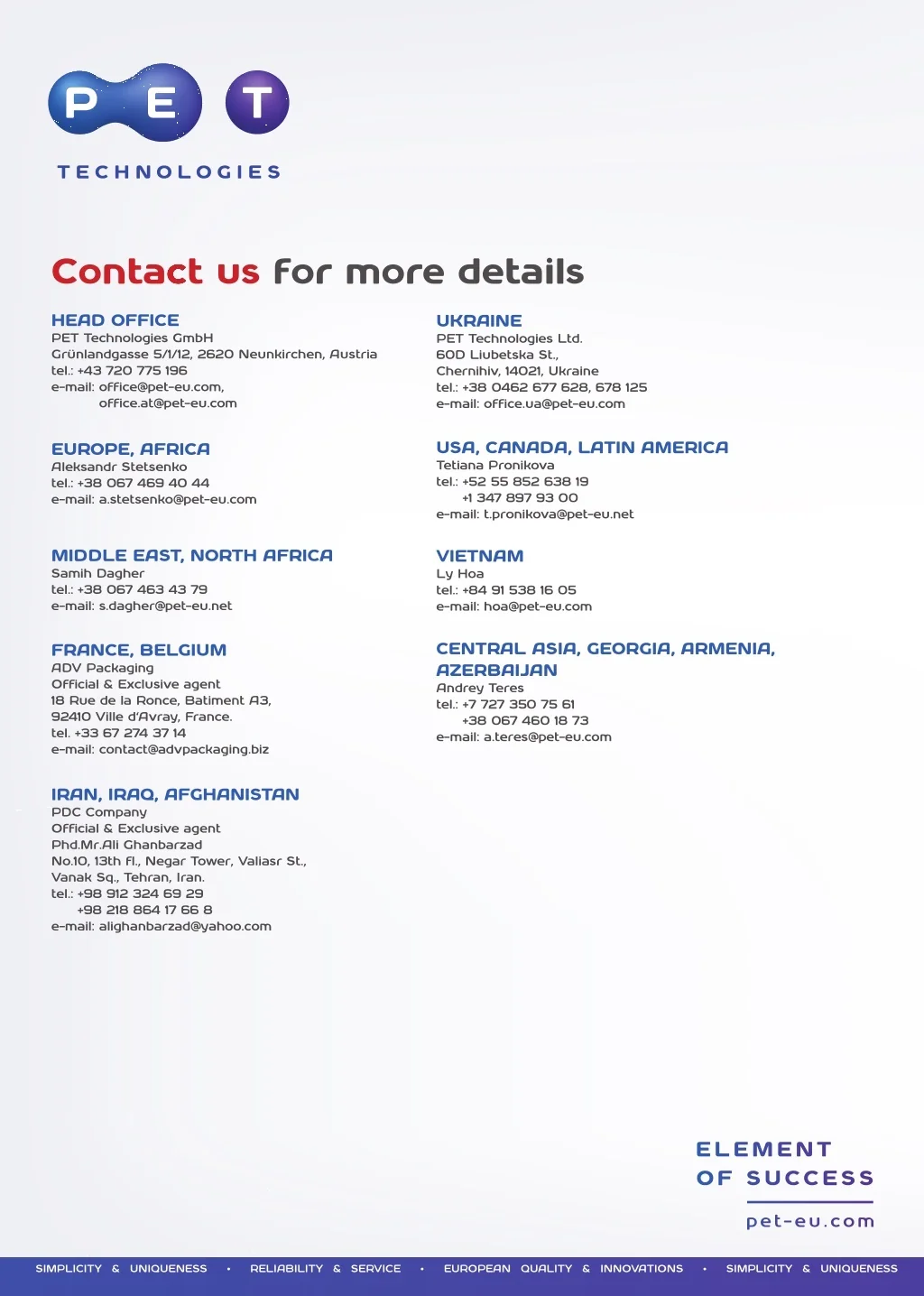

4. Contact us for more details UKRAINE PET Technologies Ltd. 60D Liubetska St., Chernihiv, 14021, Ukraine tel.: +38 0462 677 628, 678 125 e-mail: office.ua@pet-eu.com HEAD OFFICE PET Technologies GmbH Grünlandgasse 5/1/12, 2620 Neunkirchen, Austria tel.: +43 720 775 196 e-mail: office@pet-eu.com, office.at@pet-eu.com USA, CANADA, LATIN AMERICA Tetiana Pronikova tel.: +52 55 852 638 19 +1 347 897 93 00 e-mail: t.pronikova@pet-eu.net EUROPE, AFRICA Aleksandr Stetsenko tel.: +38 067 469 40 44 e-mail: a.stetsenko@pet-eu.com MIDDLE EAST, NORTH AFRICA Samih Dagher tel.: +38 067 463 43 79 e-mail: s.dagher@pet-eu.net VIETNAM Lу Hoa tel.: +84 91 538 16 05 e-mail: hoa@pet-eu.com CENTRAL ASIA, GEORGIA, ARMENIA, AZERBAIJAN Andrey Teres tel.: +7 727 350 75 61 +38 067 460 18 73 e-mail: a.teres@pet-eu.com FRANCE, BELGIUM ADV Packaging Official & Exclusive agent 18 Rue de la Ronce, Batiment A3, 92410 Ville d‘Avray, France. tel. +33 67 274 37 14 e-mail: contact@advpackaging.biz IRAN, IRAQ, AFGHANISTAN PDC Company Official & Exclusive agent Phd.Mr.Ali Ghanbarzad No.10, 13th fl., Negar Tower, Valiasr St., Vanak Sq., Tehran, Iran. tel.: +98 912 324 69 29 +98 218 864 17 66 8 e-mail: alighanbarzad@yahoo.com SIMPLICITY & UNIQUENESS • RELIABILITY & SERVICE • EUROPEAN QUALITY & INNOVATIONS • SIMPLICITY & UNIQUENESS
