Figure 2.1. CSE separation of eight molecular weight standards.

Rita avatar
Rita
44 diapositives · 1.1K Views · Jan 27, 2012

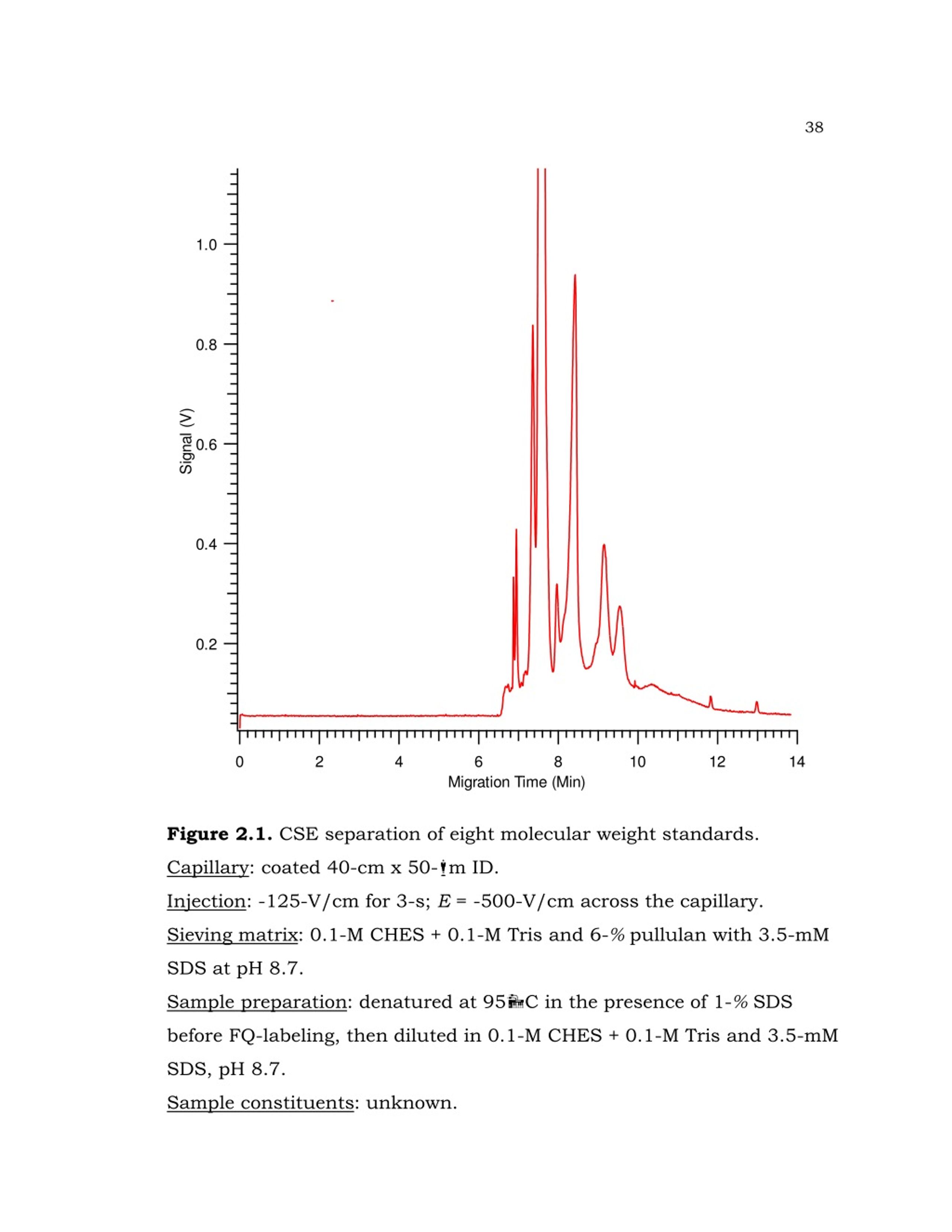

38. Figure 2.1. CSE separation of eight molecular weight standards. Capillary : coated 40-cm x 50- m ID. Injection : -125-V/cm for 3-s; E = -500-V/cm across the capillary. Sieving matrix : 0.1-M CHES + 0.1-M Tris and 6- % pullulan with 3.5-mM SDS at pH 8.7.

Figure 2.1. CSE separation of eight molecular weight standards. - slide 1
01 / 44Figure 2.1. CSE separation of eight molecular weight standards.
1 / 17

Télécharger la présentation

Figure 2.1. CSE separation of eight molecular weight standards.
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. 38 Figure 2.1. CSE separation of eight molecular weight standards. Capillary: coated 40-cm x 50-m ID. Injection: -125-V/cm for 3-s; E = -500-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 6-% pullulan with 3.5-mM SDS at pH 8.7. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7. Sample constituents: unknown.

  2. 38 -Lactoglobulin MW = 18,281-Da Figure 2.2. CSE separation of -lactoglobulin in pullulan. Capillary: coated 40-cm x 50-m ID. Injection: -50-V/cm for 3-s; E = -300-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 6-% pullulan with 3.5-mM SDS at pH 8.7. Sample preparation: -lactoglobulin was denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 to a concentration of 50-nM.

  3. 38 -lactoglobulin MW = 18,281-Da Figure 2.3. CSE separation of -lactoglobulin in pullulan. Capillary: coated 40-cm x 50-m ID. Injection: -50-V/cm for 3-s; E = -350-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 6-% pullulan with 3.5-mM SDS at pH 8.7. Sample preparation: -lactoglobulin was denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 to a concentration of 50-nM.

  4. 38 BSA MW = 66,432-Da Figure 2.4. CSE separation of BSA in pullulan. Capillary: coated 40-cm x 50-m ID. Injection: -50-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 6-% pullulan with 3.5-mM SDS at pH 8.7. Sample preparation: BSA was denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 to a concentration of 100-nM.

  5. 38 Ovalbumin MW = 42,750-Da Figure 2.5. CSE separation of ovalbumin in pullulan. Capillary: coated 40-cm x 50-m ID. Injection: -50-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 6-% pullulan with 3.5-mM SDS at pH 8.7. Sample preparation: ovalbumin was denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 to a concentration of 60-nM.

  6. 38 Carbonic anhydrase MW = 28,980-Da Figure 2.6. CSE separation of carbonic anhydrase in pullulan. Capillary: coated 40-cm x 50-m ID. Injection: -50-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 6-% pullulan with 3.5-mM SDS at pH 8.7. Sample preparation: carbonic anhydrase was denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 to a concentration of 40-nM.

  7. 38 -Lactalbumin MW = 14,186-Da Figure 2.7. CSE separation of -lactalbumin in pullulan. Capillary: coated 40-cm x 50-m ID. Injection: -50-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 6-% pullulan with 3.5-mM SDS at pH 8.7. Sample preparation: carbonic anhydrase was denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 to a concentration of 100-nM.

  8. 38 2 4 1 3 5 Figure 2.8. CSE separation of five molecular weight standards. Capillary: coated 40-cm x 50-m ID. Injection: -50-V/cm for 3-s; E = -350-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 6-% pullulan with 3.5-mM SDS at pH 8.7. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 to a concentration of 20-nM. Peaks: 1 - -lactoglobulin; 2 - carbonic anhydrase; 3 - ovalbumin; 4 - BSA; 5 - phosphorylase b.

  9. 38 38 Figure 2.9. Relationship between the migration time and molecular weight of SDS-denatured protein standards separated in CSE with different sieving matrix concentrations.

  10. 38 - Galactosidase MW = 116,351-Da Figure 2.10. CSE separation of -galactosidase in pullulan. Capillary: coated 40-cm x 50-m ID. Injection: -250-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 6-% pullulan with 3.5-mM SDS at pH 8.7. Sample preparation: -galactosidase was denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 to a concentration of 200-nM.

  11. 38 - Galactosidase MW = 116,351-Da Figure 2.11. CSE separation of -galactosidase in PEO. Capillary: coated 40-cm x 50-m ID. Injection: -150-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 2-% PEO(100-kDa) with 3.5-mM SDS at pH 8.7. Sample preparation: -galactosidase was denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 to a concentration of 200-nM.

  12. 38 5-% dextran 10-% dextran Figure 2.12. CSE separation of -galactosidase in dextran. Capillary: coated 40-cm x 50-m ID. Injection: -150-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 60-mM AMPD + 60-mM CACO and dextran(513-kDa) with 3.5-mM SDS at pH 8.7. Sample preparation: -galactosidase was denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 to a concentration of 200-nM.

  13. 38 5-% dextran N = 4,000-plates N = 1,500-plates 10-% dextran Figure 2.13. CSE separation of -galactosidase in dextran. Capillary: coated 40-cm x 50-m ID. Injection: -150-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and dextran(513-kDa) with 3.5-mM SDS at pH 8.7. Sample preparation: -galactosidase was denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 to a concentration of 200-nM.

  14. 38 - Galactosidase MW = 116,351-Da Figure 2.14. CSE separation of -galactosidase in PEO. Capillary: coated 40-cm x 50-m ID. Injection: -150-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 60-mM AMPD + 60-mM CACO and 2-% PEO(100-kDa) with 3.5-mM SDS at pH 8.8. Sample preparation: -galactosidase was denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 to a concentration of 200-nM.

  15. 38 2 1 Figure 2.15. CSE separation of 14.2-kDa and 18.4-kDa molecular weight standards in pullulan. Capillary: coated 40-cm x 50-m ID. Injection: -150-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 6-% pullulan with 3.5-mM SDS at pH 8.7. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 to a concentration of 50-nM. Peaks: 1 - -lactalbumin; 2 - -lactoglobulin.

  16. 38 2 1 RS = 0.502 RS = 0.760 1 2 5-% dextran 10-% dextran Figure 2.16. CSE separation of 14.2-kDa and 18.4-kDa molecular weight standards in pullulan. Capillary: coated 40-cm x 50-m ID. Injection: -150-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and dextran(513-kDa) with 3.5-mM SDS at pH 8.7. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 to a concentration of 50-nM. Peaks: 1 - -lactalbumin; 2 - -lactoglobulin.

  17. 38 1 2 1 2 5-% dextran 10-% dextran Figure 2.17. CSE separation of 14.2-kDa and 18.4-kDa molecular weight standards in pullulan. Capillary: coated 40-cm x 50-m ID. Injection: -150-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 60-mM AMPD + 60-mM CACO and dextran(513-kDa) with 3.5-mM SDS at pH 8.8. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 to a concentration of 50-nM. Peaks: 1 - -lactalbumin; 2 - -lactoglobulin.

  18. 38 1 2 3-% PEO 1.5-% PEO Figure 2.18. CSE separation of 14.2-kDa and 18.4-kDa molecular weight standards in pullulan. Capillary: coated 40-cm x 50-m ID. Injection: -150-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and PEO(100-kDa) with 3.5-mM SDS at pH 8.7. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 to a concentration of 50-nM. Peaks: 1 - -lactalbumin; 2 - -lactoglobulin.

  19. 38 1 2 3 Figure 2.19. CSE separation of three molecular weight standards. Capillary: coated 40-cm x 50-m ID. Injection: -150-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 10-% dextran(513-kDa) with 3.5-mM SDS at pH 8.7. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7. Peaks: 1 - -lactalbumin (50-nM); 2 - -lactoglobulin (10-nM); 3 - carbonic anhydrase (10-nM).

  20. 38 1 3 2 Figure 2.20. CSE separation of three molecular weight standards. Capillary: coated 40-cm x 50-m ID. Injection: -150-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 6-% pullulan with 3.5-mM SDS at pH 8.7. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7. Peaks: 1 - -lactalbumin (50-nM); 2 - -lactoglobulin (10-nM); 3 - carbonic anhydrase (10-nM).

  21. 38 2-% PEO 3-% PEO Figure 2.21. CSE separation of three molecular weight standards. Capillary: coated 40-cm x 50-m ID. Injection: -150-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and PEO(100-kDa) with 3.5-mM SDS at pH 8.7. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7. Peaks: 1 - -lactalbumin (50-nM); 2 - -lactoglobulin (10-nM); 3 - carbonic anhydrase (10-nM).

  22. 38 1 2 Figure 2.22. CSE separation of two molecular weight standards. Capillary: coated 40-cm x 50-m ID. Injection: -25-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 6-% pullulan with 3.5-mM SDS at pH 8.7. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7. Peaks: 1 - -lactalbumin (40-nM); 2 - ovalbumin (20-nM).

  23. 38 1 3 4 2 Figure 2.23. CSE separation of four molecular weight standards. Capillary: coated 40-cm x 50-m ID. Injection: -25-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 6-% pullulan with 3.5-mM SDS at pH 8.7. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 at a concentration of 40-nM. Peaks: 1 - -lactalbumin; 2 - -lactoglobulin; 3 - carbonic anhydrase; 4 - ovalbumin.

  24. 38 3-% PEO 2-% PEO Figure 2.24. CSE separation of four molecular weight standards. Capillary: coated 40-cm x 50-m ID. Injection: -25-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 60-mM AMPD + 60-mM CACO and PEO(100-kDa) with 3.5-mM SDS at pH 8.8. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 at a concentration of 40-nM. Sample: -lactalbumin, -lactoglobulin, carbonic anhydrase and ovalbumin; peaks were not identified.

  25. 38 1 3 4 2 A B Figure 2.25. CSE separation of four molecular weight standards in 7.5-% dextran(513-kDa). Capillary: coated 40-cm x 50-m ID. Injection: -50-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: A - 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS at pH 8.7; B - 60-mM AMPD + 60-mM CACO and 3.5-mM SDS at pH 8.8. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 at a concentration of 40-nM. Peaks: 1 - -lactalbumin; 2 - -lactoglobulin; 3 - carbonic anhydrase; 4 - ovalbumin.

  26. 38 1 2 3 4 B A Figure 2.26. CSE separation of four molecular weight standards in 7.5-% dextran(513-kDa). Capillary: coated 40-cm x 50-m ID. Injection: -50-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: A - 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS at pH 8.7; B - 60-mM AMPD + 60-mM CACO and 3.5-mM SDS at pH 8.8. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 at a concentration of 40-nM. Peaks: 1 - -lactalbumin; 2 - BSA; 3 - phosphorylase b; 4 - -galactosidase.

  27. 38 4 6 2 3 1 5 7 Figure 2.27. CSE separation of seven molecular weight standards. Capillary: coated 40-cm x 50-m ID. Injection: -25-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 6-% pullulan with 3.5-mM SDS at pH 8.7. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 at a concentration of 40-nM. Peaks: 1 - -lactalbumin; 2 - -lactoglobulin; 3 - carbonic anhydrase; 4 - ovalbumin; 5 - BSA; 6 - phosphorylase b; 7 - -galactosidase.

  28. 38 1) 22,000-plates 2) 17,000-plates 3) 53,000-plates 4) 6,000-plates 5) 7,700-plates 6) 10,300-plates 7) 10,400-plates RS = 0.899 RS = 0.613 RS = 0.748 Figure 2.28. CSE separation of seven molecular weight standards. Capillary: coated 40-cm x 50-m ID. Injection: -25-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 60-mM AMPD + 60-mM CACO and 5-% dextran (513-kDa) with 3.5-mM SDS at pH 8.8. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 at a concentration of 40-nM.

  29. 38 3 1 5 2 4 7 6 5-% 6-% 7-% 8-% Figure 2.29. CSE separation of seven molecular weight standards. Capillary: coated 40-cm x 50-m ID. Injection: -25-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 60-mM AMPD + 60-mM CACO and dextran(513-kDa) with 3.5-mM SDS at pH 8.8. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 at a concentration of 40-nM. Peaks: 1 - -lactalbumin; 2 - -lactoglobulin; 3 - carbonic anhydrase; 4 - ovalbumin; 5 - BSA; 6 - phosphorylase b; 7 - -galactosidase.

  30. 38 3 6 1 7 2 5 4 5-% 4-% 3-% Figure 2.30. CSE separation of seven molecular weight standards. Capillary: coated 40-cm x 50-m ID. Injection: -50-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 60-mM AMPD + 60-mM CACO and dextran(2-MDa) with 3.5-mM SDS at pH 8.8. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 at a concentration of 40-nM. Peaks: 1 - -lactalbumin; 2 - -lactoglobulin; 3 - carbonic anhydrase; 4 - ovalbumin; 5 - BSA; 6 - phosphorylase b; 7 - -galactosidase.

  31. 38 1 2 4 3 6 5 7 Figure 2.31. CSE separation of seven molecular weight standards. Capillary: coated 40-cm x 50-m ID. Injection: -50-V/cm for 5-s; E = -500-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 7-% dextran(513-kDa) with 3.5-mM SDS at pH 8.7. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 at a concentration of 40-nM. Peaks: 1 - -lactalbumin; 2 - -lactoglobulin; 3 - carbonic anhydrase; 4 - ovalbumin; 5 - BSA; 6 - phosphorylase b; 7 - -galactosidase.

  32. 38 2 6 4 3 1 5 7 Figure 2.32. CSE separation of seven molecular weight standards in dextran-pullulan sieving mixture. Capillary: coated 40-cm x 50-m ID. Injection: -25-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 2.5-% dextran(513-kDa) + 2.5-% pullulan with 3.5-mM SDS at pH 8.7. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 at a concentration of 40-nM. Peaks: 1 - -lactalbumin; 2 - -lactoglobulin; 3 - carbonic anhydrase; 4 - ovalbumin; 5 - BSA; 6 - phosphorylase b; 7 - -galactosidase.

  33. 38 3 6 1 2 7 5 4 Figure 2.33. CSE separation of seven molecular weight standards in dextran-pullulan sieving mixture. Capillary: coated 40-cm x 50-m ID. Injection: -25-V/cm for 5-s; E = -450-V/cm across the capillary. Sieving matrix: 60-mM AMPD + 60-mM CACO and 2-% dextran(513-kDa) + 2-% dextran(2-MDa) + 2-% pullulan with 3.5-mM SDS at pH 8.8. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 at a concentration of 40-nM. Peaks: 1 - -lactalbumin; 2 - -lactoglobulin; 3 - carbonic anhydrase; 4 - ovalbumin; 5 - BSA; 6 - phosphorylase b; 7 - -galactosidase.

  34. 38 2 1 6 3 5 7 4 5-% 4-% 3-% Figure 2.34. CSE separation of seven molecular weight standards. Capillary: coated 40-cm x 50-m ID. Injection: -25-V/cm for 5-s; E = -350-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and dextran(2-MDa) with 3.5-mM SDS at pH 8.7. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 at a concentration of 40-nM. Peaks: 1 - -lactalbumin; 2 - -lactoglobulin; 3 - carbonic anhydrase; 4 - ovalbumin; 5 - BSA; 6 - phosphorylase b; 7 - -galactosidase.

  35. 38 2 6 3 5 1 4 7 A B C Figure 2.35. CSE separation of seven molecular weight standards in dextran-pullulan sieving mixture. Capillary: coated 40-cm x 50-m ID. Injection: -25-V/cm for 5-s; E = -450-V/cm across the capillary. Sieving matrix: A - 2-% dextran(513-kDa) + 2-% pullulan; B - 2-% dextran(2-MDa) + 2-% pullulan; C - 2-% dextran(513-kDa) + 2-% dextran(2-MDa). Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 at a concentration of 40-nM. Peaks: 1 - -lactalbumin; 2 - -lactoglobulin; 3 - carbonic anhydrase; 4 - ovalbumin; 5 - BSA; 6 - phosphorylase b; 7 - -galactosidase.

  36. 38 2 1 6 3 4 5 7 Figure 2.36. CSE separation of seven molecular weight standards in dextran-pullulan sieving mixture. Capillary: coated 40-cm x 50-m ID. Injection: -25-V/cm for 5-s; E = -450-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 2-% dextran(513-kDa) + 2-% dextran(2-MDa) + 2-% pullulan with 3.5-mM SDS at pH 8.7. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 at a concentration of 40-nM. Peaks: 1 - -lactalbumin; 2 - -lactoglobulin; 3 - carbonic anhydrase; 4 - ovalbumin; 5 - BSA; 6 - phosphorylase b; 7 - -galactosidase.

  37. 38 Figure 2.37. CSE separation of five molecular weight standards. Capillary: coated 40-cm x 50-m ID. Injection: -100-V/cm for 5-s; E = -500-V/cm across the capillary. Sieving matrix: 25-mM CHES + 25-mM Tris and 5-% dextran(513-kDa) with 3.5-mM SDS at pH 8.7. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 at a concentration of 40-nM. Sample: carbonic anhydrase, ovalbumin, BSA, phosphorylase b, -galactosidase; peaks were not identified.

  38. 38 1 3 2 4 5 Figure 2.38. CSE separation of five molecular weight standards. Capillary: coated 40-cm x 50-m ID. Injection: -125-V/cm for 2-s; E = -375-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 5-% dextran(513-kDa) with 3.5-mM SDS at pH 8.7. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 at a concentration of 40-nM. Peaks: 1 - carbonic anhydrase; 2 - ovalbumin; 3 - BSA; 4 - phosphorylase b; 5 - -galactosidase.

  39. 38 1 3 2 4 5 X = 100-mM X = 75-mM X = 50-mM X = 25-mM Figure 2.39. CSE separation of five molecular weight standards in various buffer concentrations. Capillary: coated 40-cm x 50-m ID. Injection: -100-V/cm for 2-s; E = -500-V/cm across the capillary. Sieving matrix: X-CHES + X-Tris and 5-% dextran(513-kDa) with 3.5-mM SDS at pH 8.7. Sample preparation: denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 at a concentration of 40-nM. Peaks: 1 - carbonic anhydrase; 2 - ovalbumin; 3 - BSA; 4 - phosphorylase b; 5 - -galactosidase.

  40. 38 Figure 2.40. CSE separation of ovalbumin (45-kDa) in dextran. Capillary: coated 40-cm x 50-m ID. Injection: -100-V/cm for 2-s; E = -500-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 5-% dextran(513-kDa) with 3.5-mM SDS at pH 8.7. Sample preparation: ovalbumin was denatured at 95C in the presence of 1-% SDS before FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 at a concentration of 50-nM.

  41. 38 Ovalbumin Isolated with ProTip From stock bottle Figure 2.41. CSE separation of ovalbumin from a stock bottle compared to ovalbumin isolated from a ProTip. Capillary: coated 40-cm x 50-m ID. Injection: -25-V/cm for 2-s; E = -375-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 5-% dextran(513-kDa) with 3.5-mM SDS at pH 8.7. Sample preparation: ovalbumin was heated at 95C in the presence of 1-% SDS prior to FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 at a concentration of 4-M.

  42. 38 Lysozyme Figure 2.42. CSE separation of lysozyme in dextran (513-kDa). Capillary: coated 40-cm x 50-m ID. Injection: -75-V/cm for 2-s; E = -375-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 5-% dextran(513-kDa) with 3.5-mM SDS at pH 8.7. Sample preparation: lysozyme was heated at 95C in the presence of 1-% SDS prior to FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 at a concentration of 700-nM.

  43. 38 Myoglobin Figure 2.43. CSE separation of myoglobin in dextran (513-kDa). Capillary: coated 40-cm x 50-m ID. Injection: -75-V/cm for 2-s; E = -375-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 5-% dextran(513-kDa) with 3.5-mM SDS at pH 8.7. Sample preparation: myoglobin was heated at 95C in the presence of 1-% SDS prior to FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 at a concentration of 150-nM.

  44. 38 apo-Myoglobin Figure 2.44. CSE separation of apo-myoglobin in dextran. Capillary: coated 40-cm x 50-m ID. Injection: -75-V/cm for 2-s; E = -375-V/cm across the capillary. Sieving matrix: 0.1-M CHES + 0.1-M Tris and 5-% dextran(513-kDa) with 3.5-mM SDS at pH 8.7. Sample preparation: apo-myoglobin was heated at 95C in the presence of 1-% SDS prior to FQ-labeling, then diluted in 0.1-M CHES + 0.1-M Tris and 3.5-mM SDS, pH 8.7 at a concentration of 180-nM.
