Kinematic Viscometer 52-KVM100 - automatic kinematic viscometer

Lab Expo Kinematic Viscometer features a double-layered desktop design for controlled asphalt viscosity testing. Built to ASTM D2171/D2171M-10, it supports capillary methods for accurate kinematic measurement. Compact structure suits quality control and materials testing workflows.

Scarlett_Labexpo
Télécharger la présentation

Kinematic Viscometer 52-KVM100 - automatic kinematic viscometer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

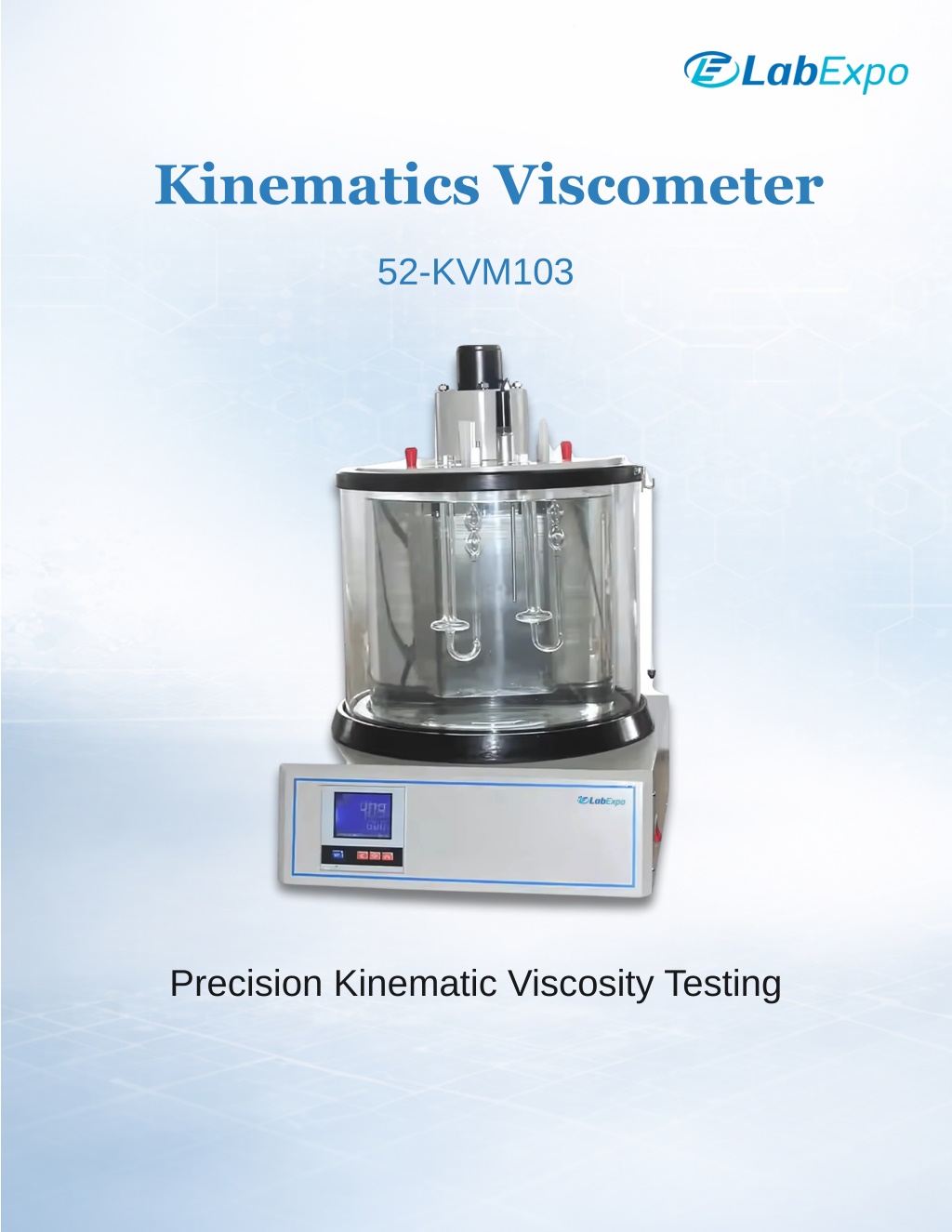

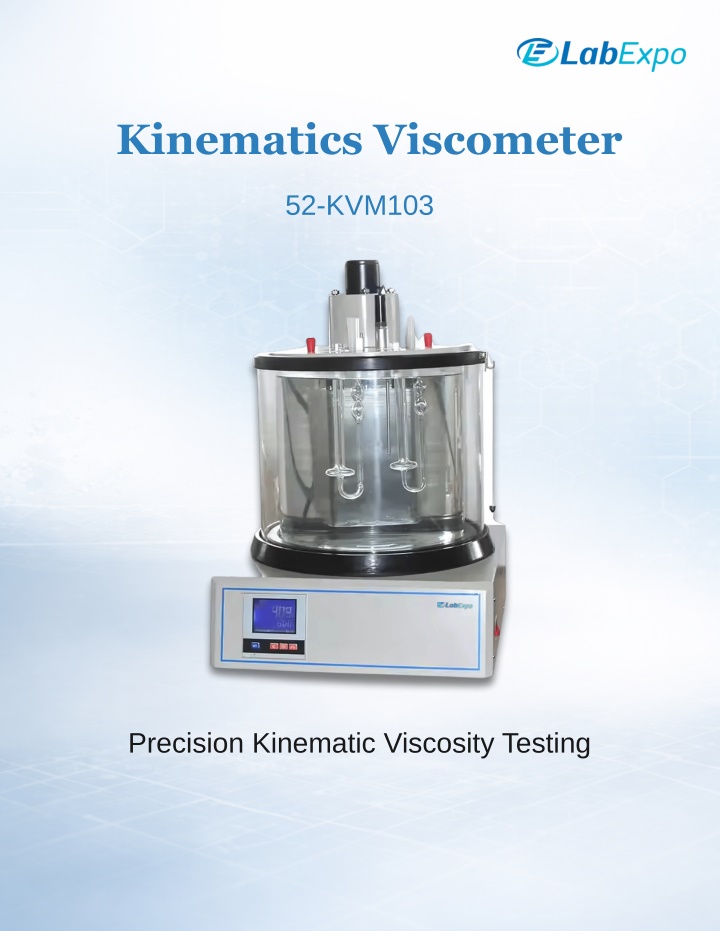

  1. Kinematics Viscometer 52-KVM103 Precision Kinematic Viscosity Testing

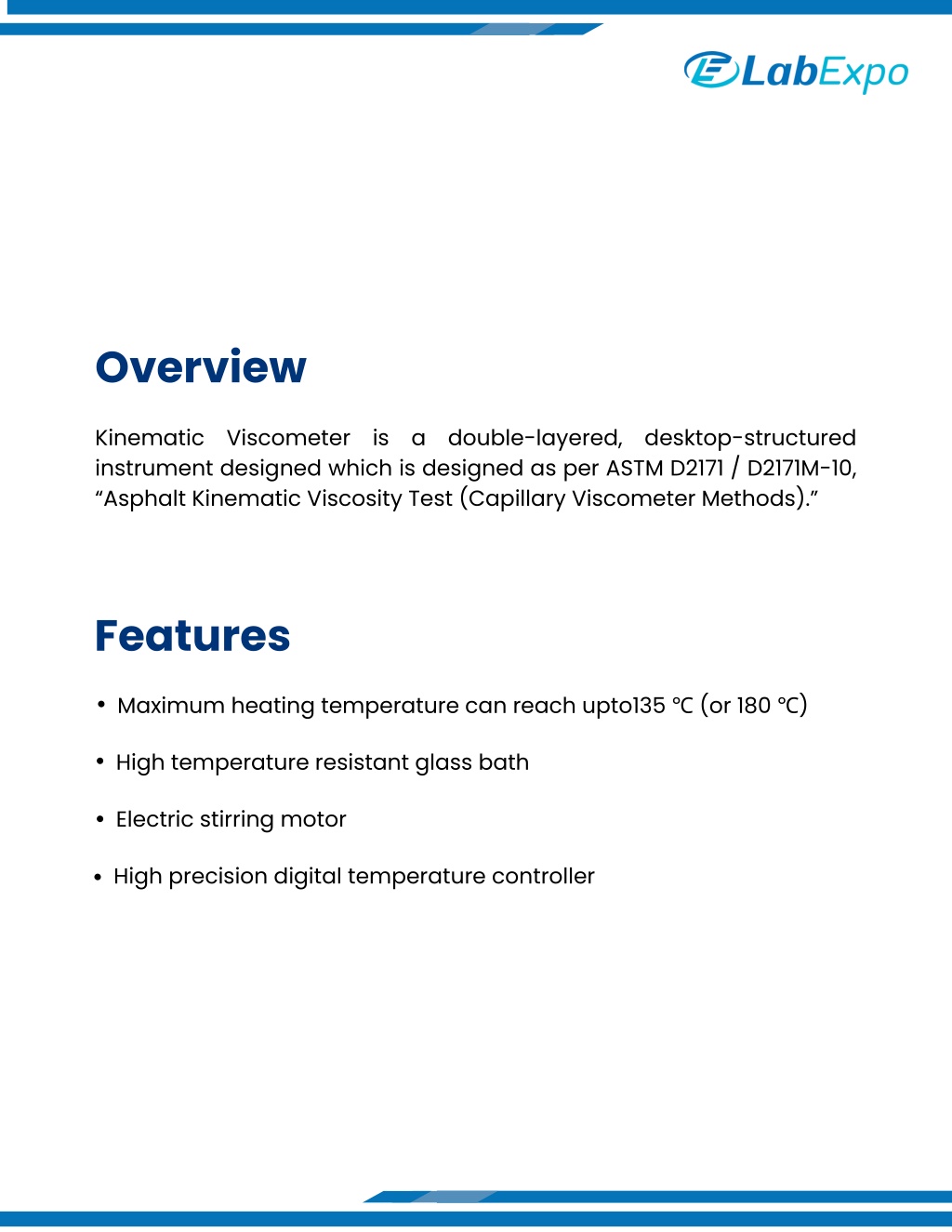

  2. Overview Kinematic Viscometer is a double-layered, desktop-structured instrument designed which is designed as per ASTM D2171 / D2171M-10, “Asphalt Kinematic Viscosity Test (Capillary Viscometer Methods).” Features Maximum heating temperature can reach upto135 ℃ (or 180 ℃) High temperature resistant glass bath Electric stirring motor High precision digital temperature controller

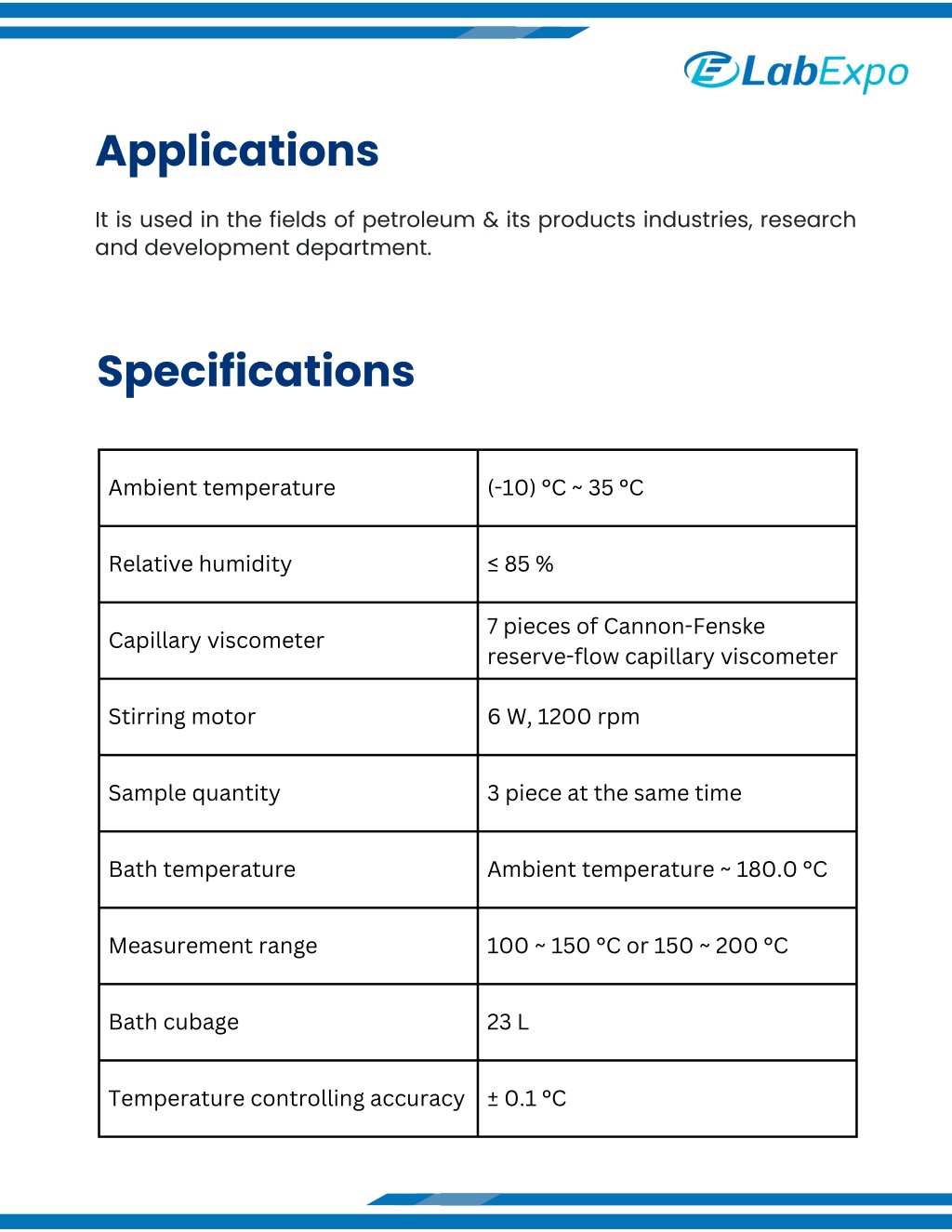

  3. Applications It is used in the fields of petroleum & its products industries, research and development department. Specifications Ambient temperature (-10) °C ~ 35 °C Relative humidity ≤ 85 % 7 pieces of Cannon-Fenske reserve-flow capillary viscometer b i 6 W, 1200 rpm Capillary viscometer Stirring motor Sample quantity 3 piece at the same time Bath temperature Ambient temperature ~ 180.0 °C Measurement range 100 ~ 150 °C or 150 ~ 200 °C Bath cubage 23 L Temperature controlling accuracy ± 0.1 °C
