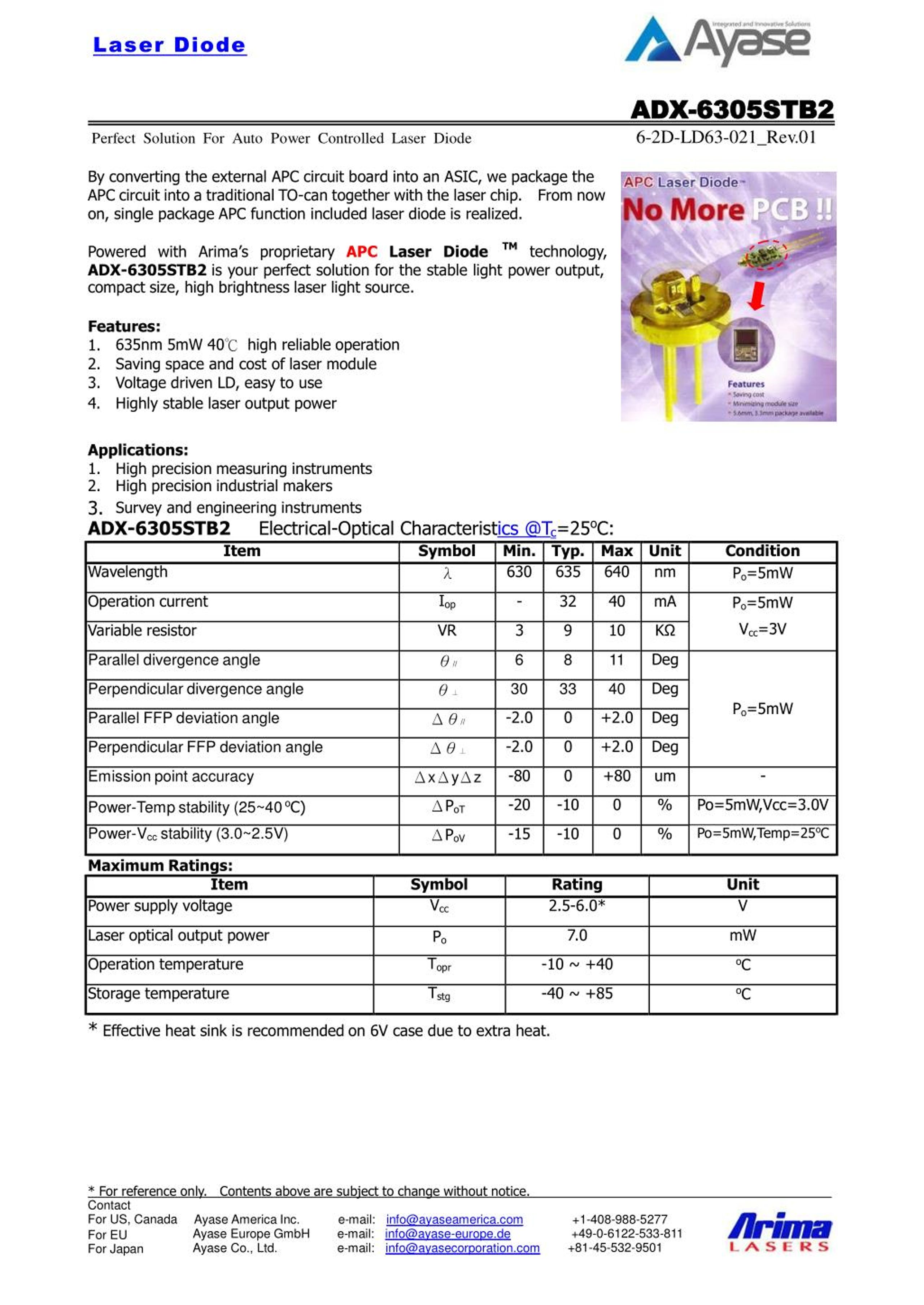

  1. Laser Diode ADX-6305STB2 6-2D-LD63-021_Rev.01 PerfectSolutionForAutoPowerControlledLaserDiode ByconvertingtheexternalAPCcircuitboardintoanASIC,wepackagethe APCcircuitintoatraditionalTO-cantogetherwiththelaserchip. Fromnow on,singlepackageAPCfunctionincludedlaserdiodeisrealized. TM technology, Powered with Arima’s proprietary APC Laser Diode ADX-6305STB2isyourperfectsolutionforthestablelightpoweroutput, compactsize,highbrightnesslaserlightsource. Features: 1. 2. 3. 4. 635nm5mW40℃highreliableoperation Savingspaceandcostoflasermodule VoltagedrivenLD,easytouse Highlystablelaseroutputpower Applications: 1. 2. Highprecisionmeasuringinstruments Highprecisionindustrialmakers Surveyandengineeringinstruments 3. ADX-6305STB2 Electrical-Optical Characteristics @Tc=25oC: Item Symbol Min. Typ. Max Unit Condition Wavelength λ 630 635 640 nm Po=5mW Operationcurrent Iop - 32 40 mA Po=5mW Vcc=3V Variableresistor VR 3 9 10 KΩ Paralleldivergenceangle θ// 6 8 11 Deg Po=5mW Perpendiculardivergenceangle θ⊥ 30 33 40 Deg ParallelFFPdeviationangle Δθ// -2.0 0 +2.0 Deg PerpendicularFFPdeviationangle Δθ⊥ -2.0 0 +2.0 Deg Emissionpointaccuracy ΔxΔyΔz -80 0 +80 um - Power-Tempstability(25~40oC) ΔPoT -20 -10 0 % Po=5mW,Vcc=3.0V Power-Vccstability(3.0~2.5V) ΔPoV -15 -10 0 % Po=5mW,Temp=25oC MaximumRatings: Item Symbol Rating Unit Powersupplyvoltage Vcc 2.5-6.0* V Laseropticaloutputpower Po 7.0 mW Operationtemperature Topr -10~+40 oC Storagetemperature Tstg -40~+85 oC *Effectiveheatsinkisrecommendedon 6Vcaseduetoextraheat. *Forreference only. Contentsabovearesubject to changewithoutnotice. Contact ForUS, Canada For EU For Japan AyaseAmericaInc. AyaseEuropeGmbH AyaseCo.,Ltd. e-mail: e-mail: e-mail: info@ayaseamerica.com +1-408-988-5277 +49-0-6122-533-811 +81-45-532-9501 info@ayase-europe.de info@ayasecorporation.com

  2. APC LaserDiode http://www.ayasecorporation.com/ ADX-6305STB2 6-2D-LD63-021_Rev.01 PerfectSolutionForAutoPowerControlledLaserDiode BlockDiagram: 1. TraditionalLDneedstoconnectanexternalAPCcircuit boardforthe constantpoweroperation.TheVR(variable resistor) isusedtoadjustthelaseroutputtoadesired targetpower. ADX-6305STB2consistsanAPCICinsidetheTO-5.6mm Bconnection 2. package,andleavestheVRoutsideforadjusting opticaloutputpower. OscillationDamperisrecommendedforstabilizing theopticaloutputpower. the 1.GND 2.Vcc 3.VR 3. OutlineDimension &Pin Assignment: 1. 2. 3. GND Vcc VR chip rface LD Emission Su Laser SafetyPrecautions 1. Toprotectlaserfromoverdrivingcondition,settingVRtomaximumvaluebeforeyouturnonVcccanminimized laser outputpower. the 2. Donotoperatethedeviceabovethemaximumratingcondition,evenmomentarily. Itmaycauseunexpected permanentdamage to the device. 3. Semiconductorlaser device isvery sensitive to electrostaticdischarge. Highvoltage spike currentmaychangethe characteristicsofthedevice,ormalfunctionatanytimeduringitsserviceperiod. Therefore,propermeasuresfor preventing electrostatic dischargearestronglyrecommended. 4. Toobtainastable characteristicand good reliability,theeffectiveheatsinkis necessary.Soitis recommendedthat always applyproperheatsinkbeforethe deviceisoperating.- 5. Do notlookinto the laserbeam directlyby bare eyes. Thelaser beammaycause severe damage to humaneyes. *Forreference only. Contentsabovearesubject to changewithoutnotice. Contact ForUS, Canada For EU For Japan AyaseAmericaInc. AyaseEuropeGmbH AyaseCo.,Ltd. e-mail: e-mail: e-mail: info@ayaseamerica.com +1-408-988-5277 +49-0-6122-533-811 +81-45-532-9501 info@ayase-europe.de info@ayasecorporation.com
