2-Position Heating Mantle

DESCRIPTION

A 2-position heating mantle is a laboratory apparatus designed for the simultaneous heating of two round-bottom<br>flasks or other similar vessels. It is commonly used in chemistry and research laboratories for applications such as<br>distillation, reflux, and reactions that require controlled and uniform heating.

Télécharger la présentation

2-Position Heating Mantle

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

  1. 2-Position Heating Mantle www.labmate.com | info@labmate.com Overview: A 2-position heating mantle is a laboratory apparatus designed for the simultaneous heating of two round-bottomflasks or other similar vessels. It is commonly used in chemistry and research laboratories for applications such as distillation, reflux, and reactions that require controlled and uniform heating.

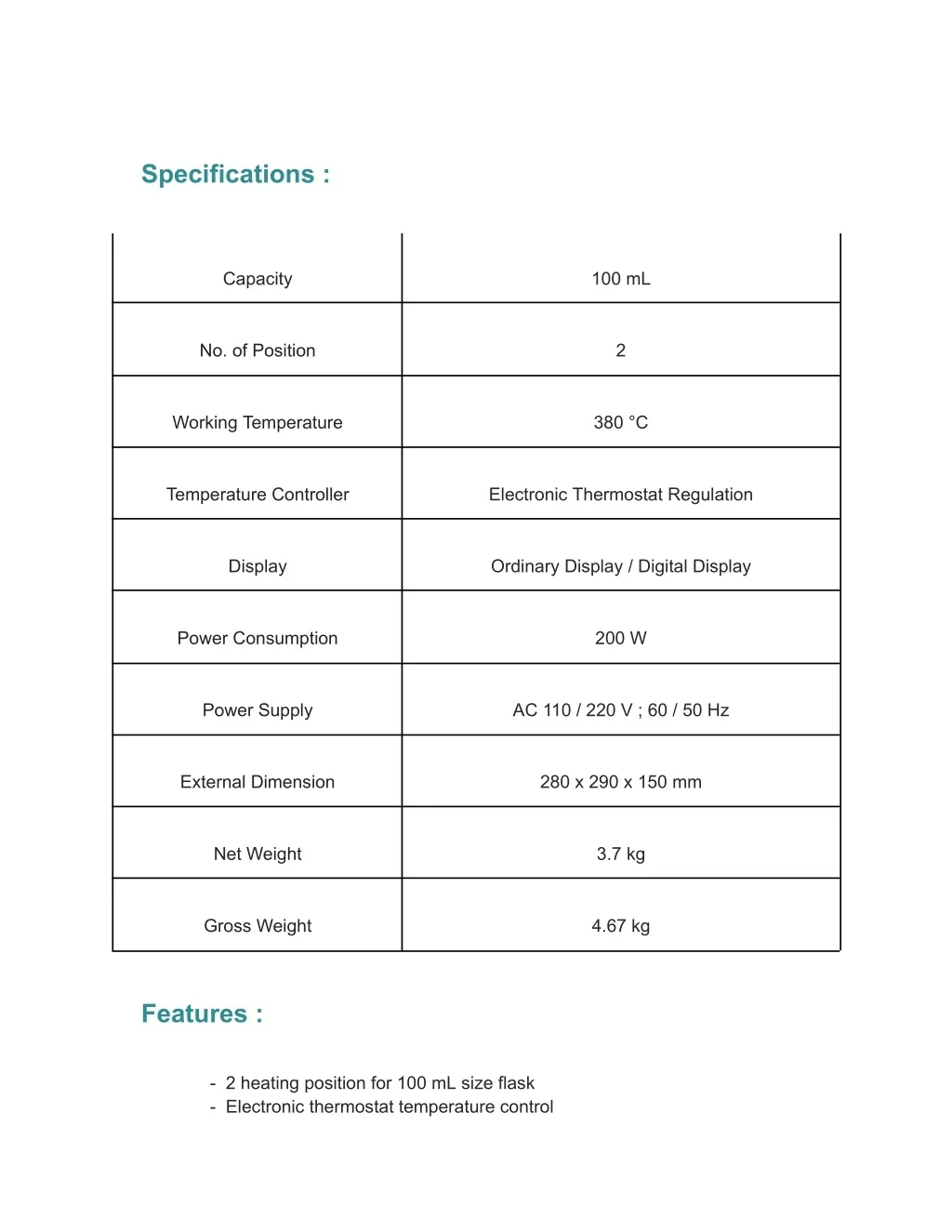

  2. Specifications : Capacity 100 mL No. of Position 2 Working Temperature 380 °C Temperature Controller Electronic Thermostat Regulation Display Ordinary Display / Digital Display Power Consumption 200 W Power Supply AC 110 / 220 V ; 60 / 50 Hz External Dimension 280 x 290 x 150 mm Net Weight 3.7 kg Gross Weight 4.67 kg Features : - 2 heating position for 100 mL size flask - Electronic thermostat temperature control

  3. - High-temperature resistance alkali-free glass fiber insulation - Nichrome resistive conductor braided within the insulating material - Speed heating with temperature uniformity - Sufficient heating area with good heat preservation - Corrosion-resistant durable steel case with electrostatic surface treatment - Ordinary knob type or digital type display (Customizable) Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
