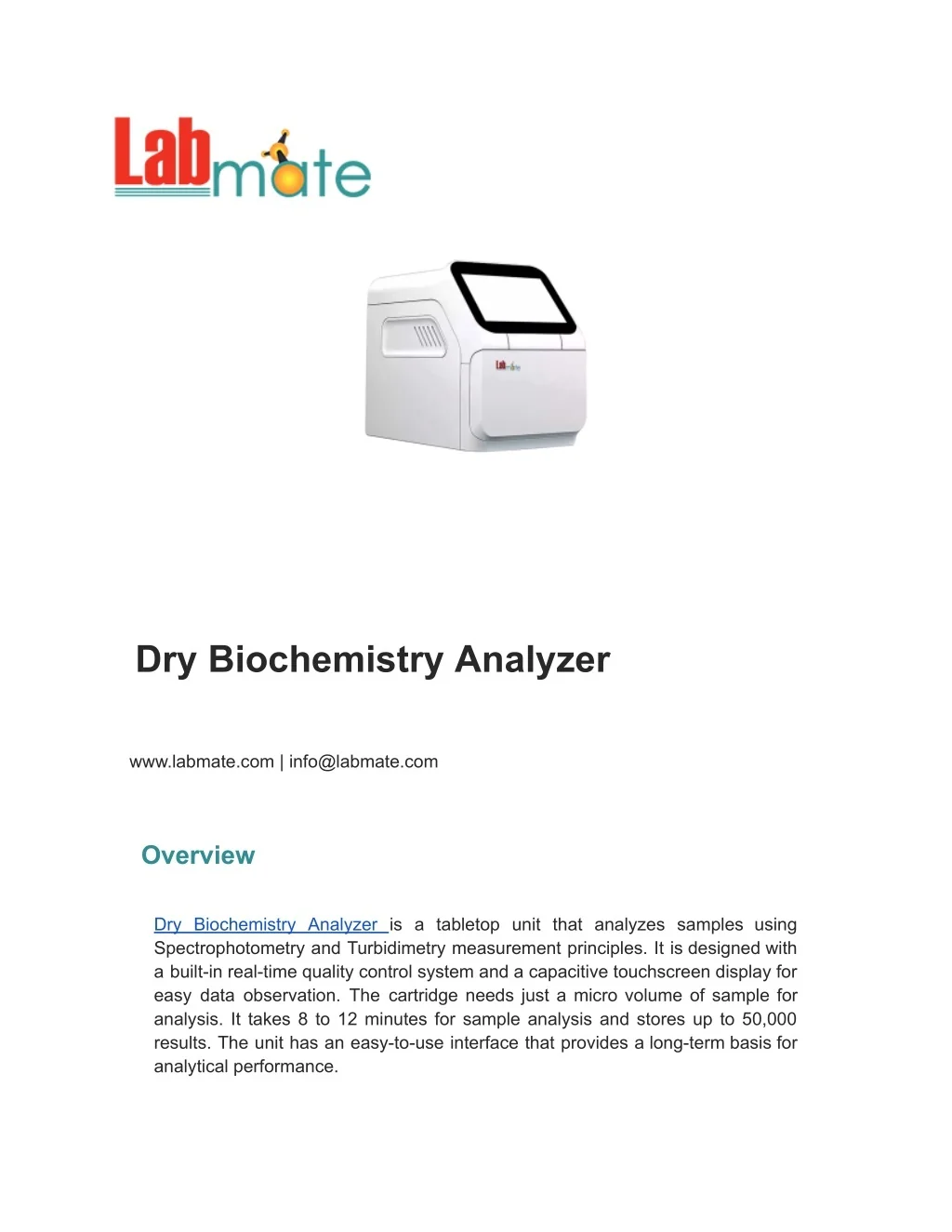

1. Dry Biochemistry Analyzer www.labmate.com | info@labmate.com Overview Dry Biochemistry Analyzer is a tabletop unit that analyzes samples using Spectrophotometry and Turbidimetry measurement principles. It is designed with a built-in real-time quality control system and a capacitive touchscreen display for easy data observation. The cartridge needs just a micro volume of sample for analysis. It takes 8 to 12 minutes for sample analysis and stores up to 50,000 results. The unit has an easy-to-use interface that provides a long-term basis for analytical performance.

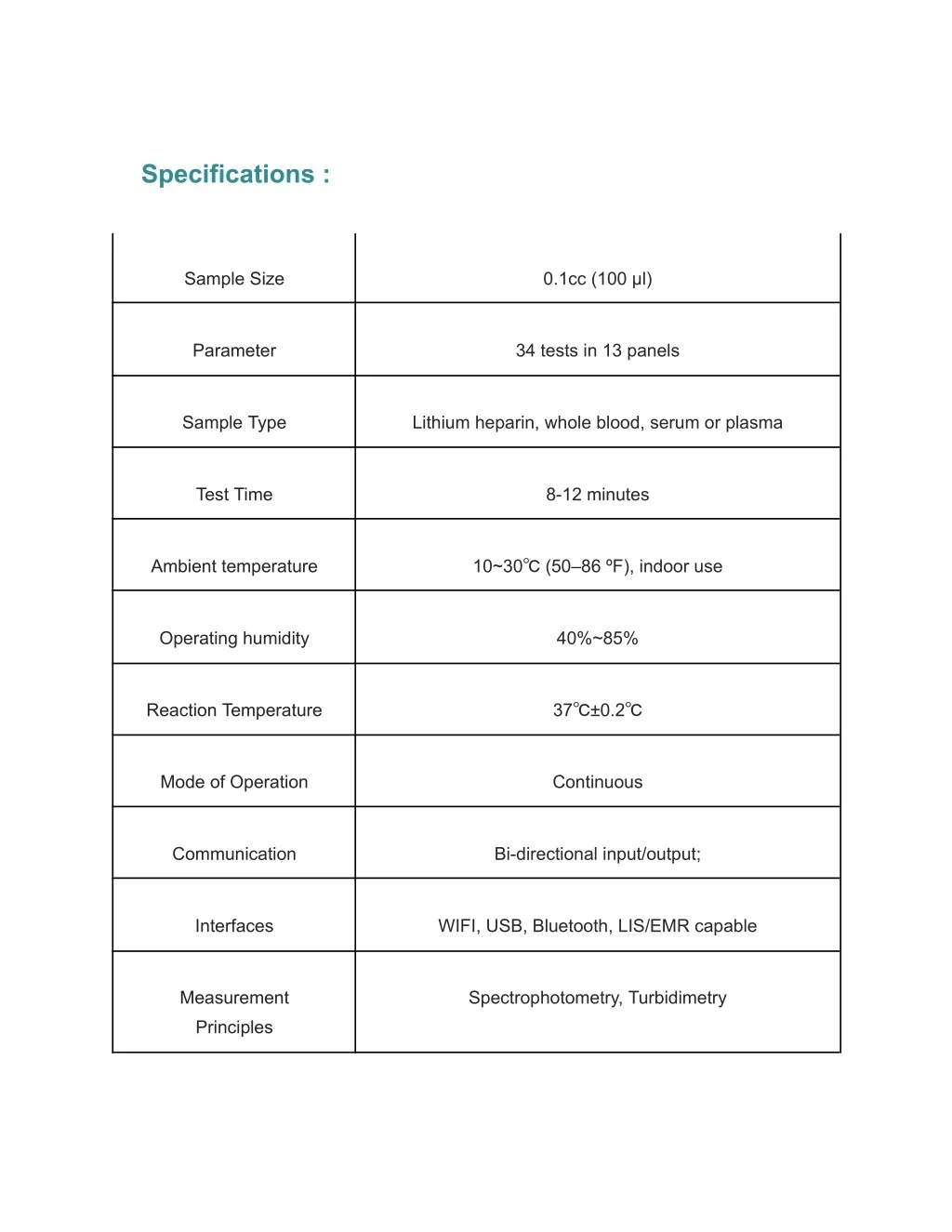

2. Specifications : Sample Size 0.1cc (100 µl) Parameter 34 tests in 13 panels Sample Type Lithium heparin, whole blood, serum or plasma Test Time 8-12 minutes Ambient temperature 10~30℃ (50–86 ºF), indoor use Operating humidity 40%~85% Reaction Temperature 37℃±0.2℃ Mode of Operation Continuous Communication Bi-directional input/output; Interfaces WIFI, USB, Bluetooth, LIS/EMR capable Measurement Spectrophotometry, Turbidimetry Principles

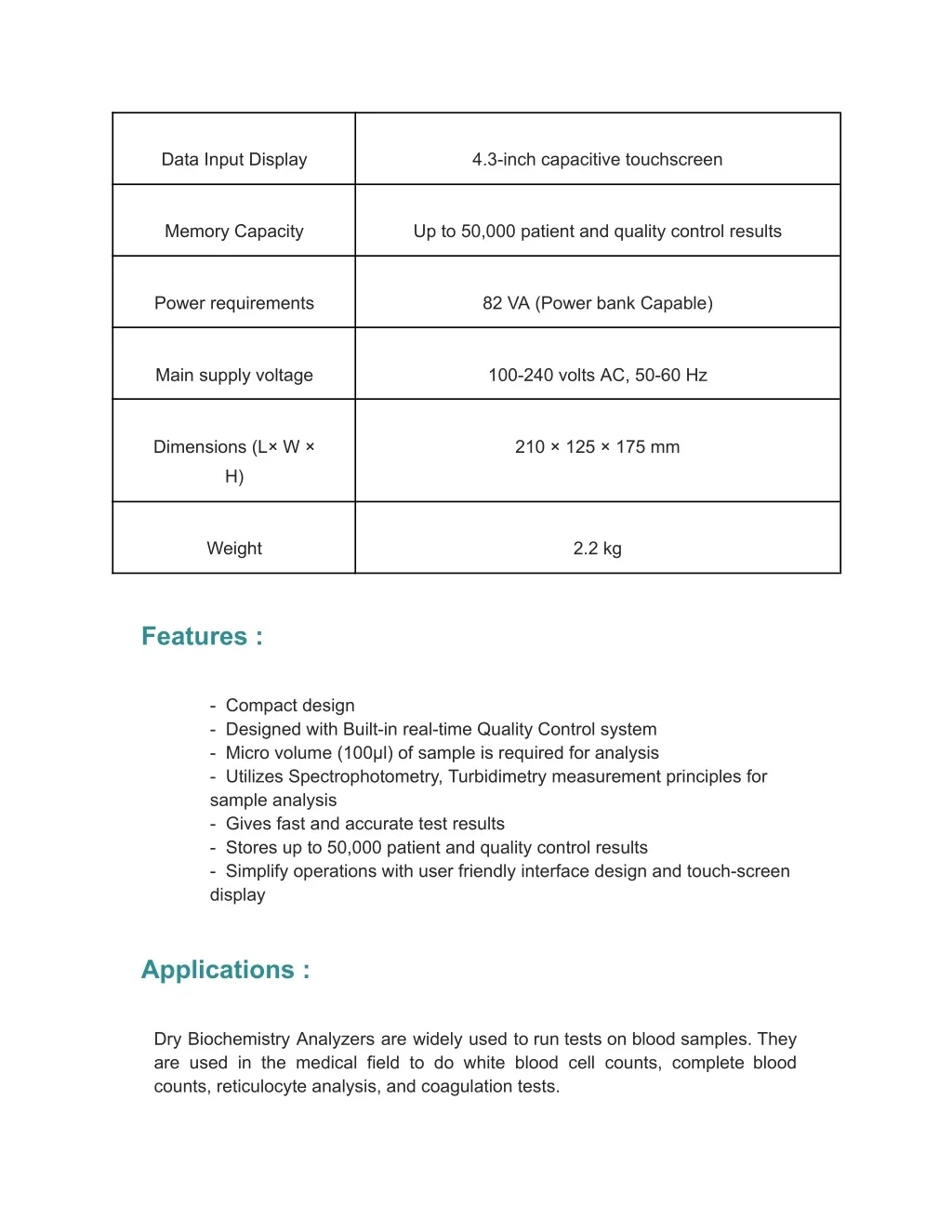

3. Data Input Display 4.3-inch capacitive touchscreen Memory Capacity Up to 50,000 patient and quality control results Power requirements 82 VA (Power bank Capable) Main supply voltage 100-240 volts AC, 50-60 Hz Dimensions (L× W × 210 × 125 × 175 mm H) Weight 2.2 kg Features : - Compact design - Designed with Built-in real-time Quality Control system - Micro volume (100µl) of sample is required for analysis - Utilizes Spectrophotometry, Turbidimetry measurement principles for sample analysis - Gives fast and accurate test results - Stores up to 50,000 patient and quality control results - Simplify operations with user friendly interface design and touch-screen display Applications : Dry Biochemistry Analyzers are widely used to run tests on blood samples. They are used in the medical field to do white blood cell counts, complete blood counts, reticulocyte analysis, and coagulation tests.

4. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
