Illumination-Incubator

DESCRIPTION

An Illumination Incubator is a specialized laboratory device designed for the cultivation and<br>study of photosensitive organisms or processes. It typically integrates precise temperature and <br>humidity control with adjustable illumination settings, often including LED panels or fluorescent <br>bulbs mimicking natural light conditions. This enables researchers to manipulate light exposure <br>for experiments involving photosynthesis, phototaxis, circadian rhythms, or other light-dependent <br>biological phenomena.

Télécharger la présentation

Illumination-Incubator

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

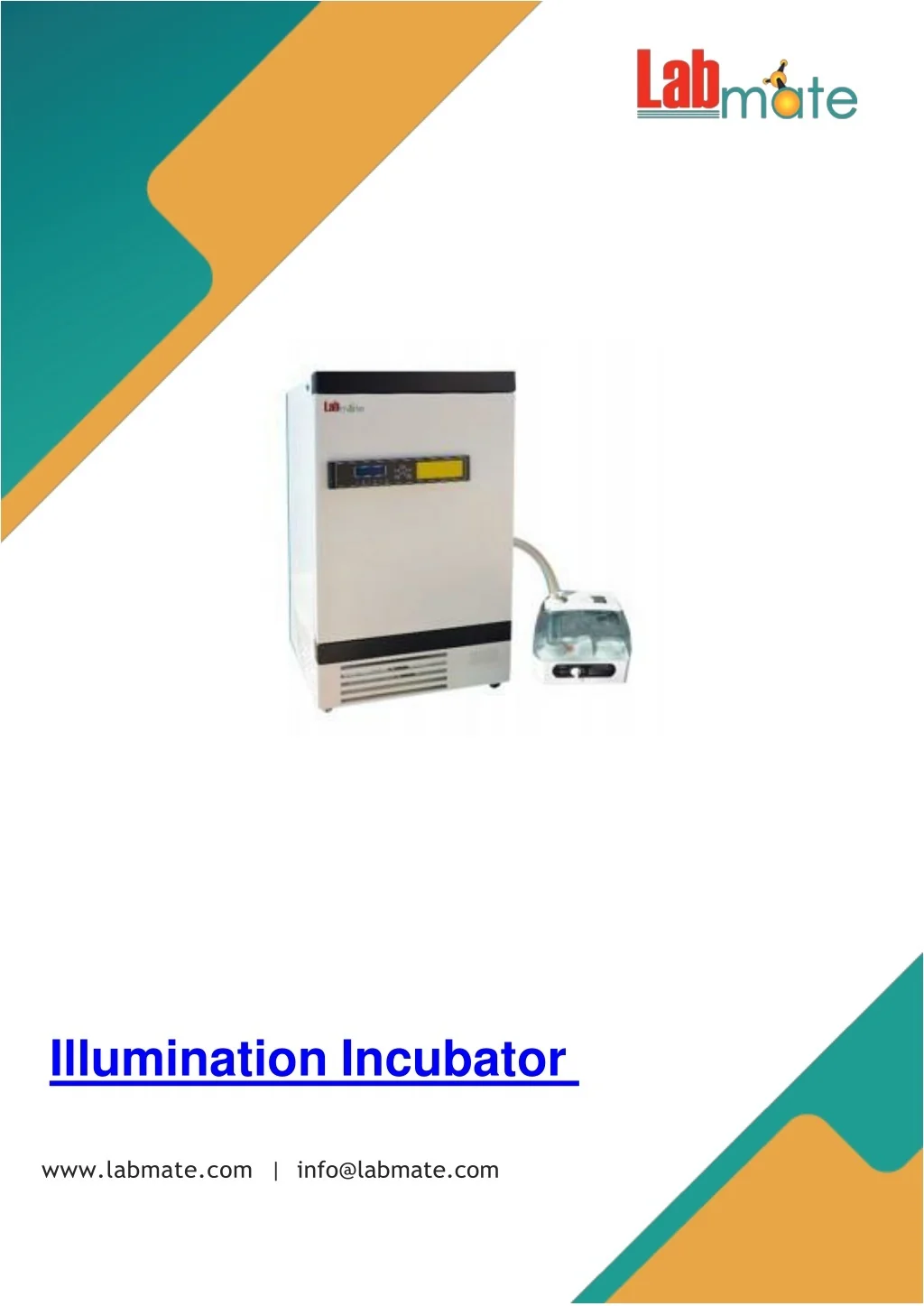

  1. Illumination Incubator www.labmate.com|info@labmate.com

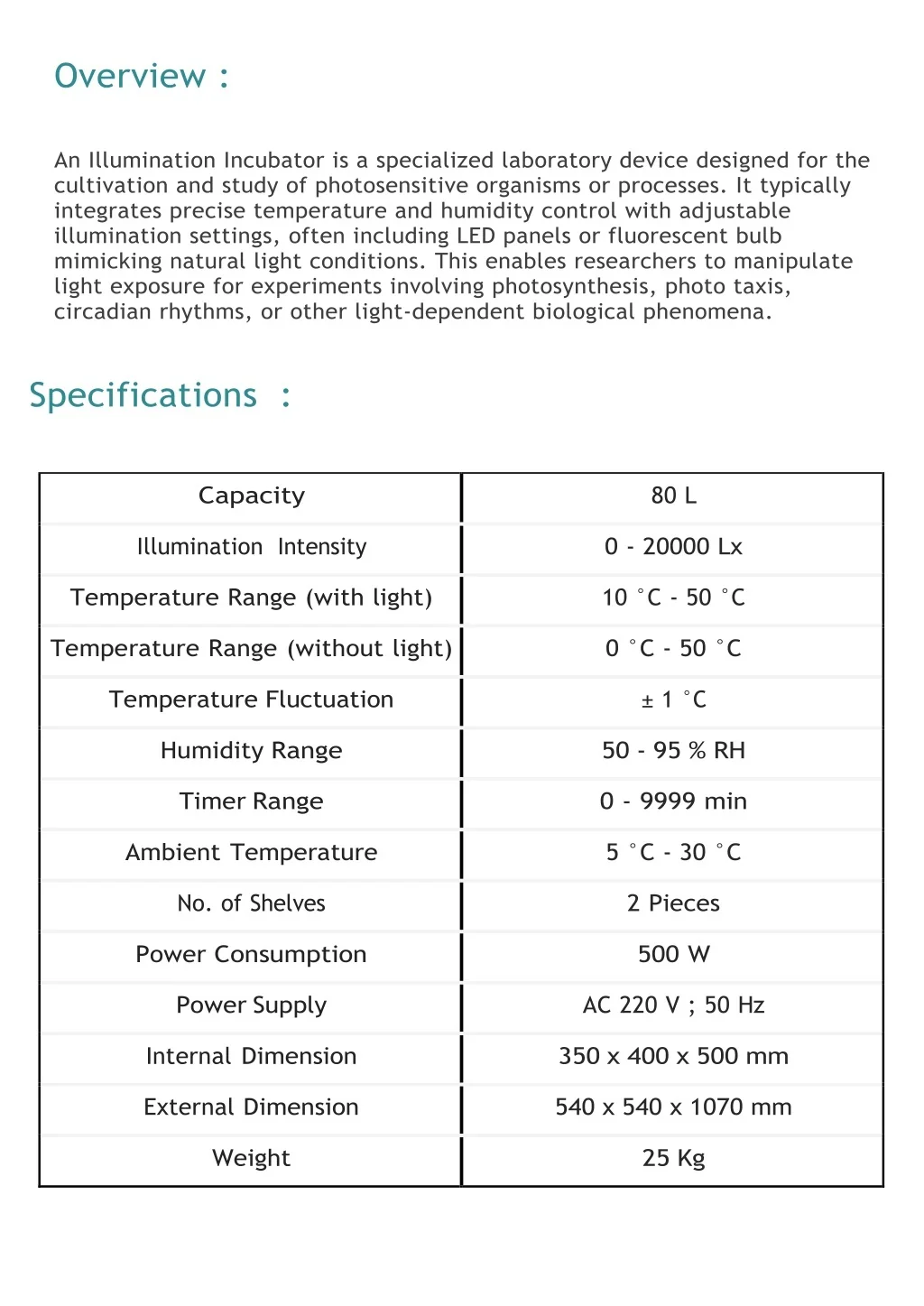

  2. Overview : Specifications: Capacity 80 L IlluminationIntensity 0 - 20000 Lx Temperature Range (with light) 10 °C - 50 °C Temperature Range (without light) 0 °C - 50 °C Temperature Fluctuation ± 1 °C Humidity Range 50 - 95 % RH Timer Range 0 - 9999 min Ambient Temperature 5 °C - 30 °C No. of Shelves 2 Pieces Power Consumption 500 W Power Supply AC 220 V ; 50 Hz Internal Dimension 350 x 400 x 500 mm External Dimension 540 x 540 x 1070 mm Weight 25 Kg

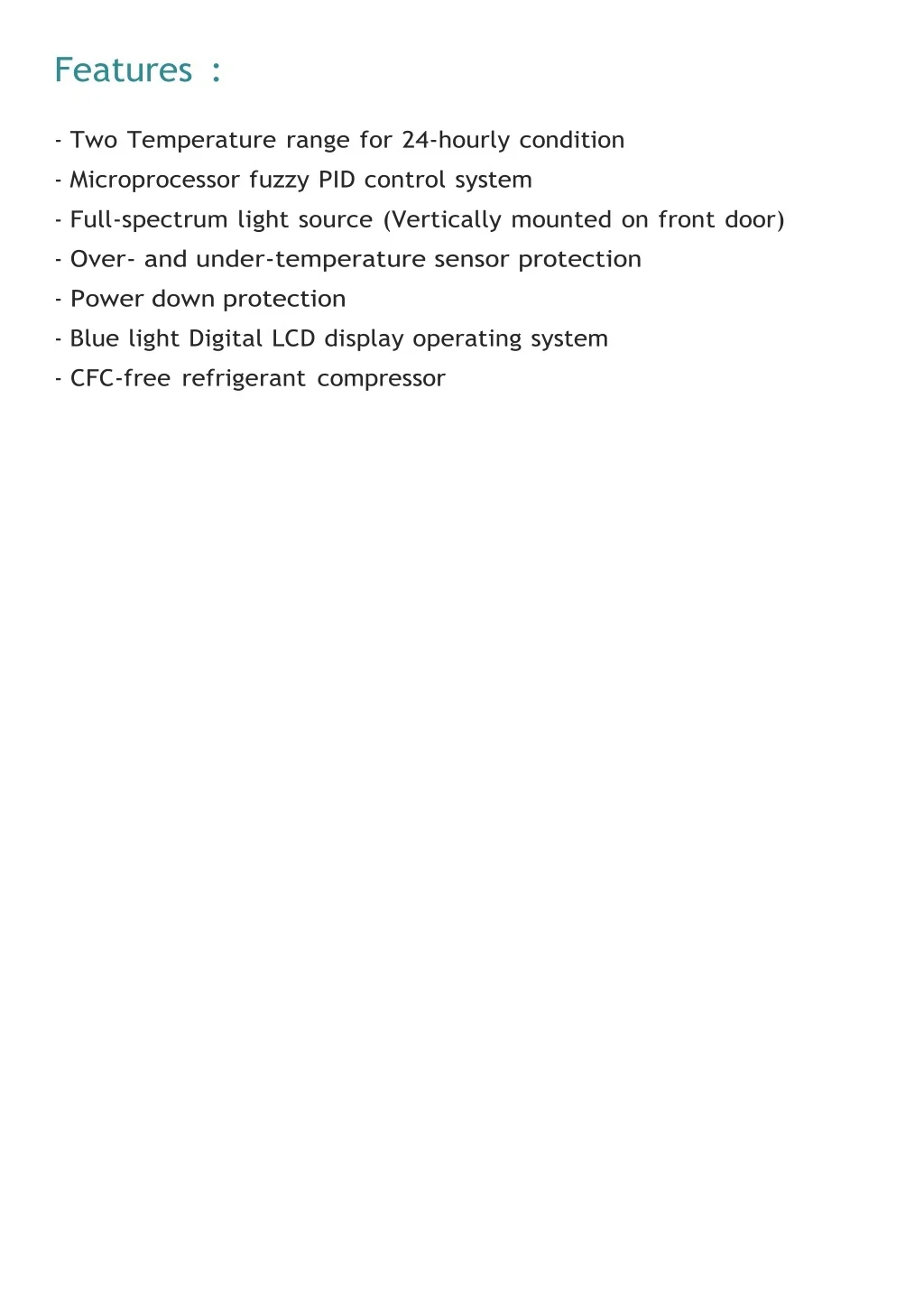

  3. Features: -Two Temperature range for 24-hourly condition -Microprocessor fuzzy PID control system -Full-spectrum light source (Vertically mounted on front door) -Over- and under-temperature sensor protection -Power down protection -Blue light Digital LCD display operating system -CFC-free refrigerant compressor

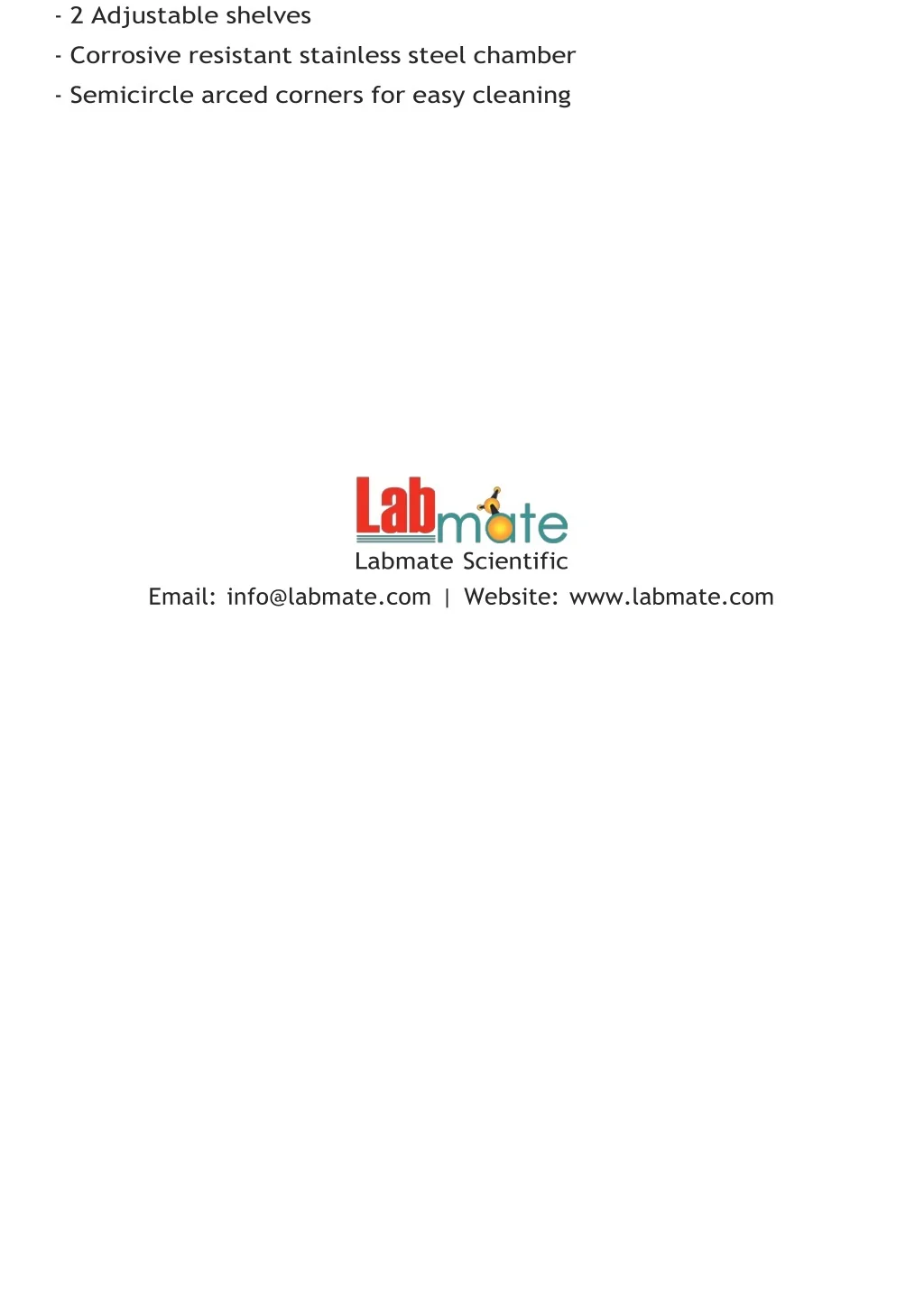

  4. -2 Adjustable shelves -Corrosive resistant stainless steel chamber -Semicircle arced corners for easy cleaning Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
