Textile-Balance

DESCRIPTION

Textile Balance features 110 g of capacity and boasts a readability of 99.5D. Our textile balance is equipped with a load cell sensor <br>and designed for gentle handling of raw silk materials, ensuring accurate measurements without causing damage. It is incorporated <br>with an LCD and a user-friendly interface ensures ease of operation.<br><br>

Télécharger la présentation

Textile-Balance

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

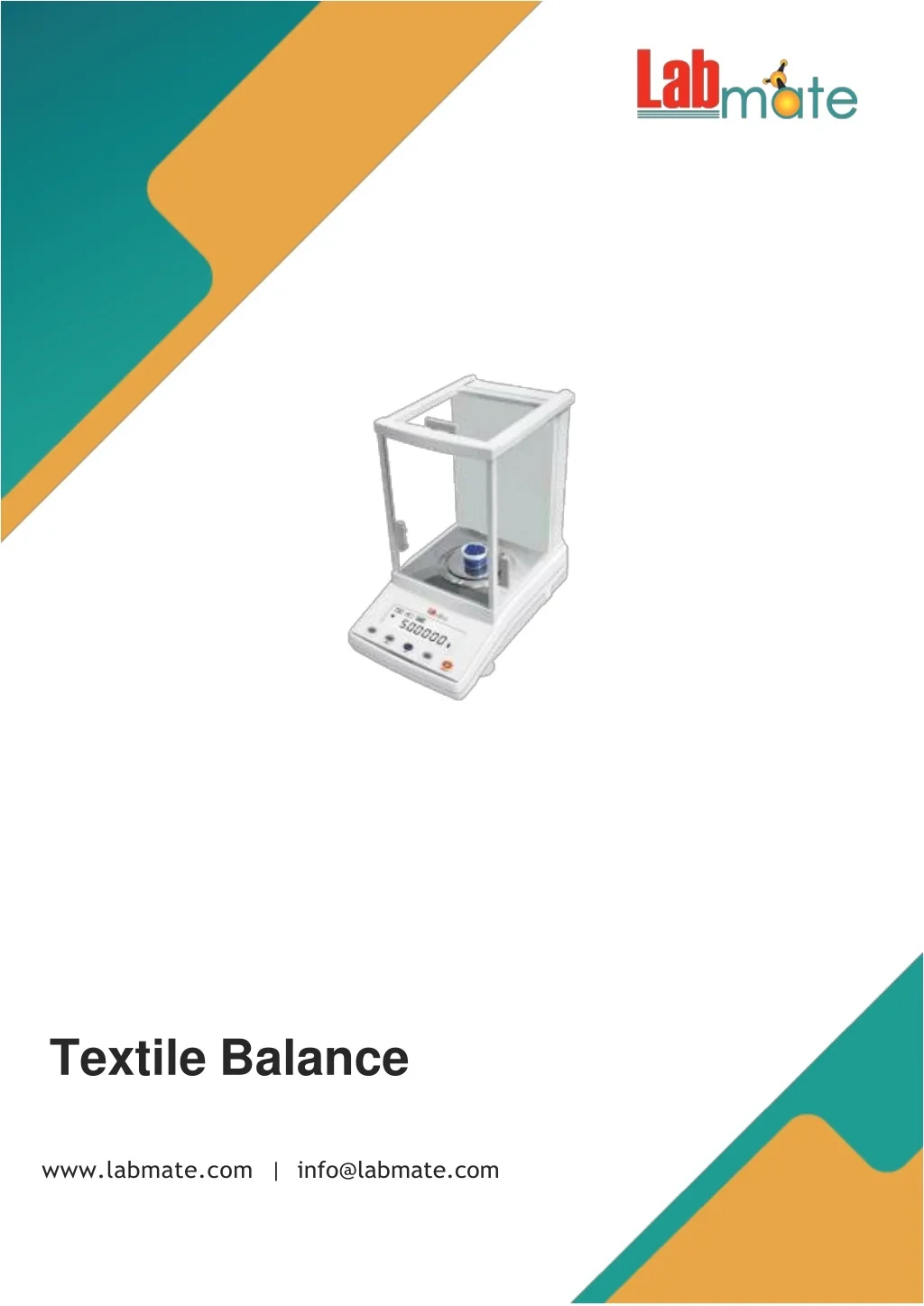

  1. Textile Balance www.labmate.com|info@labmate.com

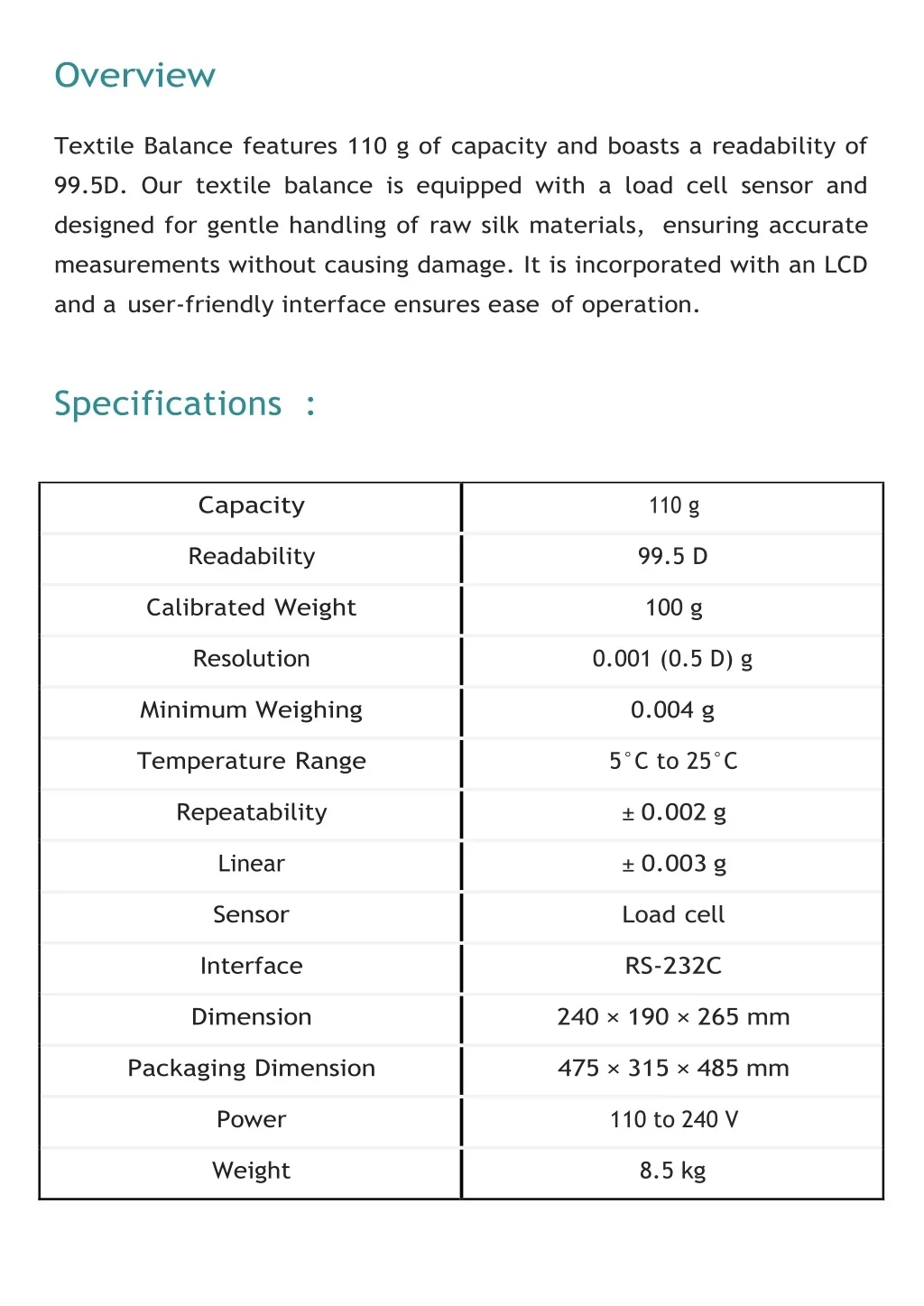

  2. Overview Textile Balance features 110 g of capacity and boasts a readability of 99.5D. Our textile balance is equipped with a load cell sensor and designed for gentle handling of raw silk materials,ensuring accurate measurements without causing damage. It is incorporated with an LCD and a user-friendly interface ensures ease of operation. Specifications: Capacity 110g Readability 99.5 D Calibrated Weight 100 g Resolution 0.001 (0.5 D) g Minimum Weighing 0.004 g Temperature Range 5°C to 25°C Repeatability ± 0.002 g Linear ± 0.003 g Sensor Load cell Interface RS-232C Dimension 240 × 190 × 265 mm Packaging Dimension 475 × 315 × 485 mm Power 110 to 240 V Weight 8.5 kg

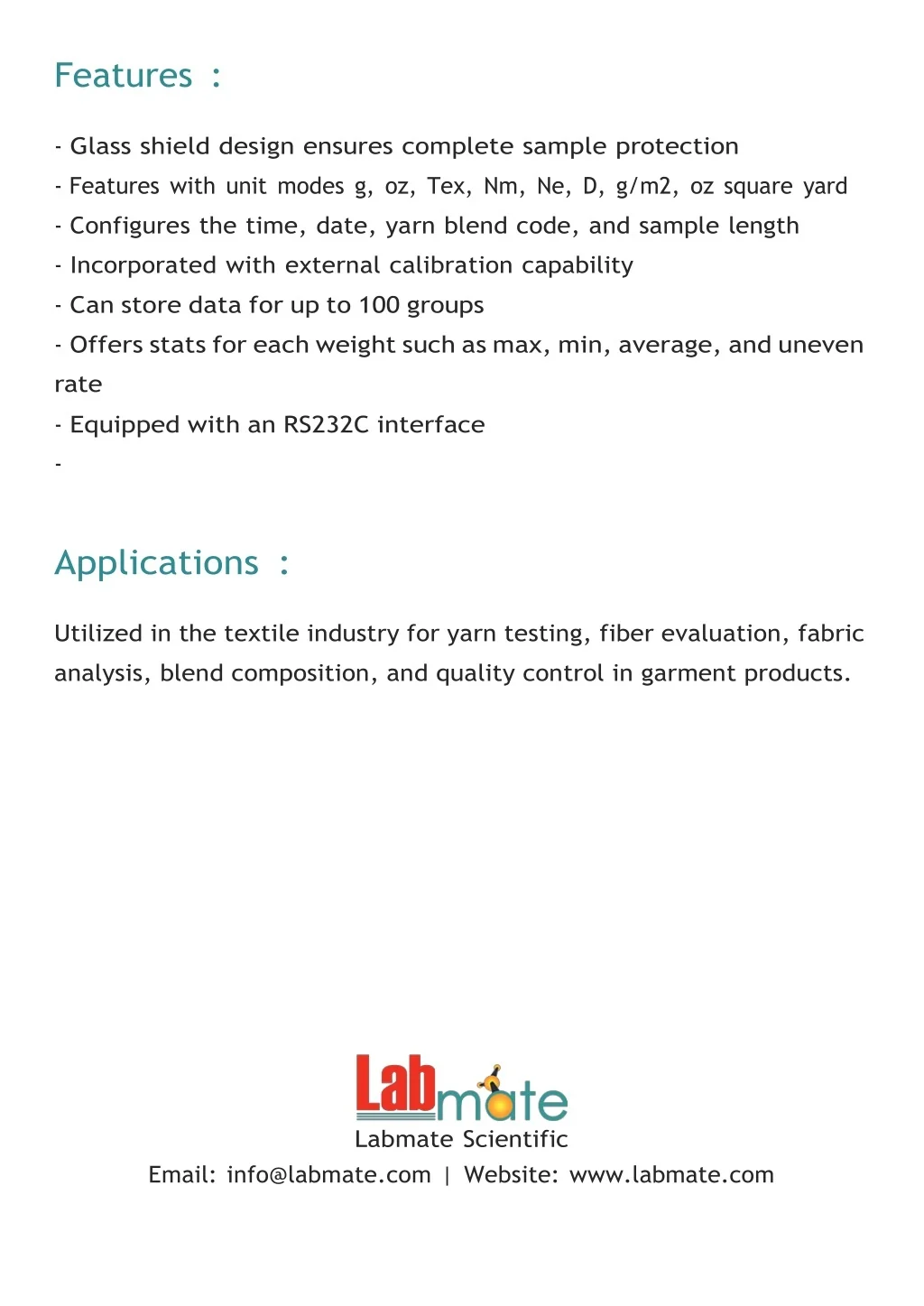

  3. Features: -Glass shield design ensures complete sample protection -Features with unit modes g, oz, Tex, Nm, Ne, D, g/m2, oz square yard -Configures the time, date, yarn blend code, and sample length -Incorporated with external calibration capability -Can store data for up to 100 groups -Offers stats for each weight such as max, min, average, and uneven rate -Equipped with an RS232C interface - Applications: Utilized in the textile industry for yarn testing, fiber evaluation, fabric analysis, blend composition, and quality control in garment products. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
