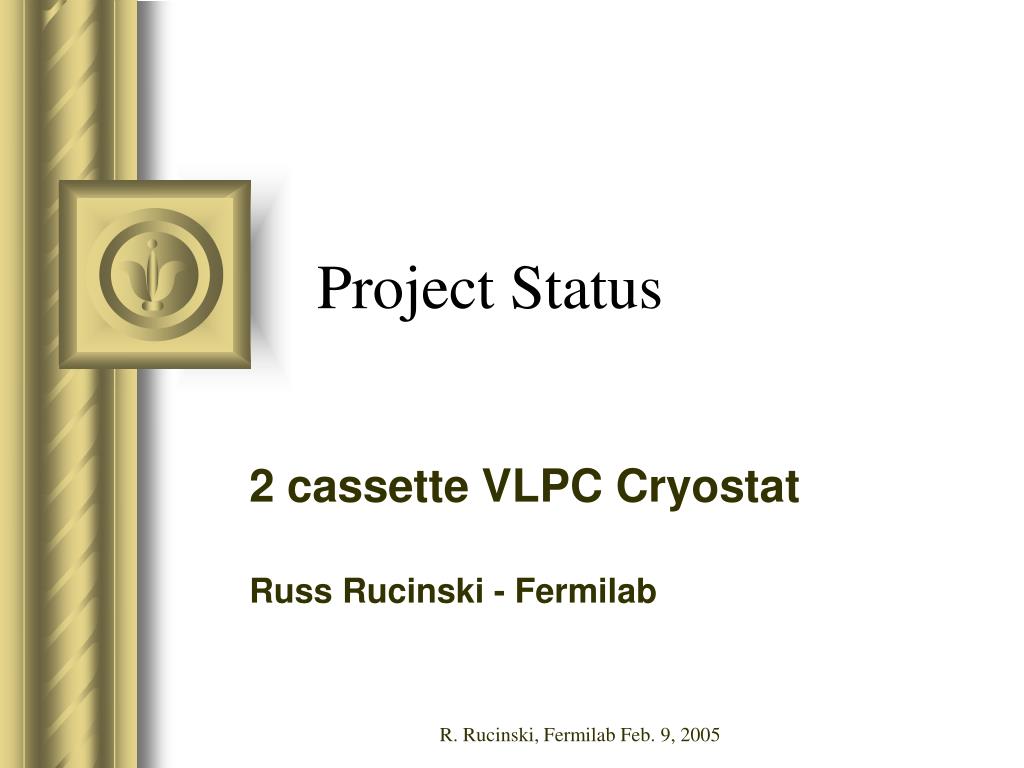

  1. This presentation will probably involve audience discussion, which will create action items. Use PowerPoint to keep track of these action items during your presentation • In Slide Show, click on the right mouse button • Select “Meeting Minder” • Select the “Action Items” tab • Type in action items as they come up • Click OK to dismiss this box • This will automatically create an Action Item slide at the end of your presentation with your points entered. Project Status 2 cassette VLPC Cryostat Russ Rucinski - Fermilab R. Rucinski, Fermilab Feb. 9, 2005

  2. Preliminary fit up - good R. Rucinski, Fermilab Feb. 9, 2005

  3. Preliminary fit up - good R. Rucinski, Fermilab Feb. 9, 2005

  4. Status Summary • Real assembly should start this week. • Many miscellaneous parts ordered and most here. (o-rings, bolts, cryo grease, fittings, copper strips) • Compressor for Cryo cooler wired up. Extending control cables. • Run Cryo cooler only – week of 2/21? • Cool cassettes – week of 2/28 or later? • Ship in March R. Rucinski, Fermilab Feb. 9, 2005

  5. Pictures – Thermal links • Thermal link fabrication problems have a solution – Copper here. Solder on order. Delivered parts cleaned up for re-use. • Using 30 sheets of 0.005” thick copper at each link. • Polyimide (Kapton) 0.003” as solder mask • Calculate Temp drop 1.0 K at 65 K, & 0.1 K at 8 K station • Calculate 20 lbf, 90 Newtons force to flex R. Rucinski, Fermilab Feb. 9, 2005

  6. Pictures – Assembly stand R. Rucinski, Fermilab Feb. 9, 2005

  7. Pictures Compressor Wired up Invar Envelopes: Dimensional dummy Inserted in RHS Stiffener parts R. Rucinski, Fermilab Feb. 9, 2005

  8. Areas of possible concern • Control system details • Sensors, controllers, heater, feed thru’s • Safety Documents & approval • “Pressure vessel” is special • Need to size & obtain relief valves • Thermal link fabrication unknowns • Temperature & pressure stability • small gas volume • part of commissioning/test R. Rucinski, Fermilab Feb. 9, 2005

  9. Schedule details R. Rucinski, Fermilab Feb. 9, 2005
