  1. Chainpur Initial Configuration VE = 1.07

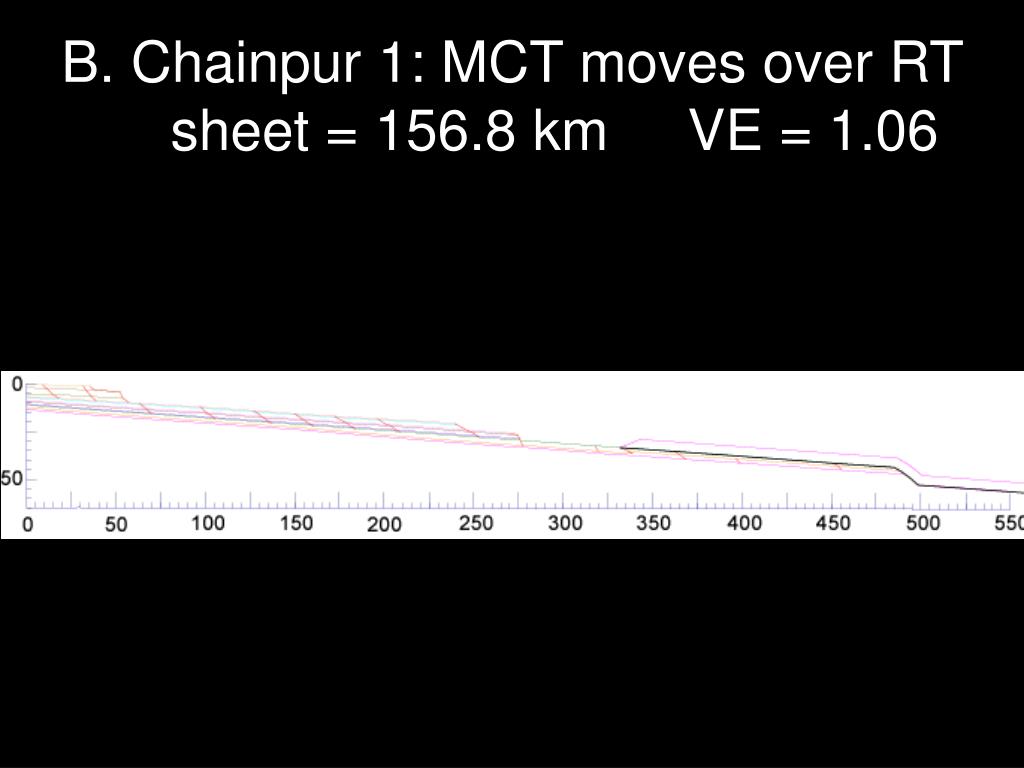

  2. B. Chainpur 1: MCT moves over RT sheet = 156.8 km VE = 1.06

  3. C. Chainpur 2: RT imbricate moves over RT sheet = 28.8 km VE = 1.05

  4. D. Chainpur 3: Next K/Rn thrust sheet moves = 32 km VE = 1.06

  5. E. Chainpur 4: RT sheet moves = 48 km VE = 1.04

  6. F. Chainpur 5: Kushma thrust slice moves = 10.7 km VE = 0.97

  7. G. Chainpur 6: Rn thrust slice moves = 32 km VE = 1.05

  8. H. Chainpur 7: Rn thrust slice moves = 34.1 km VE = 1.07 Scale stops changing here

  9. I. Chainpur 8: 1st LH thrust slice moves = 32 km VE = 1.08

  10. J. Chainpur 9: 2nd LH thrust slice moves = 26.7 km VE = 1.07

  11. K. Chainpur 10: 3rd LH thrust slice moves = 12.8 km VE = 1.07

  12. L. Chainpur 11: 4th LH thrust slice moves = 12.8 km VE = 1.07

  13. M. Chainpur 12: 5th LH thrust slice moves = 12.8 km VE = 1.07

  14. N. Chainpur 13: 6th LH thrust slice moves via FPF = 2.1 km VE = 1.07

  15. O. Chainpur 14: 7th LH thrust slice moves = 22.9 km VE = 1.07

  16. P. Chainpur 15: 1st Siwaliks thrust slice moves = 10.7 km VE = 1.07

  17. Q. Chainpur 16: 2nd Siwaliks thrust slice moves = 10.7 km VE = 1.07

  18. R. Chainpur 17: normal fault = -1.6 km VE = 1.07

  19. S. Chainpur 18: thrust fault = 8.5 km VE = 1.07

  20. T. Chainpur 19: normal fault = -4.3 km VE = 1.07

  21. U. Chainpur 20: thrust fault = 4.3 km VE = 1.07

  22. V. Chainpur 21: thrust fault = 3.2 km VE = 1.07

  23. W. Chainpur 22: normal fault = -2.1 km VE = 1.07

  24. X. Chainpur 23: thrust fault = 3.2 km VE = 1.07 New fault not recognized in the field

  25. Y. Chainpur 24: thrust fault via FPF = 2.1 km VE = 1.07

  26. Z. Chainpur 25: normal fault = 2.1 km VE = 1.07

  27. AA. Chainpur 26: Final Configuration VE = 1.07
